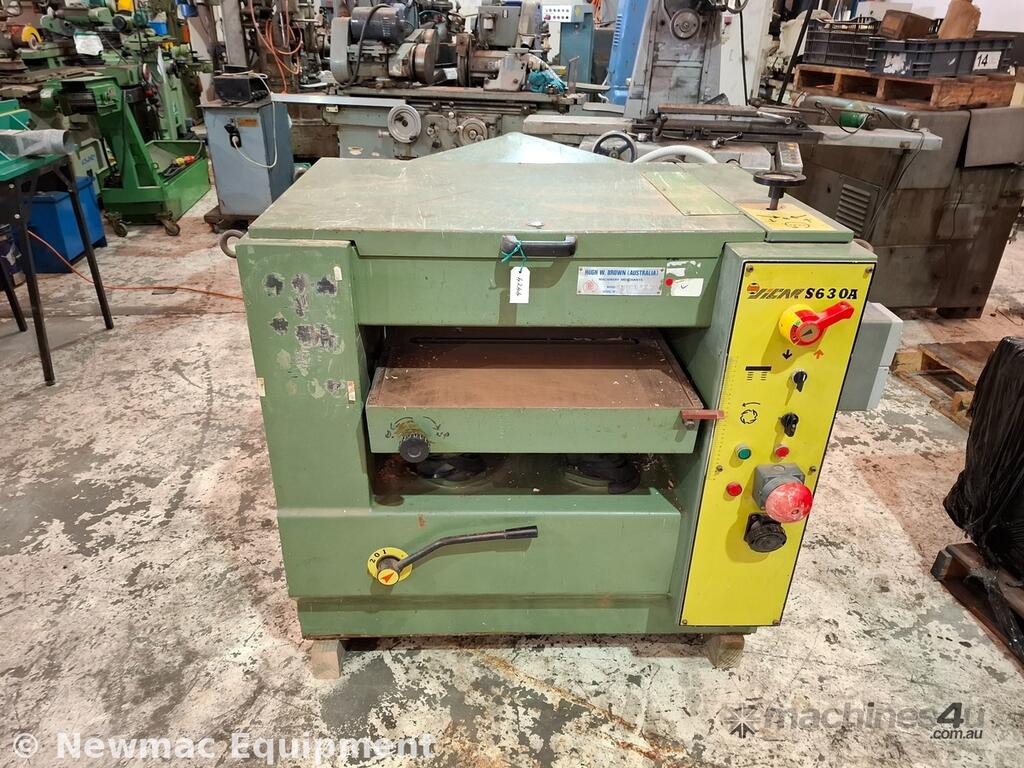

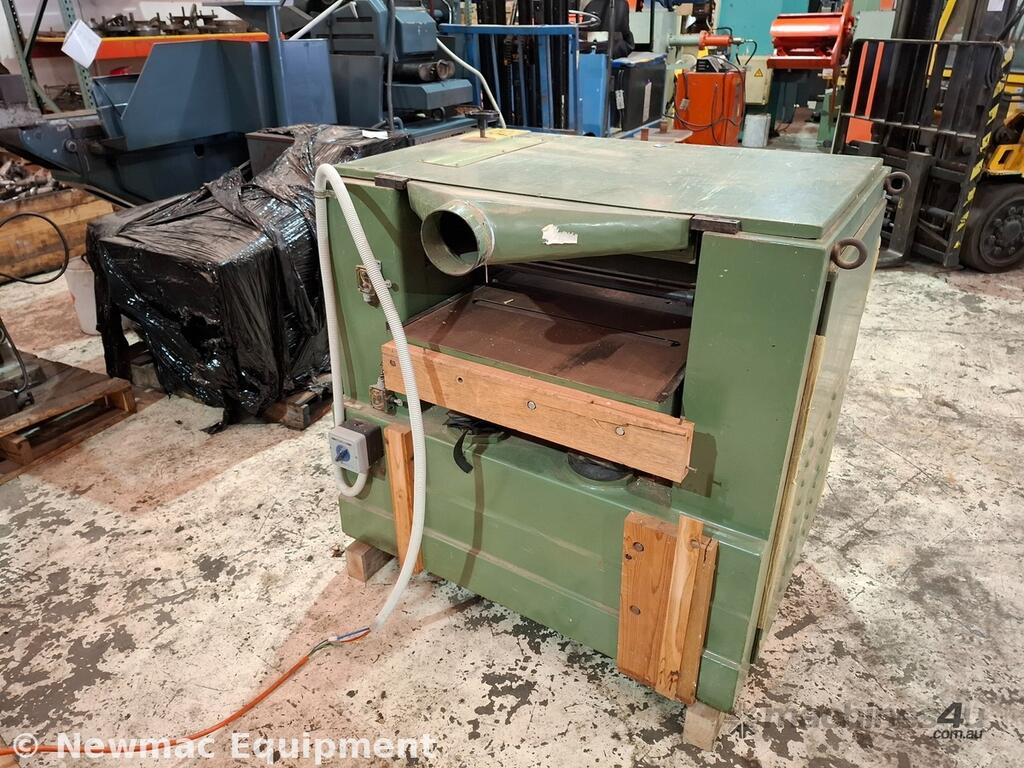

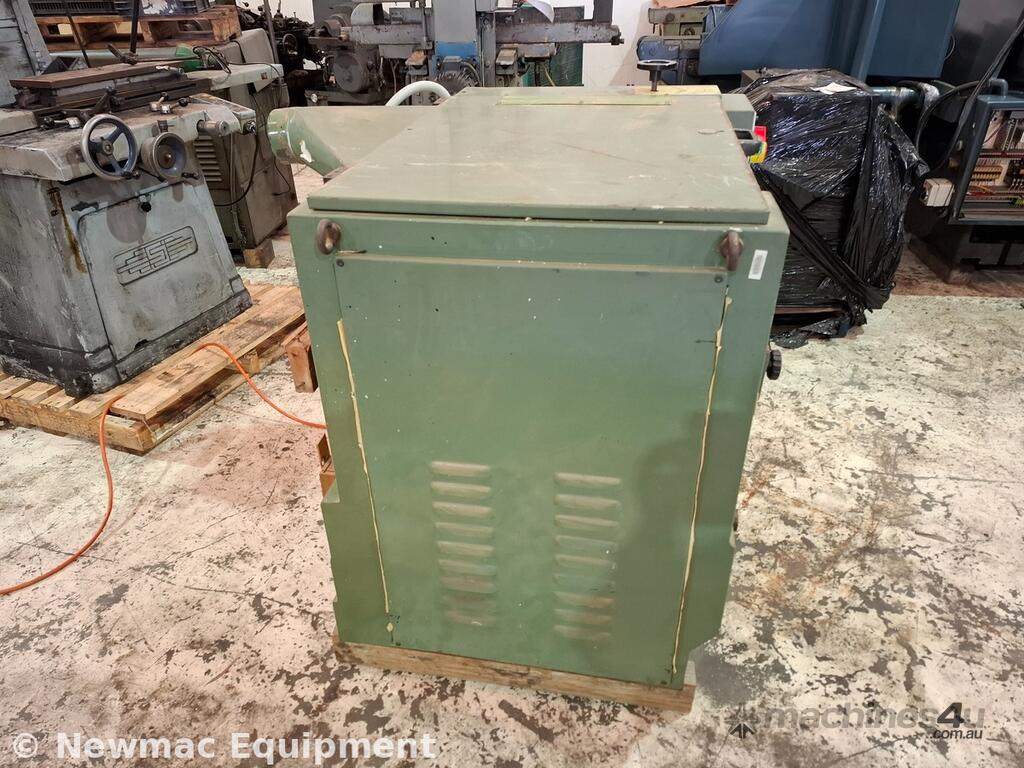

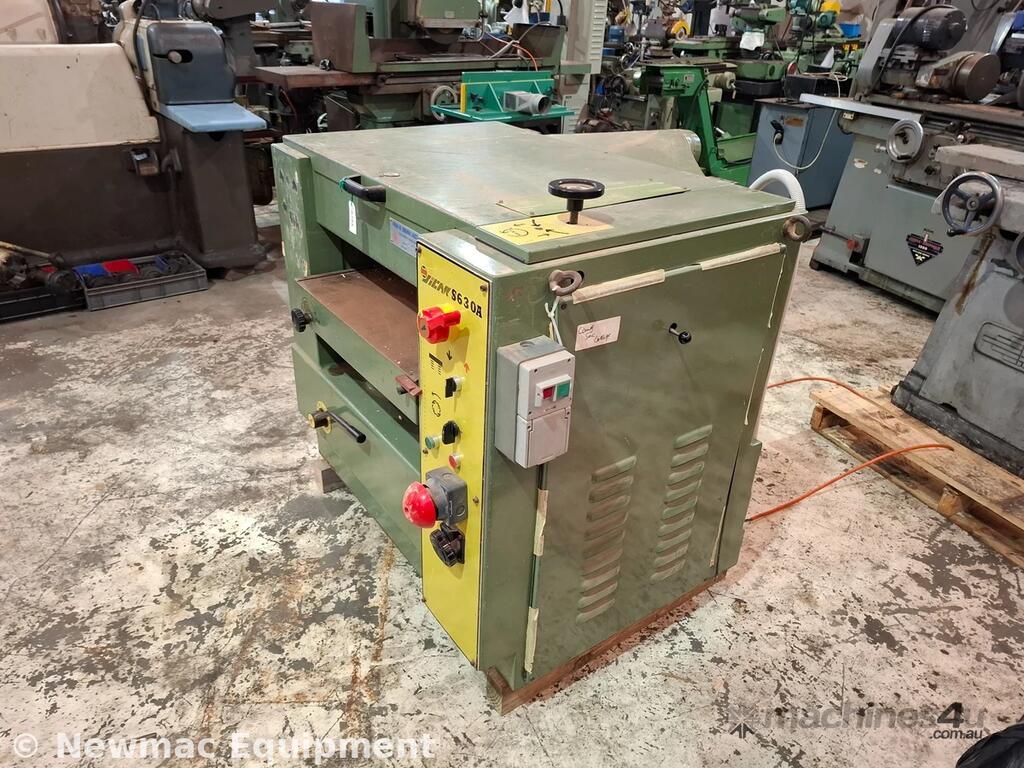

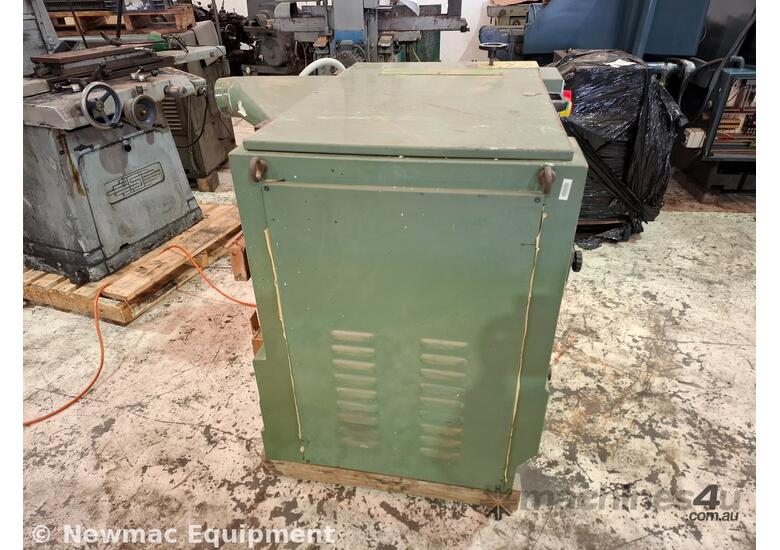

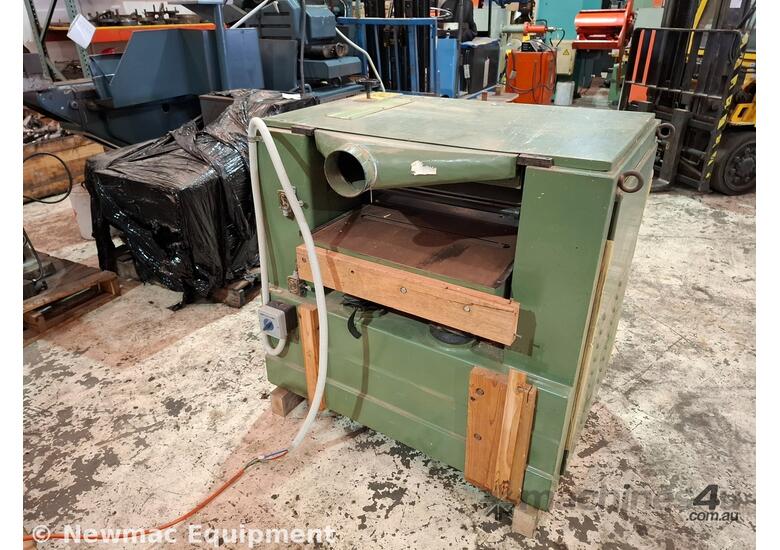

Sicar S630A Thicknesser

We have a high-quality, used Italian-made Sicar S630A Thicknesser in good condition for sale.

Designed for accurate planing of wide boards and production work, this machine features cast-iron tables and a robust feed system — ideal for cabinet shops, joineries, and schools needing a consistent finish and easy setup.

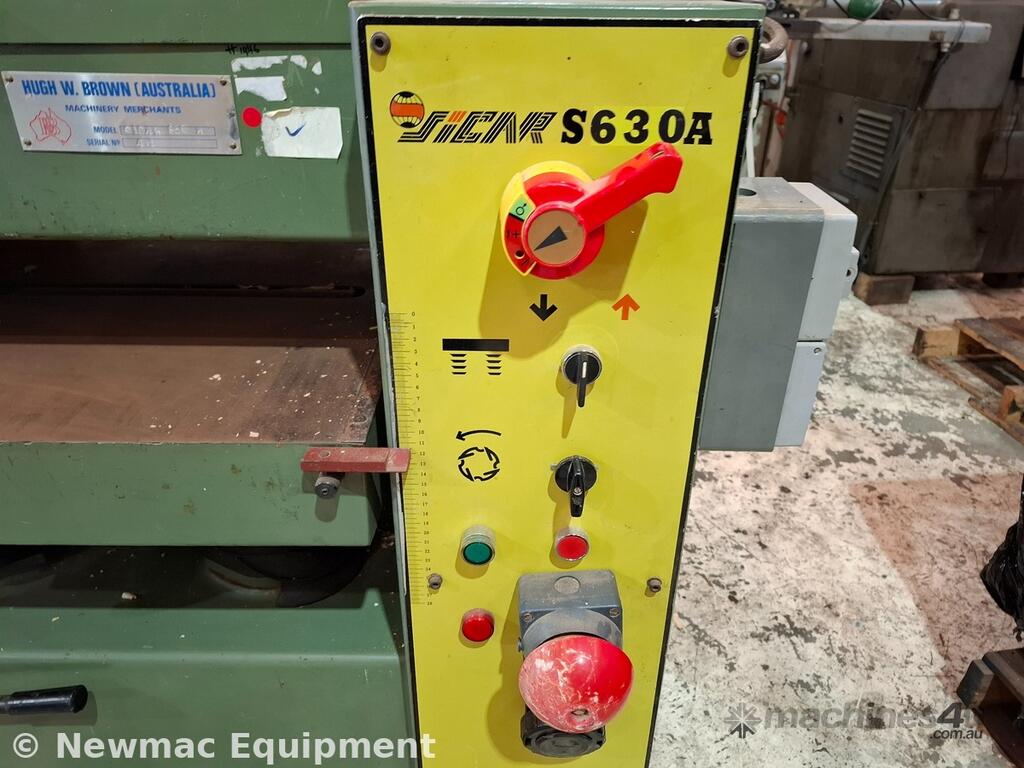

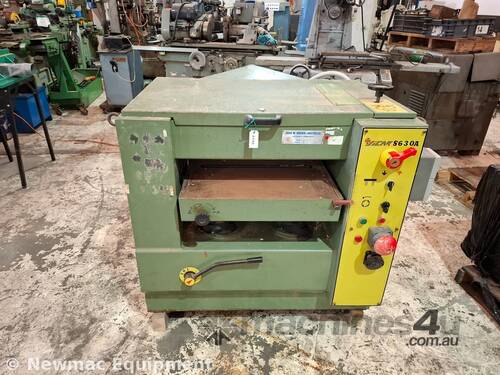

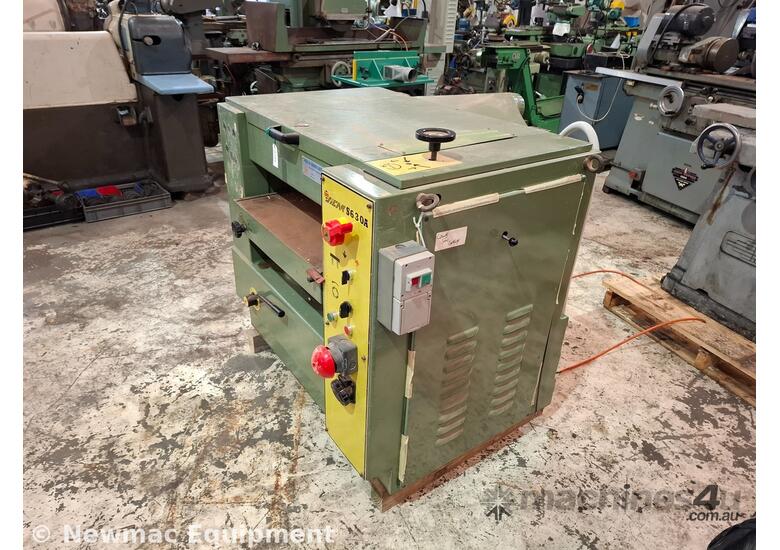

Control Overview – What Does What
Feed speed selector (lever, lower left side panel): two-speed mechanical gearbox

Slow: for finer finish and difficult grain

Fast: for higher throughput on softwoods/straight grain

(Always change speeds with the machine stopped)

Thickness scale (left of mouth): shows the table-to-cutter distance (finished thickness), with red pointer

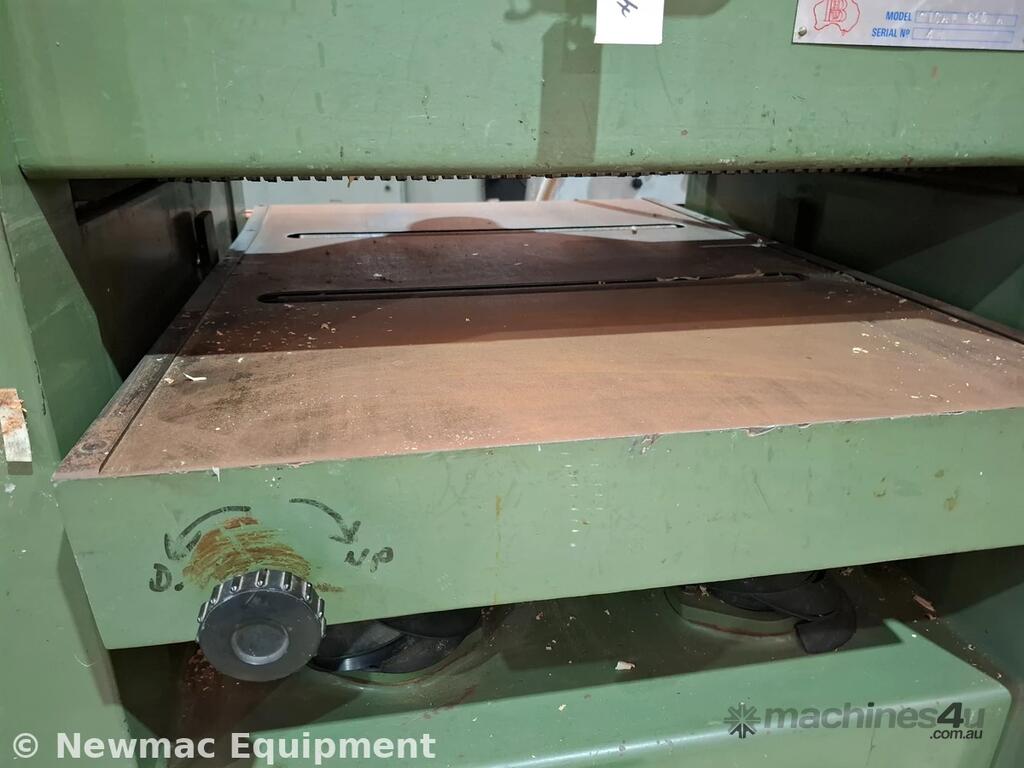

Table raise/lower (rocker switch ? / ? on front panel): powered rise/fall of the thicknessing table for fine setting

Indexed red selector (top of panel): quick reference dial to repeat common settings. Works with the raise/lower switch as a guide — not a digital readout

Main motor controls:

Green = Start

Red = Stop

Emergency stop (red mushroom, lower front panel): latches power off; twist to release before restarting

Main isolator (black rotary switch, lower front panel): master on/off for the whole machine

Specifications

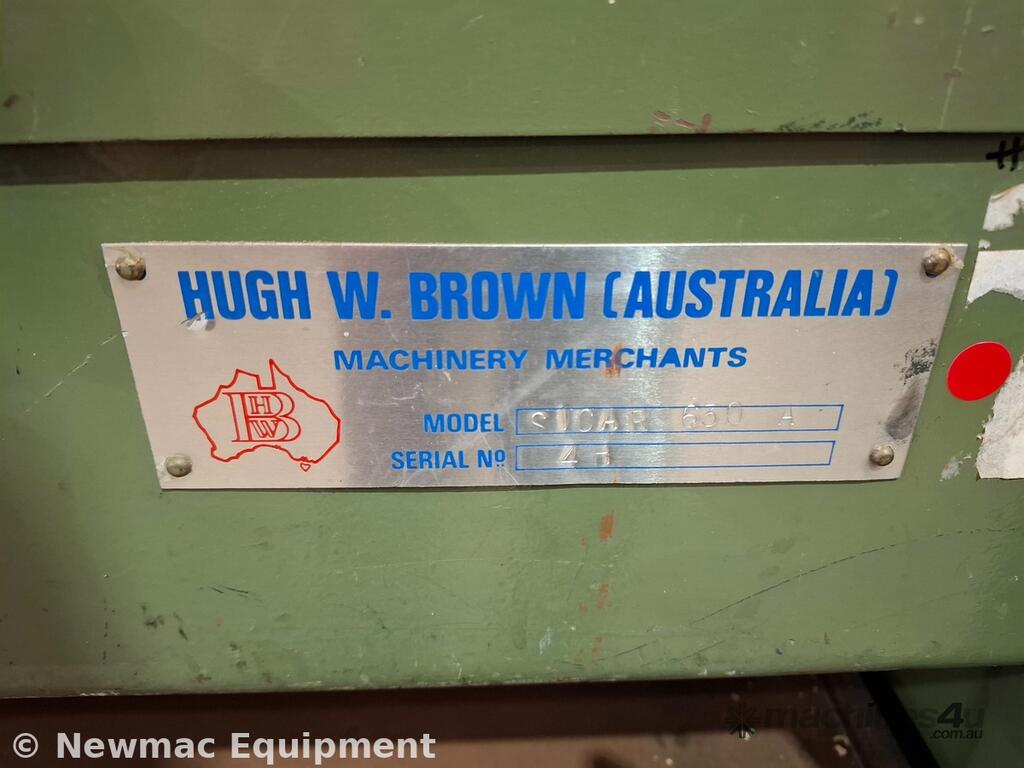

Make/Model: Sicar S630A Thicknesser (Italy)

Maximum planing width: 630 mm

Maximum workpiece height: up to ~300 mm (typical for this class)

Table length: ~1,000–1,100 mm (cast iron)

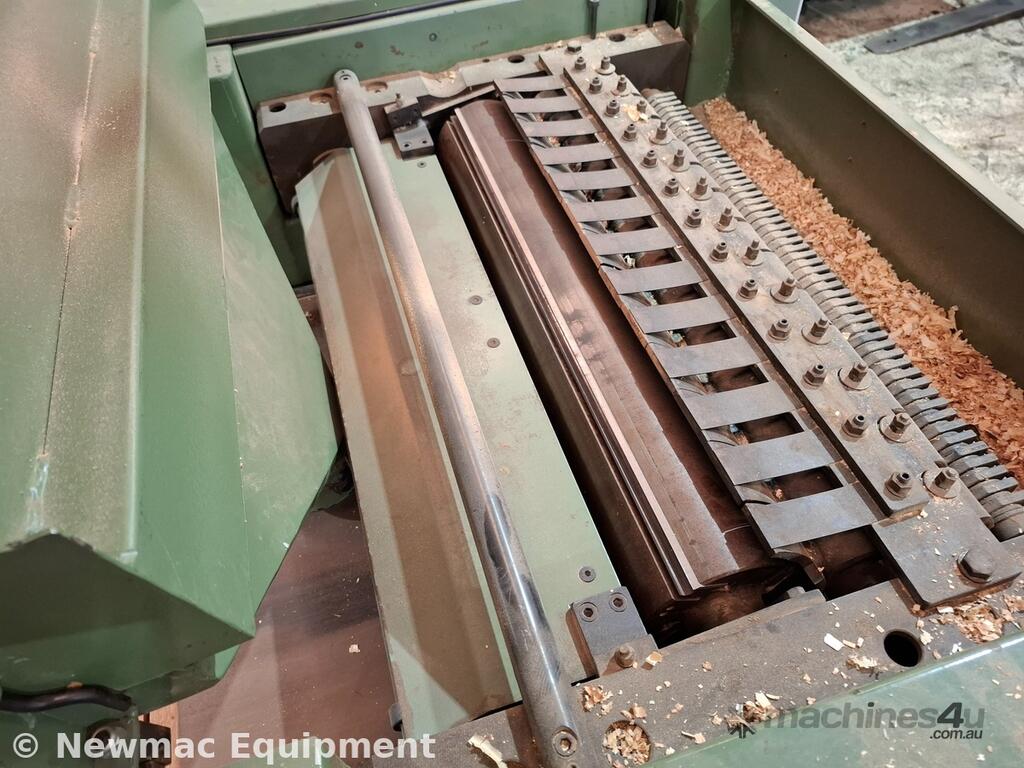

Cutterblock: 4-knife, HSS (straight)

Feed speeds: two mechanical speeds (approx. 6 & 12 m/min, model-dependent)

Main motor: approx. 7.5–9 kW (10–12 HP), 415 V three-phase

Feed/raise motors: separate drives for feed rollers and powered table lift

Construction: cast-iron tables, heavy steel cabinet

Overall Dimensions: 1250mm x 1100mm x 1150mm high
Approx. weight: 1,200 kg

Controls: purely manual / electro-mechanical (no PLC)

Note: Specs are typical for the S630A series and may vary by year/options. Figures can be confirmed on request.

Inspection & Availability
You’re welcome to inspect this thicknesser at our Bayswater North premises during business hours. A run-up and thicknessing demonstration can be provided on request.

Business hours:

Mon–Thu 8:30 am – 4:45 pm

Fri 8:30 am – 3:00 pm

Closed weekends & public holidays

We recommend customers pay us a visit to inspect machinery, where we are happy to test run machinery in our warehouse, that way it gives you peace of mind that the machine will do your job before purchase.

This milling machine is in our warehouse so please feel free to call us for more information & price or pop in to inspect the machine at your convenience.
