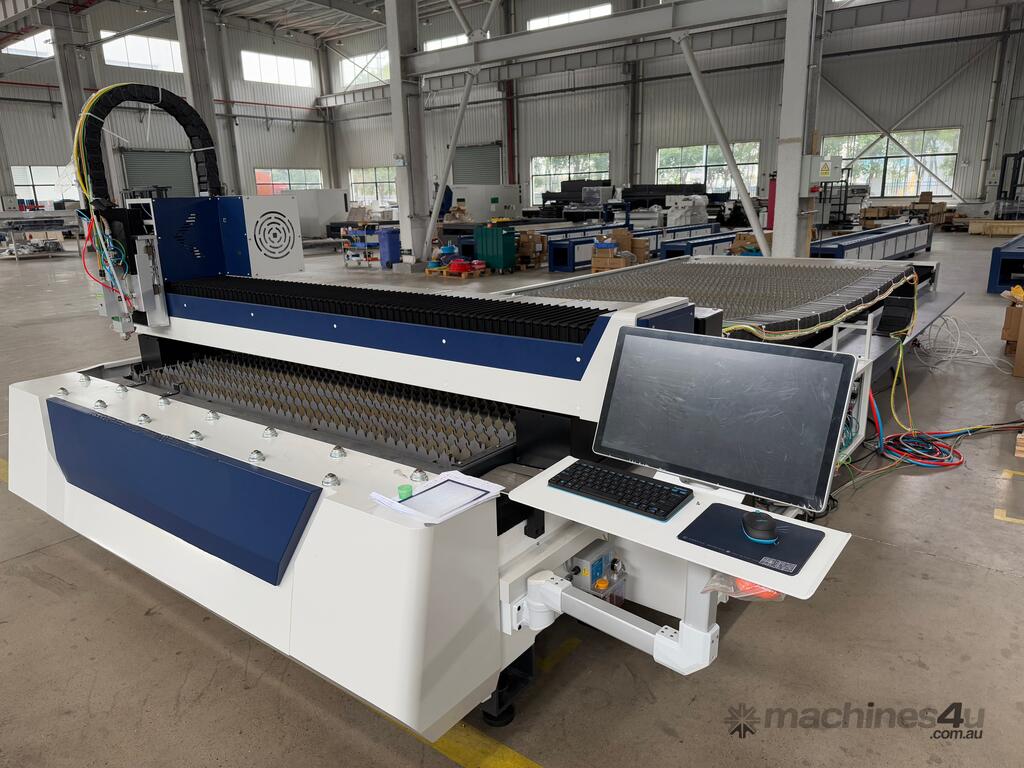

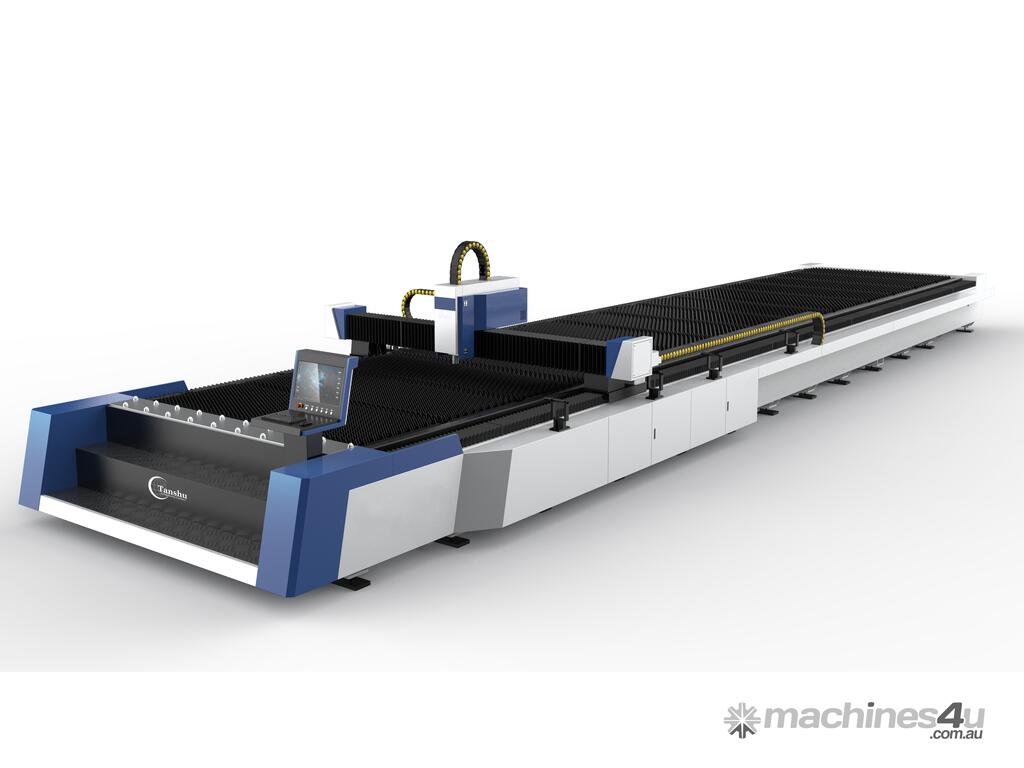

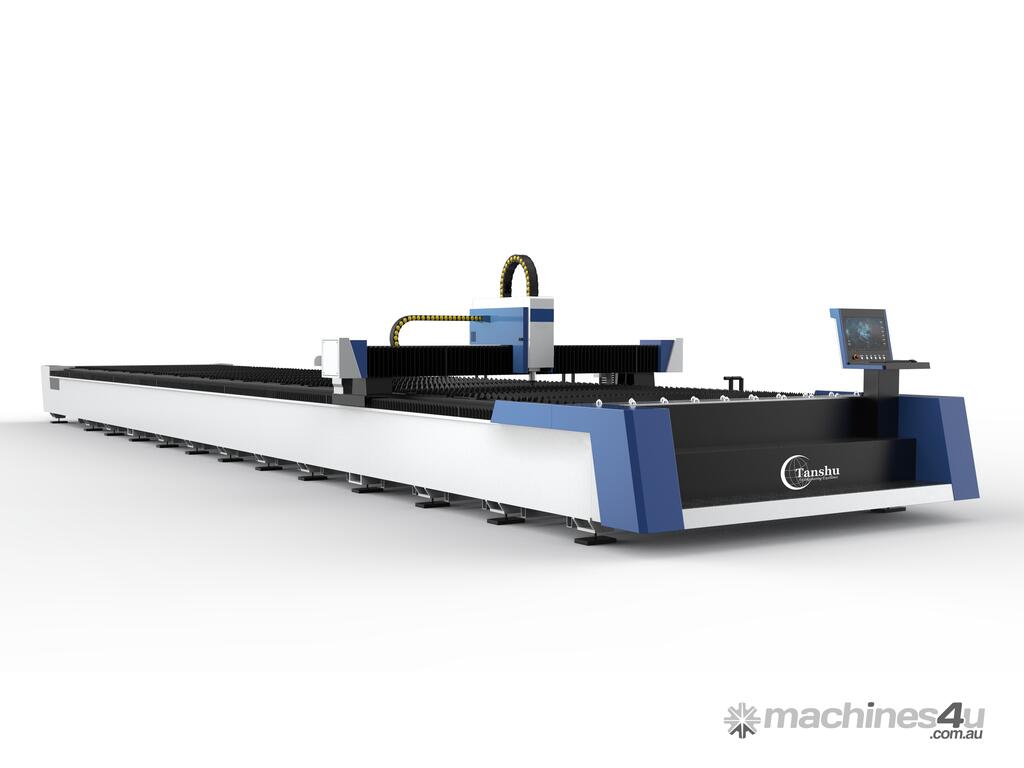

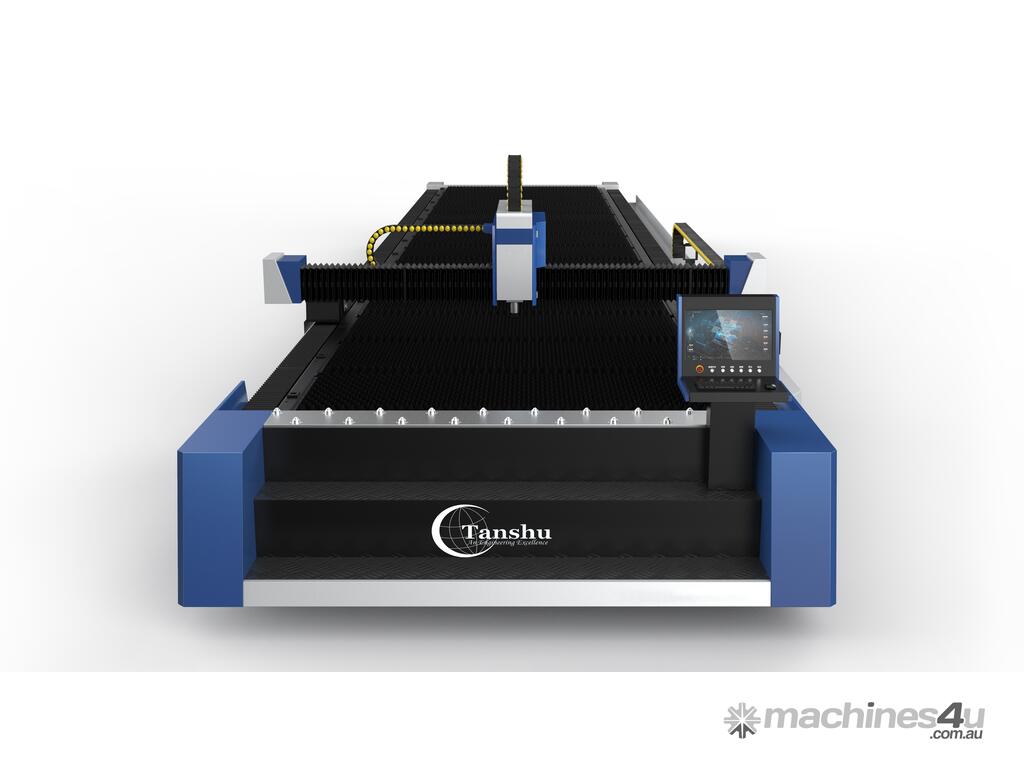

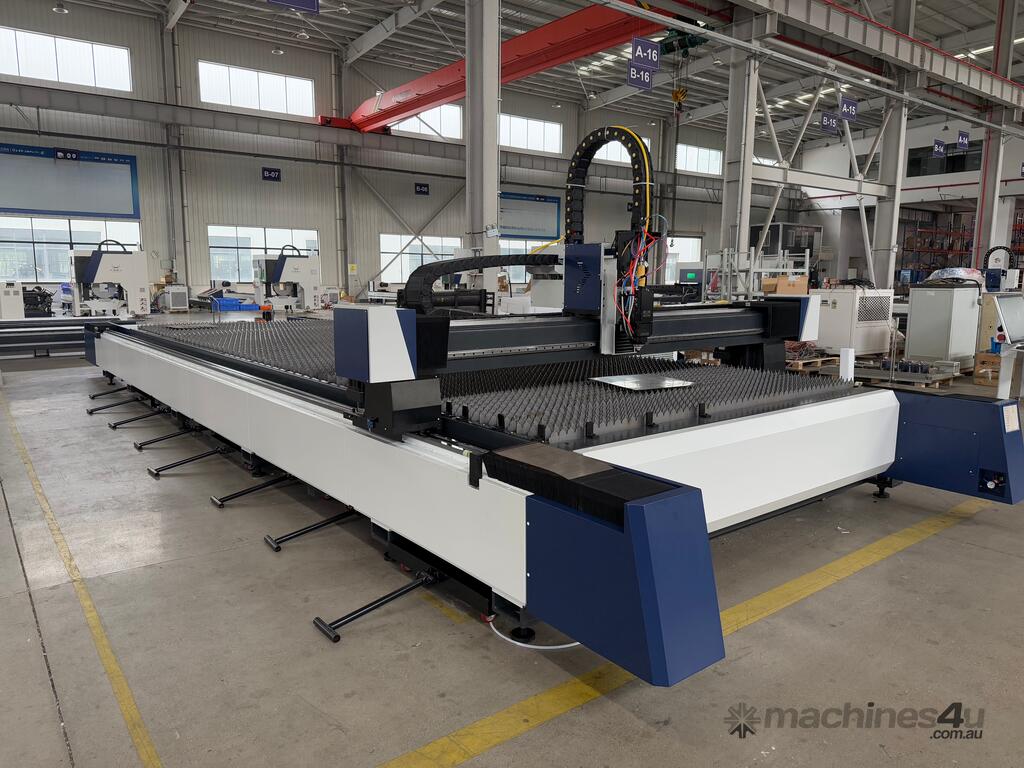

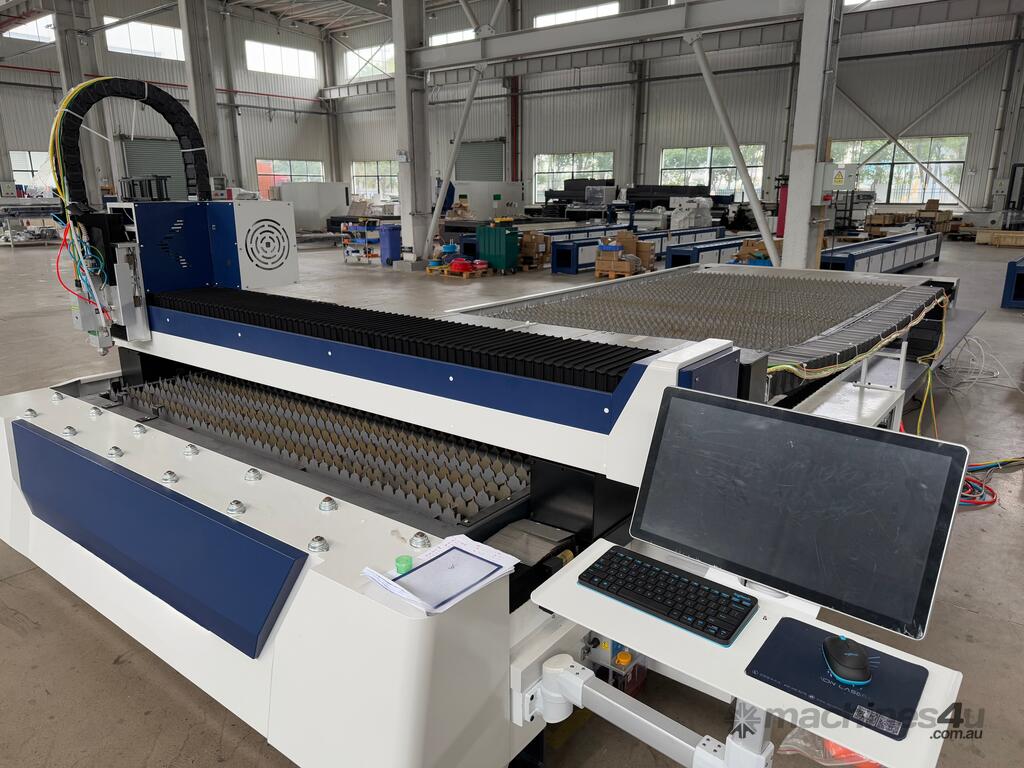

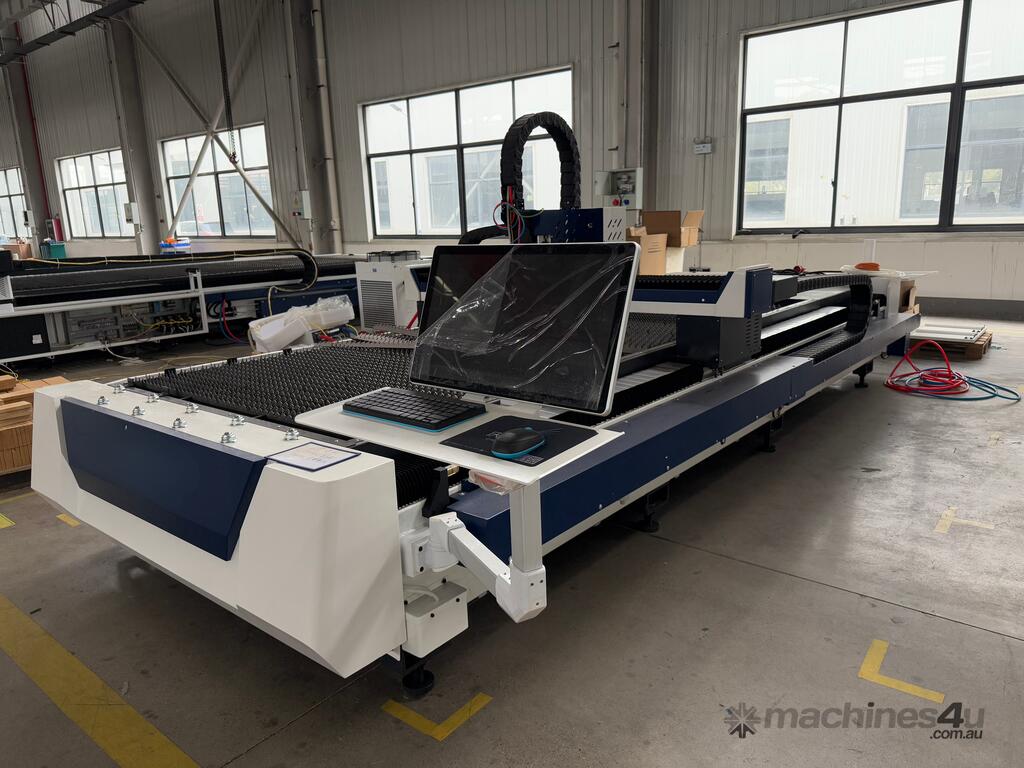

Single Table Laser Cutting Machine Open top 12KW, 2.5m x 6m Cutting Bed

Single Table Metal Sheet Laser Cutting Machine CNC Laser Cutter 6KW

Highlights:

1. Rollers are set at the head of the machine, so that when there is no traveling crane in the workshop, the rollers can facilitate the loading of thin plates and move them to the table for cutting.

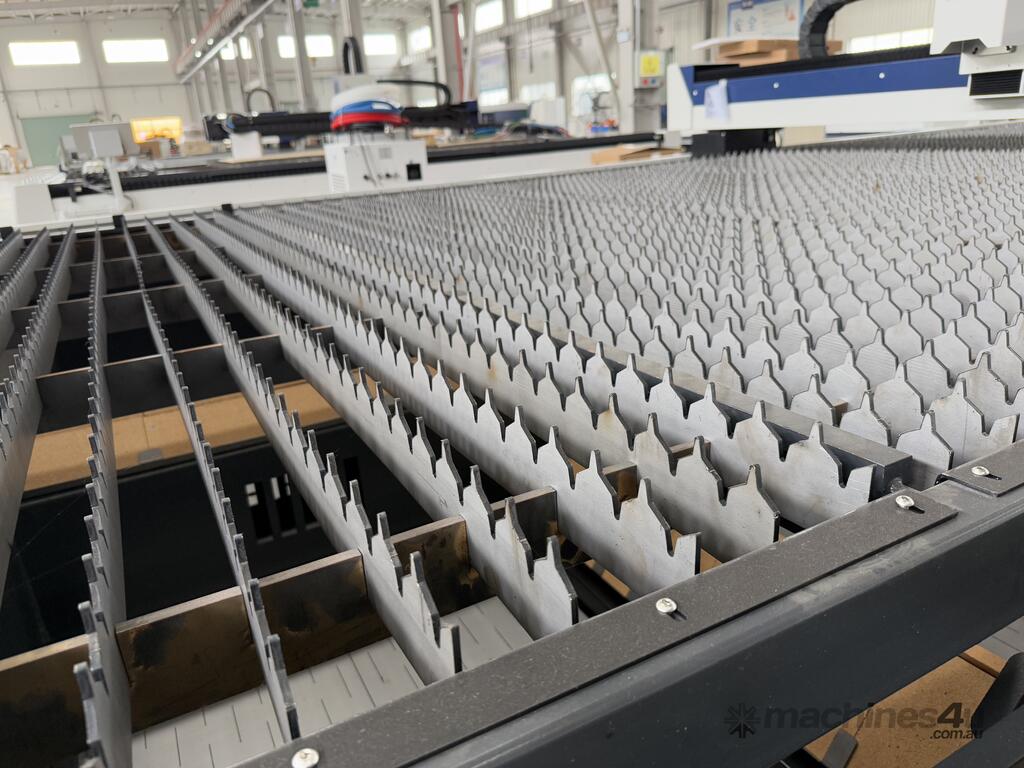

2. Refractory bricks-refractory bricks on top of steel plate protection, add a layer of refractory bricks, refractory bricks play a protective and thermal insulation effect, safety double insurance. For customers, the maintenance and replacement cost of refractory bricks is lower

3. Machine tail - The distance left at the end of the machine is longer to keep the beam and cutting head as far away from the loading area as possible to reduce the risk of collision with the cutting head when loading.

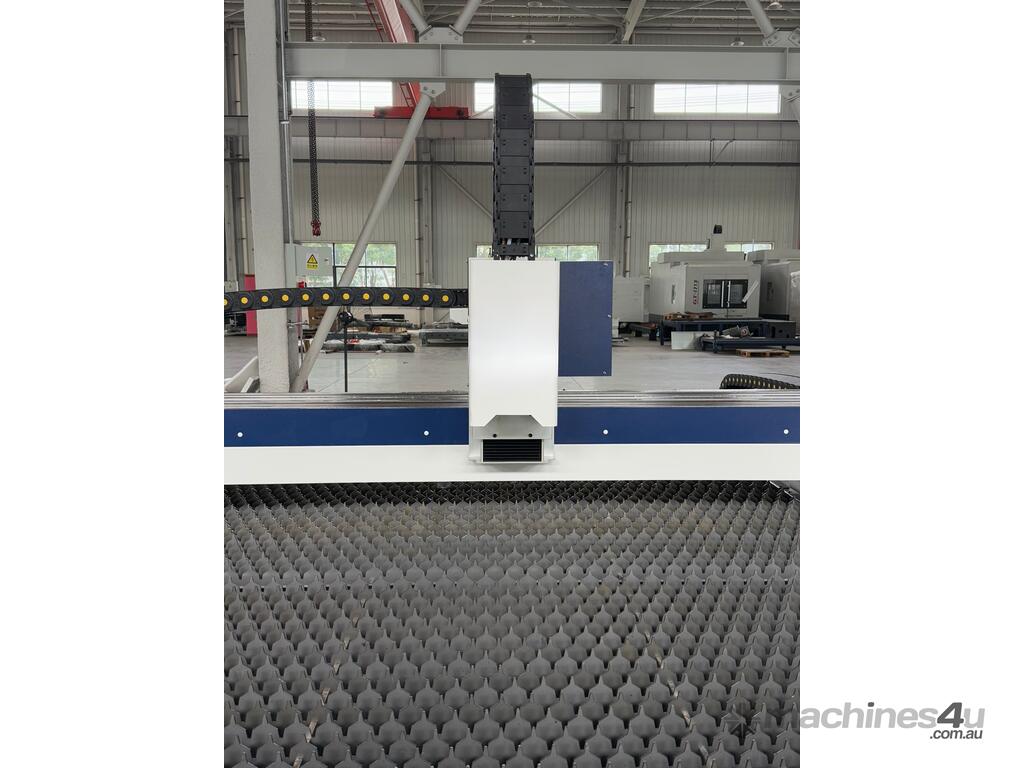

4. Z-axis module, with high precision, high strength and light weight, while the organ cover on the whole module adopts a profiling design, greatly reducing the gap, ensuring internal sealing, better dustproof effect and improving the stability during operation.

5. Separate Control Box With Air conditioner - Independent Power Box with cooling unit:
- With all electrical parts including PC, laser source installed inside, which will keep parts working stably even 24hours continued working, with cooler the machine will be working very stably with high cutting accuracy.
- Dust proof, heat isolation.
- Prolong lifetime of electrical parts.


Tanshu Machinery Solution is a subsidiary of Tanshu Australia Pty Ltd and has been dealing in the supply, import and export of new and used manufacturing machinery and equipment since 2010. Tanshu Australia will supply and install state-of-the-art manufacturing machinery equipment and have on-site service and support engineers.

We at Tanshu provide the customer the complete solution which include CIF or FOB as well as Installation, commissioning and regular servicing.


Product Parameter :

Model 2560

Working Area 2500x6000

Laser Power 1500W-30000W

Maximum Acceleration Speed 1.2G

Power Supply 380V/50Hz

Technical Parameter :

Laser Wavelength - 1070nm

Maximum Power -1500W

Max Acceleration - 1.0G

Power Consumption - 13.5Kw

Max Speed. - 80m/min

Min Linewidth - 0.15mm (for materials with thickness less than 0.4mm), depends on the sheet thickness

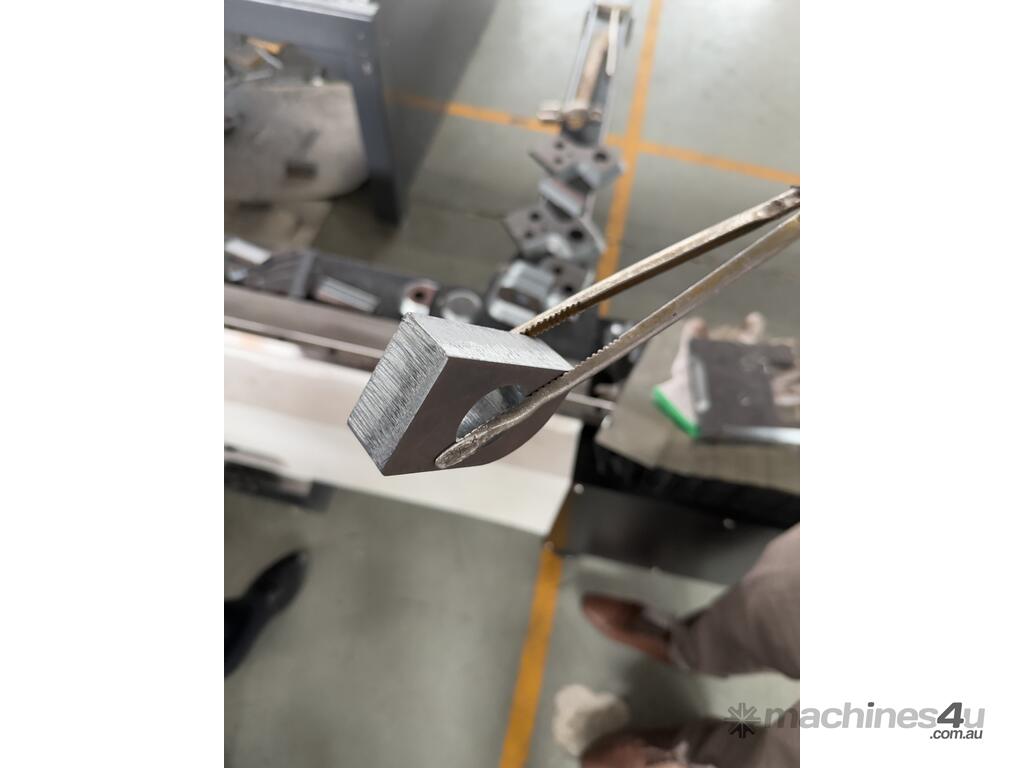

Cutting Thickness - MS: max 14mm, production 12mm;

SS - Max 6mm, production 5mm;

Cutting Dimension - Single table open type 1500x3000mm, 1500x4000mm

Cutting Table Mechanical Accuracy - ±0.03mm

X,Y Repeated Positioning Precision - ±0.02mm
