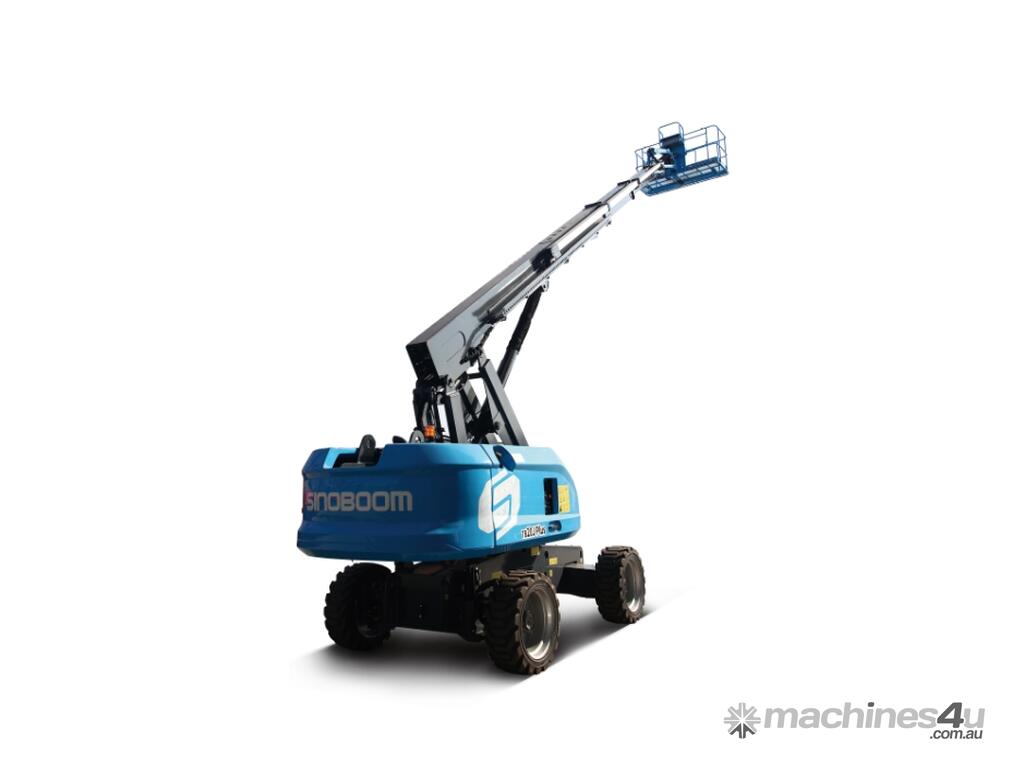

Sinoboom 20m Diesel Telescopic Boom Lift TB20J Plus – Power, Performance, and Precision

At Franklin Equipment, we’re excited to offer the Sinoboom TB20J Plus, a 20m diesel telescopic boom lift designed to tackle the toughest job sites. Durable, reliable, and equipped with advanced features, the TB20J Plus is engineered to maximize uptime and deliver exceptional performance, no matter the task.

Plus Series High Capacity
With a 454kg restricted and 300kg unrestricted platform capacity, the Sinoboom TB20J Plus can easily carry up to 3 occupants plus tools and materials, allowing you to get the job done quickly and efficiently.

Intelligent Maintenance
The TB20J Plus is equipped with a 7-inch display screen that provides real-time diagnostics and fault status information. This reduces the need for technician support and allows workers to troubleshoot and perform tasks under remote guidance, making it ideal for fleet managers who need to stay on top of live machine and maintenance information.

Oscillating Function
Featuring an oscillating axle, the TB20J Plus offers stability on inclines and uneven ground, making it a versatile option for various worksite conditions.

Precision Performance
The control box of the TB20J Plus includes 3 full-proportional joysticks for smooth control of boom lifting, telescoping, turntable rotation, and driving speed, allowing for precise, gradual adjustments and a high level of control when positioning your lift.

Standard Features:
Active oscillating function
4WD x 2WS for superior maneuverability
Proportional control with 3 joysticks
Weighing system for accurate load measurement
Hydraulic platform leveling for smooth operation
Emergency stop system and tilt protection
160° platform rotation for maximum versatility
7-inch display screen for fault diagnosis
Non-marking tyres for clean operations
Flashing beacon and white noise alarm for safety
Secondary guarding device for added protection
Automotive-grade sleeves for all pipes

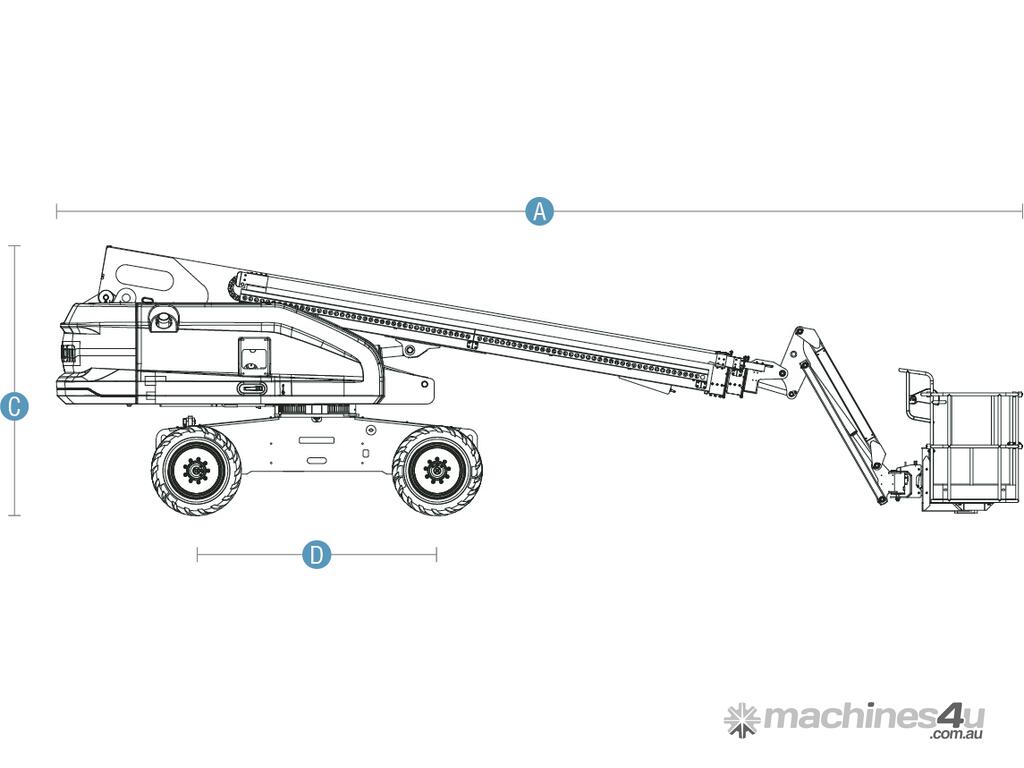

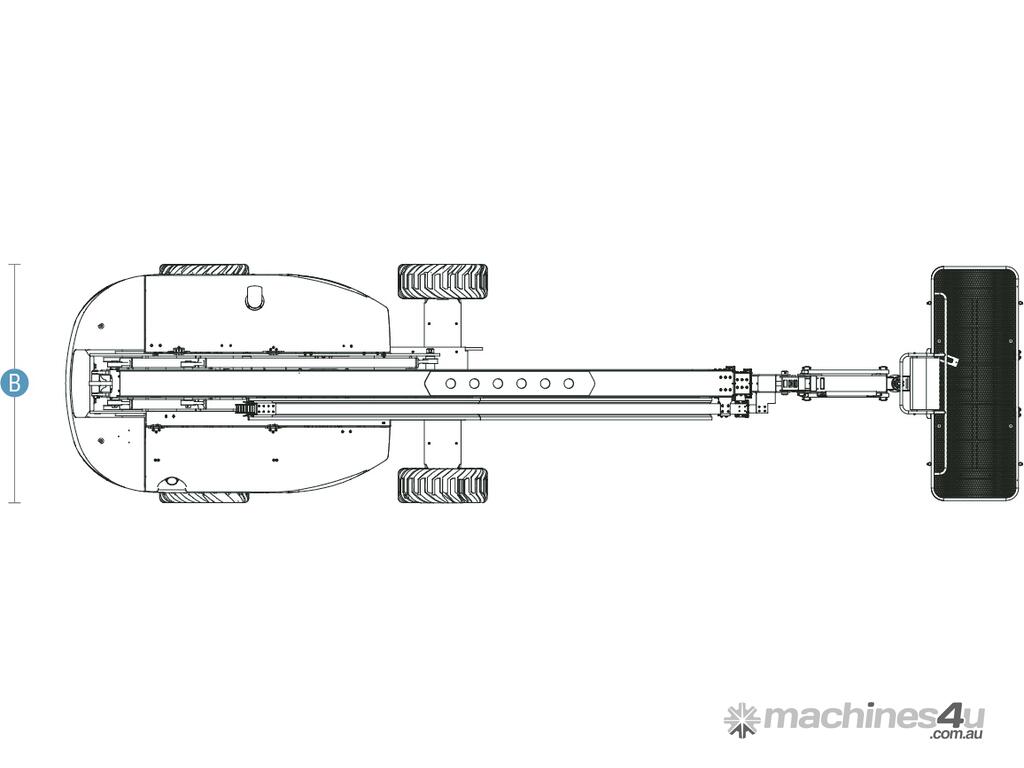

Dimensions:

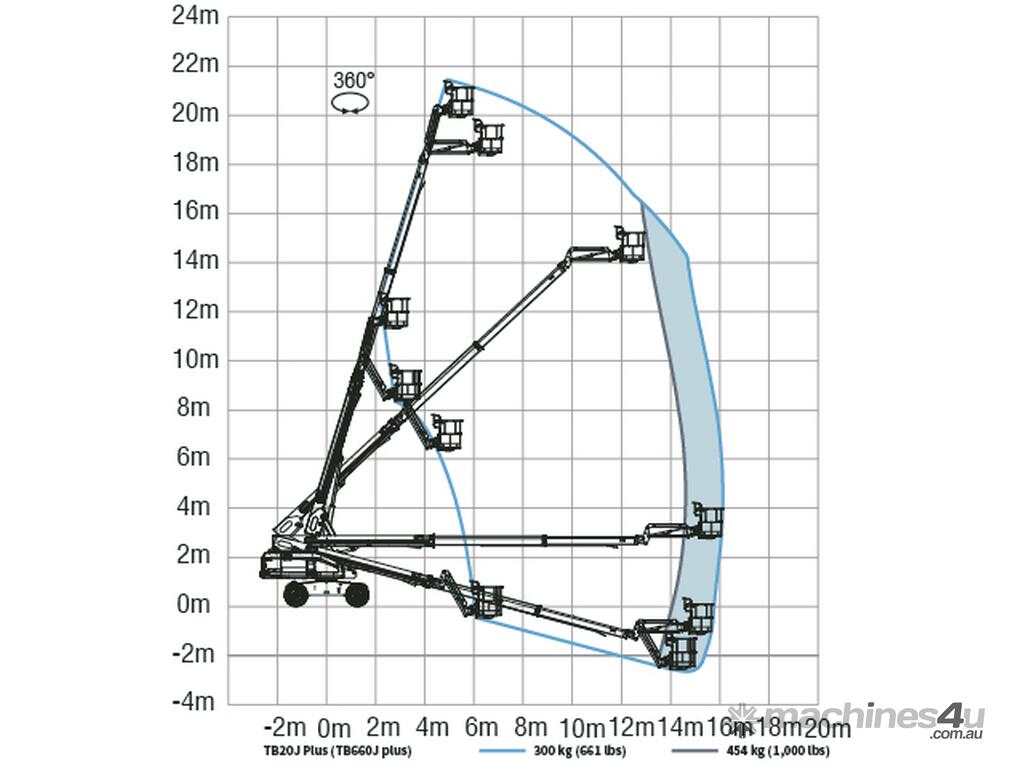

Max Platform Height: 20m (65'7")
Max Working Height: 22m (72'2")
Max Horizontal Extension: 14.6m / 16.1m
Length-Stowed: 9.99m
Width: 2.49m
Height-Stowed: 2.79m
Ground Clearance: 0.46m

Performance:
Platform Capacity (Unrestricted): 300kg
Platform Capacity (Restricted): 454kg
Turntable Rotation: 360° continuous
Platform Rotation: 160°
Drive Speed-Stowed: 4.8km/h
Drive Speed-Raised: 1.1km/h
Gradeability: 45%
Turning Radius-Inside: 2.4m
Turning Radius-Outside: 5.6m

Power:
Power Source: 43 kW Cummins engine (Optional)
Fuel Tank Capacity: 140L Diesel
Hydraulic Tank Capacity: 180L
Weight: 11,900kg
Compliance: AS/NZS1418.10

With Franklin Equipment as your trusted partner, the Sinoboom TB20J Plus is the ideal choice for tackling tough jobs in construction, maintenance, and other industries. We’re committed to providing you with reliable equipment that enhances your operational efficiency and safety.

To learn more or arrange a demo, give us a call today!
