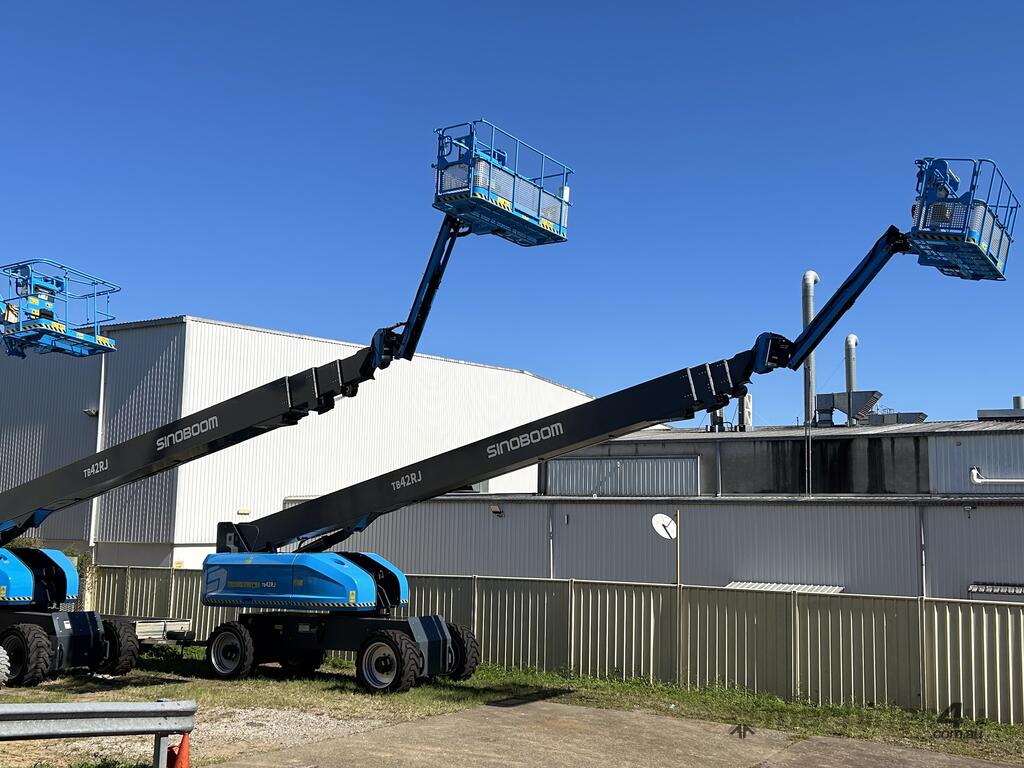

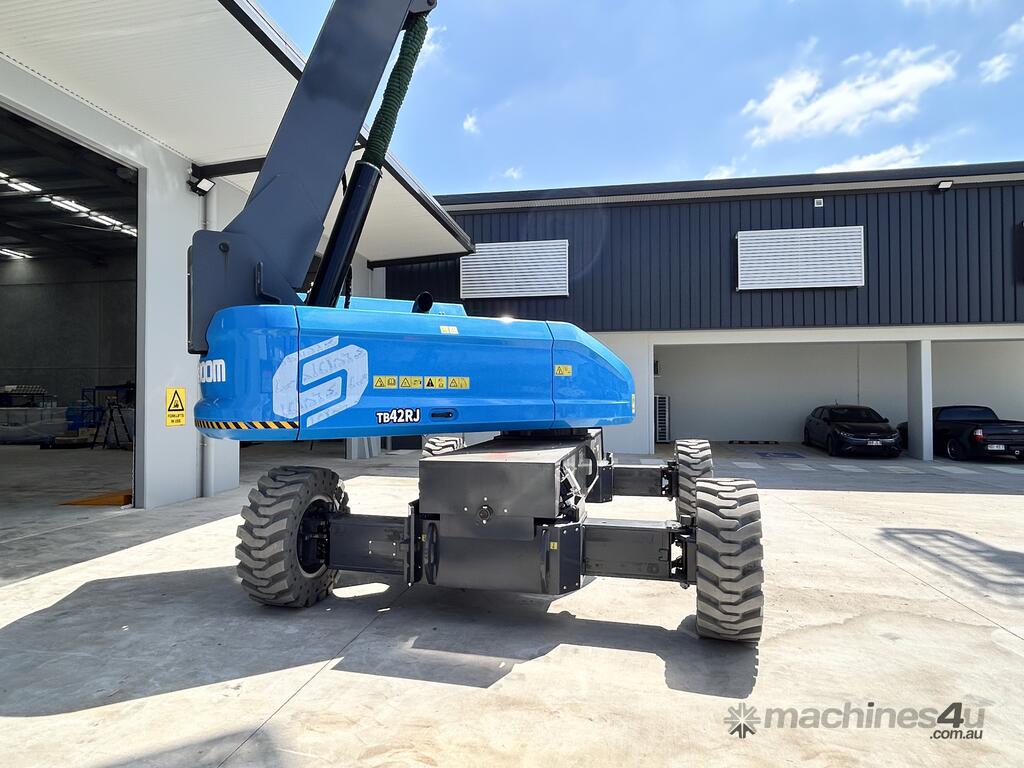

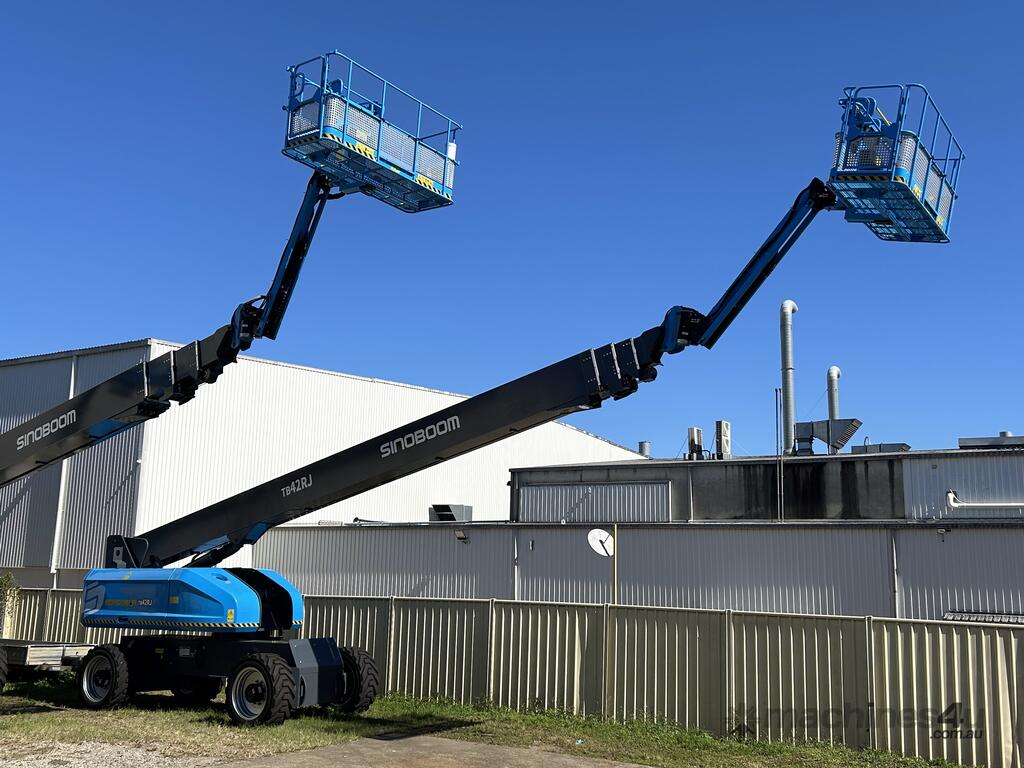

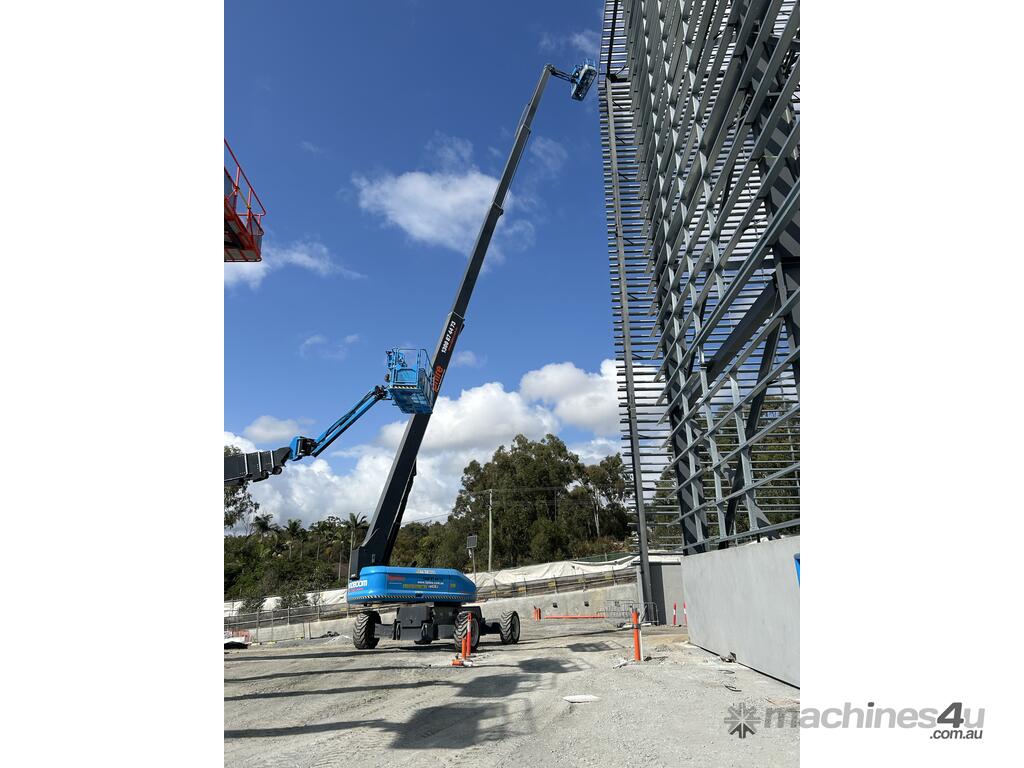

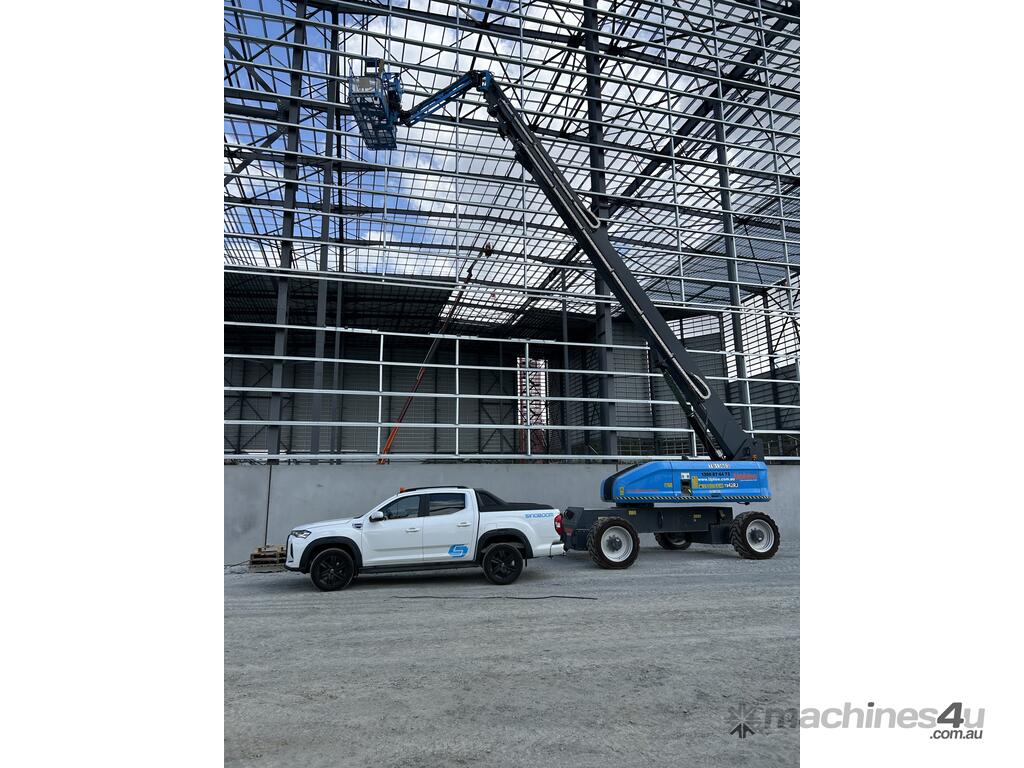

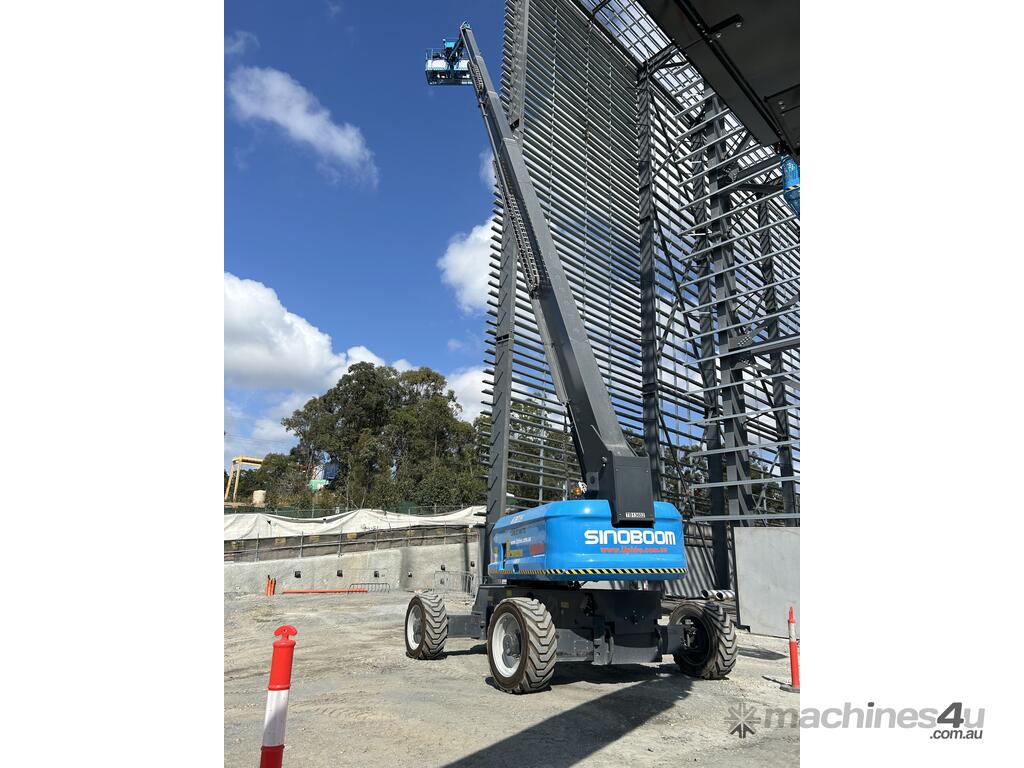

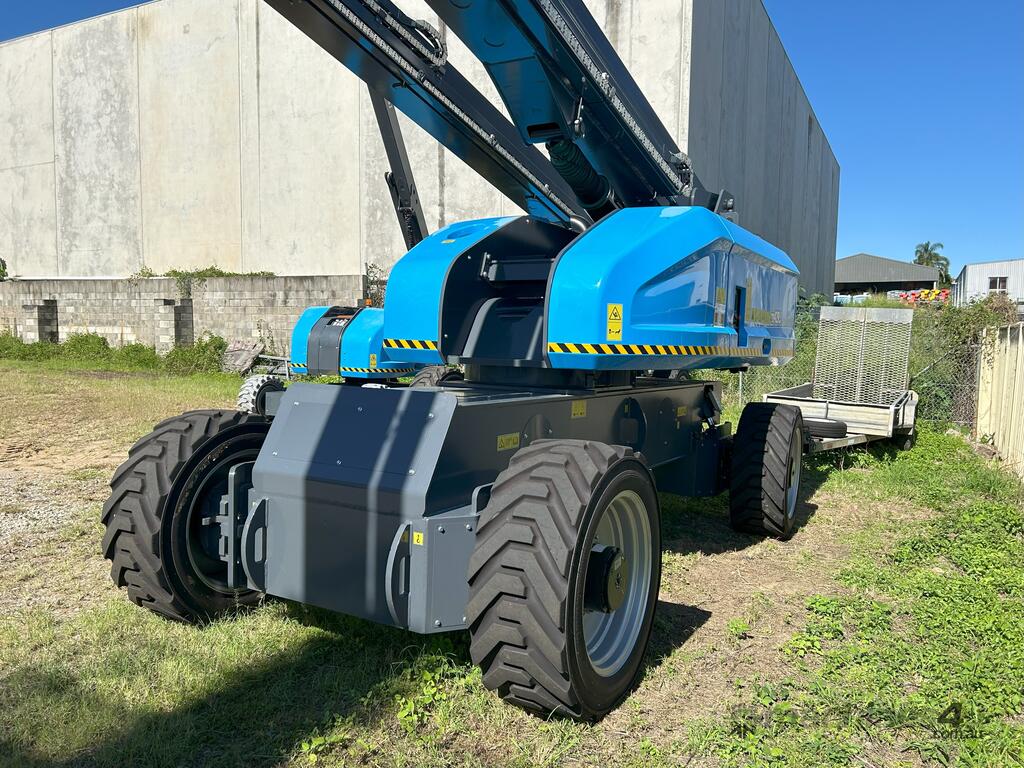

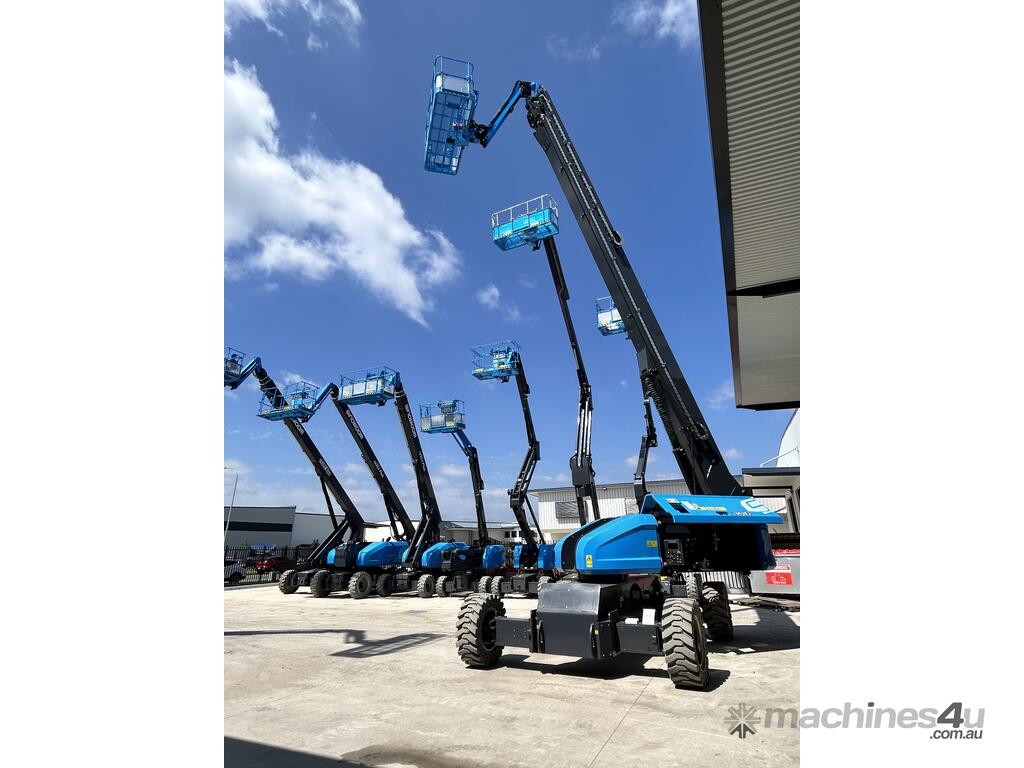

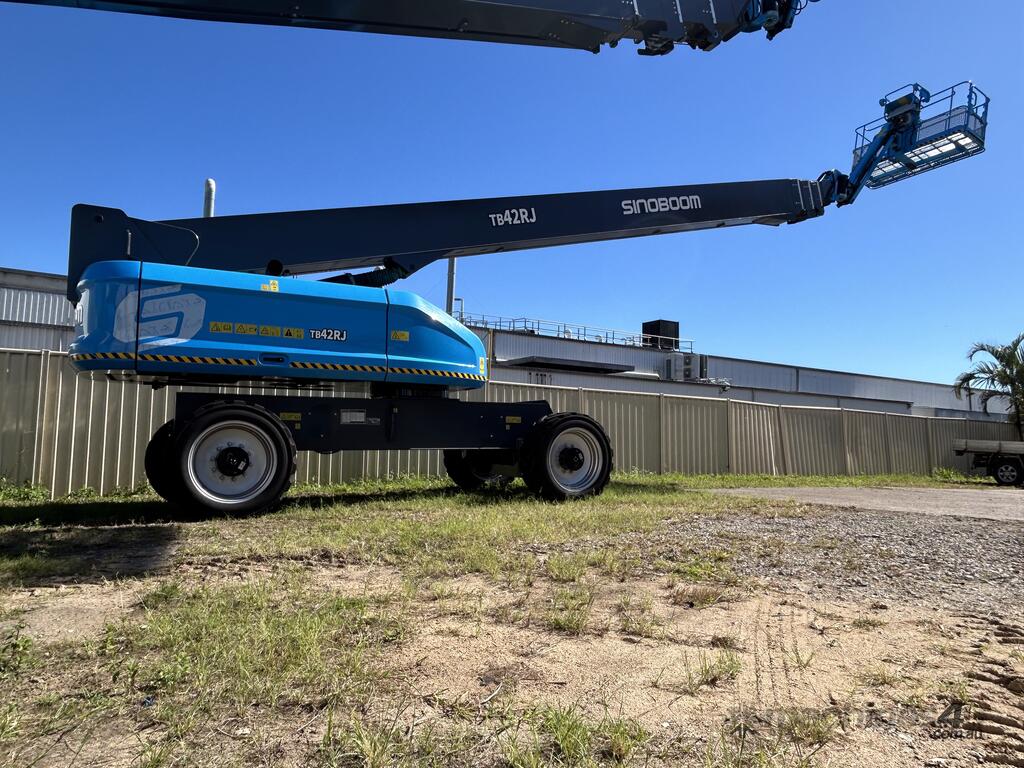

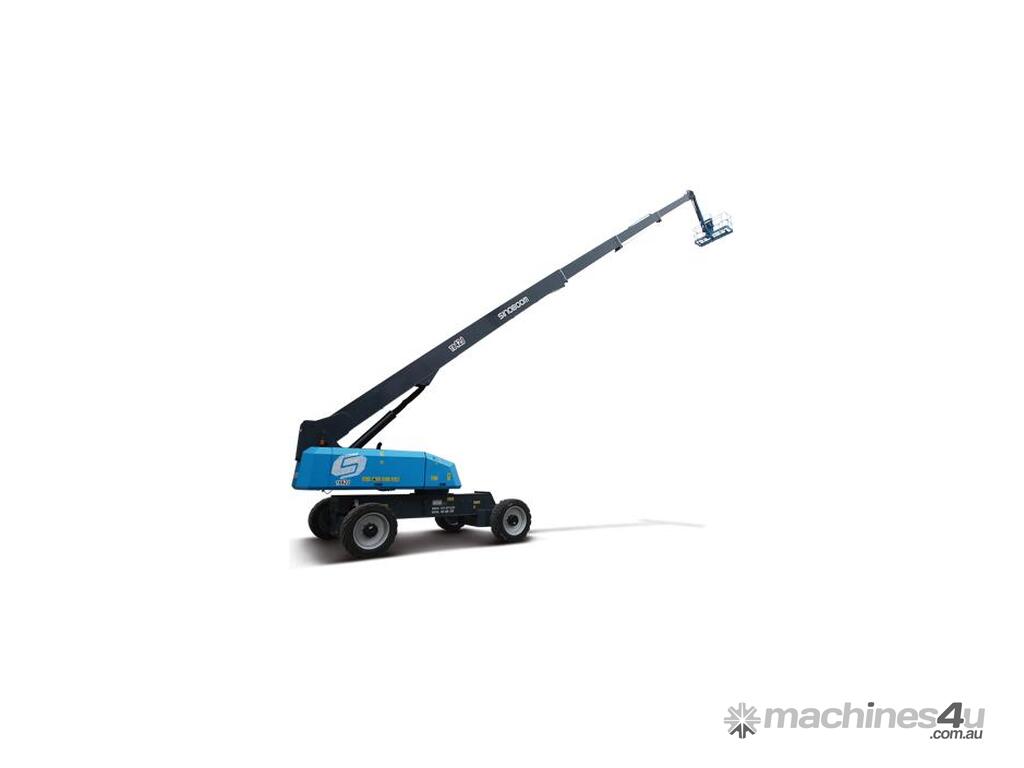

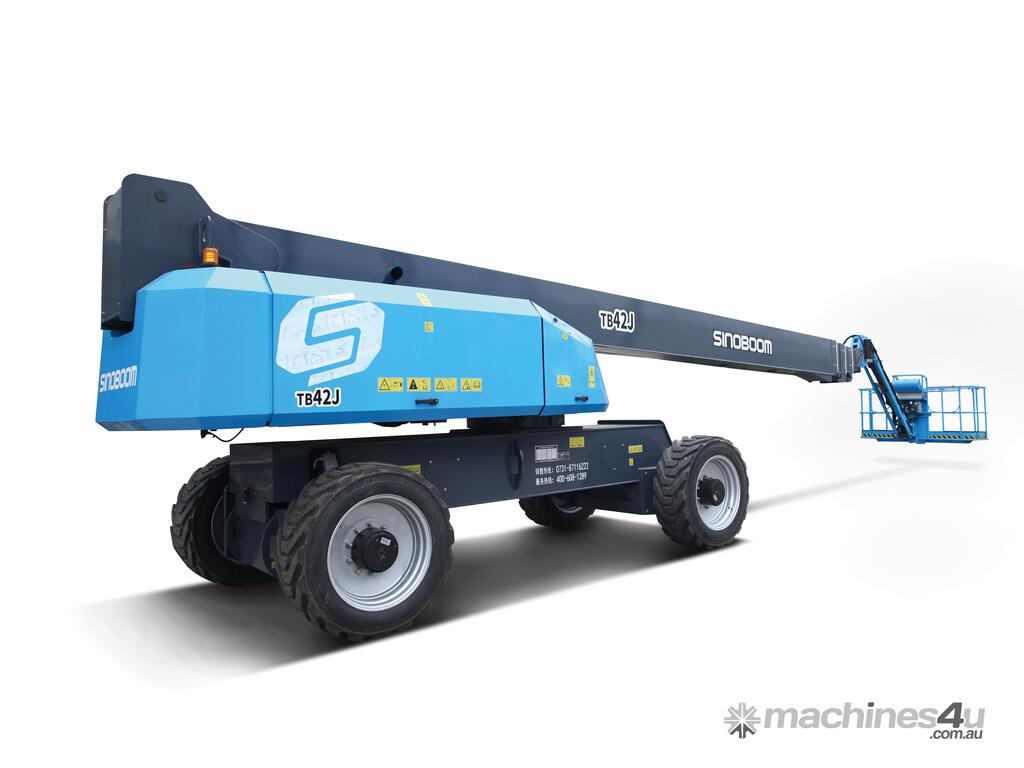

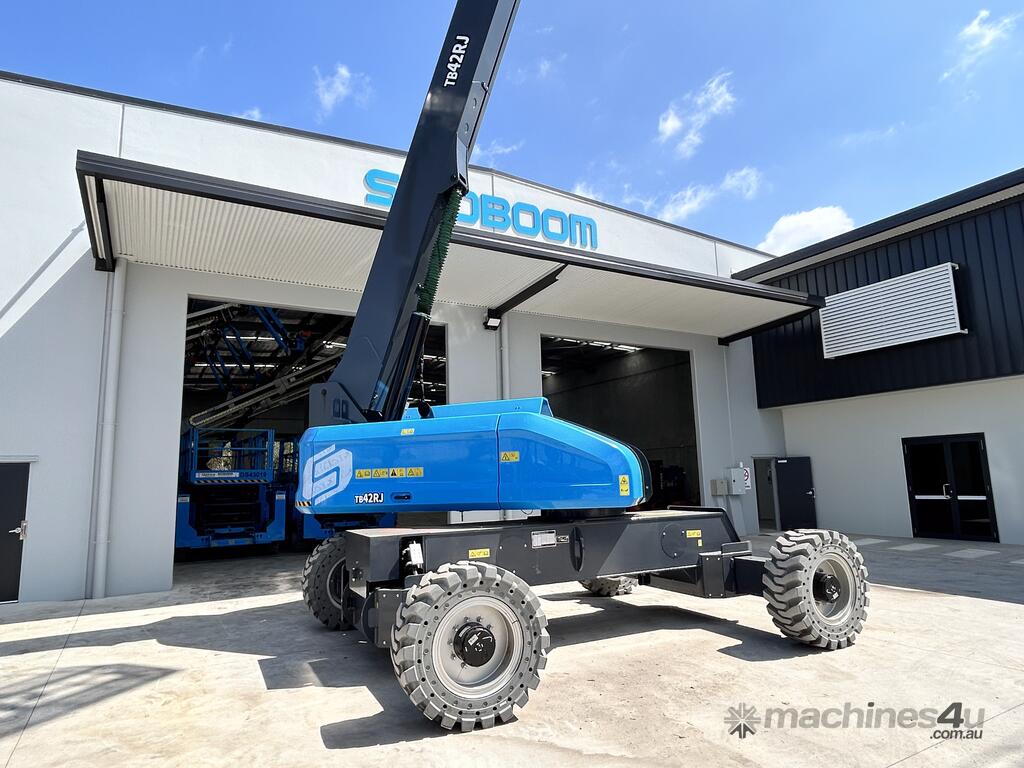

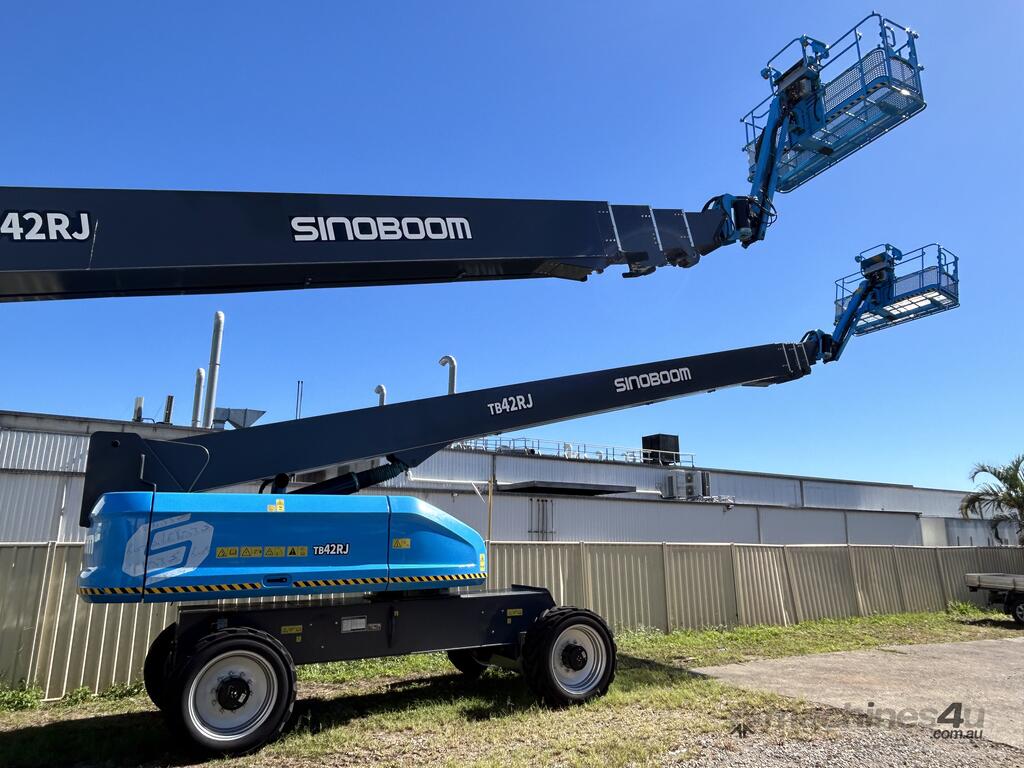

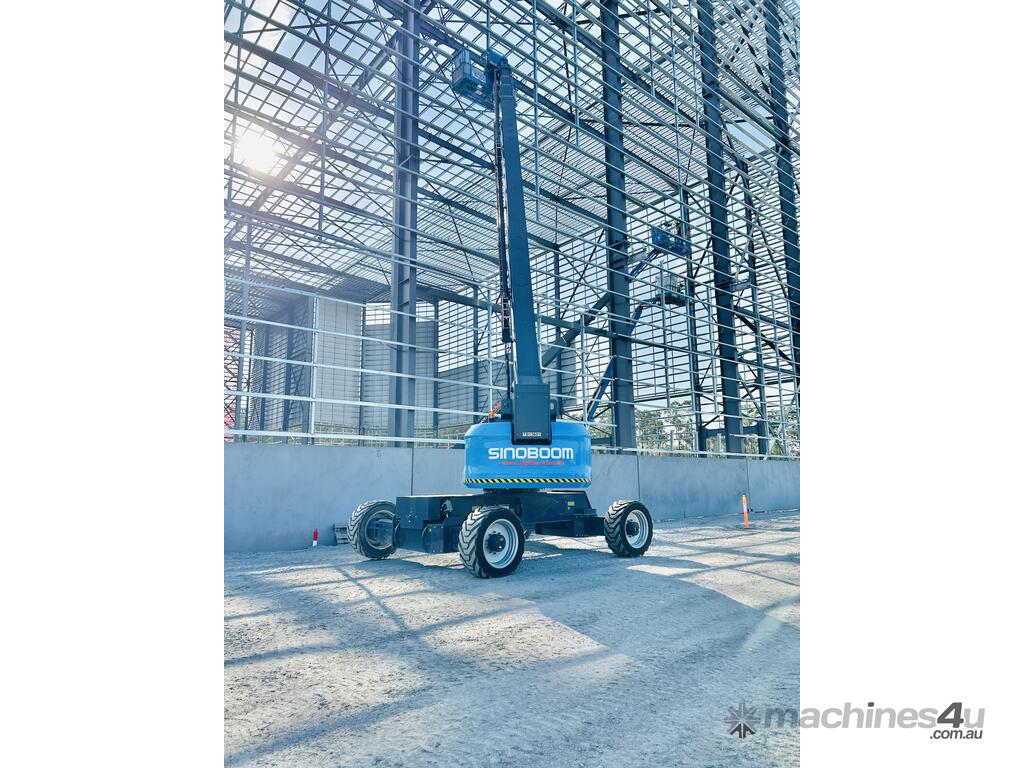

Sinoboom 42m Diesel Telescopic Boom Lift TB42RJ – Power and Precision for Challenging Job Sites

At Franklin Equipment, we're proud to present the Sinoboom TB42RJ, a high-performance 42m diesel telescopic boom lift built to tackle even the most demanding job sites. Engineered for durability and versatility, this machine is quickly becoming the top choice for operators across Australia, providing reliability, ease of use, and high capacity.

Plus Series High Capacity
The Sinoboom TB42RJ offers an impressive platform capacity of 454kg (restricted) and 300kg (unrestricted), enabling you to carry up to 3 occupants plus material and tools, making every job more efficient and productive.

Intelligent Maintenance
Equipped with an industry-leading 7” display screen, the TB42RJ provides easy access to machine faults and status information, reducing downtime and service technician requirements. Fleet managers can also remotely monitor machine health and schedule maintenance, keeping your operations running smoothly.

Oscillating Function
Designed with both active and inactive oscillation, the TB42RJ can work confidently on inclines and uneven ground, enhancing safety and stability during operation.

Precision Performance
The upper control box features 3 full-proportional handles, allowing for precise control of boom lifting, telescoping, turntable rotation, and driving speed. This ensures smooth, gradual starts and stops with accurate positioning at your worksite.

Standard Features:
Active oscillating function
7-inch display screen for real-time monitoring
4WD x 2WS for enhanced maneuverability
Proportional control with 3 joysticks
Automotive-grade sleeves for all pipes
Weighing system for load accuracy
Hydraulic platform leveling for smooth operation
180° platform rotation for flexible reach
Telematics-ready connector
Tilt protection system
Max tilt rating of 5°
Flashing beacon, white noise alarm, and secondary guarding device

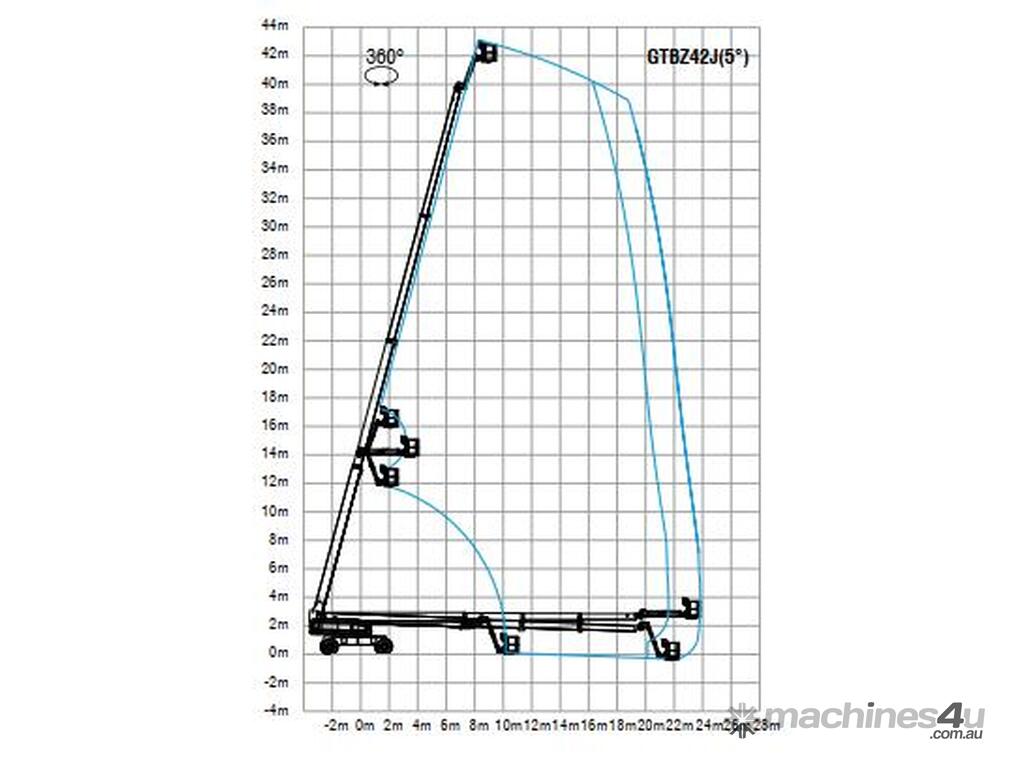

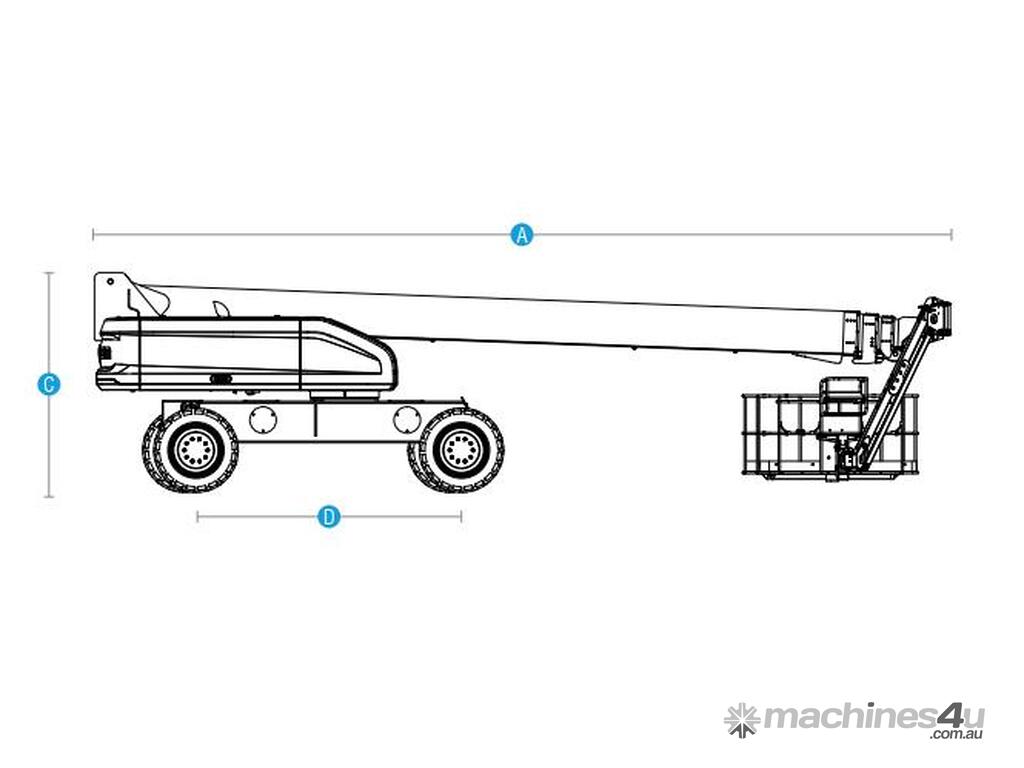

Dimensions:
Max Platform Height: 41.6m (136'6")
Max Working Height: 43.6m (143'0.5")
Max Horizontal Extension: 23.2m
Length-Stowed: 14.96m

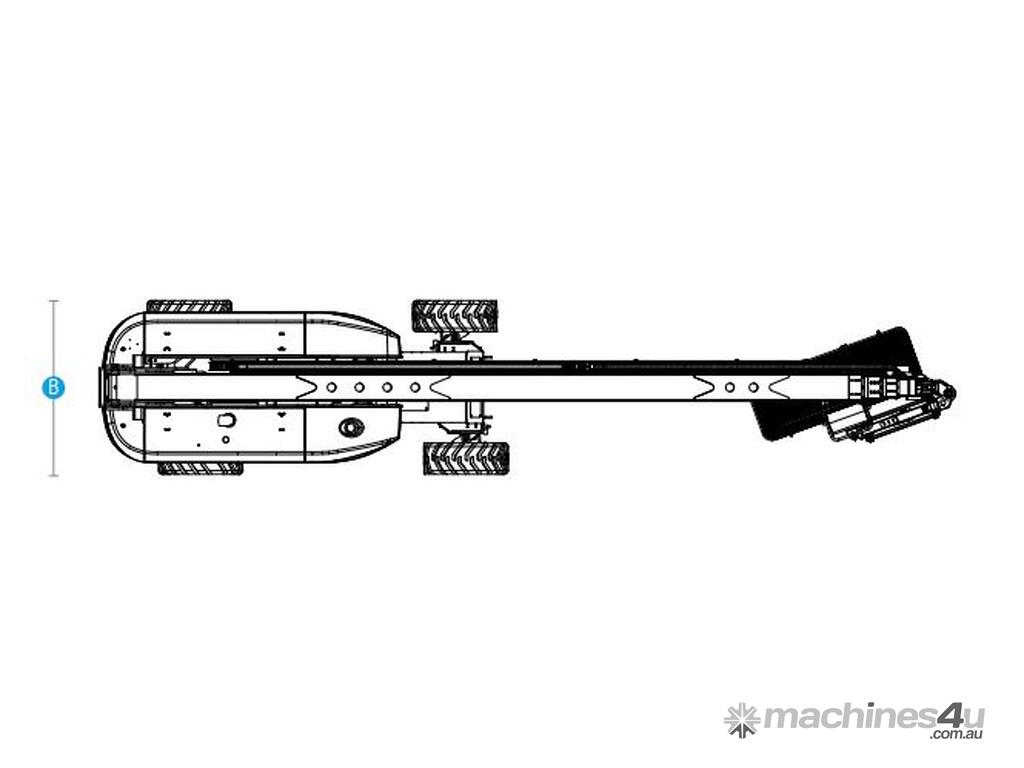

Width: 2.49m
Height-Stowed: 3.15m
Ground Clearance: 0.65m

Performance:
Platform Capacity (Unrestricted): 250kg
Platform Capacity (Restricted): 480kg
Turntable Rotation: 360° continuous
Platform Rotation: 180°
Drive Speed-Stowed: 4.4km/h
Drive Speed-Raised: 1.1km/h
Gradeability: 40%
Turning Radius-Inside: 4.37m
Turning Radius-Outside: 6.81m
Tyres: Solid 445/50D710

Power:
Power Source: 54 KW Cummins engine
Fuel Tank Capacity: 200L Diesel
Hydraulic Tank Capacity: 280L
Weight: 22,400kg
Compliance: AS/NZS1418.10

At Franklin Equipment, we understand the demands of tough job sites. That’s why we’re proud to offer the Sinoboom TB42RJ, built for the high-capacity, high-performance needs of industries like construction, maintenance, and more.

Our team is ready to assist you in maximizing your equipment’s performance. Reach out to us today to learn more or arrange a demo!
