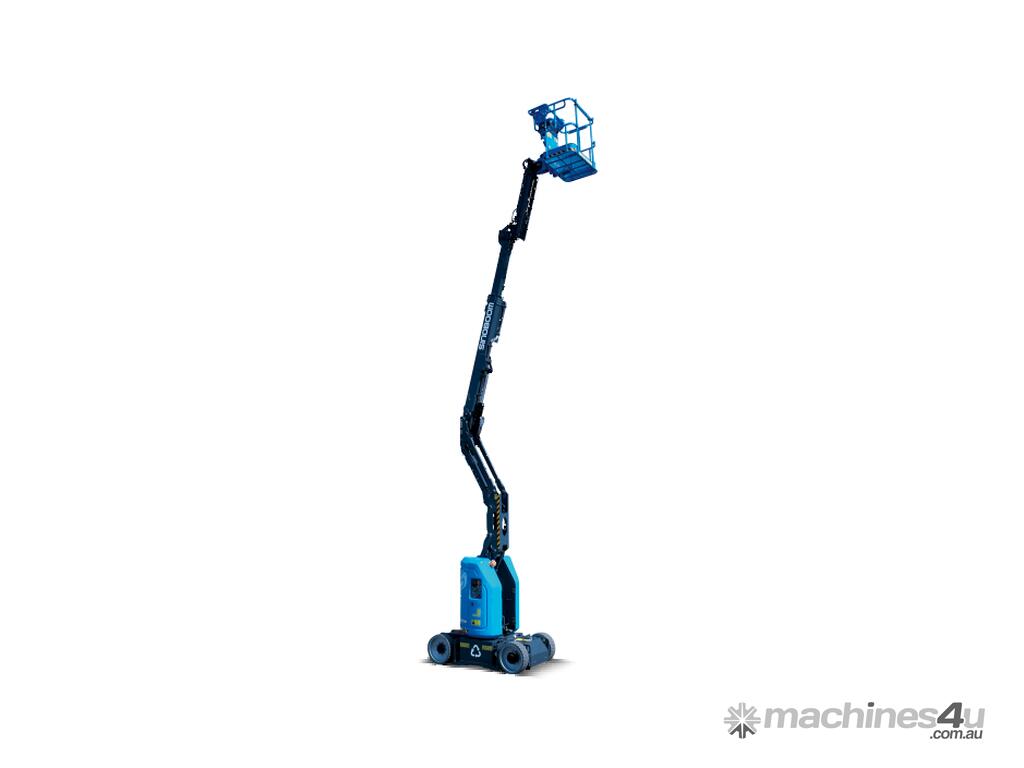

Sinoboom AB10ERJN - Electric Powered Knuckle Boom Lift - 11.62m Working Height | 230kg MRC

PRODUCT HIGHLIGHTS
Electric Control System
? Equipped with the same Rexroth controllers used across
Sinoboom boom lifts, this machine delivers on safety and
reliability and compliant with EN ISO 13849 and achieving
Performance Level d
? It is easily operated on both ground control and platform control
in case of emergency lowering is need
5 Inch LED Screen
? Excellent human machine interface experience with a 5 inch LED
screen, and one button for fault diagnosis on the screen, tool and
manual free
Standard Features
Hydraulic platform leveling Automotive-grade sleeves for all pipes Automatic pothole guard
Proportional control Electrical emergency lowering system 5 inch LED screen
Manual storage box Weighing system 2WD × 2WS
Footswitch Emergency stop system Tilt rating up to 3°
Horn & buzzer Fault diagnosis system Platform & jib rotation 180°
Motion alarm Tilt protection system Solid non-marking tires
Flashing beacon Telematics-ready connector AGM battery
AC power to platform Secondary guarding device
Options & Accessories
Platform with swing entry gate Platform work light White noise alarm
Compact Design
? With only 1.19m(3'11") narrow chassis and 1.99m(6'6")
stowed height, zero tailswing, suitable for working
confined spaces
Automatic Pothole Guard
? As booms ascend the pothole guard automatically
springs into action, shielding you from uneven ground

Specs:

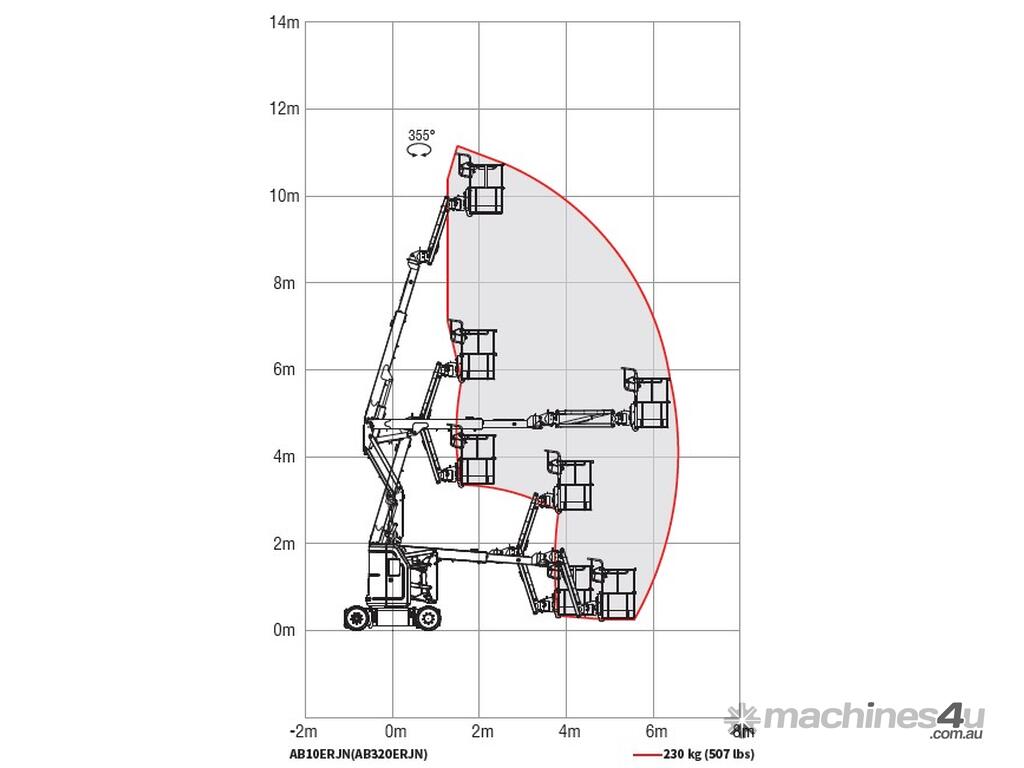

Max Platform Height
9.62m (31'7")

Max Working Height
11.62m (38'1")

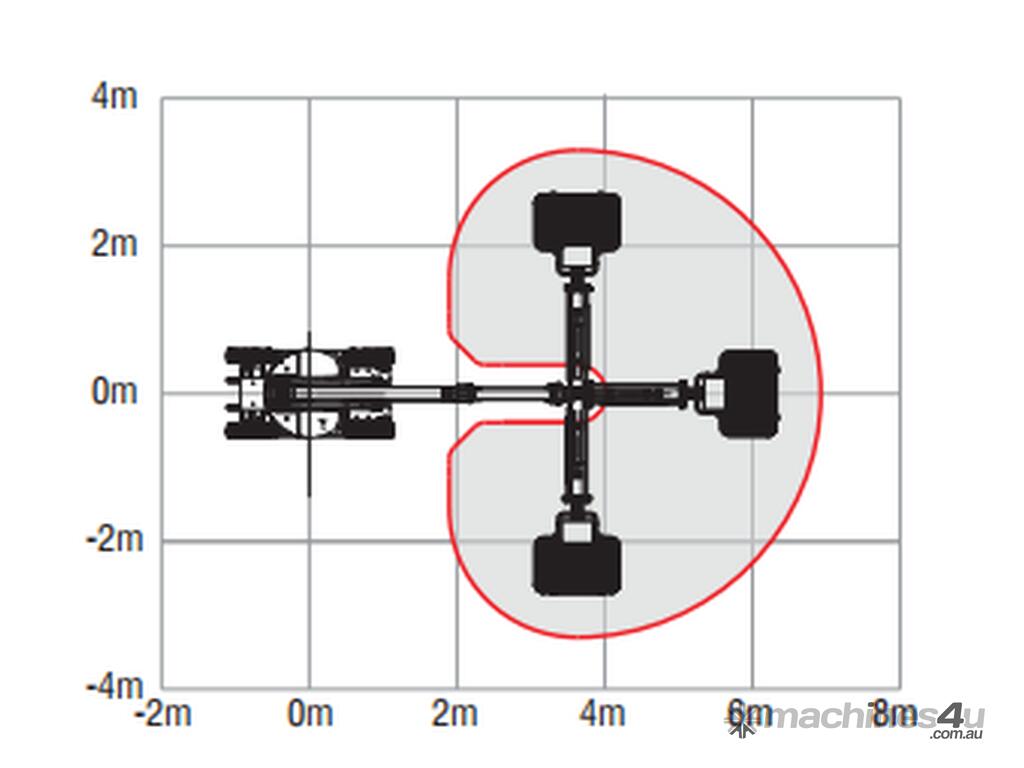

Max Horizontal Extension
6.3m

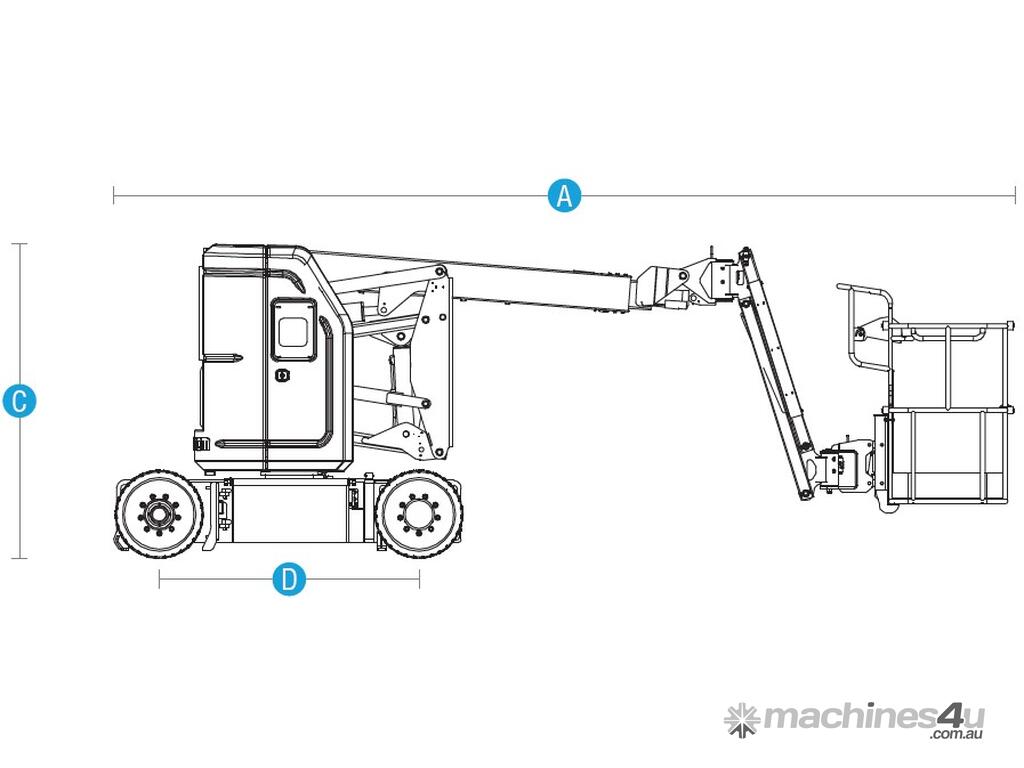

[A] Length-Stowed
5.72m

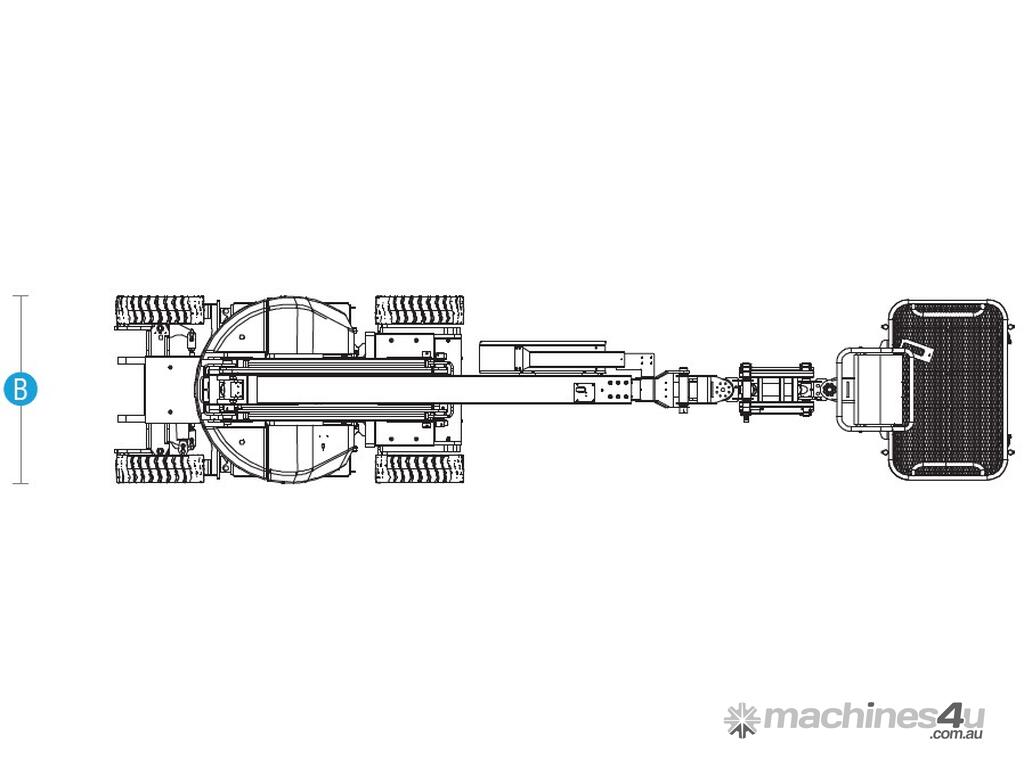

[B] Width-Stowed
1.19m

[C] Height-Stowed
1.99m

[D] Wheelbase
1.65m

Ground Clearance
0.075m / 0.02m (pothole guard stowed / deployed)

Platform Dimensions
(L×W×H)
1.15m×0.76m×1.1m
