Sinoboom AB10J Articulating Boom Lift - 11.62m Working Height

Excellent Rough Terrain Performance
The machine features great rough terrain performance thanks to its active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance making it easily adaptive to both indoor and outdoor applications


Large Platform Capacity
Two persons with tools can be easily loaded in the platform to complete jobs efficiently by its leading platform capacity up to 250 kg


Easy Transport
It can be easily loaded on trucks and transport in cities because of its light weigh less than 5 tons, and less limitation for some special projects


Greater Tilt Rating
The machine can be easily adaptive to terrains where requires greater tilt rating and help to boost work efficiency


Ultimate HMI Experience
Easy trouble shooting, manuals free. One button for fault inquiry, and all faults will be displayed on the screen without codes, easily readable to minimize downtime
Easy calibration, tools free. Additional tools are not needed for calibration, all are in the screen

Specs:

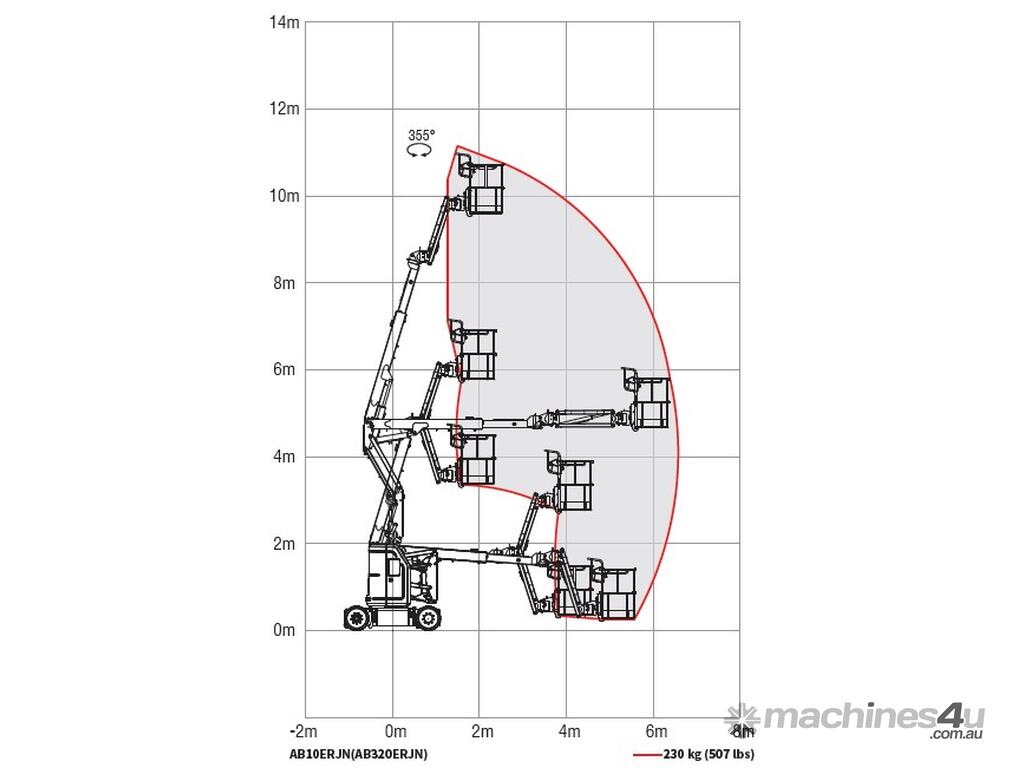

Max. Working Height:
12.39 m
Max. Working Reach:
5.75 m
Max. Platform Height:
10.39 m
Capacity:
250 kg
Platform Rotation:
160°
Drive Speed:
5.5 km/hr
Power:
Kubota D1105 18.2 kW
Weight:
4,986 kg
