Suitable for Narrow Spaces
Narrow width with zero tail sweep
Operating Efficiency
The working platform can be lifted and lowered to any position without need to operate the secondary arm
Reliable
The simple linkage mechanism design and hydraulical leveling are reliable during operation
Precision Performance
3 joysticks with variable proportional control, accuracy in reaching the operation target
Specs:

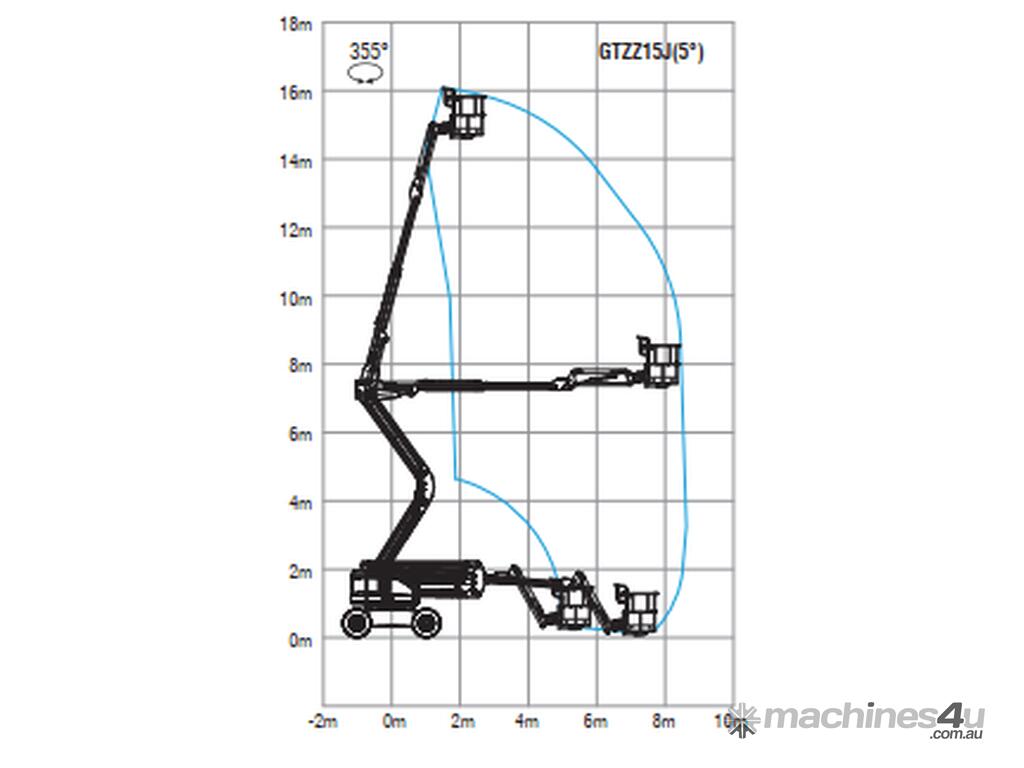

Max. Working Height: 16.70 m
Max. Working Reach: 8.50 m
Max. Platform Height: 14.70 m
Capacity: 250 kg
Platform Rotation: 160°
Drive Speed: 7.0 km/hr
Weight: 7,280 kg
Over 25 years ago, Monitor Lifts introduced the first Spider Lift to the Australian market. Today, Monitor is recognised as the leading supplier of Spider Lifts and other specialised access equipment in Australasia. With over 1000 machines sold into the Australian market; Monitor are focused on providing quality access solutions with unrivalled support. Now with six branches, a truck, service trailer and plane, Monitor can provide superior industry knowledge and the service support you need for
