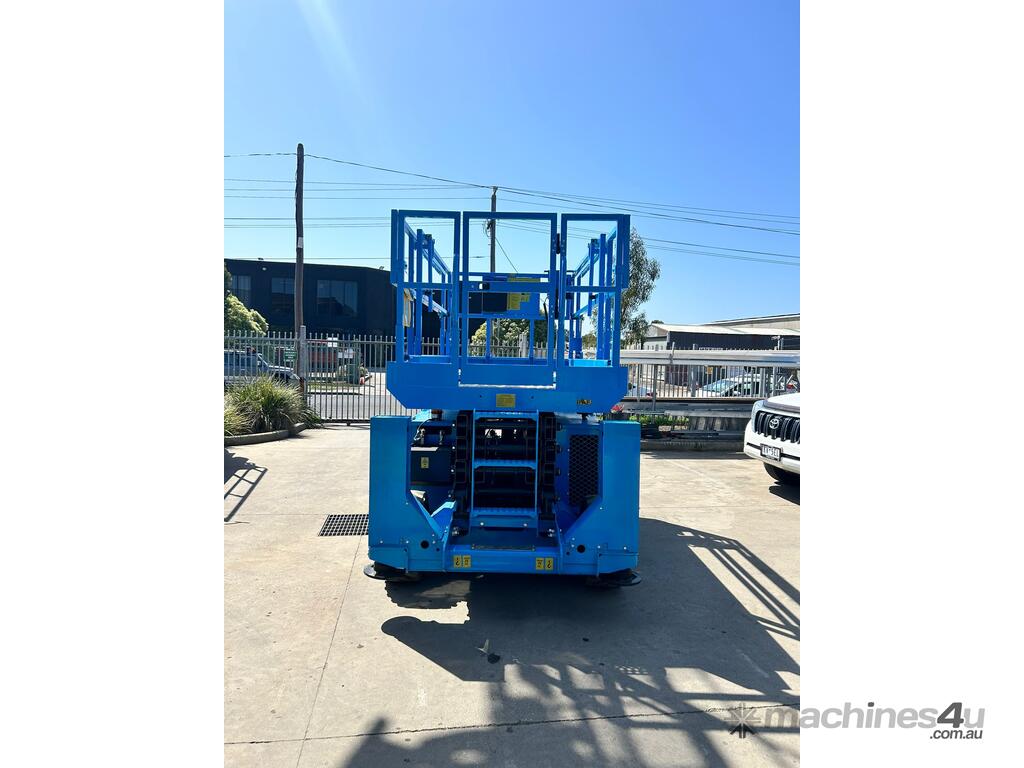

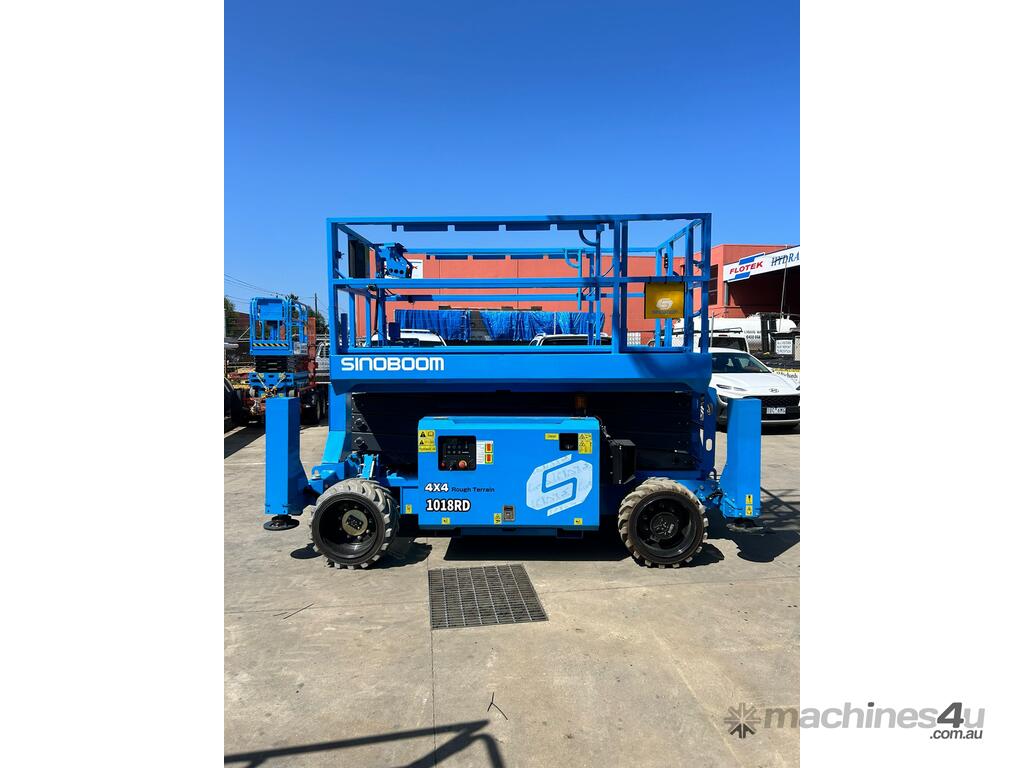

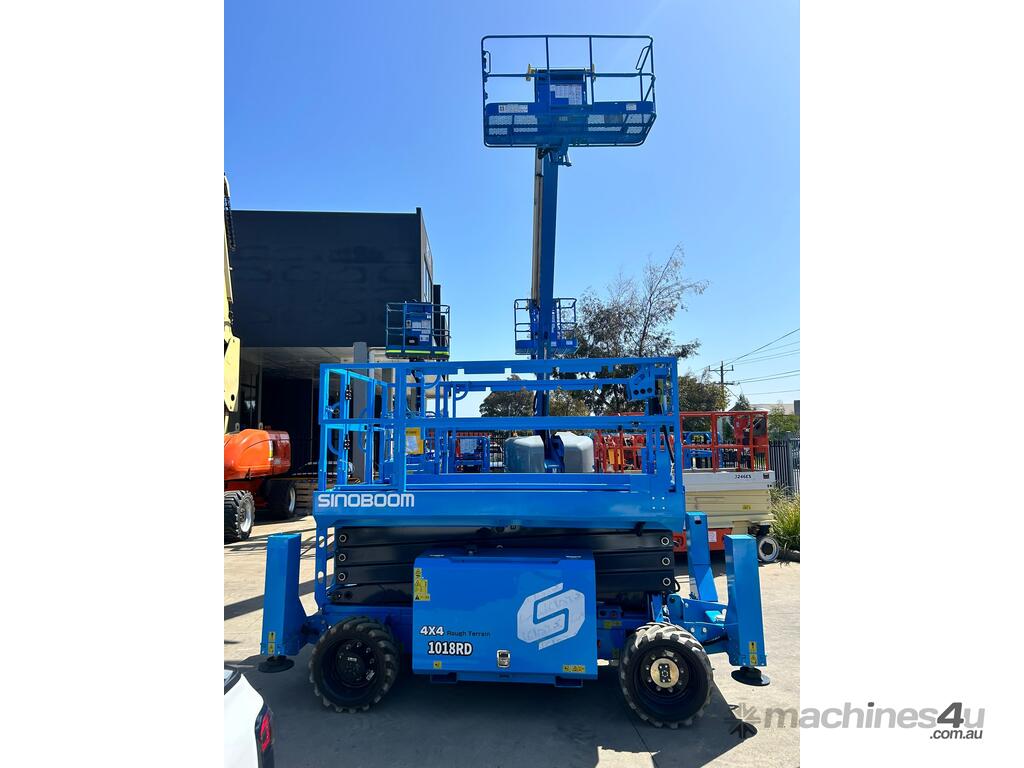

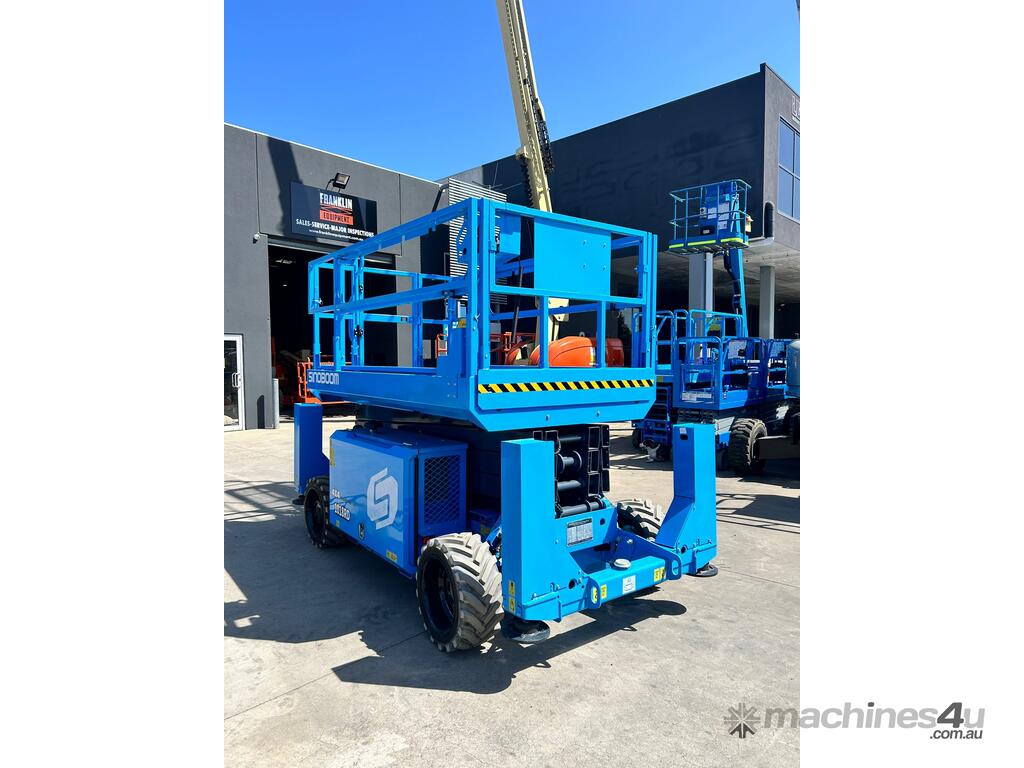

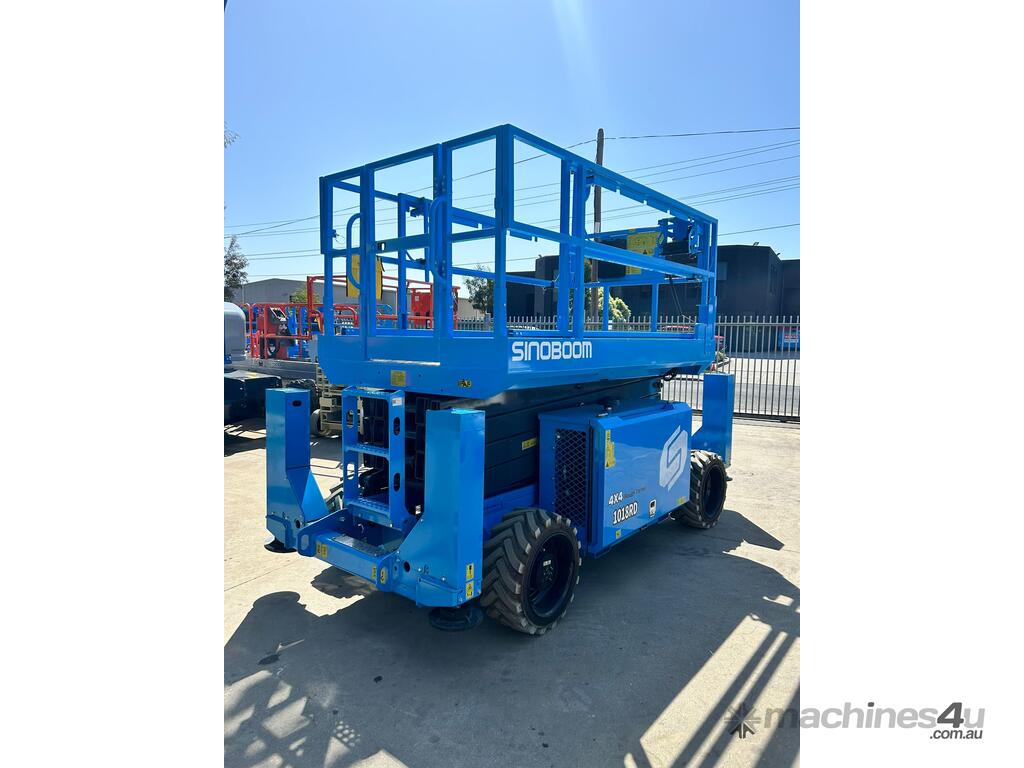

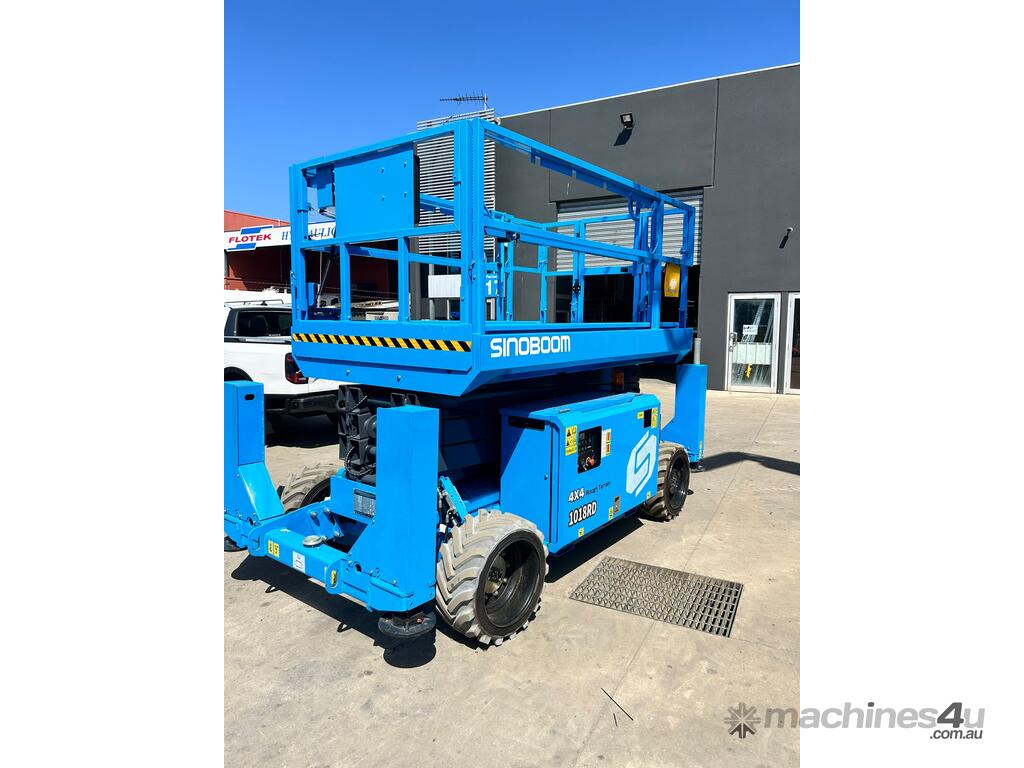

Sinoboom Rough Terrain Scissor Lift: Diesel, 12m Reach, 4100kg Capacity!

Franklin Equipment is a Melbourne based supplier of new and used EWP and Construction Equipment. Expertise in Major Inspections for elevated work platforms as well as paint and refurbishment for various construction equipment, including Boom Lifts, Scissor Lifts, Excavators, Forklifts, trailers and more. Franklin Equipment also provide training, trade ins, preform annual and 90-day inspections both on-site and in the field.

Excellent Performance
* Up to 35% gradeability, easily handling outdoor needs.
* Stable movement, oscillating working at both stowed and raised position.

High Efficiency
* 1.6m (5'3") wide platform with one-way extension platform.
* One-click leveling, easy work on uneven road surfaces.

Easy Maintenance
* Two-sided hatchback door design for convenient maintenance.
* Swing-out engine compartment for easy maintenance.

Standard Features:
4WD × 2 WS
Forklift pockets and lifting points
Proportional controls
Flashing beacon
Emergency lowering system
Emergency stop
Electrophoretic painting
Tilt protection system
Foldable guardrail
Non-marking tires
Trackunit connector
Overload sensing system
Oscillating axle
Fault diagnosis system
White noise alarm
Drivable at full height

Dimensions:
Max Working Height: 12 m (39'4.4")
A Max Platform Height: 10 m (32'9.7")
B Max Horizontal Reach: 1.5 m (4'11.1")
C Length-Stowed (With/Without outriggers): 3.8 m/3.19 m (12'5.6"/10'5.6")
D Width-Stowed: 1.78 m (5'10")
E Height-Stowed (Rails Folded): 1.94 m (6'4.4")
E Height-Stowed (Rails Unfolded): 2.56 m (8'4.8")
F Wheelbase: 2.28 m (7'5.8")
Ground Clearance: 0.22 m (8.66")
Platform Size (L×W×H): 2.8m × 1.6m × 1.1m

Performance:
Platform Capacity: 450 kg (992 lbs)
Extension Platform Capacity: 140 kg (309 lbs)
Max Platform Occupants (Indoor/Outdoor): 4 Persons/2 Persons
Drive Speed (Stowed): 05.6 km/h (03.5mph)
Drive Speed (Raised): 00.48 km/h (00.3 mph)
Lift Time (Unloaded): 42 s52 s
Lower Time (Unloaded): 40 s50 s
Gradeability: 35%
Tilt Rating (Front-to-back): 3°
Tilt Rating (Side-to-side, Outriggers Retracted/Deployed): 2°/0.8°
Max Outrigger Levelling (Front-to-back): 5.3°
Max Outrigger Levelling (Side-to-side): 11.7°
Turning Radius (Inside/Outside): 2.11 m/4.6 m (6'11.1"/15'1.1")

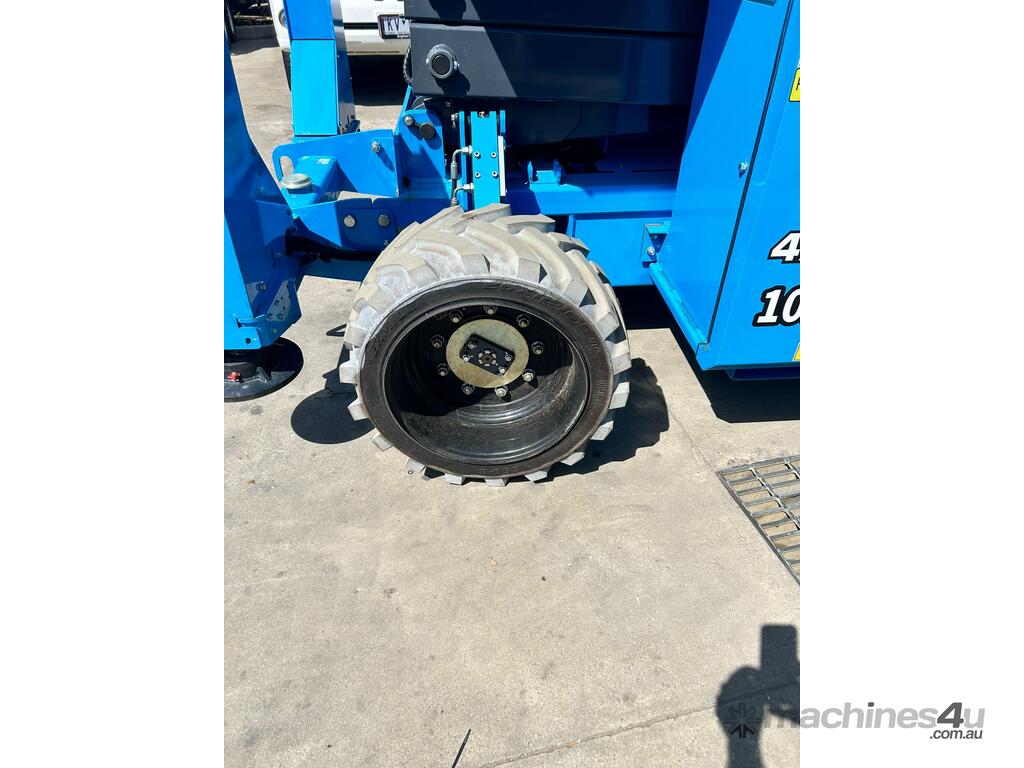

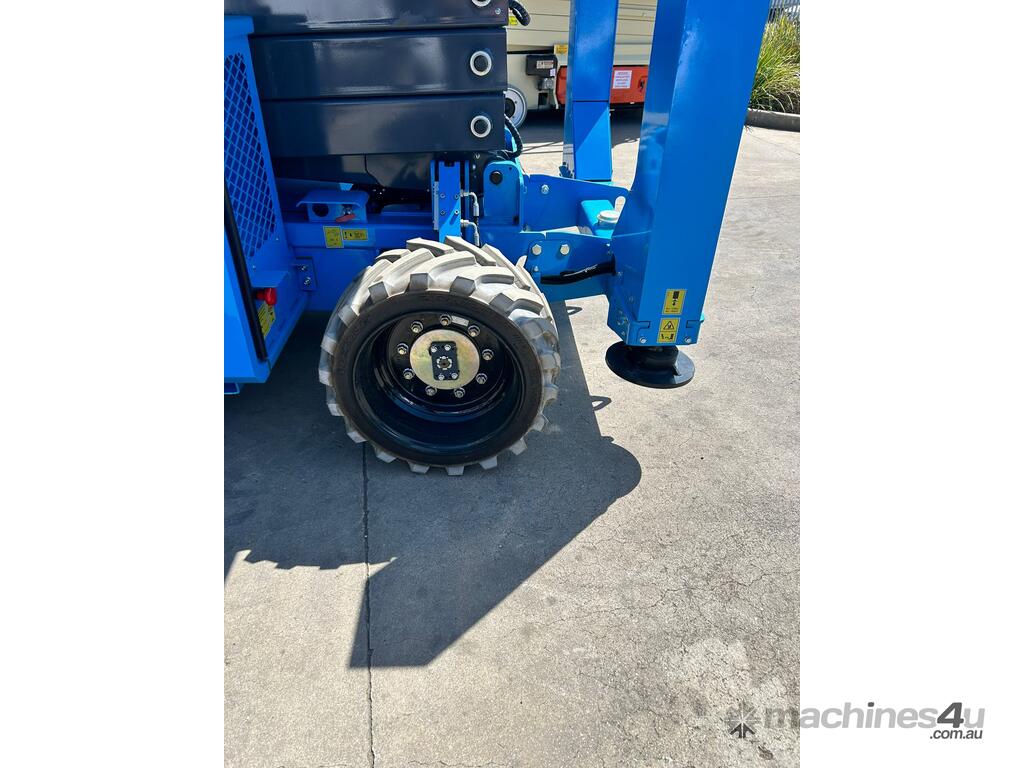

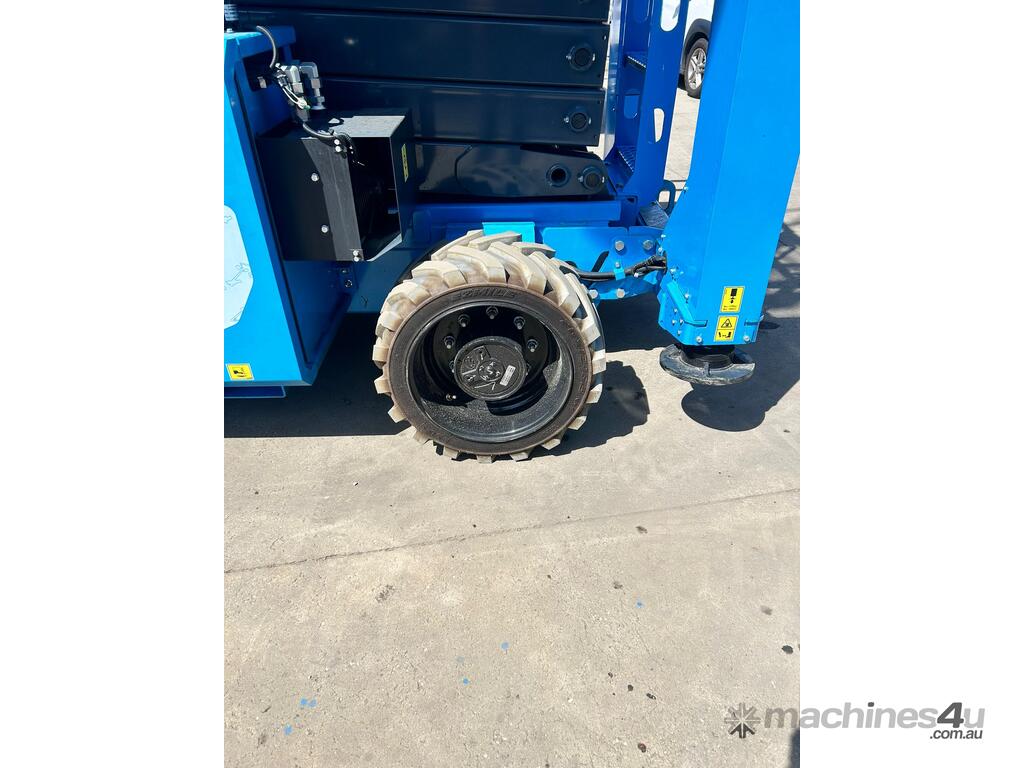

Tire Spec/Type: 26×12-16.5/Solid

Power:
Drive × Steer: 4WD × 2WS
Engine: Kubota D1105-E4B-EU-X1
Hydraulic Tank Capacity: 72L
Fuel Tank Capacity: 48L
Battery: 12 V, 60 Ah
System Voltage: 12 VDC

Weight: 4,110 kg

Full 2/5 warranty and service support available for these machines. Give Franklin Equipment a call - we will offer you the best advice and the fairest deal on your next piece of quality equipment.
