Sinoboom TB14J Plus Telescopic Boom Lift - 16m Working Height | 454kg Basket Capacity

Easy Transport
The three-section boom design benefits machine transport, allowing one container and a low-bed trailer to transport 2 machine units due to its compact transport length of only 5.88m


Heavy Load Capacity

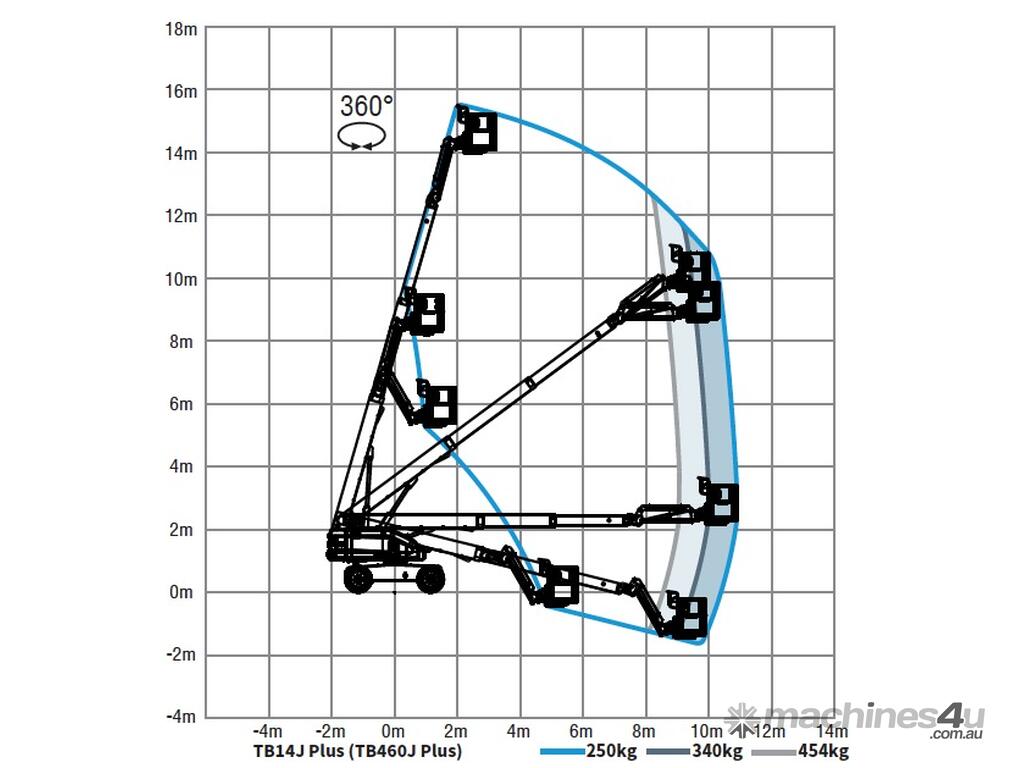

It inherits the perfect features of the Sinoboom Plus boom lifts series, with a leading three-stage heavy-load platform capacity of 454 kg when restricted, 340 kg and 250 kg when unrestricted. This capacity sets it apart from others in its class on the market


Excellent Rough Terrain Performance
The active oscillating function is a standard feature across Sinoboom boom lifts, including TB14J Plus. It allows the machine to work and travel both in boom stowed and raised status on uneven and rough terrain ground while always keeping all four wheels in contact with the ground, even when one wheel drops into a pothole. This provides high stability and work efficiency for users at job sites
With powerful 4-wheel drive and a 40% gradeability, it allows for travel on large slopes on most job sites


Proportional Controls
The platform control box is equipped with 3 joysticks with full-proportional controls for boom lifting, telescoping, turntable rotation, and driving speed
Operating with smooth starting and stopping will help you approach your job site target smoothly and precisely

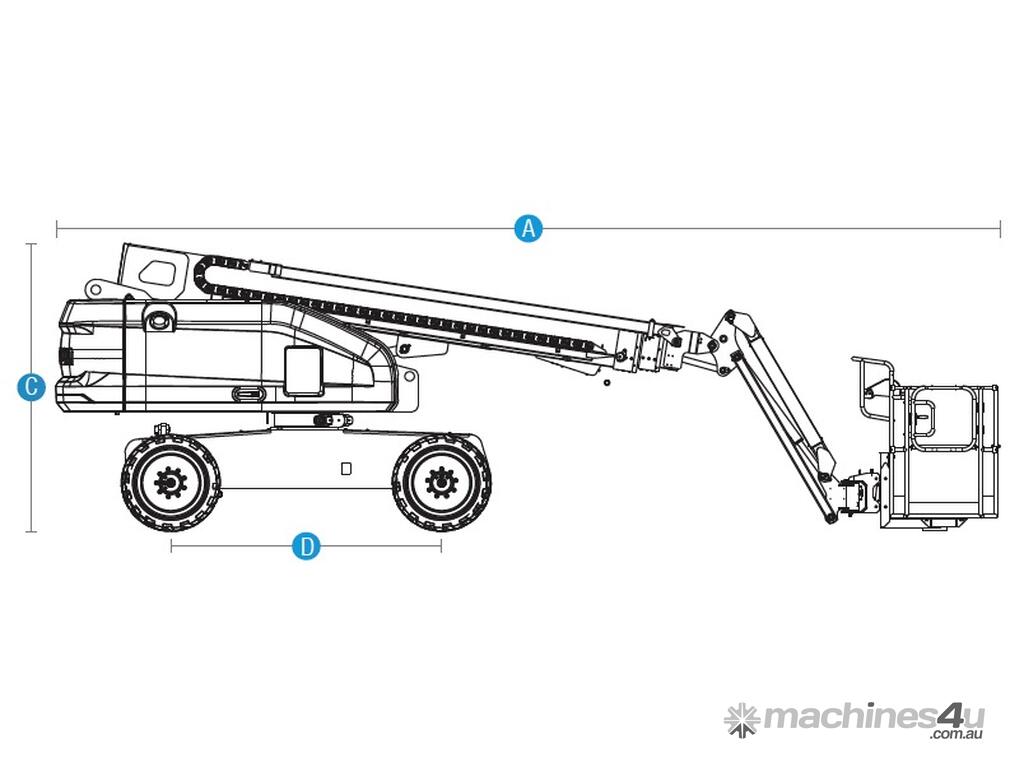

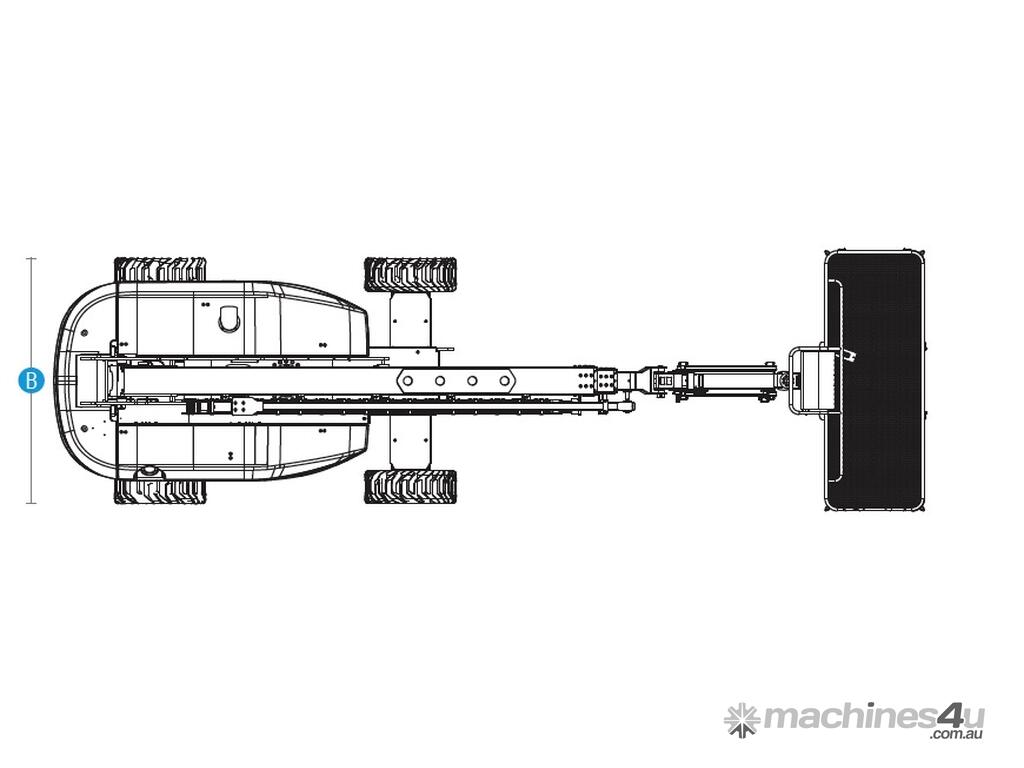

Dimensions
Max. Working Height:
16.10 m
Max. Working Reach:
14.10 m
Max. Platform Height:
10.90 m
Capacity:
454 kg
Drive Speed:
5.5 km/hr
Power:
Yanmar / Kubota diesel engine options, 18.2-43.2 kW
Weight:
7,560 kg
