Sinoboom TB20EJ Plus Lithium Electric/Hybrid Telescopic Boom Lift – Advanced, Efficient, and Safe

The Sinoboom TB20EJ Plus Lithium Electric/Hybrid Telescopic Boom Lift combines cutting-edge lithium battery technology with self-propelled capabilities to deliver powerful, eco-friendly, and efficient aerial lifts. Designed for heavy-duty applications in challenging environments, the TB20EJ Plus is the ideal solution for industries that demand reliability, high reach, and versatility, such as construction, shipbuilding, large-scale manufacturing, and maintenance.

Key Features
Powerful Performance and Flexibility
Equipped with 4WD x 2WS drive, the TB20EJ Plus offers exceptional gradeability of 35% for enhanced maneuverability in rough terrain. The unit can be operated with a full 360° continuous turntable rotation and 160° platform rotation, allowing precise positioning and access to hard-to-reach areas.

Lithium and Hybrid Power Options
Powered by an advanced 48V lithium battery (500Ah), the TB20EJ Plus offers long-lasting, reliable power. For those who require flexible options, the model is also available with a 48V lead-acid battery (480Ah). This ensures uninterrupted operation while minimizing environmental impact, making it suitable for both indoor and outdoor applications.

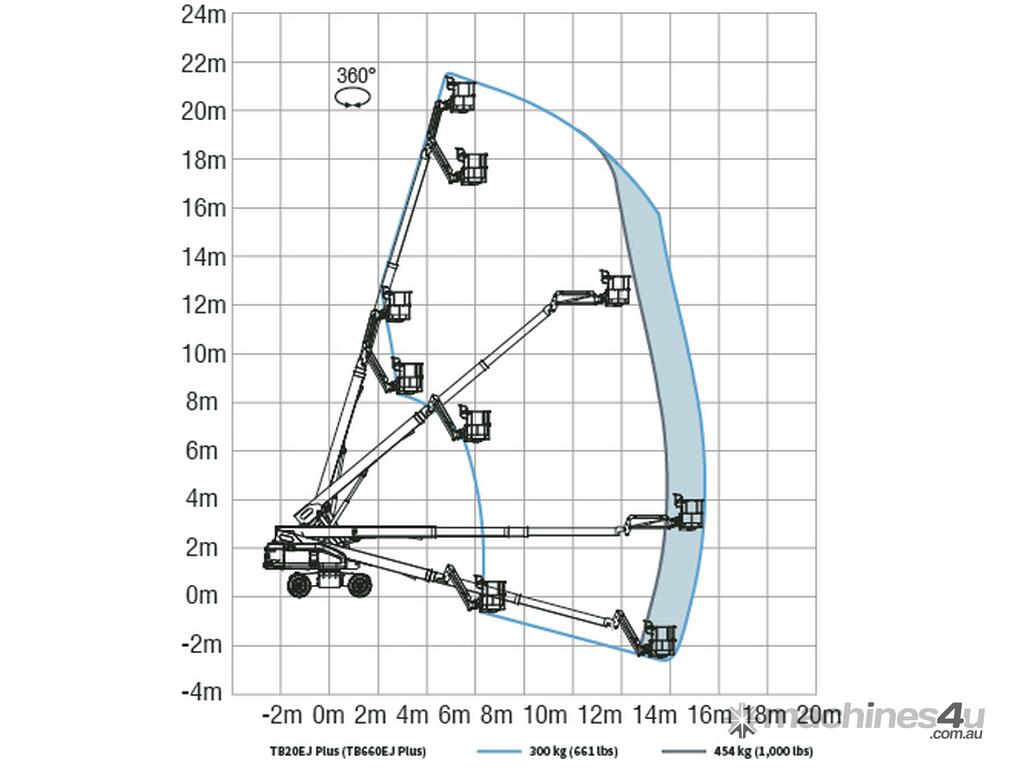

Impressive Reach and Capacity
Max Working Height: 22m (72'2")
Max Platform Height: 20m (65'6")
Max Horizontal Extension: 13.85m / 15.4m
The TB20EJ Plus provides a robust platform capacity of 300kg (unrestricted) and 454kg (restricted), easily accommodating 2-3 operators and tools, perfect for high-elevation tasks and demanding environments.

Enhanced Safety and Control
The lift features an active oscillating axle, hydraulic platform leveling, and proportional controls with 3 joysticks for smooth, precise operation. The secondary guarding system, non-marking tires, and white noise alarm ensure enhanced safety for operators and bystanders. The telemetry-ready connector allows for remote monitoring, ensuring timely maintenance and tracking.

Compact and Efficient Design
Length-Stowed: 9.99m
Width-Stowed: 2.49m
Height-Stowed: 2.79m
The TB20EJ Plus is designed for easy transport and efficient use in narrow spaces, with a tight turning radius of 2.4m (inside) and 5.55m (outside), making it perfect for urban environments, construction sites, and other space-constrained areas.

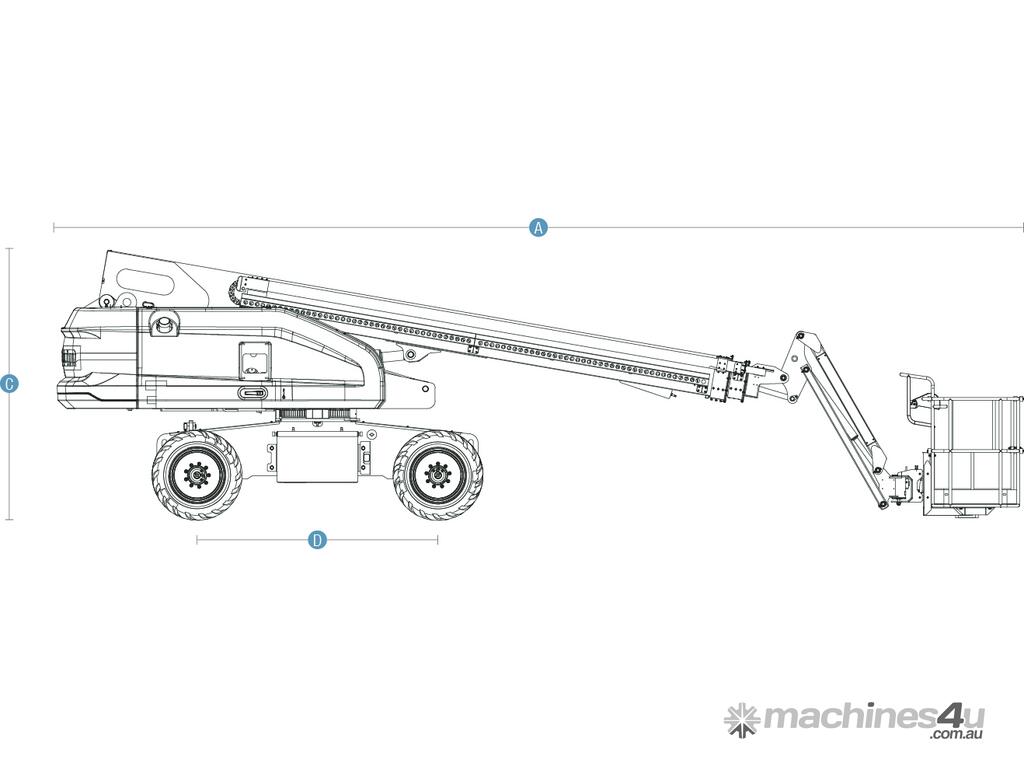

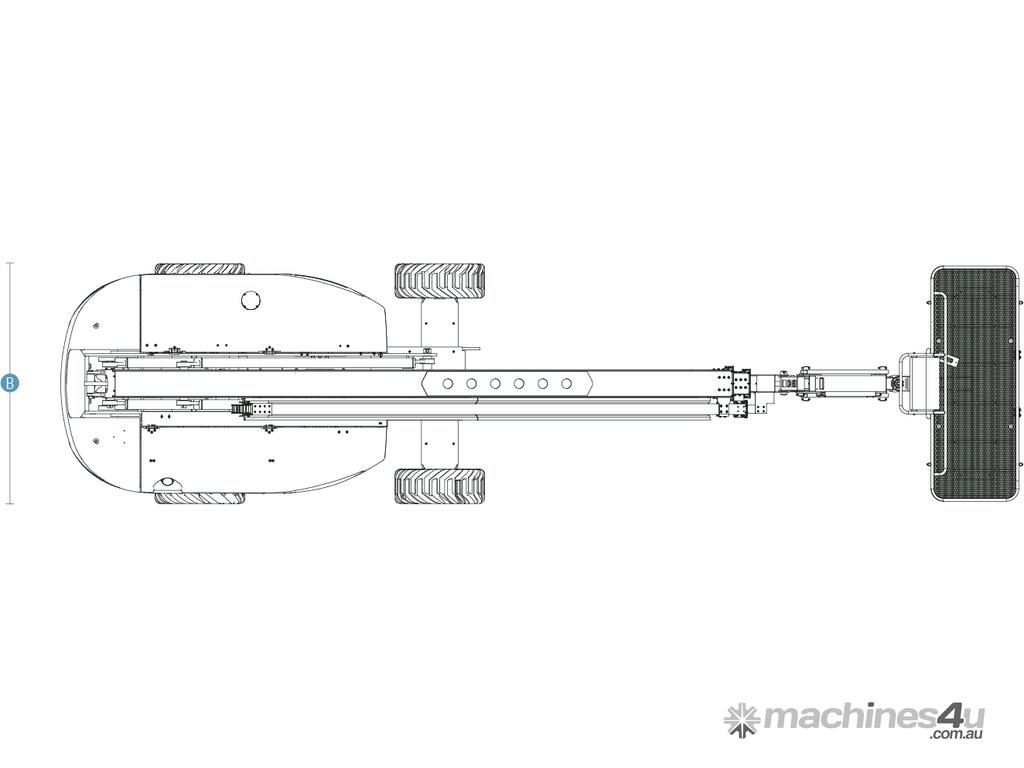

Dimensions
Max Platform Height: 20m
Max Working Height: 22m
Max Horizontal Extension: 13.85m / 15.4m
Length-Stowed: 9.99m
Width: 2.49m
Height-Stowed: 2.79m
Wheelbase: 2.49m
Ground Clearance: 0.39m
Platform Dimensions (LxWxH): 2.44m x 0.91m x 1.1m

Performance
Platform Capacity (Unrestricted): 300kg
Platform Capacity (Restricted): 454kg
Turntable Rotation: 360° continuous
Platform Rotation: 160°
Drive Speed-Stowed: 4.8 km/h
Drive Speed-Raised: 1.1 km/h
Gradeability: 35%
Turning Radius (Inside): 2.4m
Turning Radius (Outside): 5.55m
Turntable Tailswing: 1.45m
Tilt Rating: 5°
Max Operating Noise Level: Quiet, low-emission operation

Power
Battery Specifications: 48 V, 480 Ah (Lead Acid) / 48 V, 500 Ah (Lithium)
System Voltage: 48 VDC
Control Voltage: 12 VDC
Hydraulic Tank Capacity: 170L
Weight: 11,950 kg

Standard Features
Active oscillating function for improved stability on rough ground
7-inch display screen for easy monitoring
4WD x 2WS drive for powerful terrain handling
Proportional control with 3 joysticks for smooth operation
Hydraulic platform leveling to maintain stability in uneven conditions
Non-marking tires to protect floors and surfaces
Secondary guarding system for added safety
Half mesh for platform safety
Telematics-ready connector for fleet management and diagnostics
White noise alarm for increased site safety
Lockable battery isolator for added security

Optional Features
AC power to platform for additional electrical needs
Harness tube for operator safety
Wheel nut indicator for easy maintenance checks
Fire extinguisher for workplace safety
Full mine spec for demanding environments
Lead-acid battery option

Applications
Construction and Building Maintenance
Shipbuilding and Steel Structures
Urban Infrastructure and Utilities
Industrial and Petrochemical Sites
Gardening and Landscaping
Airport and Harbor Maintenance
High-rise Window Cleaning and Curtain Wall Engineering

The Sinoboom TB20EJ Plus Lithium Electric/Hybrid Telescopic Boom Lift is built to provide unmatched performance, safety, and flexibility for all your aerial lifting needs. Whether you're working on high-rise buildings, large-scale construction projects, or maintenance tasks, this lift ensures reliable, efficient operation with minimal environmental impact. Choose the TB20EJ Plus for your next project and experience the future of aerial lifting.

Contact Franklin Equipment for more details or to request a demo of the Sinoboom TB20EJ Plus today.
