Sinoboom TB32JN Plus Diesel Telescopic Boom Lift – Powerful, High-Reach, and Rugged Performance

The Sinoboom TB32JN Plus Diesel Telescopic Boom Lift is designed for maximum performance and reliability in demanding environments. With its robust diesel-powered engine and exceptional reach, this aerial lift is the ideal solution for large-scale construction, industrial projects, maintenance, and more. Offering superior flexibility and rugged design, the TB32JN Plus is built to work in tough conditions, ensuring safety and efficiency for operators.

Key Features

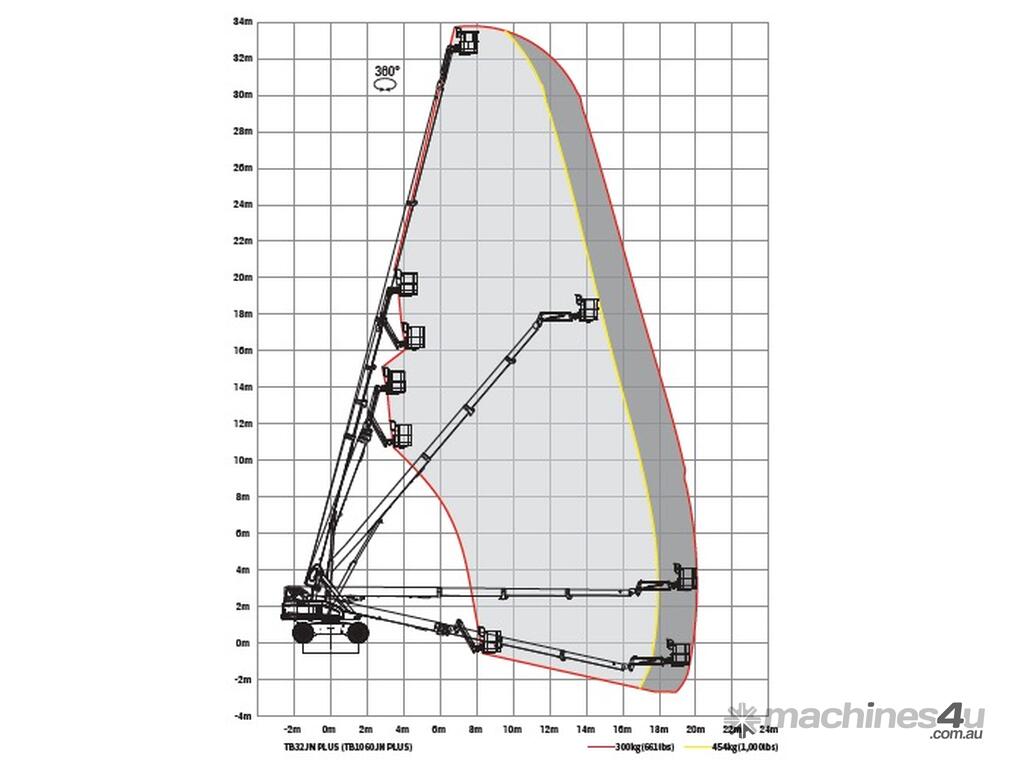

High Performance for Demanding Jobs
Max Working Height: 34.3m (112'6")
Max Platform Height: 32.3m (106')
Max Horizontal Extension: 17.9m / 20m
The TB32JN Plus delivers an impressive working range with 360° continuous turntable rotation and 160° platform rotation, allowing operators to work with high precision and flexibility at heights. With 45% gradeability, this boom lift can easily maneuver rough terrain, making it ideal for construction, shipbuilding, and industrial applications.

Heavy-Duty Power and Capacity
Powered by a 54 kW Cummins engine, the TB32JN Plus offers strong, reliable performance with a fuel tank capacity of 140L, ensuring long hours of operation. The unit can hold 2-3 operators, and its platform capacity is 300kg (unrestricted) and 454kg (restricted), providing ample support for tools and materials.

Enhanced Safety Features
The TB32JN Plus is designed with operator safety as a priority. It includes proportional control with 3 joysticks for smooth operation, hydraulic platform leveling to maintain stability on uneven ground, and a secondary guarding system. The active oscillating axle and non-marking tires add to its stability and usability across various worksite conditions. Additionally, the white noise alarm enhances safety by alerting bystanders of the machine’s operation.

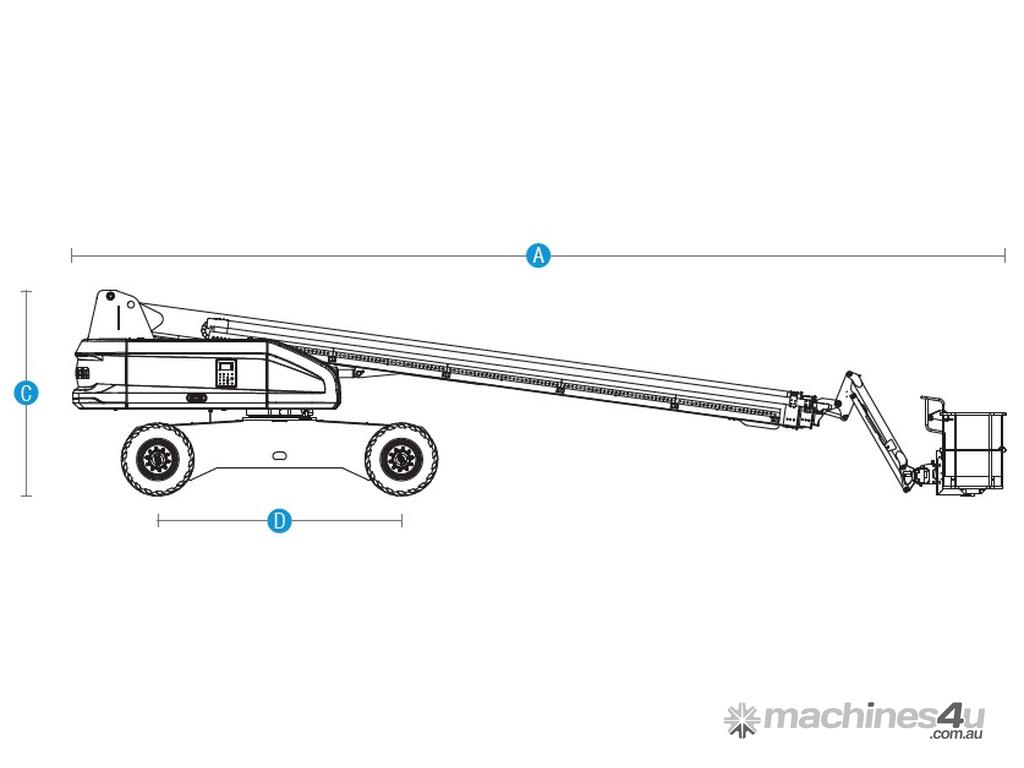

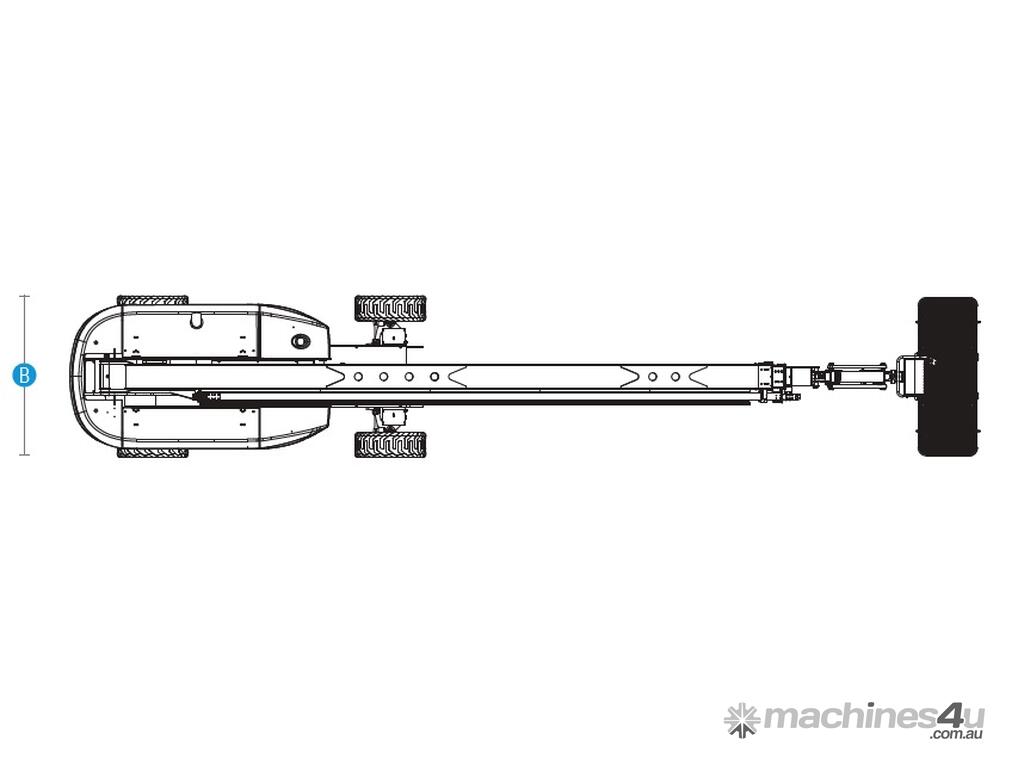

Compact and Maneuverable Design
Length-Stowed: 12.76m
Width: 2.49m
Height-Stowed: 2.88m
Wheelbase: 3m
The TB32JN Plus is engineered for easy transport and positioning. Its tight turning radius of 3.65m (inside) and 6.91m (outside) ensures maneuverability in narrow spaces, while the ground clearance of 0.46m allows the unit to navigate rough terrain with ease.

Dimensions
Max Platform Height: 32.3m (106')
Max Working Height: 34.3m (112'6")
Max Horizontal Extension: 17.9m / 20m
Length-Stowed: 12.76m
Width: 2.49m
Height-Stowed: 2.88m
Wheelbase: 3m
Ground Clearance: 0.46m
Platform Dimensions (LxWxH): 2.44m x 0.91m x 1.1m

Performance
Platform Capacity (Unrestricted): 300kg
Platform Capacity (Restricted): 454kg
Turntable Rotation: 360° continuous
Platform Rotation: 160°
Drive Speed-Stowed: 4.8 km/h
Drive Speed-Raised: 1.1 km/h
Gradeability: 45%
Turning Radius (Inside): 3.65m
Turning Radius (Outside): 6.91m
Turntable Tailswing: 1.45m
Tilt Rating: 5°
Max Operating Noise Level: Quiet operation

Power
Power Source (Optional): 54 kW/2400 rpm Cummins engine
Auxiliary Power Unit: 12V DC
Fuel Tank Capacity: 140L
Hydraulic Tank Capacity: 180L
Weight: 17,460kg

Standard Features
Active oscillating axle for stability on rough terrain
7-inch display screen for easy operational monitoring
4WD x 2WS drive system for rugged terrain handling
Proportional control with 3 joysticks for smooth, precise movement
Hydraulic platform leveling to adjust for uneven ground
Non-marking tires to prevent surface damage
Secondary guarding system for operator safety
Half mesh for additional platform protection
Telematics-ready connector for remote monitoring and diagnostics
White noise alarm for increased safety awareness
Lockable battery isolator for added security

Optional Features
AC power to platform for additional electrical needs
Generator for standalone power supply

Applications
Construction & Building Maintenance
Shipbuilding & Industrial Manufacturing
Steel Structures & Large-Scale Projects
Urban Infrastructure & Utilities
Petrochemical & Chemical Industries
Gardening & Landscaping
Airport & Harbor Maintenance

The Sinoboom TB32JN Plus Diesel Telescopic Boom Lift is a powerful, versatile, and safe solution for aerial lifting at extreme heights. Whether you’re working in construction, industrial sectors, or maintenance projects, this boom lift ensures maximum productivity and safety. Experience the next level of efficiency and reach with the TB32JN Plus.

Contact Franklin Equipment for more information or to schedule a demo today.
