Precision performance
Platform control unit equips 3 joysticks featuring proportional control, which is easy to operate and reach the work targets
Intelligent maintenance
Industry leading 7? screen displays faults and status information, for easy reference, reducing service technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information
Safe and reliable
Machine equips safety Rexroth controller with dual backup CPU and compliant with ISO 13849, high performance level d, combined with dual channel sensors offering an extremely safe redundancy

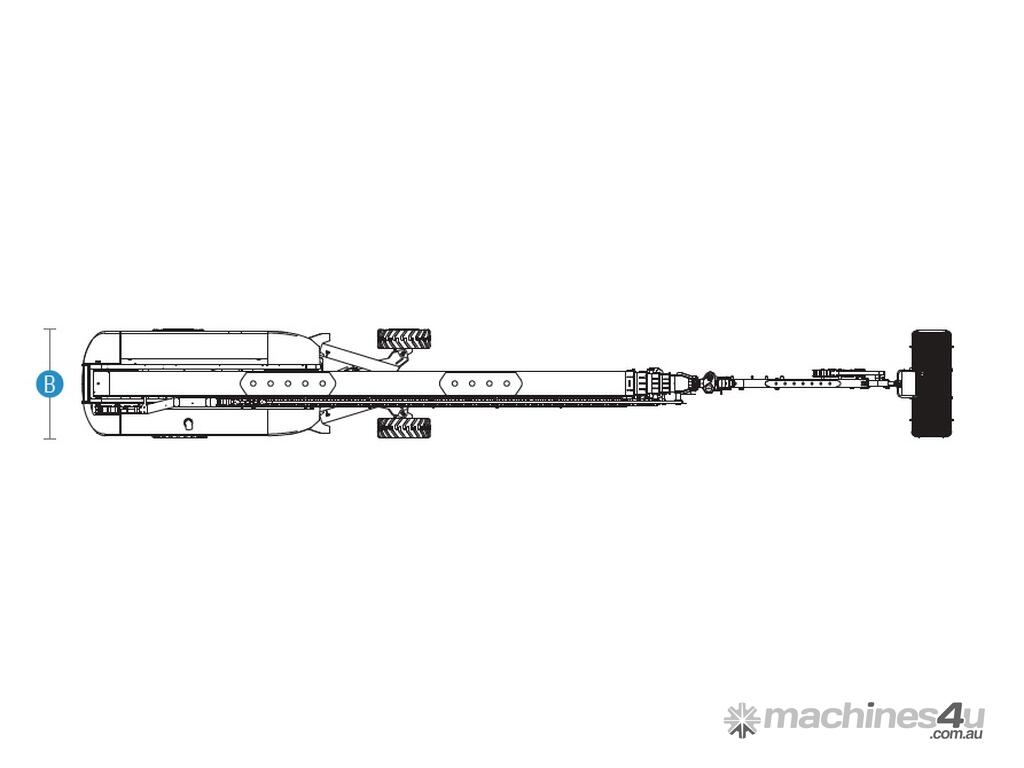

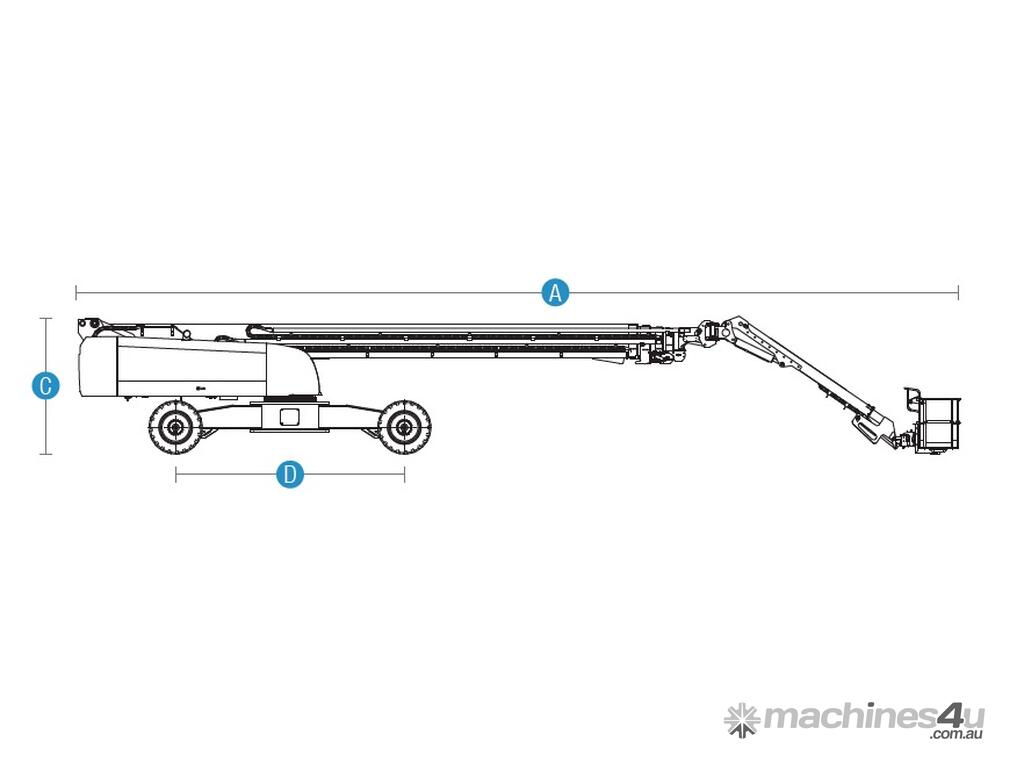

Dimensions

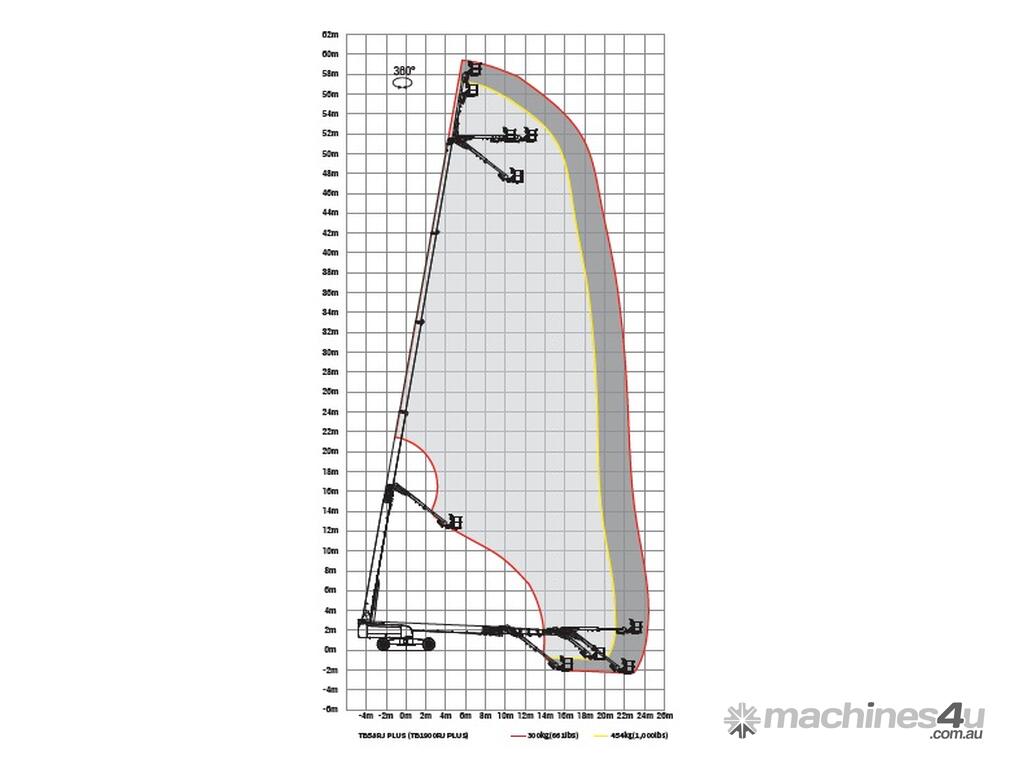

Max. Working Height:
59.90 m
Max. Working Reach:
24.40 m
Max. Platform Height:
57.90 m
Capacity:
454 kg
Platform Rotation:
160°
Drive Speed:
4.5 km/hr
Power:
Yuchai. Cummins or Deutz, 74–74.4 kW
Weight:
27,600 kg
