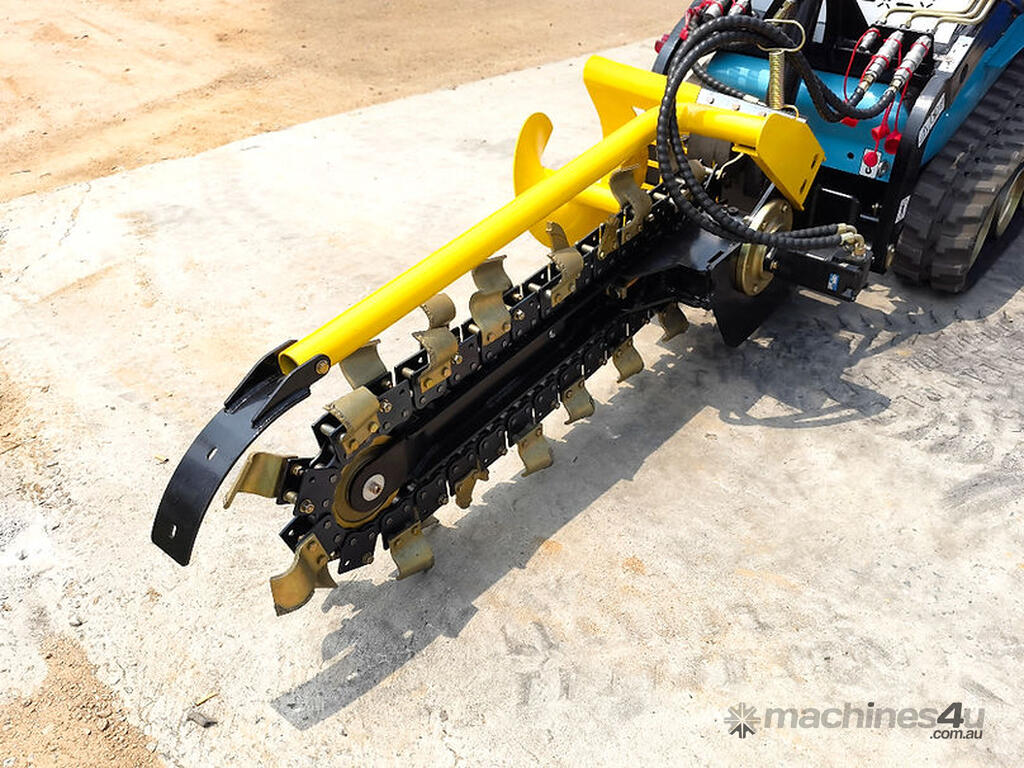

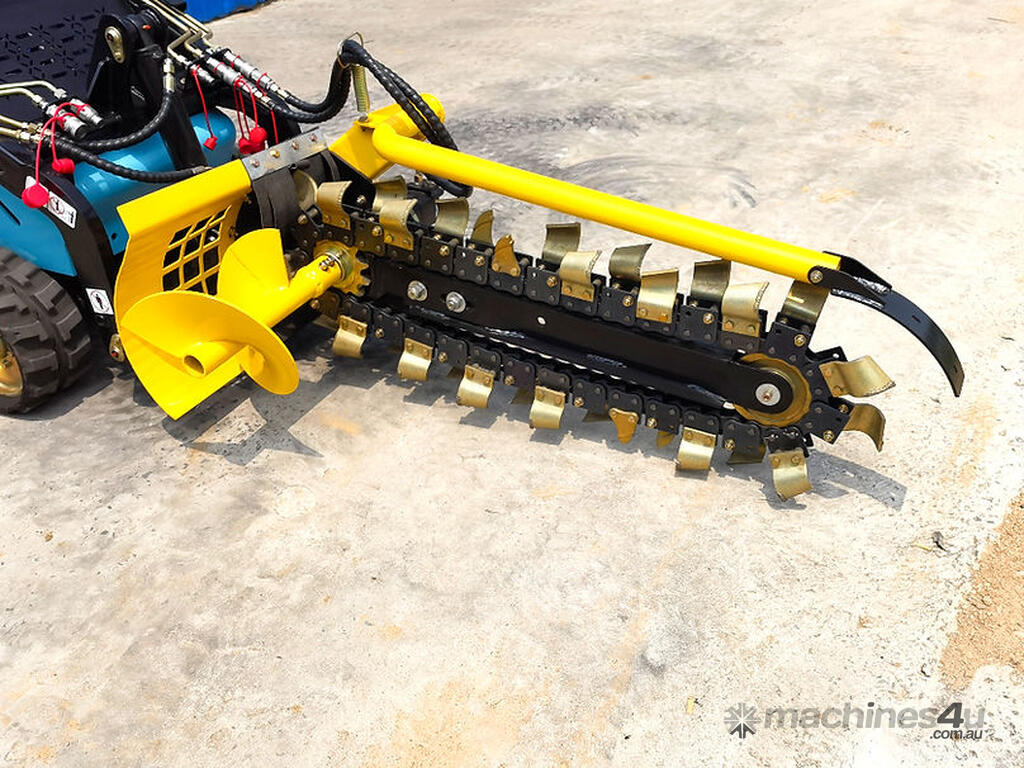

Skid Steer Trencher | 1000mm Depth | 150–300mm Width | Heavy-Duty

Designed for utility contractors and farmers alike, this trencher cuts clean trenches for
pipelines, cables, or irrigation systems with minimal soil disruption. Its adjustable trench
width and robust design make it suitable for diverse site conditions.

• Overall Size (L×W×H): 1750 × 950 × 800 mm
• Trenching Depth: 1000 mm
• Width: 150–300 mm adjustable
• Pressure: 16–20 MPa
• Flow: 16–32 L/min
• Weight: 189 kg
• Chain type (tooth design): Alloy teeth and Rock teeth
• Chain speed (m/s or rpm): 450-600 rpm
• Recommended machine hydraulic flow (L/min): 16 lpm
