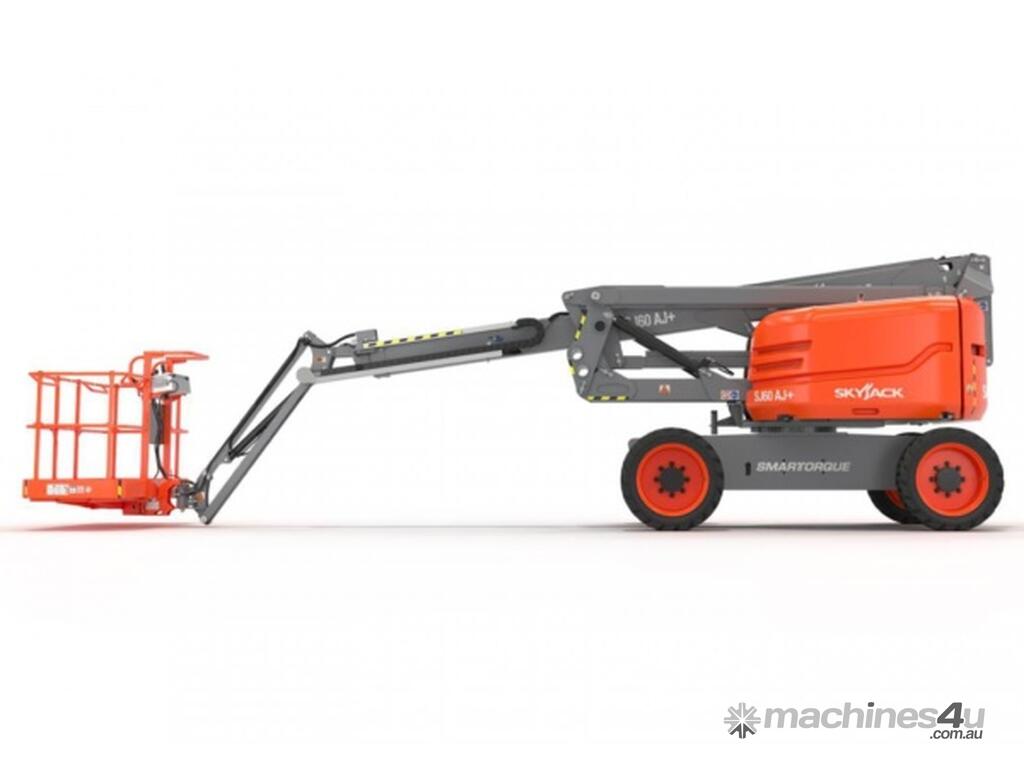

Skyjack SJ60 AJ Plus

The Skyjack SJ60 AJ Plus Articulating Boom Lift is a high-performance access solution designed for elevated work in demanding outdoor and industrial environments. With its extended reach and articulating boom design, it provides excellent flexibility for accessing difficult areas around structures, obstacles, and confined spaces at height.

Powered by a Kubota diesel engine, the SJ60 AJ Plus delivers reliable performance with Skyjack’s advanced AXLDRIVE™ 4WD system, ensuring strong traction and control across rough terrain. With up to 40% gradeability and an oscillating steer axle, the machine is built to handle uneven ground conditions with confidence.

With an 18.29m platform height, 11.56m horizontal outreach, and dual platform capacity up to 454kg, the SJ60 AJ Plus is ideal for large-scale construction, maintenance, and installation work. The articulating boom, combined with 360° continuous turret rotation, allows for precise positioning and improved efficiency on complex job sites.

Specifications:
Max Working Height 20.29 m
Max Platform Height 18.29 m
Max Outreach (horizontal) 11.56 m
Platform Size 0.91 x 2.44 m
Max Platform Capacity 454 kg
Weight 8,557 kg
Power Source Diesel Kubota D1305 18.5 KW (24.8 HP)
Stowed Length 8.59 m
Stowed Width 2.44 m
Stowed Height 2.54 m
Ground Clearance 0.33 m
