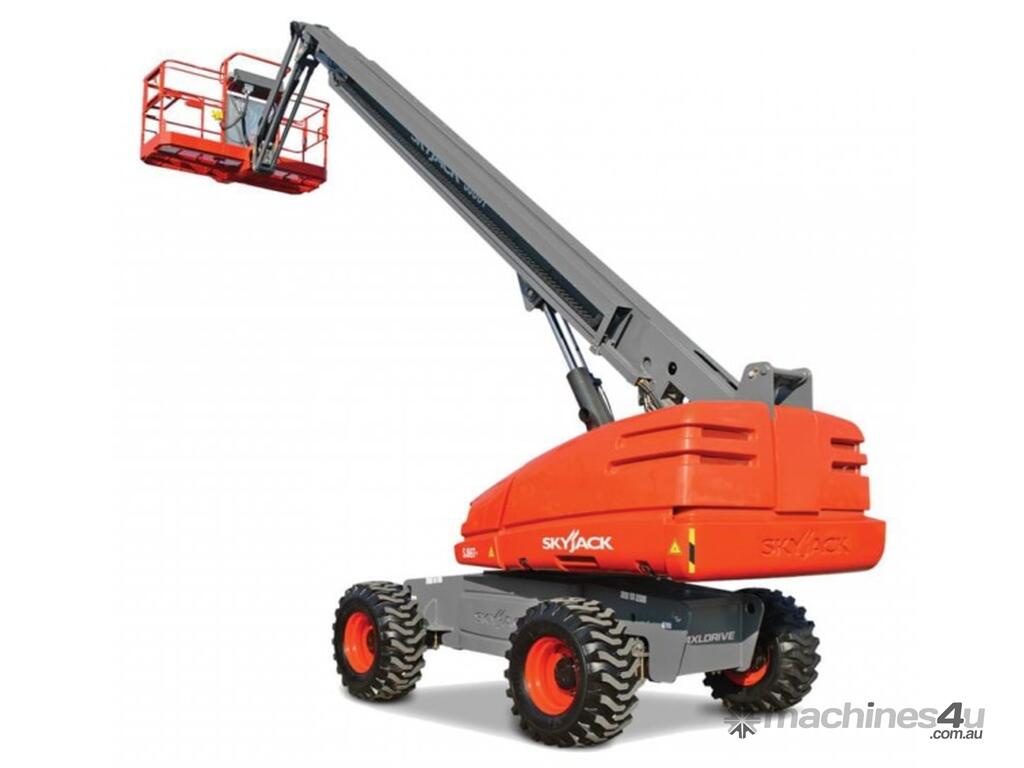

The Skyjack SJ66T Plus Telescopic Boom Lift is a high-performance access solution designed for elevated work requiring extended horizontal reach and maximum height. Built for demanding outdoor environments, it is ideal for construction, infrastructure, and industrial applications where direct access and efficiency are critical.
Powered by a Deutz diesel engine, the SJ66T Plus delivers reliable performance with Skyjack’s advanced AXLDRIVE™ 4WD system, providing superior traction and control across rough terrain. With up to 50% gradeability and an oscillating steer axle, the machine is engineered to perform confidently in challenging job site conditions.
With a 20.19m platform height, 17.38m horizontal outreach, and dual platform capacity up to 454kg, the SJ66T Plus is well suited for high-reach tasks involving multiple operators, tools, and materials. The straight telescopic boom design allows for fast, direct positioning to the work area, improving productivity on site.
Specifications:
Max Working Height 22.19 m
Max Platform Height 20.19 m
Max Outreach (horizontal) 17.38 m
Platform Size 0.91 x 2.44 m
Max Platform Capacity 454 kg
Weight 12,585 kg
Power Source Diesel Deutz D2011L04i 48kw (65hp)
Stowed Length 10.40 m
Stowed Width 2.44 m
Stowed Height 2.59 m
Ground Clearance 0.41 m
