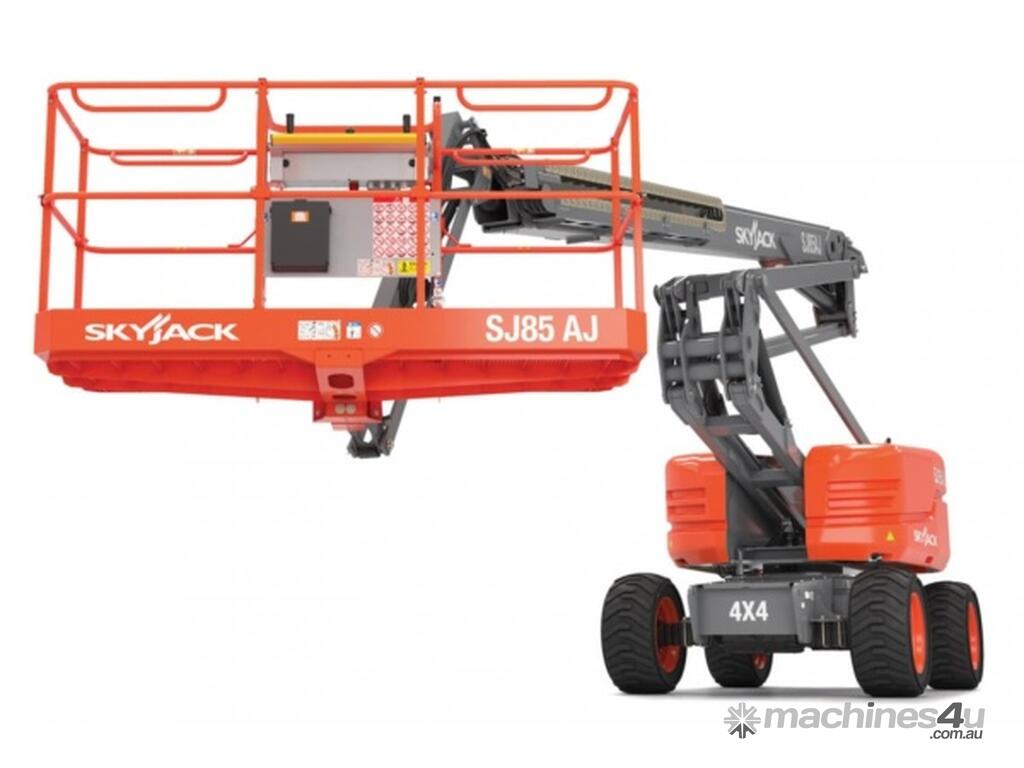

The Skyjack SJ85 AJ Articulating Boom Lift is a premium high-reach access solution designed for demanding construction, industrial, and large-scale infrastructure projects. With its exceptional height and outreach capabilities, it is built to handle complex jobs that require maximum flexibility and performance.
Powered by a Deutz diesel engine, the SJ85 AJ delivers reliable power with Skyjack’s advanced AXLDRIVE™ 4WD system, providing superior traction and control across rough and uneven terrain. With up to 45% gradeability and an oscillating steer axle, the machine is engineered to perform confidently in challenging job site conditions.
With a 25.91m platform height, 17.07m horizontal outreach, and dual platform capacity up to 340kg, the SJ85 AJ is ideal for high-reach applications involving multiple operators, tools, and materials. The articulating boom design, combined with 360° continuous turret rotation, allows for precise positioning and efficient access around structures and obstacles.
Specifications:
Max Working Height 27.91 m
Max Platform Height 25.91 m
Max Outreach (horizontal) 17.07 m
Platform Size 0.91 x 2.44 m
Max Platform Capacity 340 kg
Weight 16,465 kg
Power Source Diesel Deutz D2011L04i – 65 HP (48 KW)
Stowed Length 11.63 m
Stowed Width 2.49 m
Stowed Height 2.67 m
Ground Clearance 0.34 m
