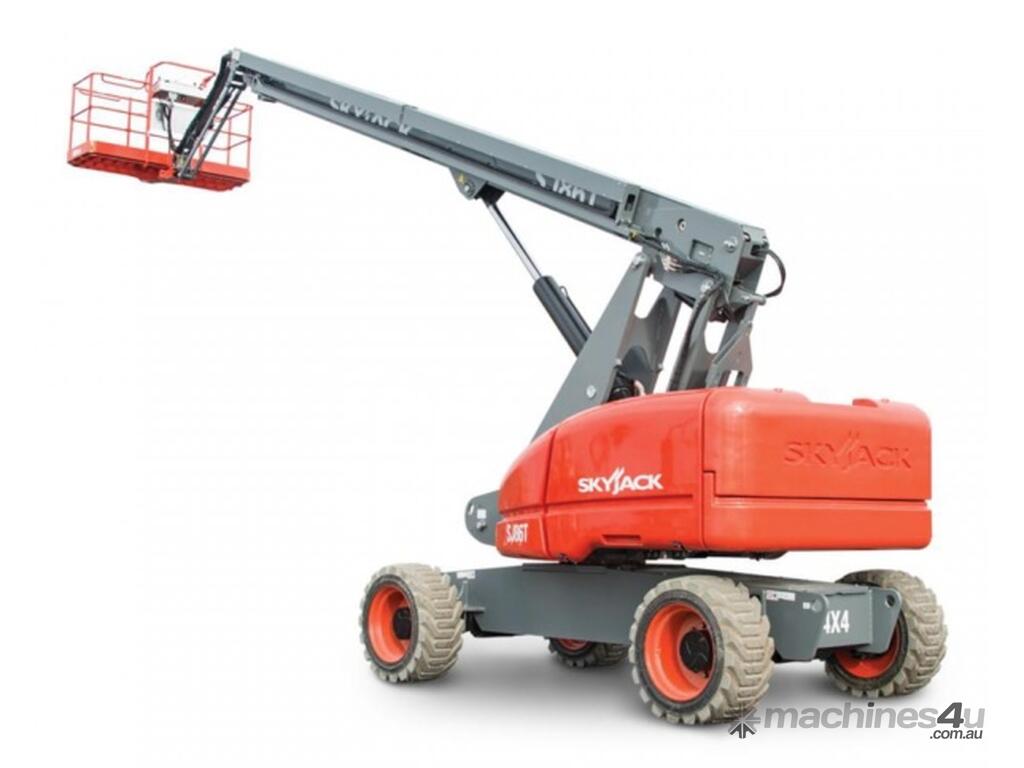

The Skyjack SJ86T Telescopic Boom Lift is a premium high-reach access solution designed for demanding construction, industrial, and infrastructure projects. Built for maximum height and outreach, it is ideal for applications requiring direct access to elevated work areas over long distances.
Powered by a Deutz diesel engine, the SJ86T delivers strong and reliable performance with Skyjack’s advanced AXLDRIVE™ 4WD system, providing excellent traction and control across rough and uneven terrain. With up to 45% gradeability and an oscillating steer axle, the machine is engineered to perform confidently in challenging job site conditions.
With a 26.21m platform height, 23.42m horizontal outreach, and dual platform capacity up to 341kg, the SJ86T is well suited for high-reach tasks involving multiple operators, tools, and materials. The straight telescopic boom design allows for fast and direct positioning, improving efficiency and productivity on site.
Specifications:
Max Working Height 28.21 m
Max Platform Height 26.21 m
Max Outreach (horizontal) 23.42 m
Platform Size 0.91 x 2.44 m
Max Platform Capacity 341 kg
Weight 17,550 kg
Power Source Diesel Deutz D2011L04i 48kw (65hp)
Stowed Length 12.95 m
Stowed Width 2.49 m
Stowed Height 3.0 m
Ground Clearance 0.41 m
