The KANG JZW-1000 is a heavy-duty, long-bed CNC slitter folder engineered for high-volume sheet metal fabrication in. This industrial-grade machine combines precision rotary slitting and multi-angle folding in one powerful unit, handling sheets up to 10000mm (10 metres) long and 1.5mm mild steel (or 2.0mm aluminium / 0.8mm stainless steel at 250 MPa yield).
Massive 10000mm working length + 800mm throat depth. Perfect for long Australian roofing sheets, wall panels, and architectural metalwork. No depth restrictions like conventional press brakes — form deep boxes, closed profiles, and complex shapes with zero interference.

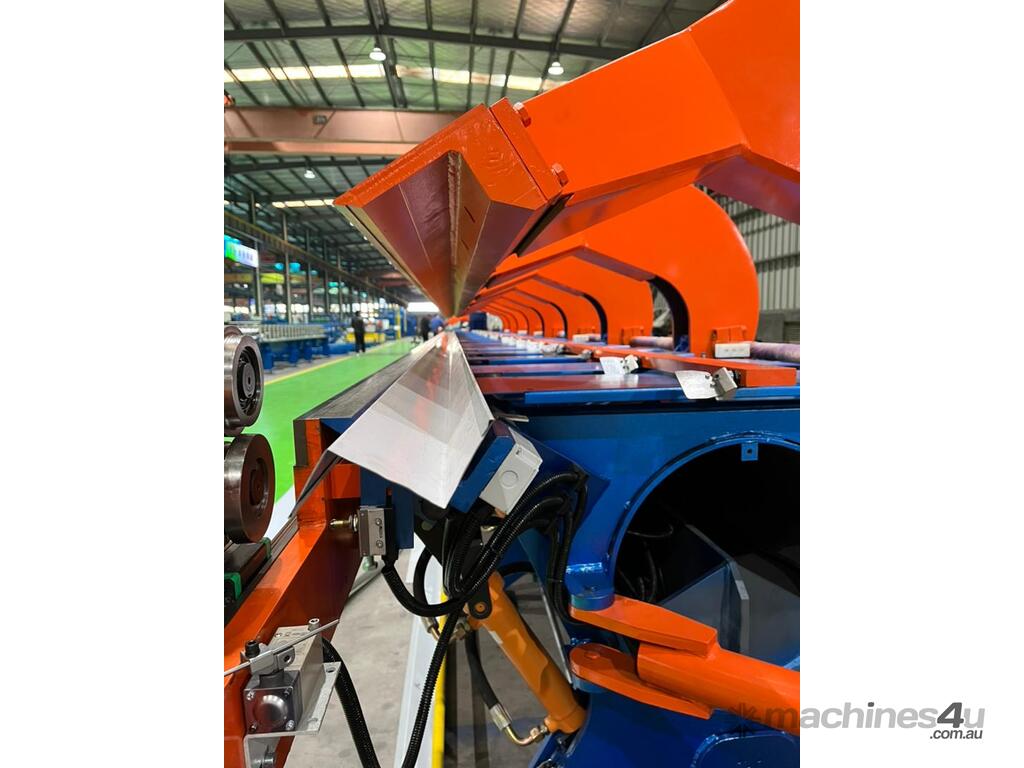

9-frame multi-head hydraulic folding system — Independent clamp and fold cylinders deliver fast, precise 0–125° bends across the full length. Approx. 12-second cycle time for maximum folds means dramatically higher daily output.
Integrated high-speed rotary slitter. Overarm-mounted 80mm D2 hardened knives (electric motor + chain drive) slit full 10000mm sheets at 0.8m/s in ~12 seconds. Cut and fold in one setup — no need for separate guillotine or slitting machines.

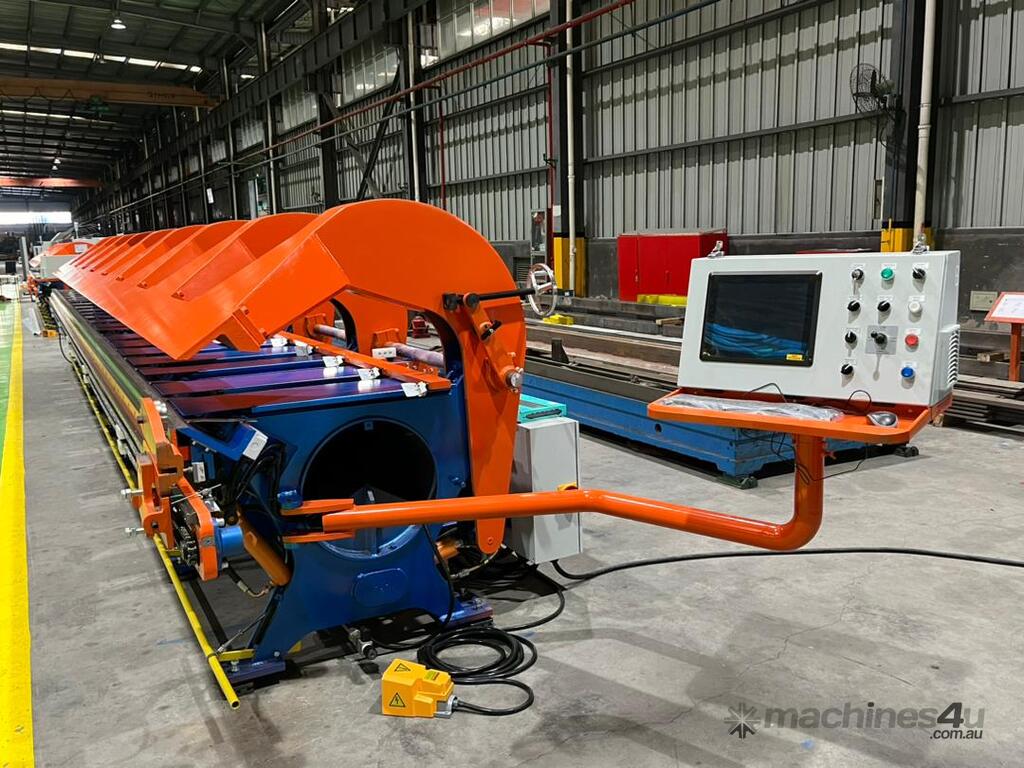

Advanced CNC controller with 300mm LCD. User-friendly man-machine dialogue interface for automatic angle setting, backgauge positioning, and repeatable programs. Eliminates manual marking and reduces operator error.
Versatile material capacity — Handles 1.25mm mild steel, 2.0mm aluminium, and 0.8mm stainless steel. Ideal for Australian climate-resistant roofing, cladding, and commercial fabrication.
Built-in safety & productivity features — Full-length kick rail, E-stops, electric interlocks, and two-stage clamping. Heavy 6500kg frame ensures vibration-free operation and long-term reliability in busy workshops.
Single-machine efficiency — Combines slitting + folding, saving floor space, labour, and setup time versus running separate slitter and folder machines.
