Sodick One Process Machining Centre - OPM

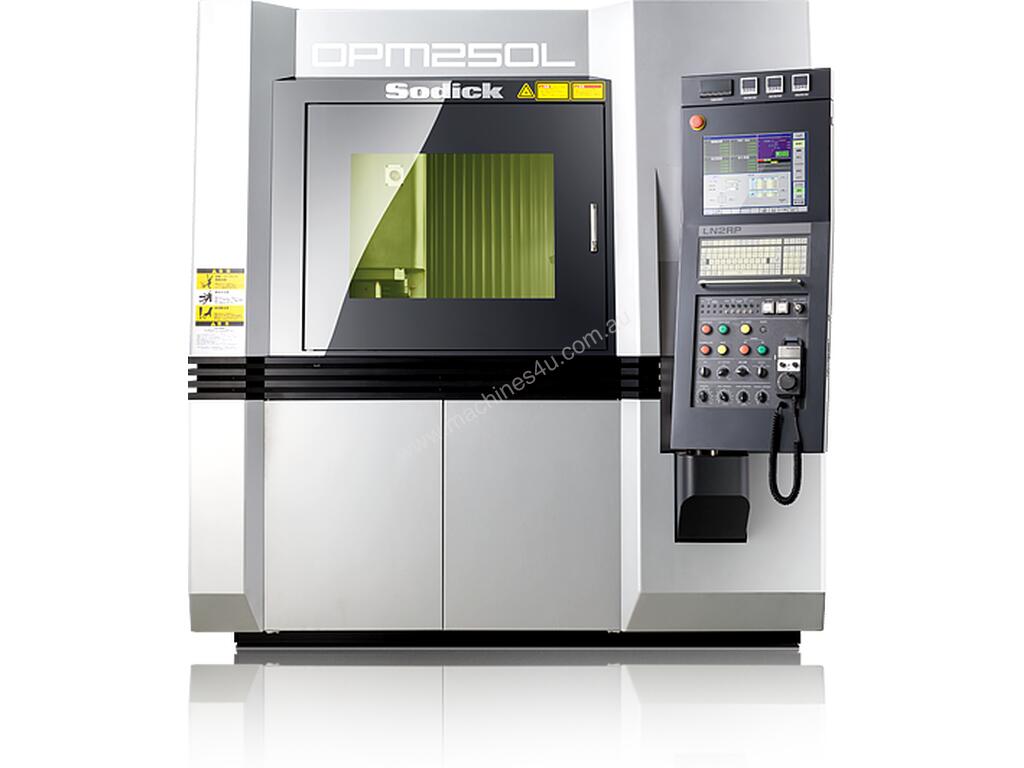

Sodick's new OPM250L – Additive Manufacturing plus CNC milling combined for the first time in one machine
The OPM250L is a fully automatic machine which performs high precision finish machining where a
metal powder is spread uniformly (recoating process), the metal powder is scanned with a laser beam
to solidify the melted powder, and a rotary tool is used to perform high-speed milling. The adoption
of an Yb fiber laser with a maximum output of 500W for the laser oscillator which solidifies the
melted metal powder, realized high-speed metal 3D printing

Technical Specification

Max size of molding object (W x D x H) 250×250×250mm
X axis stroke 260mm
Y axis stroke 260mm
U axis stroke 260mm
Molding tank inner dimensions (W x D) 290×290mm
Spindle Z-axis stroke 100mm
Max powder supply weight 90kg (Maraging steel)
Nitrogen supply capacity 32NL/min
Machine dimensions (Peripheral equipment not included) 1870×2230×2055mm
Machine weight (Peripheral equipment not included) 4500kg
Laser method Yb fiber laser
Laser wavelength 1070nm
Max laser output 500W
Laser scan Galvano method
Max main spindle rotation speed 45000min-1
Max main spindle torque 0.8Nm
Number of tools 0.8Nm
Number of tools 16
Tool holder method Dual face contact holder HSK-E25
