Stainless Steel 3 Tier Sorting Conveyor - 8m Long

Make us an offer! We take all reasonable offers into consideration and are highly negotiable.

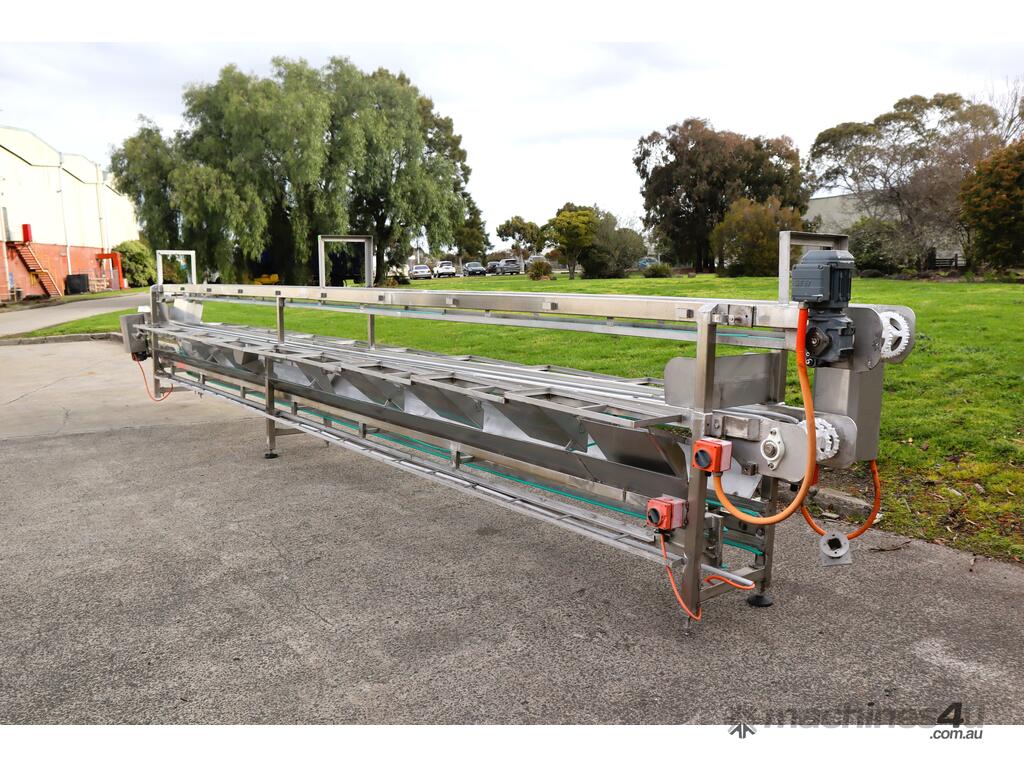

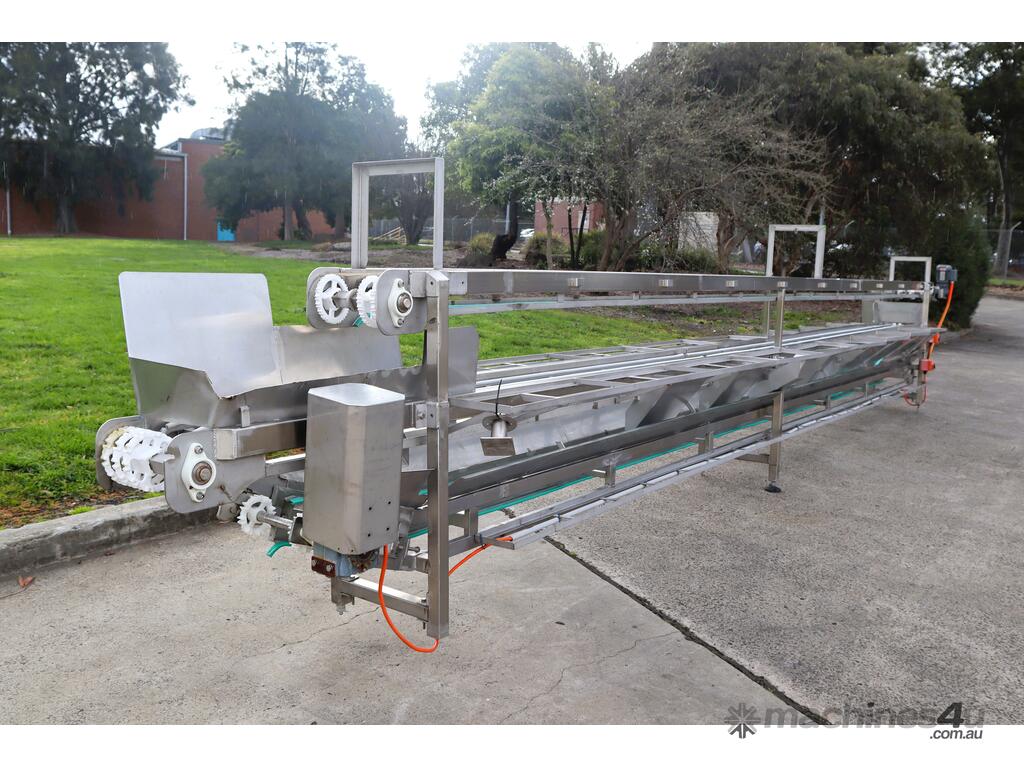

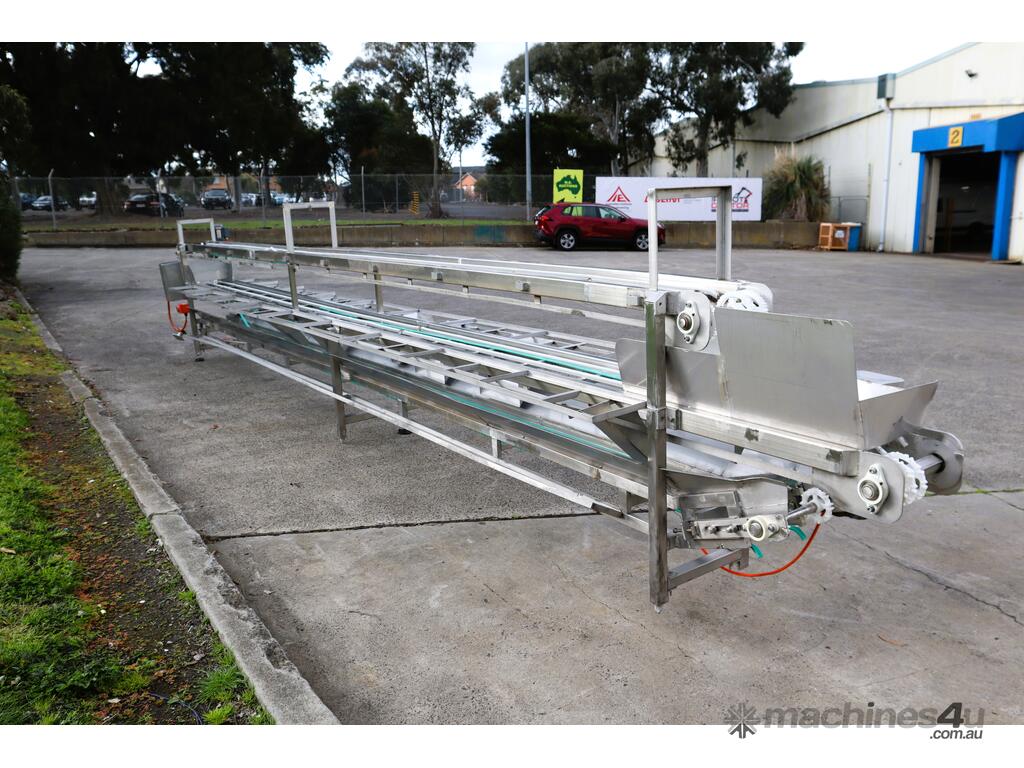

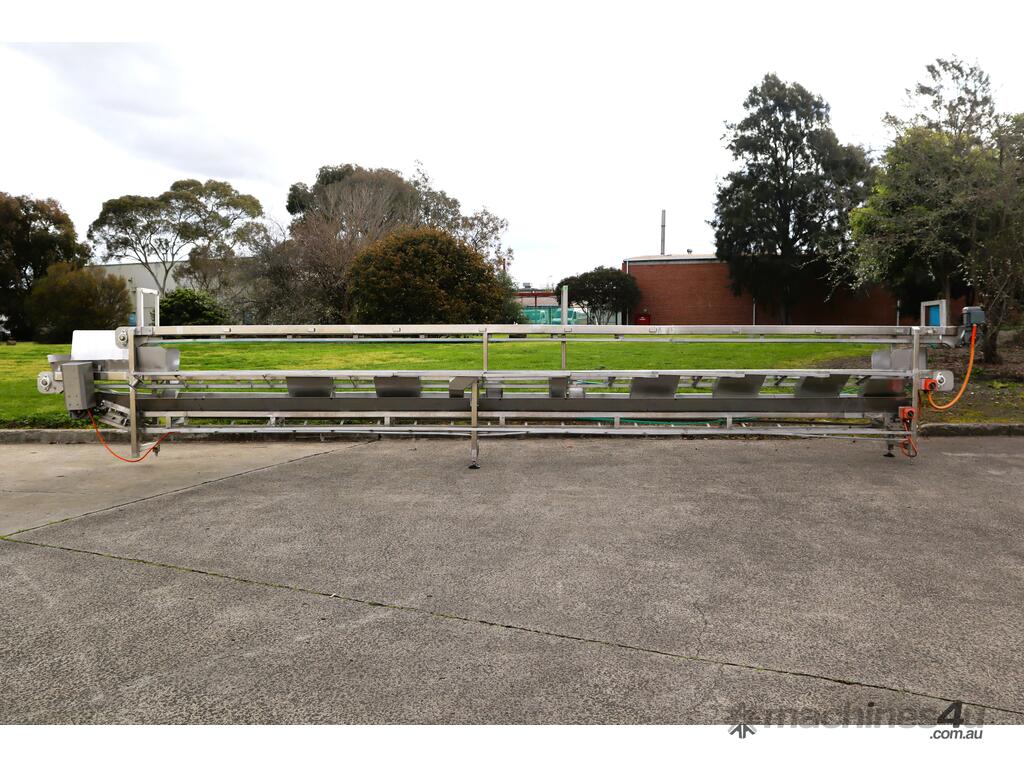

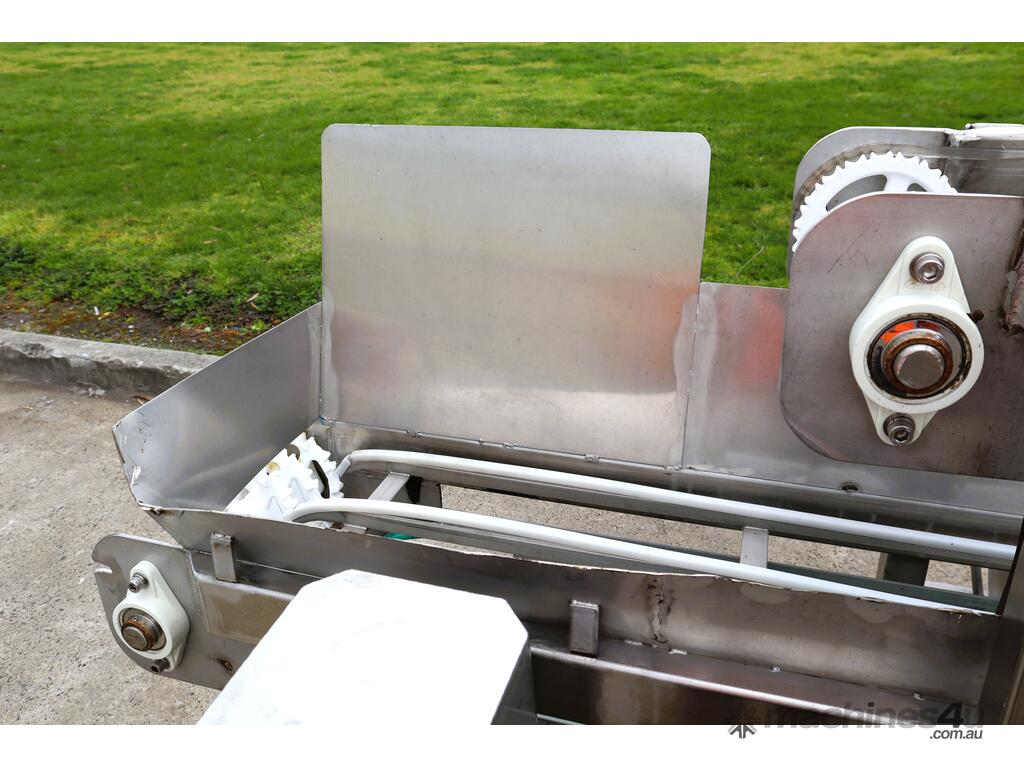

Stainless steel modular sorting conveyor designed for food or produce processing applications. Features a long open frame design with multiple side tray brackets and chutes for product grading, collection, or diversion etc.

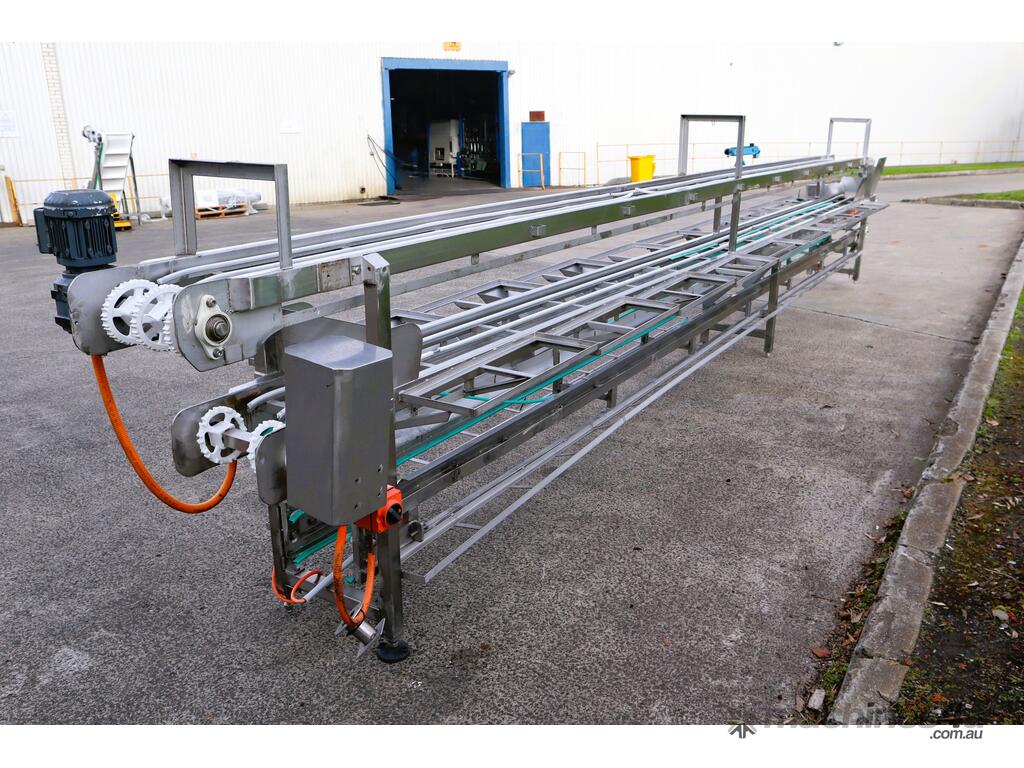

Driven by a SEW Eurodrive geared motors, this conveyor offers reliable continuous operation for sorting and then washdown environments such as seafood, poultry, salad, fruit, or vegetable handling lines. The open stainless structure ensures excellent visibility and access for manual sorting, inspection, or quality control.

Note: We will supply new belts for this machine on application (listed price includes the new belts)

Typical Applications:
- Food and produce grading/processing lines
- Sorting, trimming, or manual inspection stations
- Product distribution and collection conveyors

Features:

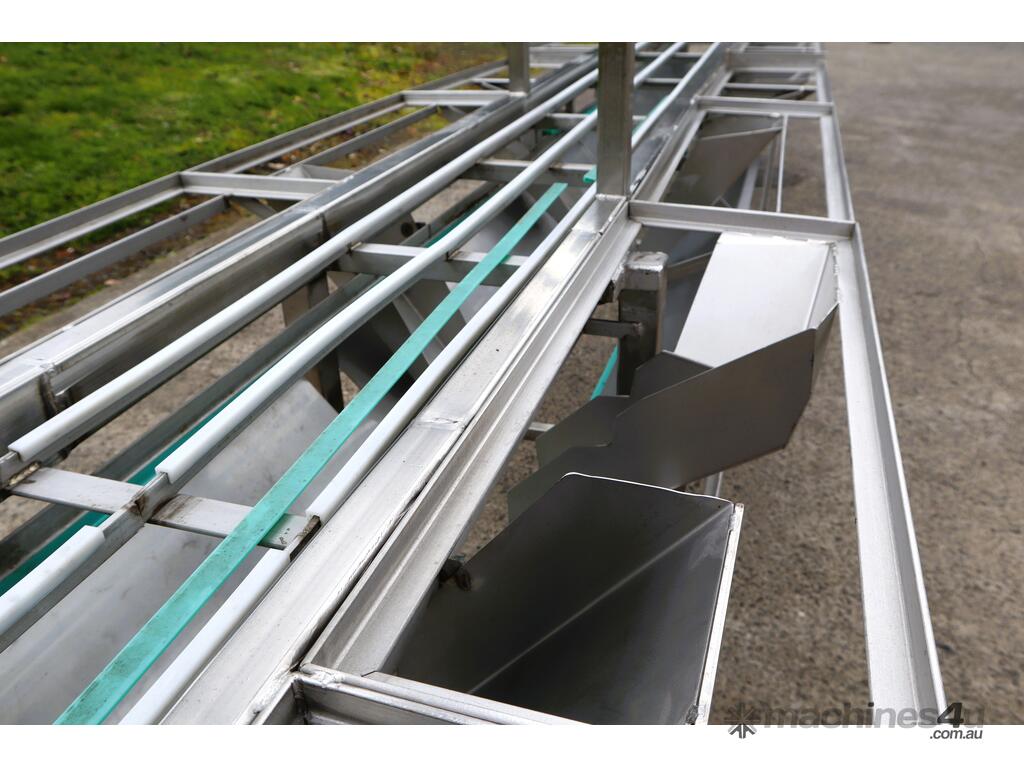

- Multiple stainless steel side tray brackets and chutes for sorting and collection

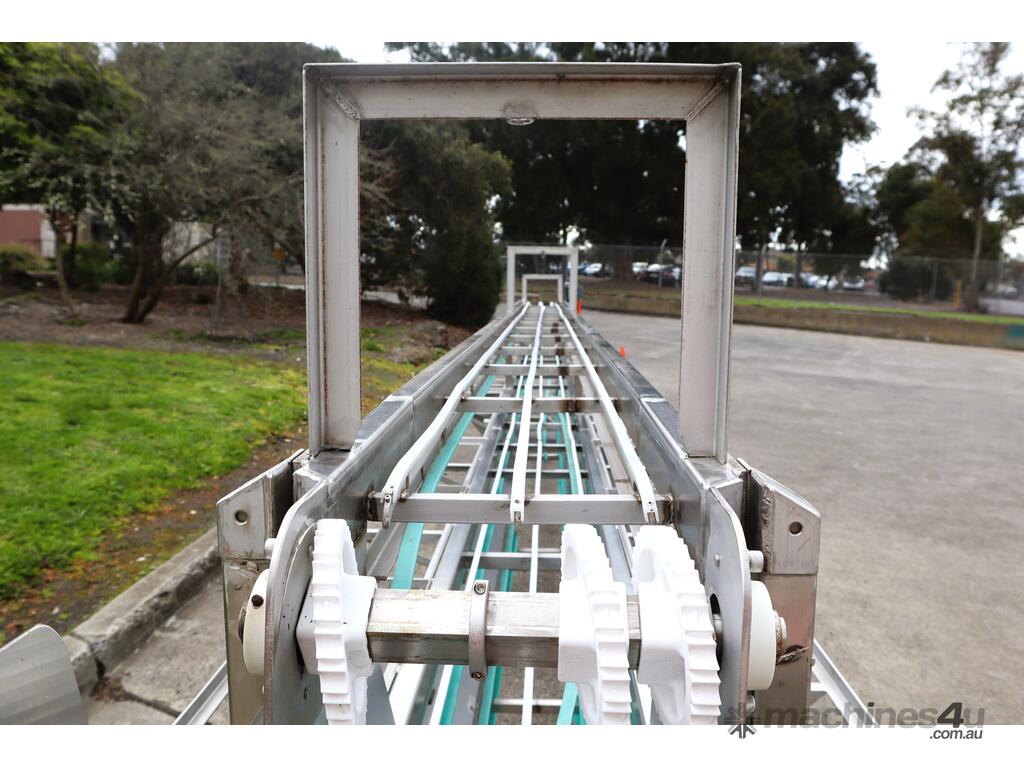

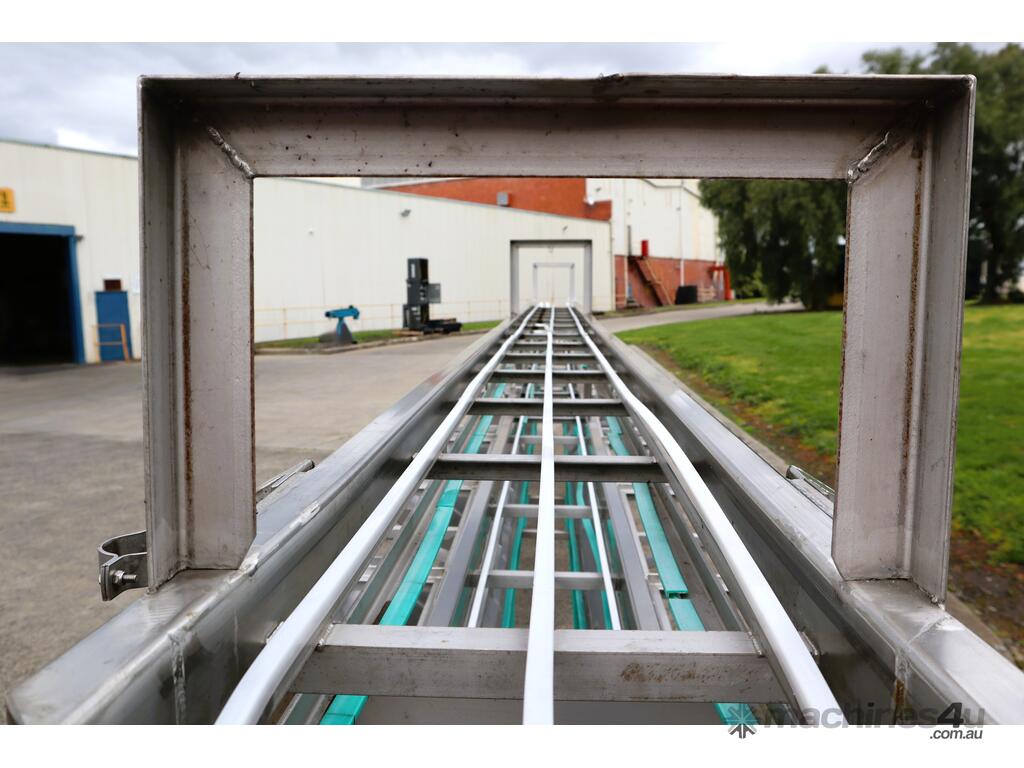

- Open frame design for full access and easy cleaning
- Full stainless steel construction

Belt Width (mm): 310

Belt Travel - Top Belt (mm): 7650
Belt Travel - Middle Belt (mm): 8150
Belt Travel - Bottom Belt (mm): 7500

Belt Height - Top Belt (mm): 1230
Belt Height - Middle Belt (mm): 830
Belt Height - Bottom Belt (mm): 410

Voltage: 415V 3 Phase
Motor Power - Top Belt: 0.37kW / 1380 RPM
Motor Power - Middle Belt: 0.12kW / 1380 RPM
Motor Power - Bottom Belt: 0.75kW / 1440 RPM

Overall Dimensions (mm): 8300 L x 925 W x 1620 H
