Stainless Steel Hopper Screw Auger Feeder - 3.75m Long Screw

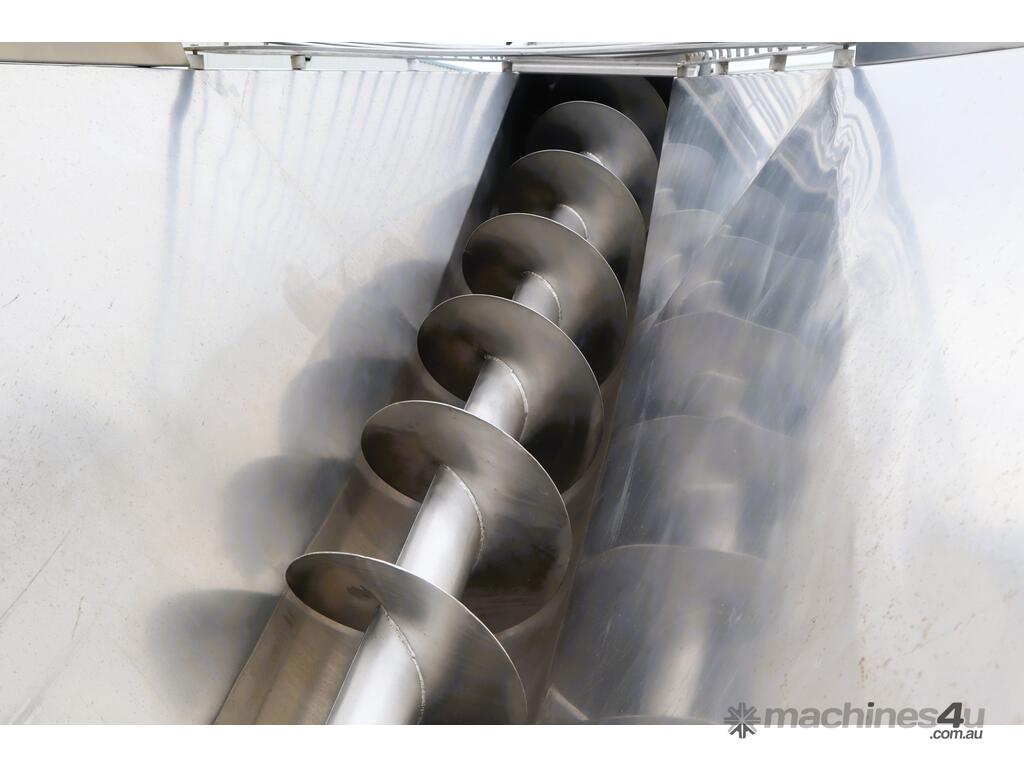

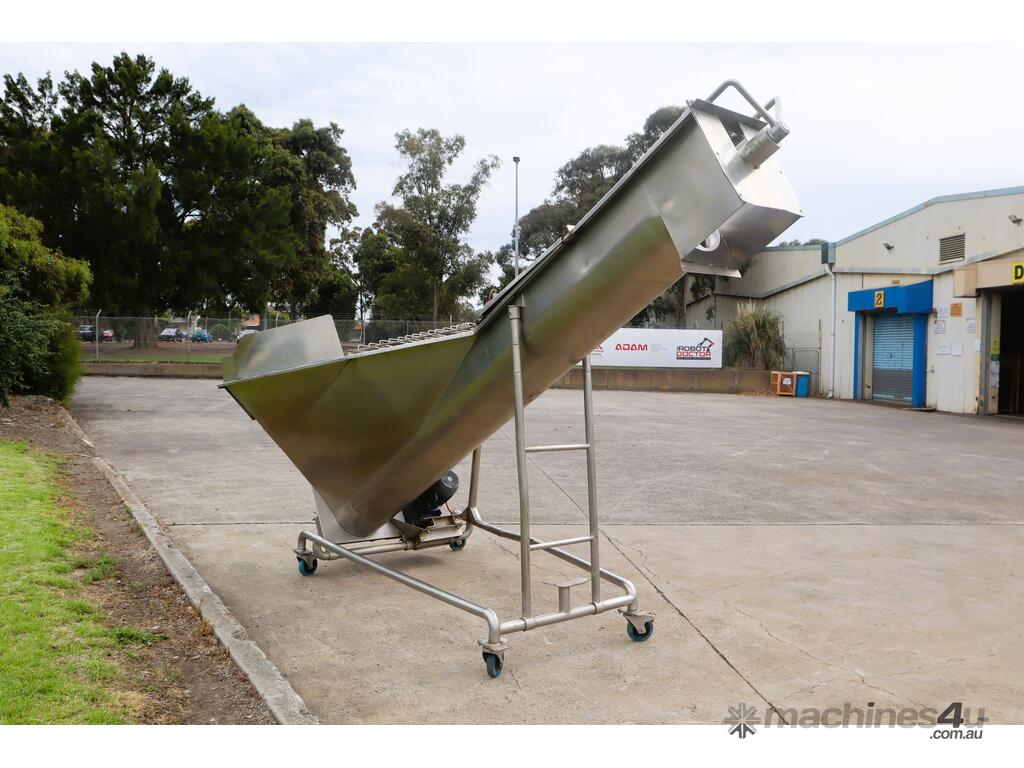

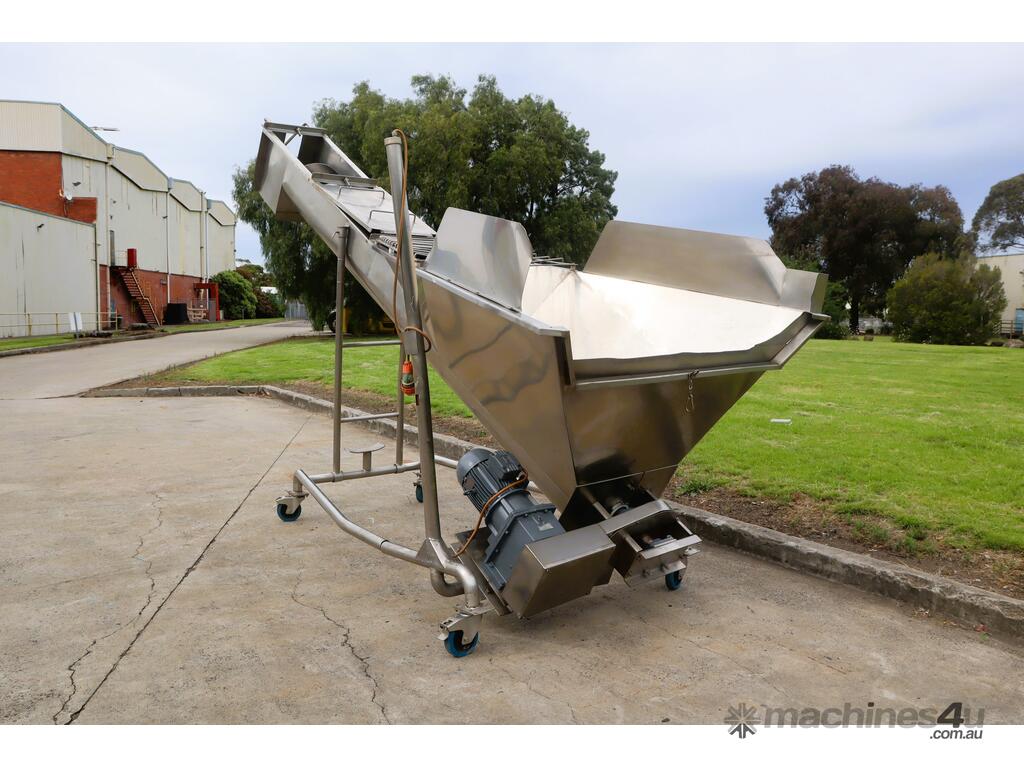

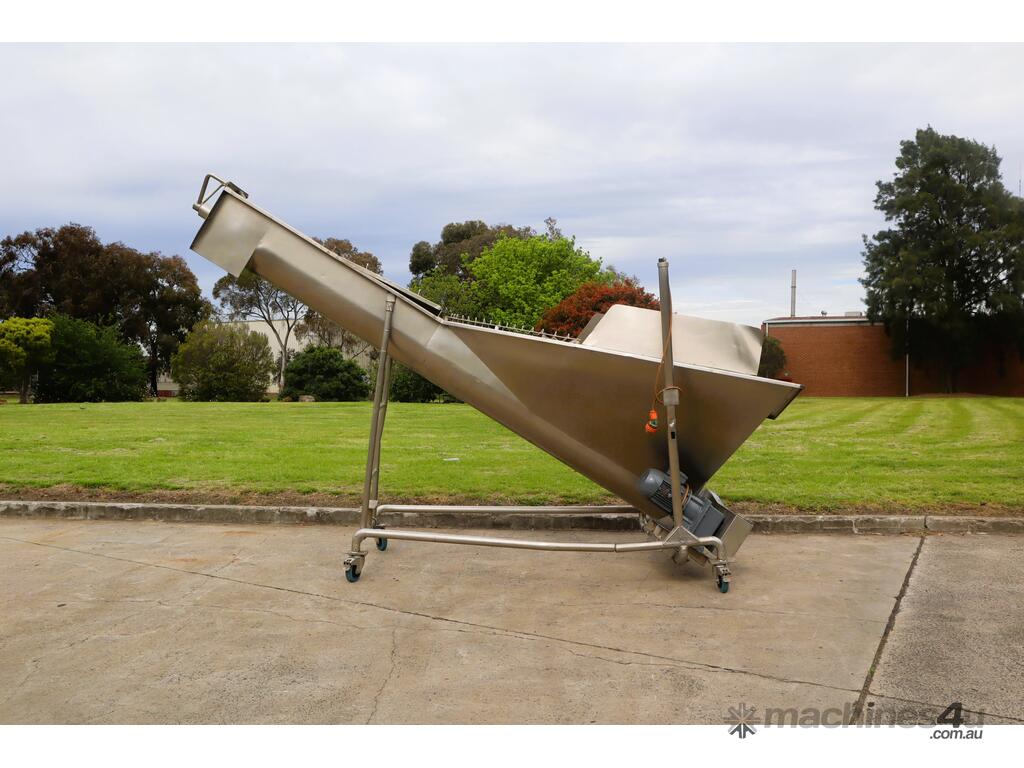

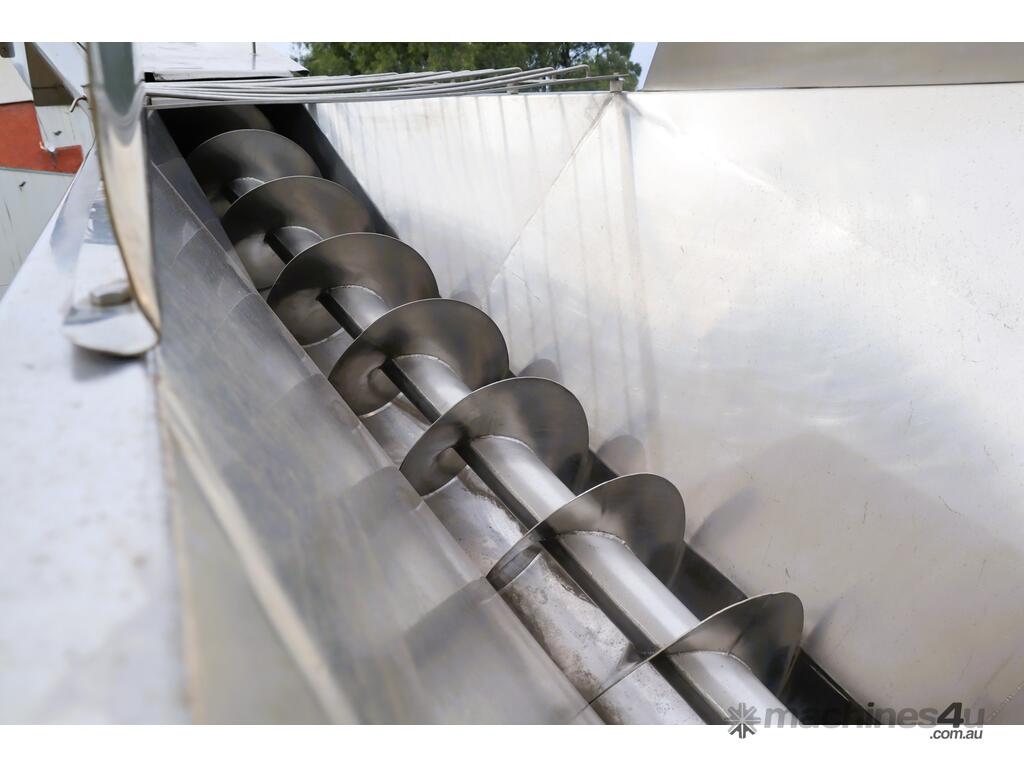

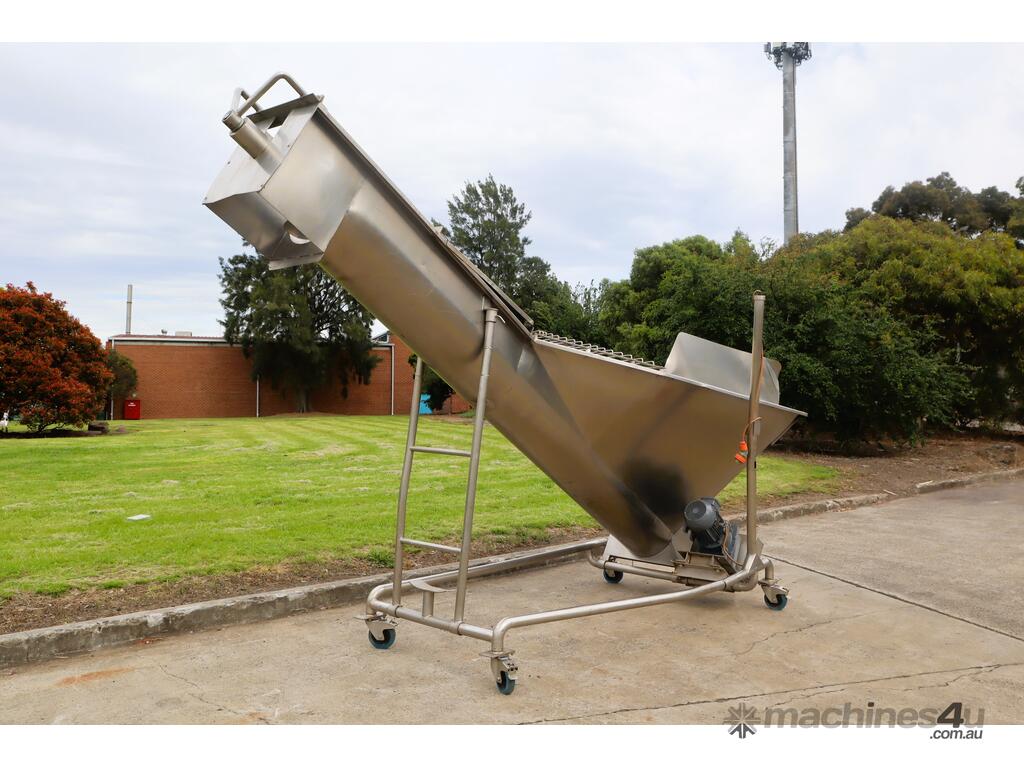

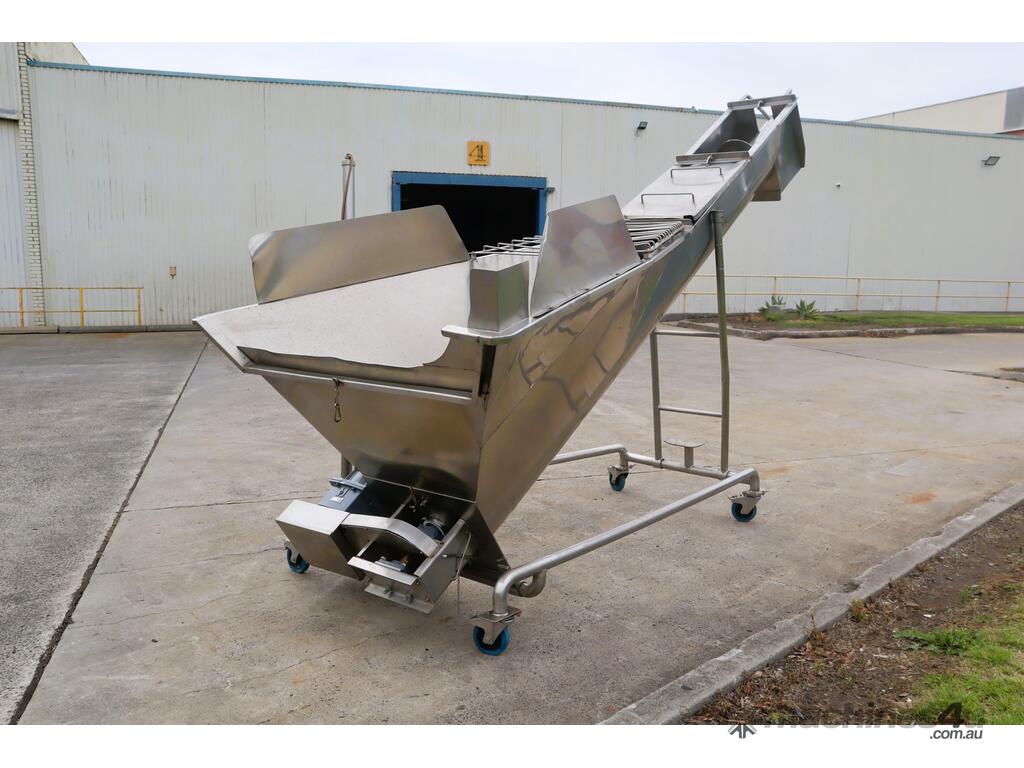

Stainless steel hopper screw auger feeder in excellent condition designed for controlled feeding and transfer of bulk materials from a hopper into downstream processing equipment. This unit features a large stainless steel hopper with an inclined screw auger, providing consistent, metered discharge. Mounted on a mobile stainless steel frame with castors, it is well suited to general processing environments.

Typical applications:
- Feeding bulk product into mixers, extruders, or conveyors
- General processing lines
- Batch or continuous production setups

Screw Length (mm): 3750
Height of Flights (mm): 150
Channel Width (mm): 430
Channel Depth (mm): 430

Hopper Width (mm): 1800
Hopper Depth (mm): 1160

Discharge (mm): 420 x 410
Discharge Height - from lowest lip (mm): 2100

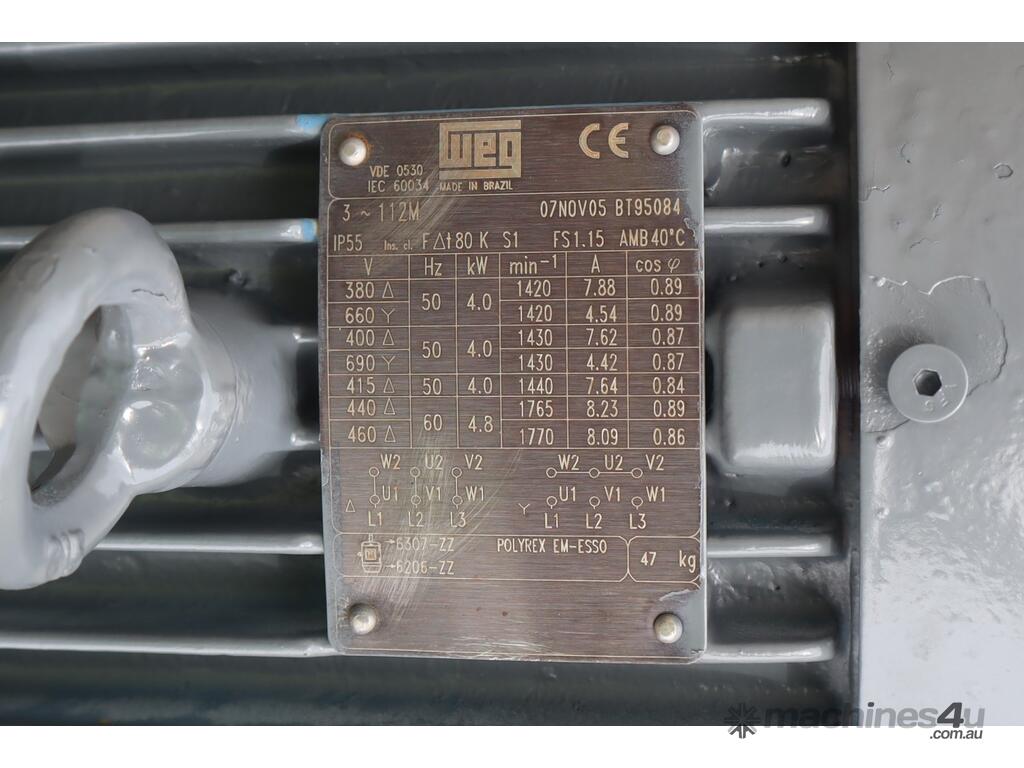

Voltage: 415V 3 Phase
Motor Power: 4.0kW
Motor Speed: 1430 RPM

Overall Dimensions (mm): 4540 L x 2025 W x 2950 H
