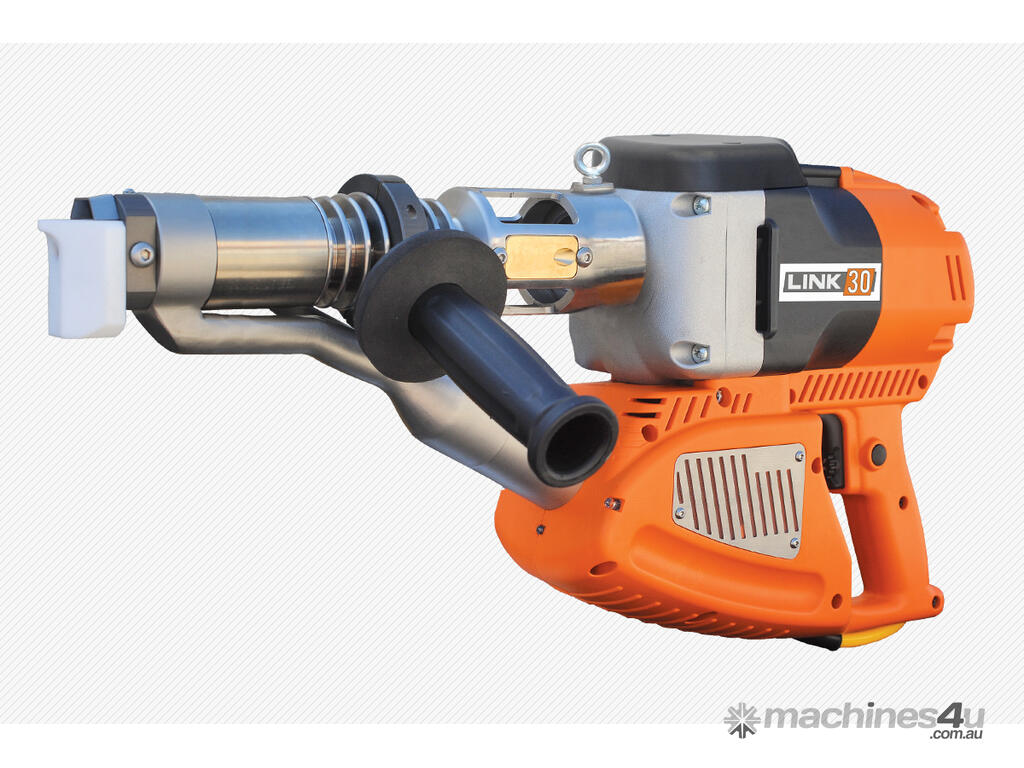

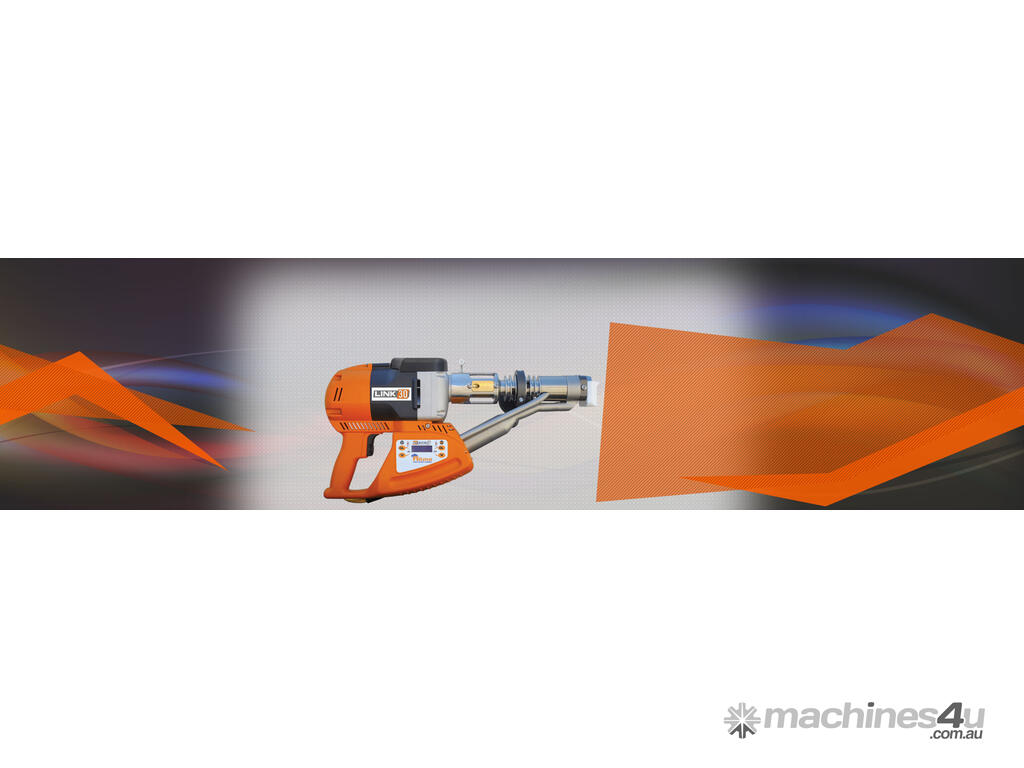

Stargun LINK 30 is able to weld wire of Ø mm. Its output (up to 3,2 kg/h) together with its manageability make the LINK 30 the most versatile of the product range.

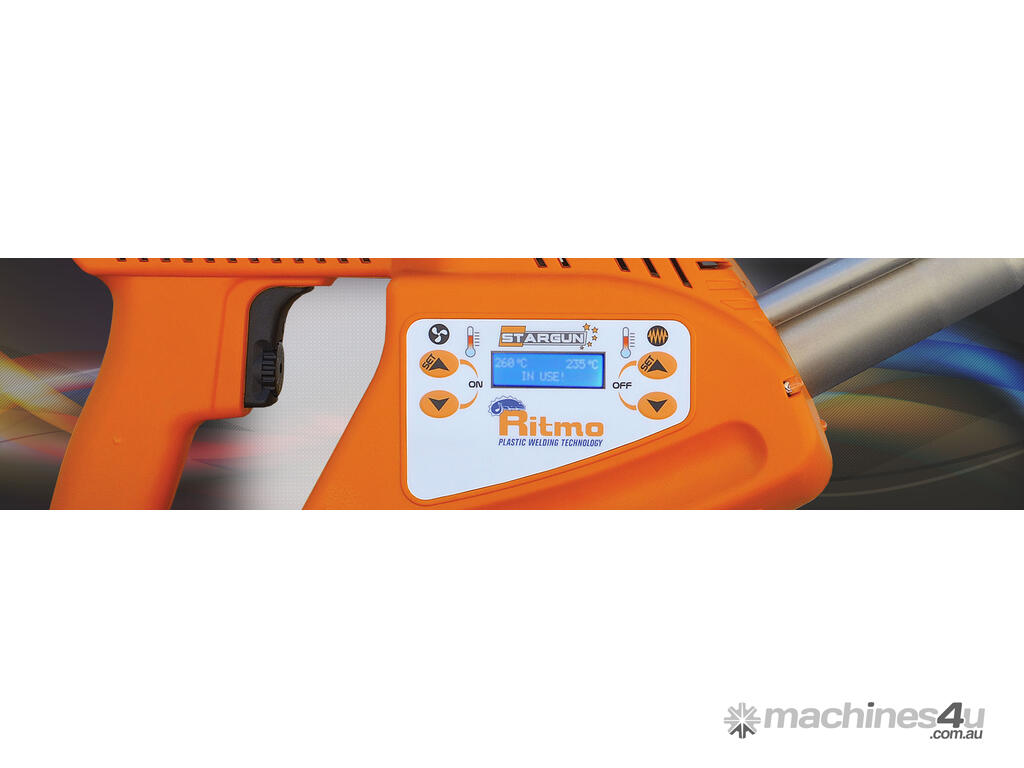

The welding quality is guaranteed by the motor speed adjustment and the thermoregulator with double temperature control: air and plastification.
- Backlight display
- Triple LEDs for the lightening of the welding area
- Potentiometer; security system “motor block/cold start”
- Independent blower
- Double T° thermoregulator: air/platification
- Rotating handle
- External fuse with simple access

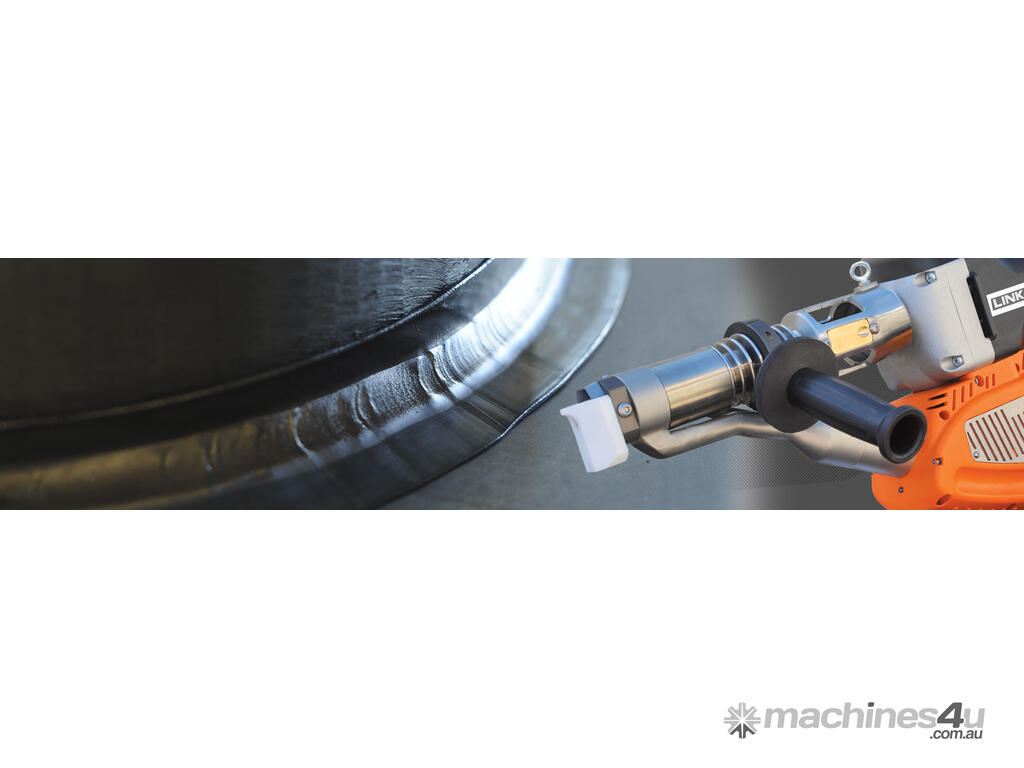

- 360° rotating welding shoes. Easily replaceable
Standard equipment:
LINK 30 with transport case and
- Rotating welding shoe mod. 90° - a 10,5 mm cod. 86777823
- Rotating welding shoe mod. V Flat - 15 mm cod. 86777831
Materials
HDPE/PP/PVDF

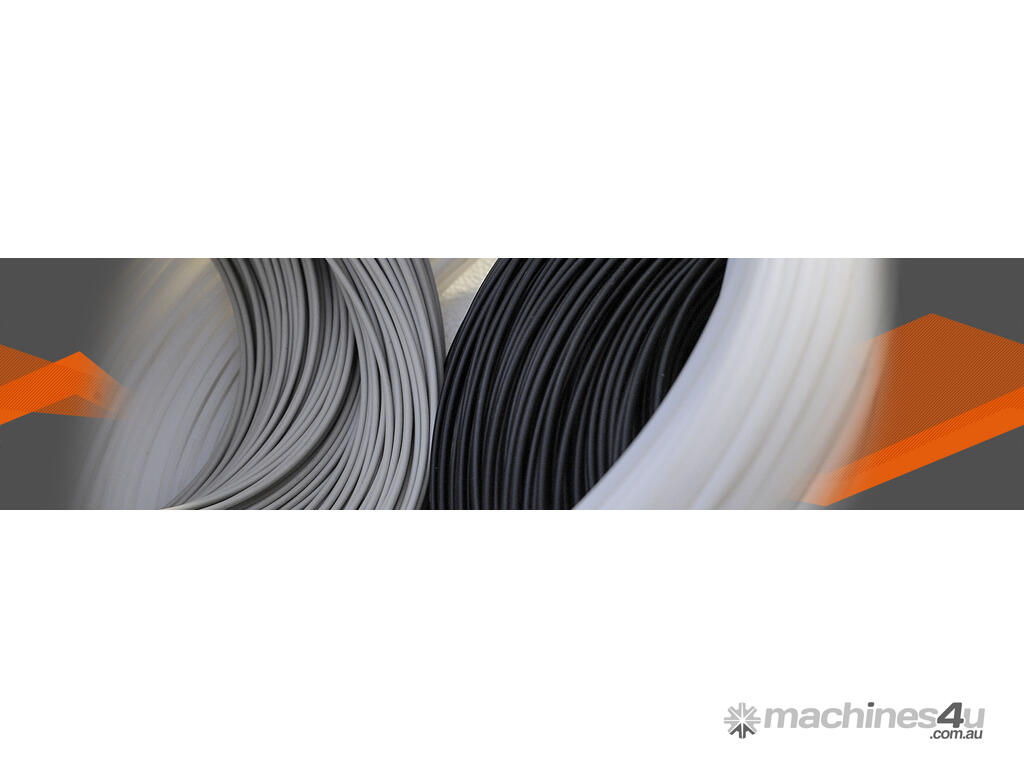

Rod
Ø 3 - 4 - 5 mm;
1/8” - 5/32” - 3/16”
Output up to
3,2 Kg/h HDPE
rod Ø 5 mm; 3/16””
Dimensions
540 x 260 x 110 mm
Weight
6,8 Kg
Voltage
230 V
Absorpion
3500 W
Frequency
50/60 Hz
Sheet
1,5-30 mm;
