Stud Cutter with Automated Stacker

**SPECIAL PRICE WHILE STOCKS LAST** Normally $255,000+gst.

Stud Cutter:

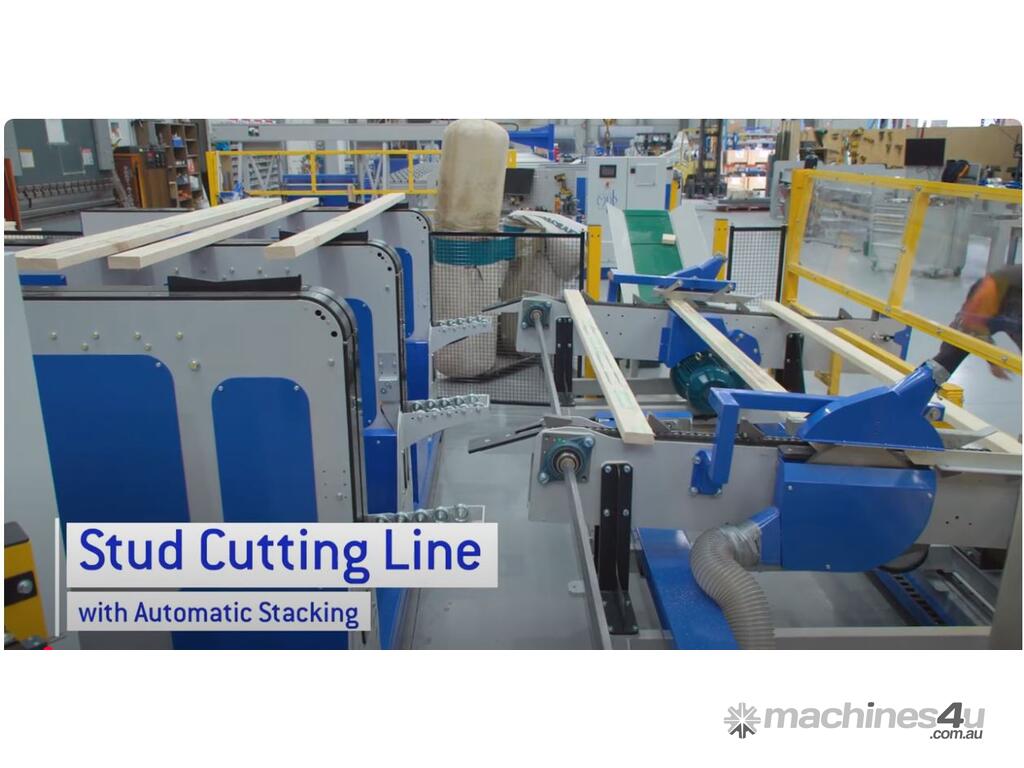

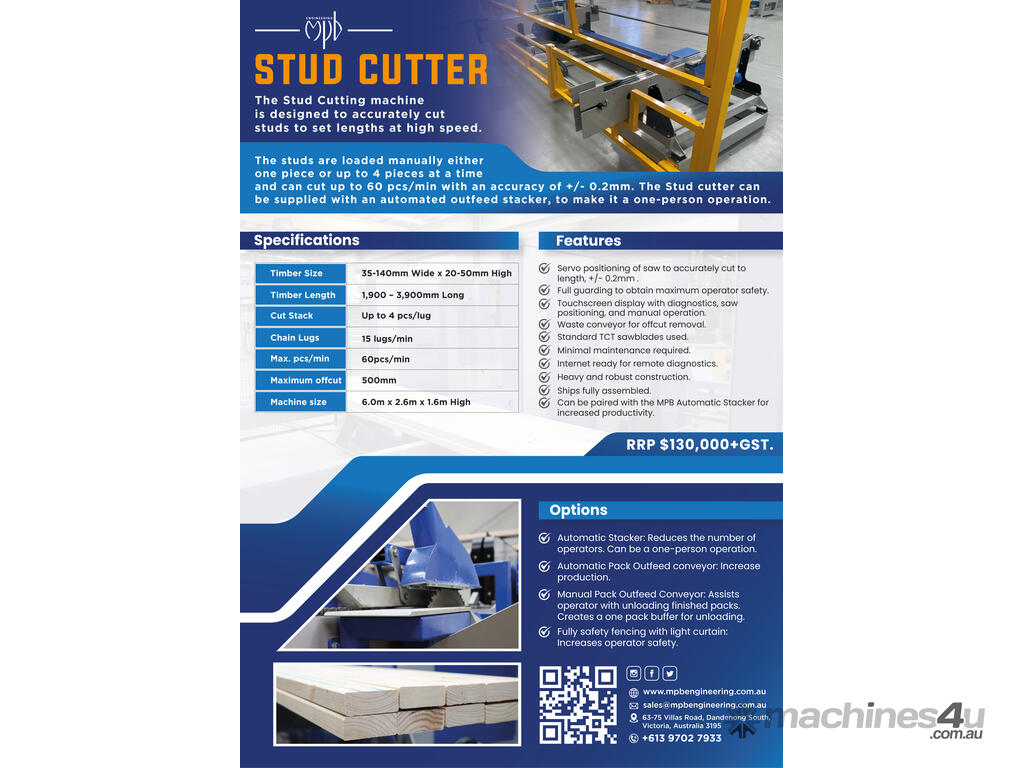

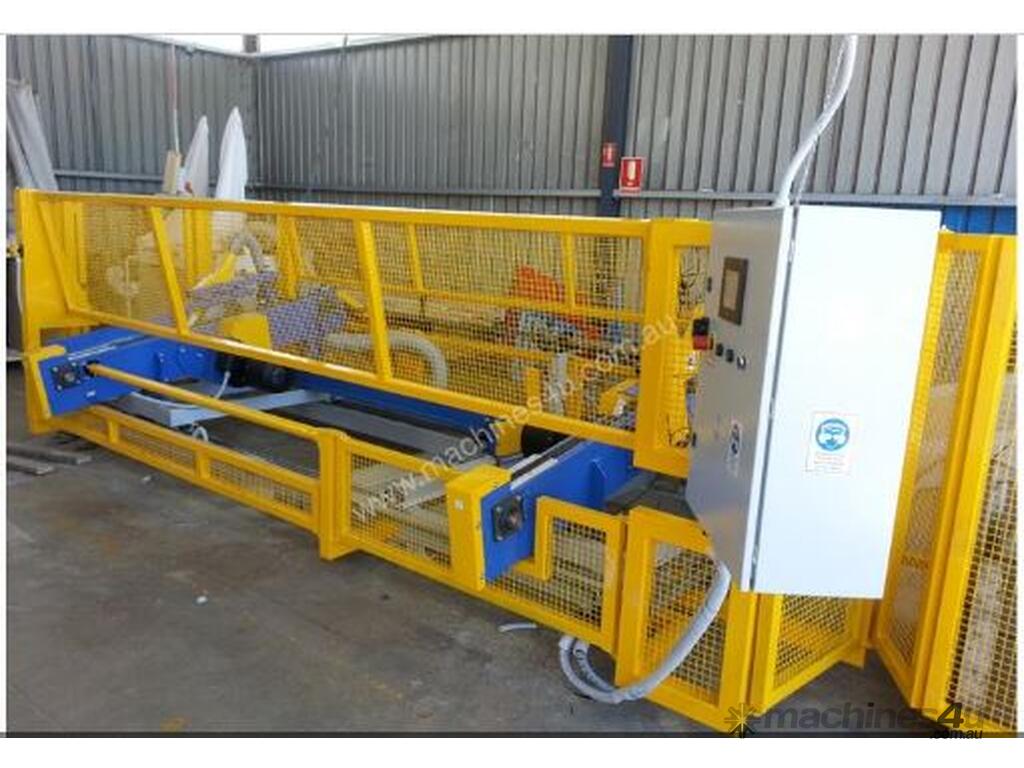

The Stud Cutting machine is designed to accurately cut studs to set lengths at high speed. The studs are loaded manually, either one piece or up to 4 pieces at a time and can cut up to 60 pcs/min with an accuracy of +/- 0.2mm. The Stud cutter can be supplied with an automated outfeed stacker, to make it a one-person operation.

Features:
* Servo positioning of saw to accurately cut to length, +/- 0.2mm .
* Full guarding to obtain maximum operator safety.
* Touchscreen display with diagnostics, saw positioning, and manual operation.

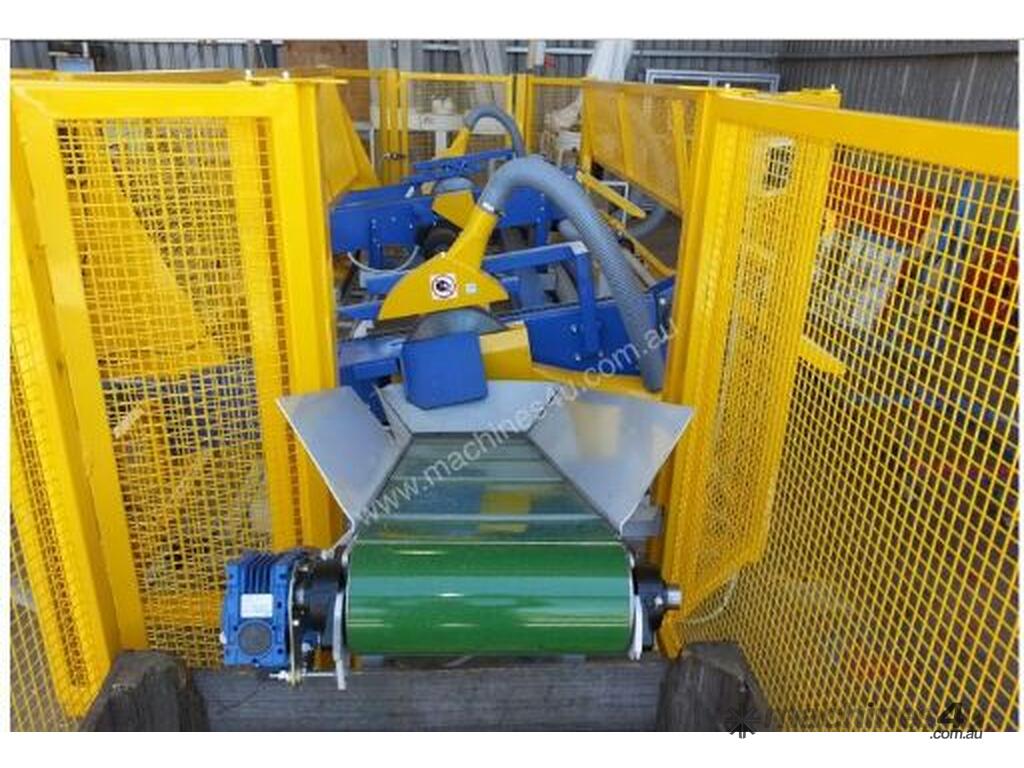

* Waste conveyor for offcut removal.
* Standard TCT sawblades used.
* Minimal maintenance required.
* Internet ready for remote diagnostics.
* Heavy and robust construction.
* Ships fully assembled.
* Can be paired with the MPB Automatic Stacker for increased productivity.


Automated Stacker:

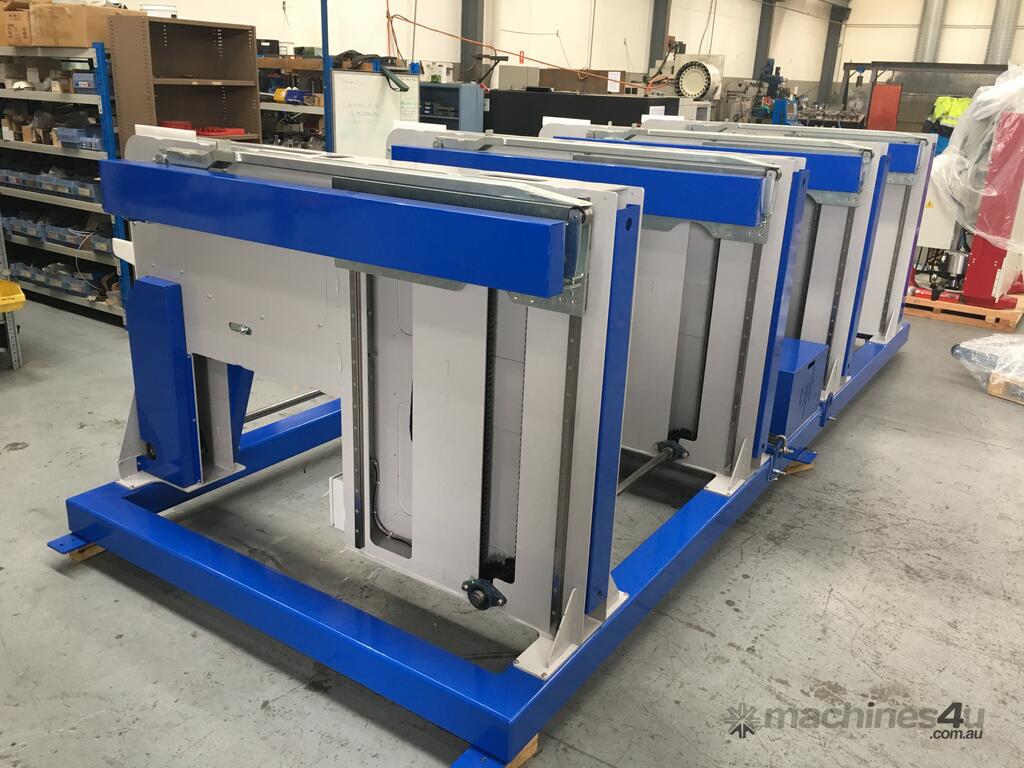

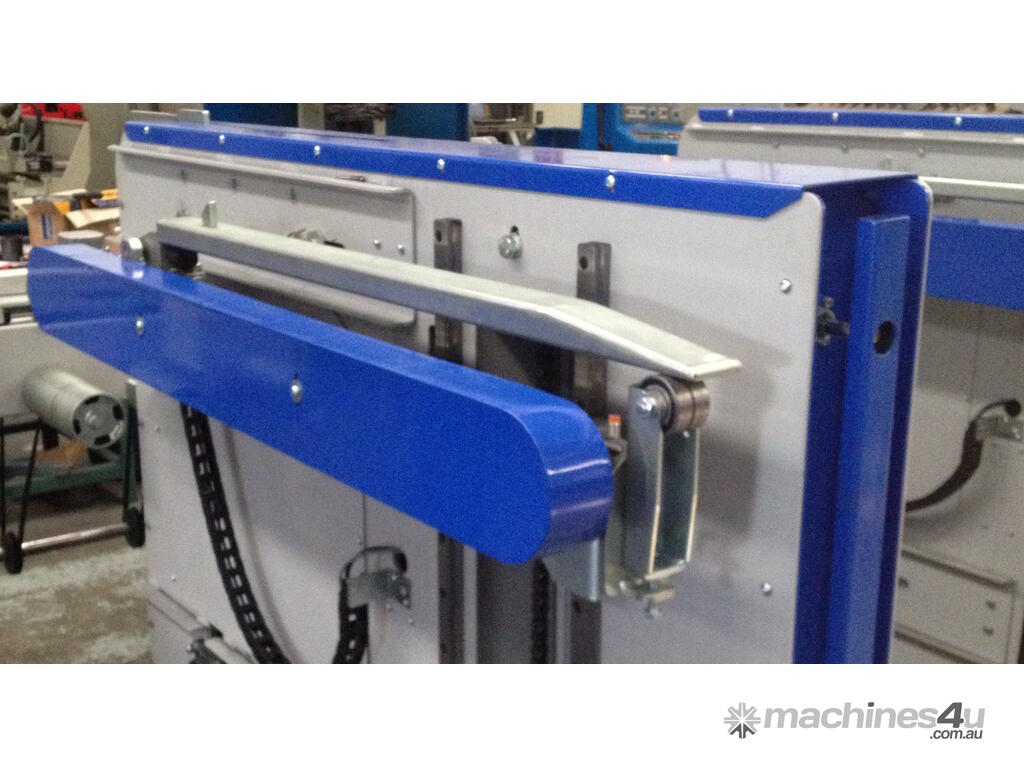

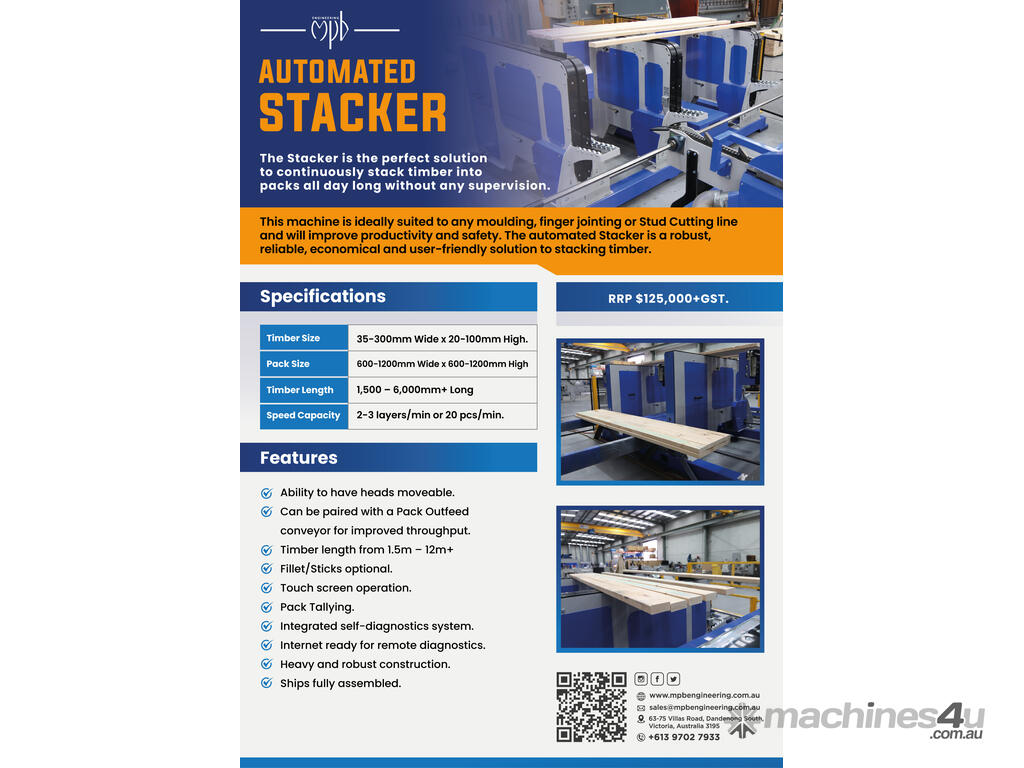

The Stacker is the perfect solution to continuously stack timber into packs all day long without any supervision. This machine is ideally suited to any moulding, finger jointing or Stud Cutting line and will improve productivity and safety. The automated Stacker is a robust, reliable, economical and user-friendly solution to stacking timber.

Features:
* Ability to have heads moveable.
* Can be paired with a Pack Outfeed conveyor for improved throughput.
* Timber length from 1.5m – 12m+
* Fillet/Sticks optional.
* Touch screen operation.
* Pack Tallying.
* Integrated self-diagnostics system.
* Internet ready for remote diagnostics.
* Heavy and robust construction.
* Ships fully assembled.
