Sumitomo Cyclo Drive 20:1 Helical Shaft Mount HSM speed reducer H4315-20-e0000

Sumitomo Cyclo Drive 20:1 Helical Shaft Mount HSM speed reducer H4315-20-e0000

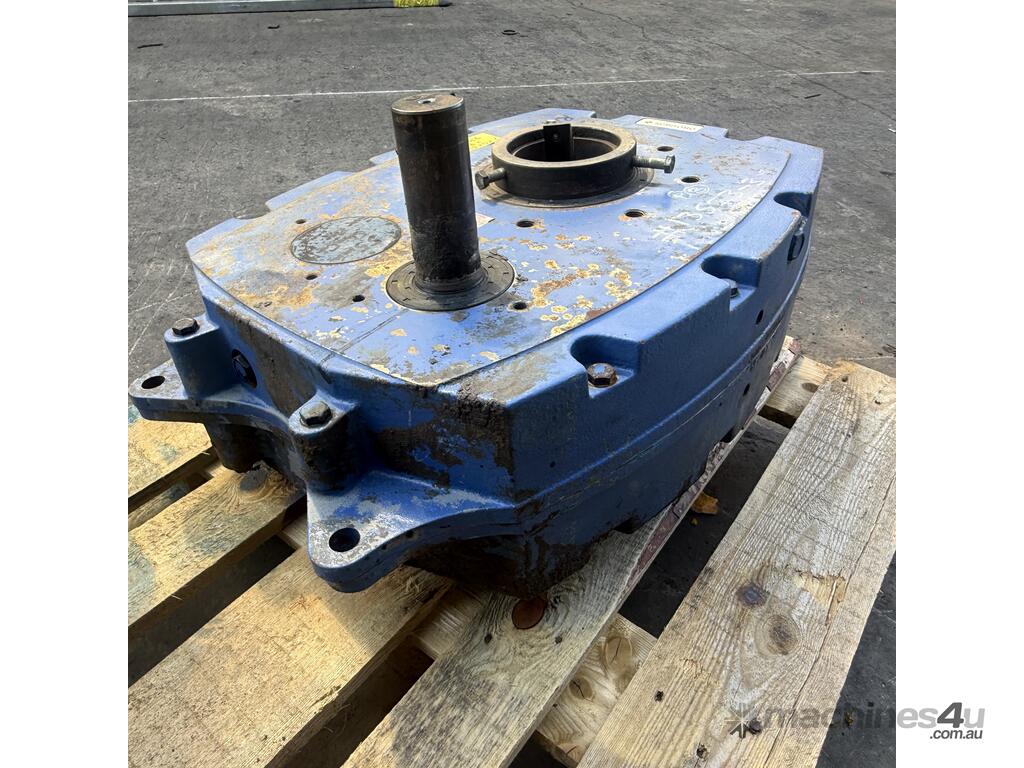

The Sumitomo Helical Shaft Mount (HSM) speed reducer is a high-efficiency gearbox designed for direct mounting onto a drive shaft.

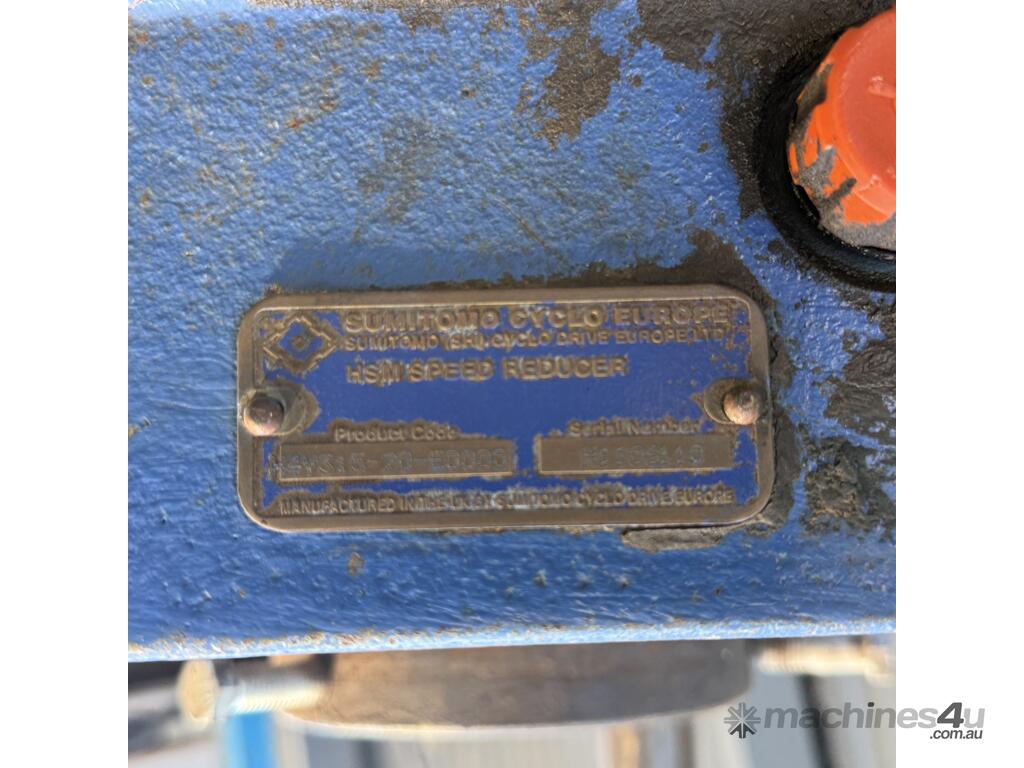

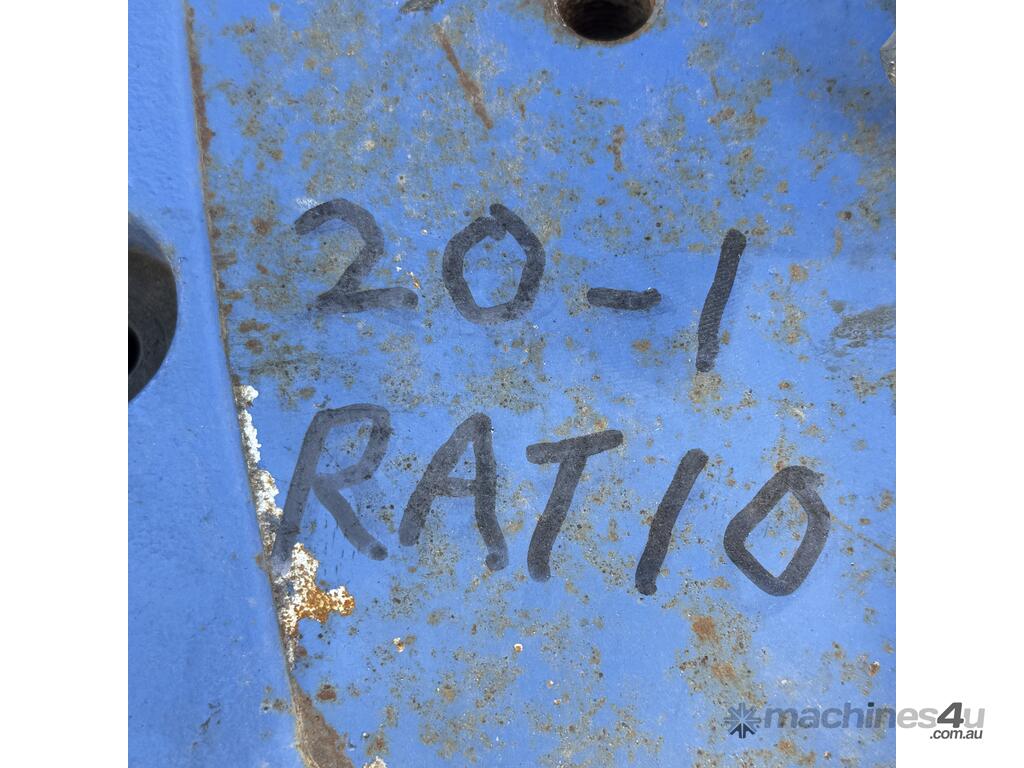

"H4315-20-e0000", this likely refers to a Size 315, 20:1 (this is written on the drive also)
Key Features of the Sumitomo HSM Series:
Taper-Grip® Bushing: Allows for keyless mounting, simplifying installation and removal of the reducer.
High Efficiency & Torque: Features carburized gear teeth, 25-degree pressure angles, and wide gear faces for maximum torque output and compact design.
Rugged Construction: Features cast iron housings and heavy-duty tapered roller bearings for extended life.
Versatility: Compatible with CEMA screw conveyor drives.
Backstop Option: Available to prevent reverse rotation.
Specifications for Size 315 (Typical):
Model: HSM315
Ratio: 20:1
Input/Output: Generally available in both metric and imperial bores.
Structure: Helical, two-stage reduction.
Sumitomo HSM gearboxes are commonly used in industrial applications such as material handling, conveyor systems, and mining.

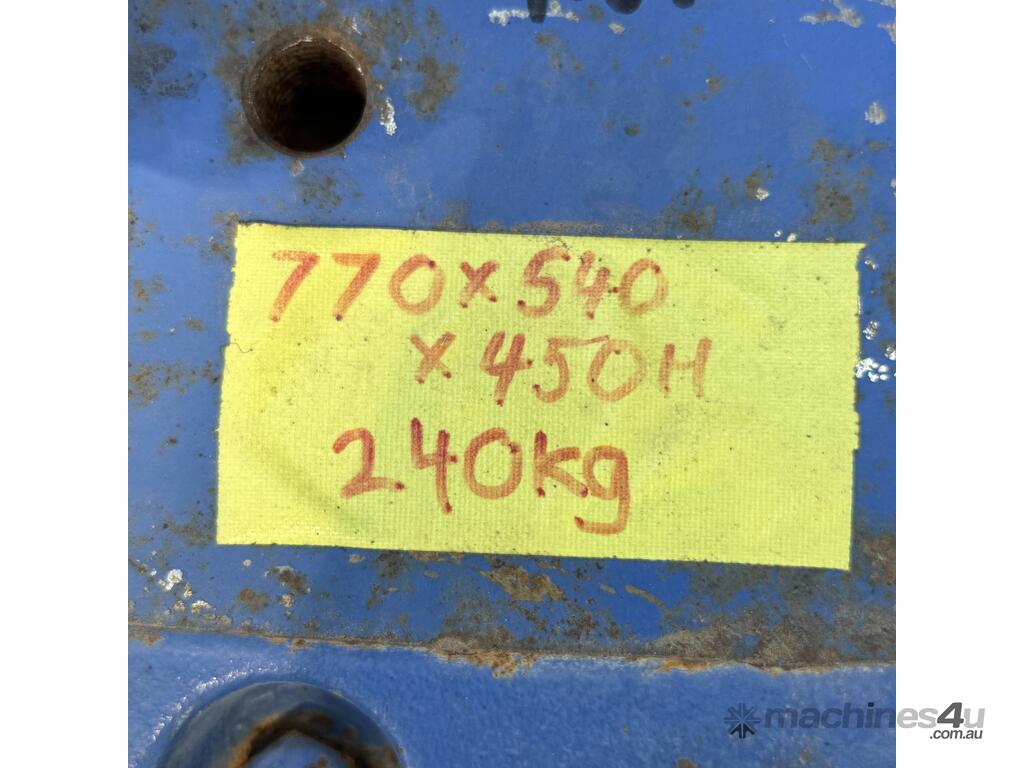

770 X 540 X 450mm
240kg

Please check out my other listings and get in touch if you are after something specific I have a huge number of pneumatic cylinders of various sizes in stock that will be listed as I find time.

Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
