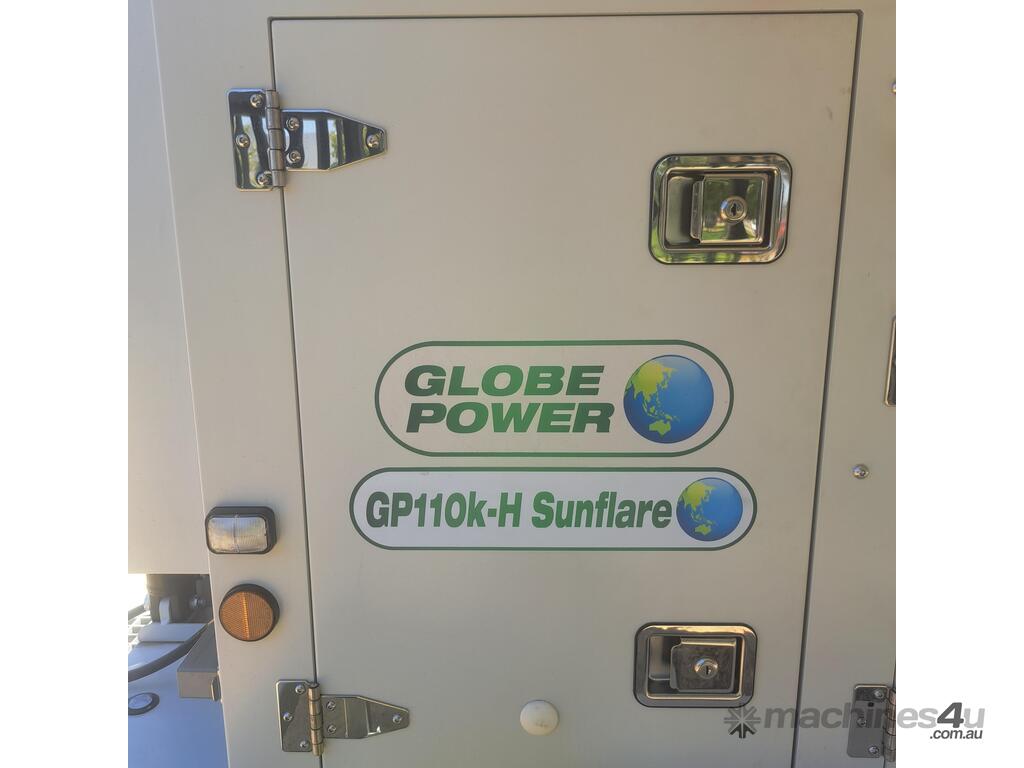

Sun flare GP110K-H Solar Lighting Tower - 11,000 Lumens, 9m Mast Height

Our Sun flare GP110K-H is a solar-powered lighting tower designed for construction sites, civil works, events and remote applications where quiet, cost-effective lighting is required. Producing 11,000 lumens with four high-efficiency LED modules and a 9m hydraulic mast, it delivers wide-area illumination without the need for continuous fuel use. The single-axle trailer design allows easy transport, while manual stabilisers provide stable setup on site. With battery-only runtime and integrated backup generator, the GP110K-H offers reliable lighting day and night.

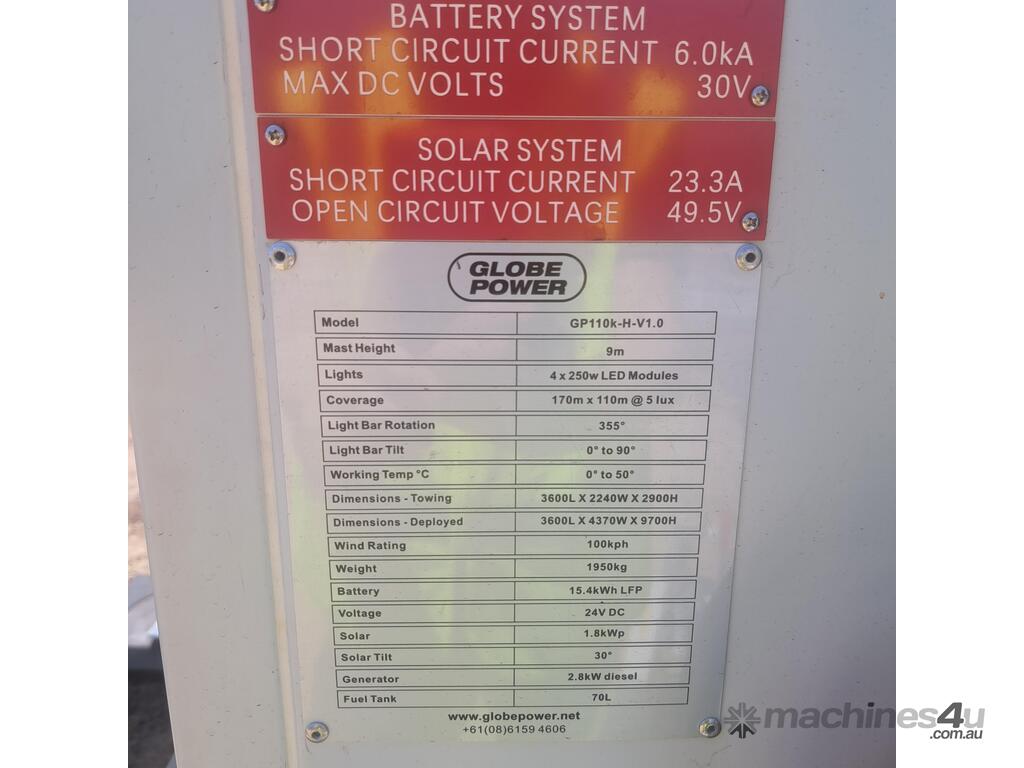

Key Details
- Light output: 11,000 lumens

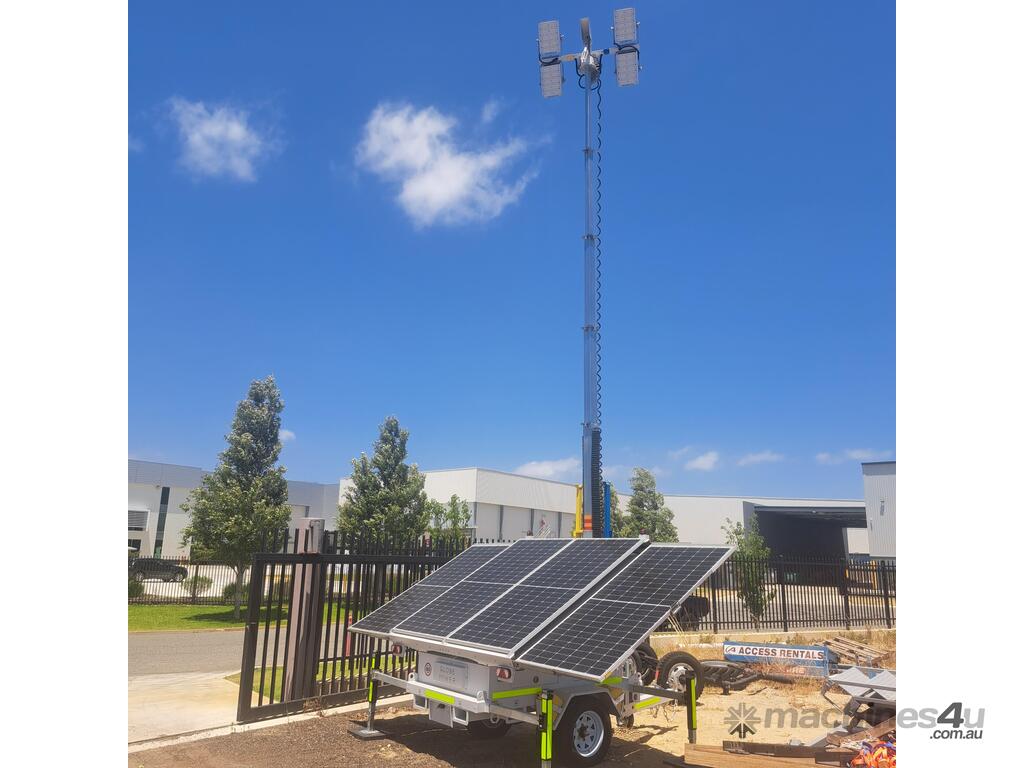

- Mast height: 9m
- Mast type: Hydraulic / cable
- Lights: 4 x 250W LED modules

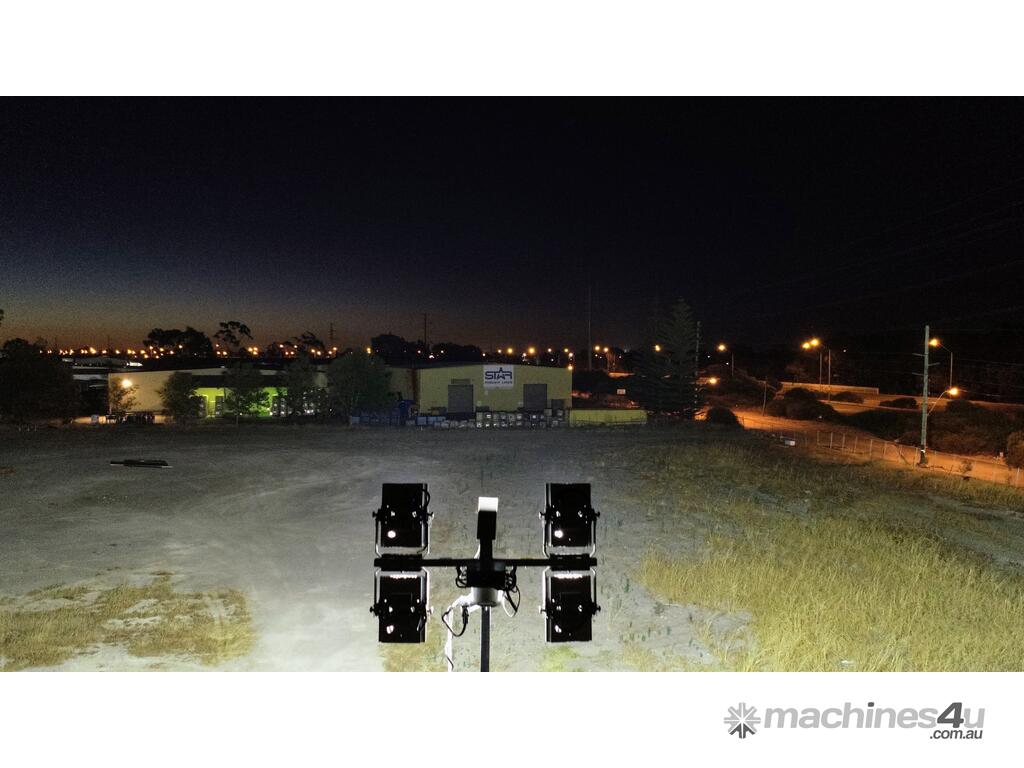

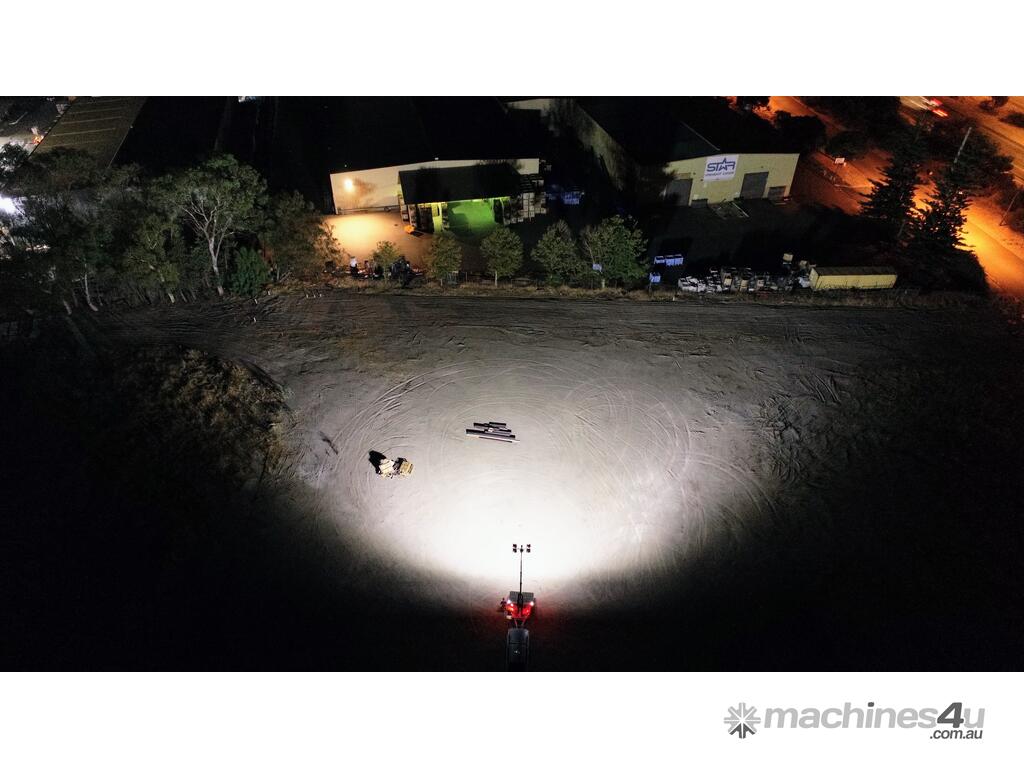

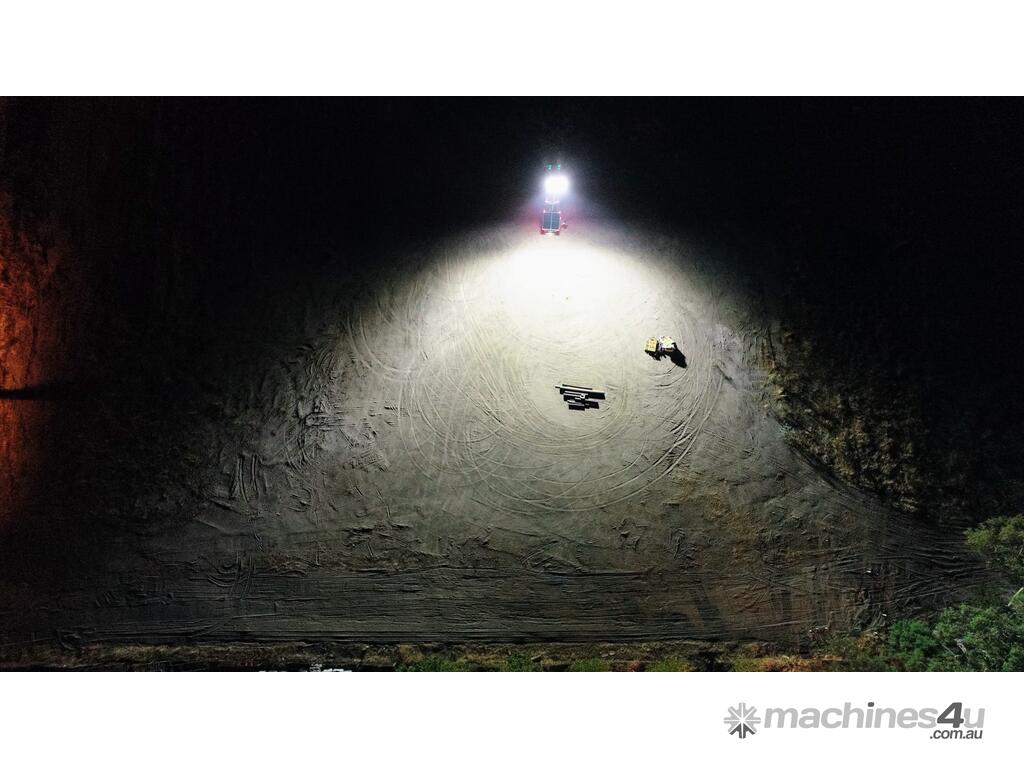

- Coverage: 19,200m² 5 lux
- Light bar rotation: 355°
- Light bar tilt: 0° to 90°

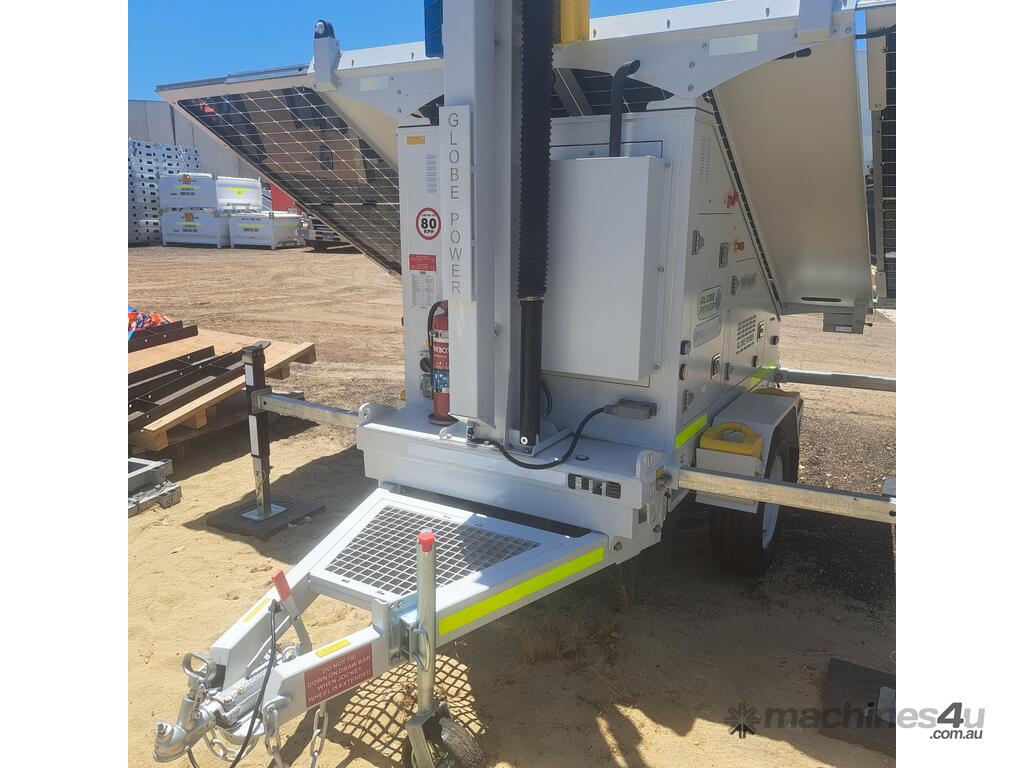

- Trailer type: Single axle
- Stabiliser supports: 4 x manual

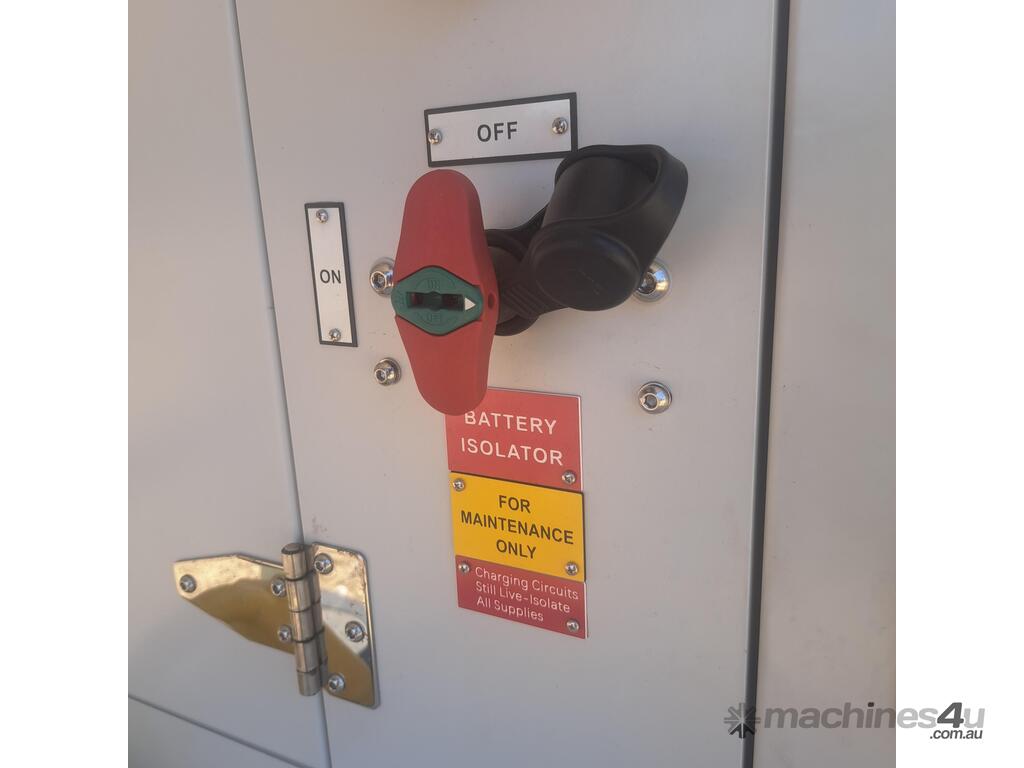

- Security: Wheel lock, hitch lock, wheel clamps

Power & Battery
- Battery capacity: 15.4kWh
- Runtime: up to 27 hours (battery only)

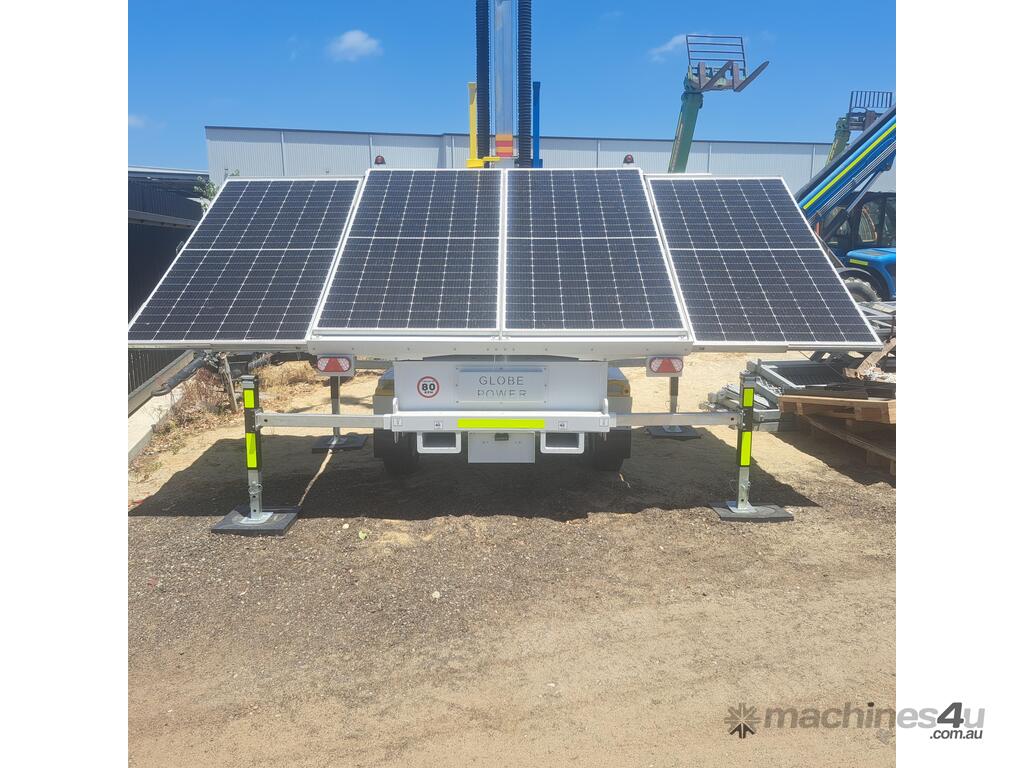

- Solar input: 1.8kWp
- Solar tilt: 30°
- Solar efficiency: 1 hour of sun = approx. 2.5 hours of light

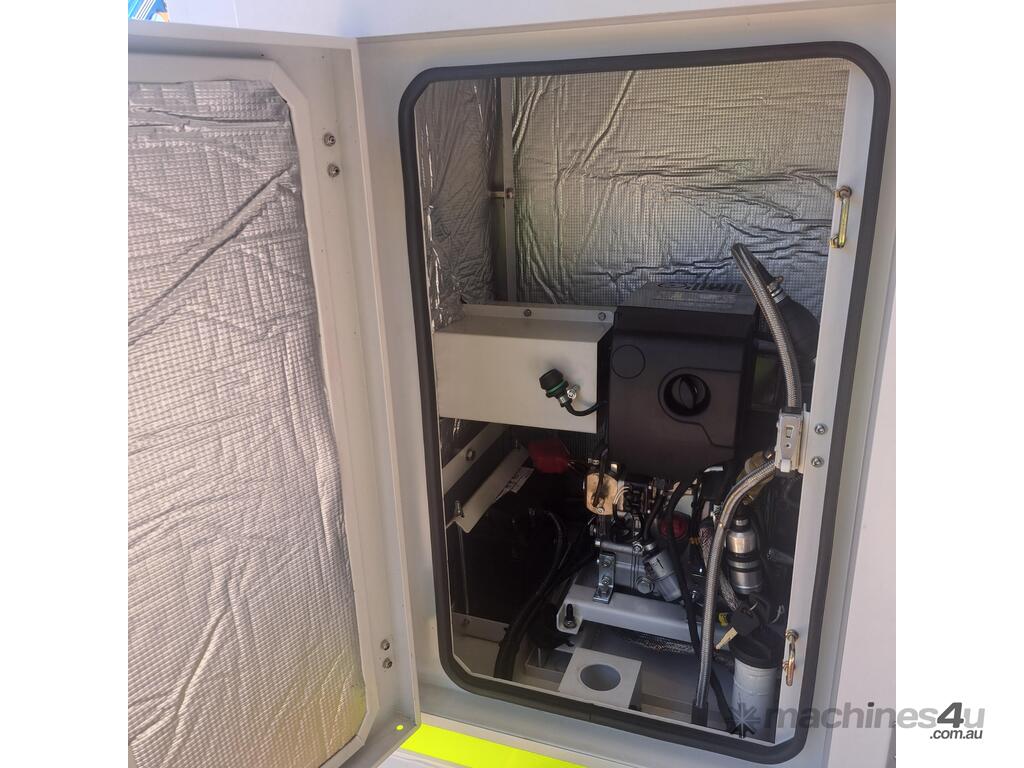

- Backup: Integrated HATZ DC generator

Operational Data
- Wind rating: 100km/h
- Operating temperature: 0° to 50°C
- Dimensions & Weight
- Transport dimensions (L x W x H): 3660 x 2240 x 2930mm
- Deployed dimensions (L x W x H): 3600 x 4370 x 9700mm
- Machine weight: 1,990kg

Applications
- Construction and civil projects
- Roadworks and infrastructure
- Events and temporary lighting
- Remote and environmentally sensitive sites

Call Mark today
