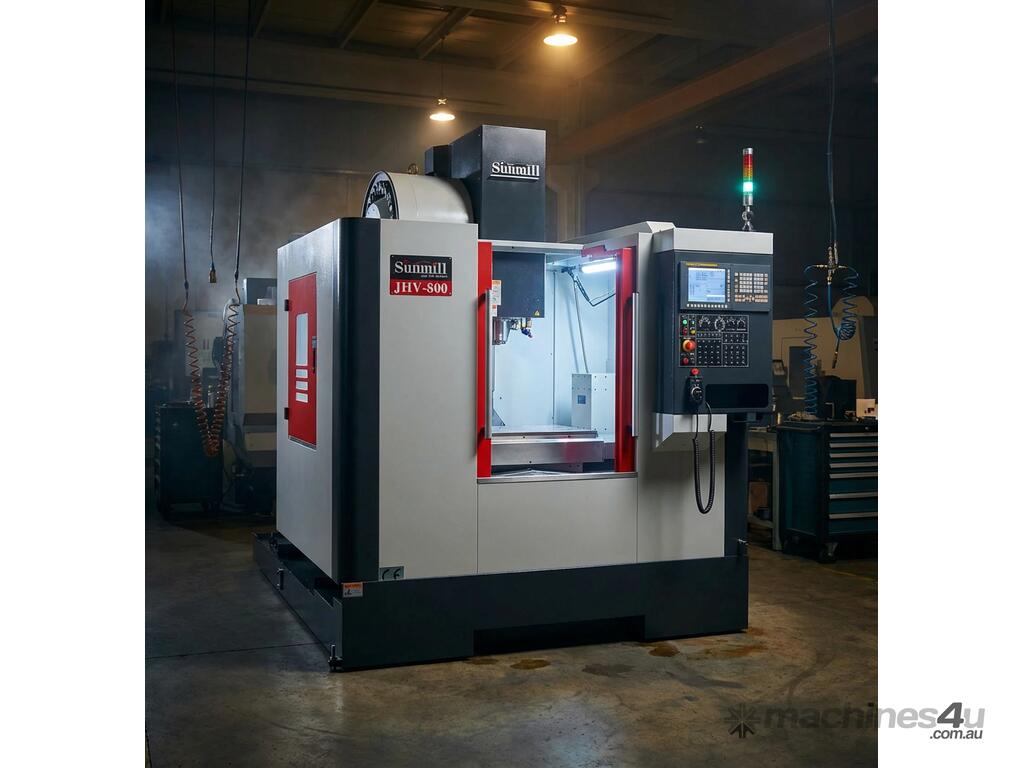

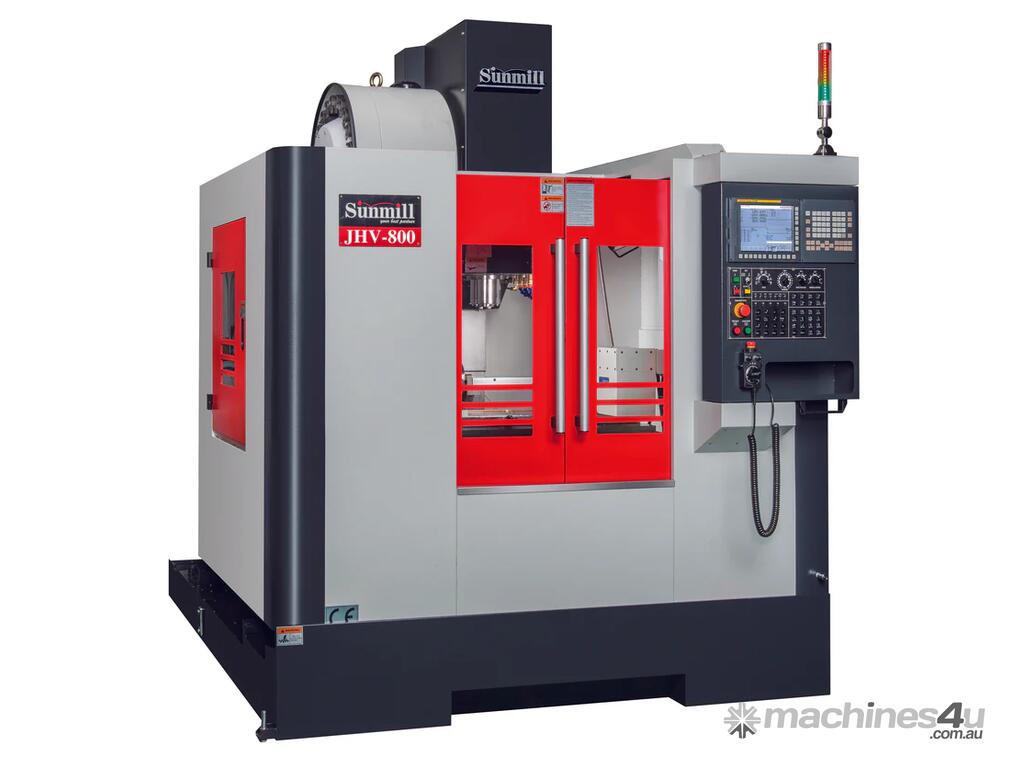

Sunmill JHV-800 Linear Guideway VMC (Vertical Machining Centre)

Special Offer!
High-performance vertical machining centre built for precision and speed. This ready-to-ship JHV-800 features upgraded roller linear guideways and 12,000rpm belt-driven spindle for faster cycle times and superior surface finish.

Key Specifications

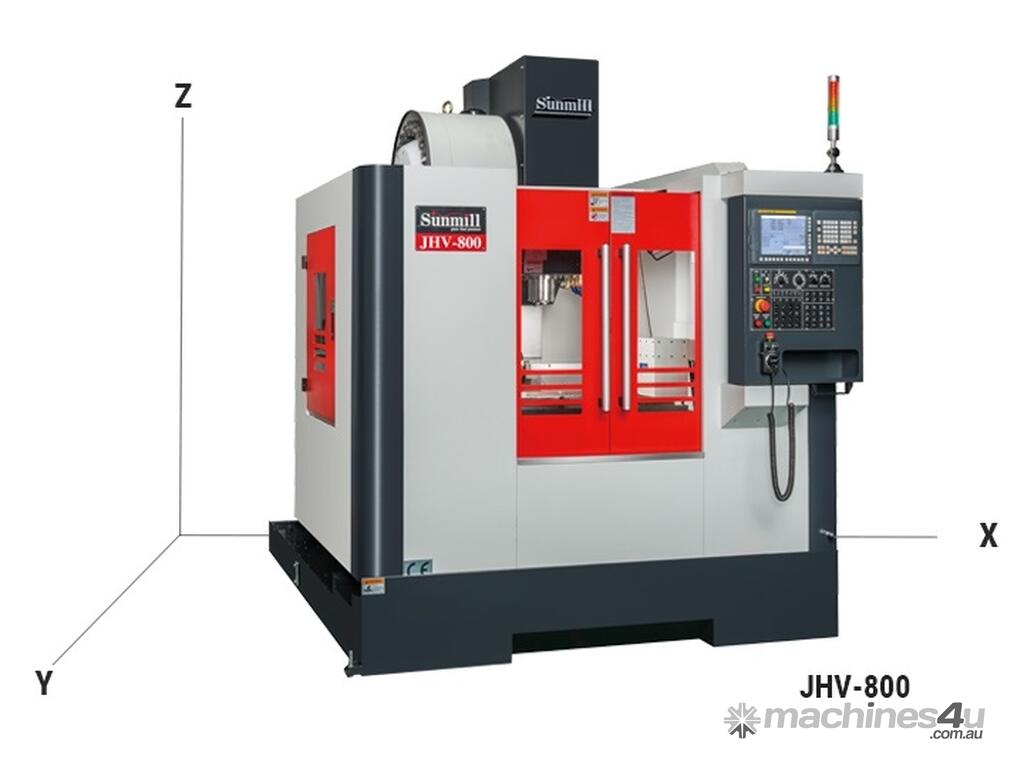

Travel
X axis: 800mm
Y axis: 500mm
Z axis: 580mm

Table
Size: 900 x 500mm
Max load: 500kg
T-slots: 5 x 18mm x 100mm pitch

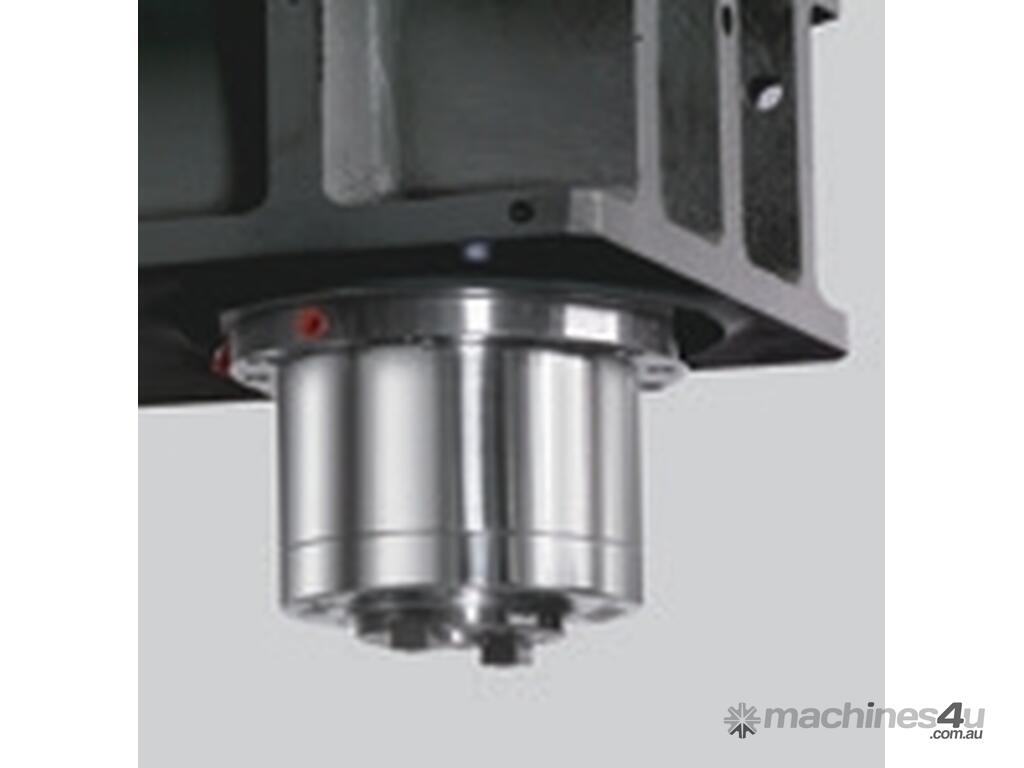

Spindle
Taper: BT-40
Type: Belt-driven 12,000rpm (upgraded from standard 10,000rpm)
Motor: 7.5/11kW
Cooling: Oil cooler system

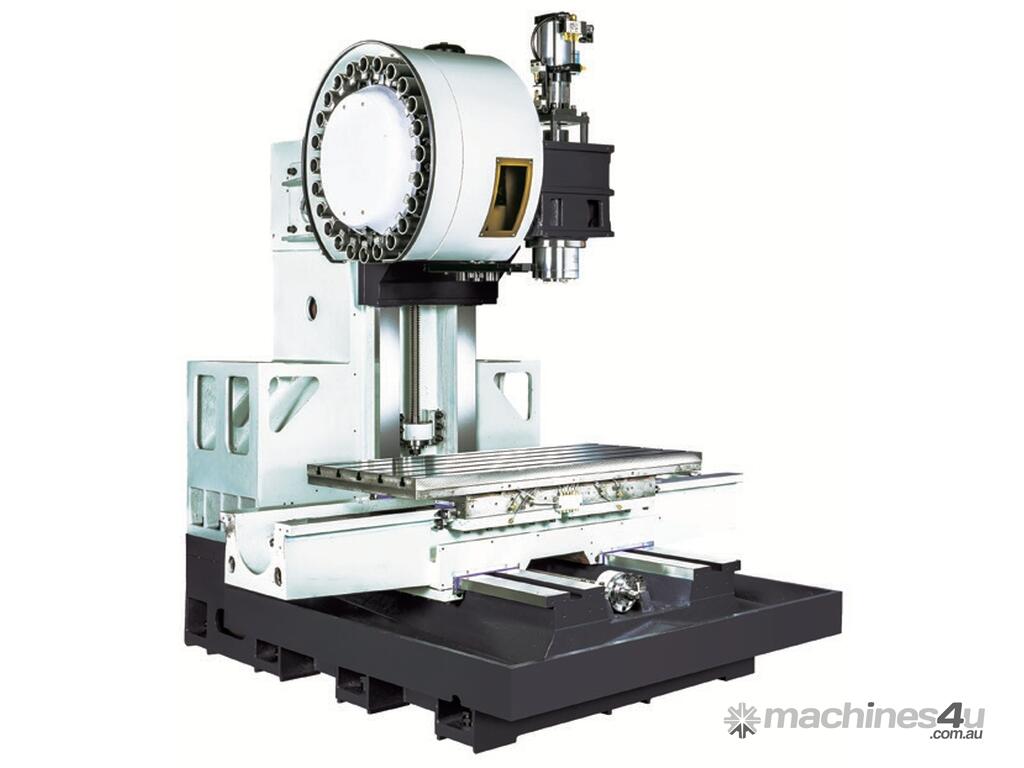

Guideways
Heavy-duty roller linear guideways on X, Y, Z axes (premium upgrade)
Superior load capacity and precision over standard linear guides

Performance
Rapid traverse: 30/30/24 m/min (X/Y/Z)
Cutting feed: 1–15,000 mm/min
Servo motors (Fanuc): 1.2/1.8/3.0kW

Tool Changer
Type: Arm-type ATC
Capacity: 24 tools
Max tool diameter: 75mm (150mm with adjacent pocket empty)
Max tool length: 250mm
Max tool weight: 7kg

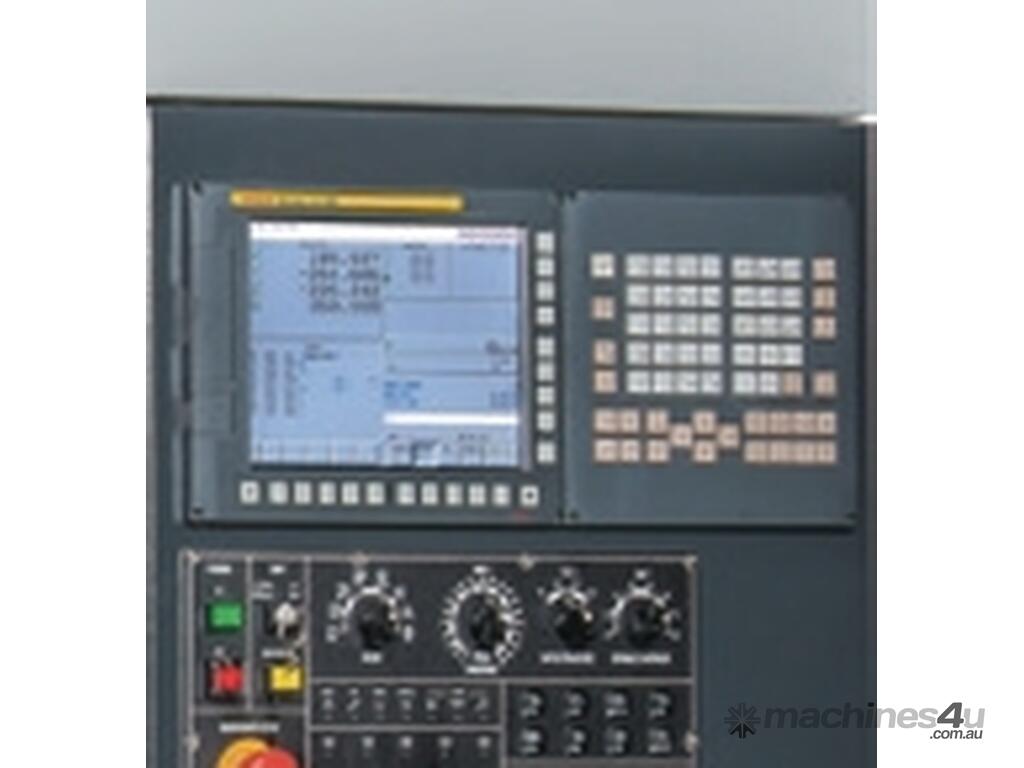

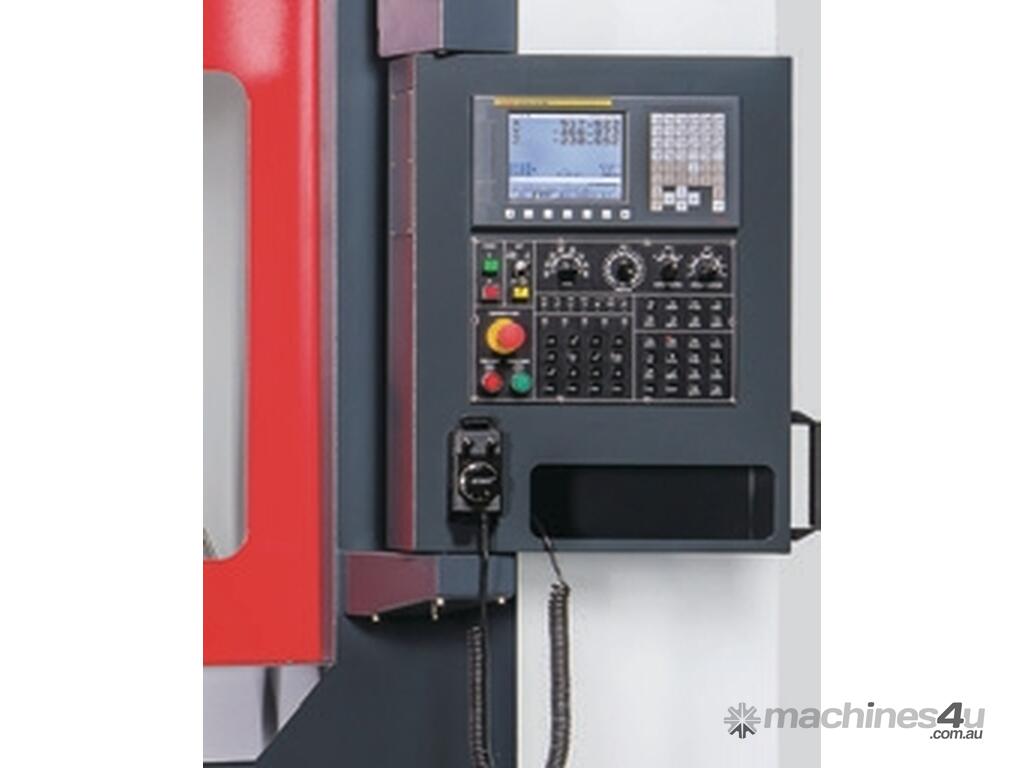

Control
Fanuc 0i-MF Plus
10.4" colour LCD
Ethernet connectivity
Advanced control features

Standard Features
Full splash guard enclosure
Spindle oil cooling system
Heat exchanger
Automatic lubrication system
Screw-type chip conveyor
Rigid tapping
LED work lighting
Telescopic covers on all axes
Air blast through spindle
Coolant gun
Electronic handwheel
Door interlock safety
Tool box and machine manuals


Machine Specifications
Power consumption: 20 KVA
Voltage: 220V, 3-phase
Floor space: 2,450 x 2,570 x 2,800mm
Machine weight: 4,500kg

Why This Offer Stands Out
Faster Spindle = Faster Production
The 12,000rpm belt-driven spindle delivers 20% more speed than the standard 10,000rpm configuration. Better for aluminium, non-ferrous metals, and high-speed finishing operations.
Roller Linear = Heavy-Duty Performance
Roller linear guideways handle heavier cutting loads and provide better rigidity than standard linear rails. Ideal for workshops running continuous production or heavy milling operations.

Discounted Upgrades
Both the roller linear guideways and 12,000rpm spindle normally carry premium pricing. Because this machine is ready to go, we're offering additional discount on these features.

About Sunmill
Made in Taiwan, delivering the robustness and high precision expected from Taiwanese-made machine tools. The JHV series is known for stability, accuracy, and reliable performance across diverse machining applications. [qmtmachinery.au]
