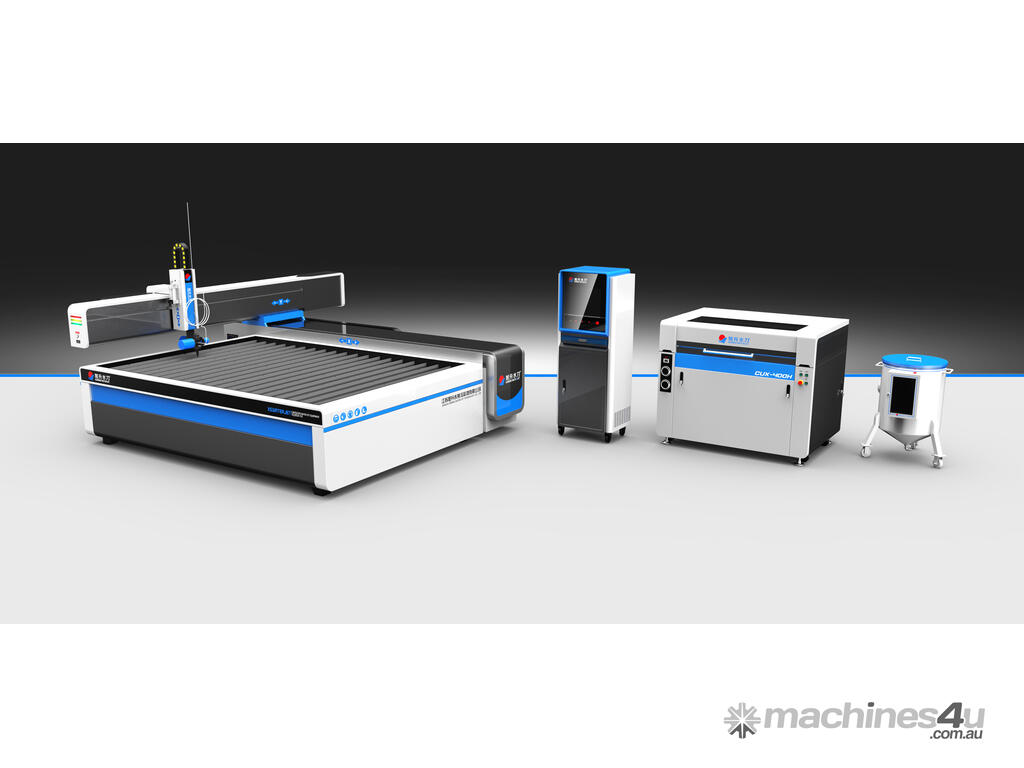

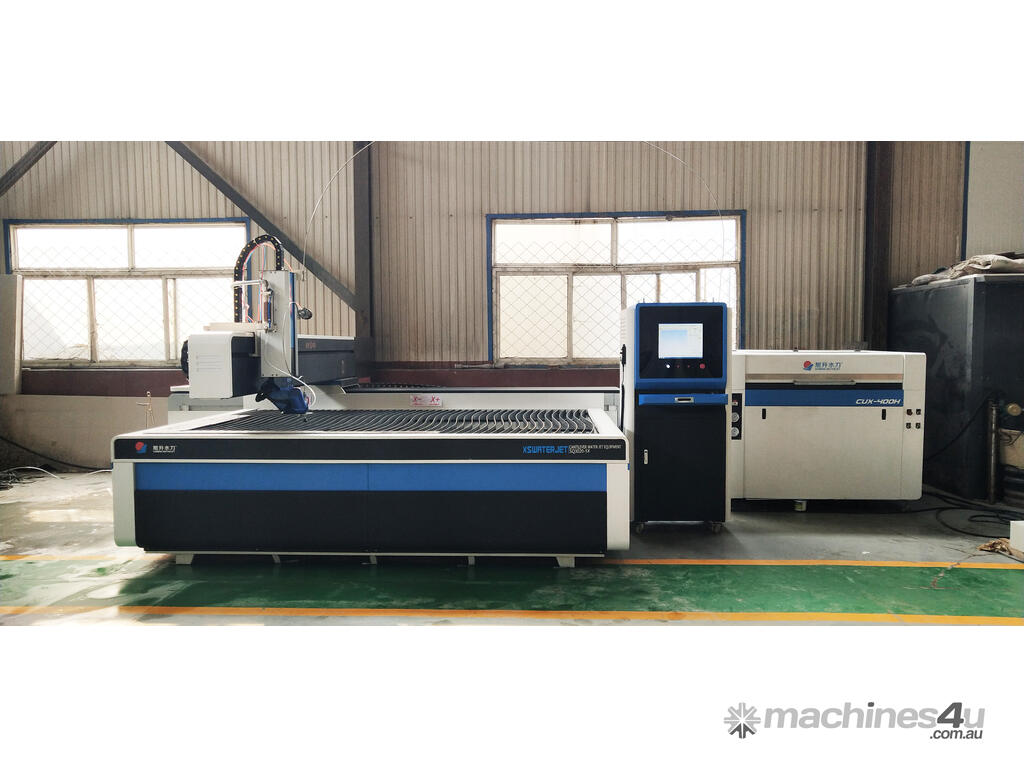

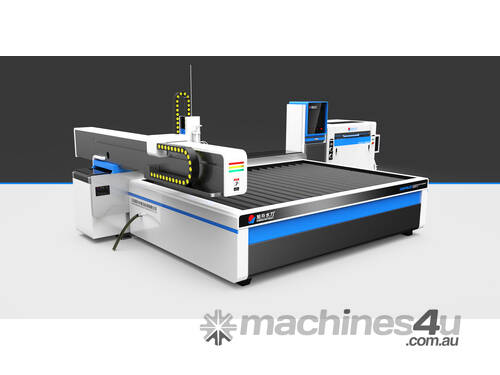

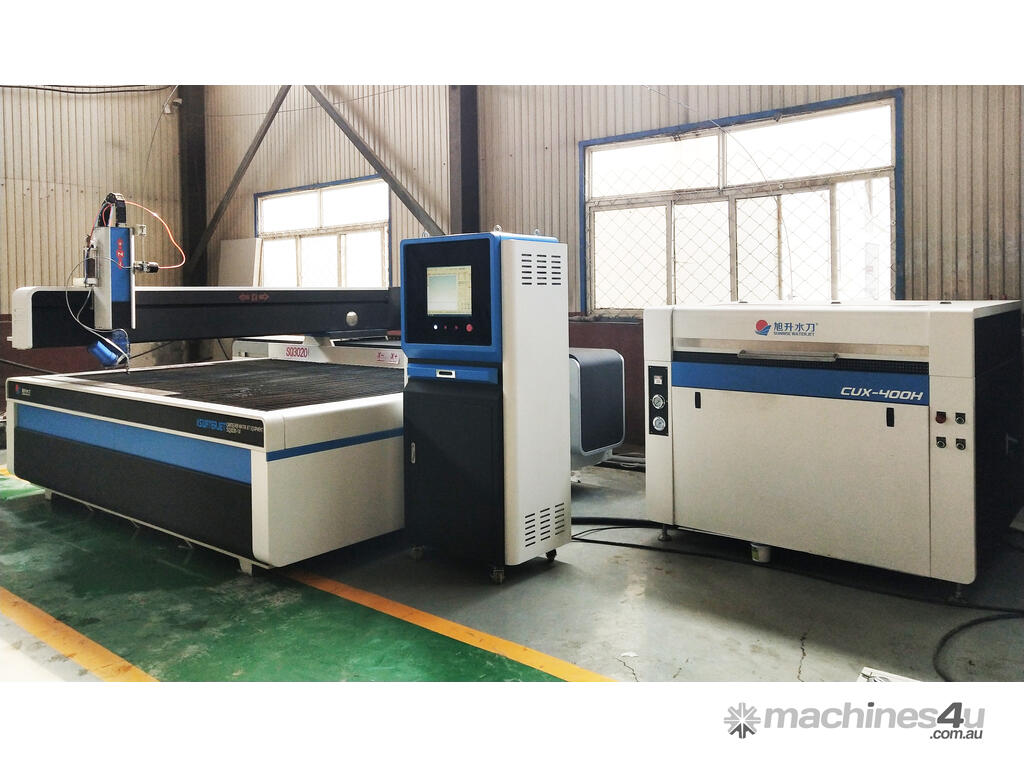

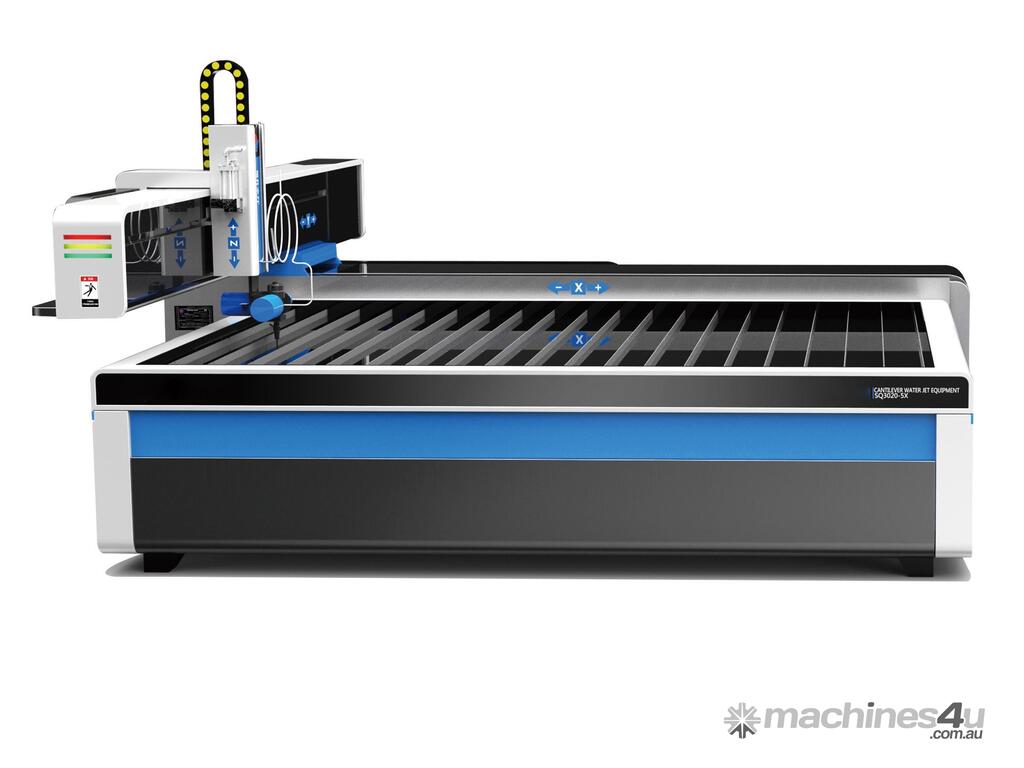

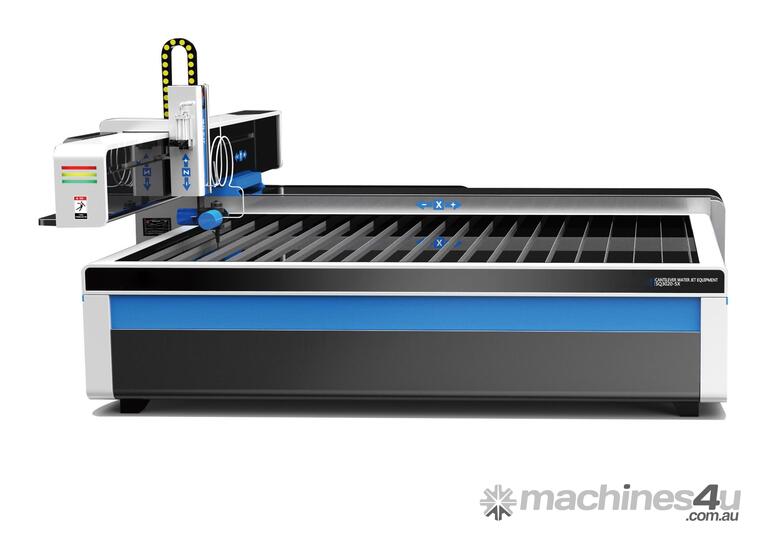

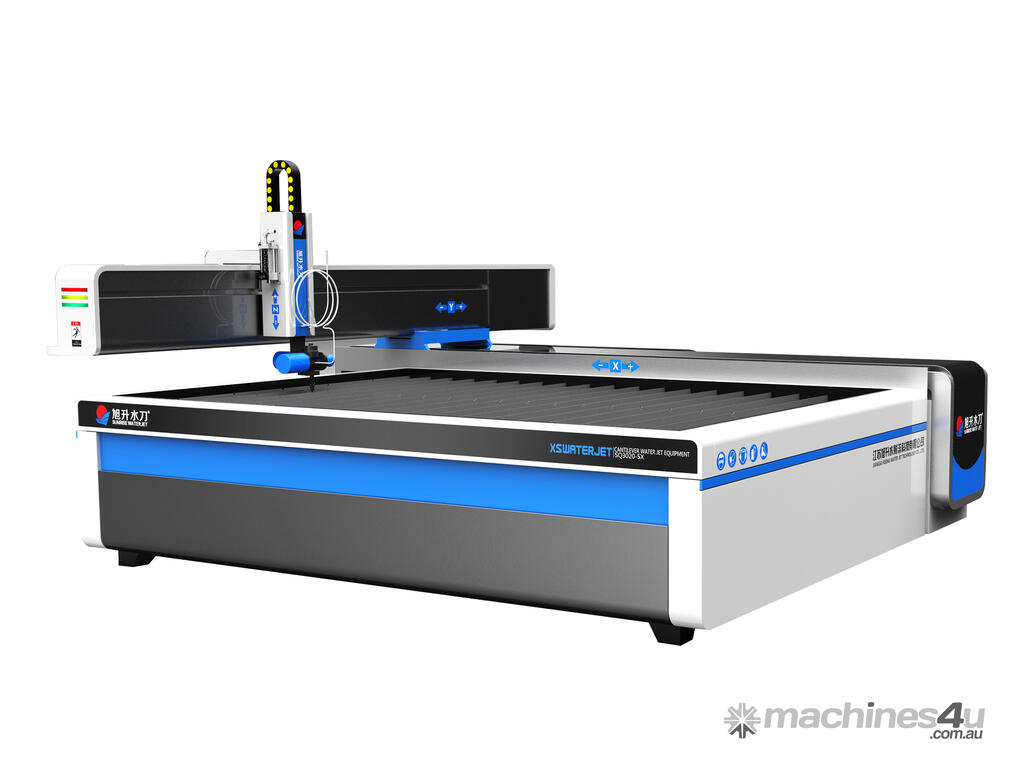

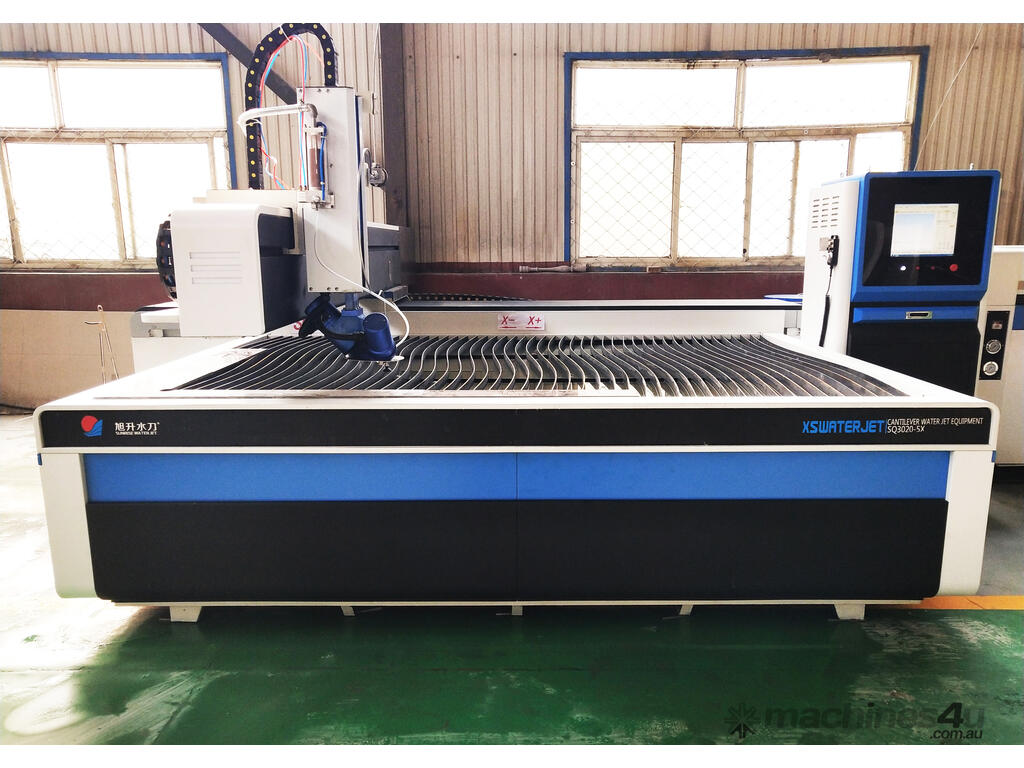

Sunrise 5 axis CNC waterjet cutter SQ1525

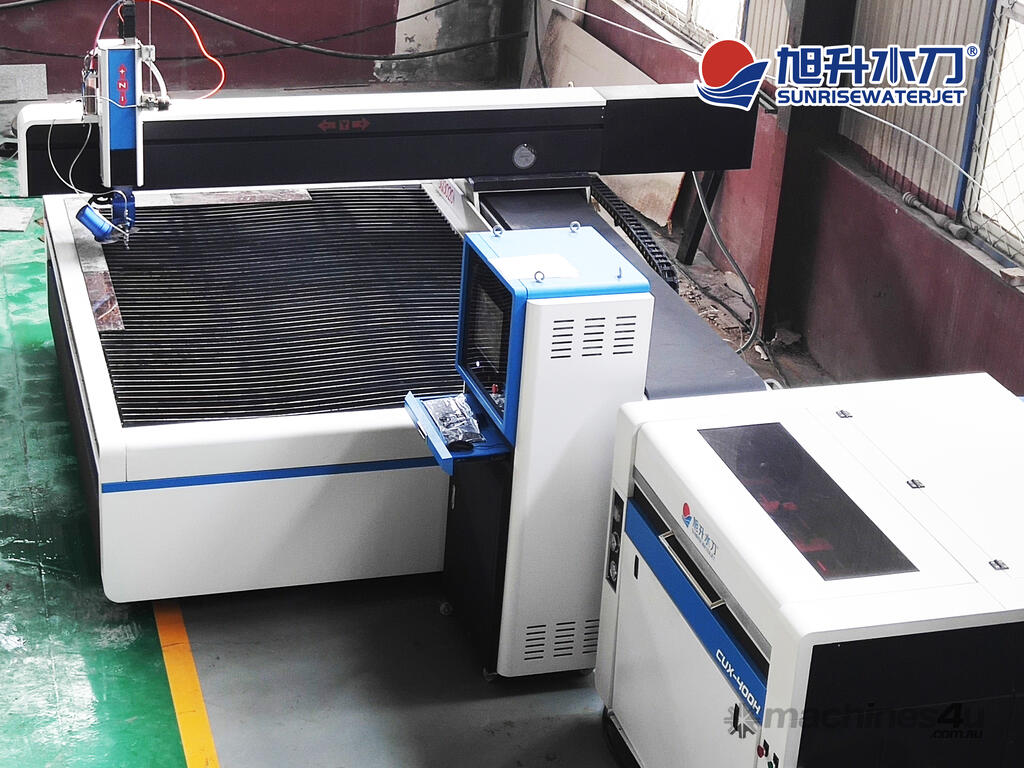

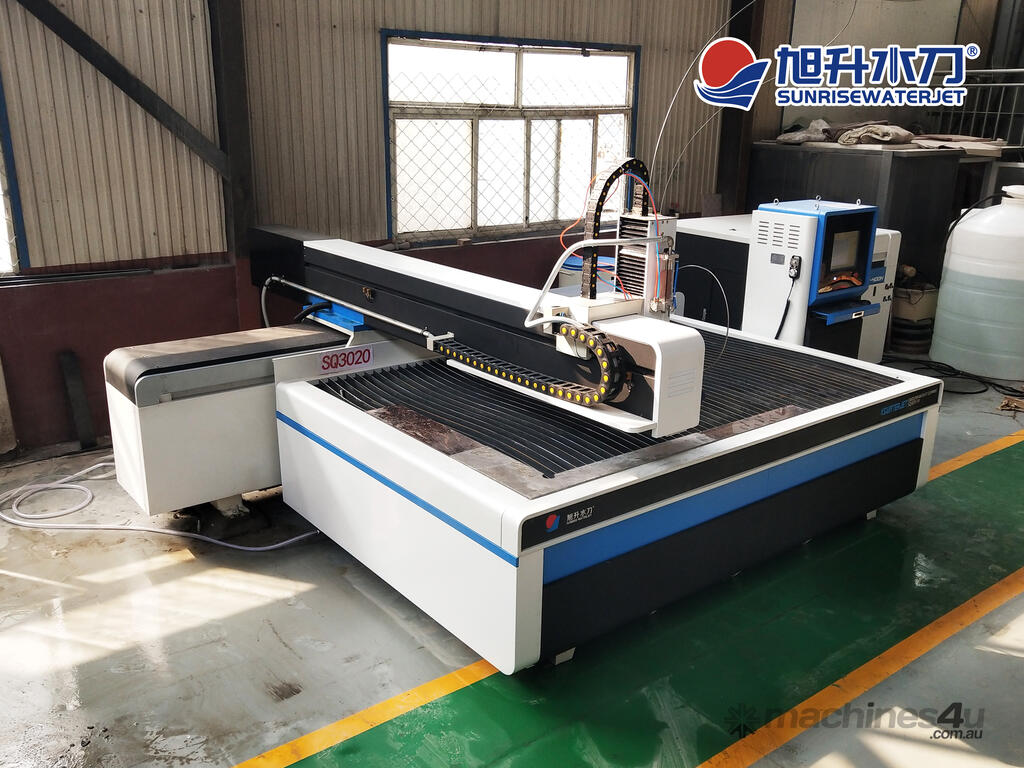

SUNRISE flying arm CNC Waterjet Cutting machine SQ1525

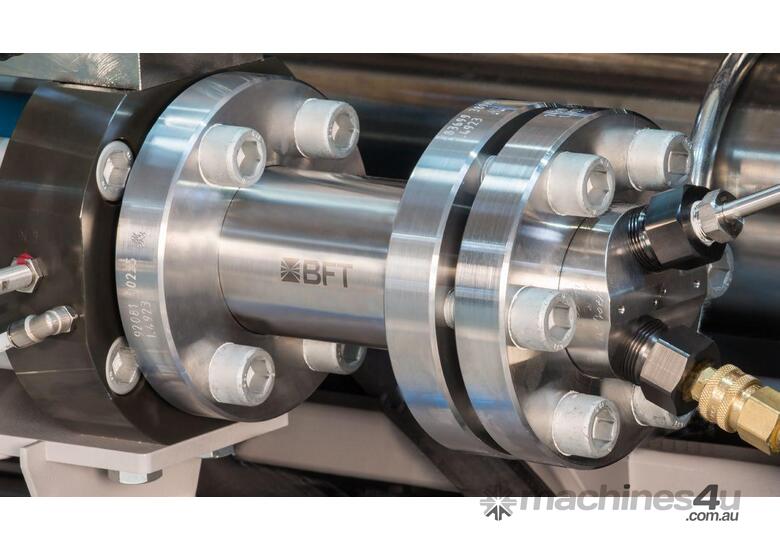

Optional Austria BFT ECOTRON high pressure pump(60000PSI)
Sydney based seller, 1 year warranty
8-10 weeks delivery after 30% deposit

Please contact if you have any further questions.

Discover Sunrise the new range of Waterjet equipments distributed by Alpha CNC, machining and cutting by VHP soft materials, with addition of abrasive, hard materials, which has been proved for last 10 years.

* Soft materials :
- rubber
- plastics
- leathers...

* with addition of abrasive, hard materials :
- metal
- ceramic
- glass
- stone
- composite materials...

Specifications:
Model SQ1525
Travel X-axis 1500mm
Y-axis 1500mm
Z-axis 150mm
Drive AC Servo System

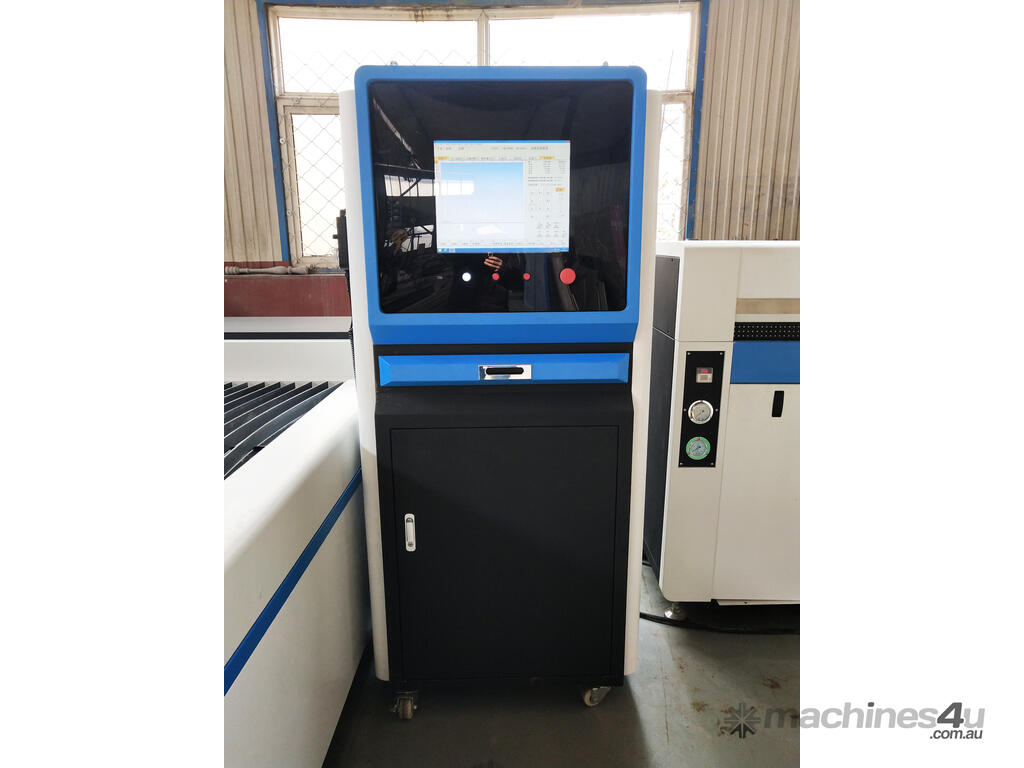

NC System NCStudio
Cutting accuracy ±0.1mm
Repeat accuracy ±0.04mm
Traverse speed 0-10m/min
Max.Cutting Pressure 52000PSI/3600Bar

Due to constant endeavour to improve the machine, the specification may be changed without prior notice.

Options
• Twin cutting head

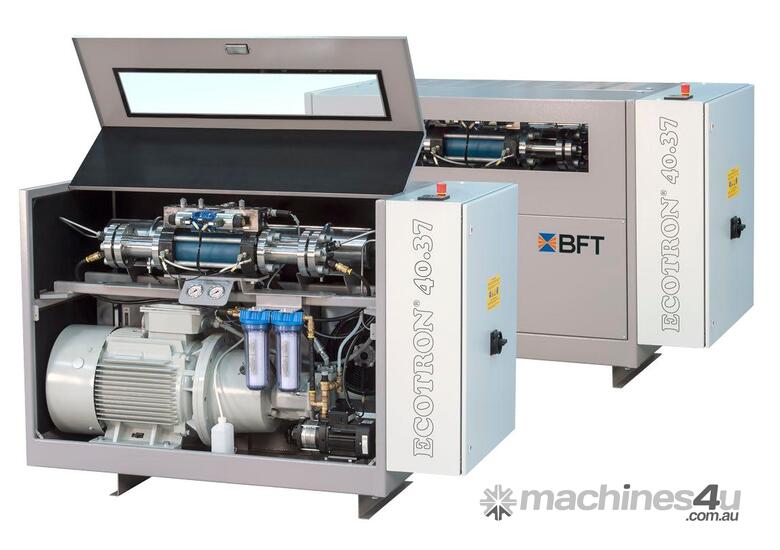

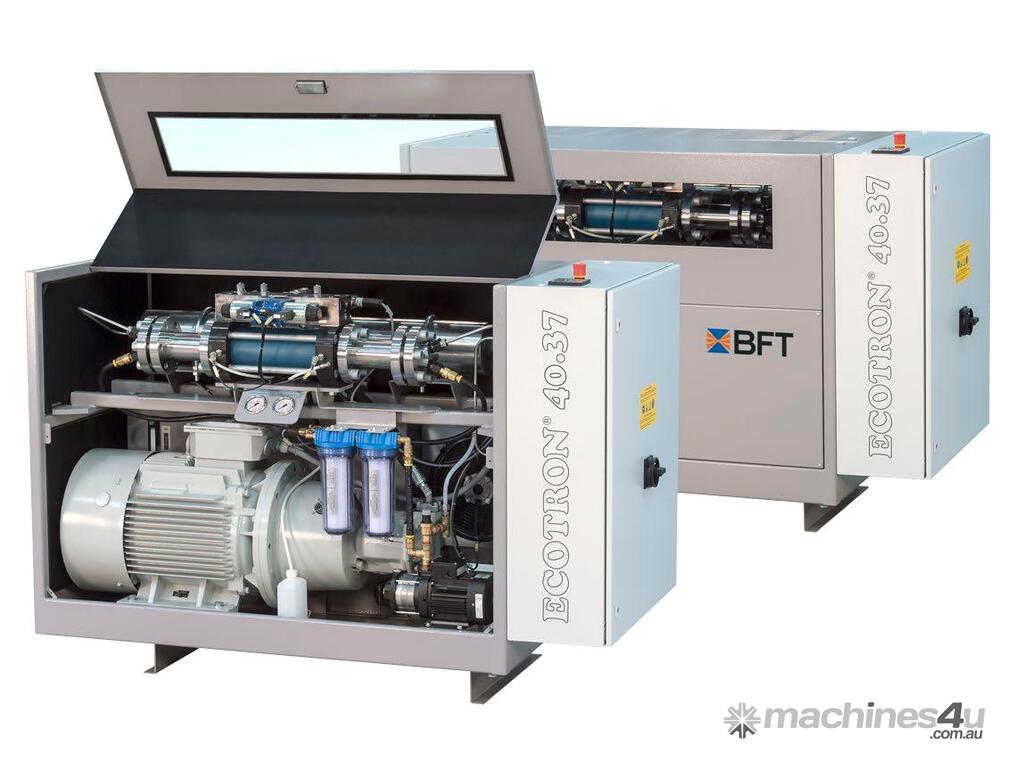

• Austria BFT ECOTRON high pressure pump

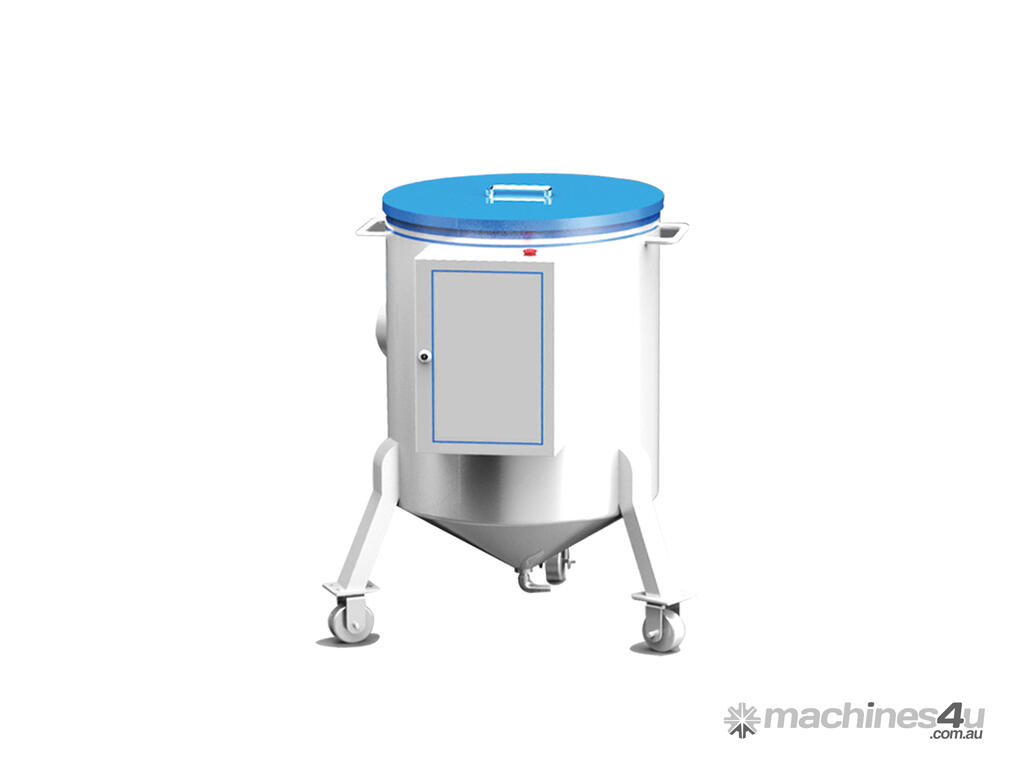

• Automatic sand feeding system

Warranty

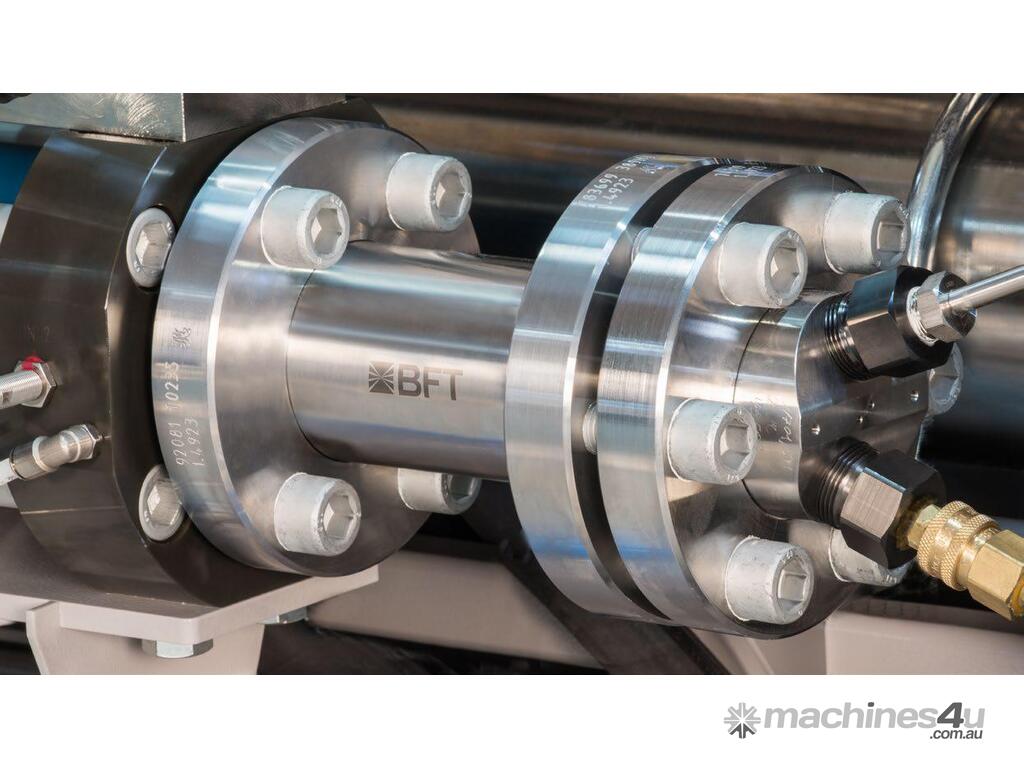

The machine carries a one year warranty on all defective parts. Components included in the following assemblies are considered as routine operator maintenance procedures and are not covered under the warranty, however, training in the correct replacement and assembly of these parts is provided: High Pressure Seals and Components associated with the Intensifier Unit and cutting head included
