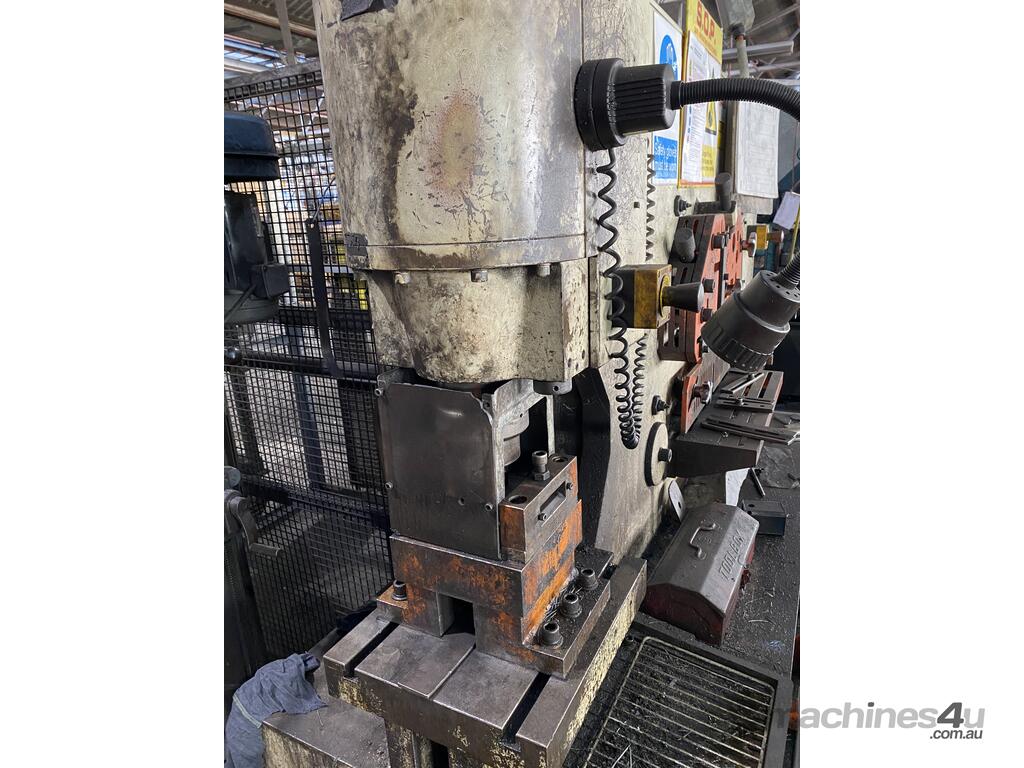

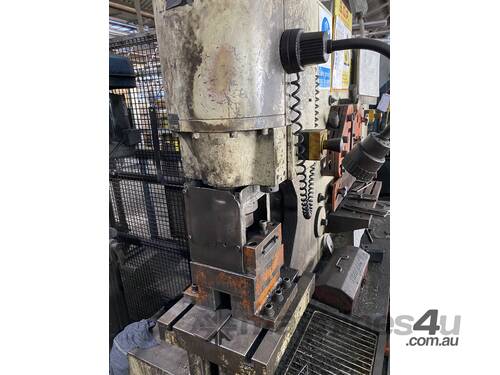

Sunrise IW-125S, SD Hydraulic Ironworker – 125 Tonne Capacity
This used 2009 Sunrise IW-125S, SD Hydraulic Ironworker is a heavy-duty, multi-function machine designed to deliver powerful performance in demanding fabrication environments. With 125 tonnes of punching and shearing capacity, it's built to get the job done — efficiently and reliably.
*Die shown in video not included*
Key Features:
125 Tonne punching and shearing capacity
Hydraulic operation for smooth, consistent performance

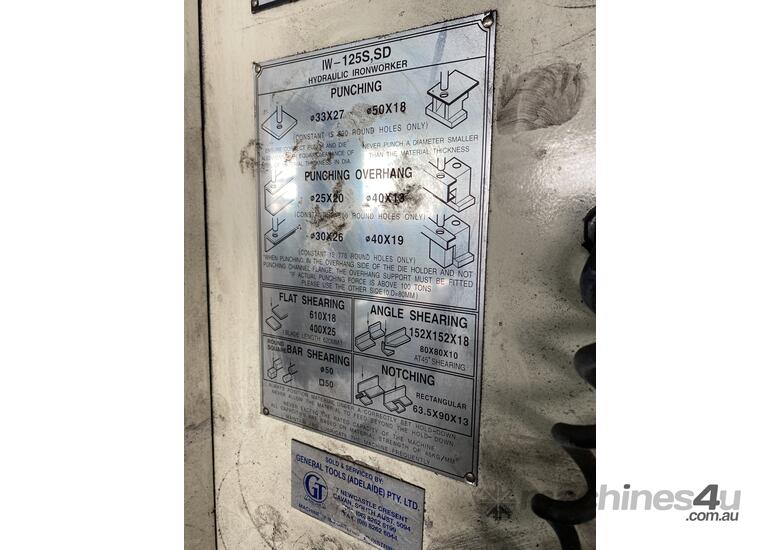

Punching dimensions listed on the rating plaque
Built for heavy-duty steel fabrication
Manufactured in 2009 – solid build, well-maintained
Specifications:
Punching
33×27 mm, 50×18 mm (Constant: 22D round holes only)
Overhang Punching: 25×20 mm, 40×13 mm, 30×26 mm, 40×19 mm
Never punch a diameter smaller than the material thickness
When punching on the overhang side of the die holder and not punching channel-legs, the overhang support must be fitted
If actual punching force is above 150 tonnes, use the 25 mm side
Flat Shearing:
610×18 mm
400×25 mm
Angle Shearing:
152×152×18 mm
80×80×10 mm (45° shearing)
Round Bar Shearing:
50 mm
Notching (Rectangular)
63.5×90×13 mm
Don’t miss this opportunity to own a proven performer. Enquire now to inspect or secure this machine today!
