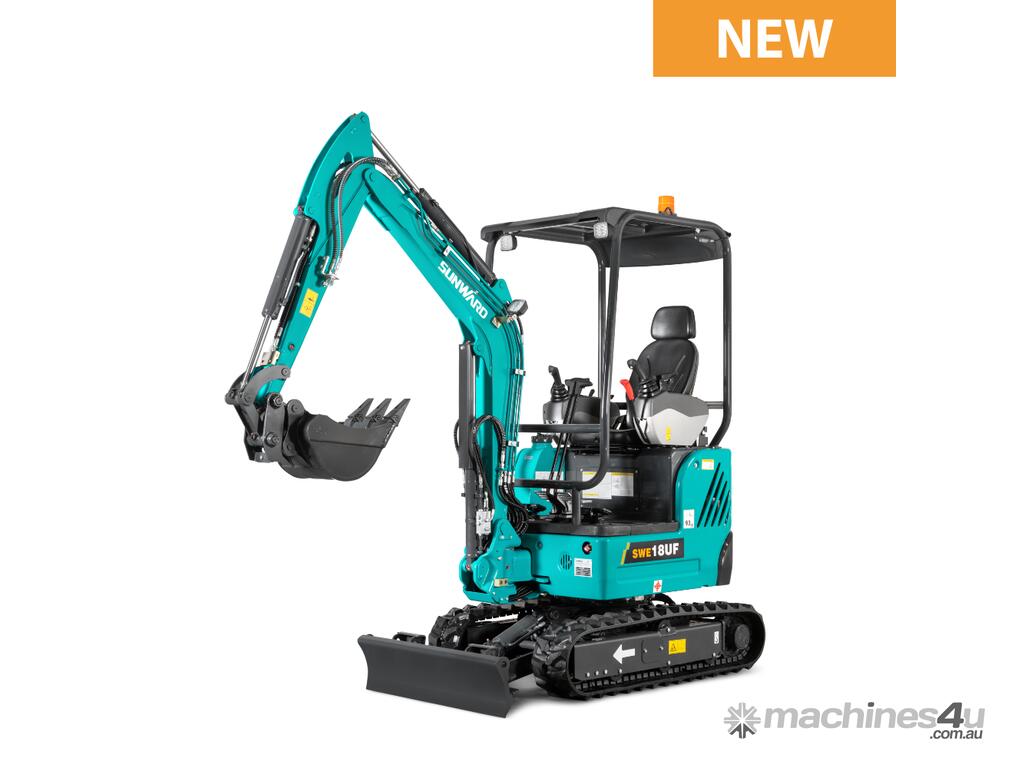

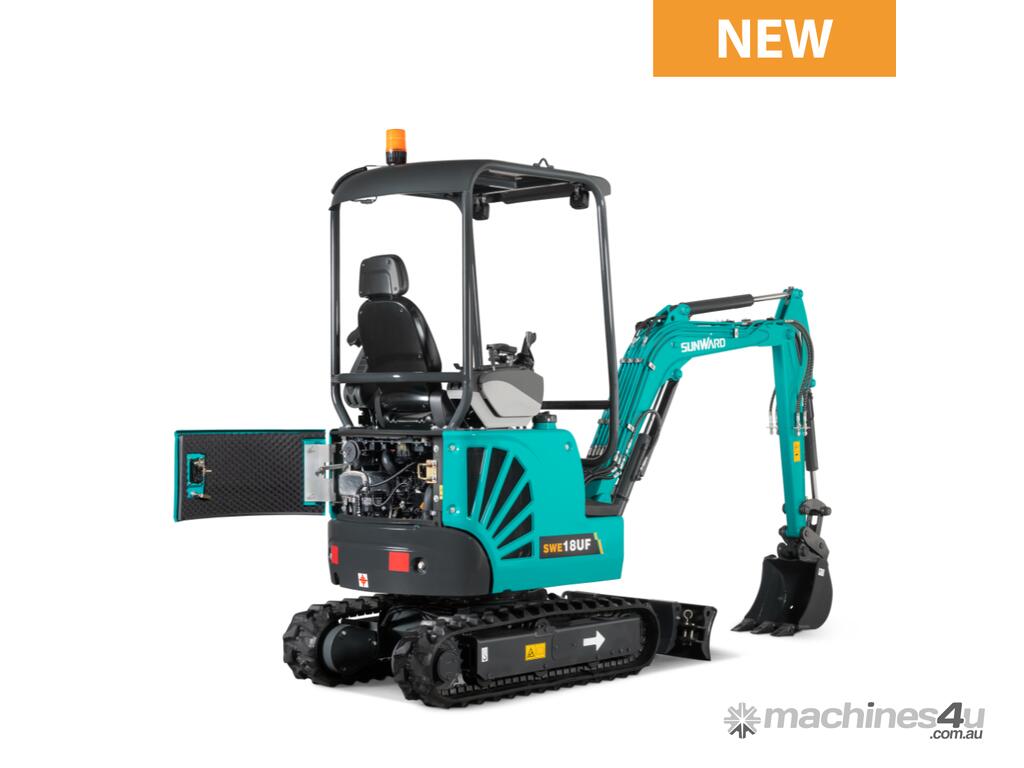

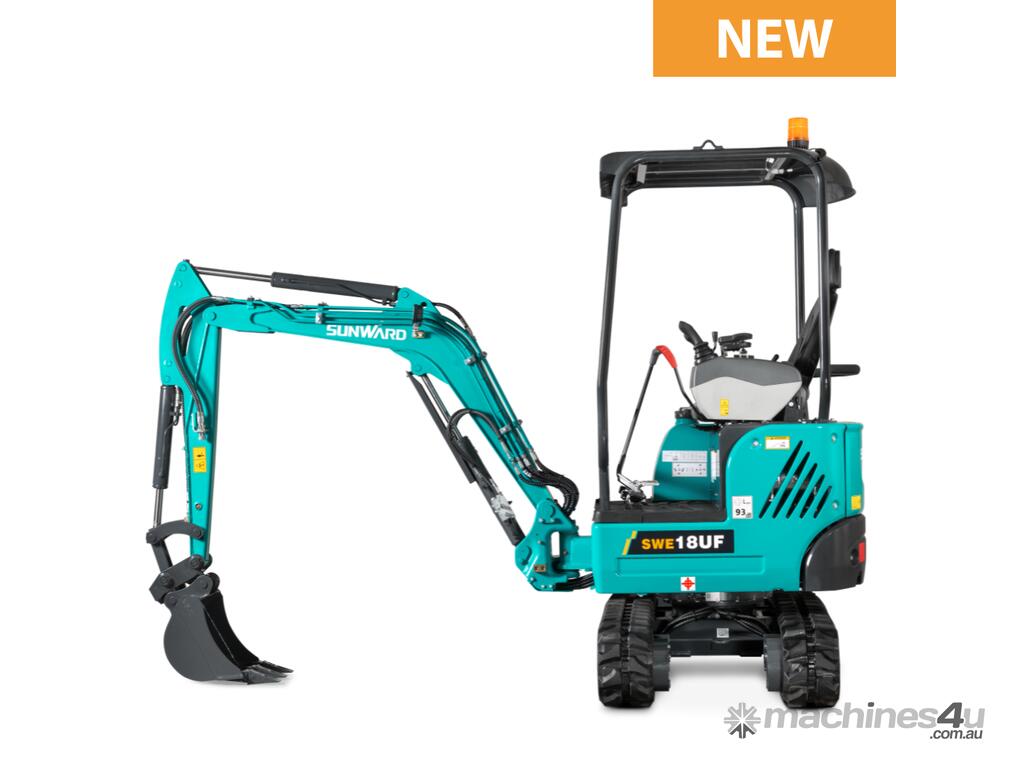

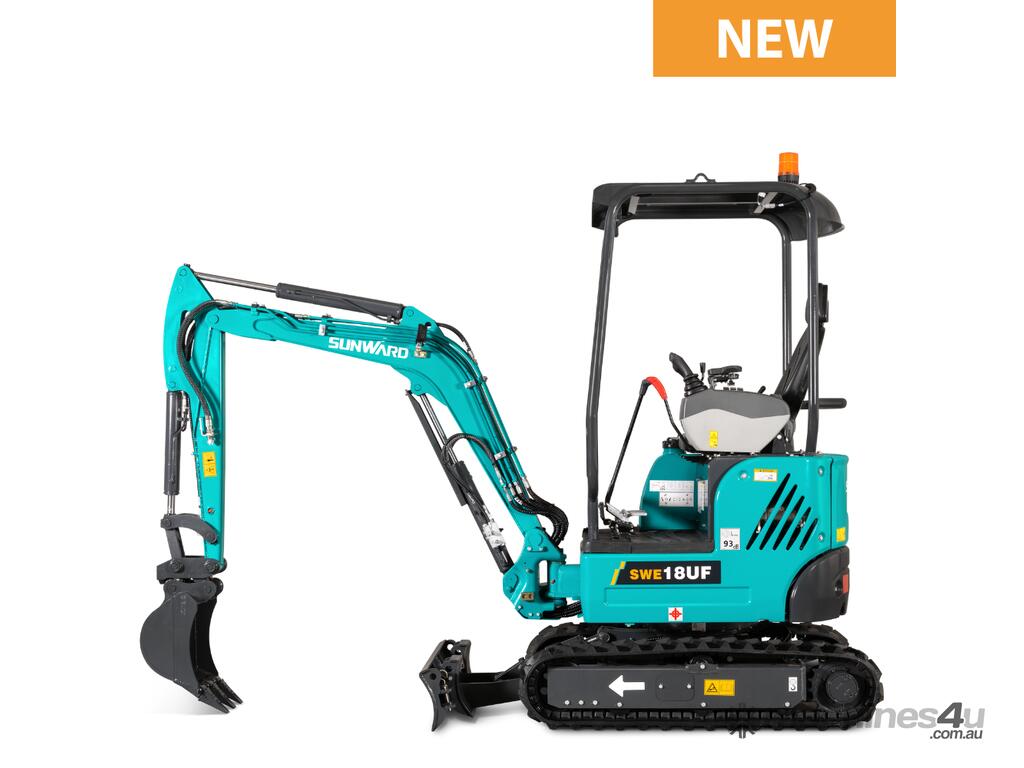

Sunward SWE18UF is a 1.8-tonne zero-swing mini excavator

SWE 18UF
Excavators
Mini Excavators
The Sunward SWE 18UF is a 4-pole canopy mini excavator built for small corners and tight working conditions. With the zero-tail chassis and the expandable undercarriage (from 900 mm to 1 320 mm), you can get into the smallest spaces, allowing for precise movement, even when the space is restricted. And in case you need extra support, you can simply widen undercarriage.

Emission rating: EU Stage V
Operating weight: 1 880 kg
Power output: 13.4 kW
Max. digging depth: 2 206 mm
Width: mm

SUNWARD SWE 18UF
The Sunward SWE 18UF is a 4-pole canopy mini excavator built for small corners and tight working conditions. With the zero-tail chassis and the expandable undercarriage (from 900 mm to 1 320 mm), you can get into the smallest spaces, allowing for precise movement, even when the space is restricted. And in case you need extra support, you can simply widen the undercarriage.

The SWE 18UF has exceptional digging forces of over 22.7 kN (bucket) and over 11 kN (arm), which easily rival the 2-ton excavator competitors on the market.

With probably the longest arm in its class, allowing long-reach digging capacity, the SWE 18UF's boom cylinder design provides a reach that's over 4 meters (4120 mm) long.

With 3 separate auxiliary lines as standard (the market provides 1 to 2 lines as standard), the SWE 18UF is ready for all types of attachments, an thus, it can adapt to any job site.

Comfort and safety are not at rest thanks to a 4-poles canopy design, the high back adjustable suspension seat and an ergonomically designed operator workspace.

Discover all the other advantages of the Sunward SWE 18UF.

DIMENSIONS
Operating weight 1 880kg
Standard bucket Capacity 0,04 m³
Shipping length 3 582 mm
Height over canopy 2 555 mm


ENGINE
Model Yanmar 3TNV80F-SSU
Emission rating EU Stage V
Displacement 1.267 L
Rated power output 13.4 kW

HYDRAULIC SYSTEM
Model Yanmar 3TNV80F-SSU
Emission rating EU Stage V
Displacement 1.267 L

WORKING RANGE
Max. digging depth 2 210 mm
Max. digging reach 1 675 mm
Max. bucket digging force 22,7 kN
Max. arm digging force 11 kN
