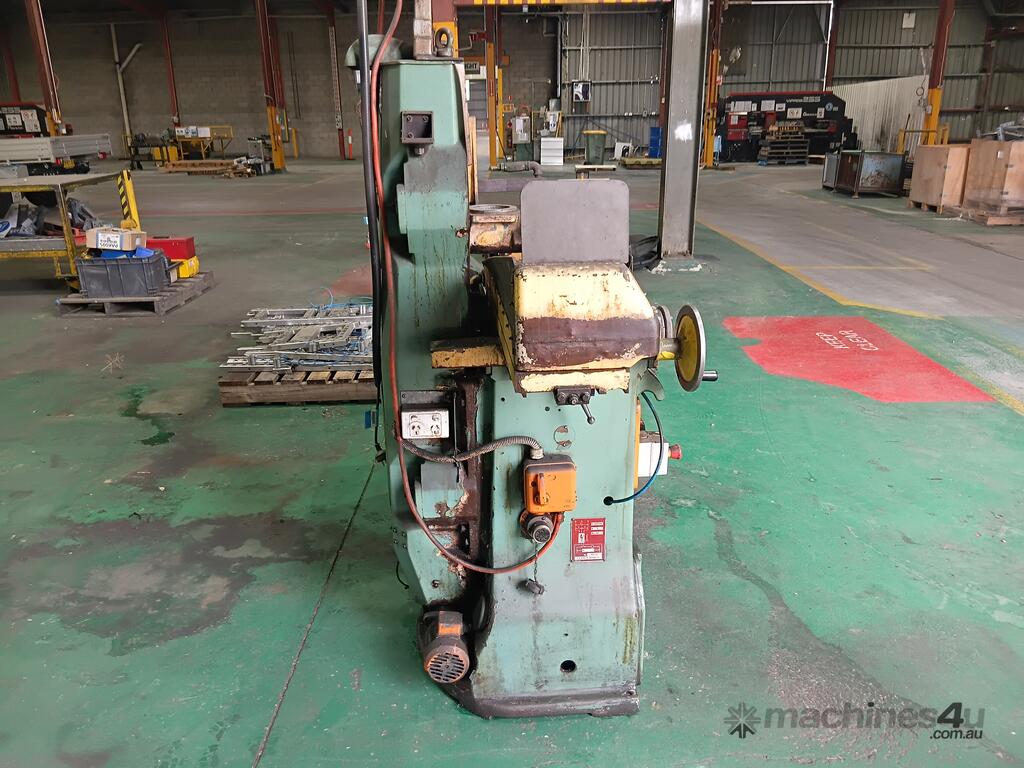

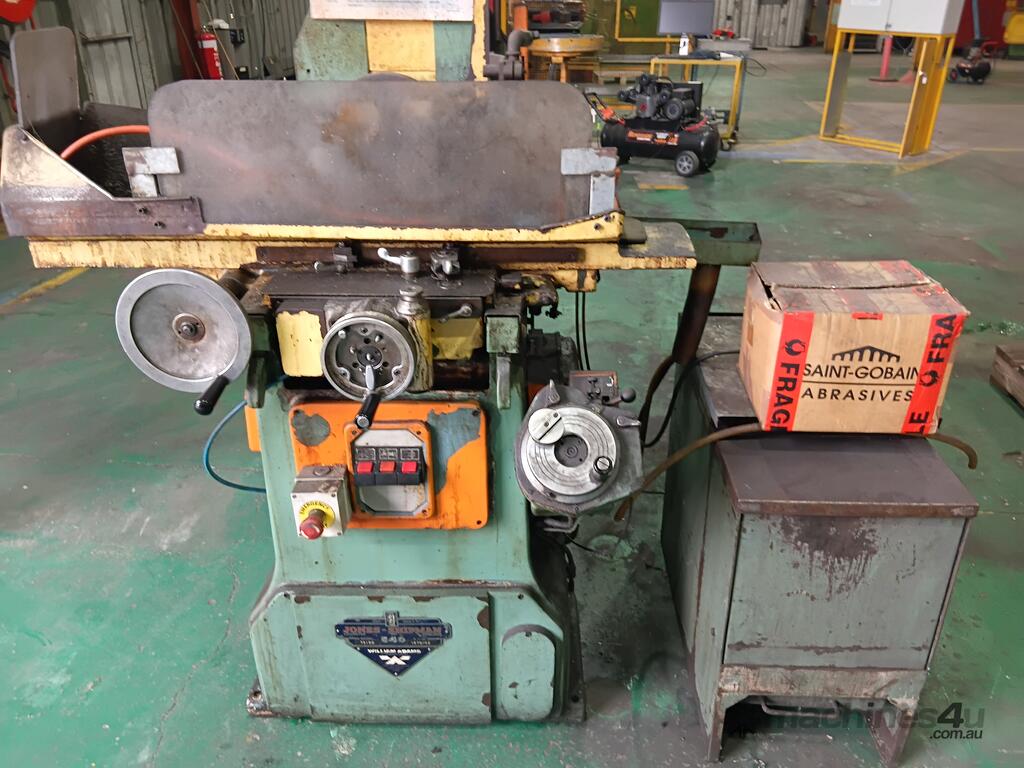

Jones and Shipman 540 Surface Grinder
450mm x 150mm table, fitted with 450mm x 150m magnetic chuck.
max travels 480mm long, 170mm cross, 280mm vertical. 178mm dia wheel.
Vertical Feed -0.002mm
Cross Feed - .175mm - 1.75mm

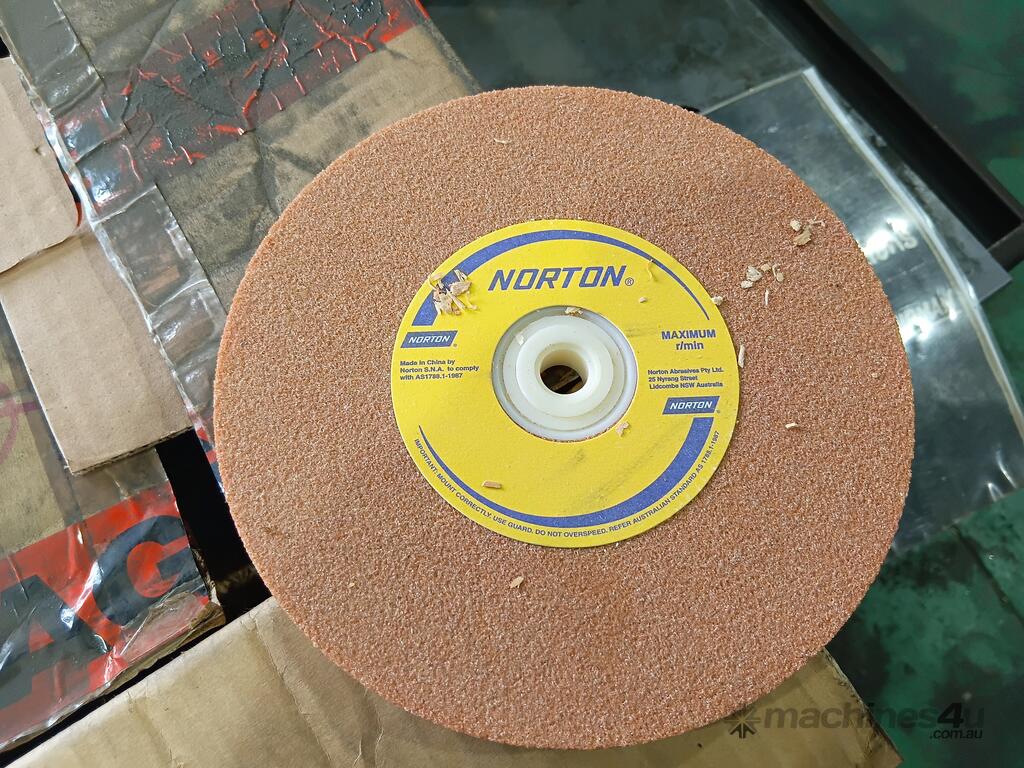

3 spare wheels, Diamond Dresser

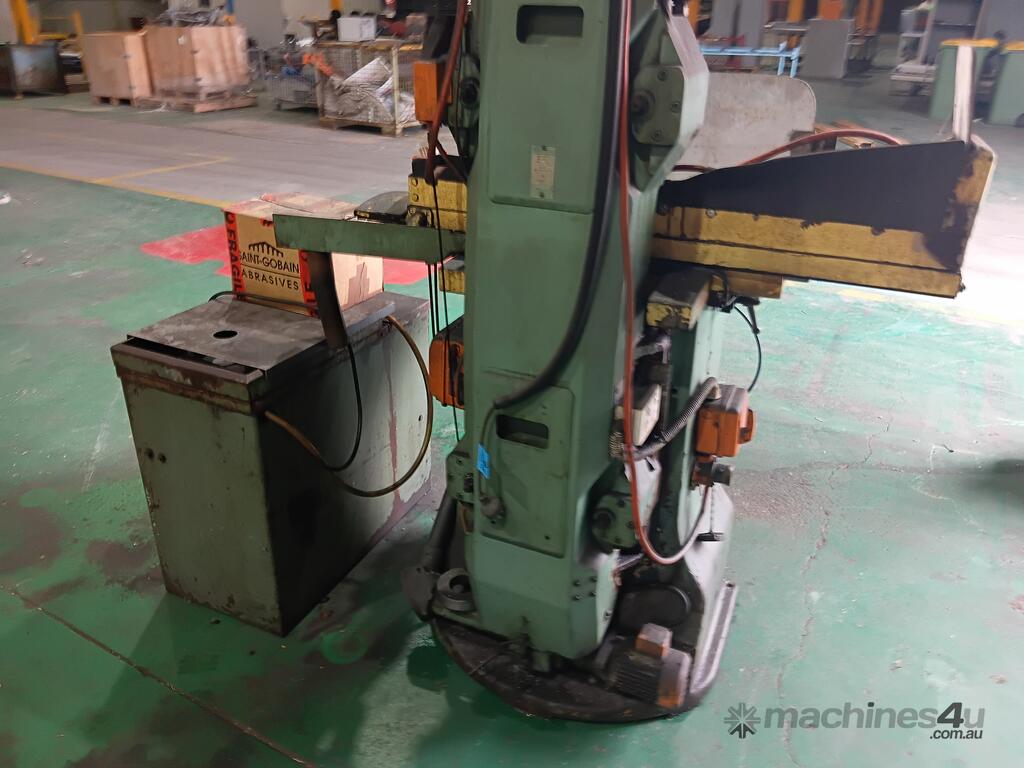

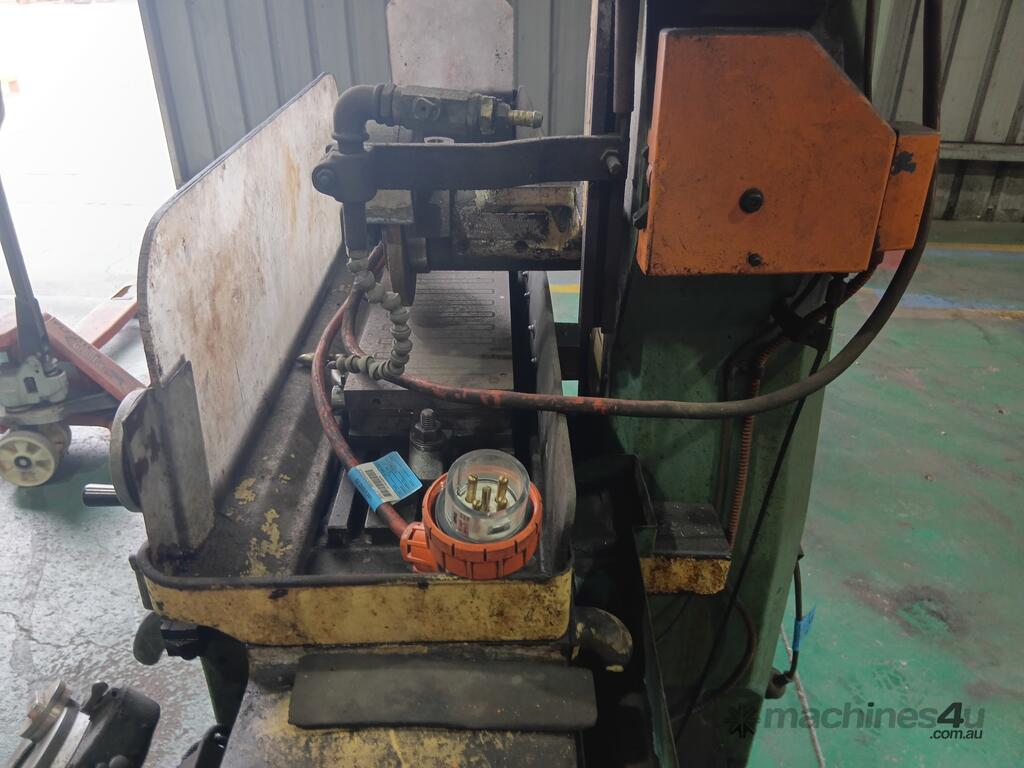

1hp spindle motor. 415 volt. Coolant Tank.
Overhead work light
Machine weight approx 770kg
Floor Space - 1650x825 1730 High
