Sustainable Surveillance with Solar PTZ Camera

AUSTRALIAN MADE SURVEILLANCE CAMERA

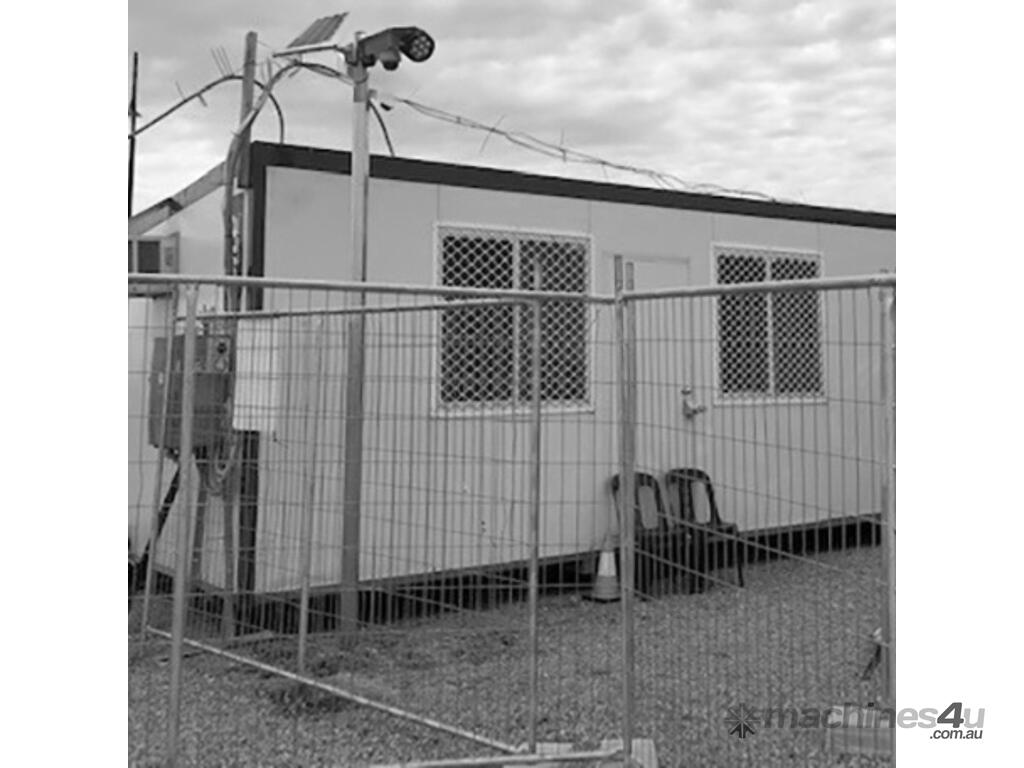

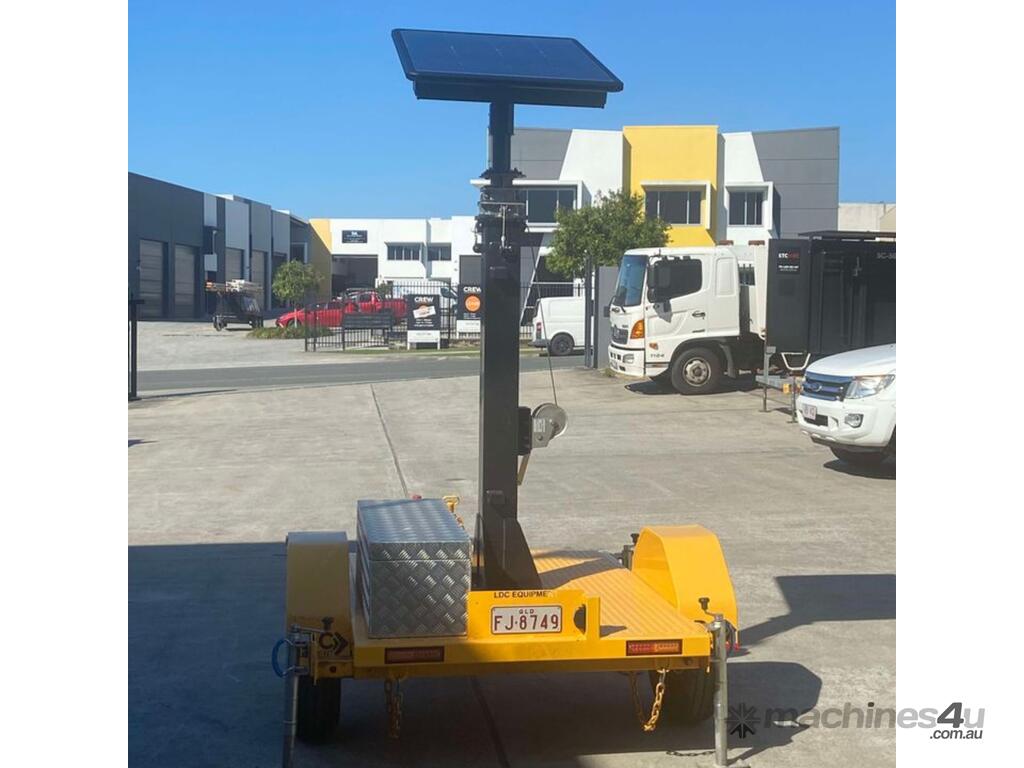

Our Australian made surveillance camera, the solar PTZ camera, features motion detection, full automation, remote and video recording. Ideal for all outdoor security needs from work and construction sites through to residential homes. The solar security camera operates alone, as well as in conjunction with most of our other traffic equipment, such as radar speed signs and solar light towers.



SOLAR SECURITY CAMERA PTZ

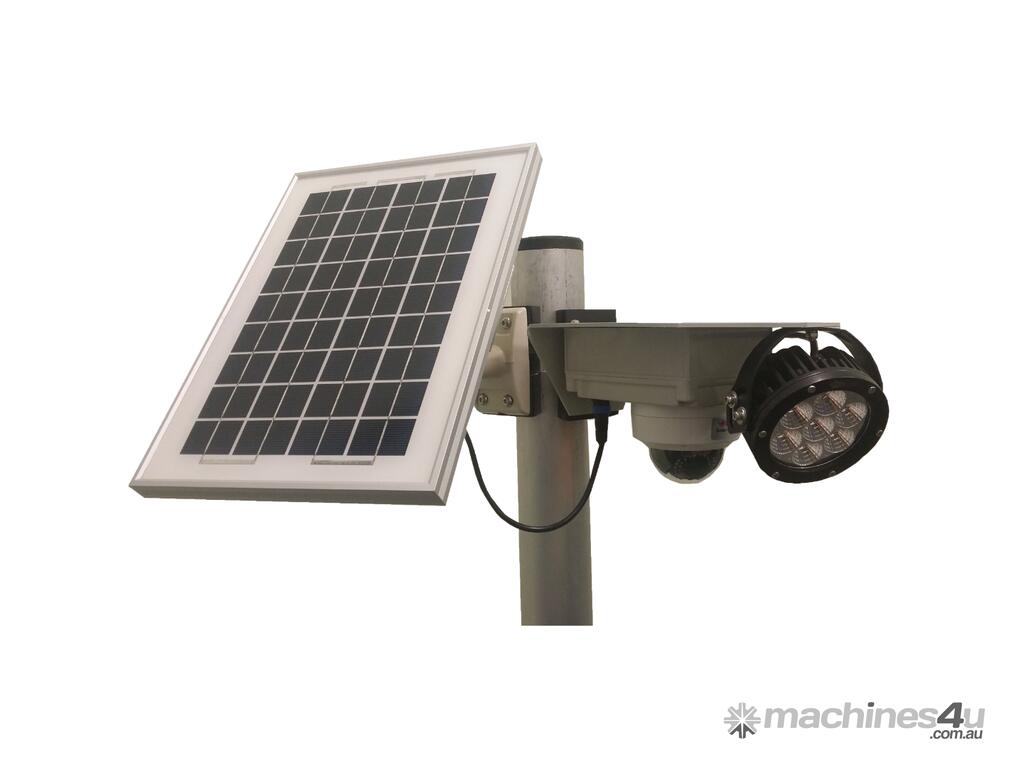

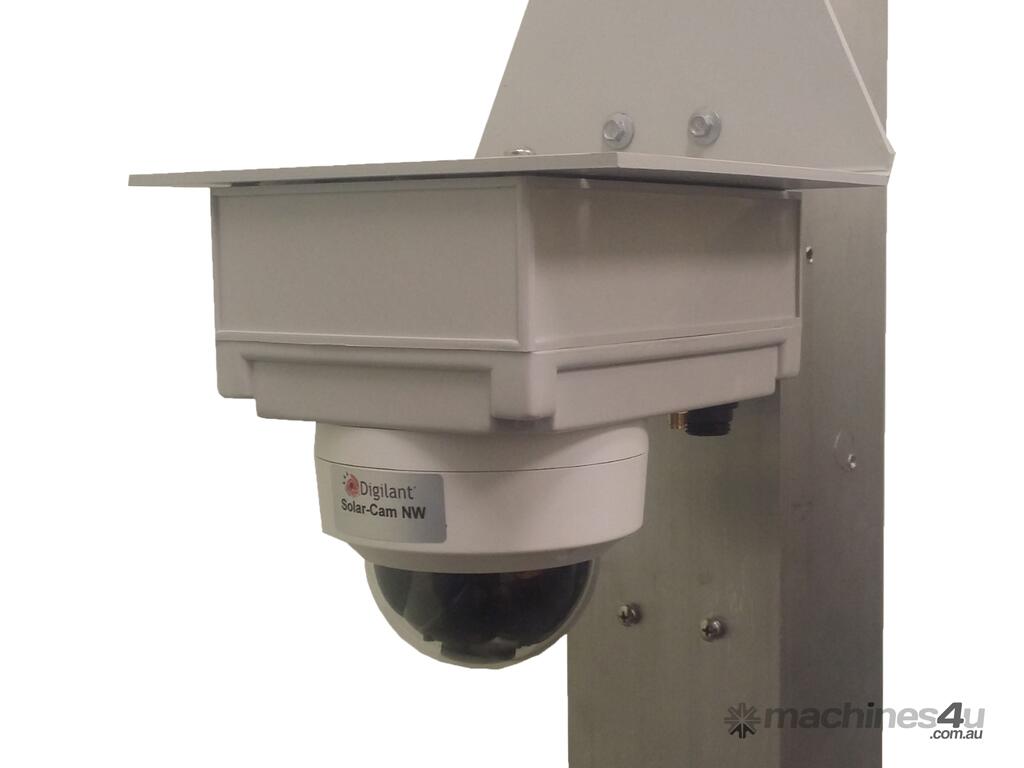

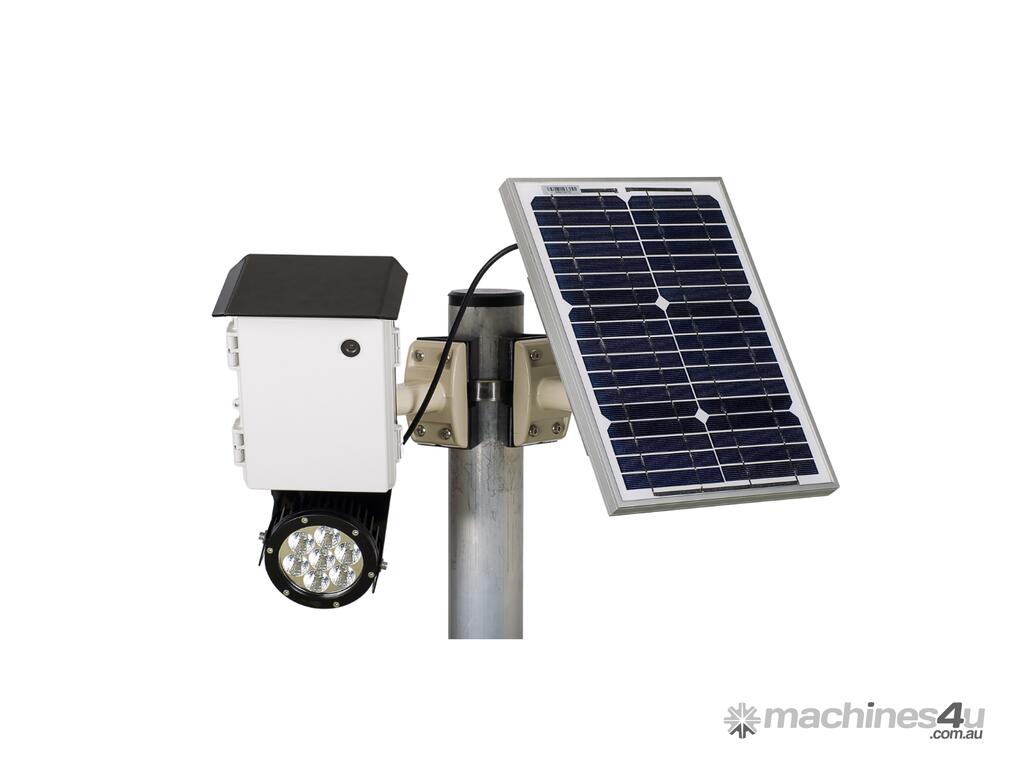

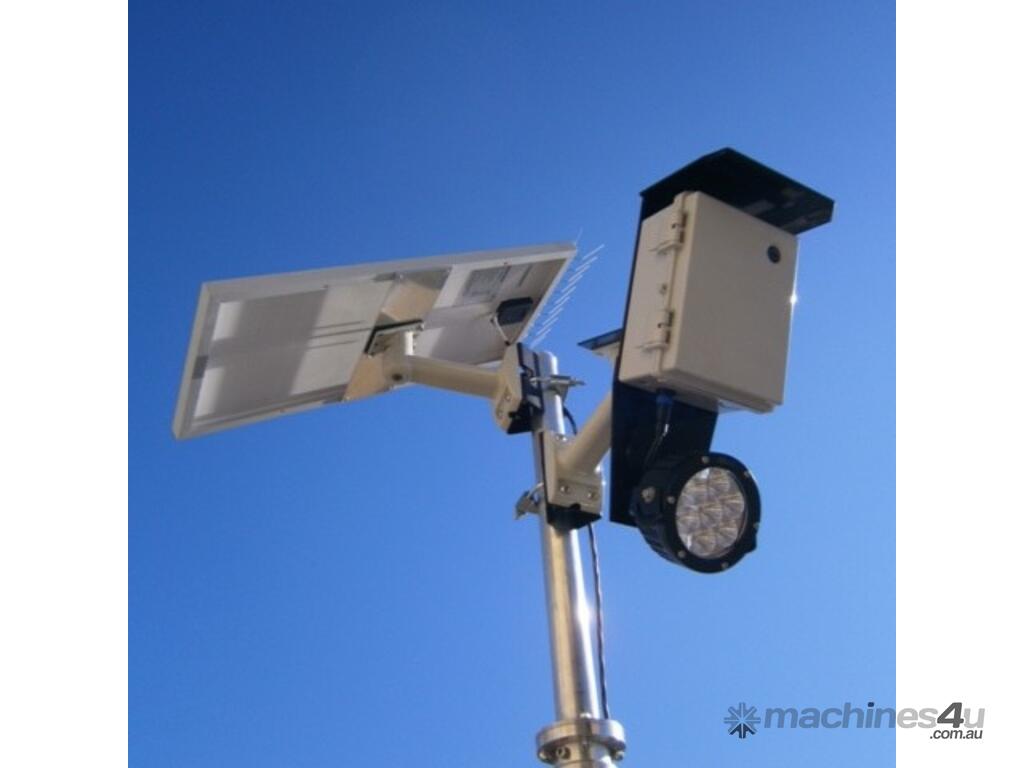

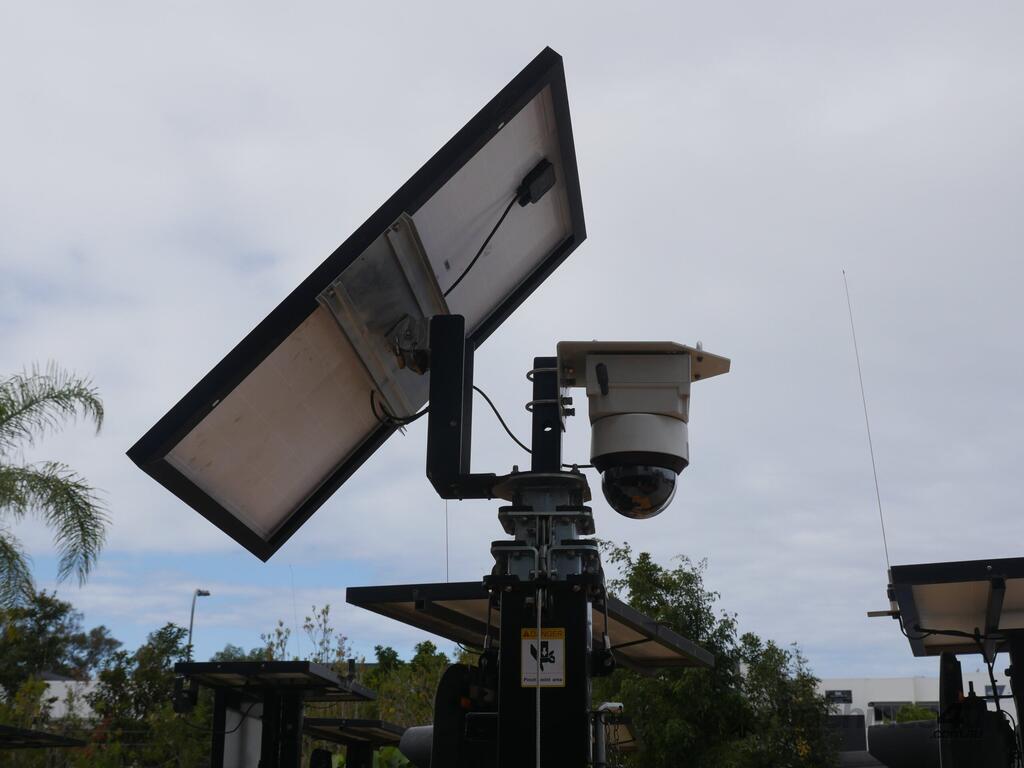

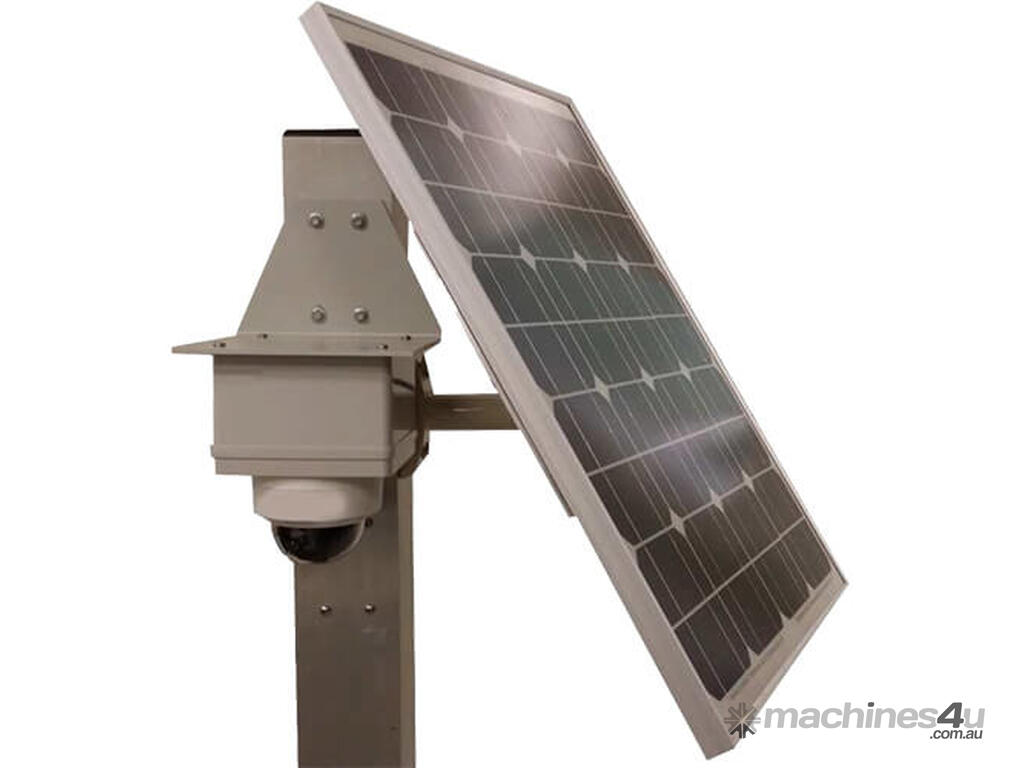

The solar PTZ camera is a reliable and efficient, 4G/WiFi operated, solar powered 2 megapixel security camera designed for all types of environments. It’s perfect for remote locations, as it’s designed with the functionality to set-and-forget, as well as being able to be operated remotely using a smart phone, tablet or PC. The compact, autonomous surveillance camera is solar powered, so it’s completely independent of external power. It also has a solar-smart charging system, which ensures that the battery always has enough charge to control the camera, modem and the rest of the system, without going flat.

Also, images are sent via a 3G/4G modem to a PC, mobile phone, or web based monitoring dashboard. The camera has a rugged IP67 housing and an optional wireless motion detector which is designed to be able to activate the camera from up to 80 metres away. It can also operate in time-lapse mode for applications such as construction, traffic and water monitoring, etc. This unique surveillance system has the ability to record HD video for up to 1 month before overwriting. The live video, viewed at any time or alternatively you can download any footage of interest. Still images are also stored on an internal SD card as a backup. For sites with multiple cameras, only the host camera requires the 4G modem and the rest communicate to the host via WiFi.

APPLICATIONS
Fully integrated autonomous solar powered 3G/4G PTZ camera system with WiFi connectivity
Complete wire free solution for remote monitoring & surveillance
Camera records video 24/7 and maintains 1 month of video history, viewed remotely
High Sensitivity colour 2 MPixel camera with wide dynamic range
Images are sent immediately to mobile phone, PC, Monitoring Station, & web based Dashboard
Full control and configuration of the camera via web interface
Optional wireless motion detectors activates the camera from up to 80m away
Optional White LED Floodlight – 30m range
‘Live View’ video – viewed on mobile phone, tablet, and PC
4 X Optical Zoom
Rugged weatherproof IP67 housing with 40W Solar Panel – all with adjustable mounts.
Ideal for Traffic Cams, Residential and Commercial security, Flood, Construction & Livestock monitoring

CAMERA SPECIFICATIONS
Maximum Resolution 1920 x 1080 (2 Megapixel)
Wide Dynamic Range 120dB
Movement Range Pan: 0 – 350°, Tilt: From 0° to 90°, Zoom: 2.8 to 12 mm (4 X Optical)
Video Compression H.264/MJPEG
Max Frame Rate 25 fps (1920 x 1080), 50 fps (1280 x 960)
Video Detection Intrusion, Line crossing, Motion, Dynamic analysis
Wireless PIR Motion detection (10m range) up to 80m from camera
Protocols TCP/IP,UDP,ICMP, , , FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP
UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6, Bonjour
Storage Internal SD card – 128GB

WIFI
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency 2.4GHz
Bandwidth 20/40MHz
Protocols 802.11b: CCK,QPSK,BPSK, 802.11g/n: OFDM
Security 64/128 bit WEP, WPA/WPA2, WPA-PSK, WPS
Transfer rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150 Mbps
Wireless Range 50m (164 ft) (Optional long range Antenna available for 250m)

GENERAL
Operating Temperature -30°C to 60°C (-22°F to 140°F), Humidity 95% or less
Solar Panel 40W 18.1VDC
Ingress Protection IP 67
Dimensions 30 x 19 x 16 cm (11.8 x 7.5 x 6.3 inches)
Weight 4Kg

MODEM
Frequency Bands: LTE FDD: Band1 (2100 MHz)/ Band3(1800 MHz)/ Band7(2600 MHz)/ Band8 (900 MHz)/ Band20 (800 MHz)
DC-HSPA+/HSPA+/HSPA/UMTS: Band1 (2100 MHz)/ Band8 (900 MHz) EDGE/GPRS/GSM: 850 MHz/ 900 MHz/ 1800 MHz/ 1900 MHz
