Swivel Frame Bandsaw BS-712RH, Metal Cutting Band Saw Machinery, 178mm Cutting Band Saw, 240V Power

Mitre Cutting Saw BS-712RH

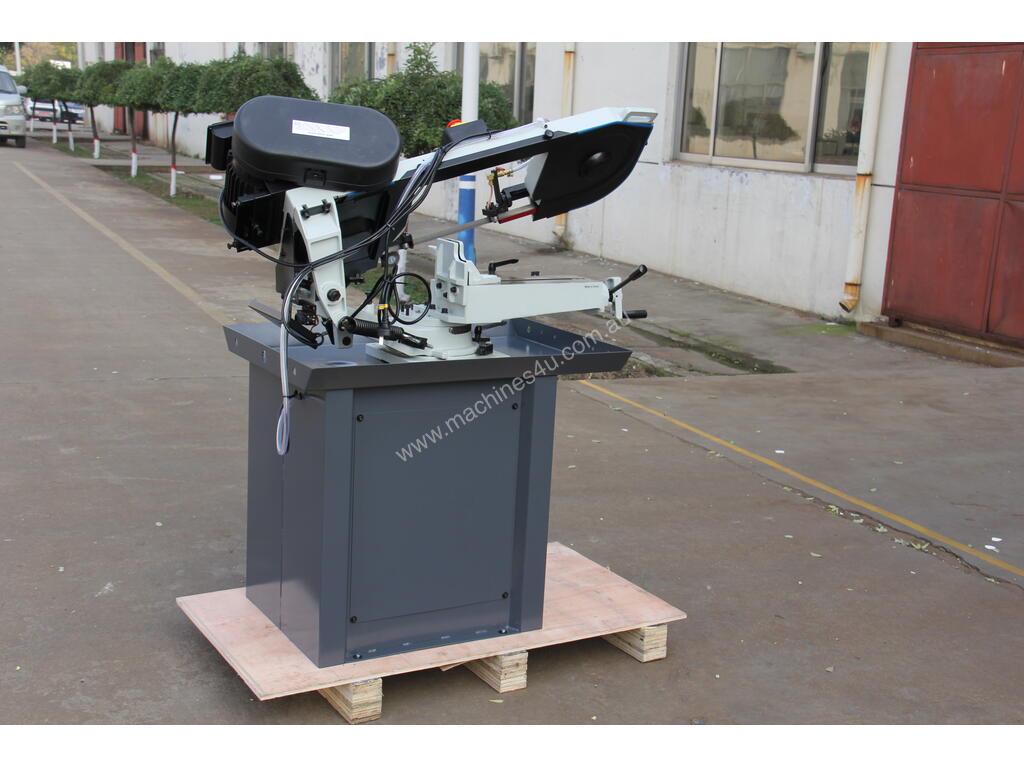

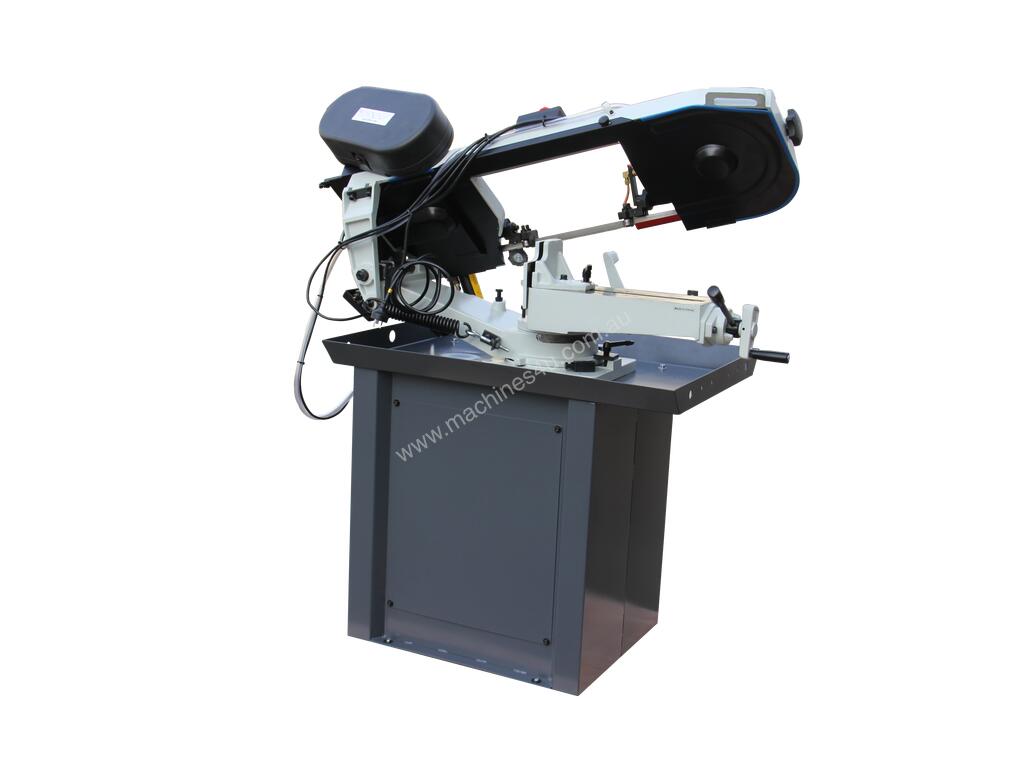

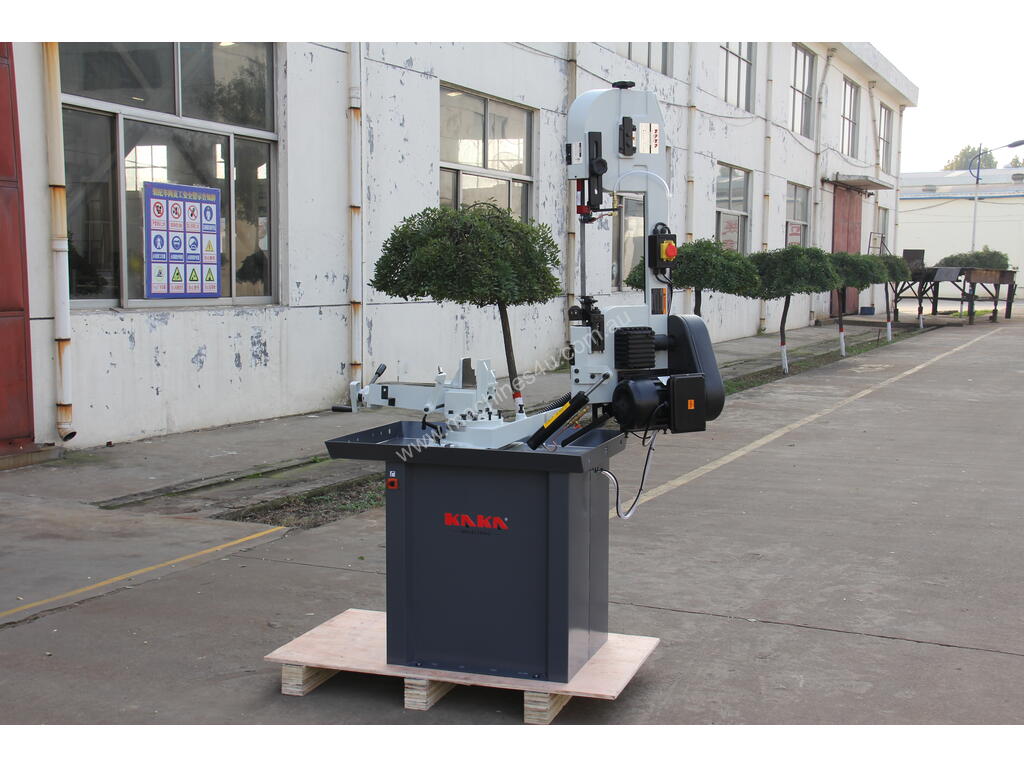

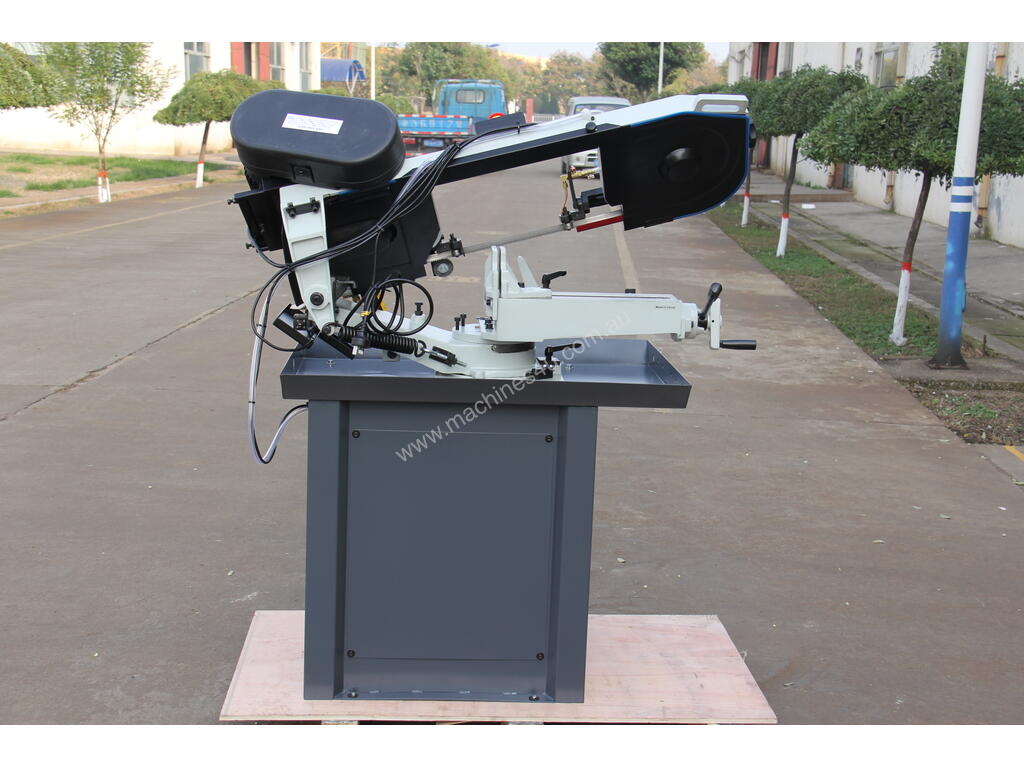

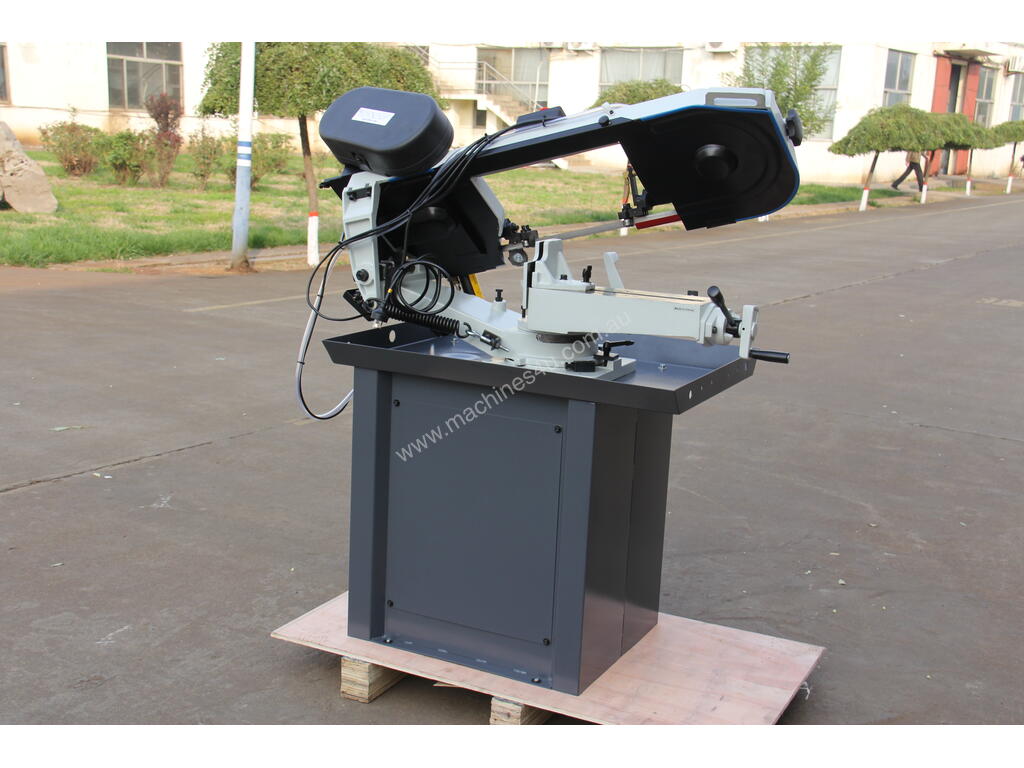

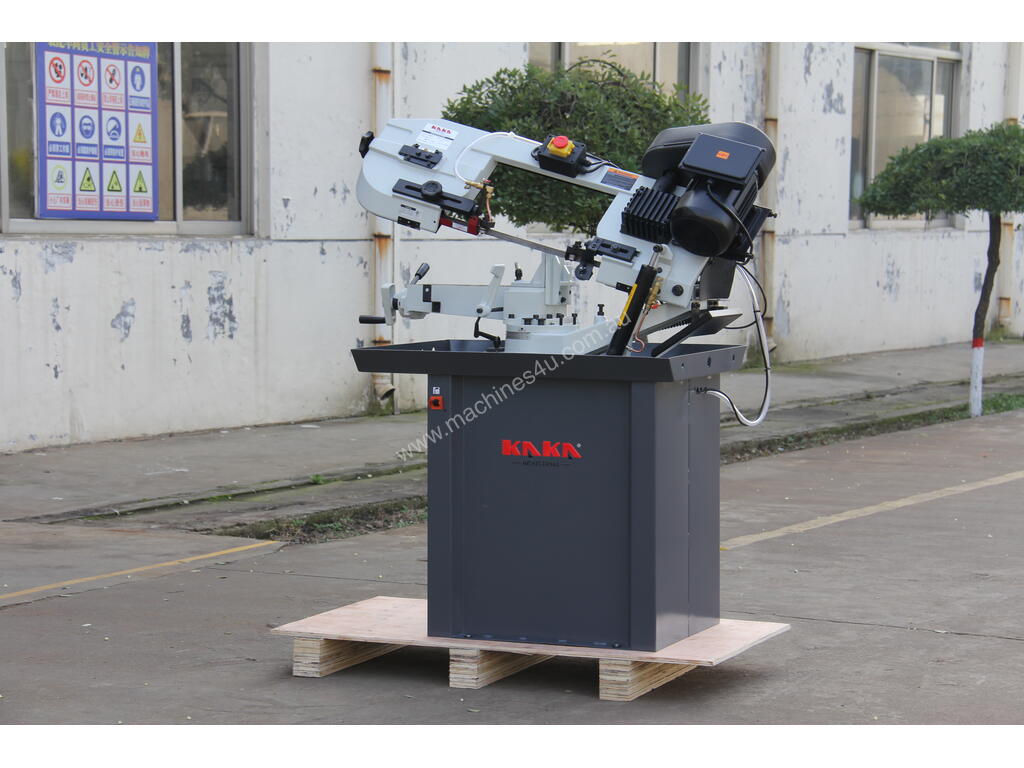

The KANG BS-712RH 240V 1.1kW Swivel Head Metal Cutting Band Saw is a versatile, medium-duty horizontal band saw designed for precision cutting of steel, pipe, angle, and other metals in workshops, fabrication shops, plumbing, and light industrial applications. The saw cutting machine features a mitre swivel head that allows effortless angle cuts up to 45° without repositioning heavy stock.

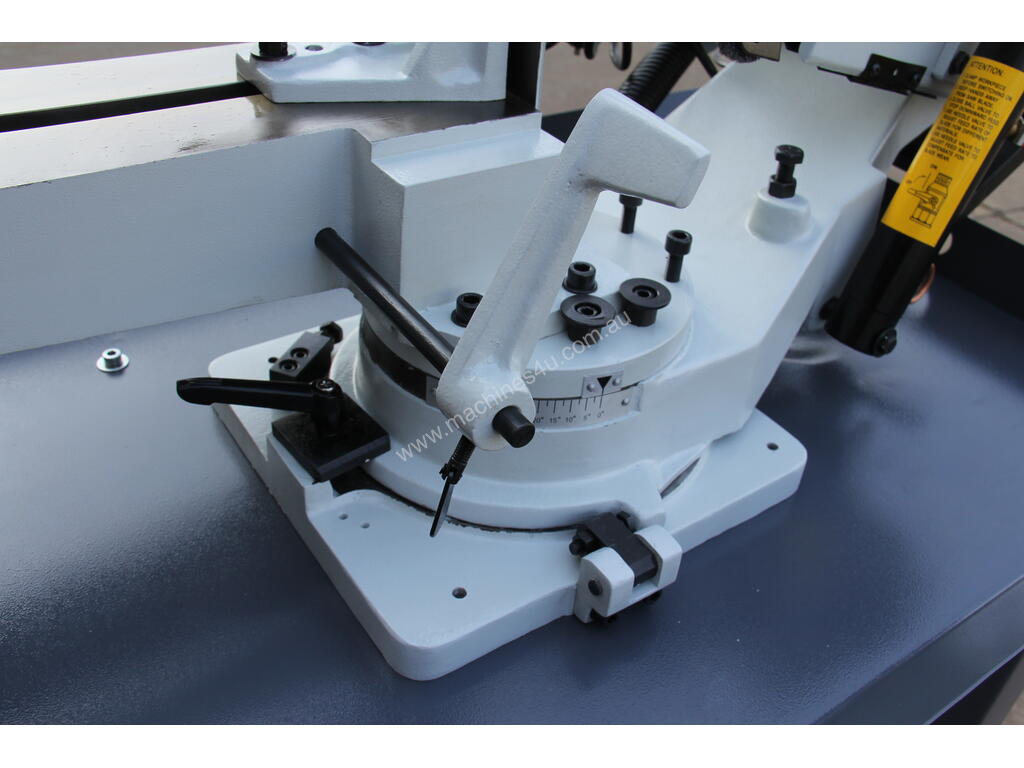

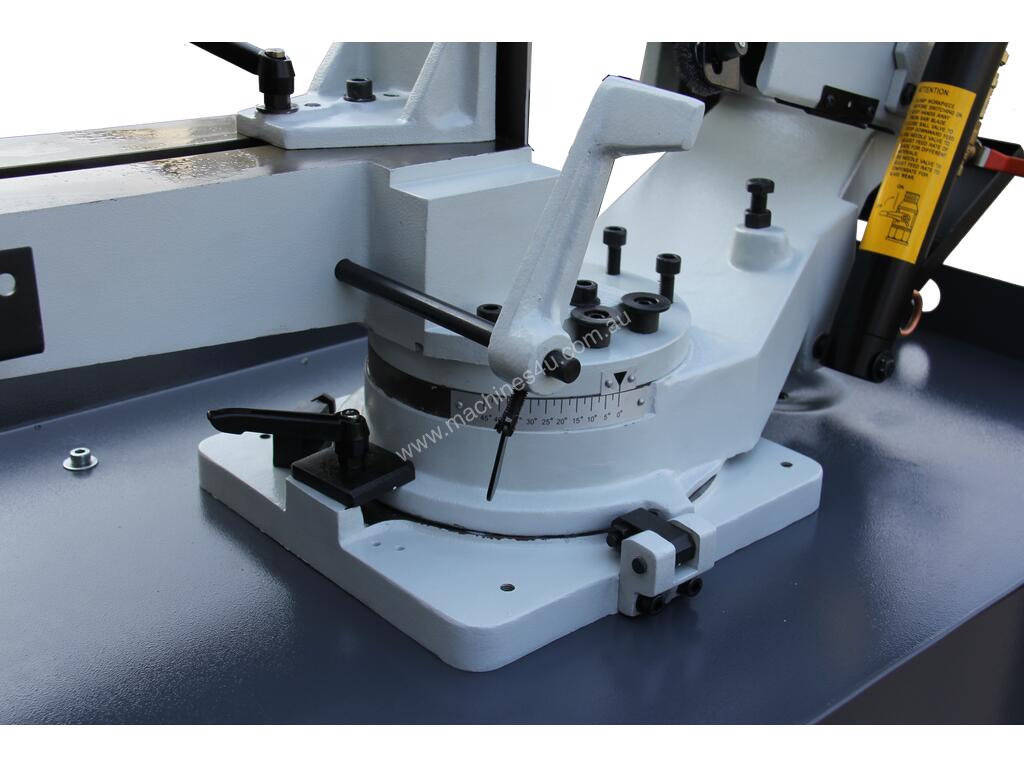

Mitre Swivel Head for Easy Angle Cuts. Swivels up to 45°  for precise mitre cuts without moving the workpiece. Ideal for plumbing, fabrication, and structural steel work, it saves time and reduces errors.

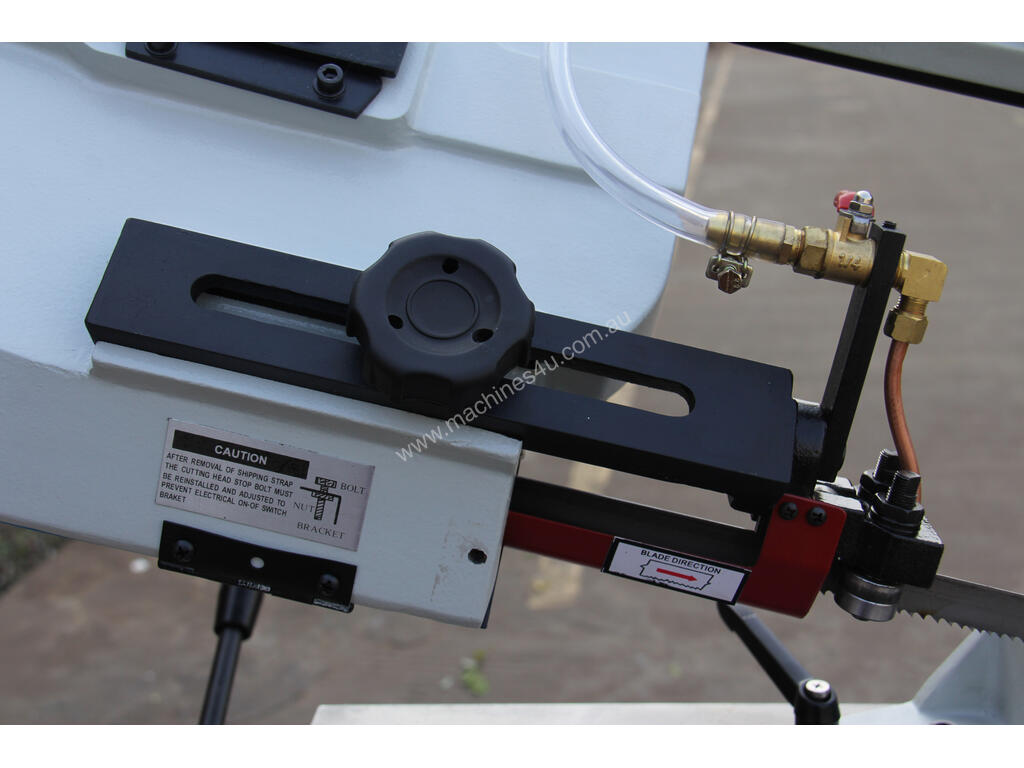

Built-in Coolant System. Keeps blades cooler, reduces wear, minimizes burrs, and produces cleaner cuts on all metals. Extends blade life significantly compared to dry-cutting saws.

4 Variable Blade Speeds (22-64 MPM) Bandsaw. Easily match speed to material type and thickness for optimal cutting performance and blade longevity. Handles everything from thin tubing to solid bar stock.

Generous Cutting Capacity. 210 x 128mm rectangular / 178mm round at 90°, plenty of room for most workshop jobs while staying compact enough for smaller spaces.

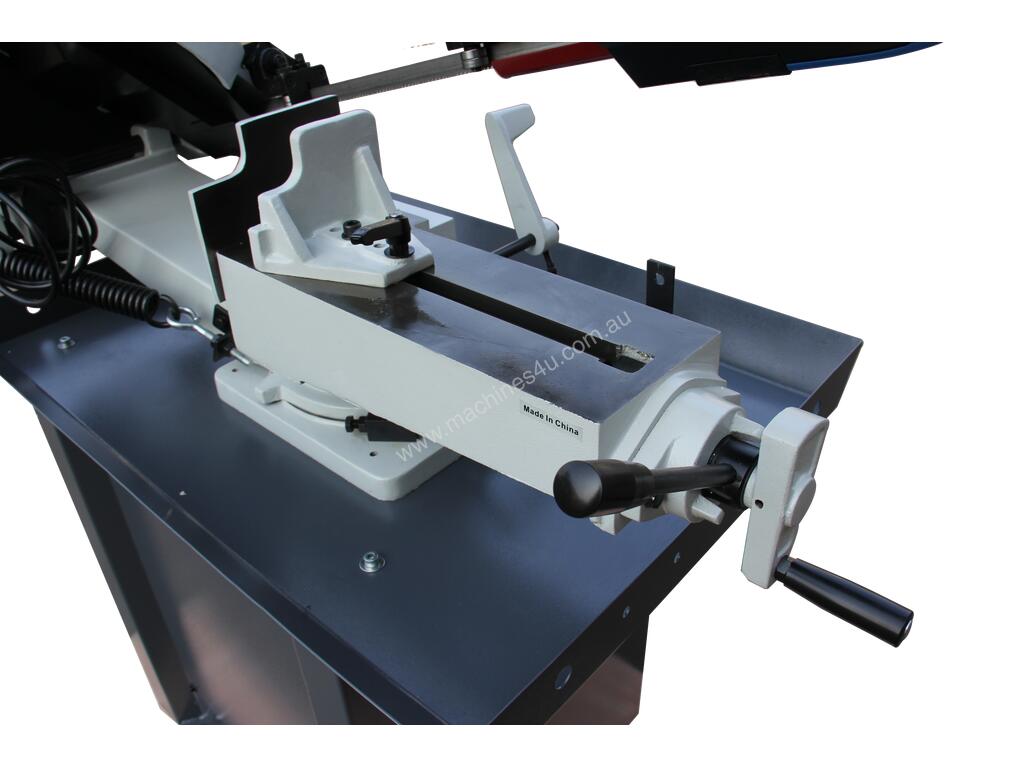

Quick-Action Vice & Adjustable Feed.  Fast material clamping and variable feed rate for efficient, repeatable cuts. Limit switch provides automatic shut-off when the cut is complete.

240V Single-Phase Power Saw Machine. Plugs straight into standard Australian 240V outlets. No expensive 3-phase power or upgrades needed,  perfect for home workshops, job sites, or small businesses.

Features

Runs on 240V, Single-Phase power, 1.1 kW powerful motor

Cut 178mm OD round and 178x210mm rectangle in the horizontal position at 90 degrees

Belt drive, 4 Cutting speed, 22,34,49, 64 MPM

A swivel head for mitering allows for faster production times

Built-in coolant system

The limit switch stops the machine when the cut is complete

Slid clamping vice like the BS-712N, quick clamping and releasing

Adjustable hydraulic feed cutting by a hydraulic cylinder

Standard:

Coolant system

M42 Band Saw Blade (Pre-installed, 19x0.9x2362mm, TPI 5/8)

Optional Saw Blade, TPI 6/10

Optional XDP-2000 Coolant

Specifications
SKU 188111
Model BS-712RH
Cut circular 90° 178 mm
Cut rectangular 90° 178x210 mm
Cut circular 45° 127 mm
Cut rectangular 45° 85x140 mm
Vice table height 925 mm
Blade speed 22,34,49,64 MPM
Blade size 19x0.9x2362 mm
Motor power 1.1 kW
Drive Belt
Packing size 129x73x160 cm
N.W./G.W. 170/238 kg
