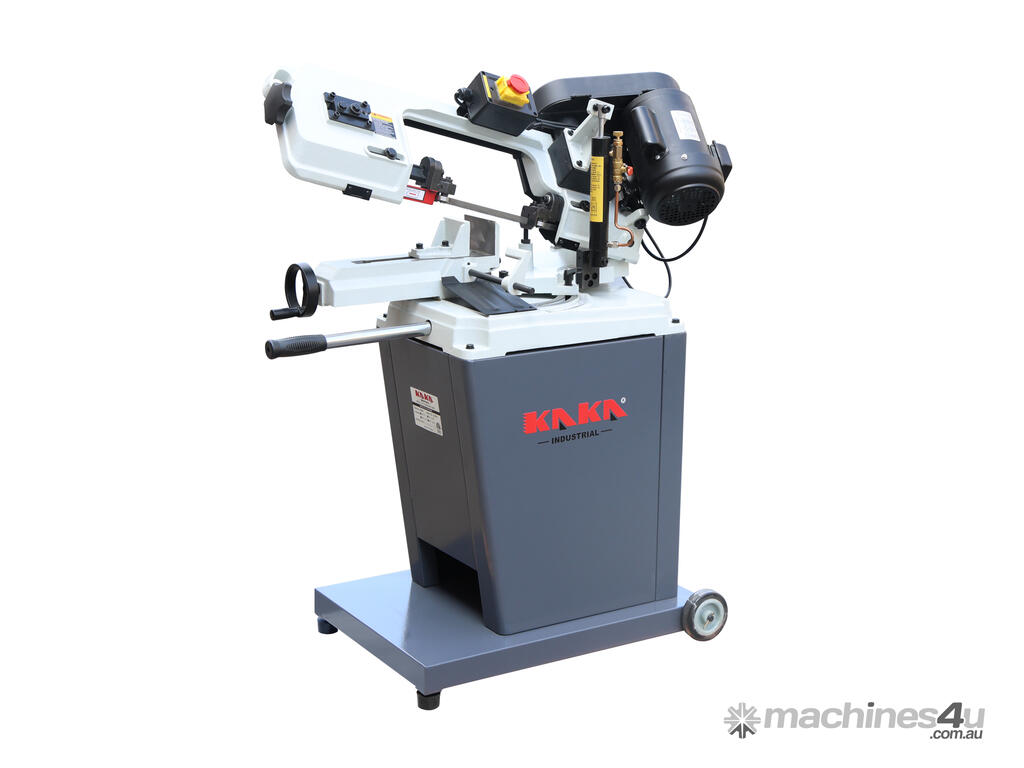

Swivel Head Metal Cutting Band Saw BS-128HDR

Kang Industrial Metal Band Saw BS-128HDR

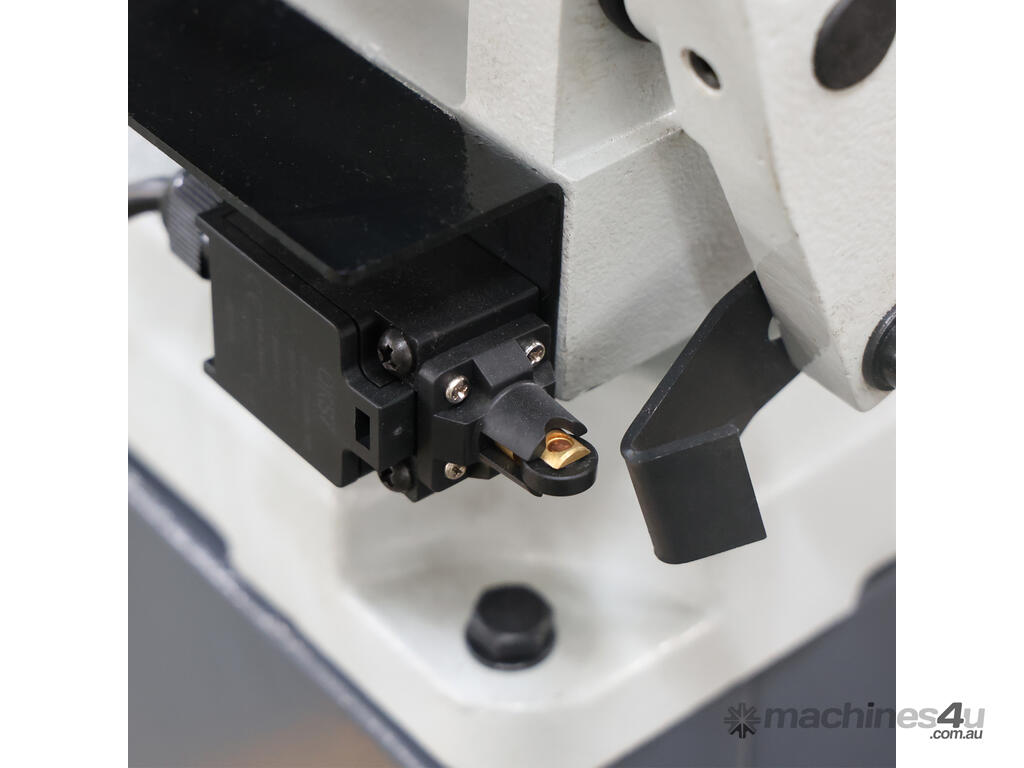

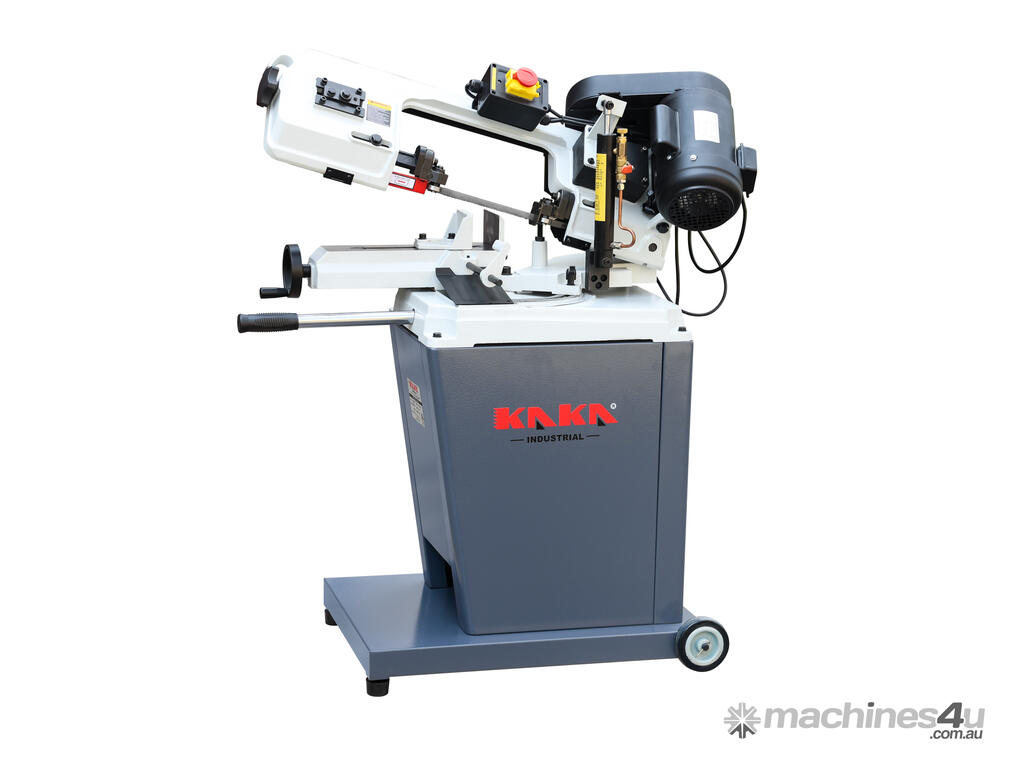

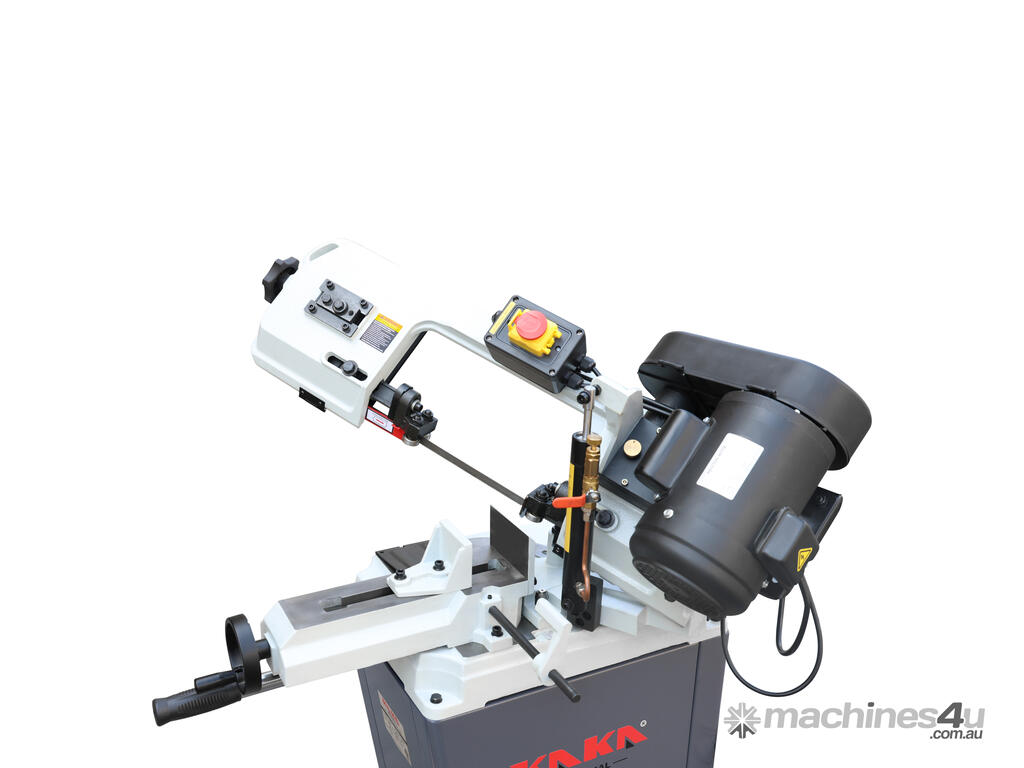

The KANG Swivel Head Bandsaw BS-128HDR is a robust, hand-operated metal-cutting bandsaw designed for workshop use, featuring a wheeled base for mobility. It supports straight cuts and mitre angles from 0° to 60°, with a built-in vice for secure holding. The band saw includes a hydraulic cylinder for controlled, smooth lowering of the saw bow and an automatic shut-off at the end of the cut.

This mid-range portable bandsaw is ideal for precise metal cutting in small to medium workshops, offering more capacity and features than smaller models like the BS-85

Increased Cutting Capacity Saw. This metal cutting saw handles up to 128 mm stock—perfect for thicker steel tube, angle iron, or solid bar in fabrication projects like trailers, gates, farming equipment, or 4x4 modifications.

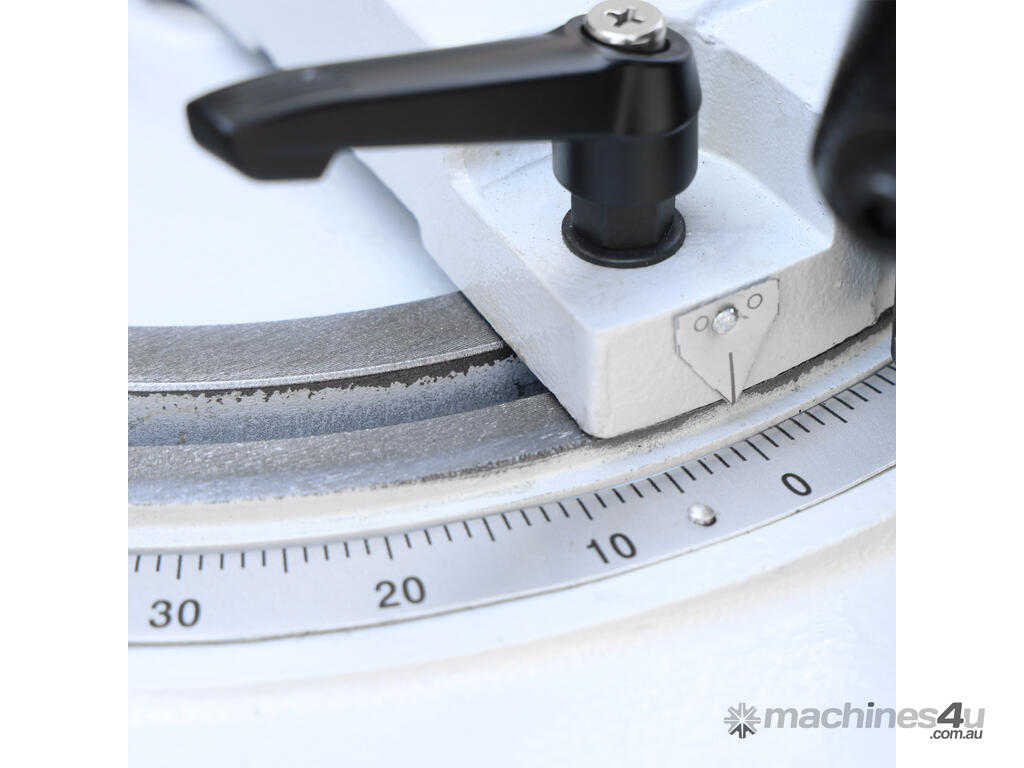

Wide Mitre Range (0-60°). Greater flexibility for angled cuts compared to 45°-limited models, ideal for frames, brackets, or structural work.

Controlled & Safe Operation Metal Cutting. Hydraulic descent ensures smooth, consistent feed rate for cleaner cuts and less blade wear; auto-shut-off enhances safety.

Mobile Workshop Design. Wheeled base makes the 85kg bandsaw machine easy to reposition in garages, sheds, or job sites—great for mobile tradespeople or rural users.

Belt Drive, Three Blade Speeds. Three settings optimise performance across mild steel,  aluminium, or copper, extending blade life and improving finish quality.

Single-Phase Mitre Saw. Runs on standard household 240V power—no three-phase required, suiting home workshops or small businesses.

Features

Runs on 240V single-phase, suitable for any fabrication shop

150x128mm rectangular cutting capacity

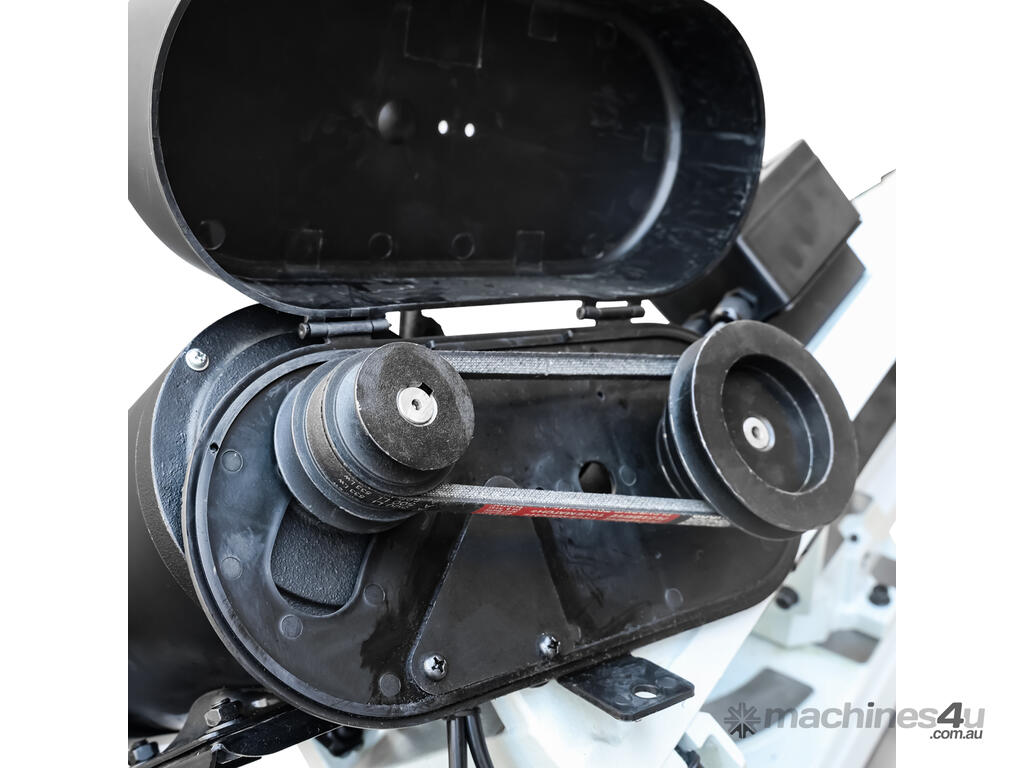

Belt drive, 3 different cutting speeds

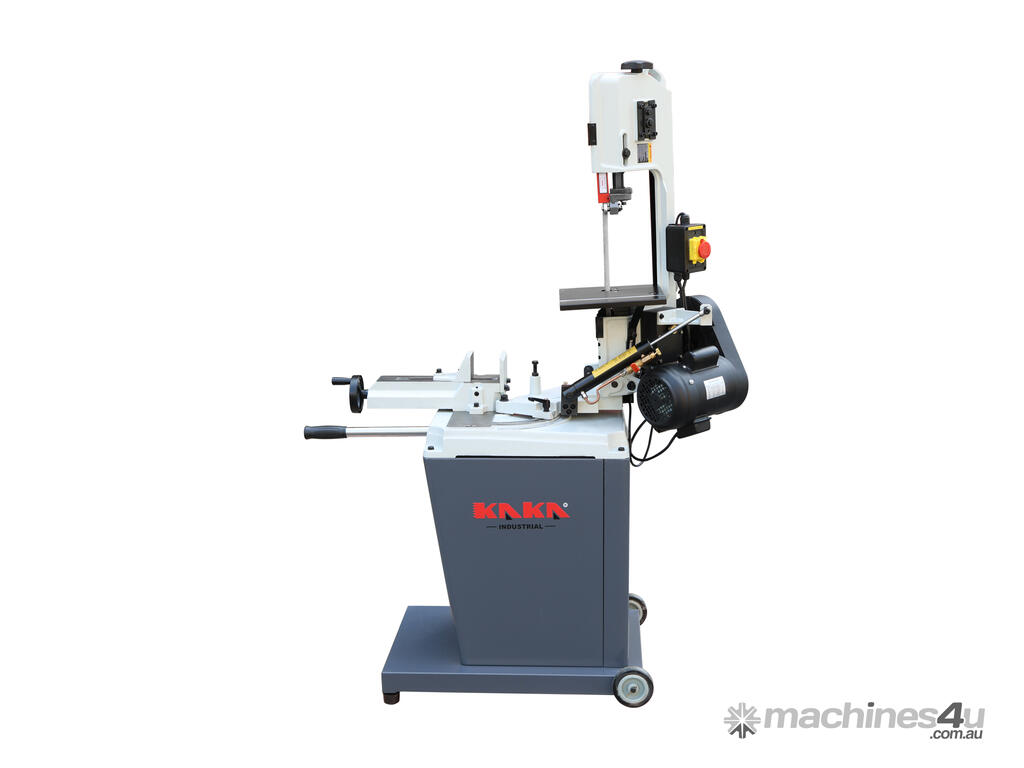

Vertical cutting position available

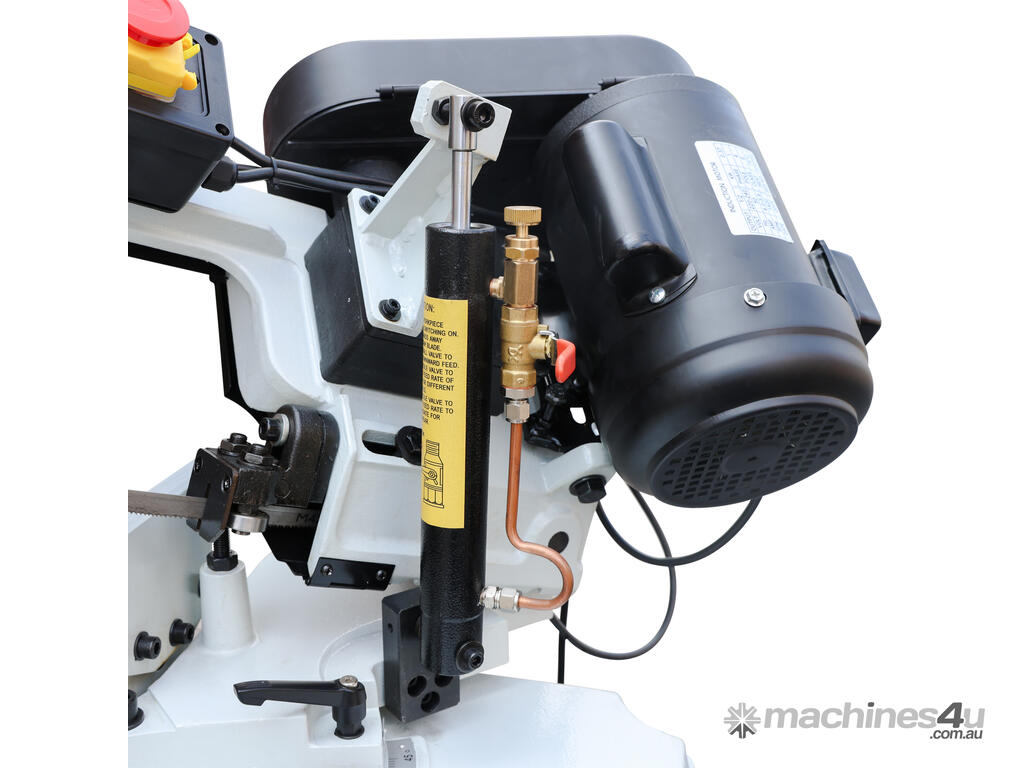

Variable falling speed with a hydraulic cylinder controls the descending

Specifications
SKU 188005
Model BS-128HDR
Cut circular at 90 degrees 128mm
Cut rectangular at 90 degrees 150x128 mm
Cut circular at 60 degrees 44 mm
Cut rectangular at 60 degrees 56x44 mm
Cut circular at 45degrees 95 mm
Cut rectangular at 45 degrees 95x75 mm
Blade speed 20, 29, 50 MPM
Blade size 13x0.6x1638 mm
Motor power 375W
Drive Belt
Packing size 96x54x61 cm
N.W./G.W. 85/104 kg
