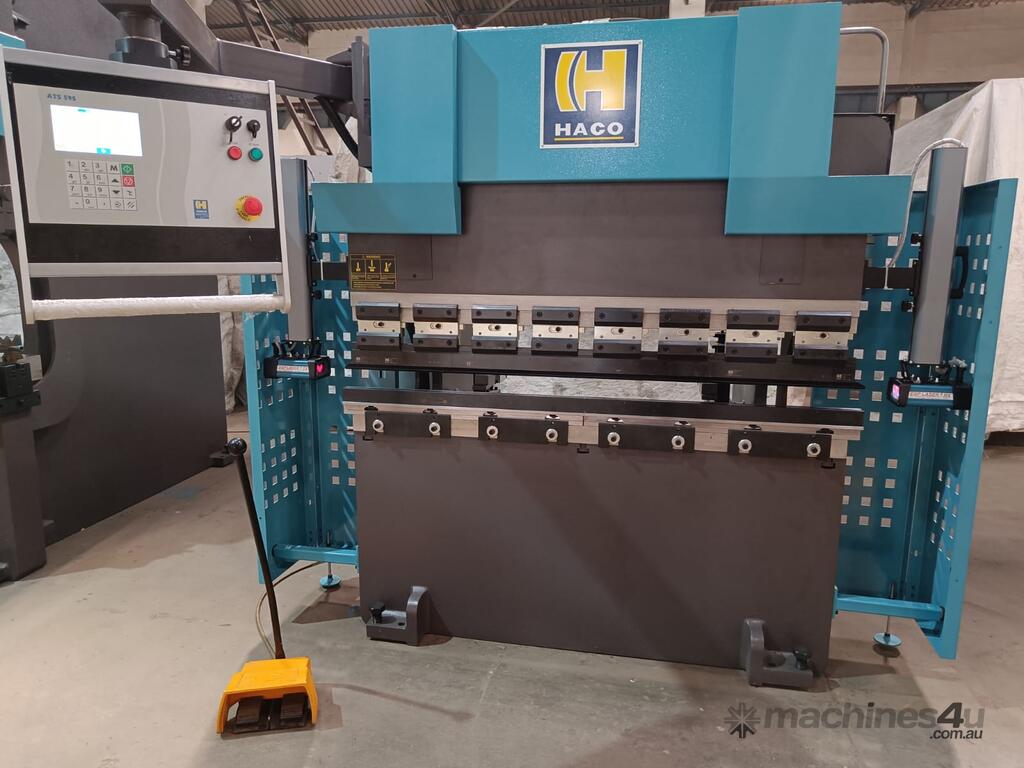

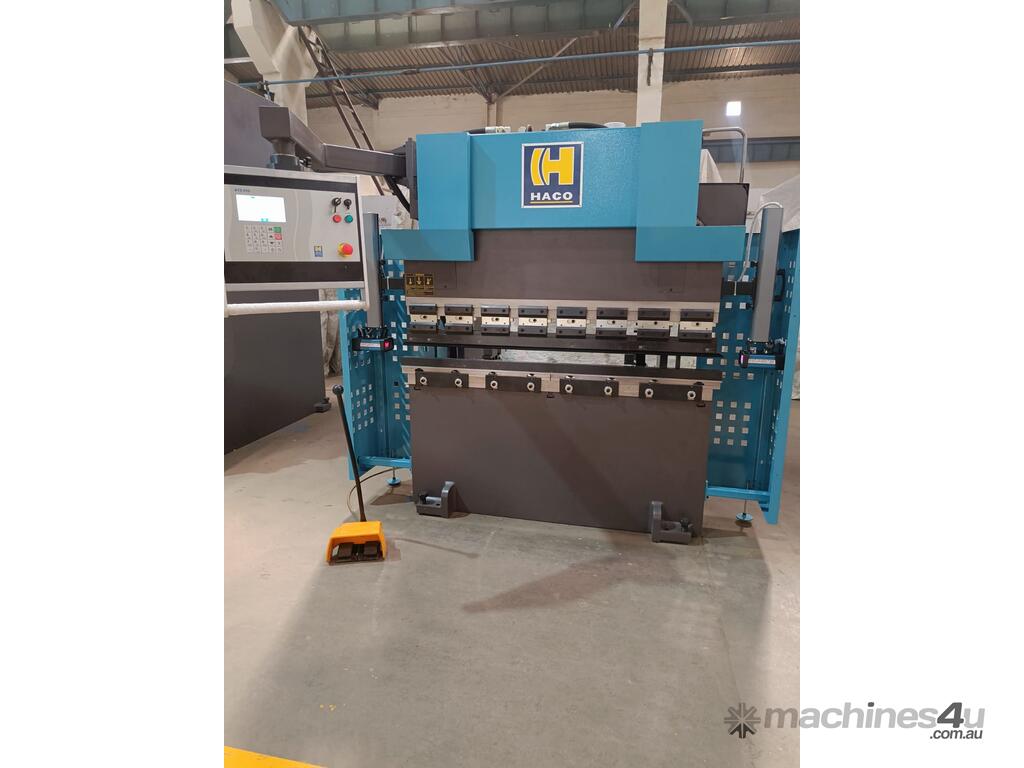

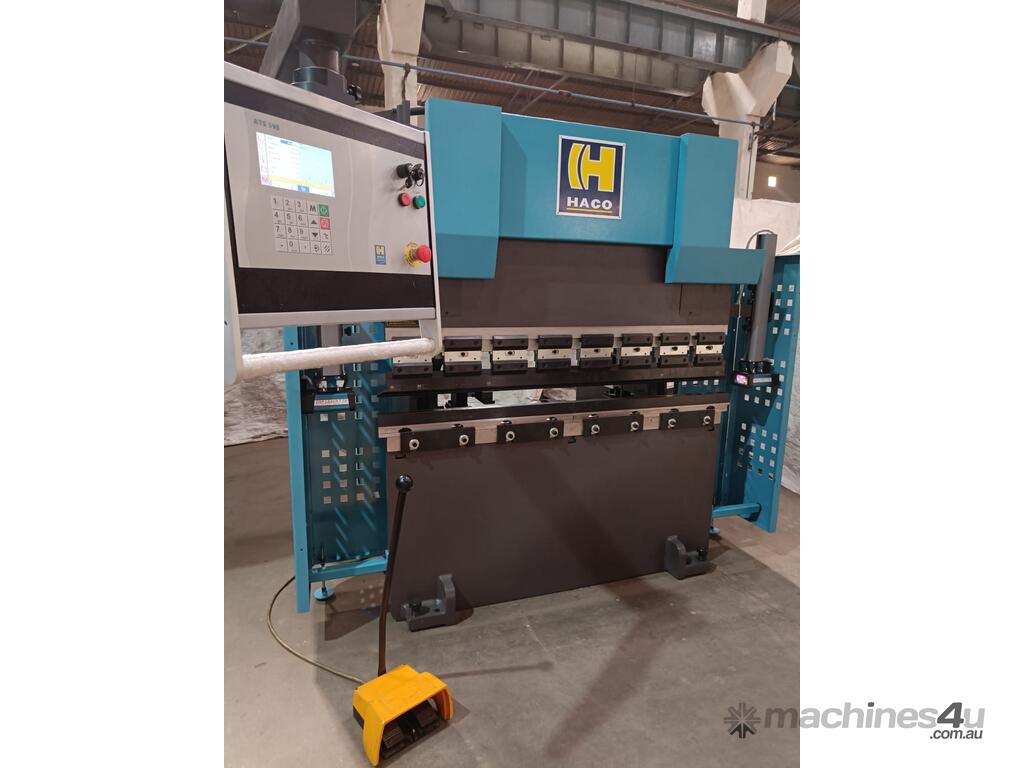

Synchromaster ERMS16040 CNC Pressbrake

Synchromaster ERMS16040 Pressbrake 1600mm x 40T

THE NEW SYNCHROMASTER ERMS Pressbrakes combine:
- ACCURACY
- SPEED
- RELIABILITY
- REPEATABILITY

Equipped with ATS595 or Delem DA58TX operator controls, the Synchromaster ERMS series machines are a combination of modern technology with high accuracy, high speed positioning, superior reliability and repeatability. The Synchromaster ERMS provides outstanding performance.

The Delem 2D graphic CNC controls with automatic bending sequence calculation, high-speed back gauge systems, tooling choice and safety equipment make the Synchromaster ERMS pressbrake the most complete offer in the market.
SPECIFICATIONS:

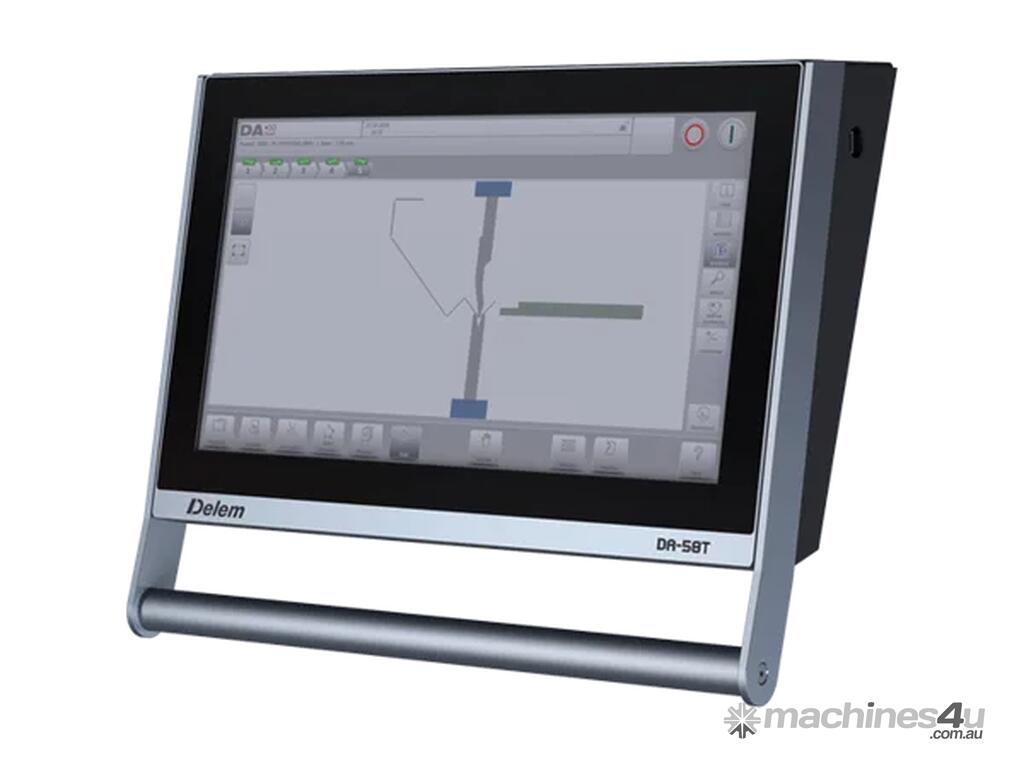

• Delem DA58TX 2D Graphic Control with 18.5” Touch Screen

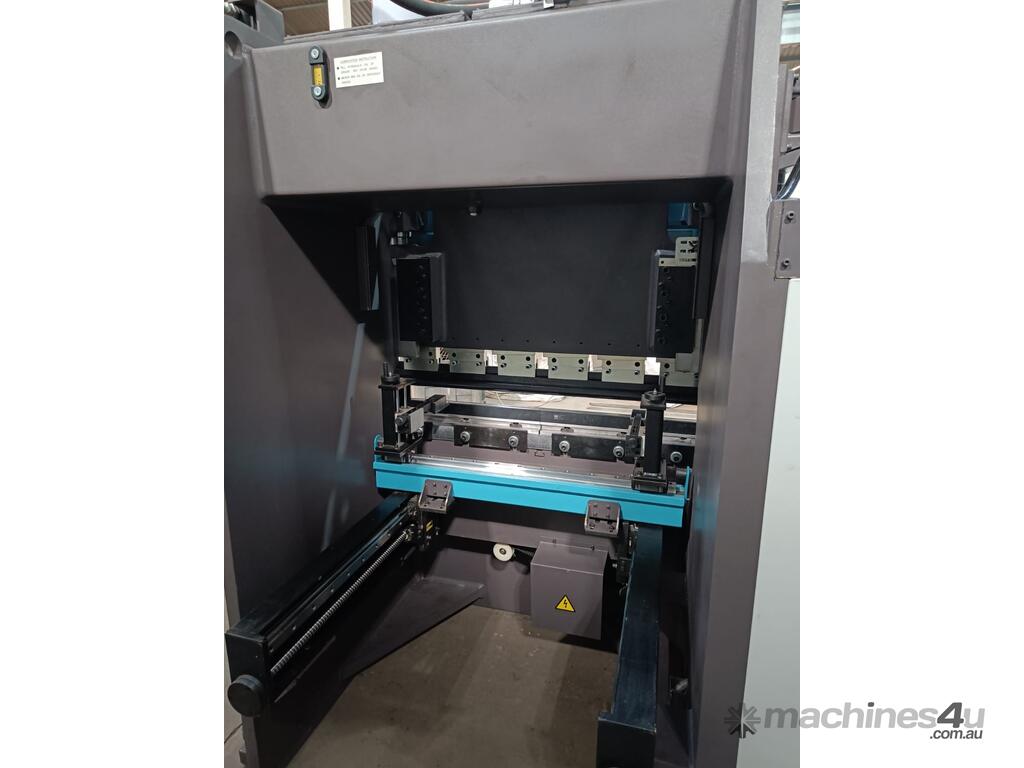

• Fast X/R 2-axis backgauge 650mm
• Y1/Y2 Hydraulic SYNCHRO axis with 0.01mm positioning accuracy.
• Fast Approach Speed 120mm/s
• Stroke X-axis = 650mm
• Speed X-axis = 400mm/s
• Stroke R-axis = 120mm
• Speed R-axis = 100mm/sec

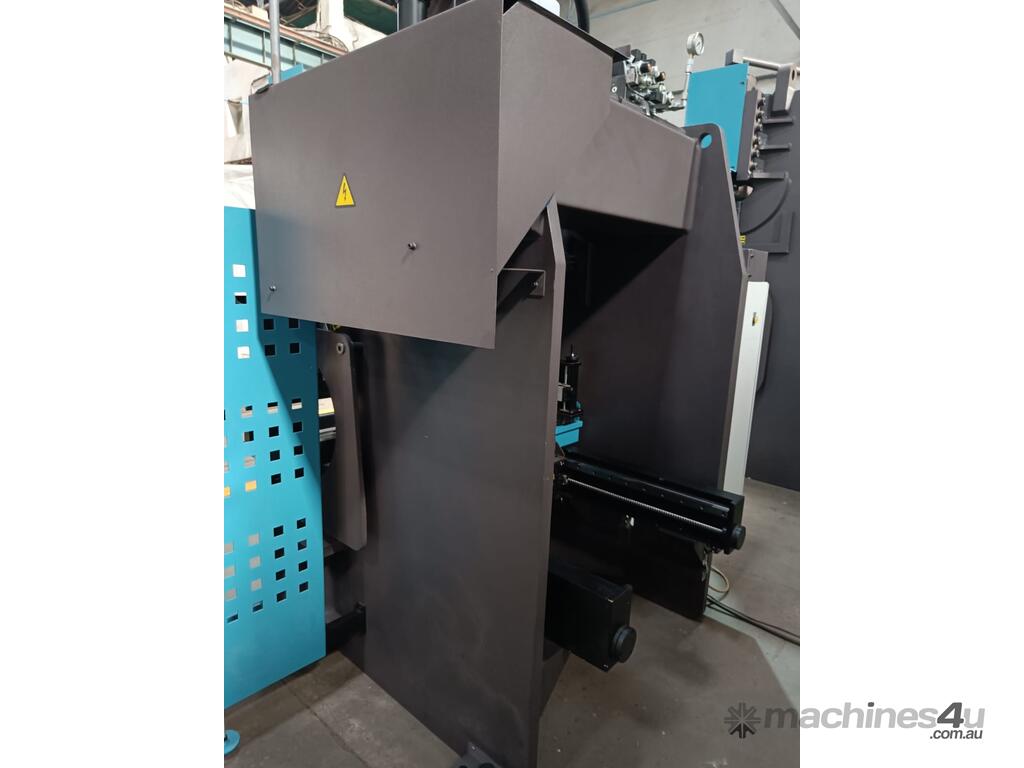

• Throat Gap 250mm

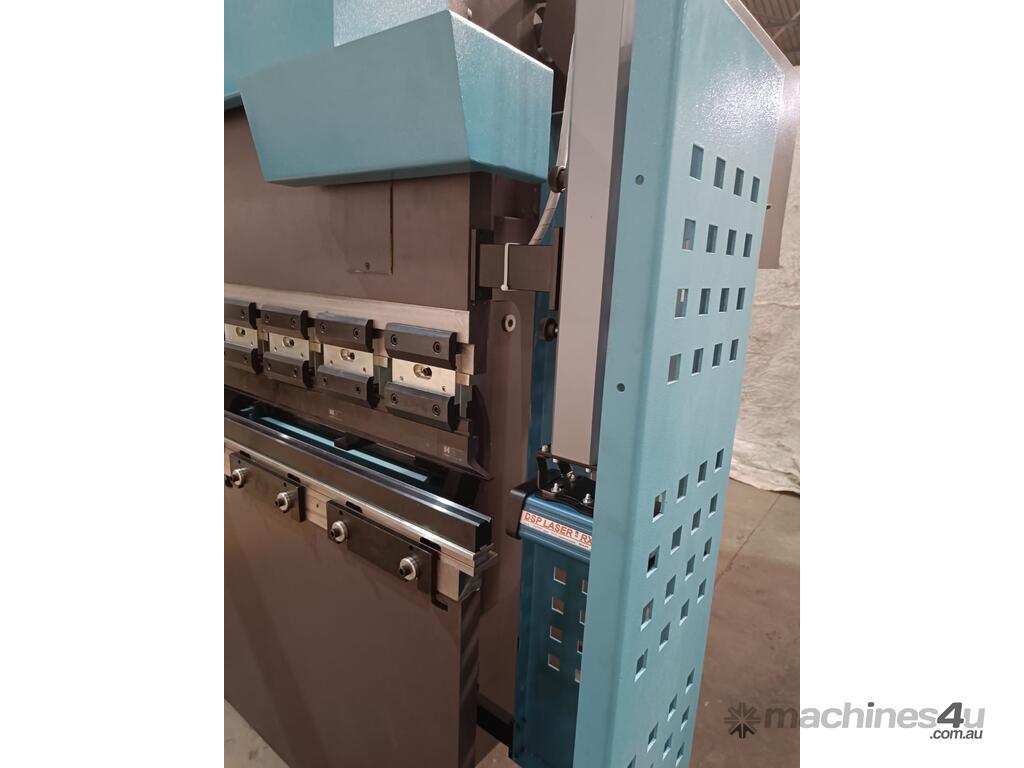

• European Standard top tooling

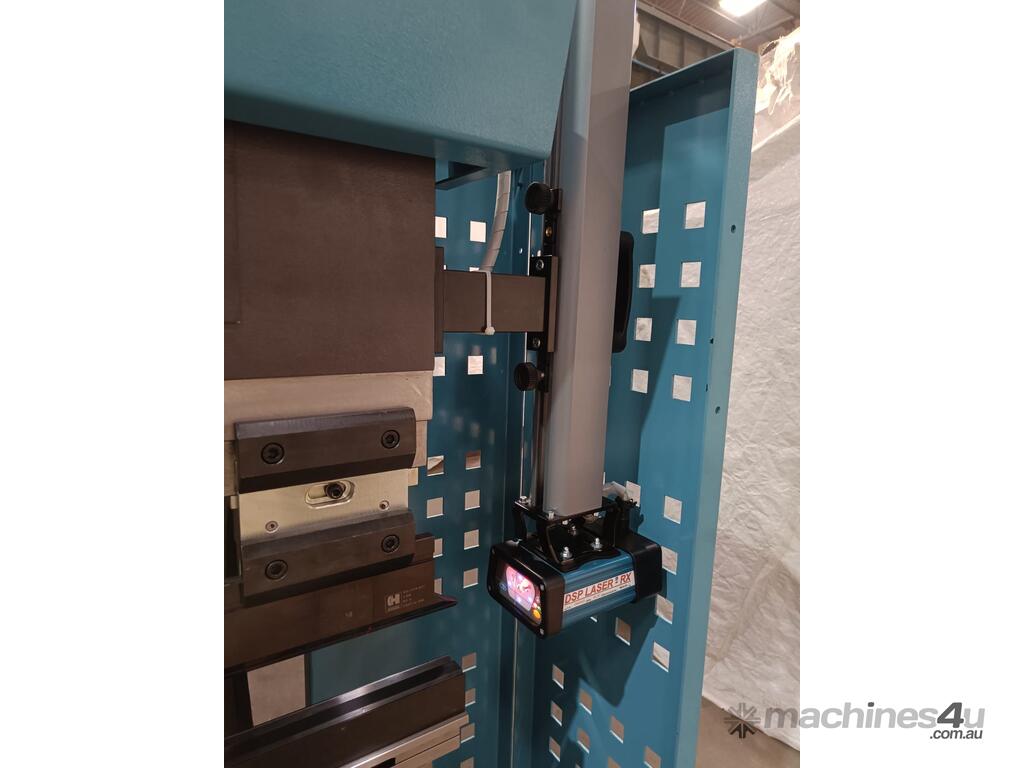

• Manufacturer supplied Laser Safety light guard DSP
• Operation, programming and maintenance manual.
• Foot pedal control
