TANNERTRACK - LOVOL M1004 100HP 4WD Cabin Tractor inc Loader & 4in1 Bucket

Lovol 1004 100hp Tractor

Key features:

- Certified 3rd Generation Cabin
- Heater and Air Conditioning
- Front end Loader with 4in1 Bucket
- Diff lock
- FWD
- Rear Remotes
- Cat 2 Rear Linkage
- Down Force Rear Linkage
- Grammer Seat
- Modern Styling Cabin with easy to use controls

- No Computers .

Wheels are set in out position in some of the photos

Engine
Engine Model SHDEC
Engine type Diesel
Engine gross power 100hp 73.5kW
PTO Power 66.1kw
No. of cylinders 4
Total displacement
Rated speed 2200 rpm
Inline Mechanical pump - NO Computers
Fuel tank capacity 230L

Driveline:
TRANSMISSION:

16x8 Transmission
High - Low - Reverse
1 - 2 - 3 - 4 Gears
Turtle - Rabbit

CLUTCH:

Dry, Dual Stage clutch for responsive engagement and smooth power delivery.
12 Inch Ceramic Plate Drive Plate with torsional springs
12 Inch Fiber Plate PTO Plate

DIFFERENTIAL:

Mechanical gear differential providing basic traction control and power distribution between rear wheels.
Rear Diff Lock
AXLES:

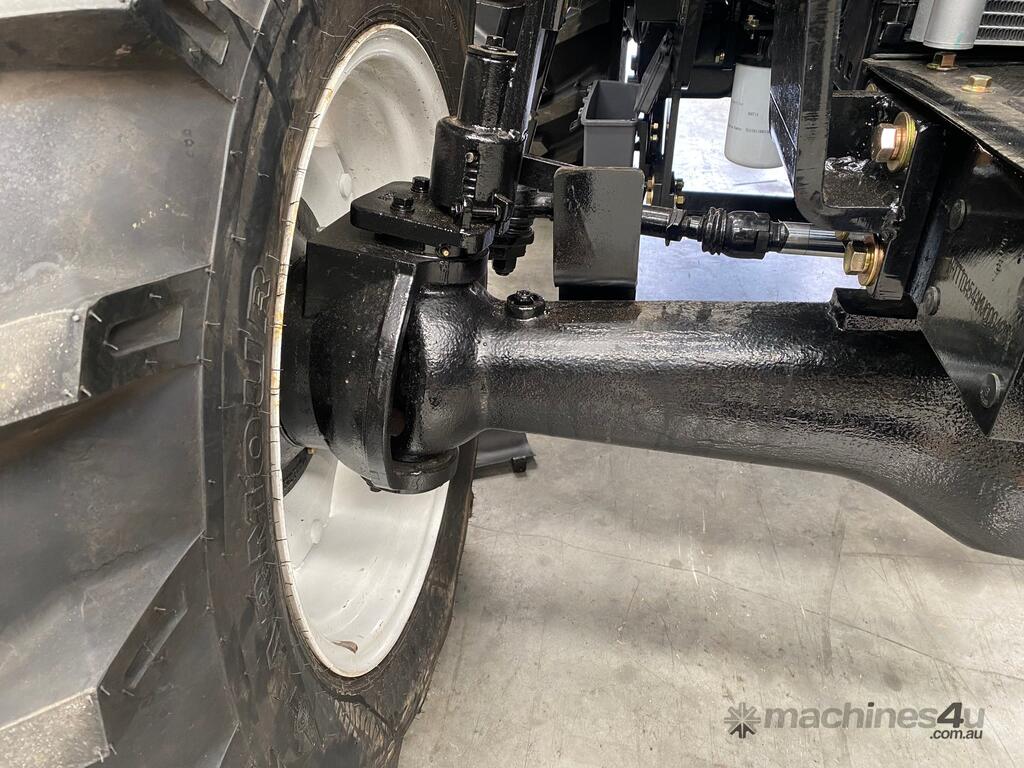

Front Axle: Planetry gear set floating hubs
Lovol axles made in house by LOVOL
Rear Axle: Heavy-duty Design
Larger planetary gear sets on TD
Hydraulic brakes

4WD:
4wd - Front Wheel Assist
Single lever engagement

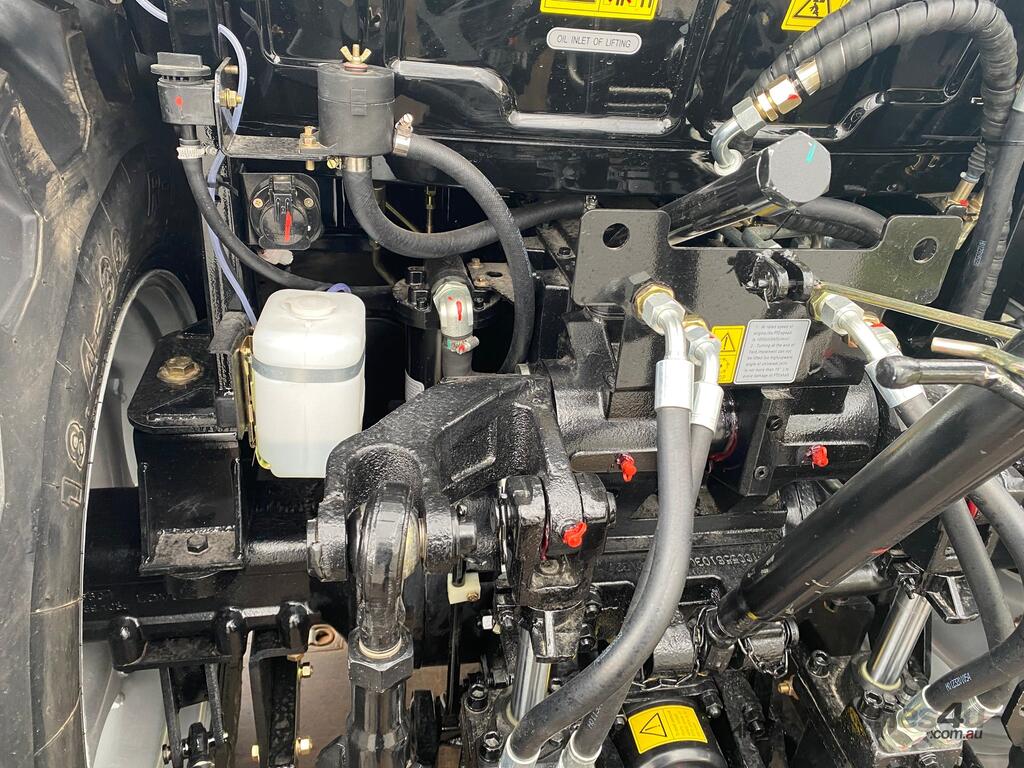

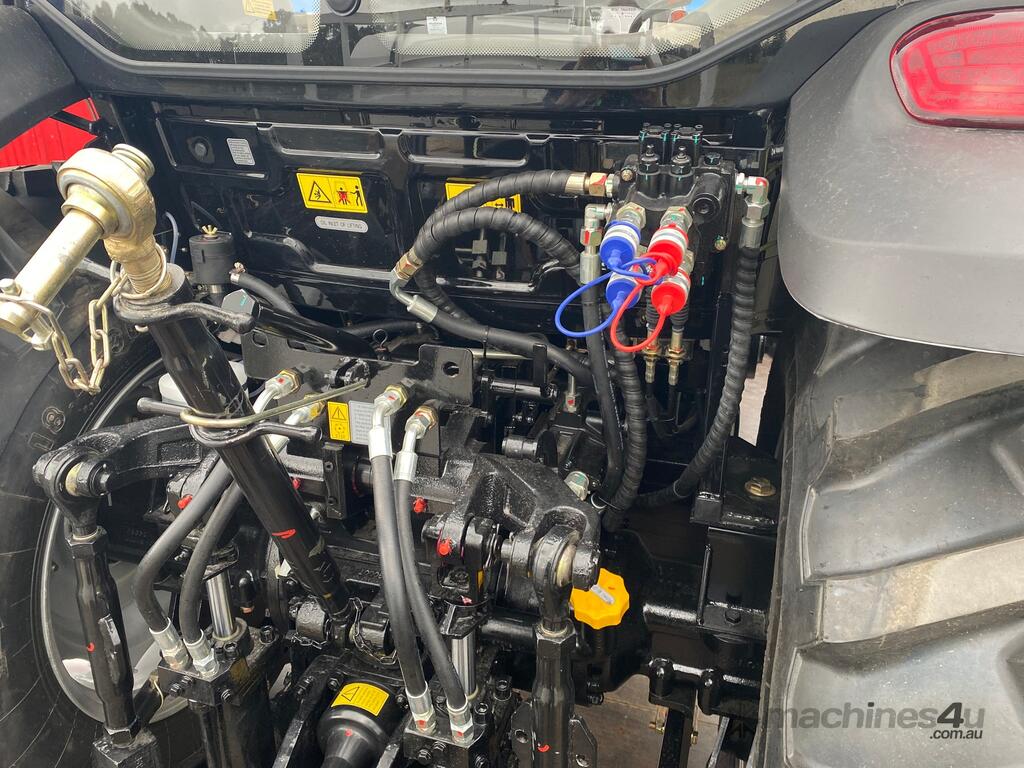

Hydraulics - PTO - Linkage:
Implement Flow rate 41 L/min , sufficient for operating standard implements.
Steering Flow Rate 12 L/min
2or3 Pairs of rear remotes
Dual filtration, Suction and Return
PTO

540/1000 PTO Speeds
88.64 hp Rated PTO power

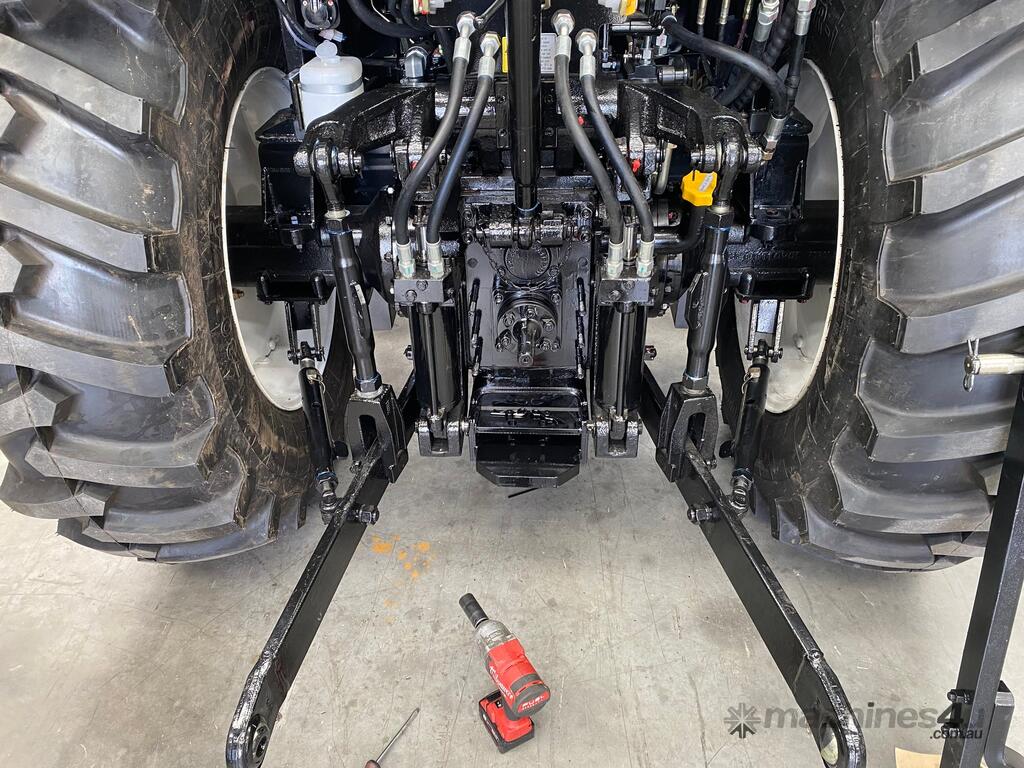

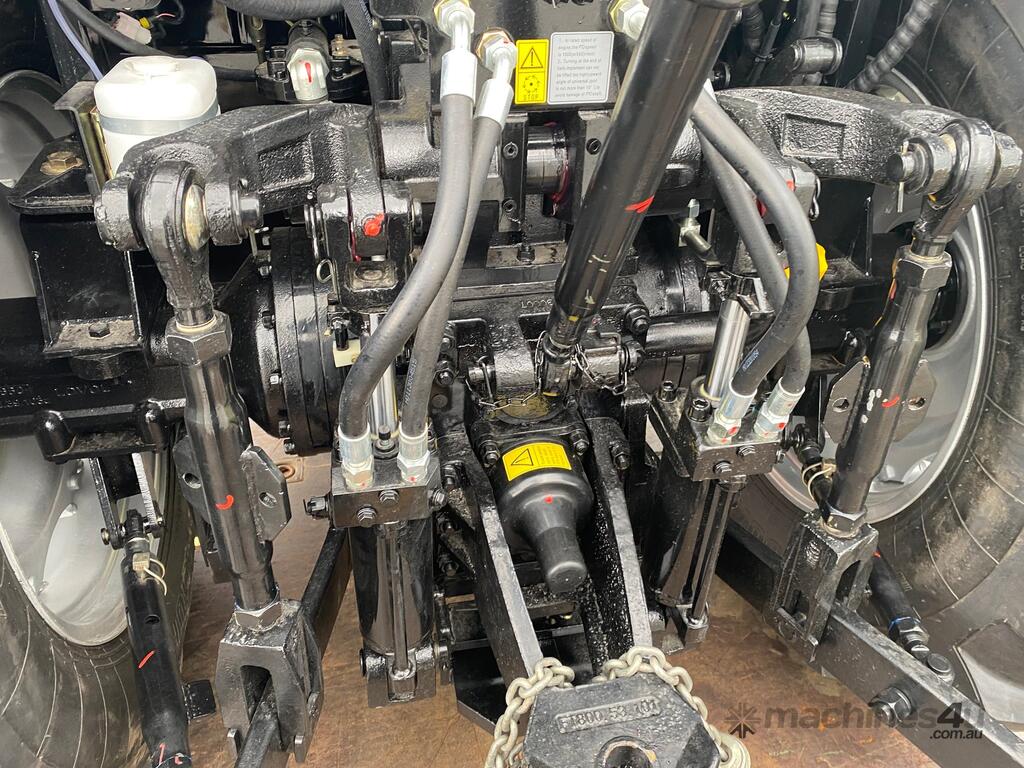

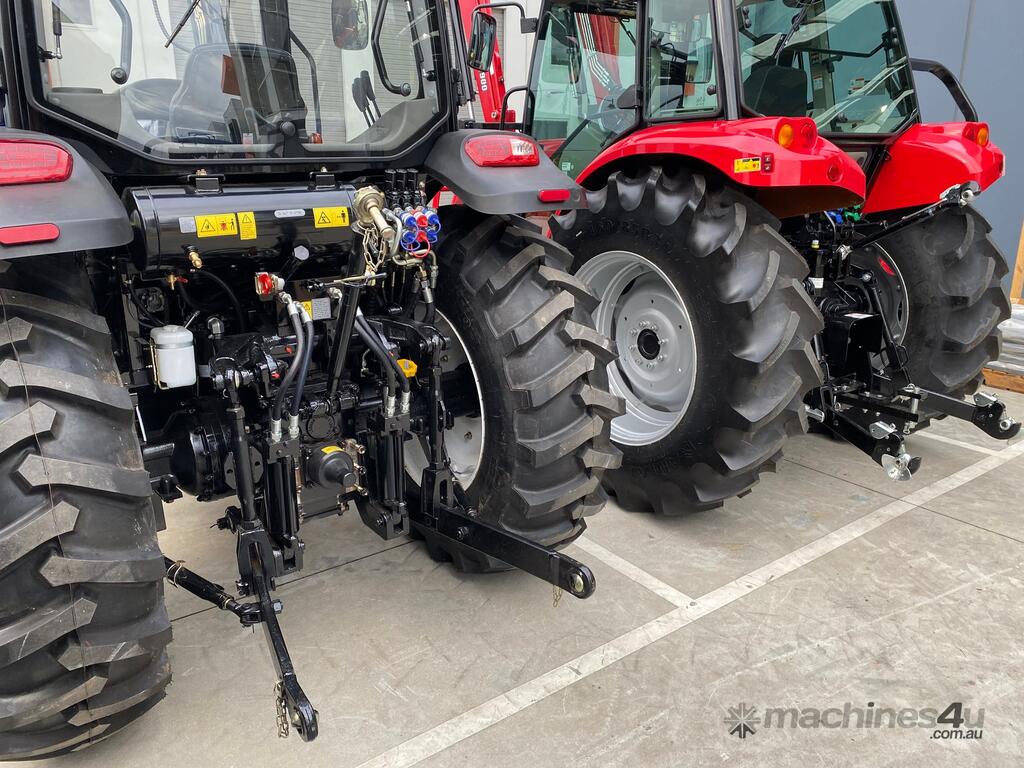

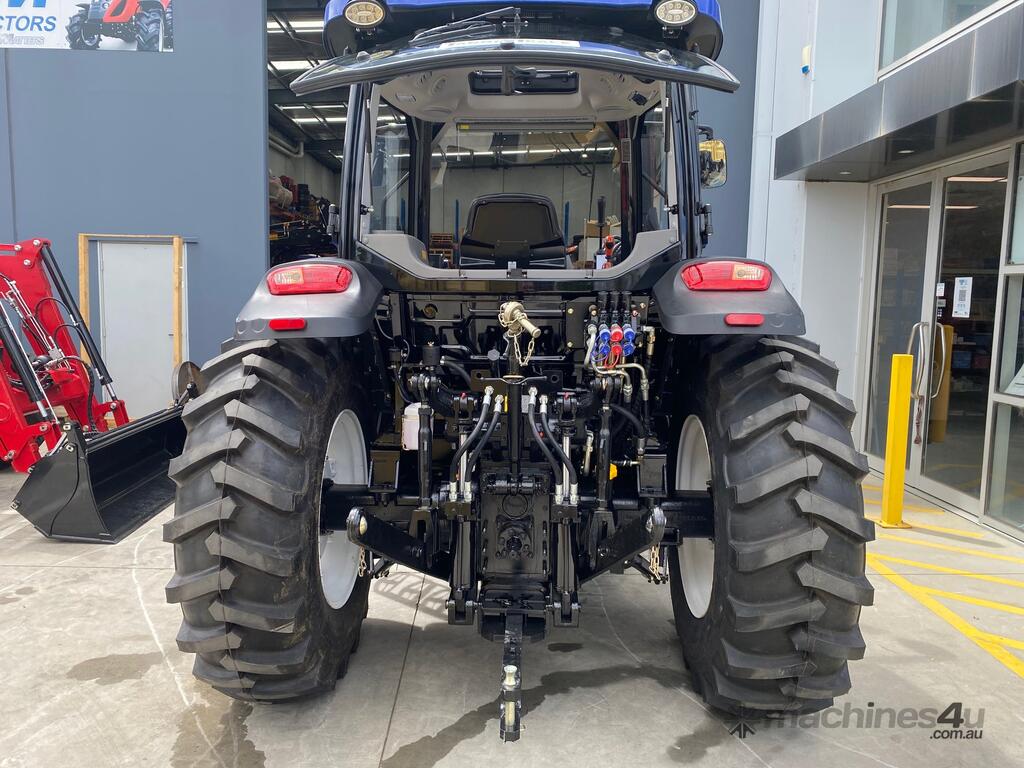

Linkage:
Standard Cat-2 Rear 3pl
Adjustable side links
Down force on rear linkage
2000kg Lift 610mm Behind hitch point

Wheels:
AG Tyres
Front - 11.2R24
Rear - 16.9R34
Dual rear wheel weights, Total 344 kg

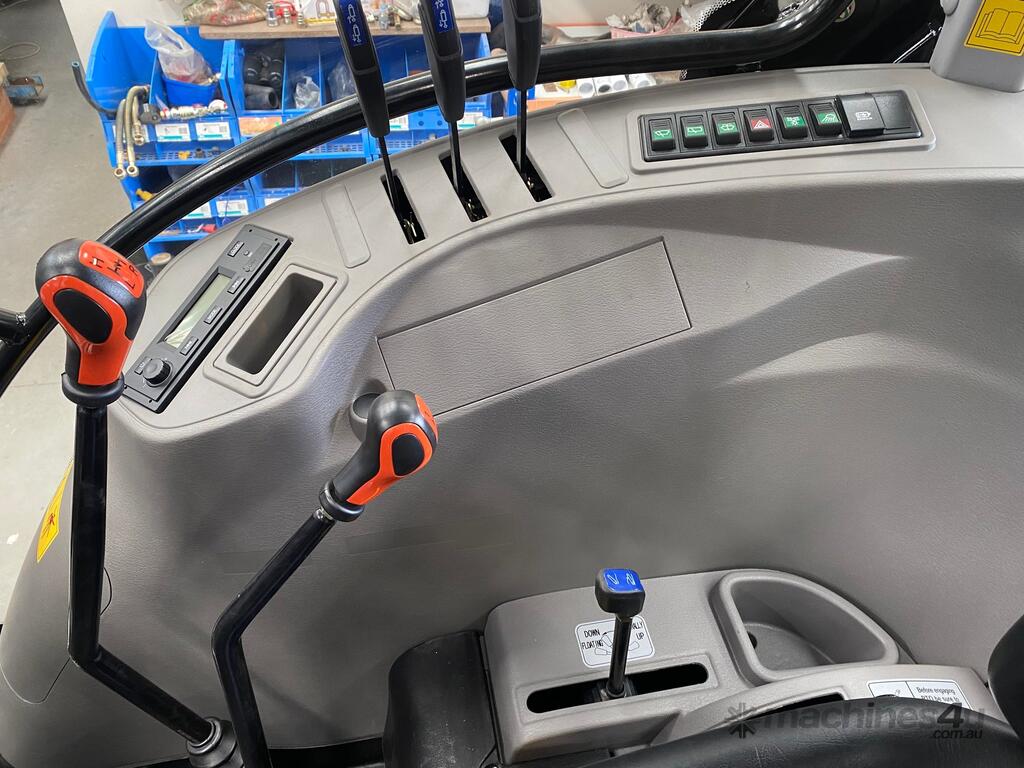

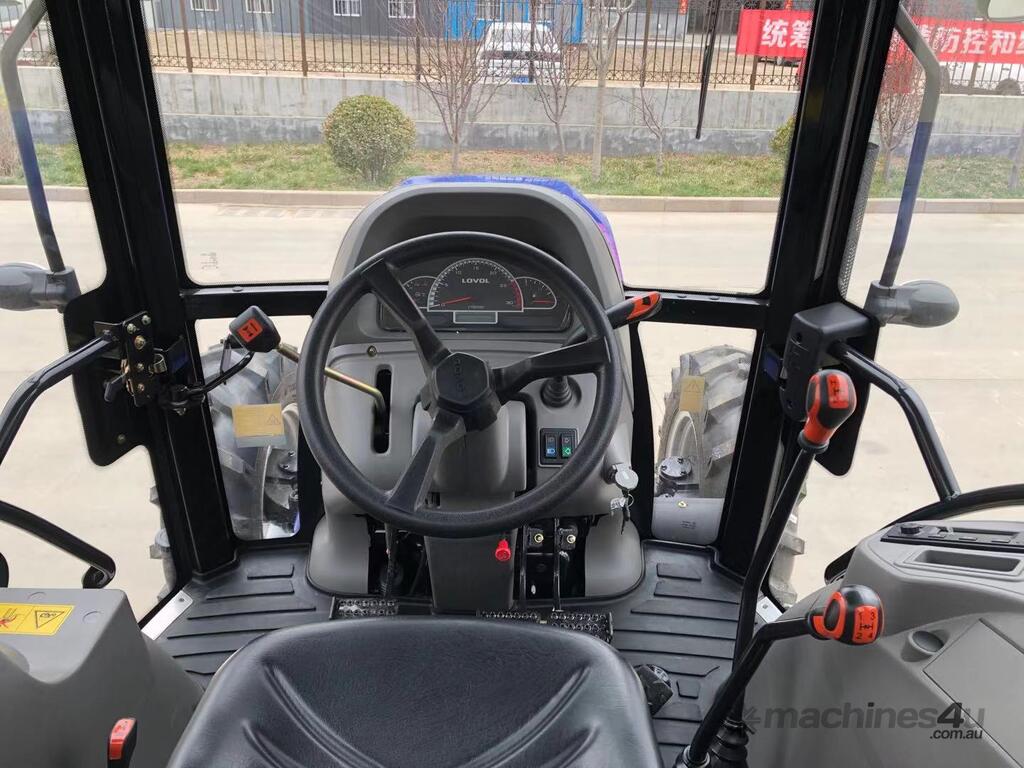

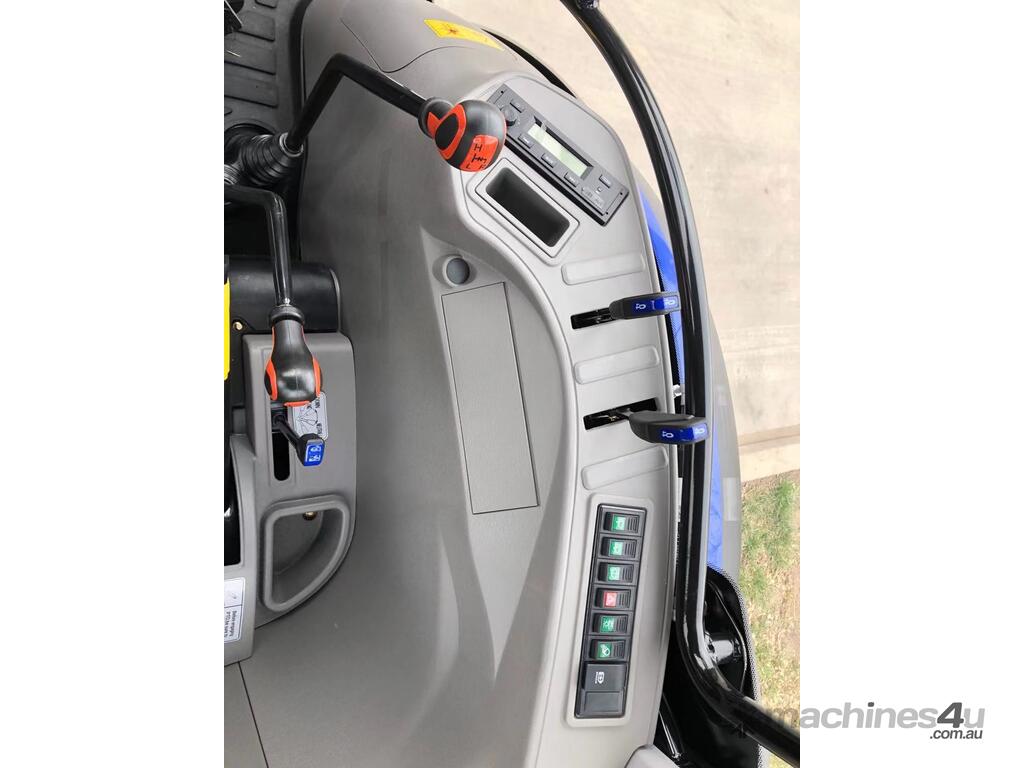

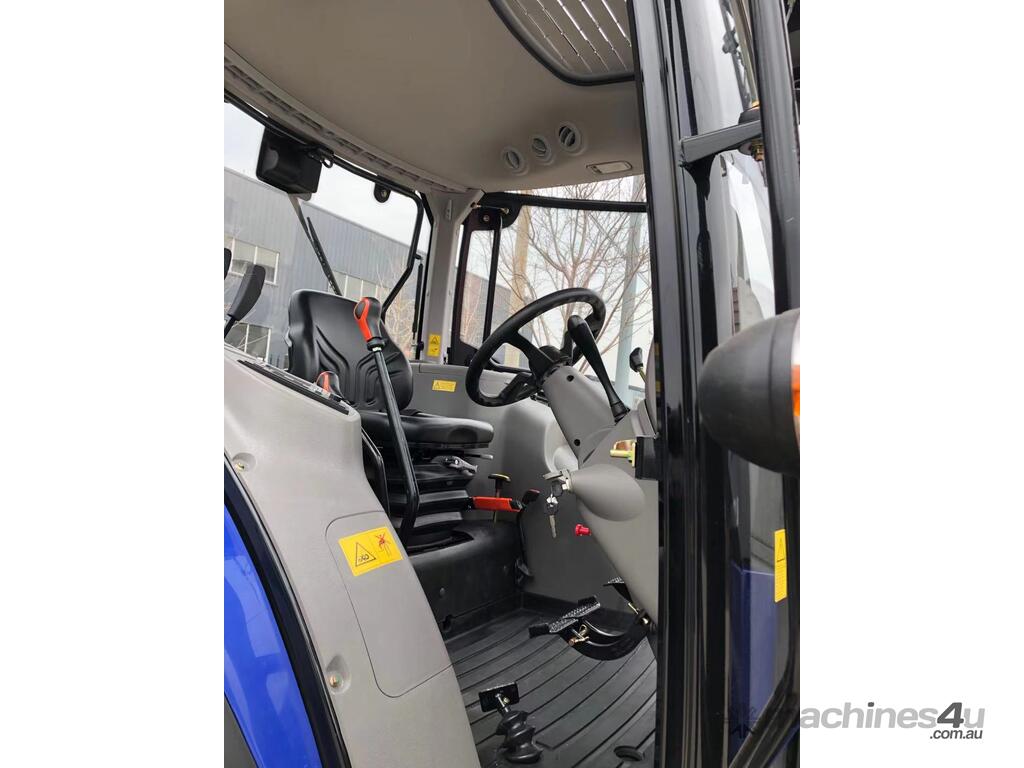

Controls:
Standard control layout with gear sticks on the right side.
16x8 speed gearbox
FEL Joystick positioned for right hand operation
Single joystick with push button 3rd function
4wd & Diff lock are positioned at floor pan
Rear remote and 3pl controls are beside the seat
Fully adjustable seat to get the perfect position
Roof mounted air con controls
Radio with USB charger

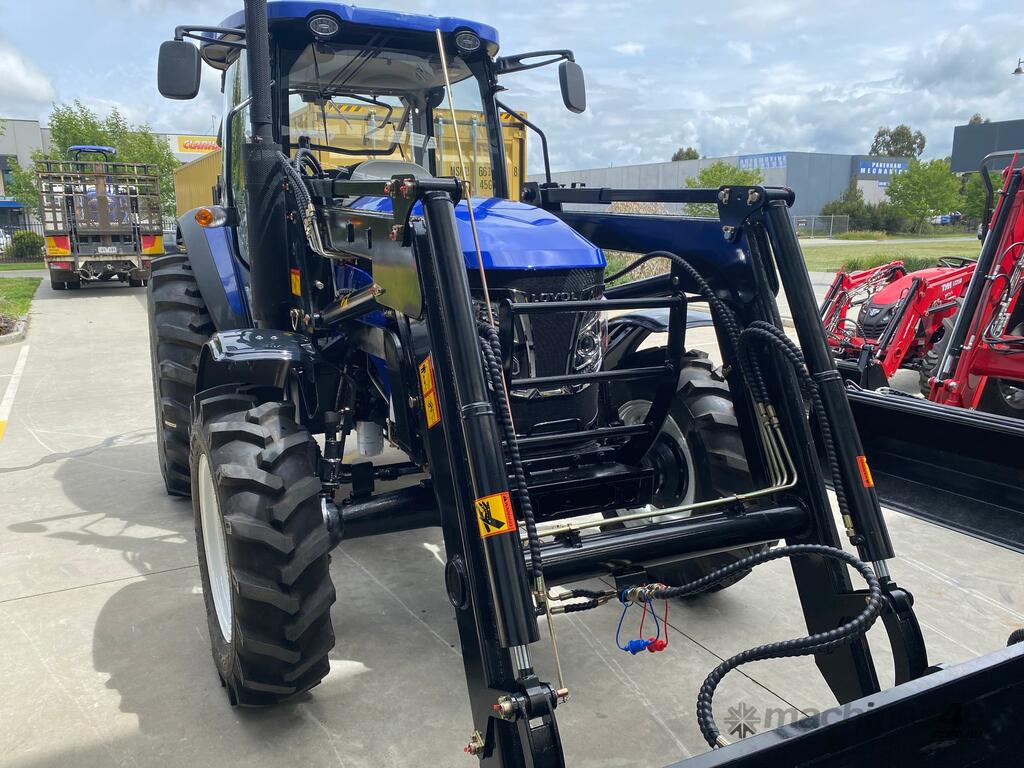

Front end Laoder:
4in1 Bucket standard with front teeth
Self Level Lift Design
Euro Mount hitch
Quick release couplers for bucket hoses
900 kg Safe Working Load - SWL
1200 kg Max Lift Recommended
Level rod indicator
Parking stands
Safety locks for working under loader
Greasable pins


Why Buy From TannerTrack?
"Old School Service" in a Modern World.

When you buy a Lovol from TannerTrack, you aren’t just getting a machine—you’re getting a partner. We know that a tractor is an investment, and we pride ourselves on the reputation we’ve built since 2011.

Trusted by the Farming Community
Don't just take our word for it—check the forums! We are proud of our consistent 5-star feedback across independent platforms. Whether it’s on ProductReview, , or agricultural forums, the consensus is clear: TannerTrack stands behind every machine we sell.

"I was hesitant about a Chinese tractor, but the honesty and professionalism from David and the team at TannerTrack put me at ease. The backup is real, and the machine has been flawless." — Verified Customer Review

Unmatched Backup & Support
Parts in Stock: We don’t make you wait for a "slow boat." We carry thousands of Lovol parts in our Victorian warehouse, ready for immediate dispatch.
Call Danny and find out more about the parts we stock for our LOVOL tractors.

Expert Pre-Delivery: Every tractor undergoes a rigorous pre-delivery inspection. We use premium Oils & coolants, adjust all linkages, and even polish the paint so it’s ready for work the moment it hits your property.

Mechanical Expertise: With over 30 years of mechanical experience, we offer real technical advice.
If you have a question while servicing your own machine, we’re just a phone call away.
We also do onsite servicing, so we can come to you and take care of your machine!
Need a service done, Give Mick a call and he can book you in.

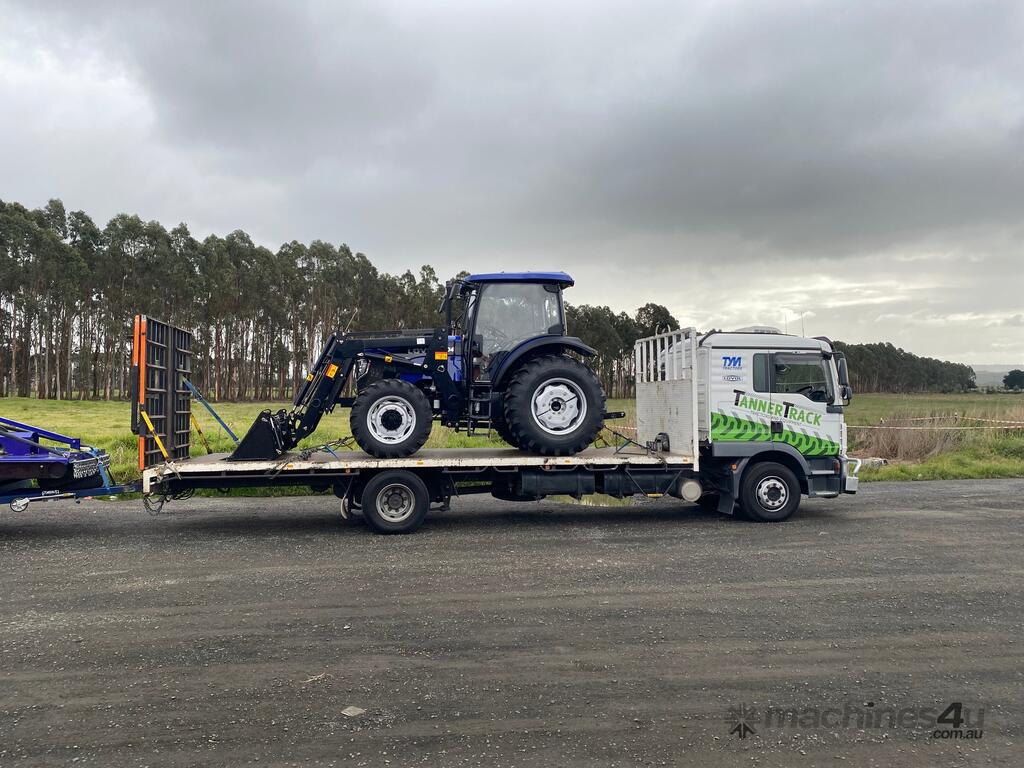

In-Person Delivery: We don’t just drop a run. In Victoria, we deliver most of the tractor ourselves and spend up to 2 hours with you to ensure you’re comfortable with every lever and button.
