TANNERTRACK - LOVOL TB-1 50HP Cabin, Synchromesh Gearbox 4WD Tractor with 4in1 Loader

TannerTrack Victoria is a Certified Specialist LOVOL Dealer with LOVOL Tractors ranging from 25hp to 300hp.

Genuine 5 Year Warranty, Listed in our Brochure so its easy to read.

Lovol M504 50HP : Synchromesh Gearbox with Shuttle Shift - 12F 12R
Premium Features. Proven Reliability. Exceptional Value.

Stop overpaying for "big brand" names when you can have a Premium LOVOL with engineered performance for a fraction of the cost. The Lovol M504 is in the TB-1 Chassis offering great value for money with its full size axles and many more things it a Huge step up from the TE504 as it has small Axles and hubs and small gearbox.
The TB-1 504 Is a common tractor for our contractors with thousands of hours on them

Featuring a Synchromesh Gearbox with shuttle shift making this a very versatile tractor in its gearbox with the ease to change gears on the run with ease.

Why the Lovol M504 Stands Out:

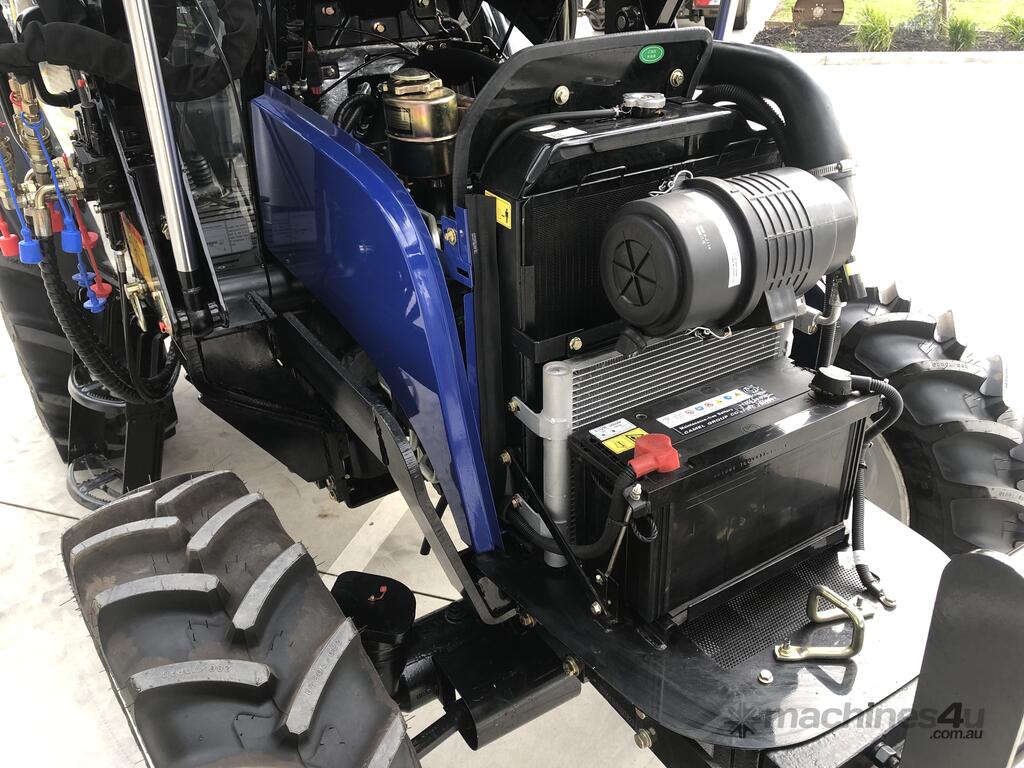

Powered by a 50hp XINCHAI 4-Cylinder Engine with old school Inline Mechanical Injector Pump

TB-1 Chassis,
-Large Axles and Hubs
-Full size chassis
-Dual wheel weights

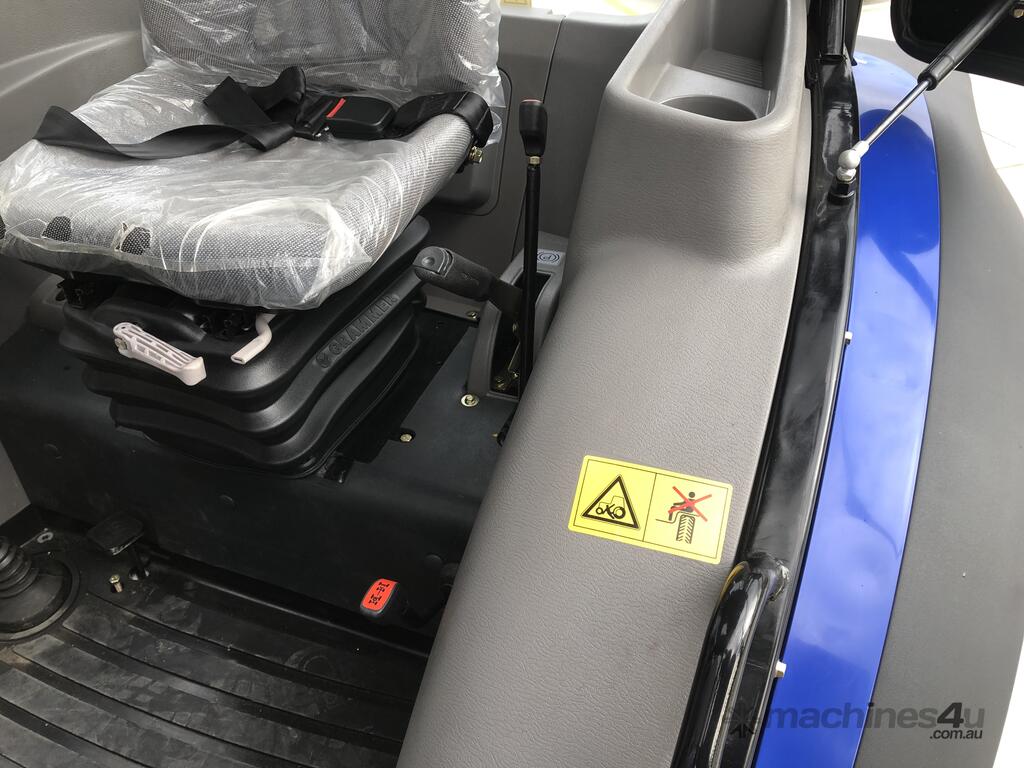

Operator Comfort: Step into a premium, certified M-Series Cabin featuring a Grammer Seat, Air Conditioning, and a Sunroof, Adjujstable Mirrors that fold so they dont break if they get hit.

Heavy Lift Capacity: A massive lift capacity on the Cat 2 rear linkage with standard Balls.
Optional hook ends available.

Front end Loader: Comes standard with a Quick Release 4-in-1 Bucket,

2 sets of rear remotes
Optional Detents for constant flow

high-quality Radial tyres.

KEY FEATURES

- 50 HP Engine
- 4 cylinder Diesel
- Synchromesh Gearbox with Shuttle Shift 12F x 12R
- 11 Inch Ceramic Clutch - Dual Plate - PTO & Drive
- Certified M Series Cabin
- Heater and Air Conditioning
- Tinted Windows
- Front end Loader
- Quick Release 4in1 Bucket
- Diff lock
- FWD
- 2 Sets of Rear Remotes
- Cat 2 Rear Linkage
- Grammer Seat
- Modern Styling Cabin with easy to use controls
- Radio

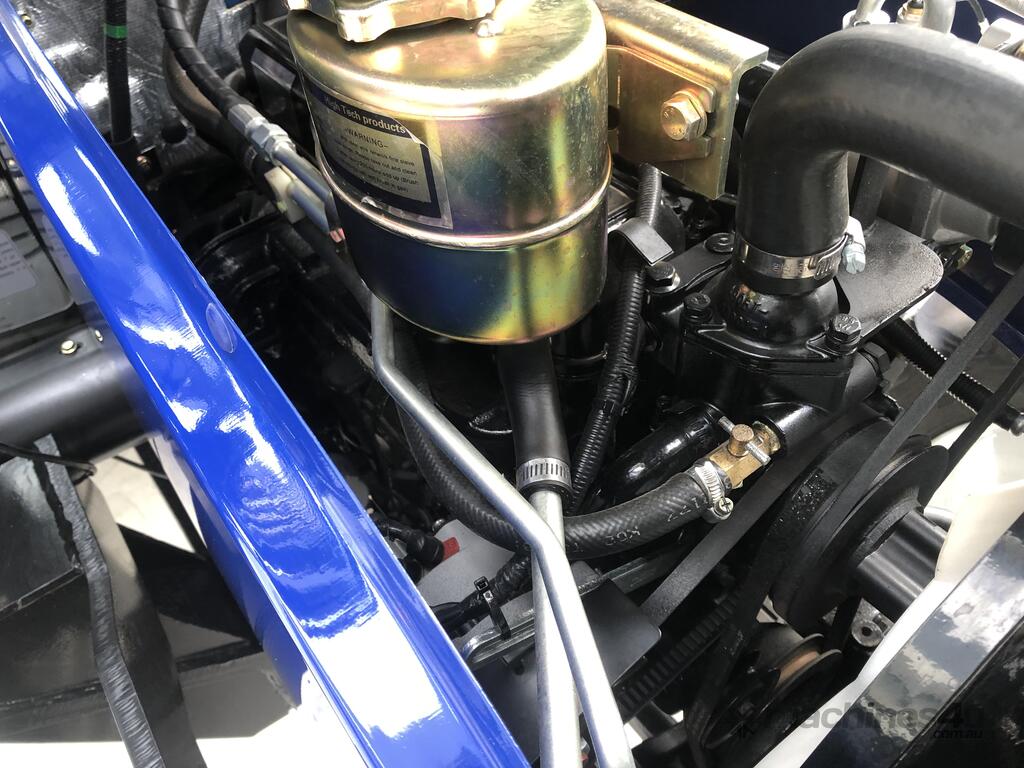

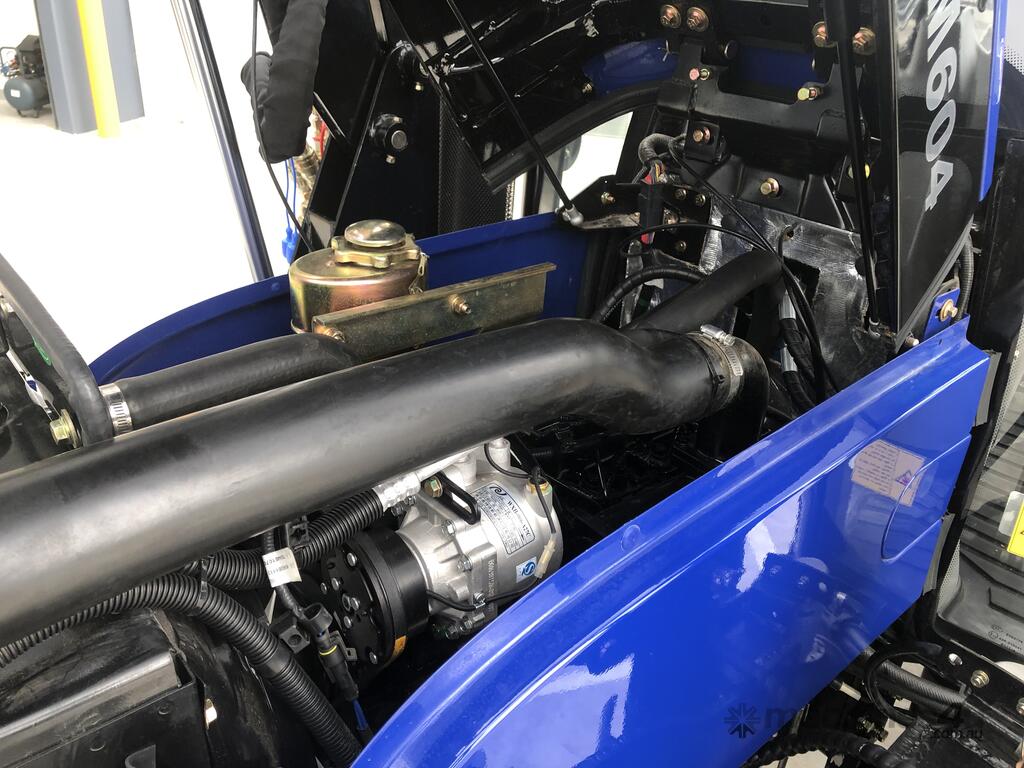

ENGINE:

Engine Model XINCHAI 498BT
Engine type Diesel
Engine gross power 50hp 37kW
PTO Power 34.4kw
No. of cylinders 4
Total displacement 3.17cc
Rated speed 2400 rpm
Inline Mechanical pump - NO Computers
Fuel tank capacity 60L

DRIVETRAIN:

12x12 Shuttle Shift, Synchromesh Gearbox
Low Medium High - Transfer Case
1 - 2 - 3 - 4 Synchromesh Gears
Forward - Reverse Shuttle

CLUTCH:

Dry, Dual Stage clutch for responsive engagement and smooth power delivery.
11 Inch Ceramic Plate Drive Plate with torsional springs
11 Inch Ceramic Plate PTO Plate
DIFFERENTIAL:

Mechanical gear differential providing basic traction control and power distribution between rear wheels.
Rear Diff Lock

AXLES:

Front Axle: Bevel gear final drive
Lovol axles made in house by LOVOL

Rear Axle: Heavy-duty Design

4WD:

4wd - Front Wheel Assist
Single lever engagement

HYDRAULIC SYSTEM:

Implement Flow rate 30 L/min , sufficient for operating standard implements.
Steering Flow Rate 12 L/min

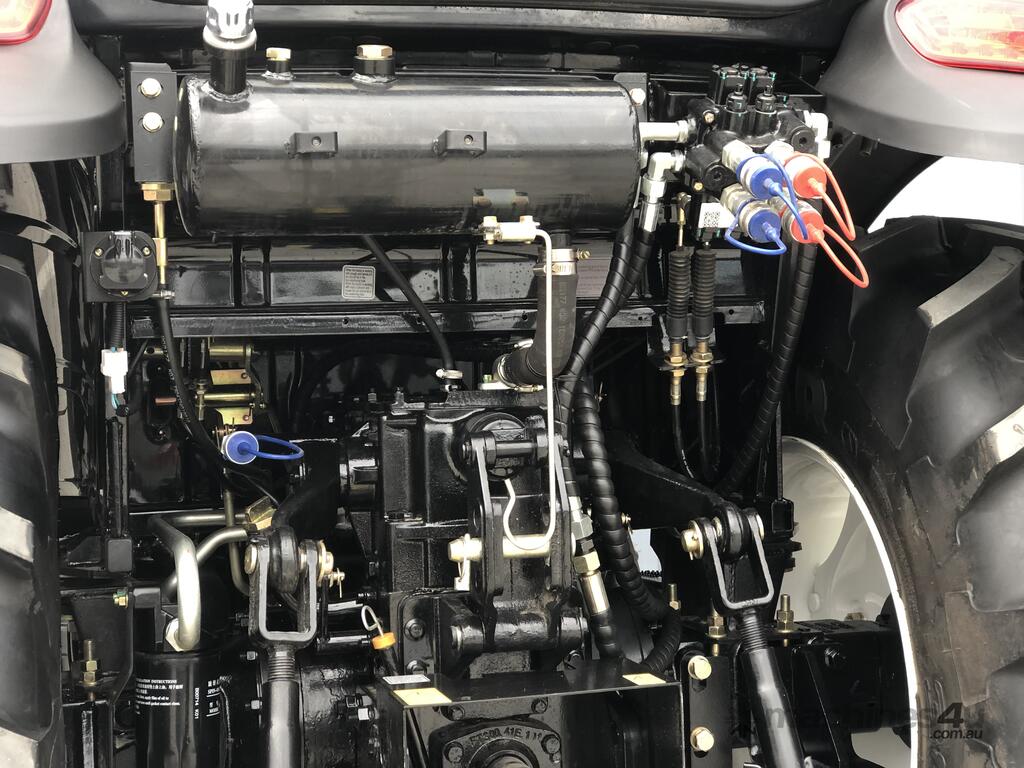

2 Pairs of rear remotes
Dual filtration, Suction and Return

PTO:

540/760 PTO Speeds
--- hp Rated PTO power

Linkage:

Standard Cat-2 Rear 3pl
Adjustable side links
1530kg Lift 610mm Behind hitch point
Extra lifting rams on 3pl

Wheels:

Radial Tyres
Front - 280/70R20
Rear - 380/85R24
Dual rear wheel weights, Total 344 kg

BODY:

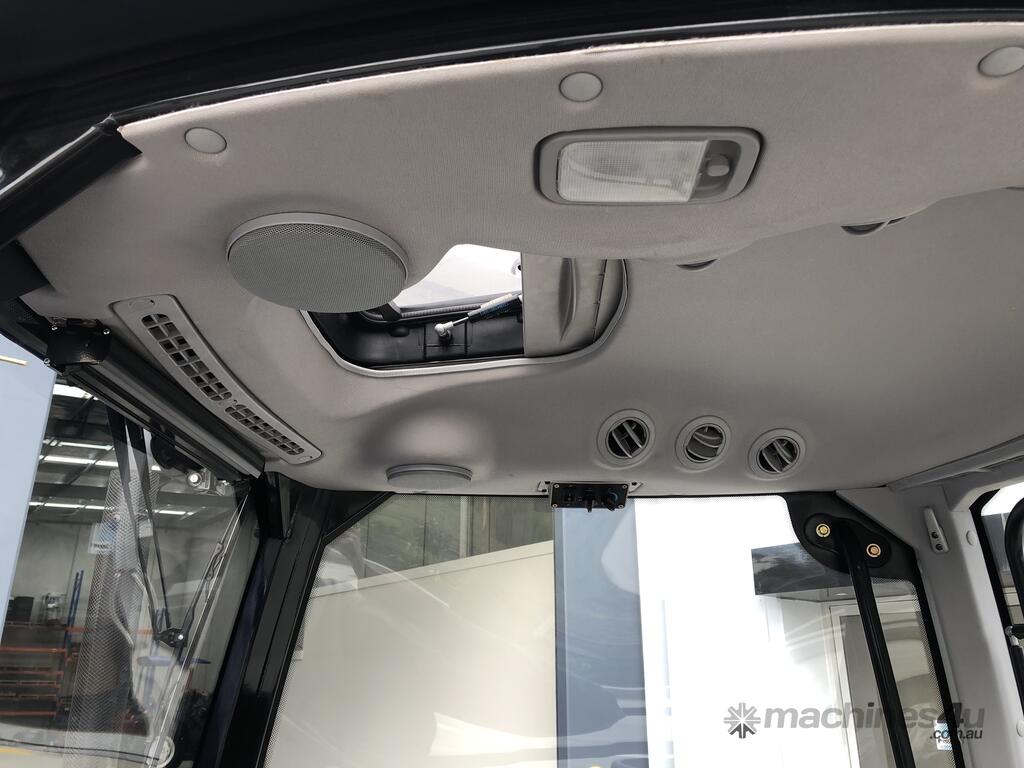

Airconditioned Cabin With Sun Roof
Front & Rear Windscreen Wipers & Washer

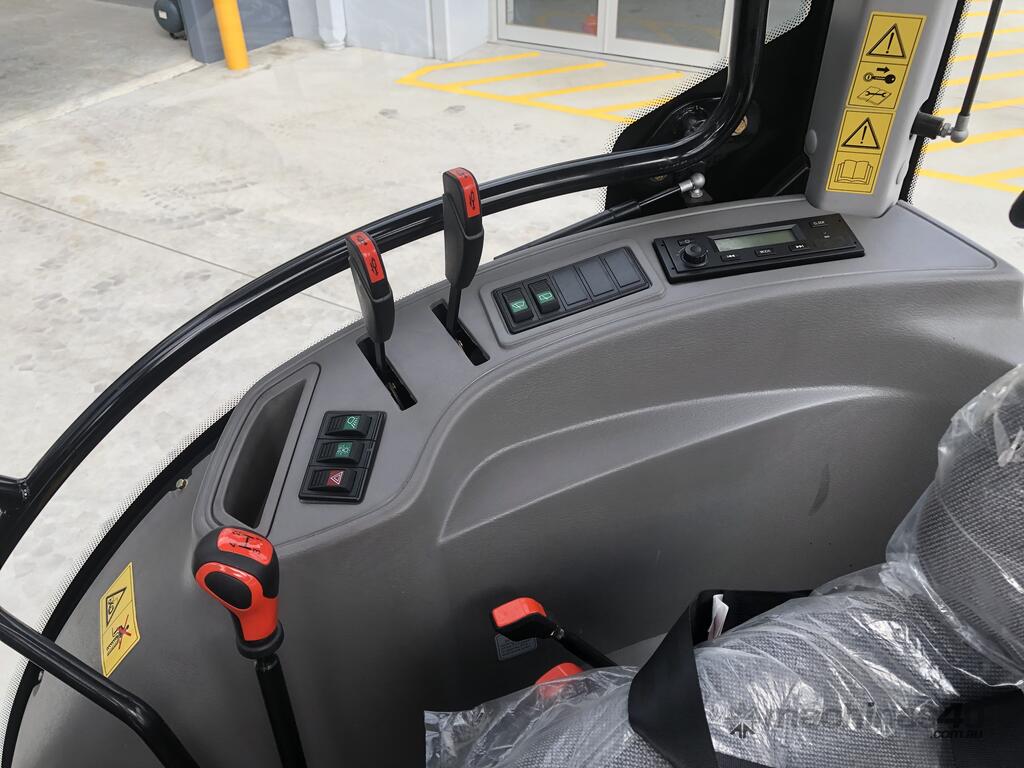

Premium Loader Joystick with 3rd function button
Radio/Media Player/Bluetooth
Adjustable Steering Colum
Tinted Windows
Saftey Straps on Doors

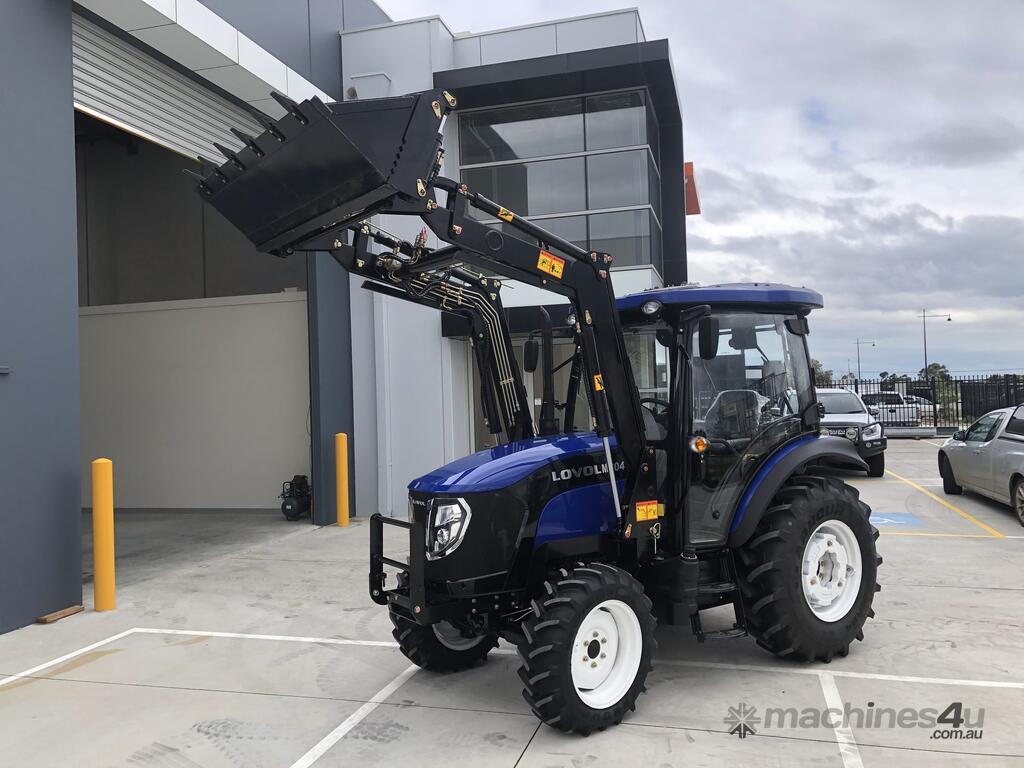

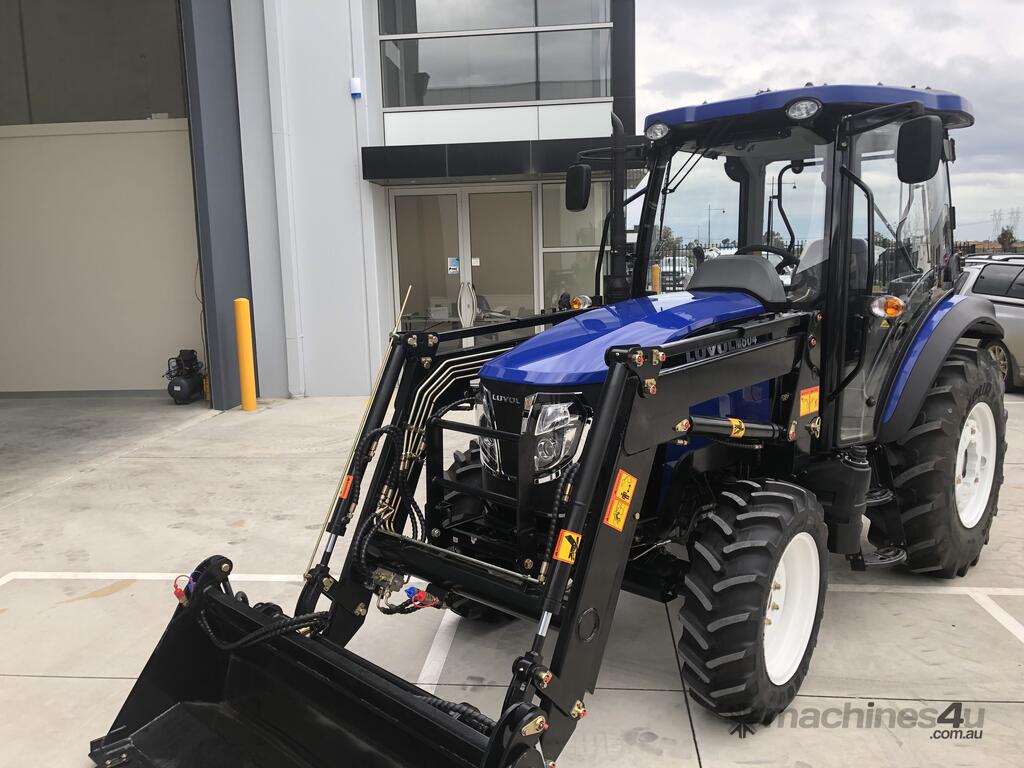

LOADER:

4in1 Bucket
Removable Teeth
One Piece Lower Jaw for more strength
Up- Graded Pin Design
Round Cross Section so it will never crack
Quick Couplings on hoses
Auto Locking Quick Hitch
Quality Italian Joystick cables and valve banks
Parking Legs & Saftey Props
600kg SWL (not fake inflated figures)
