TDQ612075-K1 66 Piece - Rhino Cart Mobile Fixturing Station 1200 x 750 x 910mm (LxWxH) Ø16mm Holes

STRONG HAND TOOLS TDQ612075-K1 66 Piece - Rhino Cart Mobile Fixturing Station 1200 x 750 x 910mm (LxWxH) Ø16mm Holes
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W07705

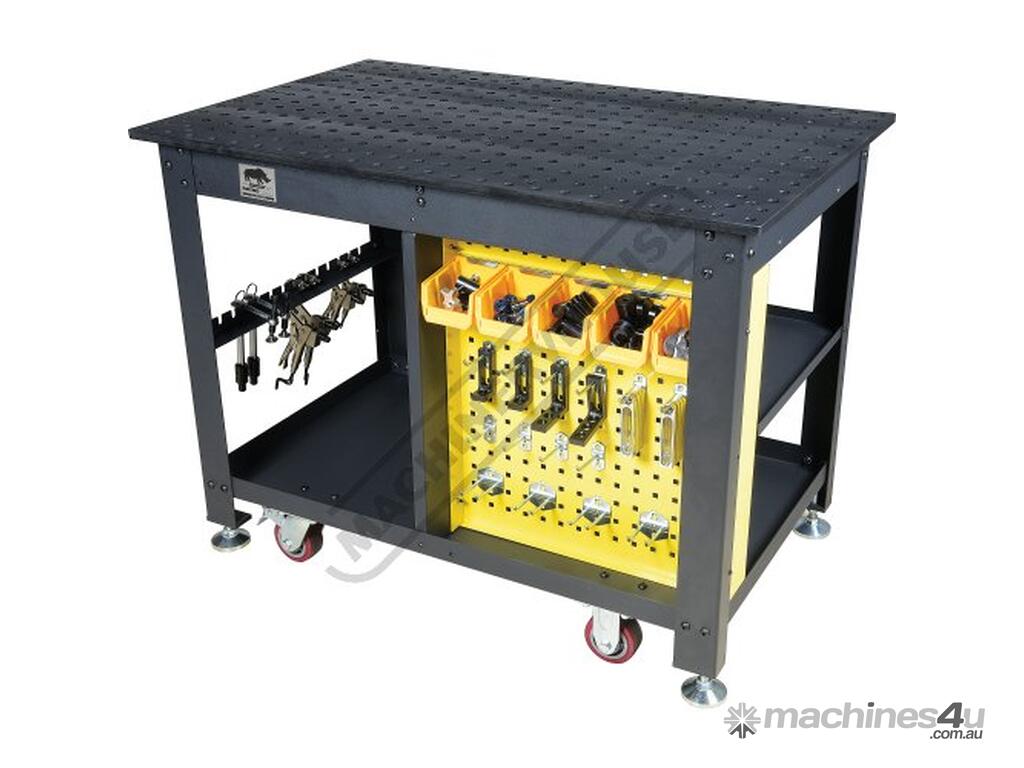

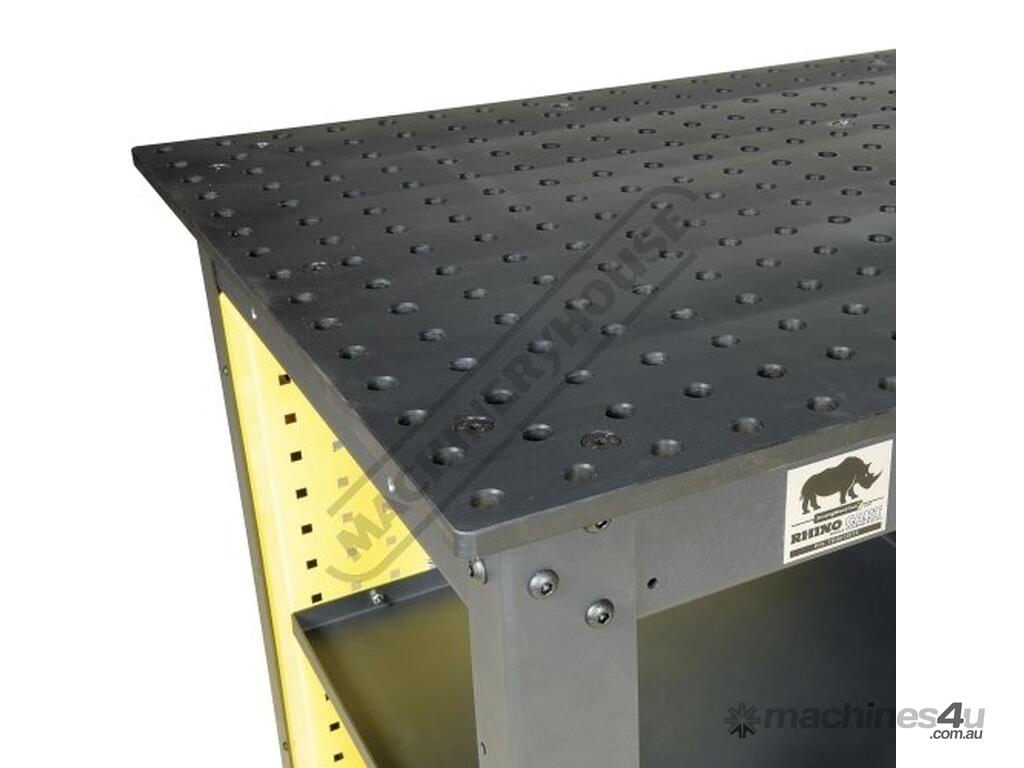

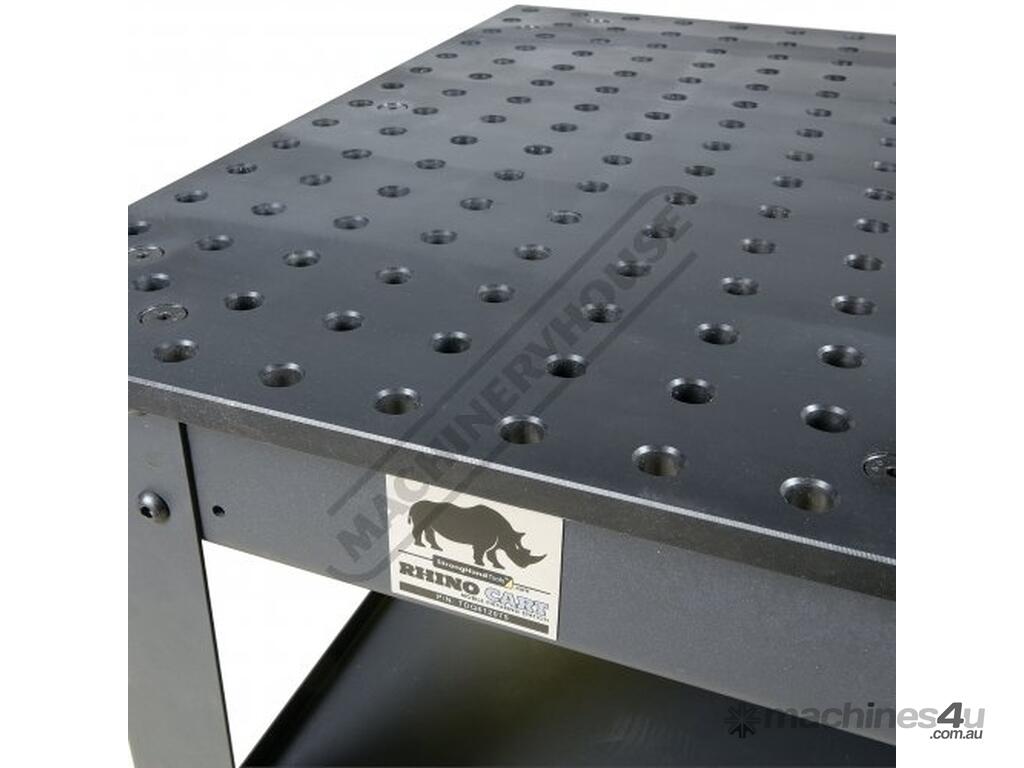

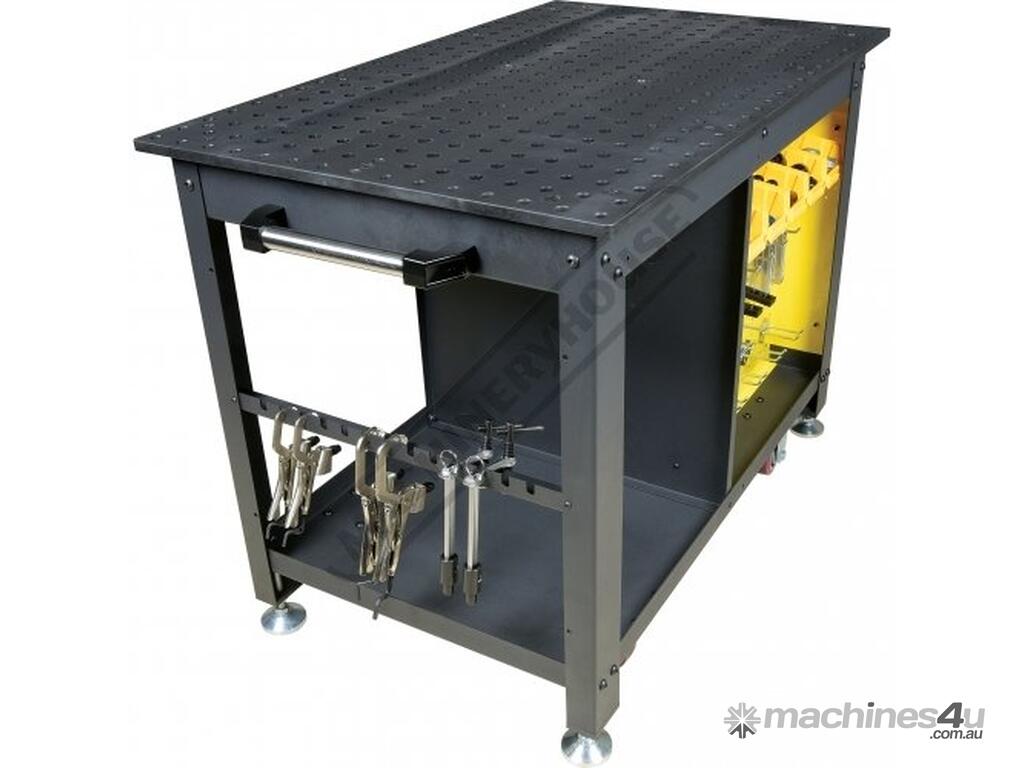

The Rhino Cart Mobile Fixturing Station is a turnkey system for fixturing and clamping in welding and fabrication. Clamp and fixture at any point on the reversible, flat, nitrided (heat treated) 1200 x 750mm tabletop for accuracy in all of your setups.

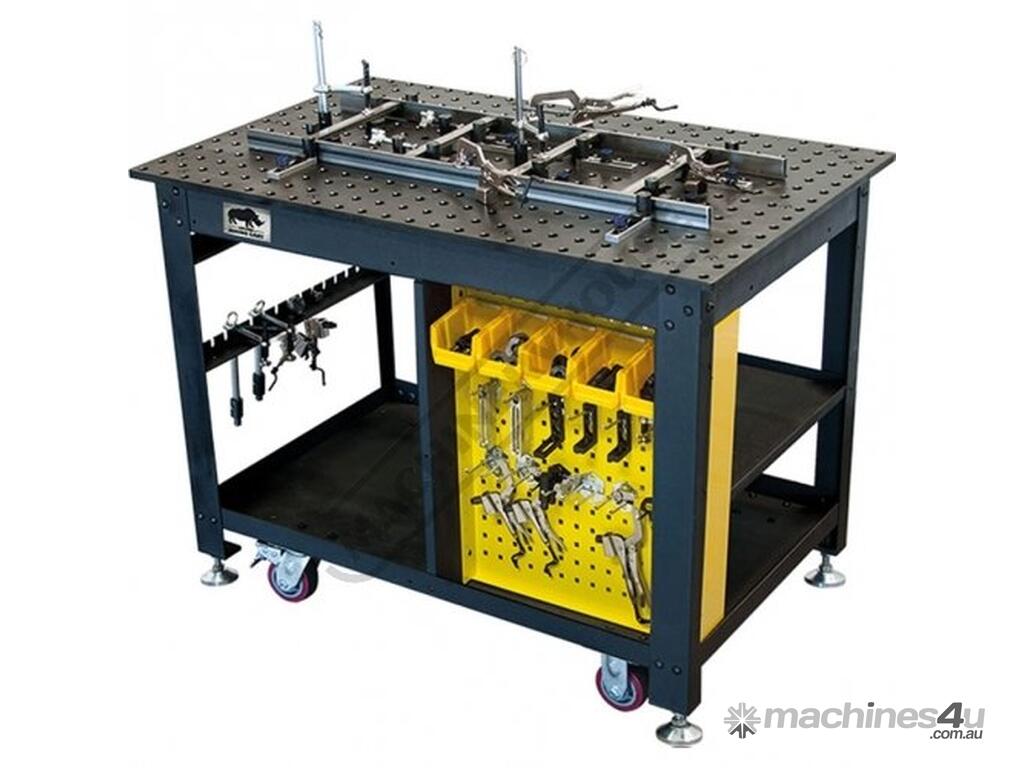

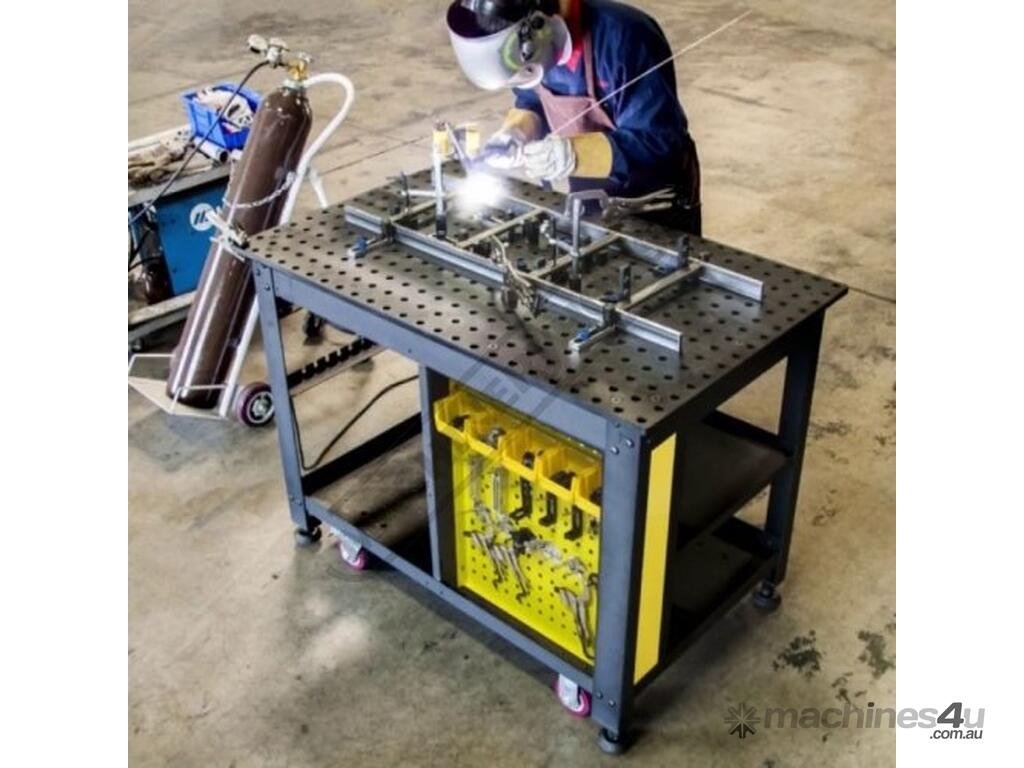

Accurately fit-up and hold work pieces for tacking and welding with the Rhino Cart package, including: The Rhino Cart Welding Table + 66 piece Fixture Kit. Rhino Package Part No.: TDQ612075-K1

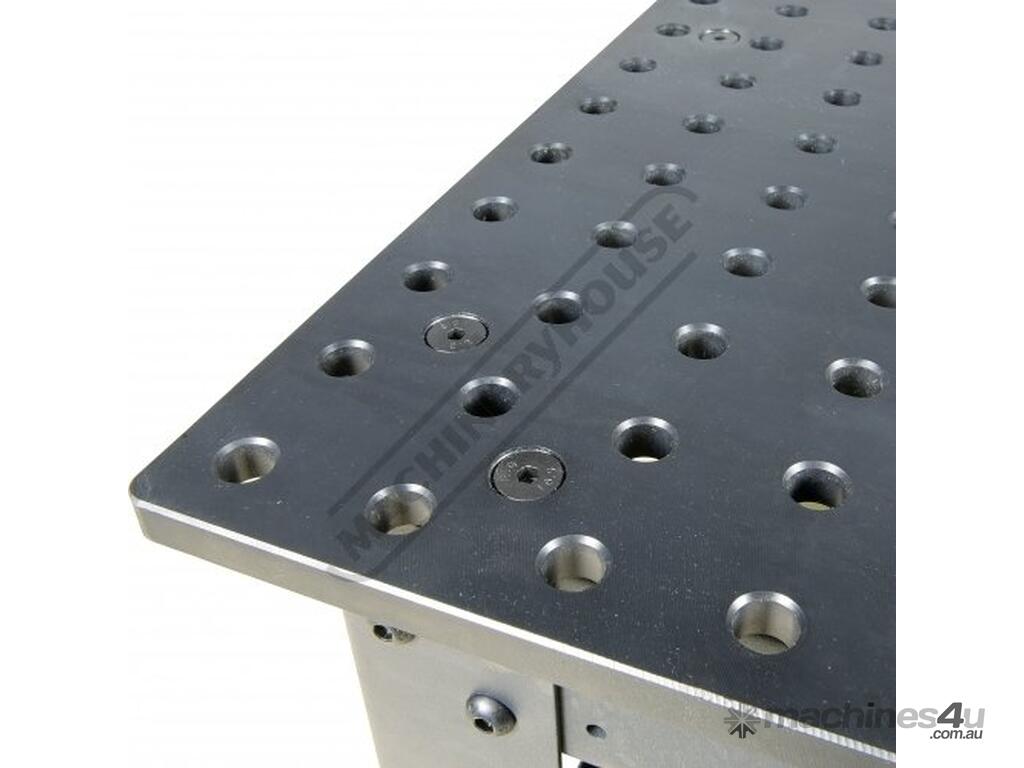

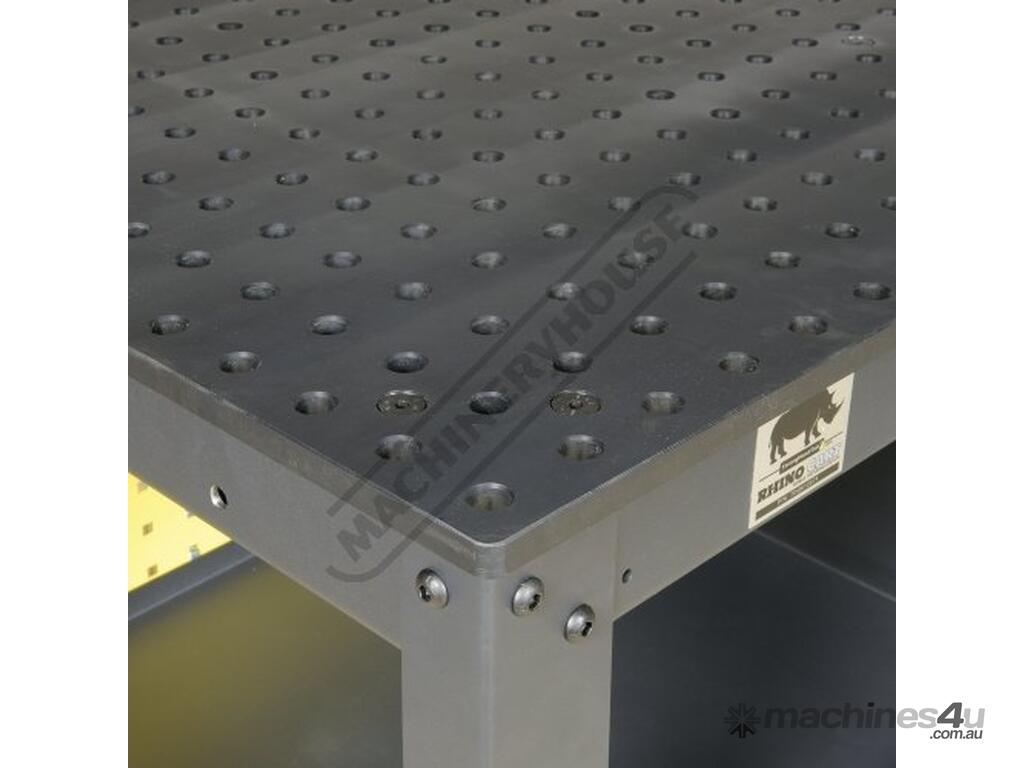

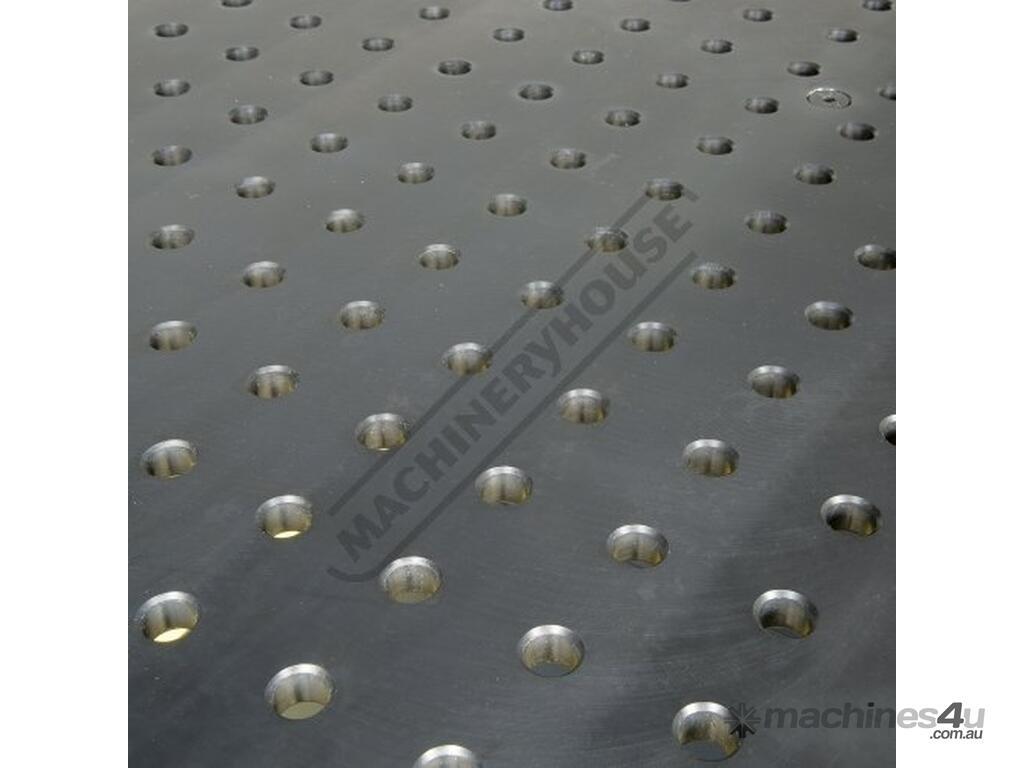

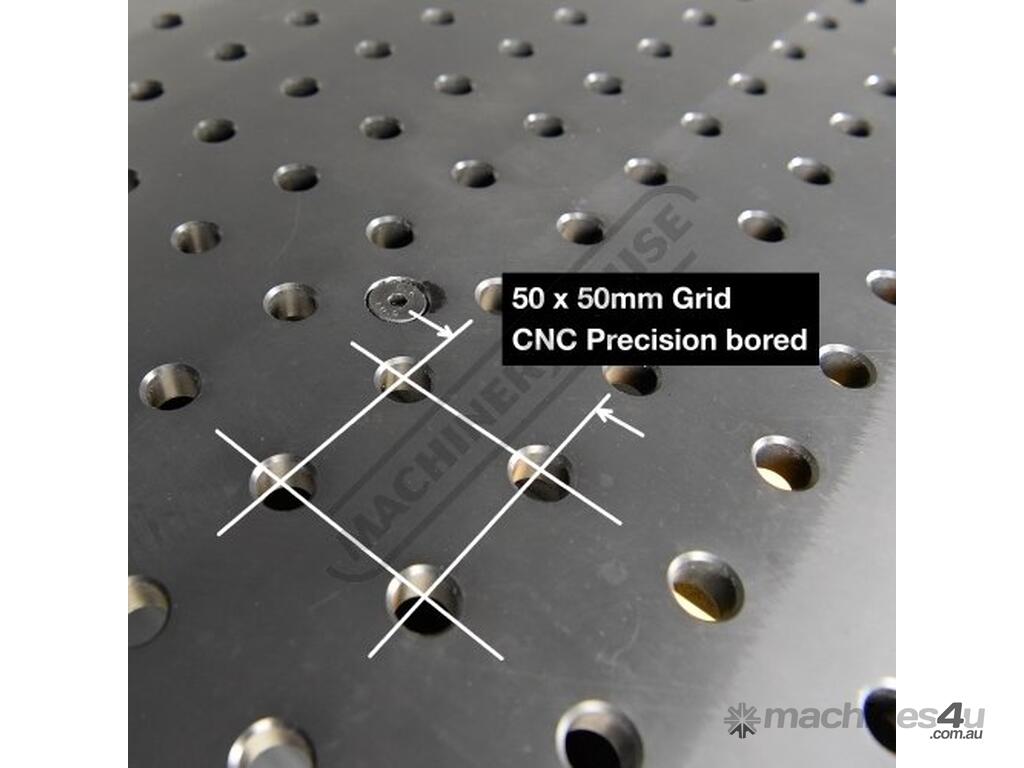

16mm thick steel plate reversible tabletop with nitrided black oxide protective finish for wear, rust and weld spatter resistance. Accurately position parts in CNC precision bored 16mm diameter holes in 50 x 50mm spacing pattern

Features:
Tabletop Life: Nitrided and black oxide table plate is reversible. Weld spatter rust and scratch resistant.
Tabletop Size: 1200 x 750mm
Tabletop Thickness: 16mm
Hole Diameter: Ø16mm
Grid Pattern: 50 x 50mm
Table Height: 910mm
Static Loading Capacity: 700kg
Package Net Weight: 195kg

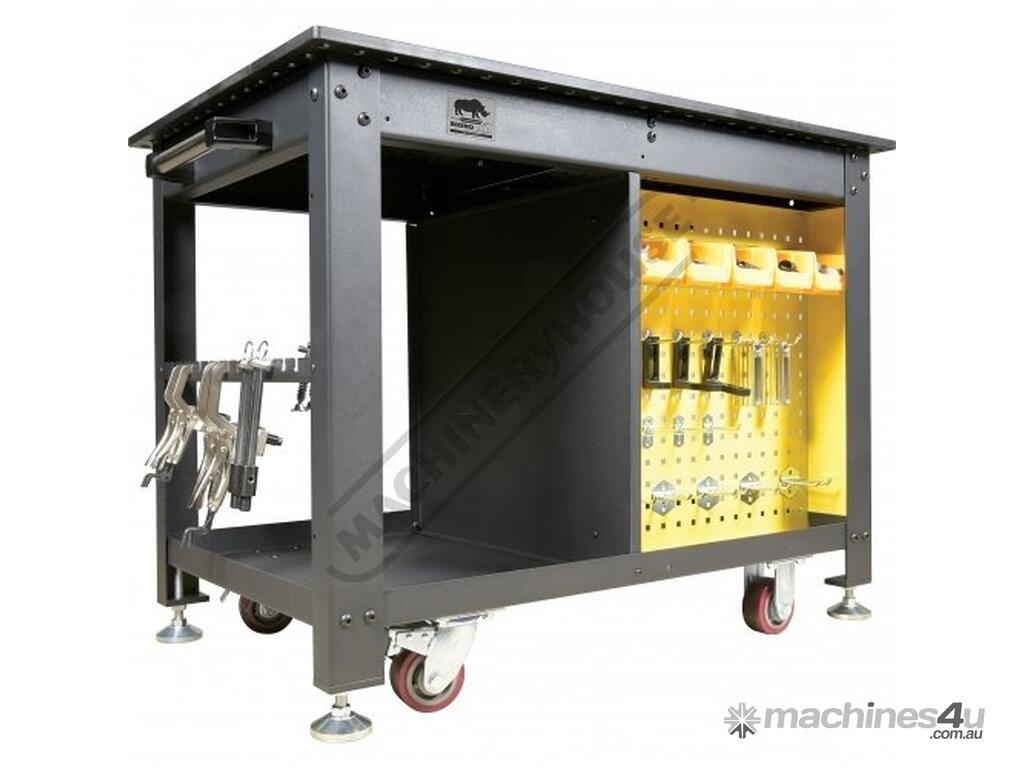

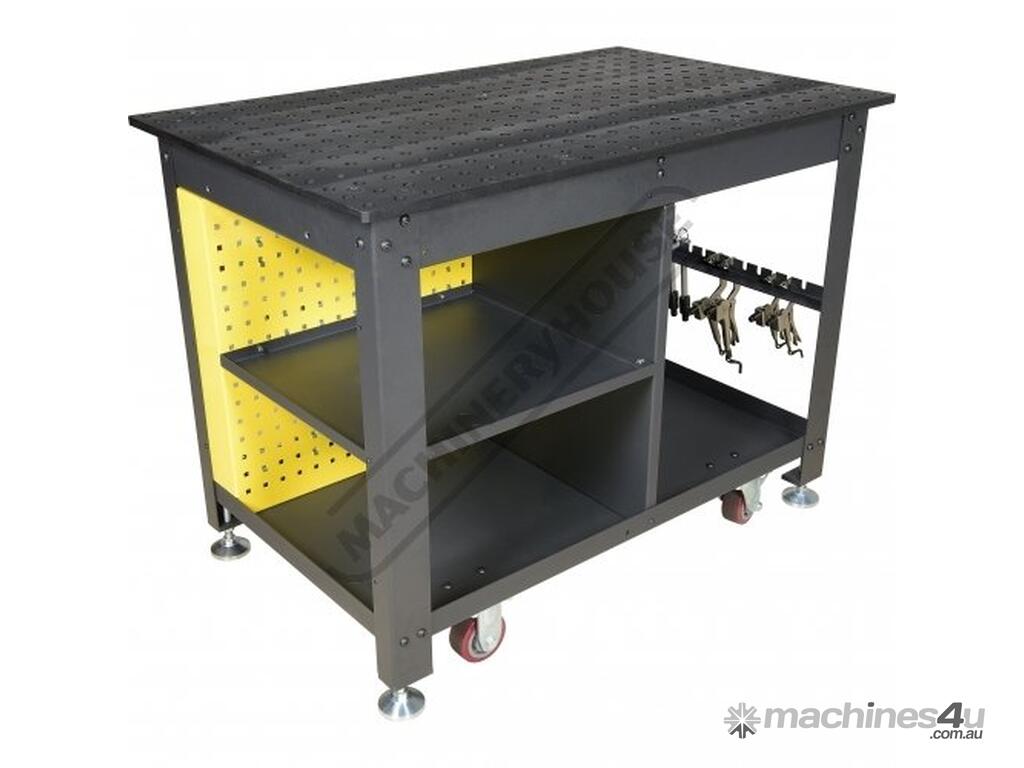

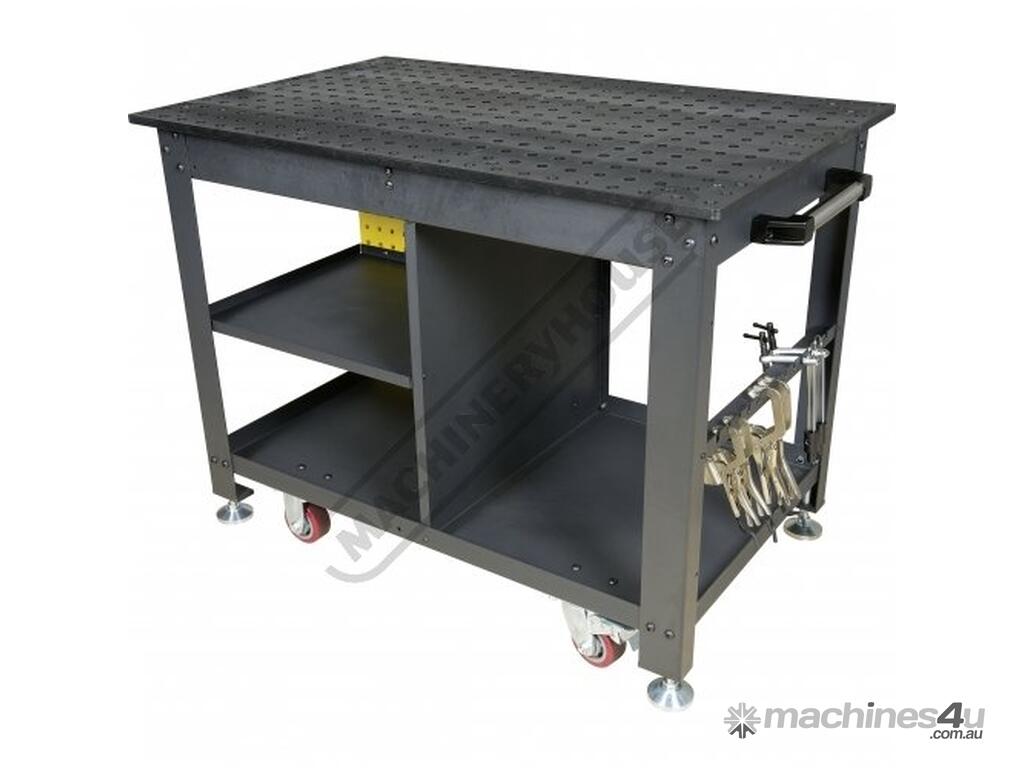

2 x fixed & 2 x swivel brake caster wheels
Levelling feet for mobile or stationary use

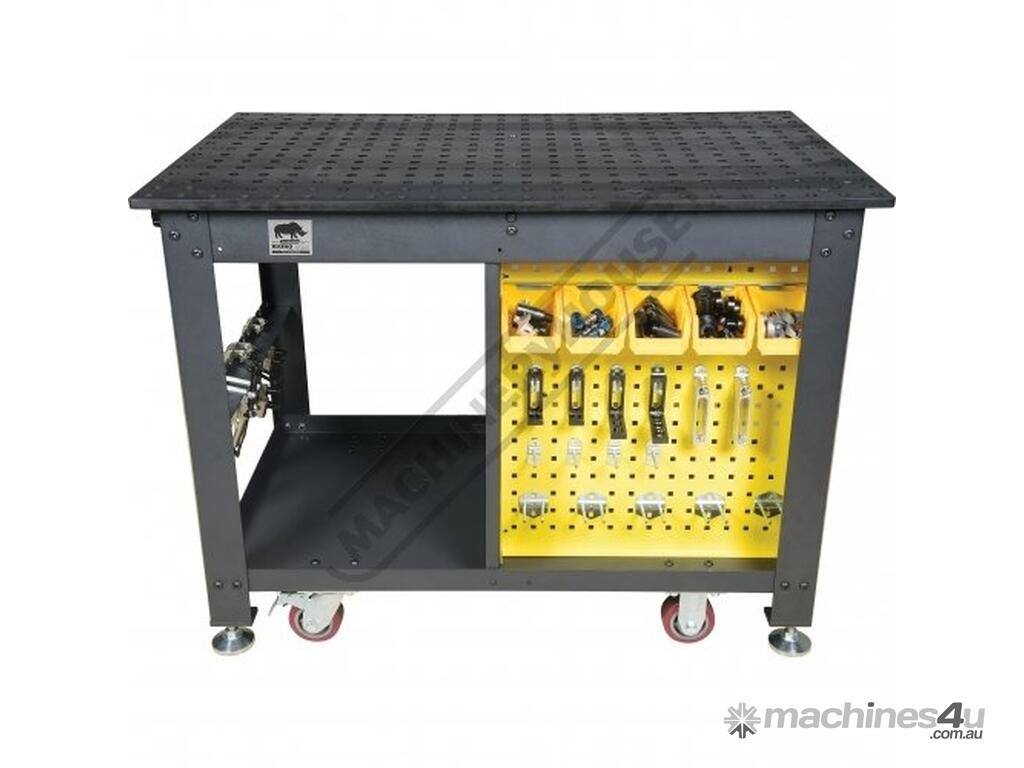

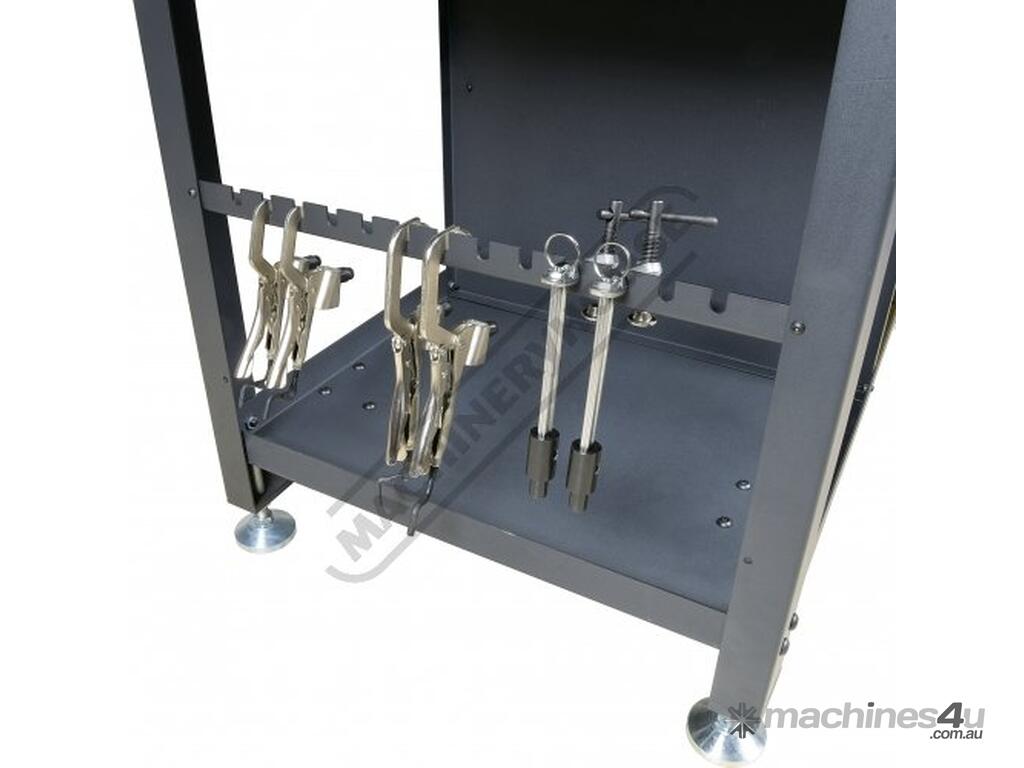

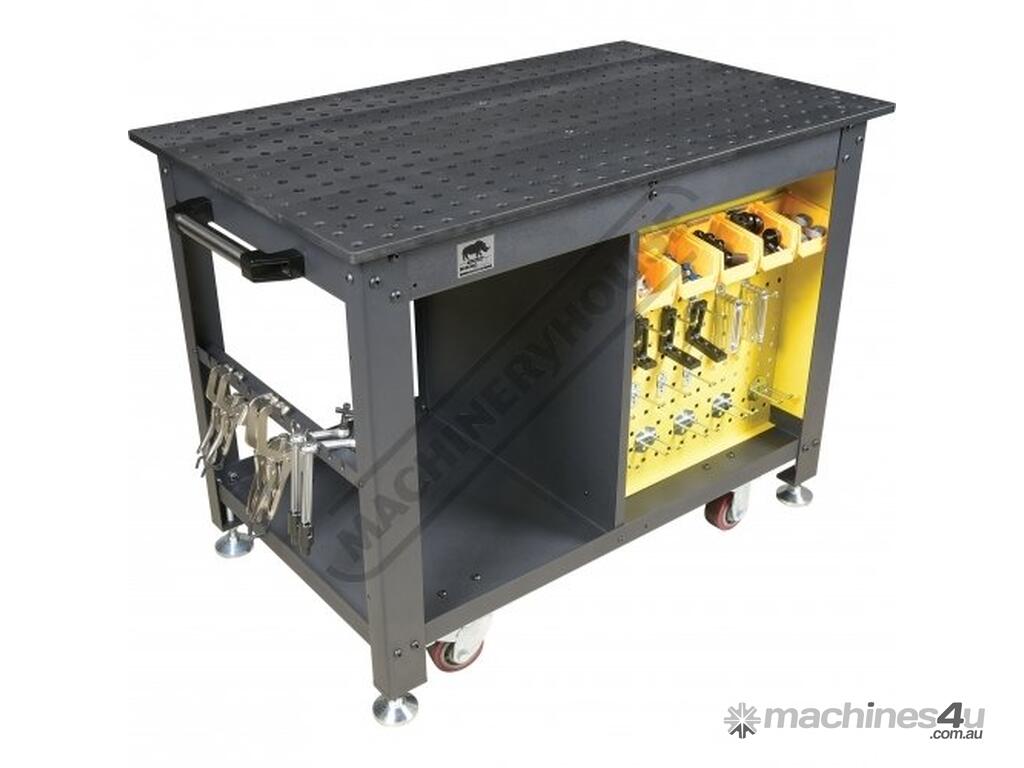

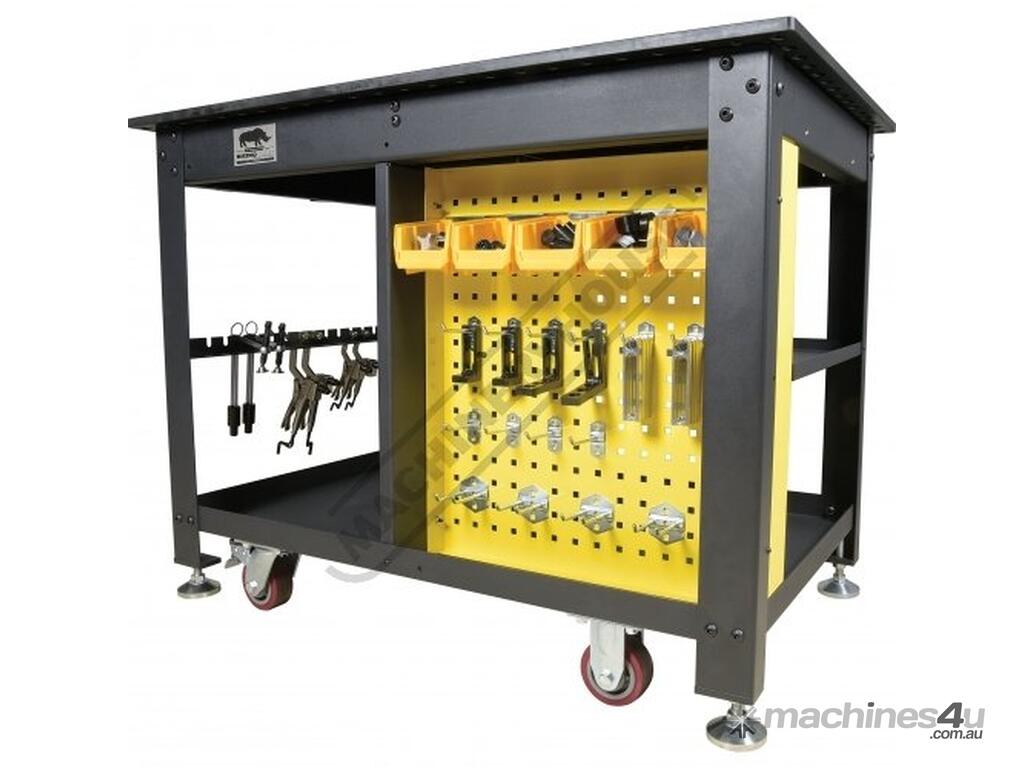

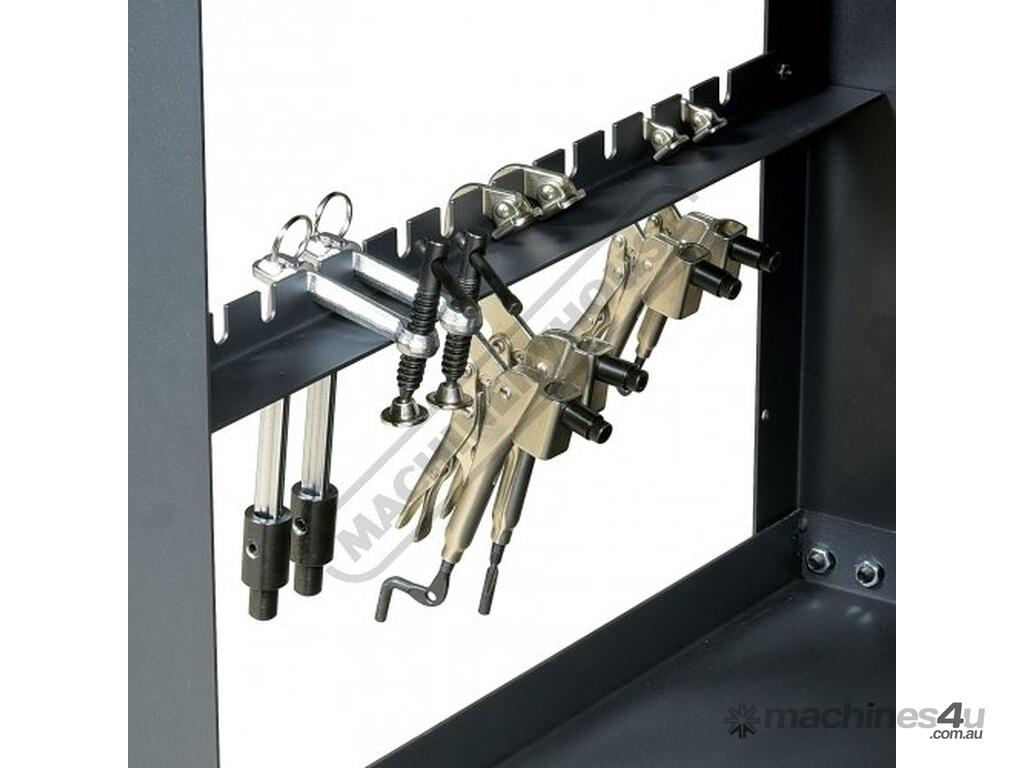

Rhino shelves racks and pegboard keep your fixing tools organised and within easy reach!

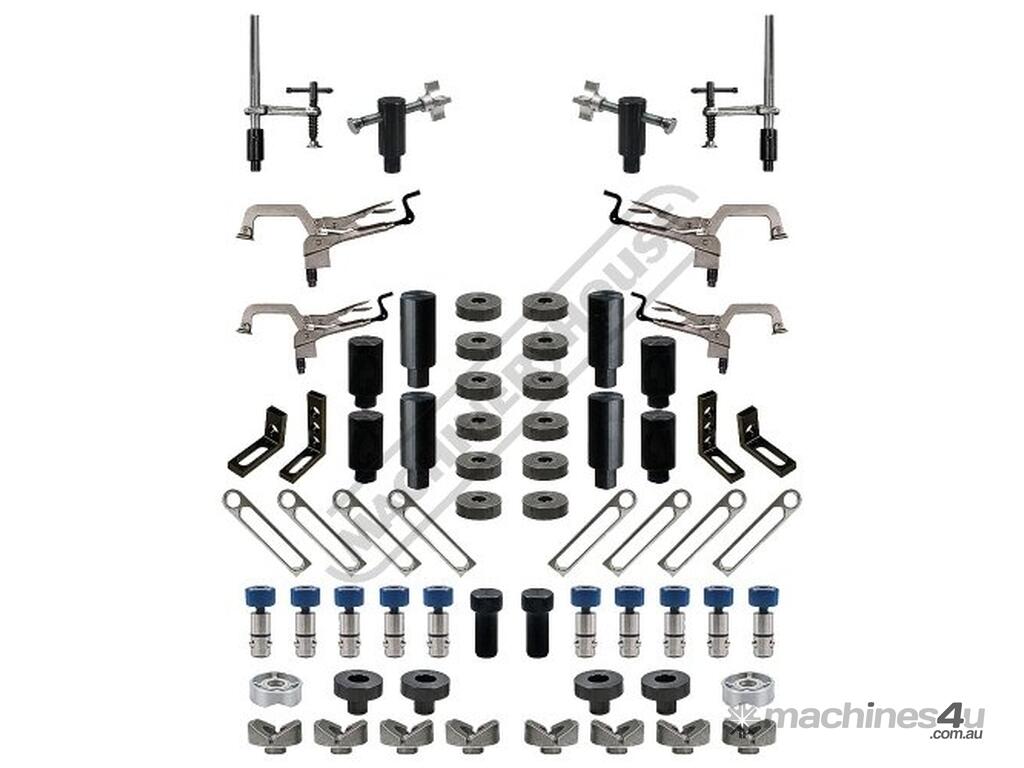

Includes:
- 1 x TDQ612075 - 1200 x 750 x 910mm Welding table cart
-
- 10 x T65055 - Ball lock bolt adjustable range: 24 ~ 28mm
- 2 x T64201 - Ø16mm locating pin
- 2 x PT07K - Inserta pliers 60mm opening Max. 50mm reach
- 2 x PT09K - Inserta pliers 85mm opening Max. 75mm reach
- 2 x UDN6150 - Inserta clamp 150mm opening 83mm reach 16 x 8mm (D Rail) T-handle
- 2 x T64217 - Magnetic top V pads for inserta pliers and inserta clamps
- 2 x TCX6210 - Side clamp 38mm stroke
- 4 x T64203 - Stop Ø25 x 38mm
- 4 x T64205 - Stop Ø25 x 50mm
- 8 x T64216 - V-Block Ø40 x 23mm
- 4 x T64211 - V-Block spacer Ø40 x 27mm
- 8 x T60630 - D-Stop bar 120 x 25 x 11.5mm
- 12 x T50737 - Magnetic rest button Ø40 x 11.5mm
- 2 x T60304 - Right angle bracket 41 x 91 x 30mm
- 2 x T60305 - Right angle bracket 91 x 91 x 30mm
-
- 1 x Backing panel with square holes to suits hooks & holders
- 5 x Plastic buckets
- 1 x Bucket holder
- 10 x Single prong hooks
- 5 x Double prong hooks



Specifications:
ORDER CODE: W07705
MODEL: TDQ612075-K1
Table Top Finish: nitrided black oxide
Table Top Size (mm): 1200 x 750
Table Height (mm): 910
Table Side Height (mm): ~
Top Plate Thickness (mm): 16
Grid Pattern (mm): 50 x 50
Table Hole Diameter (Ø): 16mm
Table Slots: ~
Static Load Capacity (kg): 700
Total W.L.L. (kg): ~
Number of Legs: ~
Nett Weight (kg): 195
