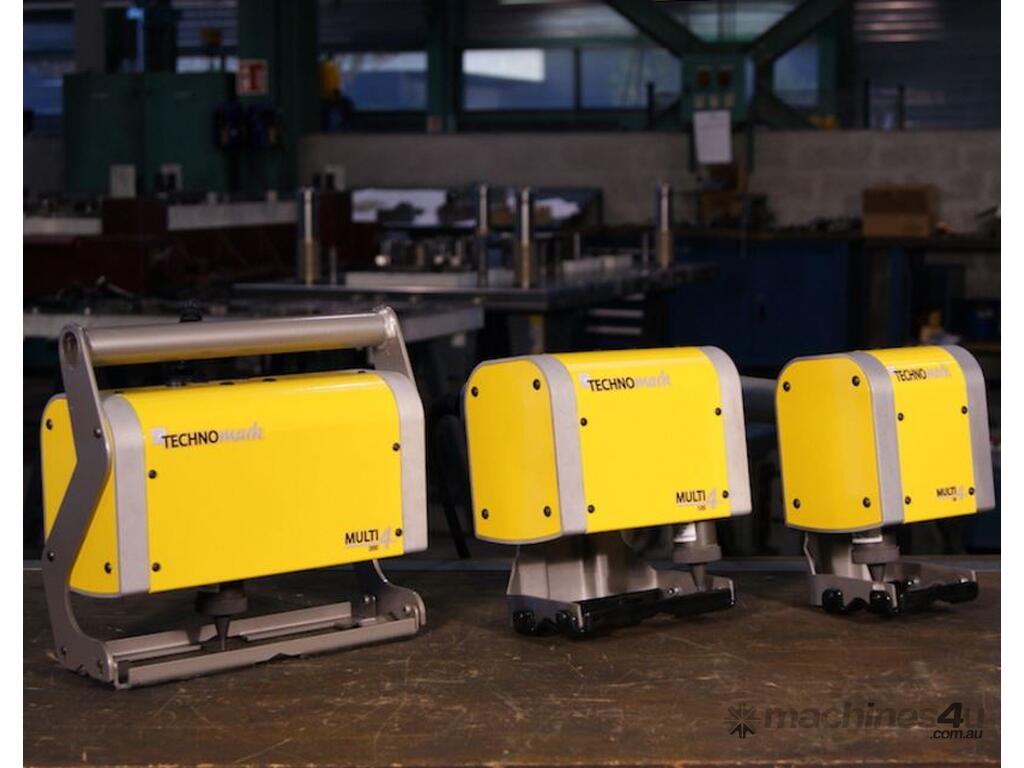

TECHNOMARK MULTI-4 Dot-Peen Marking Machine

Portable or Bench model in stock complete.

Technomark are the world leader for part number marking machines. You can use the Multi-4 as a fixed or benchtop marking machine or as a completely mobile & portable marking machine

*** 1 PRODCUT - 4 CONFIGURATIONS ***
1. Bench – For very small to medium sized parts.
2. Hand held – Ideal for large and cumbersome parts.
3. Combo – Adapted to all parts and all needs
4. Integrated – Compact, it can be easily integrated into production lines.

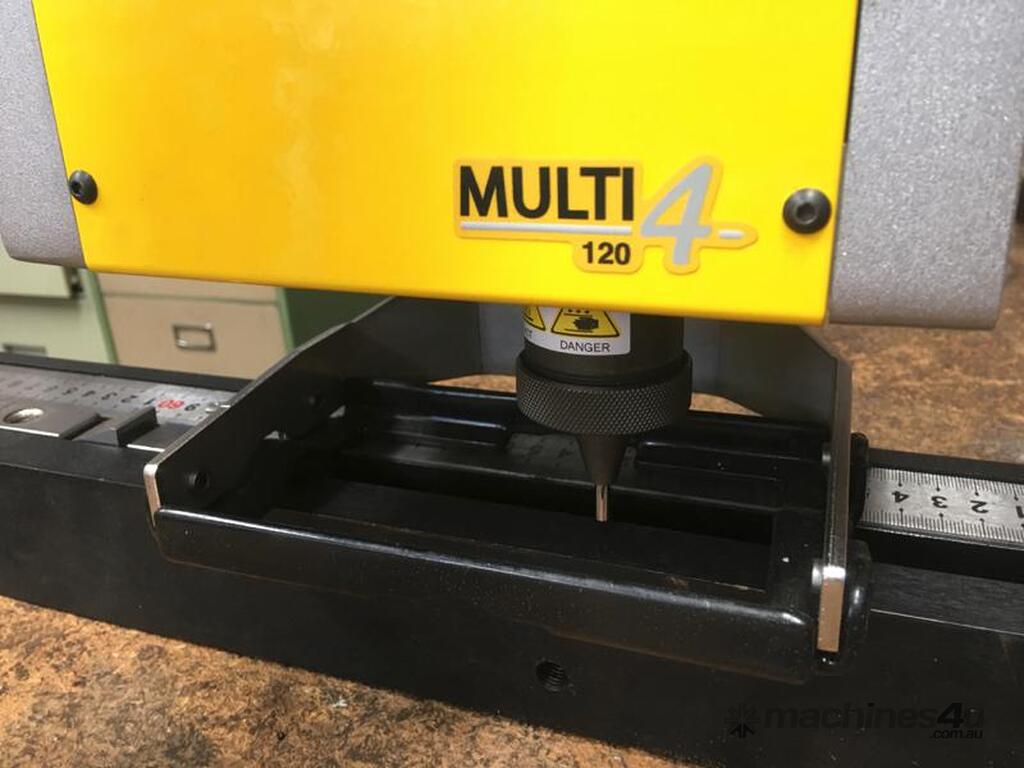

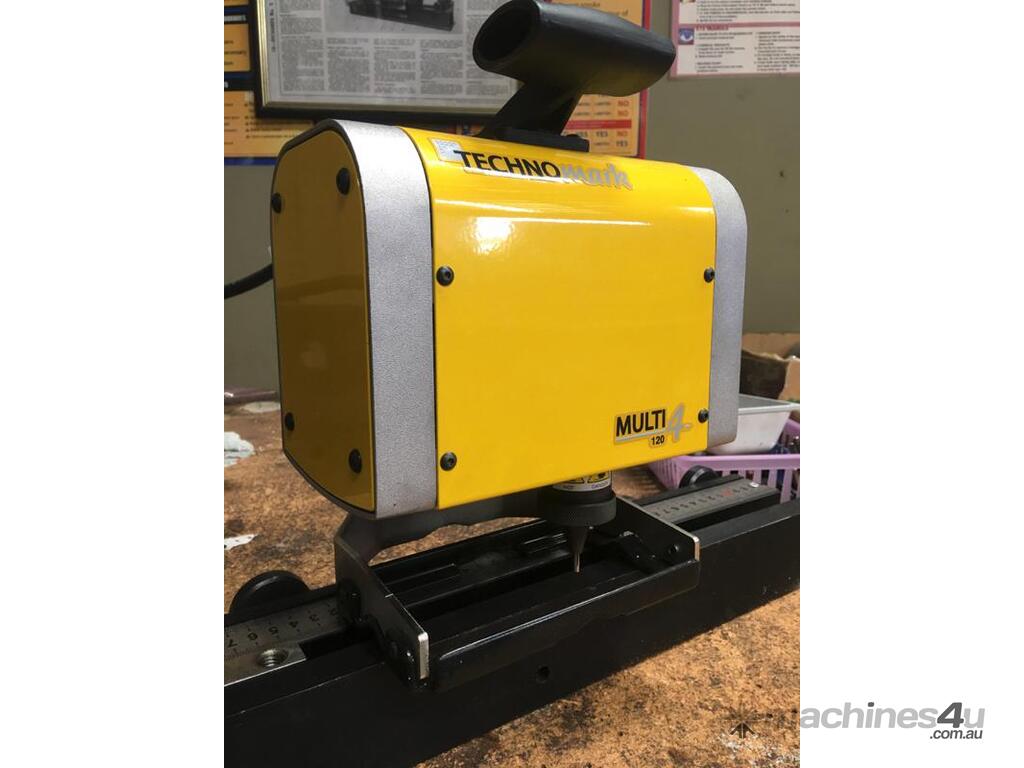

MULTI4 Bench
Precise, accurate and easy to use, the dot peen marking machine MULTI4 Bench is ideal for marking parts in a fixed position.
For very small to medium sized parts.
Marking layouts or files can be created and marked in seconds.
With the standard marking functions provided, marking errors are greatly reduced or eliminated.
The Bench model is an ideal system for marking simple or complex components in batches or longer runs.

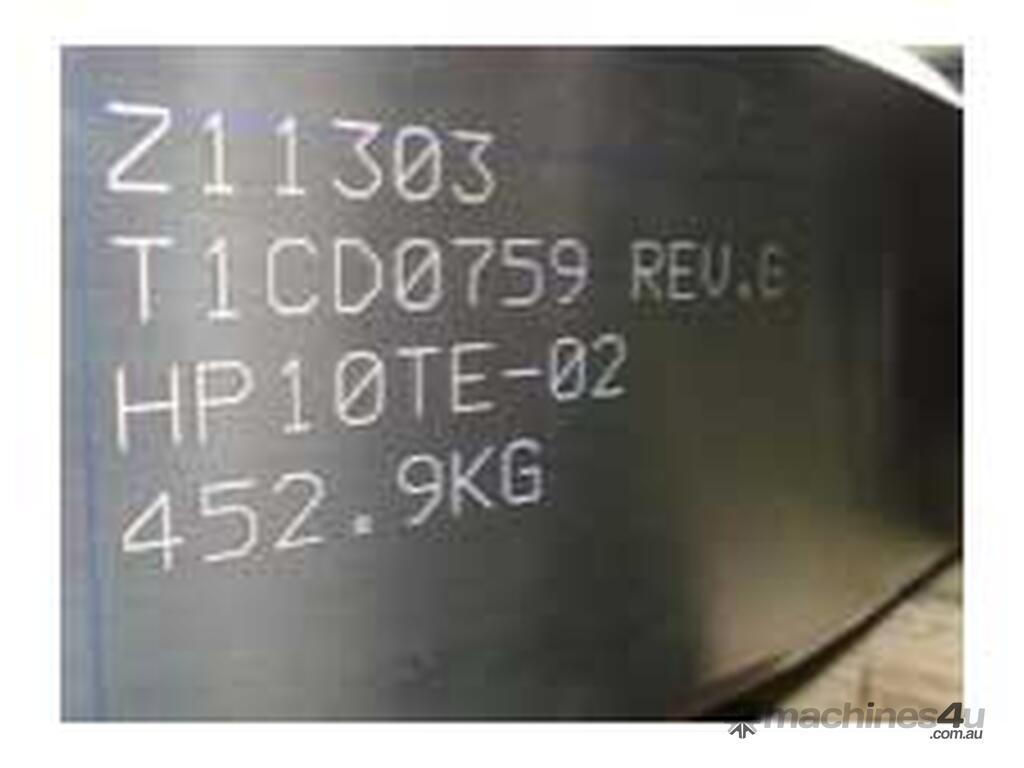

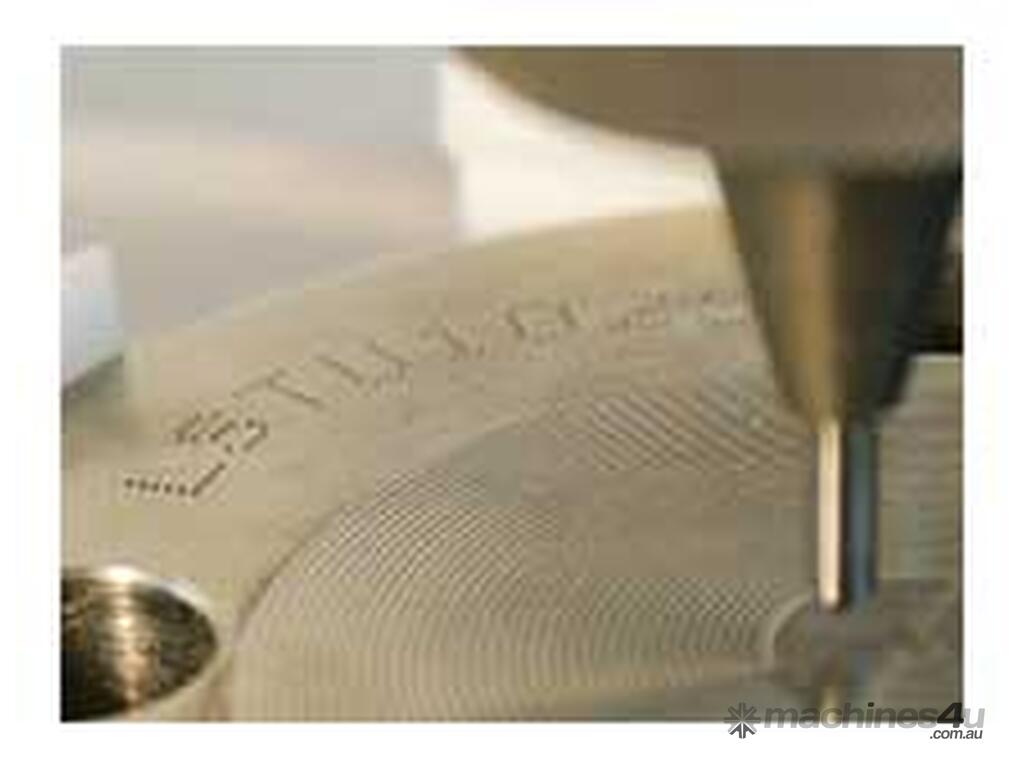

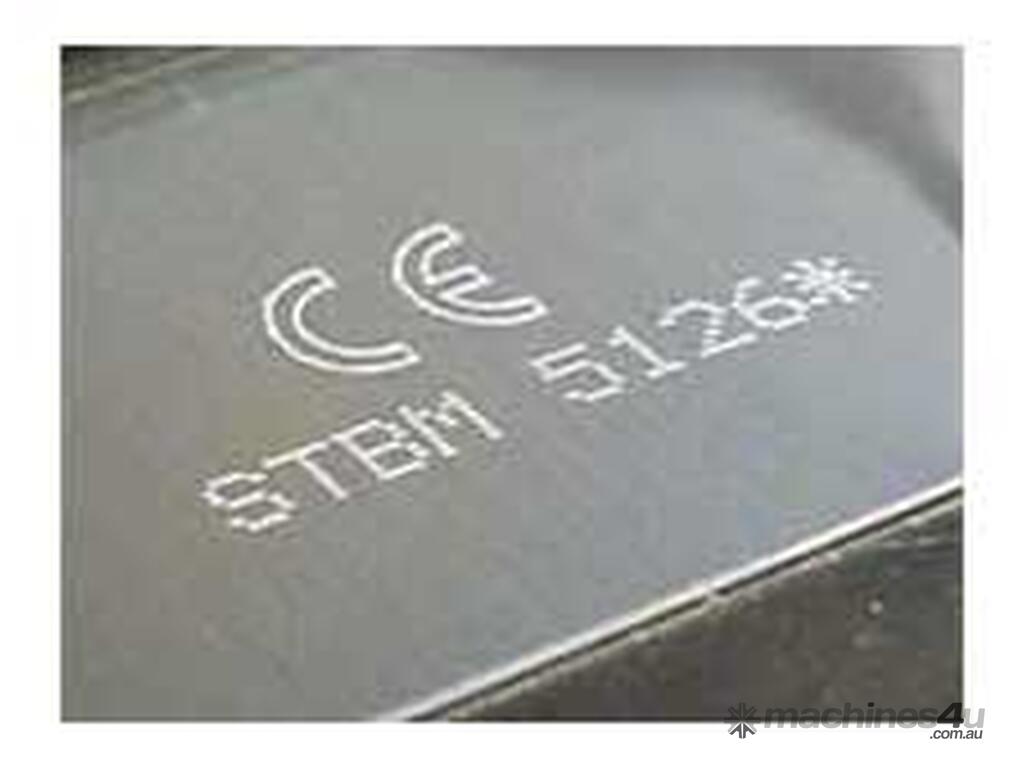

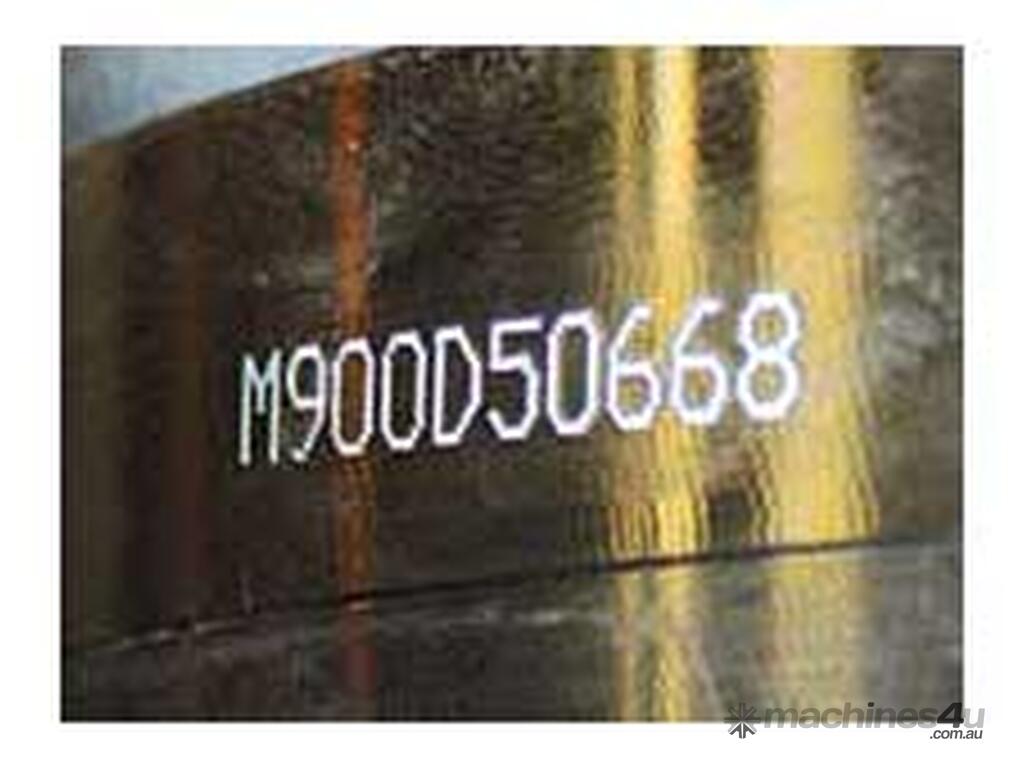

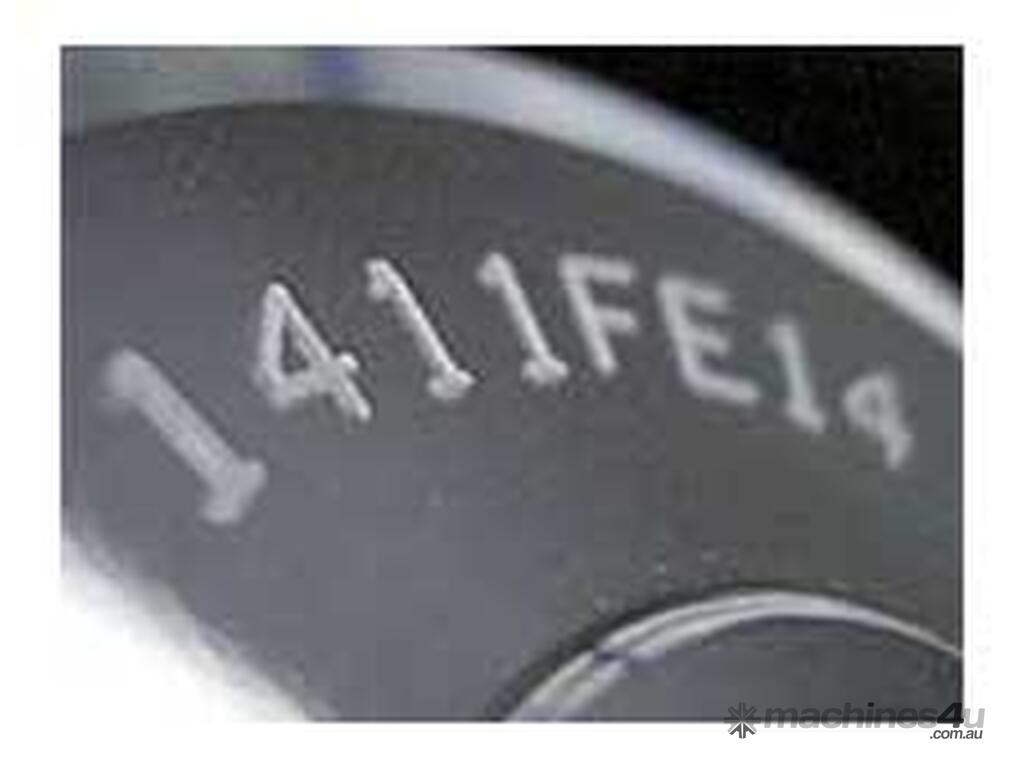

The marks are clean, accurate and permanent.

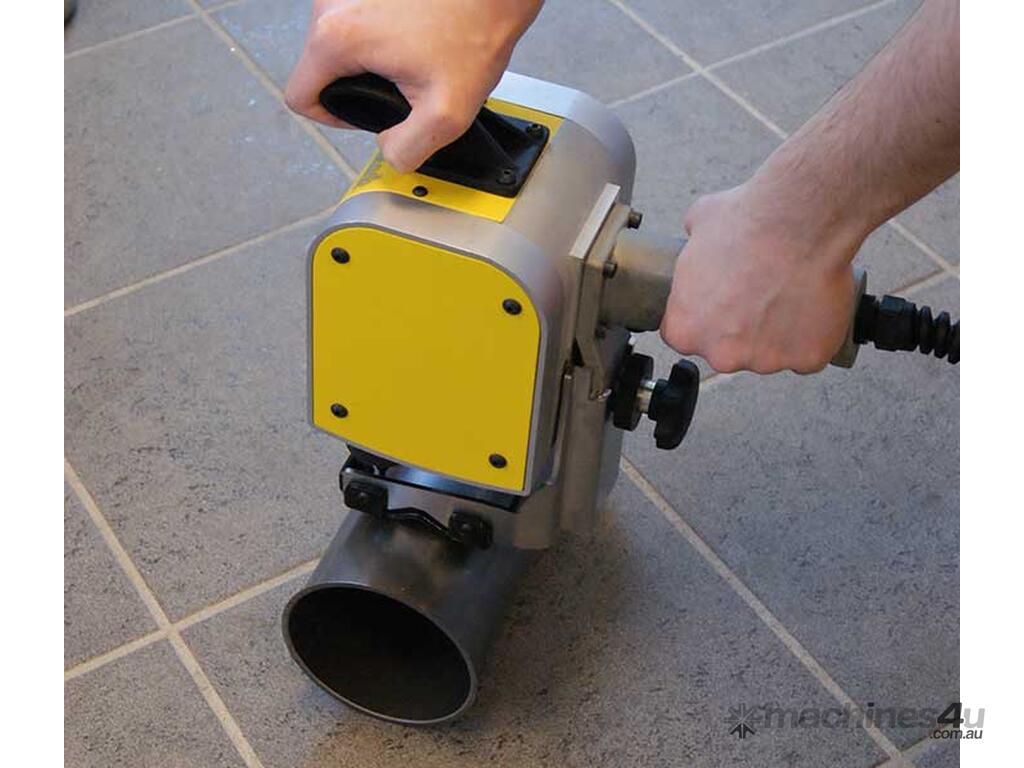

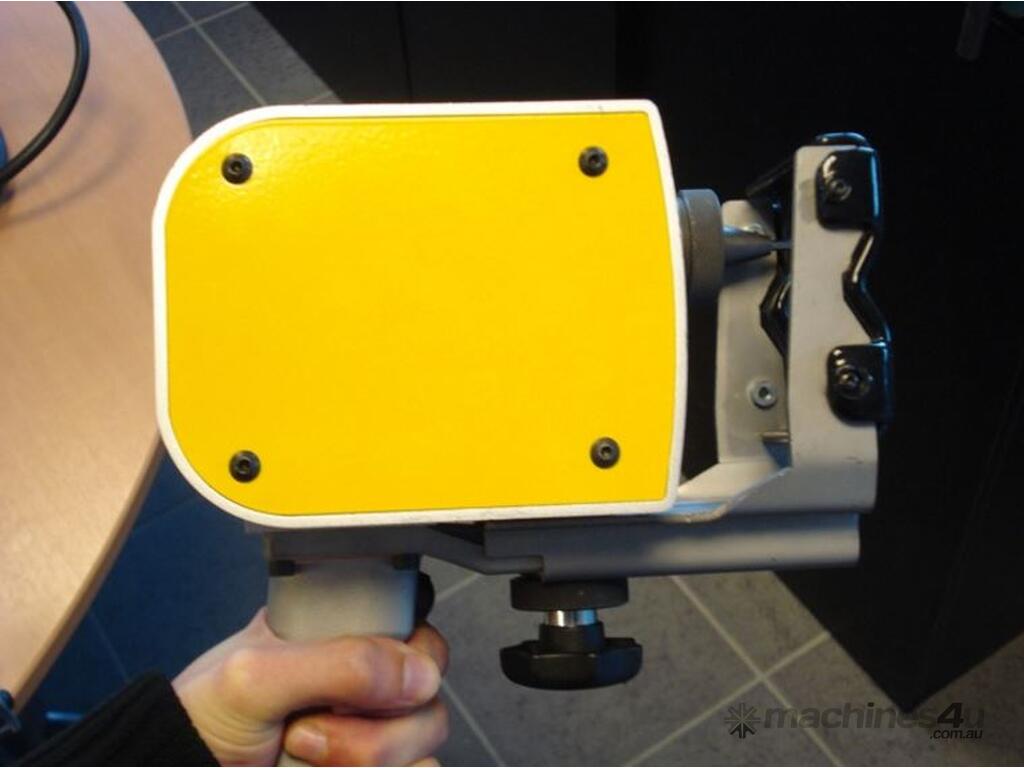

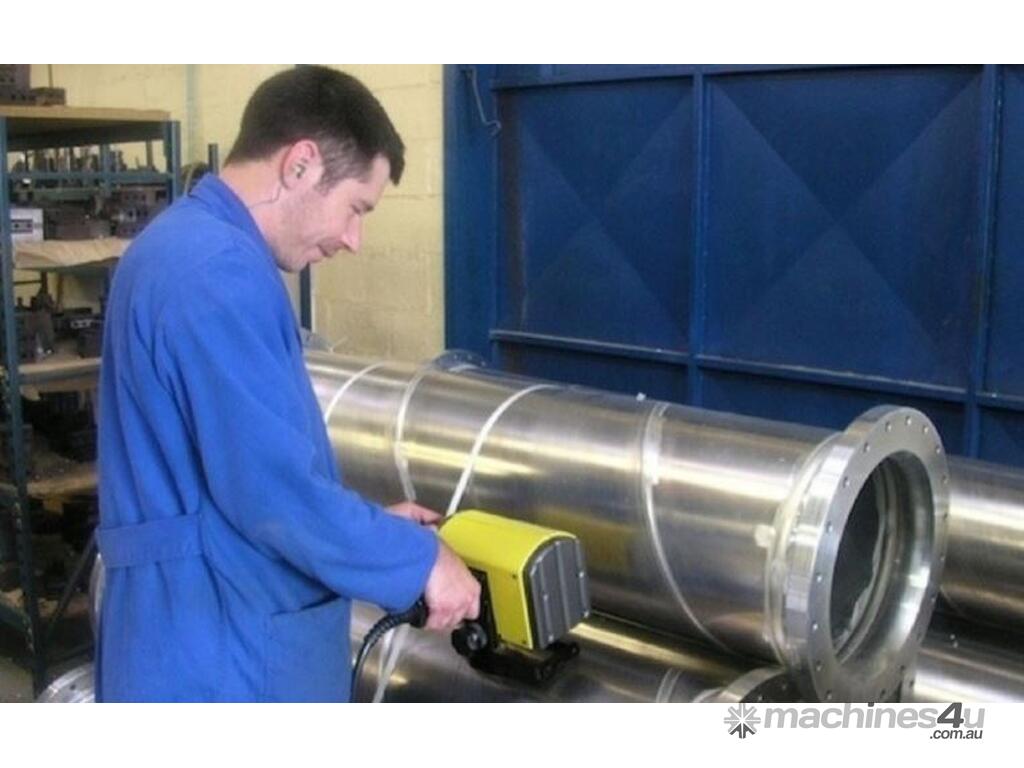

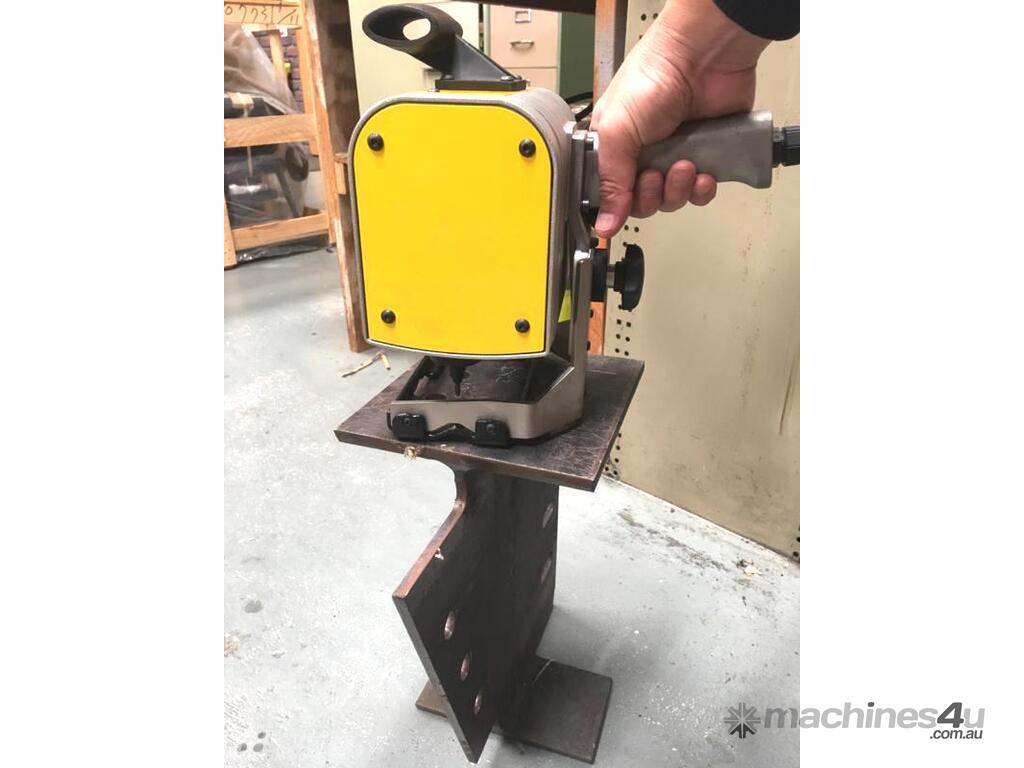

MULTI4 Hand held
To provide greater mobility to each operator, Technomark designed a hand held model
Ideal for large and cumbersome parts.
Fully designed, the hand held model is perfect for dot peen marking large parts and surfaces difficult to reach.
With its ergonomic design, it mark perfect quality characters in all positions.
Robust and very compact, it can be used in a workshop, or outdoors, for marking parts of medium and large sizes.

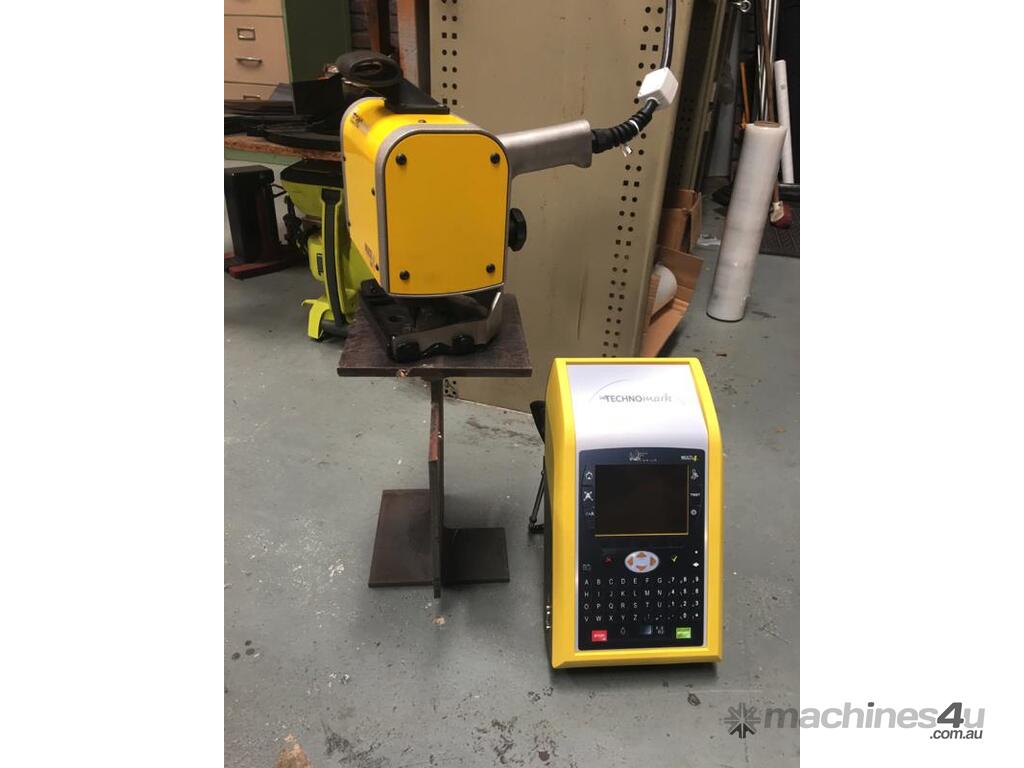

MULTI4 Combo
Within seconds, the bench model can be converted into a hand held gun model. Its implementation is easy and fast.
Adapted to all parts and all needs.
It allows the marking of all types of parts from the smallest to the largest.
Polyvalent, flexible and convivial, the MULTI4 Combo dot peen marker combines two models: the bench and the hand held model.
The bench configuration is ideal for marking parts in a fixed position.

MULTI4 Integrated
Reliable, flexible and compact, the MULTI4 Integrated can be easily integrated into semi automated or fully automated production lines.
Compact, it can be easily integrated into production lines.
The marking solution is operated by an external control unit, optional Ethernet communication and I/O control, for setting inputs and outputs from external equipment.
Productive, the integrated configuration can mark several characters per second.
The use of industrial improved components testify the reliability of MULTI4.

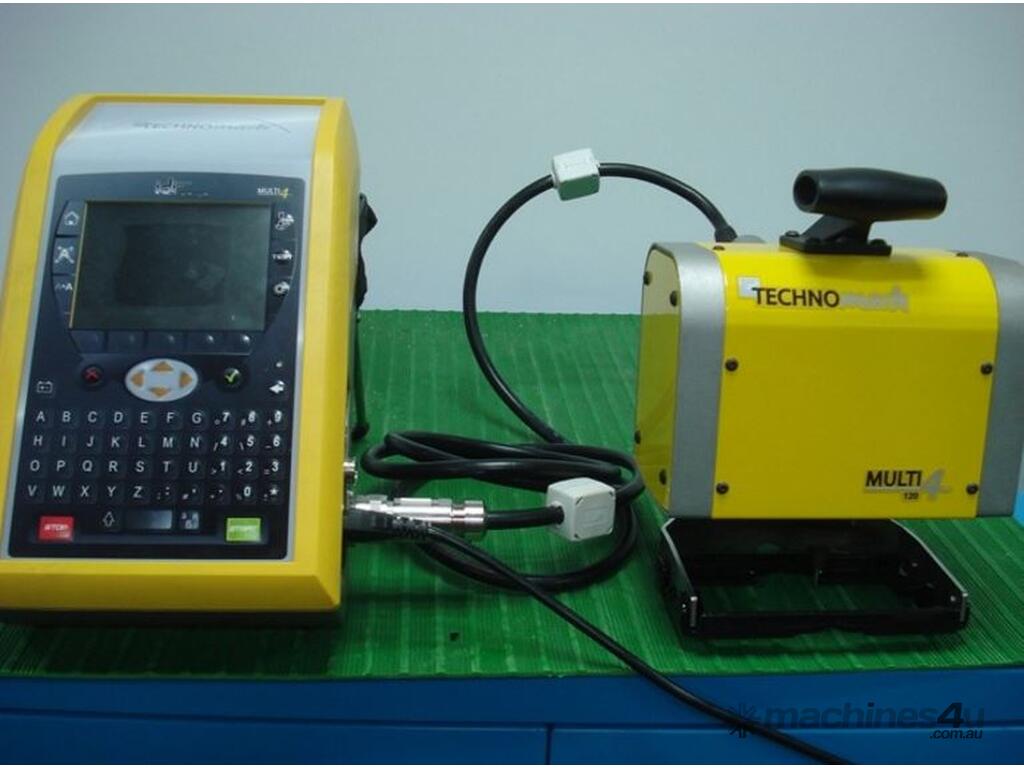

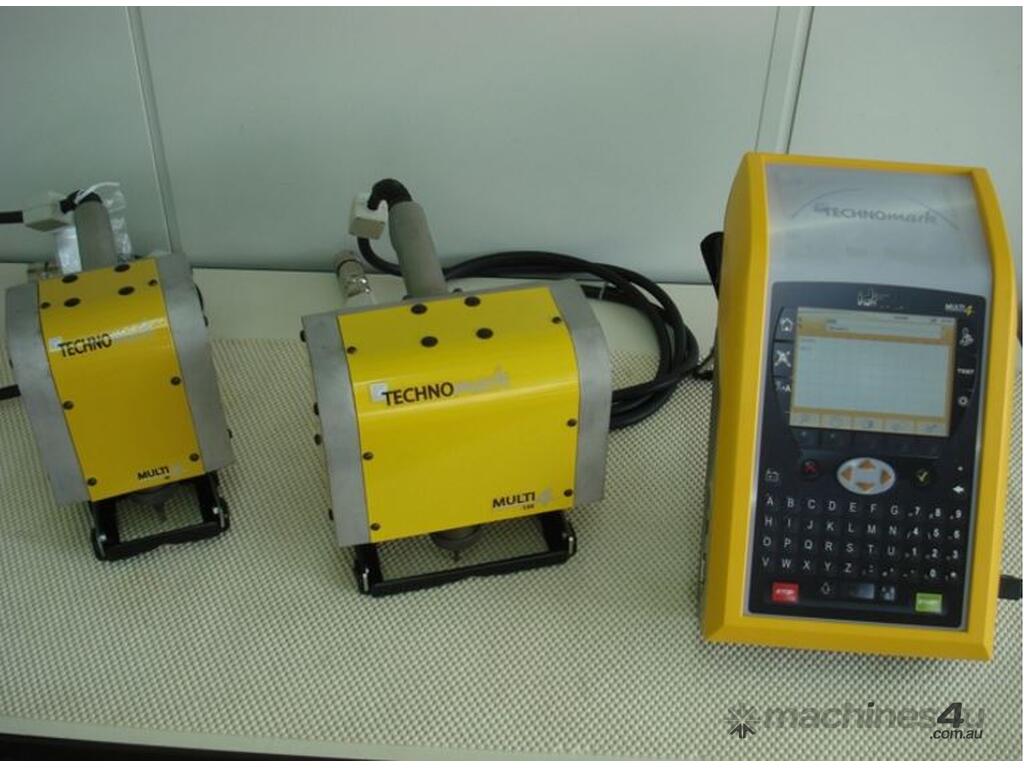

MULTI4 unit control
High resolution (640x480px) colour screen with icon based navigation
Intelligent handling of the marking
RS232 connection , 3 Inputs / Outputs
2 USB: device port & HOST

SPECS:

Model Marking Window
Multi-4 Compact 50 x 60 mm
Multi-4 Standard 120 x 60 mm
Multi-4 Large 200 x 60 mm
Multi-4 XL 200 x 200 mm

Software Capacity

Alpha-numeric marking
Programmable character size
Discrete dot marking or continuous line fonts
Marking at angles, circular, straight line, mirror and italic marking

Optional Equipment

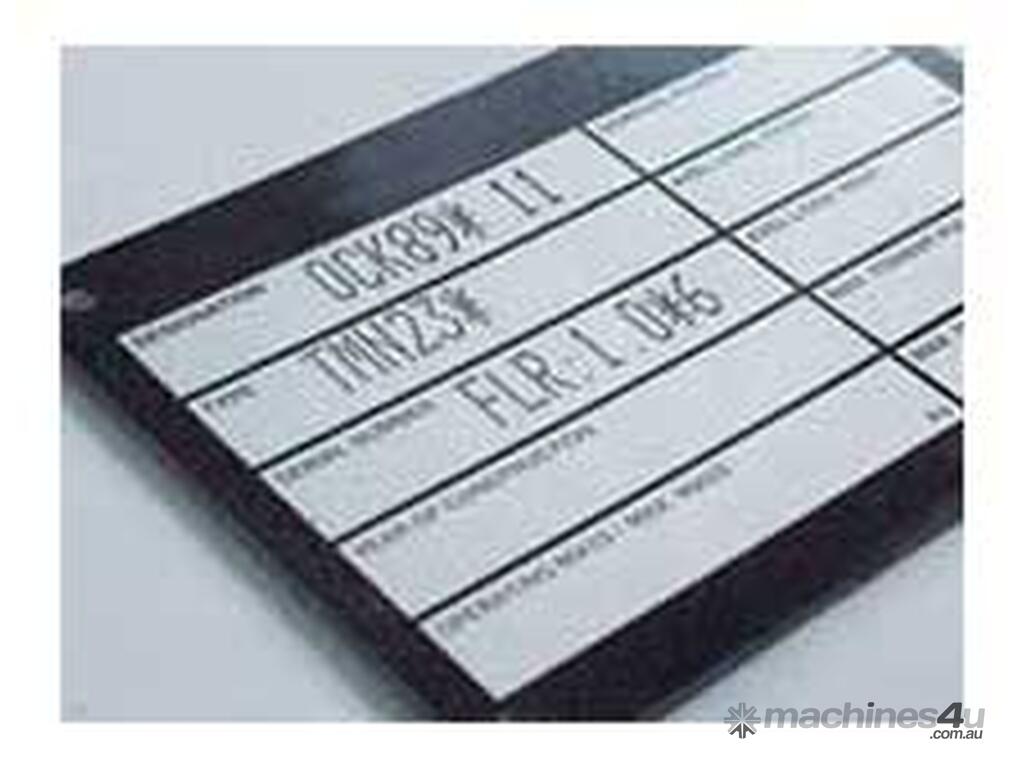

Automatic tag feeder
Tag fixture (manual)
Magnetic plate
Remote start pedal or box

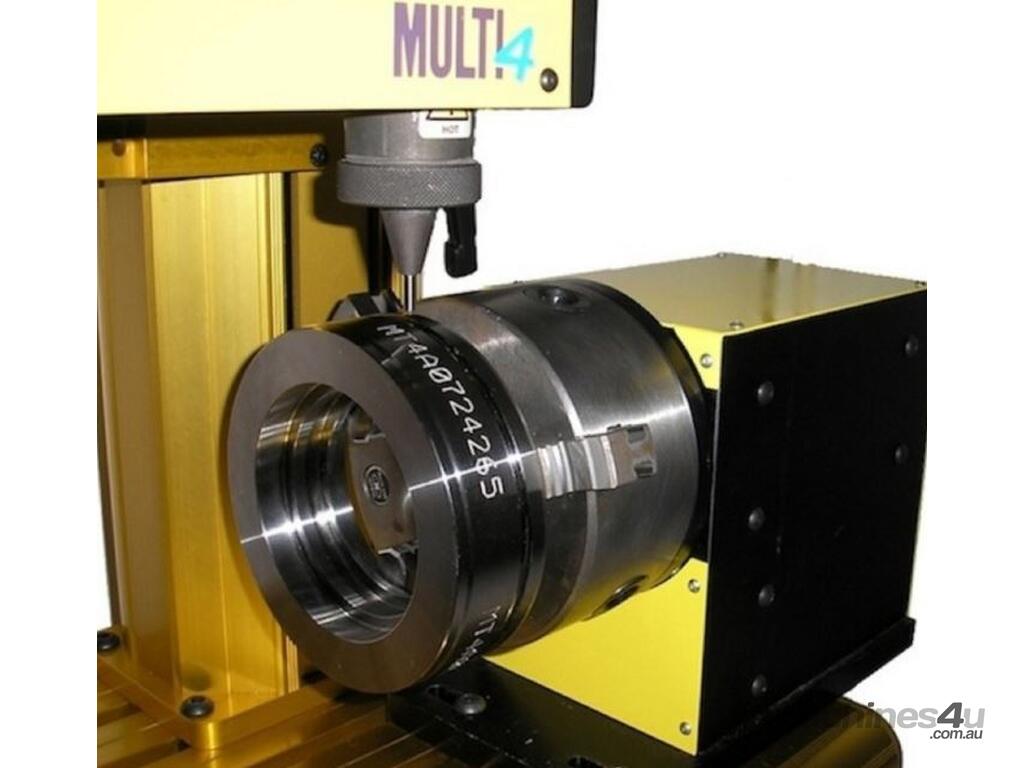

Rotary D-axis
Autosense
Electric Z-axis
Bar Code readers

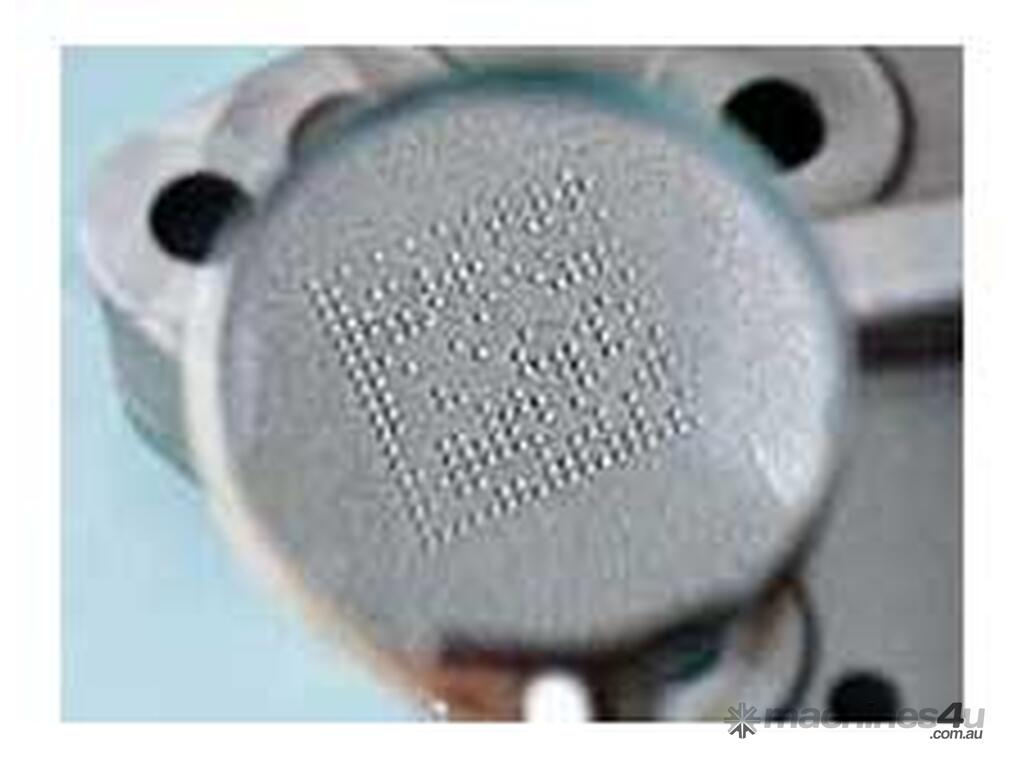

Reading and verifying systems for 2-D Data Matrix codes
Transport trolley

Optional Software Features

Logo marking >> TechnoLOG

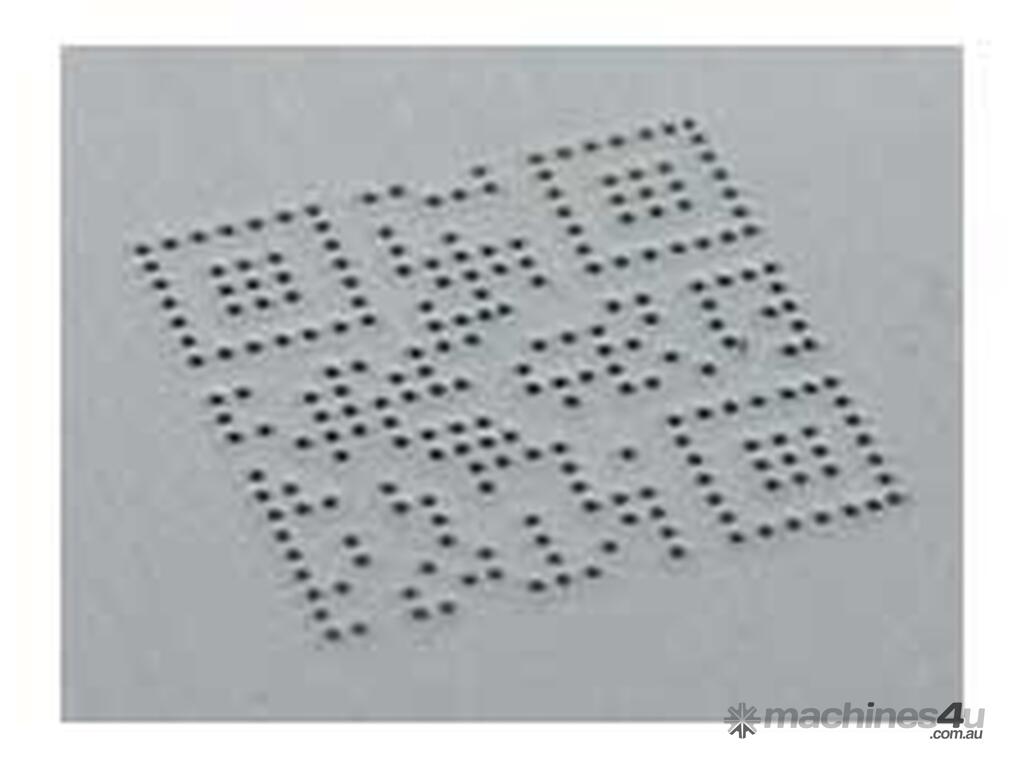

2-D Data Matrix >> TechnoMATRIX
Marking history and production follow-up >> TechnoPROD
PC programming and file transfer >> TechnoSAVE
Use with Windows operating system >> TechnoWINDOWS

Many machines in stock - demo available

RING FOR BEST PRICE AND DELIVERY
