TH745 WACKER NEUSON TELEHANDLER inc. Pallet Forks

Wacker Neuson

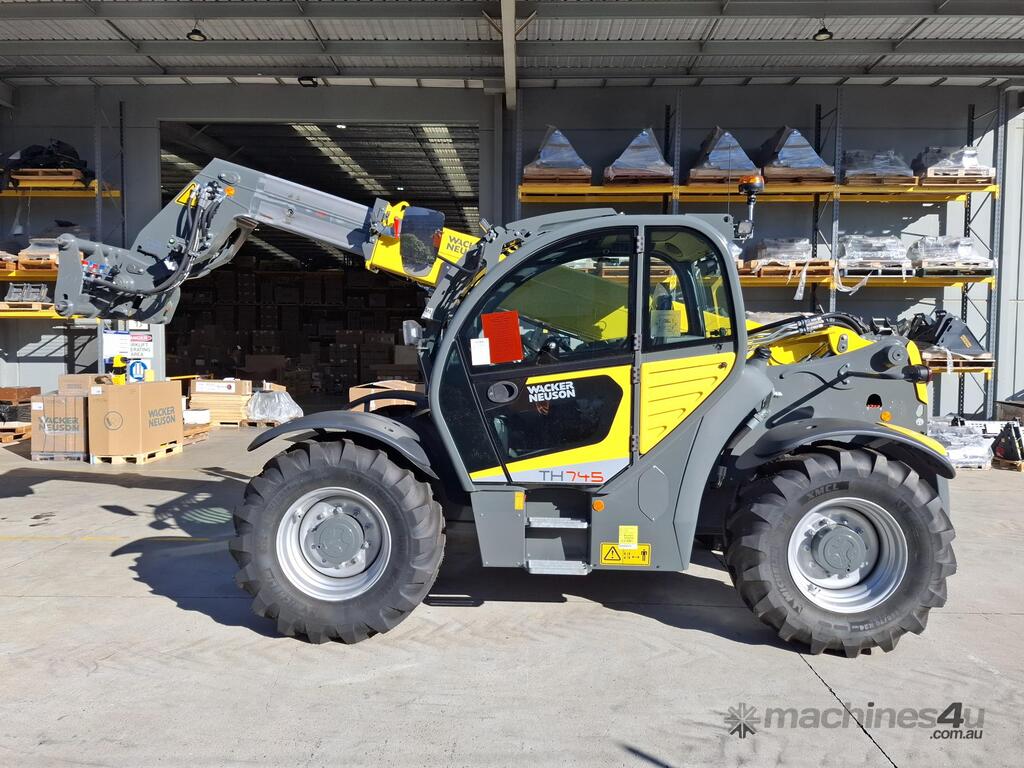

TH745 - Telehandler inc. Pallet Forks
SKU .01

The TH745 telehandler packs a powerful punch with its multifunctional joystick that controls 16 functions, comfortable ergonomic cabin, excellent visibility, and low noise levels. Plus, its extra-high stacking height of 7.017 m and 4.5 ton payload make it an ideal choice for any job site, day or night - illuminated joystick and switches ensure continued productivity after dark.

SPECIFICATIONS

Lift Height Max.: 7,017mm
Weight: 9,000kg
Turning radius over tyers: 4,240mm
Engine Manufacturer: Deutz
Engine Performance: 100kW
Displacement: 3,621 cm3
Emission Standards Stage: IV
Sound Emission at the Operators Ear: 79dB(A)
Traction Drive: Wide Angle Hydrostat
Speed (standard): 0 -20km/h
Speed (optional): 0-30 / 0 - 40km/h
Axles: Planetary-steering drive axle
Total pivoting angle: 20 °
Duty Pump: Load sensing
Flow Rate: 140l/min
Pressure: 260 bar
Bucket Capacity: 1.2m³
Total rotation angle of the vehicle carrier: 150 °
Payload: 4,500kg
Light height at max payload: 5,100mm
Payload at max lifting height: 3,300kg
Payload at max reach: 1,500kg
Range at max load: 1,600mm
Range (max.): 3,790mm
Fuel tank capacity: 180l
Hydraulic oil tank: 100l

5 Year/5000hr Warranty
