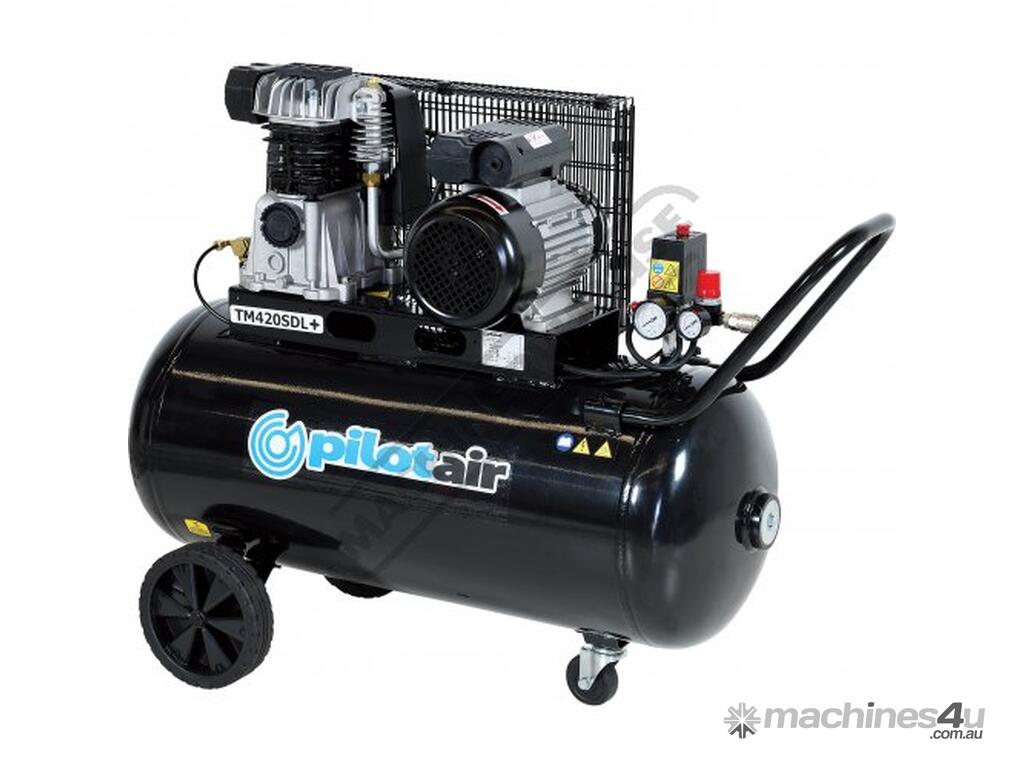

TM420SDL+ Pilot Air Compressor 100 Litre Tank / 3hp 12.9cfm / 365lpm Piston Displacement

PILOT AIR COMPRESSORS TM420SDL+ Pilot Air Compressor 100 Litre Tank / 3hp 12.9cfm / 365lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C5051

The Pilot Air TM+ Series. Built tough for trade and D.I.Y. use.

High standards to ensure reliability and service life.
Rated in accordance with A.C.A.C.A Protocol 2000.

Built with heavy duty components to give the air compressor longer, trouble-free life with less wear & tear. Heavy duty twin cast iron cylinder compressor pump.
Features include high pressure, high temperature resistant flexible discharge hoses, heavy duty wheels, heavy duty lifting handles and electric motor overload protection in a compact design.

Features:
High performance heavy duty componentry ensures reliability and longevity
Oversize twin cylinder pump de-rated for ultra long life & reliability
Twin cast iron cylinder compressor pump
Air receivers to Australian Standards – suitable for workplace use
Pressure Regulator fitted as standard
Industrial grade hammer-tone enamel finish
Electric motor overload
Warranty: 3 Years on pump 1 Year on all other components


Specifications:
ORDER CODE: C5051
MODEL: TM420SDL+
Drive Type: V-Belt
Piston Displacement (CFM / LPM): 12.9 / 365
Free Air Delivery (CFM / LPM): 9.05 / 256
Cylinders (Type): Twin
Max. Pressure (kPa): 1000
Max. Pressure (PSI): 145
Air Receiver Tank Size (Litre): 100
Motor Speed (rpm): 2800
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 90
