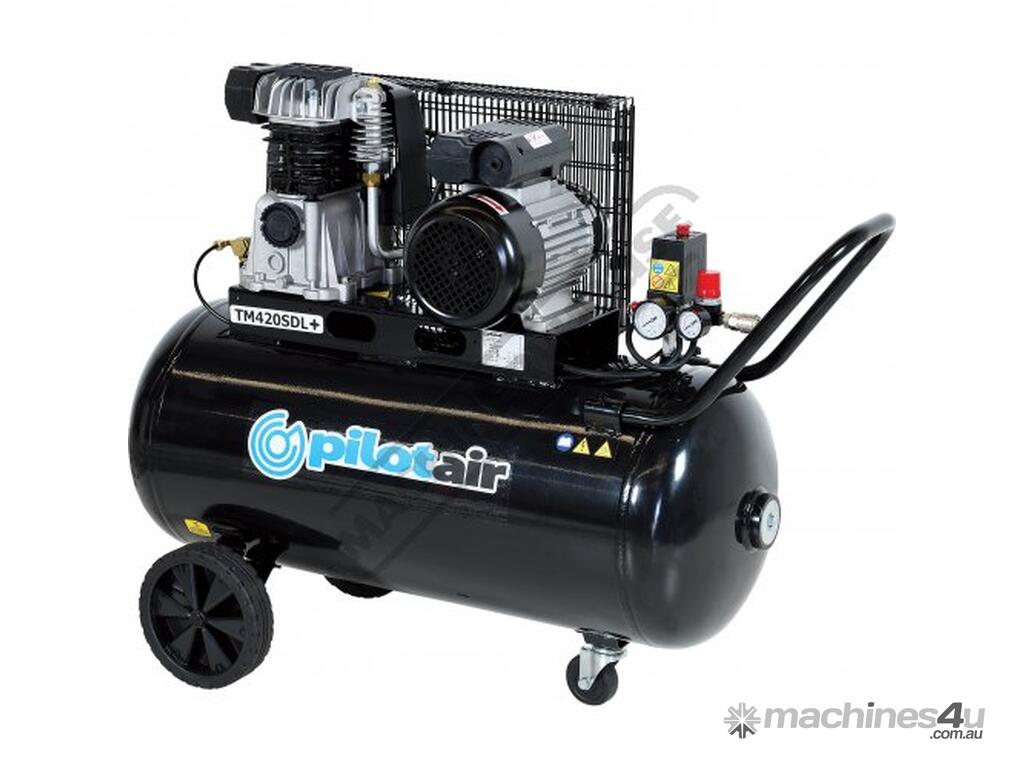

TM420SDL+ Pilot Air Compressor 100 Litre Tank / 3hp 12.9cfm / 365lpm Piston Displacement

PILOT AIR COMPRESSORS TM420SDL+ Pilot Air Compressor 100 Litre Tank / 3hp 12.9cfm / 365lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C5051

The TM420SDL+ Trade Series 240V Reciprocating air compressor is built tough for trade and D.I.Y. use. Built with heavy-duty componentry, this system offers a compact design, high performance, system reliability and a long service life.

With a twin cast iron cylinder and Italian-designed pump, the TM420SDL+ Trade Series 240V Reciprocating air compressor features electric motor overload to help protect against motor damage. Suitable for workplace use, the system features oversized pumps for extra efficiency and reliability, plus an air receiver that meets Australian standards and a pressure regulator fitted as standard. A three year compressor pump,one year on all other components Warranty also include.

Features:
High performance heavy duty componentry ensures reliability and longevity
Oversize twin cylinder pump de-rated for ultra long life & reliability
Twin cast iron cylinder compressor pump
Air receivers to Australian Standards – suitable for workplace use
Pressure Regulator fitted as standard
Industrial grade hammer-tone enamel finish
Electric motor overload

Performance Measured to AS4637
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements.
Warranty: 3 Years on compressor pump 1 Year on all other components.
For over 40 years Pilot Air Compressors has been meeting the needs of industry. Ask us about your requirements.


Specifications:
ORDER CODE: C5051
MODEL: TM420SDL+
Drive Type: V-Belt
Piston Displacement (CFM / LPM): 12.9 / 365
Free Air Delivery (CFM / LPM): 9.05 / 256
Cylinders (Type): Twin
Max. Pressure (kPa): 1000
Max. Pressure (PSI): 145
Air Receiver Tank Size (Litre): 100
Motor Speed (rpm): 2800
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 62
