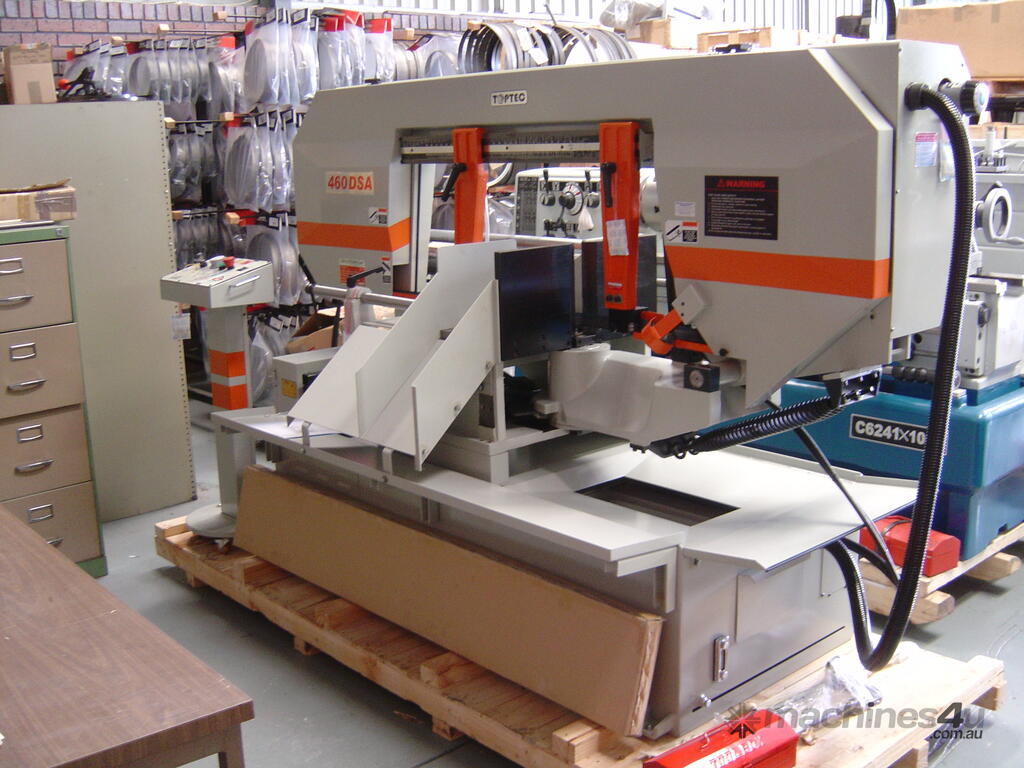

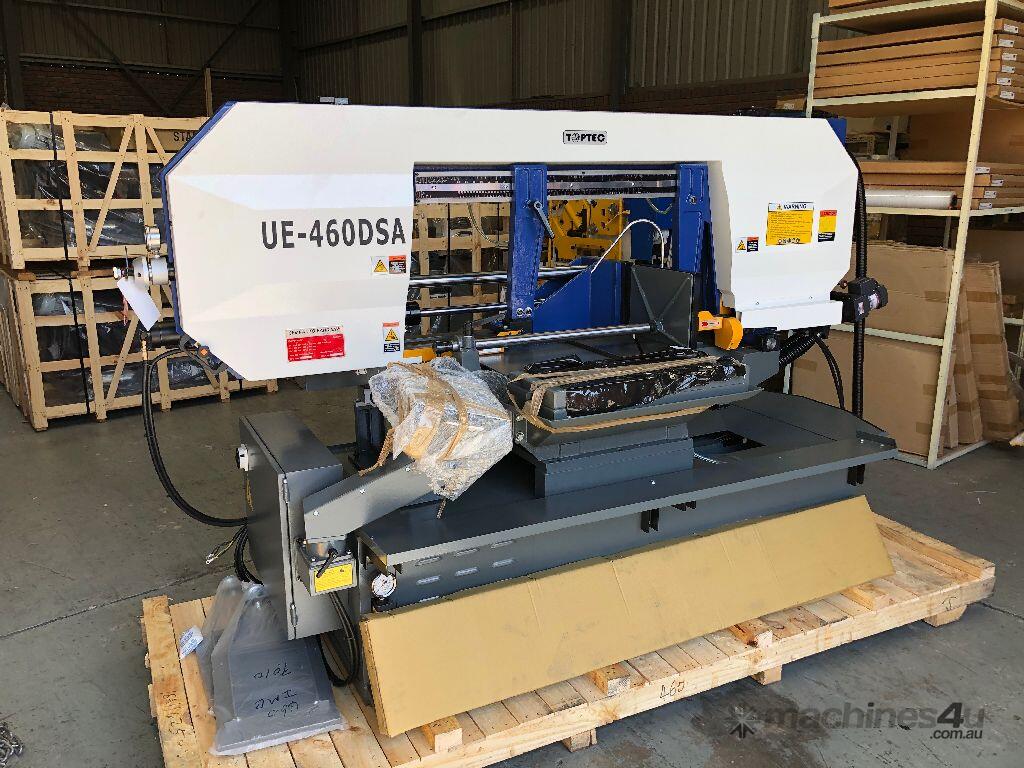

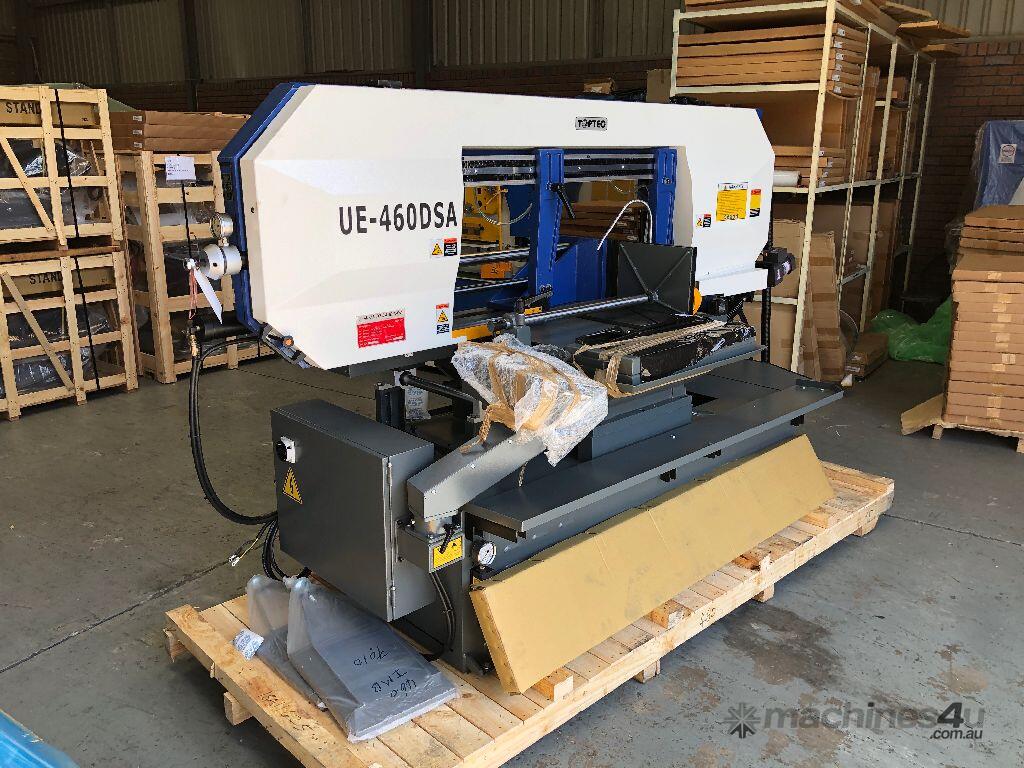

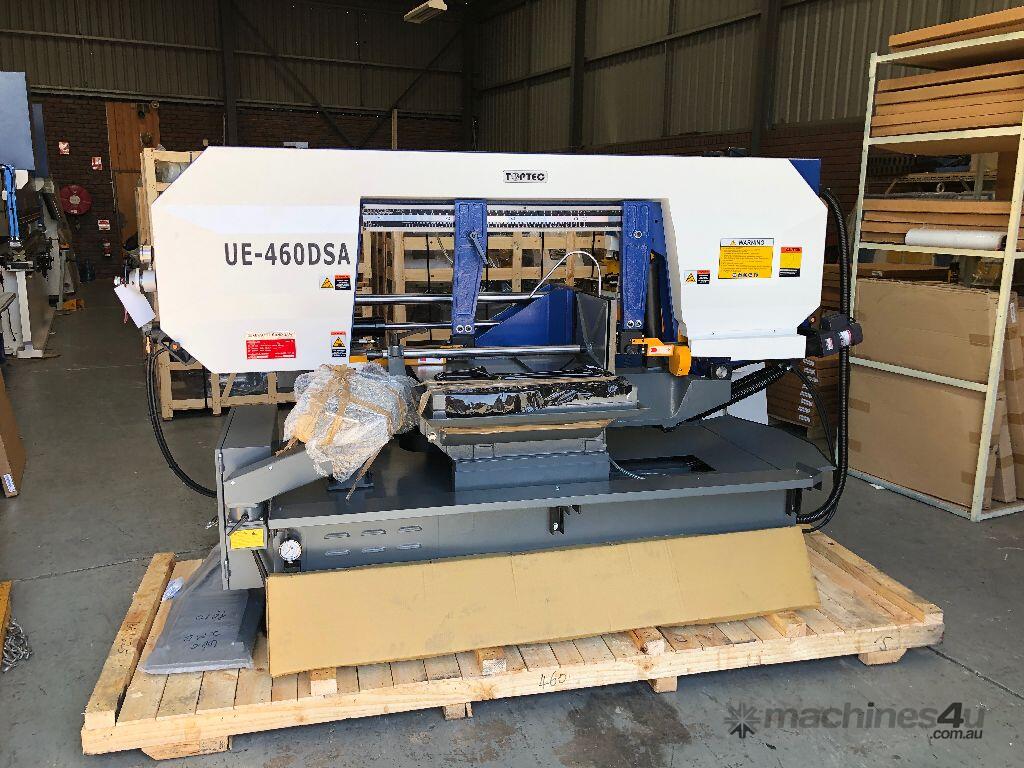

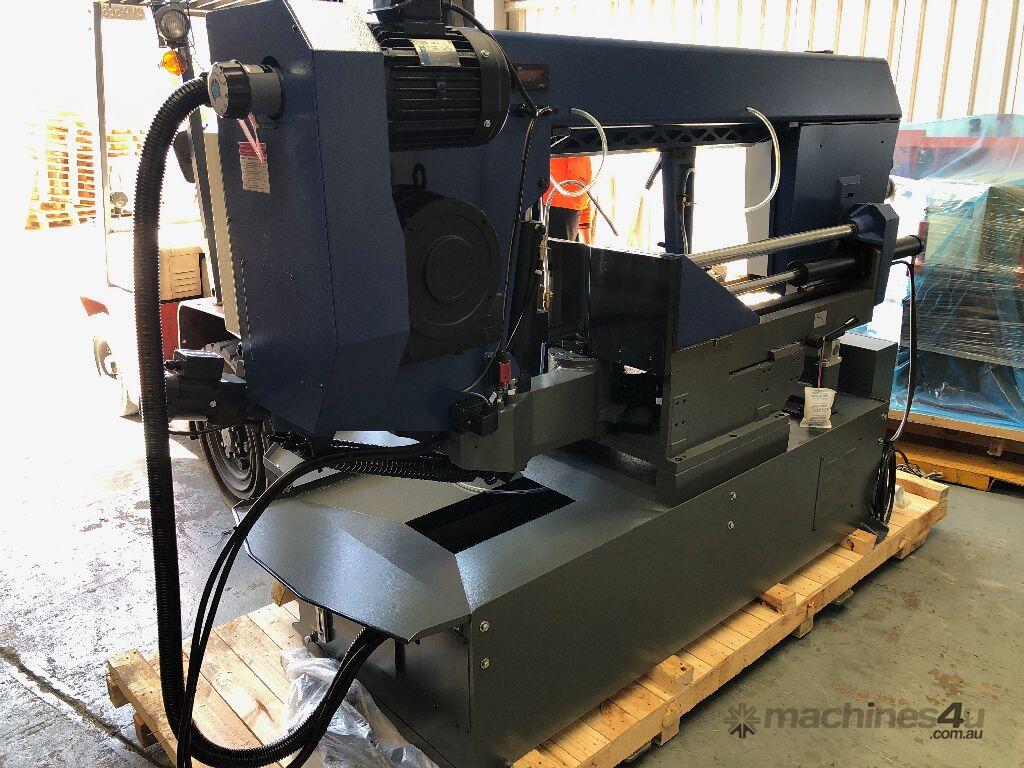

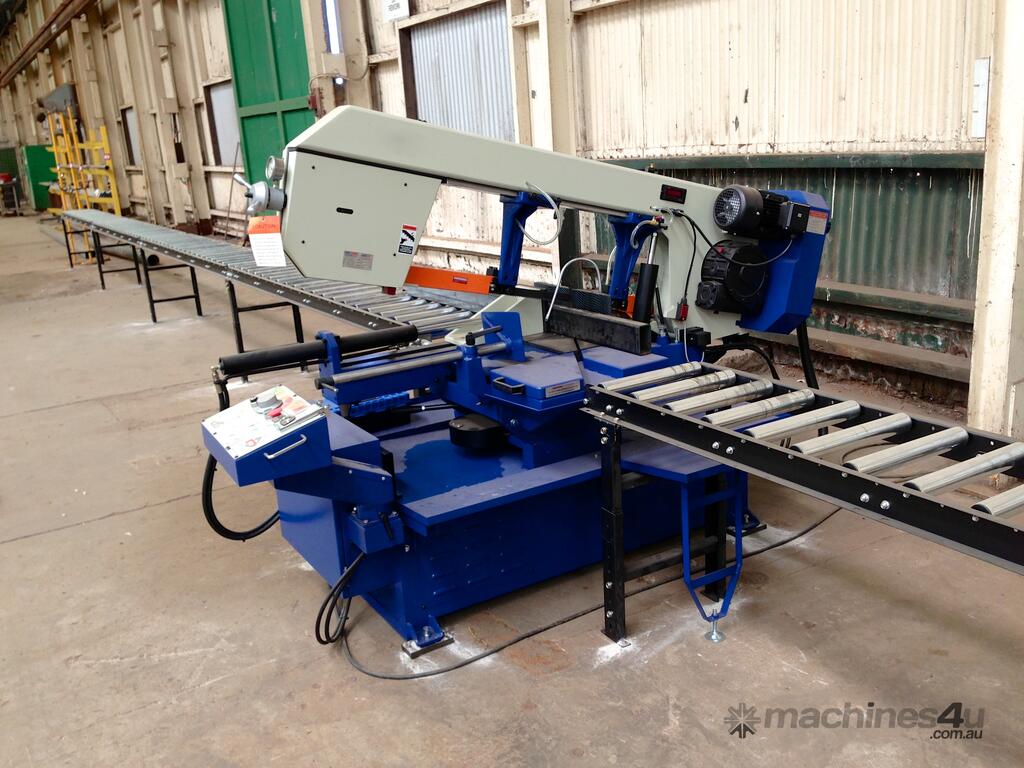

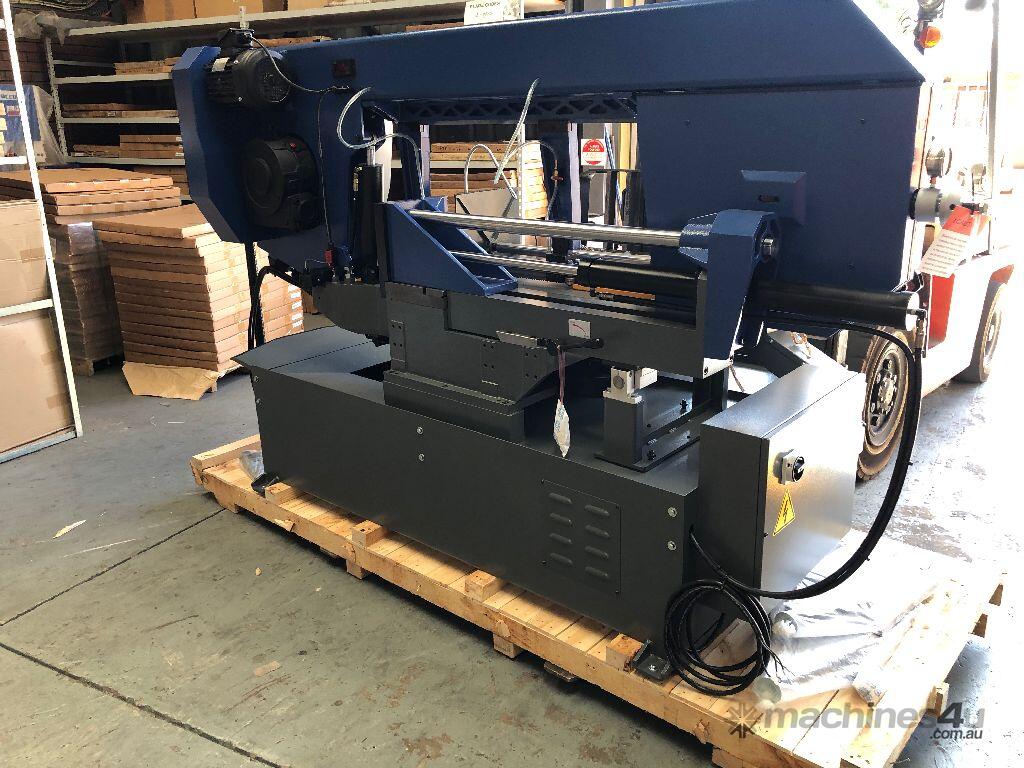

TOPTEC UE-460DSA DOUBLE MITRE BANDSAW

TOPTEC UE-460DSA DOUBLE MITRE BANDSAW – HEAVY DUTY – IN STOCK

Industrial semi-automatic double mitre bandsaw designed for steel fabrication and engineering workshops. The TOPTEC UE-460DSA offers large cutting capacity, reliable hydraulic operation and flexible angle cutting for structural steel and heavy profiles.

Key Specifications

• Round Capacity (90°): 460mm
• Rectangular Capacity (90°): 440 x 600mm
• Capacity at 45°: 445mm round / 445 x 445mm
• Capacity at 60°: 295mm round / 295 x 295mm
• Mitre Range: 60° left and right
• Blade Size: 5330 x 41 x 1.3mm
• Blade Speed: 32 – 96 m/min
• Main Motor: 5HP
• Machine Weight: 1320kg

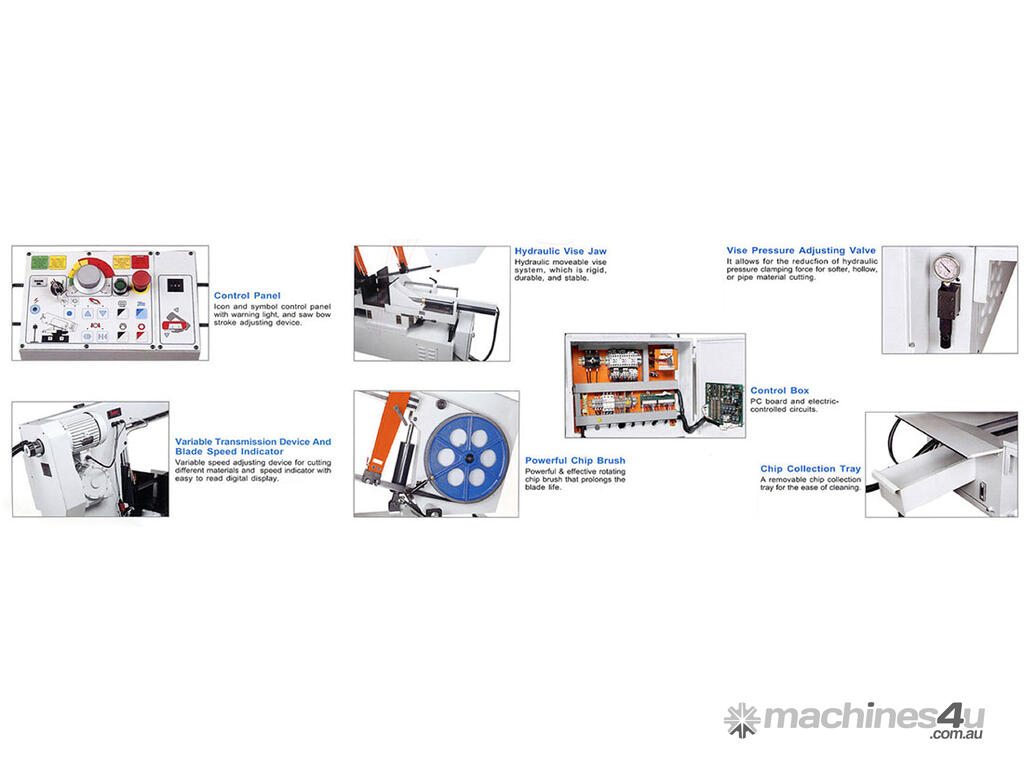

Standard Features

• Double mitre cutting for angle cuts without repositioning material
• Semi-automatic hydraulic cutting cycle
• Hydraulic full-stroke vice for secure clamping
• Manual swivel saw head for accurate angle adjustment
• Vise pressure regulator for consistent cutting force
• Blade tension gauge for correct blade setup
• Powered blade brush to remove chips during cutting
• Blade speed indicator for optimal cutting performance
• Swivel control panel for easy operator access
• Abnormal warning light for monitoring machine status

Ideal for steel fabrication workshops, structural steel cutting and engineering production.

Machine available now. Inspection welcome.

Australia-wide delivery and installation available.
