TORNOS LATHE DECO 2000

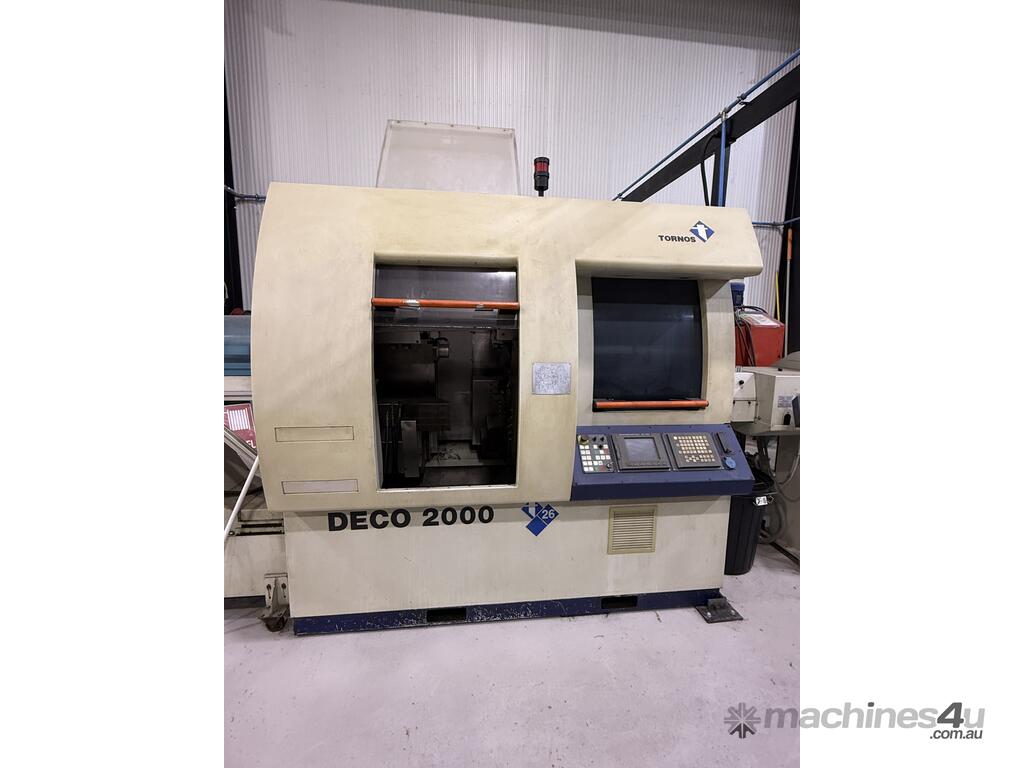

Tornos Deco 2000 – High-Precision Swiss-Type CNC Lathe
The Tornos Deco 2000 is a high-precision Swiss-type CNC lathe, renowned for its versatility in producing complex, small to medium-sized parts. It is widely used across medical, automotive, and electronics industries.

Specifications
Bar Capacity Options: 10 mm, 13 mm, 20 mm, 26 mm

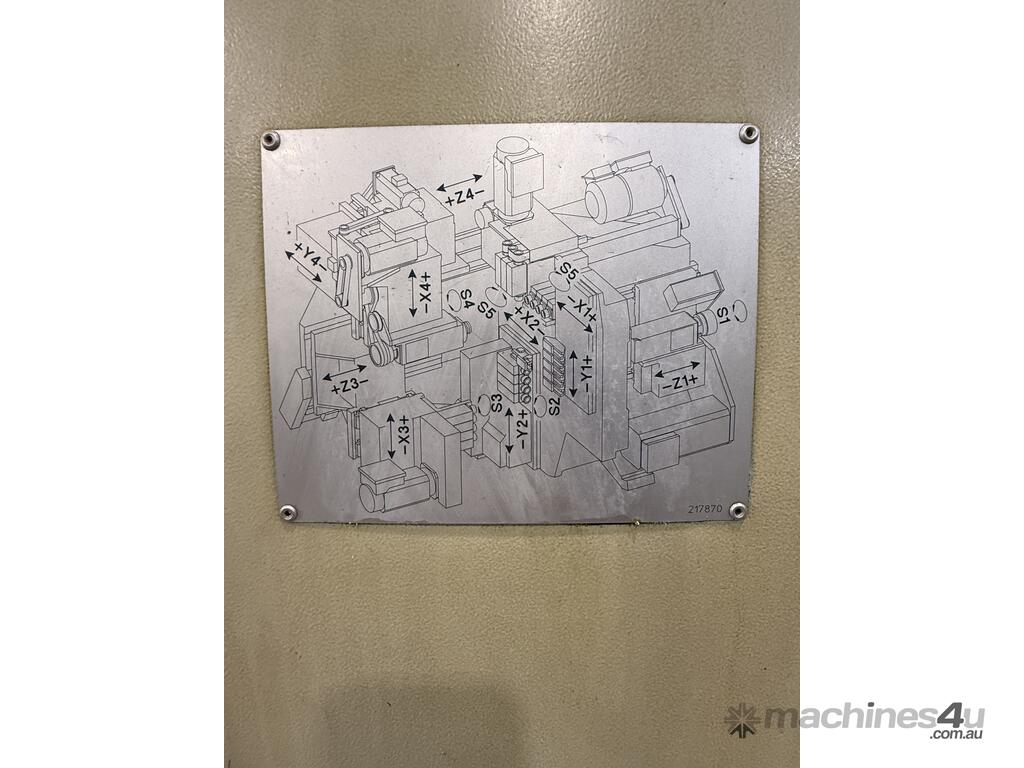

Number of Axes: Typically 10 (including main and sub-spindles, live tools, and counter-operation stations)

Spindle Speeds:

Main Spindle: Up to 10,000 RPM

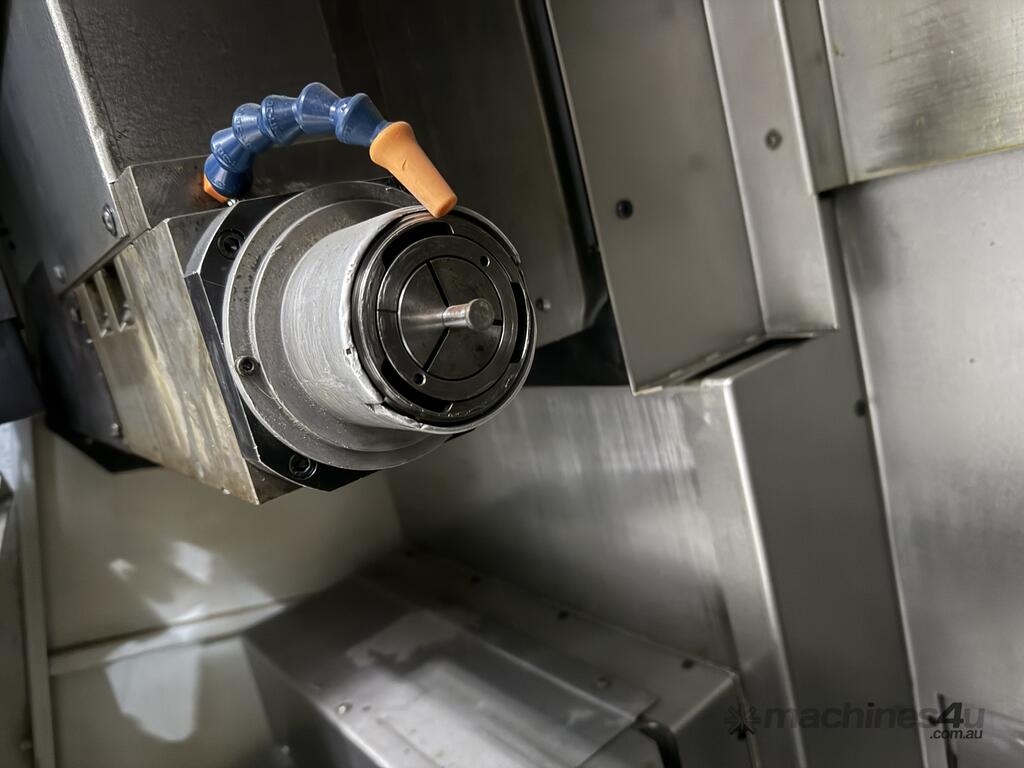

Sub-Spindle: Up to 8,000 RPM

Live Tools: Up to 8,000 RPM

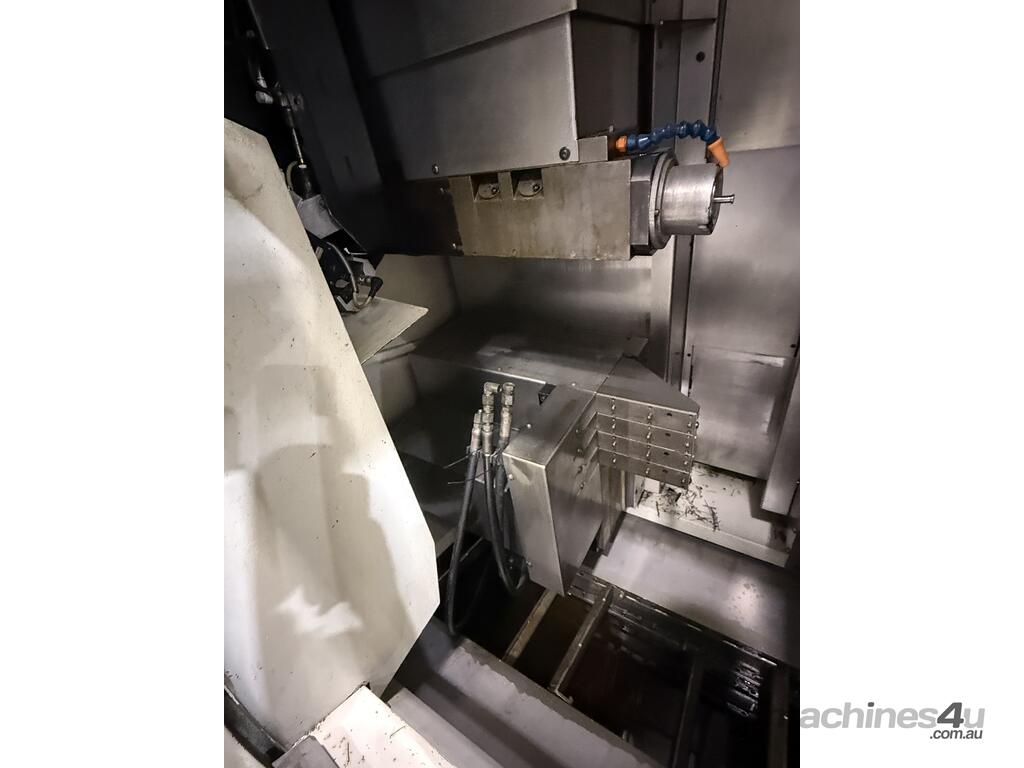

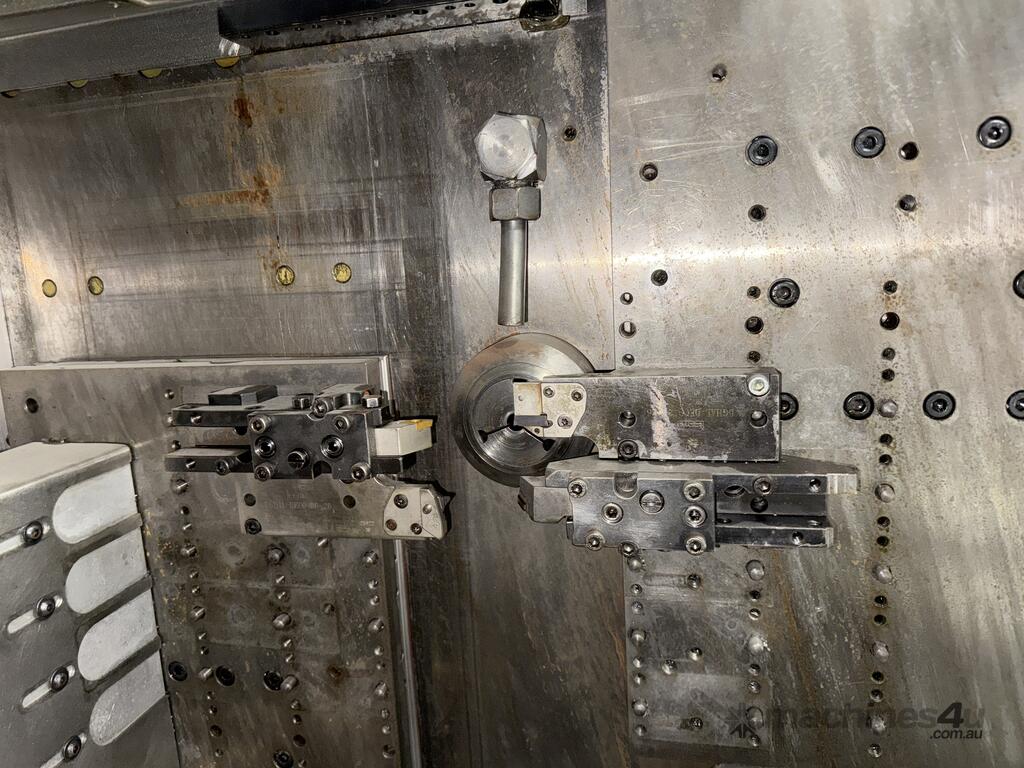

Tooling:
Supports up to 21 tools (turning and live tools)
C1/C4 indexing at 0.1° increments

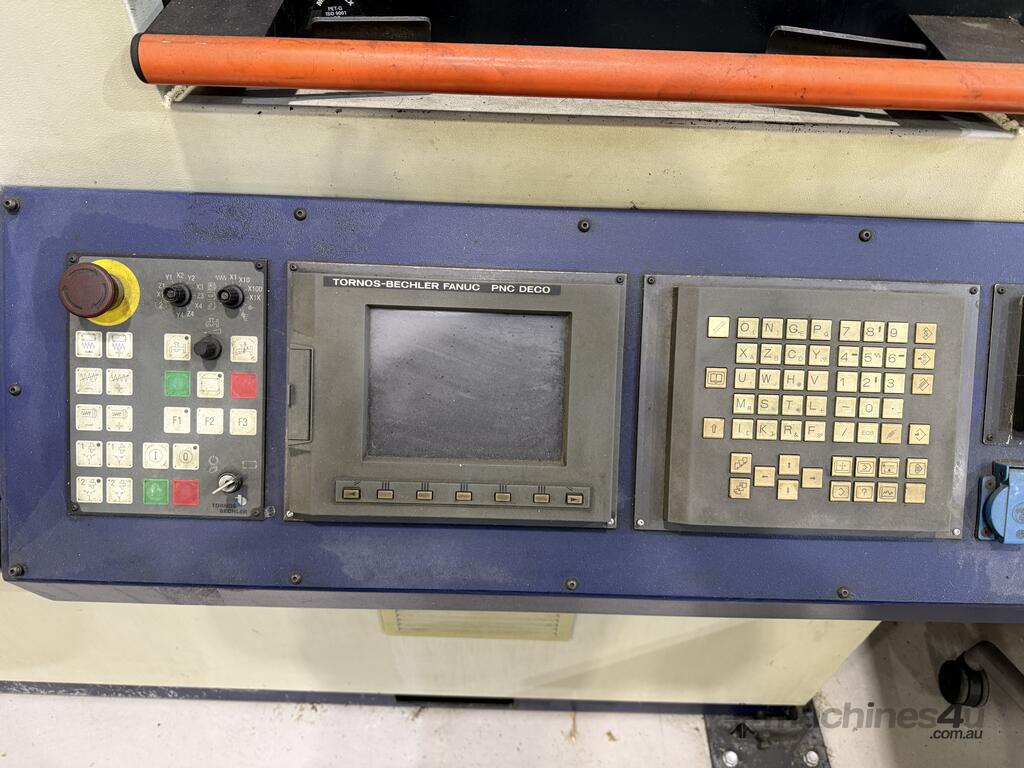

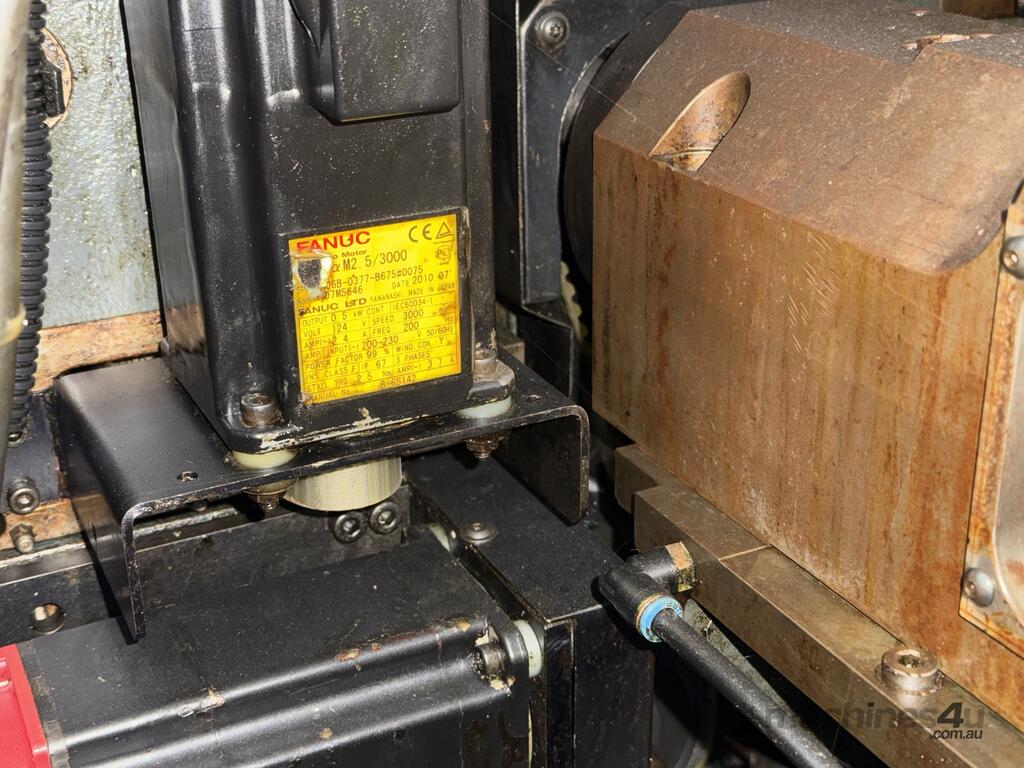

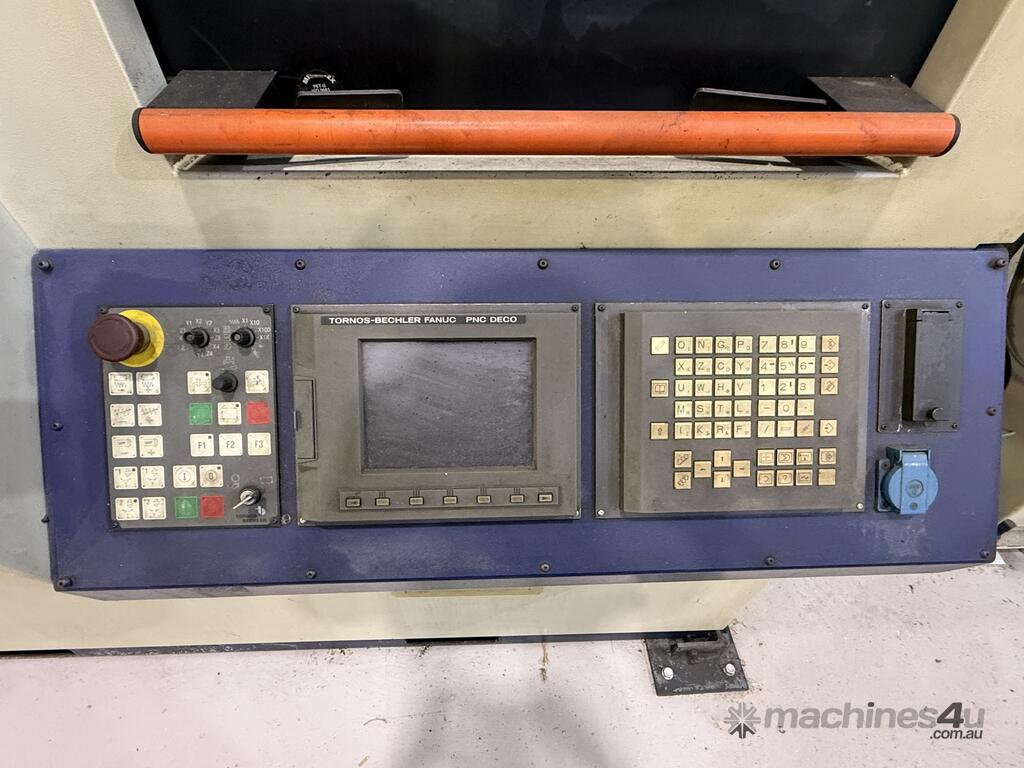

Control System: Fanuc PNC-DECO
Machine Dimensions: Approx. 62" x 38" x 72"
Weight: ~3,300 lbs (1,500 kg)

Key Features
Advanced CNC Control:
TB-DECO system with graphical programming in a Windows environment for intuitive operation and machining synchronization.
High Precision:
Engineered for tight tolerances and exceptional surface finishes, ideal for demanding manufacturing applications.
Versatility:
Equipped with multiple tool stations and spindle configurations to perform turning, milling, drilling, threading, and more.

Applications:
The Tornos Deco 2000 is ideal for high-volume production of intricate parts in sectors such as:

Medical Devices: For components requiring complex geometries and precision.

Automotive: Suitable for producing small, accurate components used in various automotive systems.

Electronics: Perfect for fabricating precise parts used in electronic devices and assemblies.
