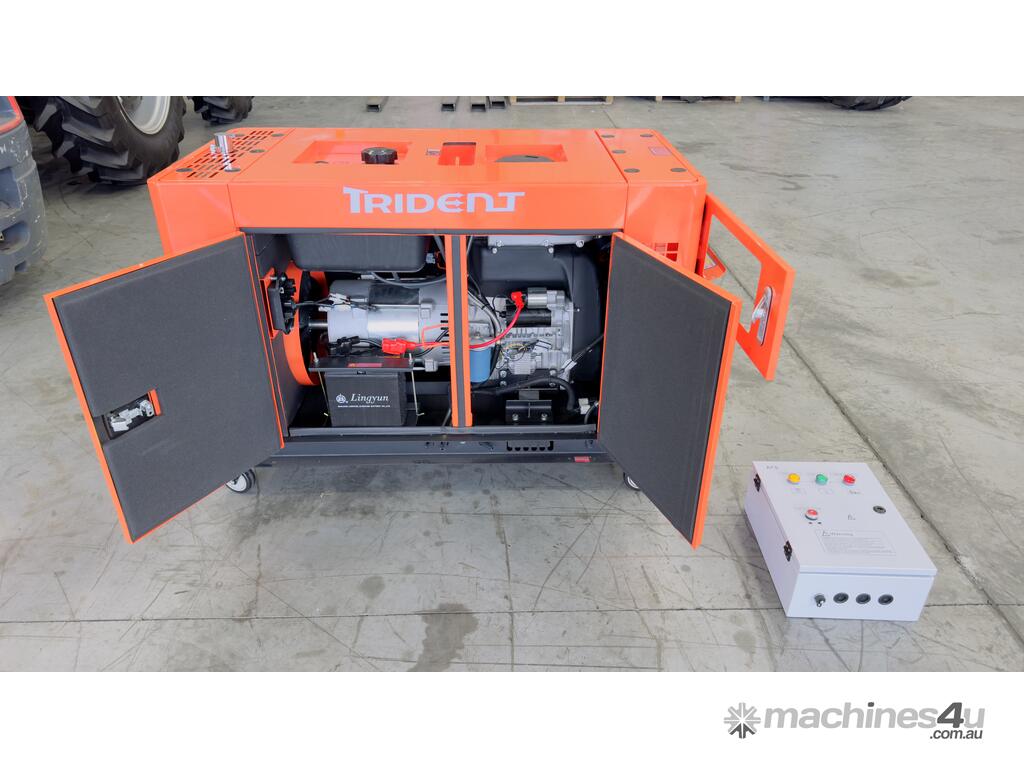

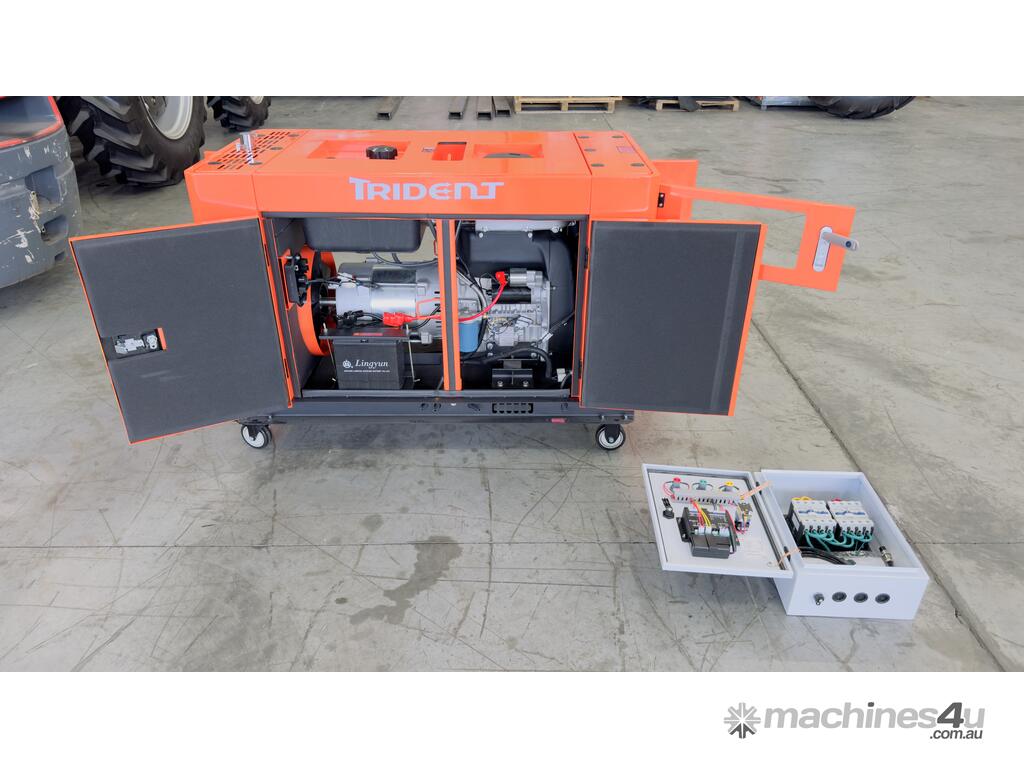

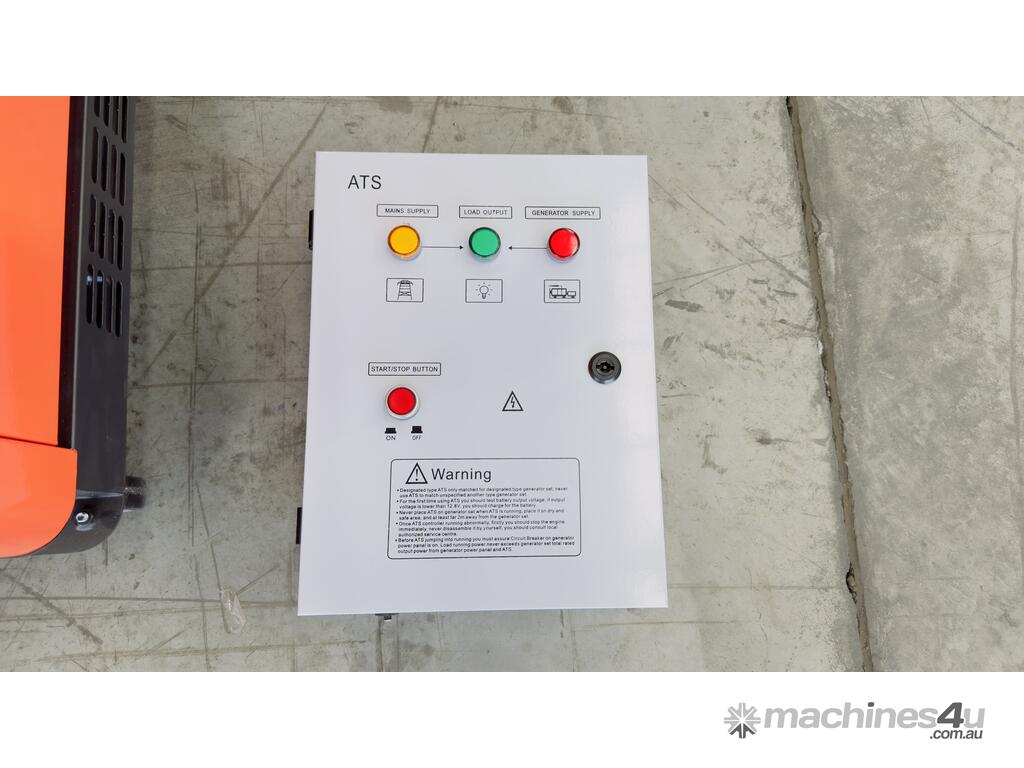

12KW 15KVA Silent Diesel Generator with Automatic Transfer Switch (ATS)
This generator is for backup use only. 12-month or 500-hour warranty.
Experience dependable power with our 12KW 15KVA Silent Diesel Generator, featuring an Automatic Transfer Switch (ATS) for seamless auto-start functionality. This quiet and efficient generator is ideal for agricultural and construction applications.
Key Features:

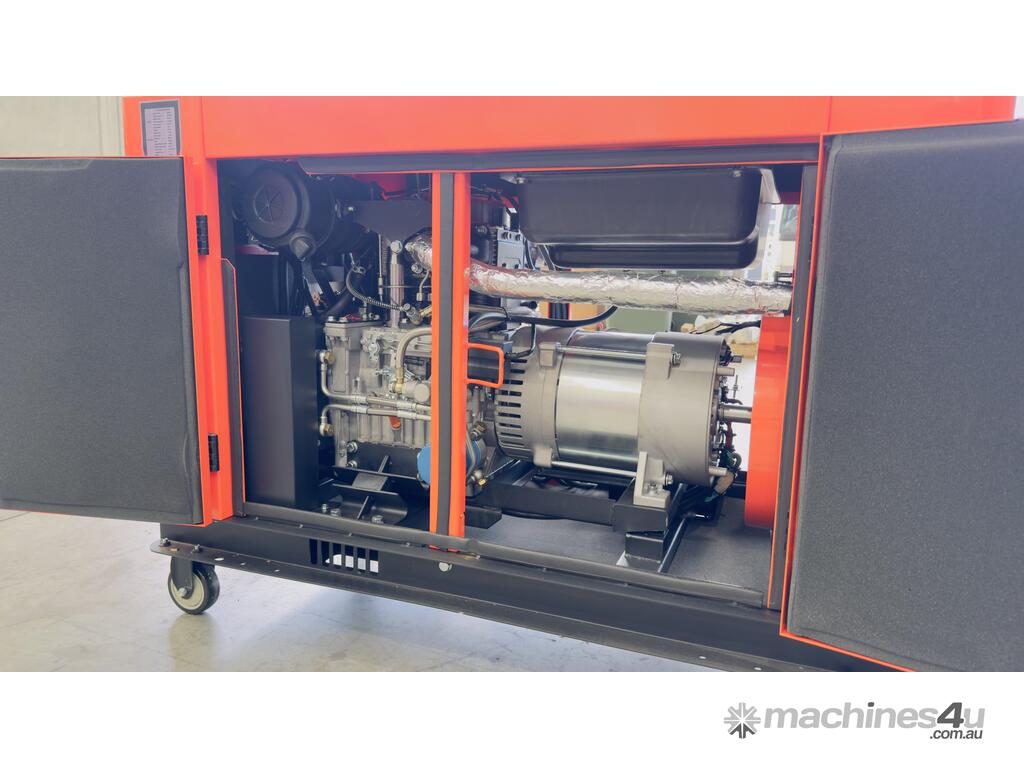

High-Performance Engine: Equipped with air, oil, and fuel filters for reliable operation.
Durable Build: Heavy-duty radiator and anti-vibration pads ensure stability during use.

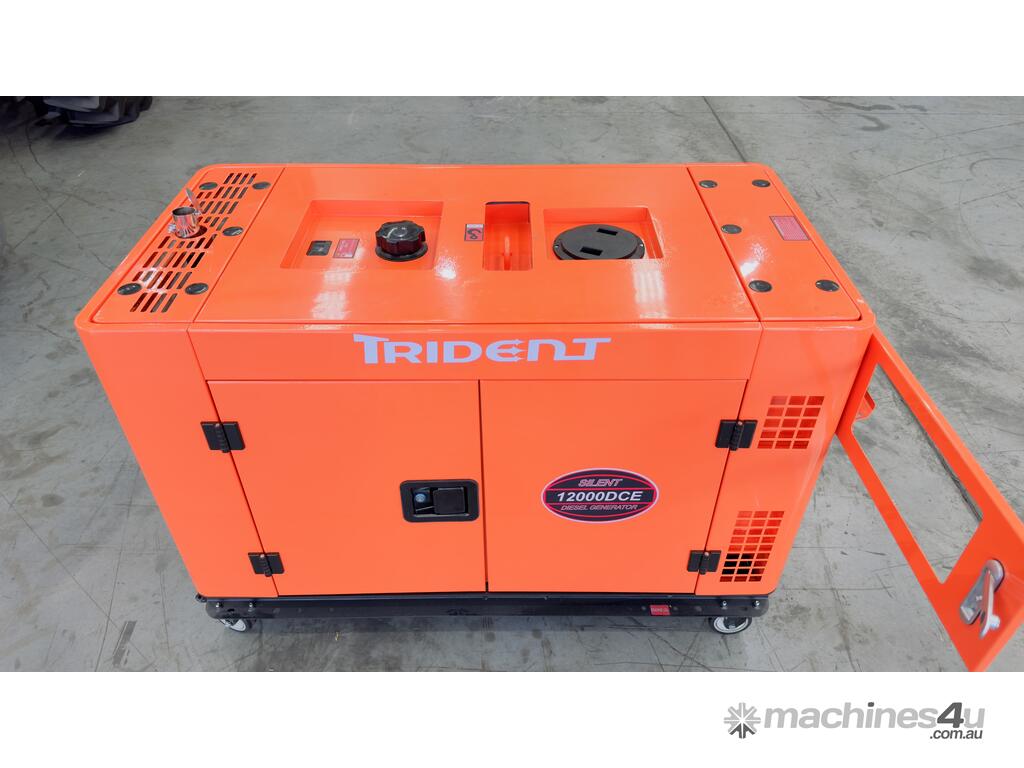

Robust Design: Sturdy steel frame with a soundproofed, insulated canopy for quiet operation.
Extended Runtime: 8-hour fuel tank capacity for continuous operation.

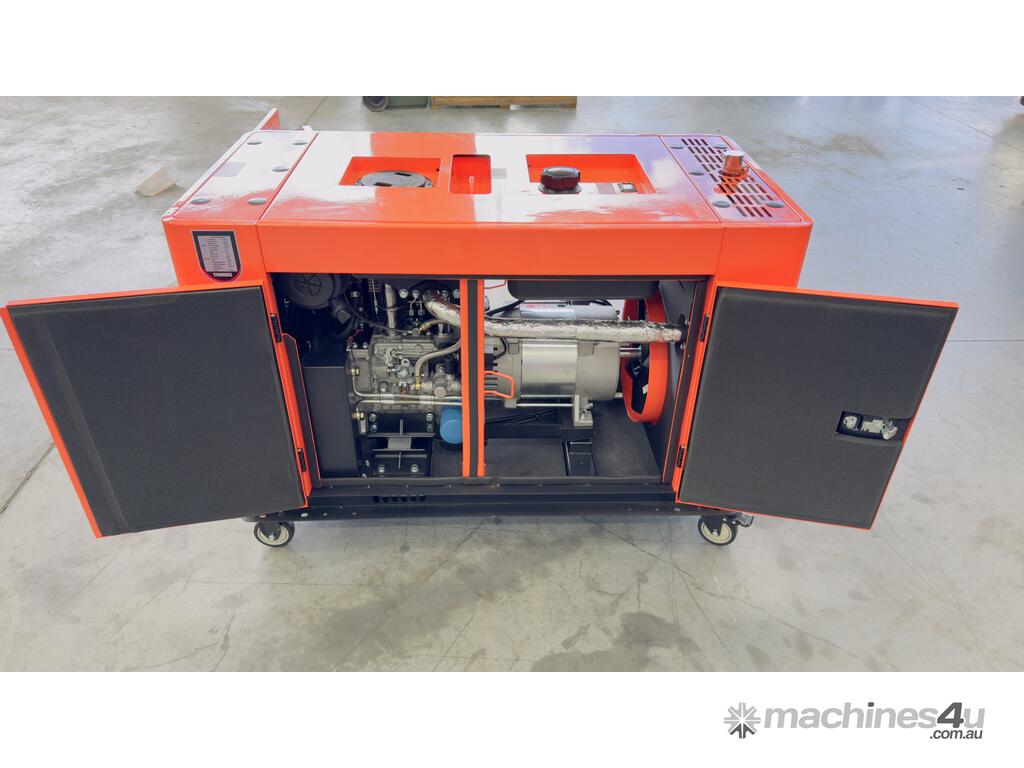

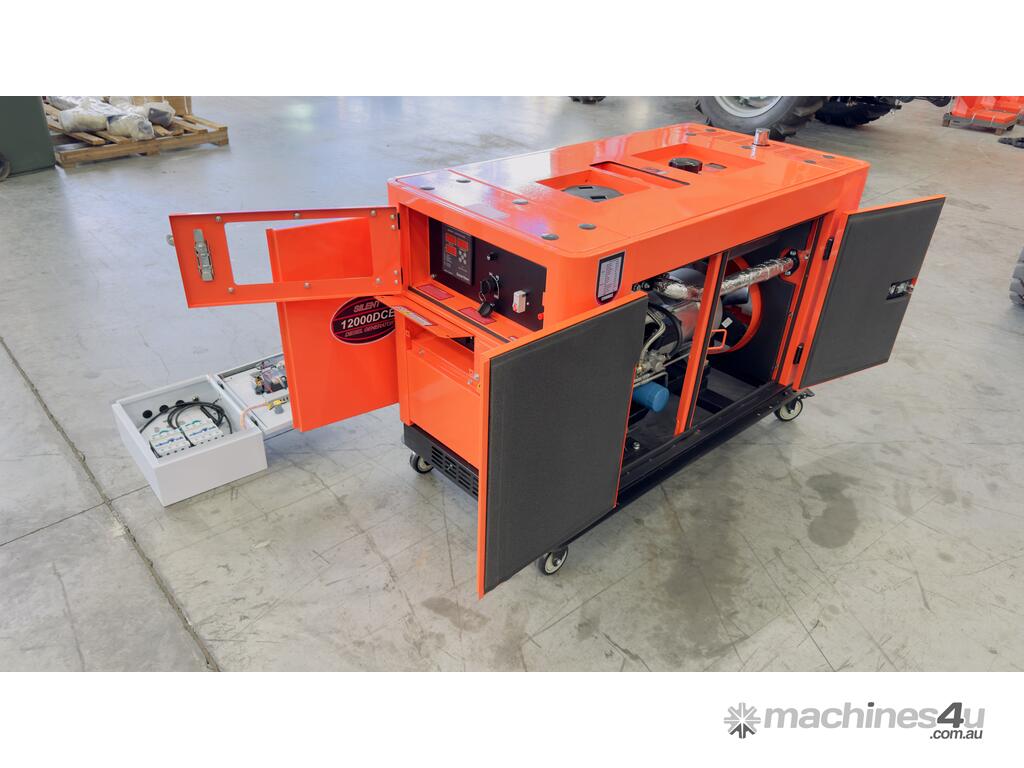

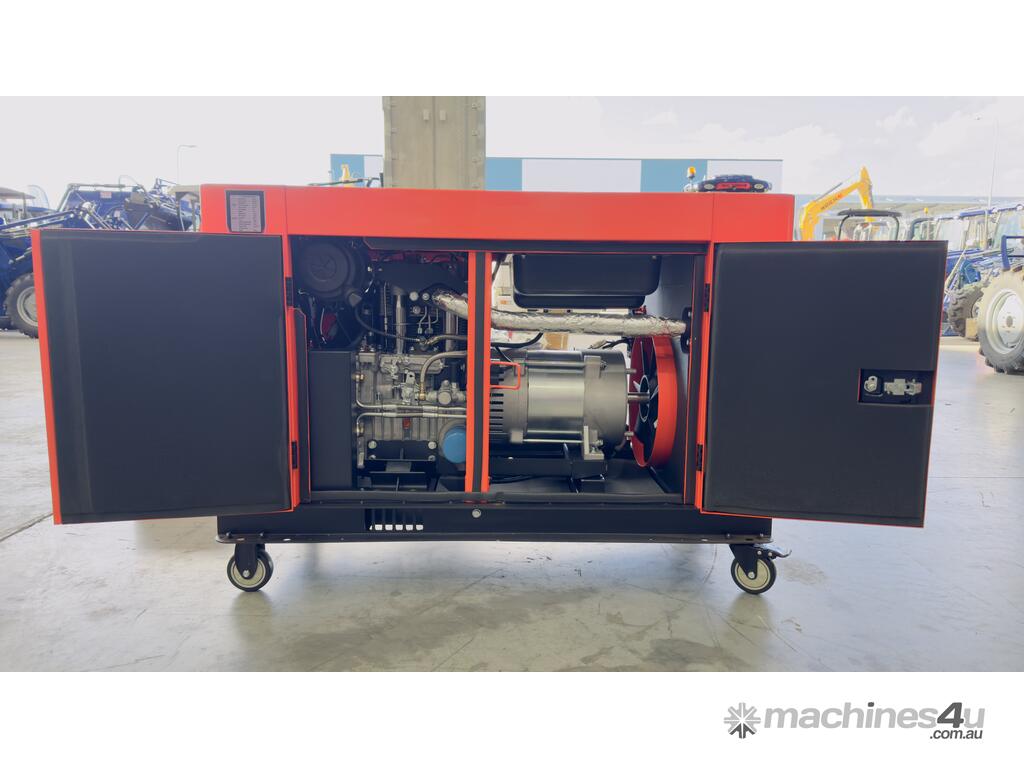

Ease of Maintenance: Doors with quality locks and 180° access hinges for hassle-free servicing.
Noise Reduction: Large-scale impedance muffler and double mufflers (70dBA at 7m) minimize sound.

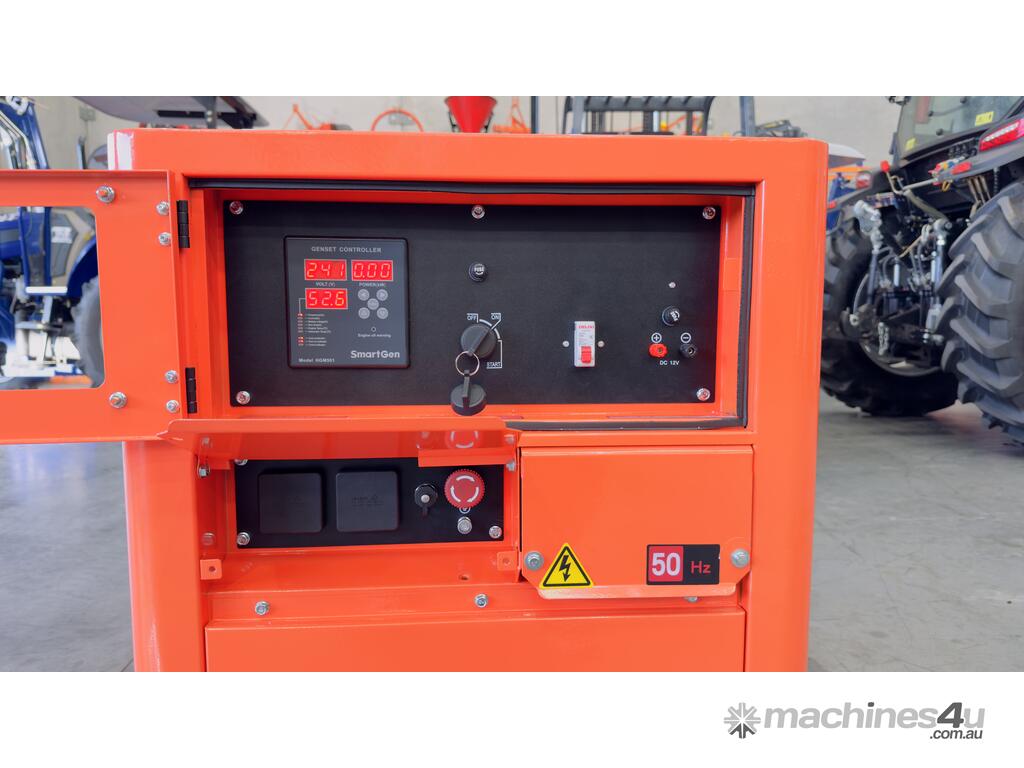

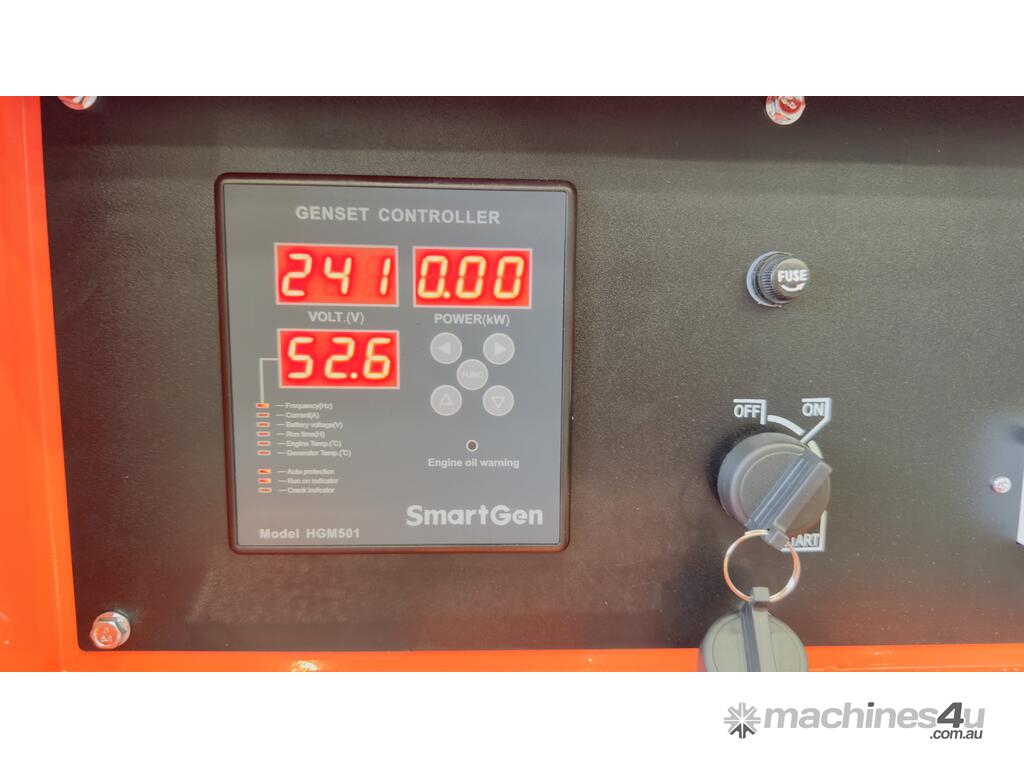

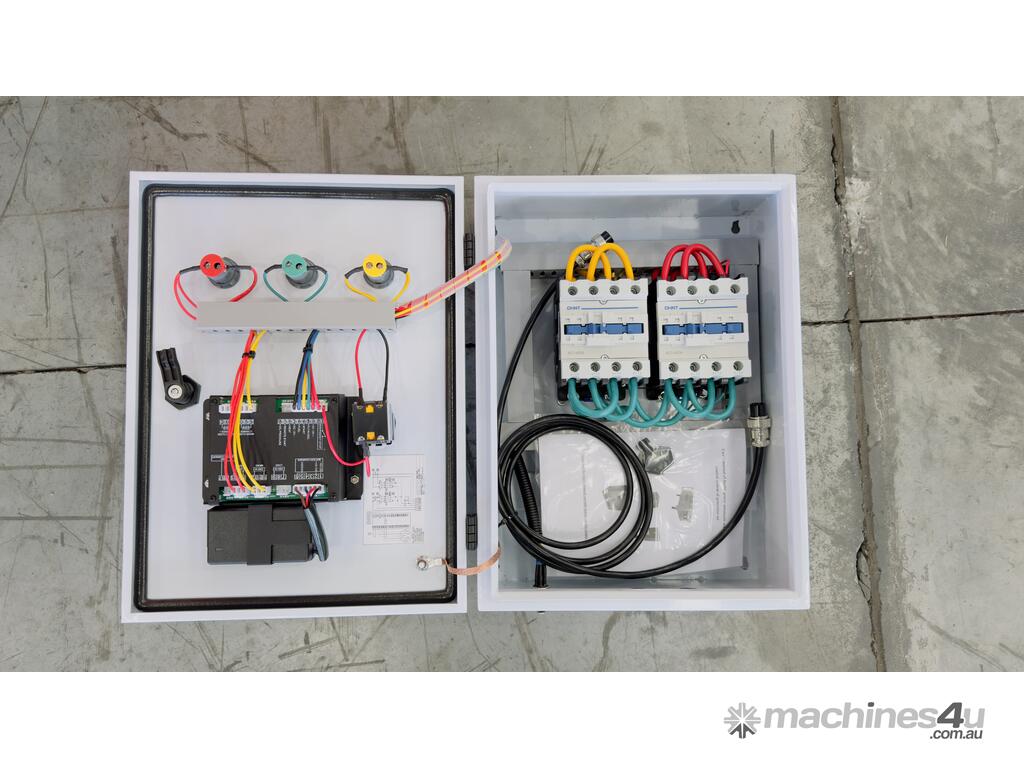

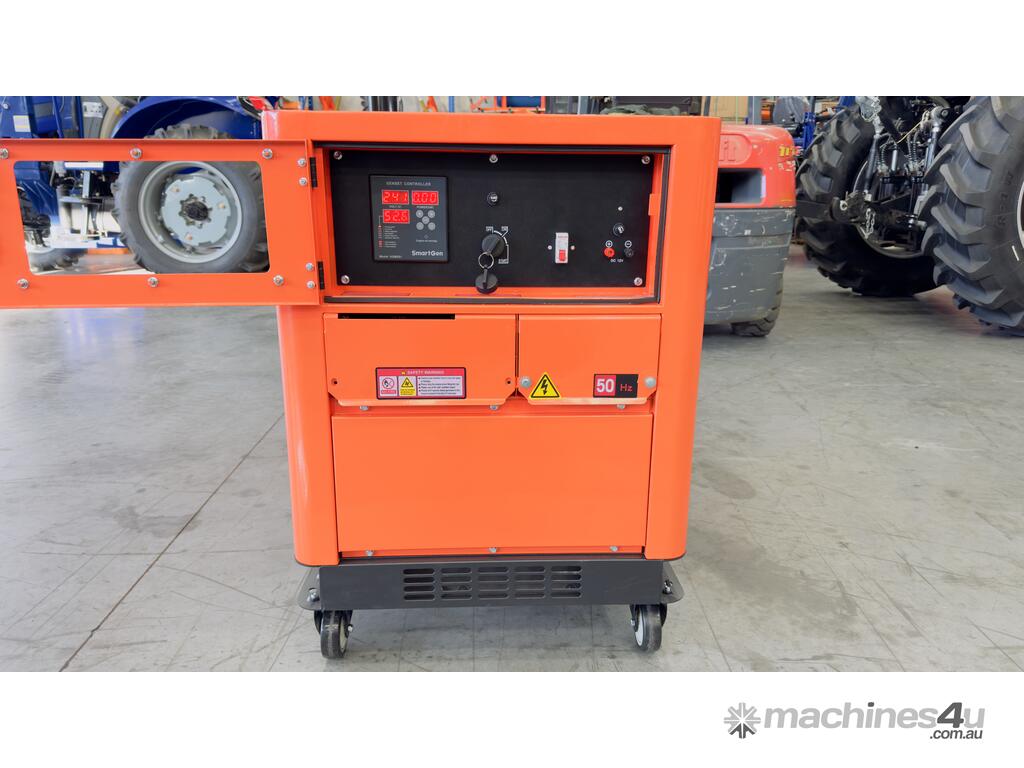

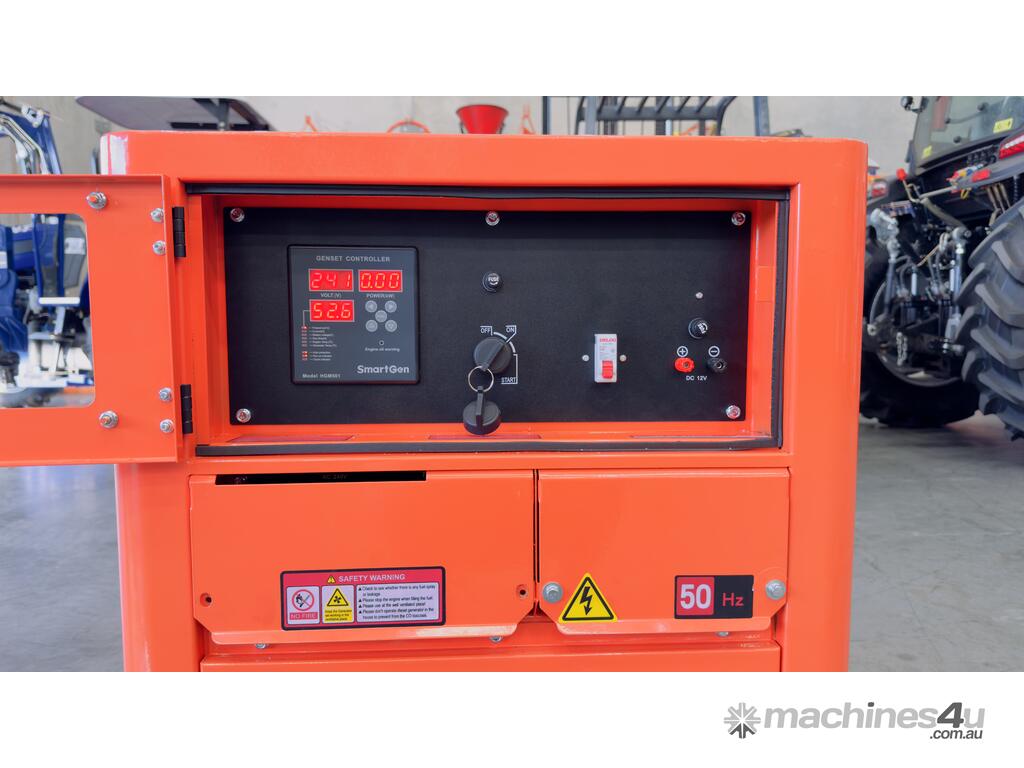

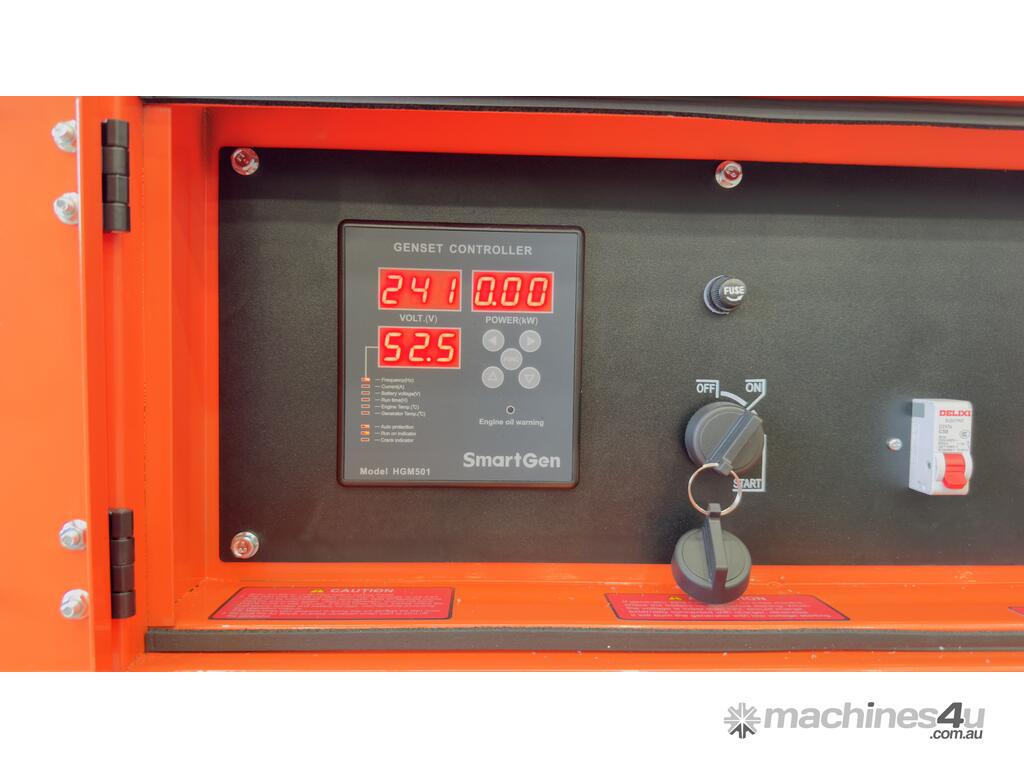

Smart Power Management: Smarten control module with AMF (Automatic Mains Failure) for efficient power handling.

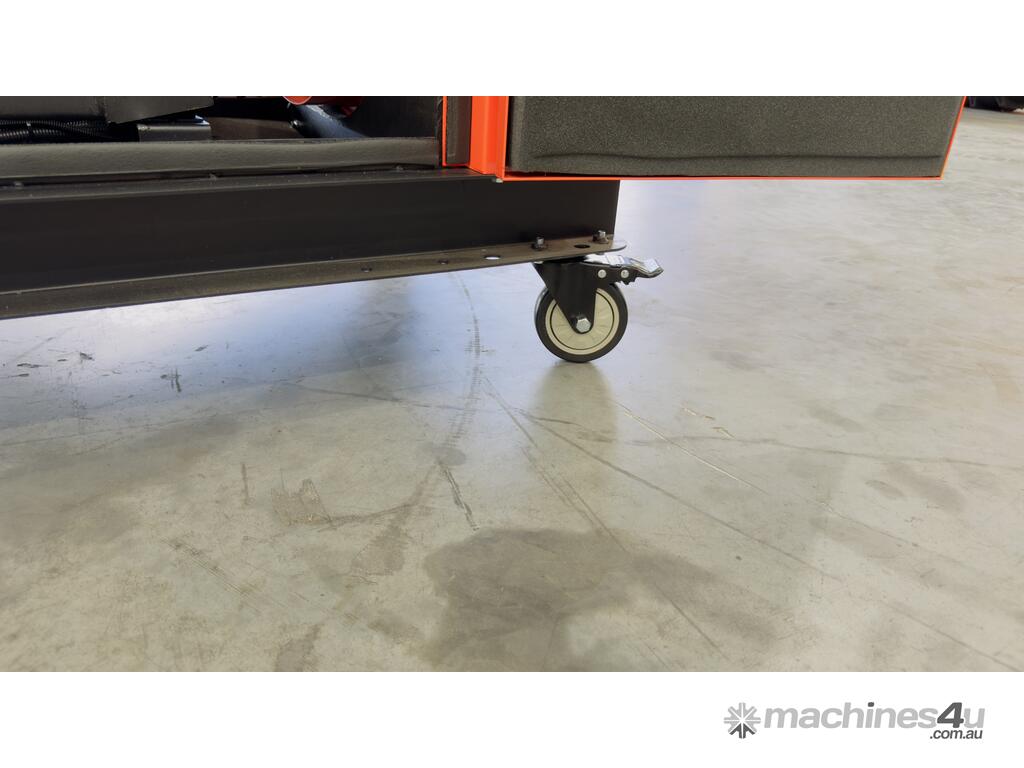

Portable Design: Features forklift pockets and four lifting eyes for easy transport.

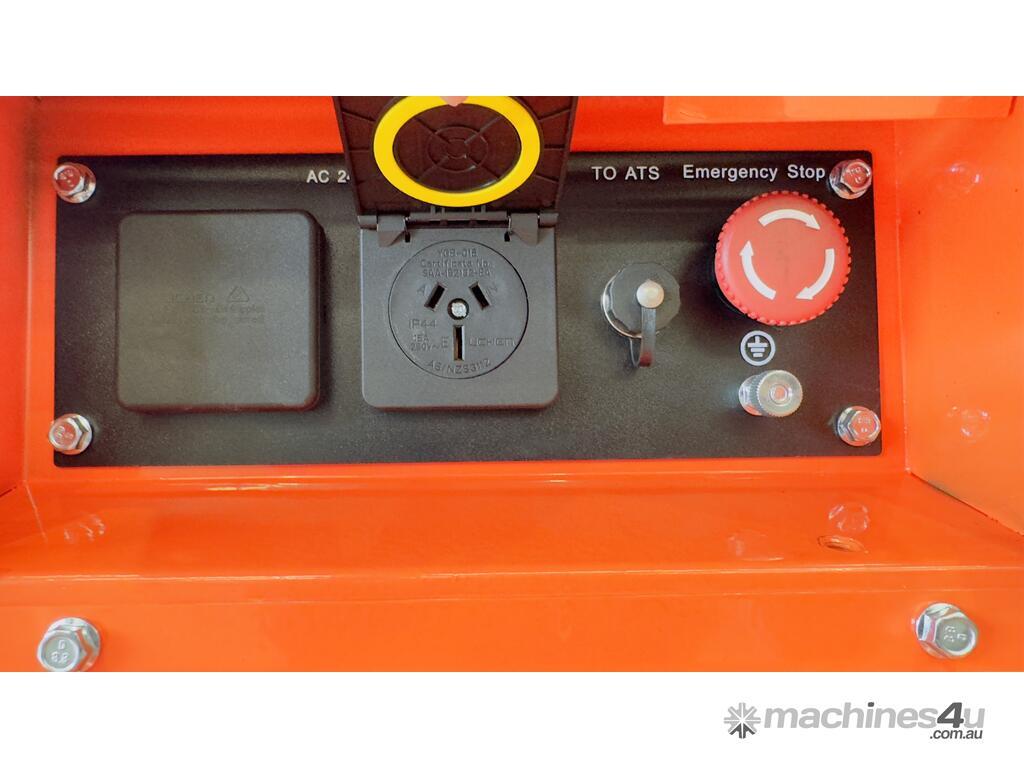

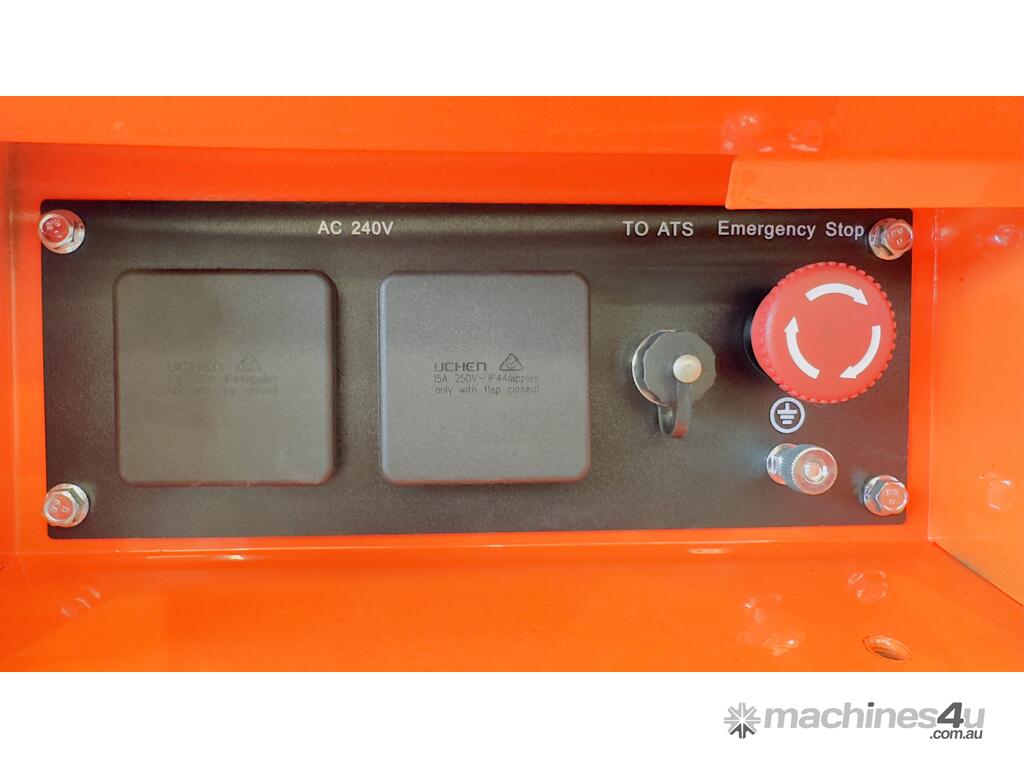

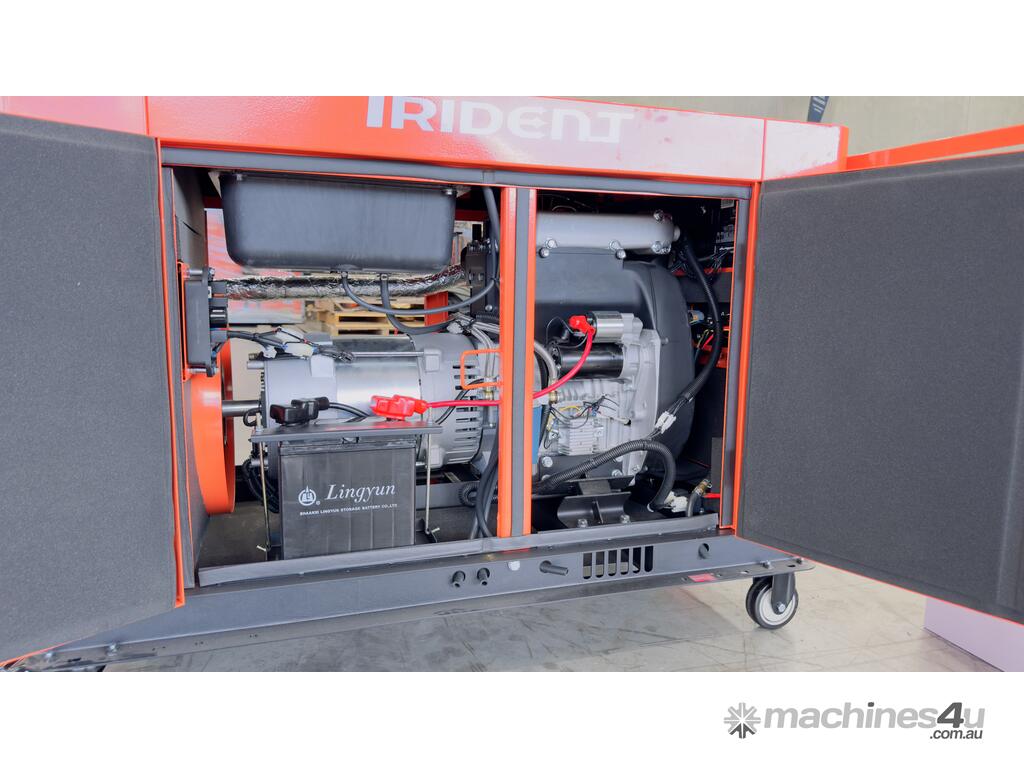

Additional Inclusions: Maintenance-free battery, connecting cables, battery charger, and ATS port.
Minimal Vibration: Designed for smooth and efficient operation.
Specifications:
Engine:
Engine model: 292FE
Engine type: V-twin, Air-Cooled Diesel Engine
Starting System: Electric
Displacement: 997 mL
Fuel Consumption: ~4.1 L/h
Lubrication Capacity: 2.75 L
Fuel Tank Capacity: 26 L
Alternator:
Voltage: 240V
Rated Power: 11KW
Max Power: 12KW
Frequency: 50Hz
Phase: Single
Voltage Distortion Rate: ?10%
Ambient Temperature: ?40°C
Power Factor: cos? = 0.8
Insulation Level: F
Weight: 320 kg
Dimension:
Length: 1,255 mm
Width: 650 mm
Height: 890 mm
