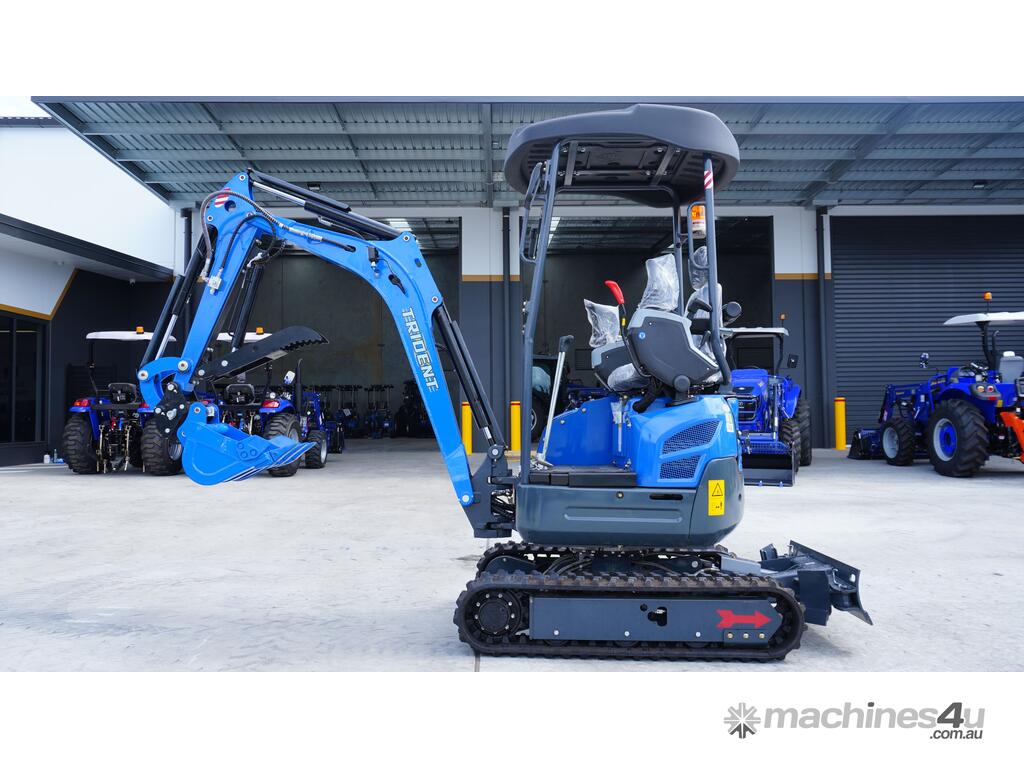

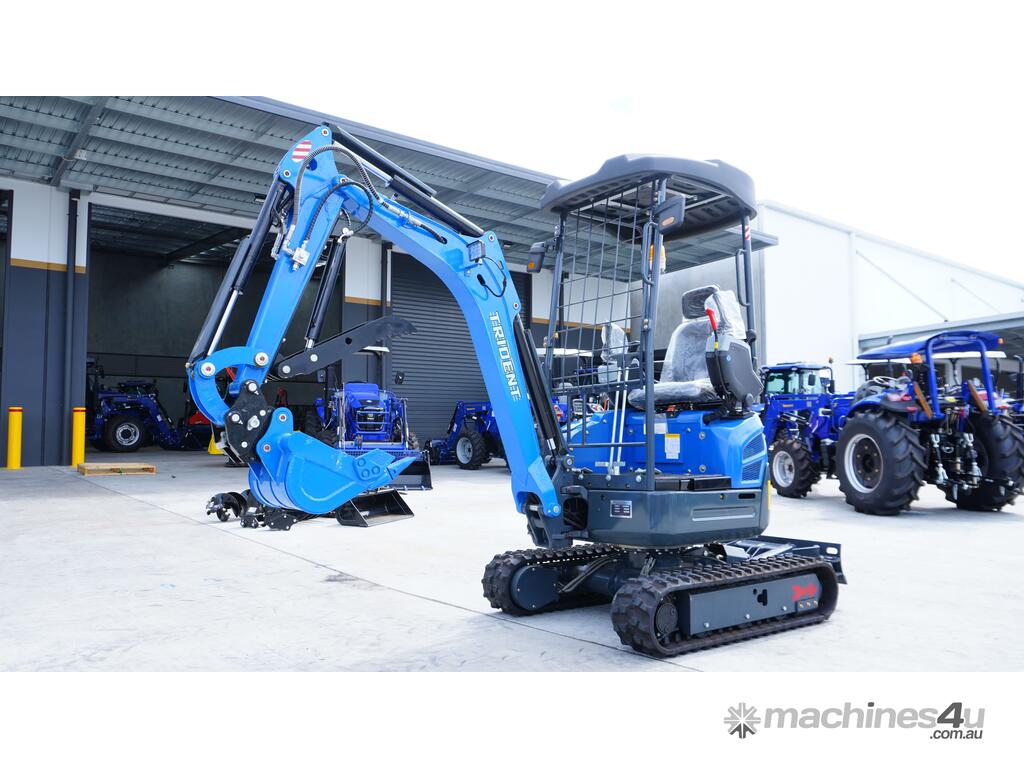

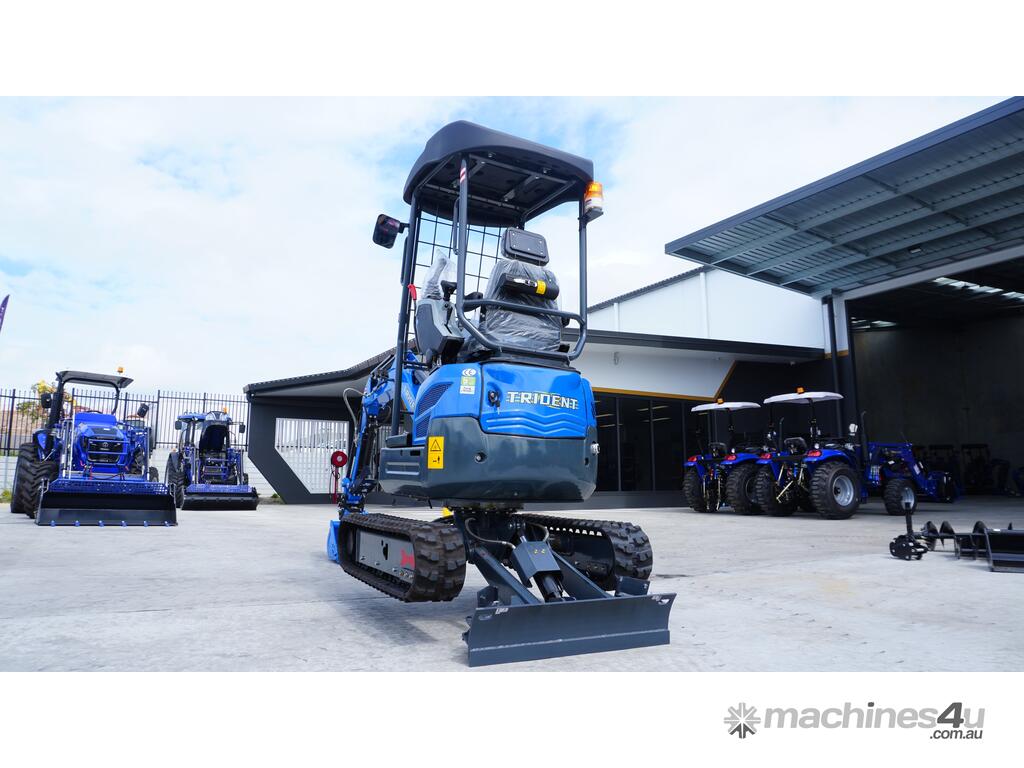

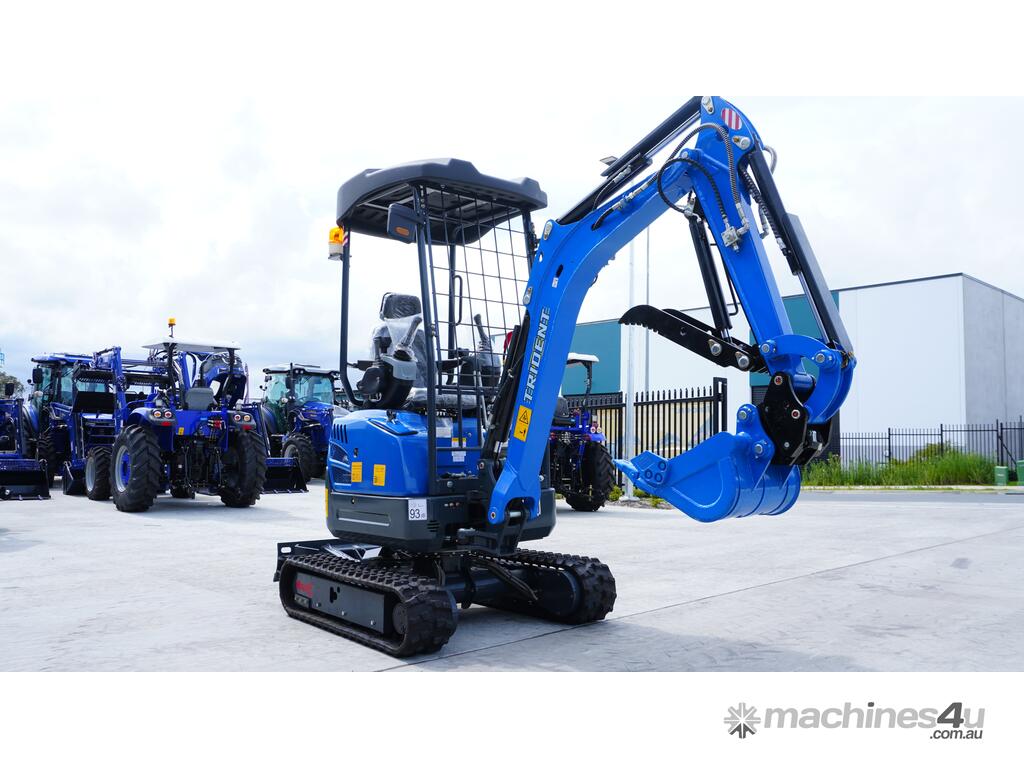

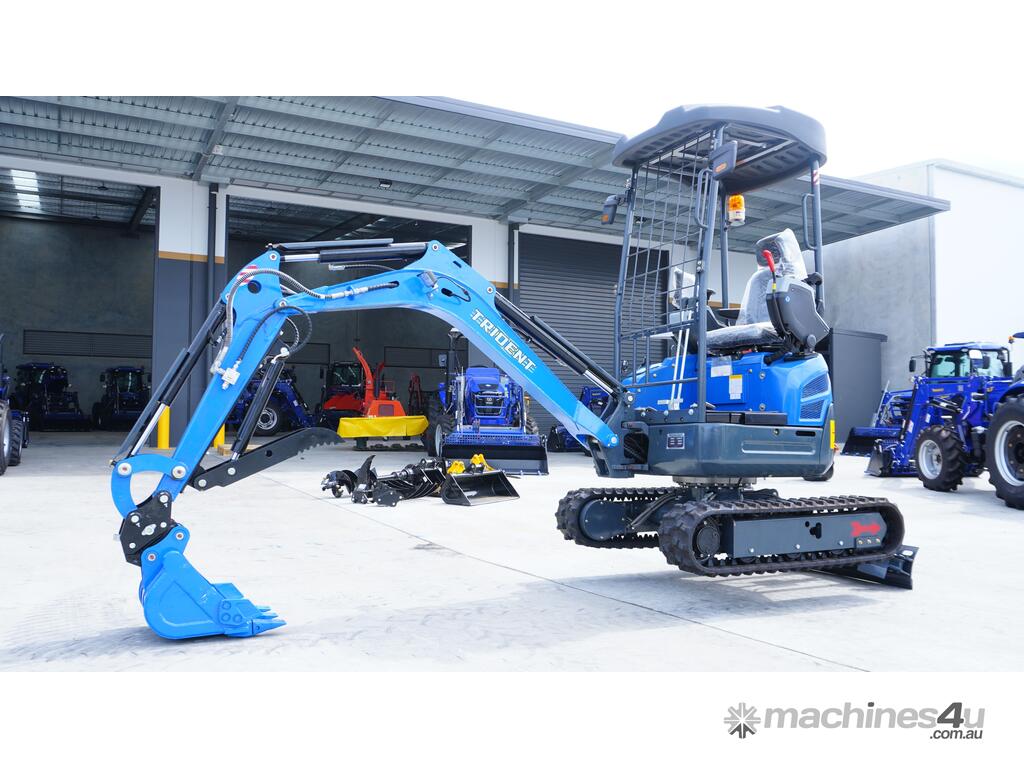

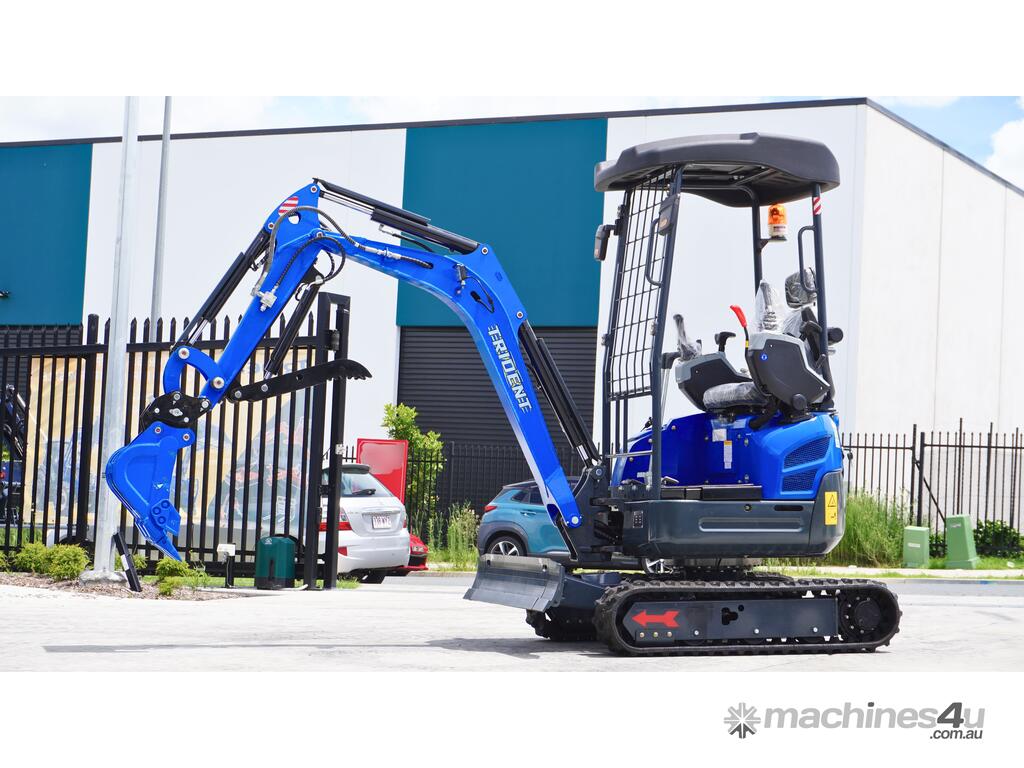

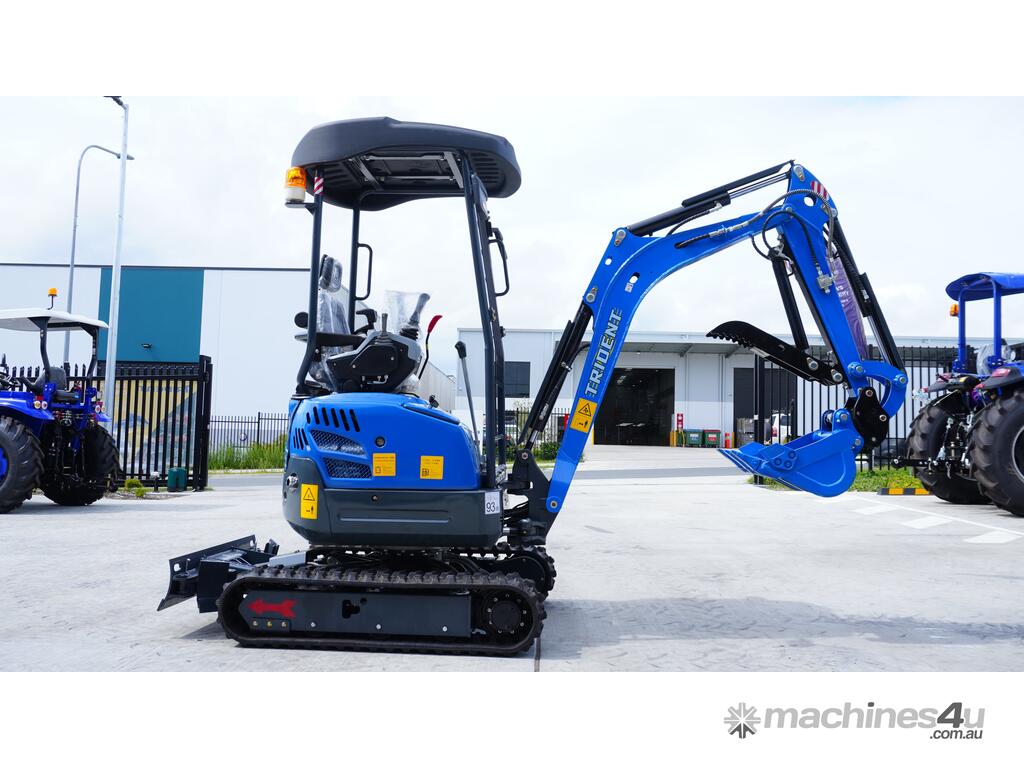

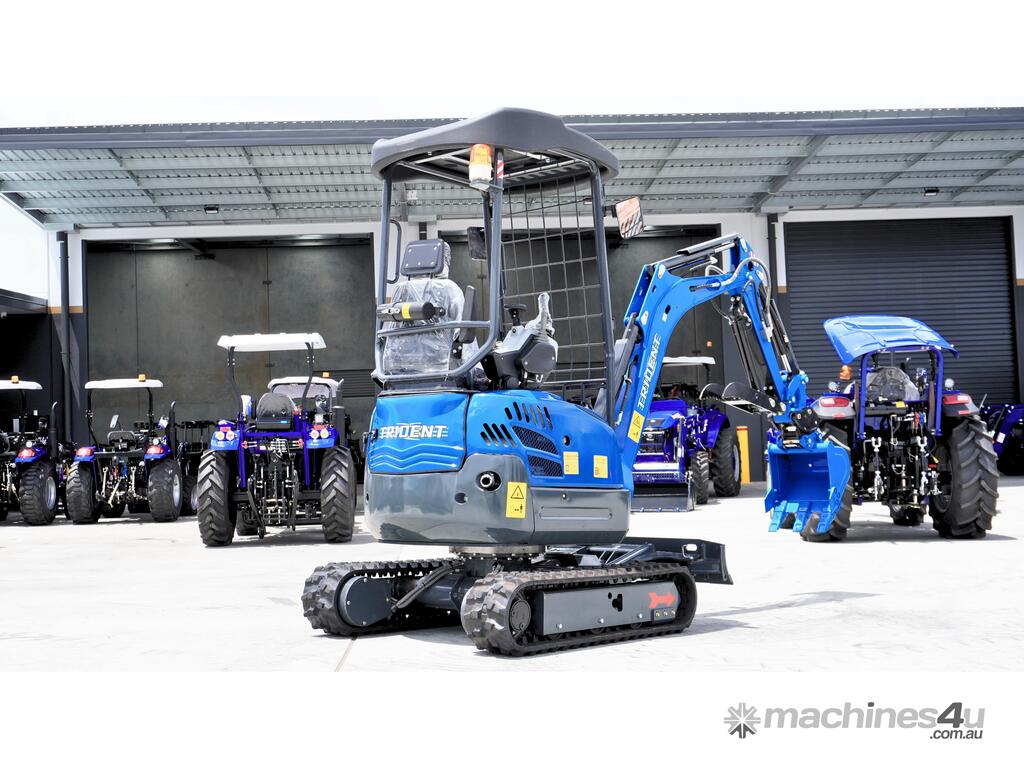

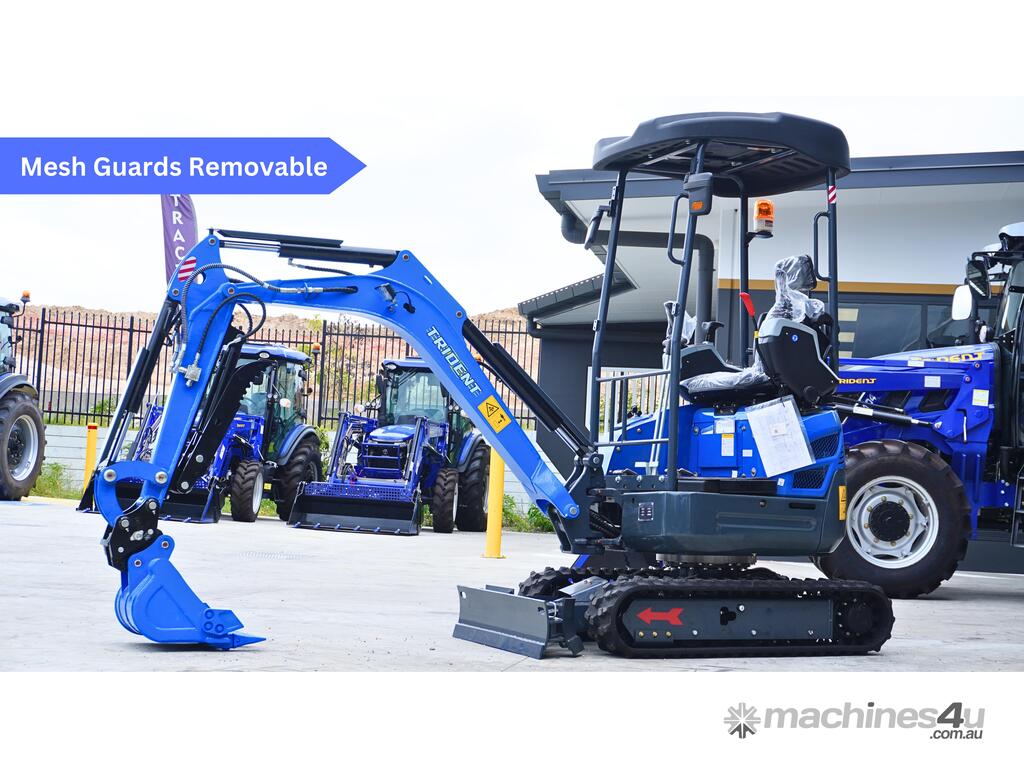

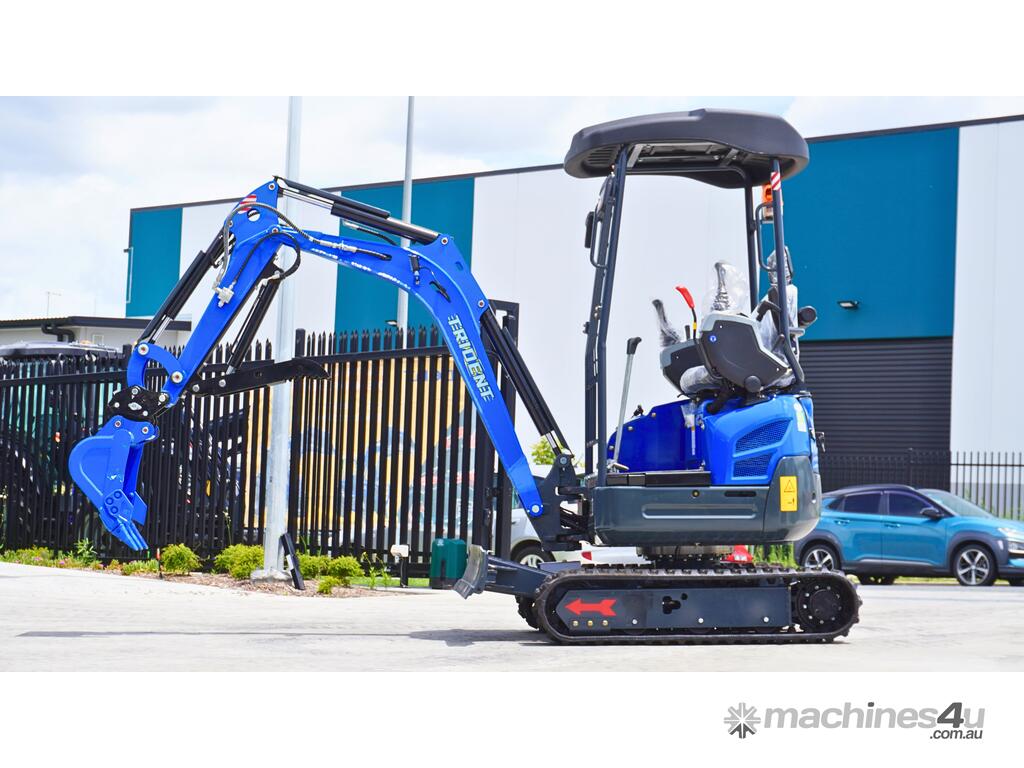

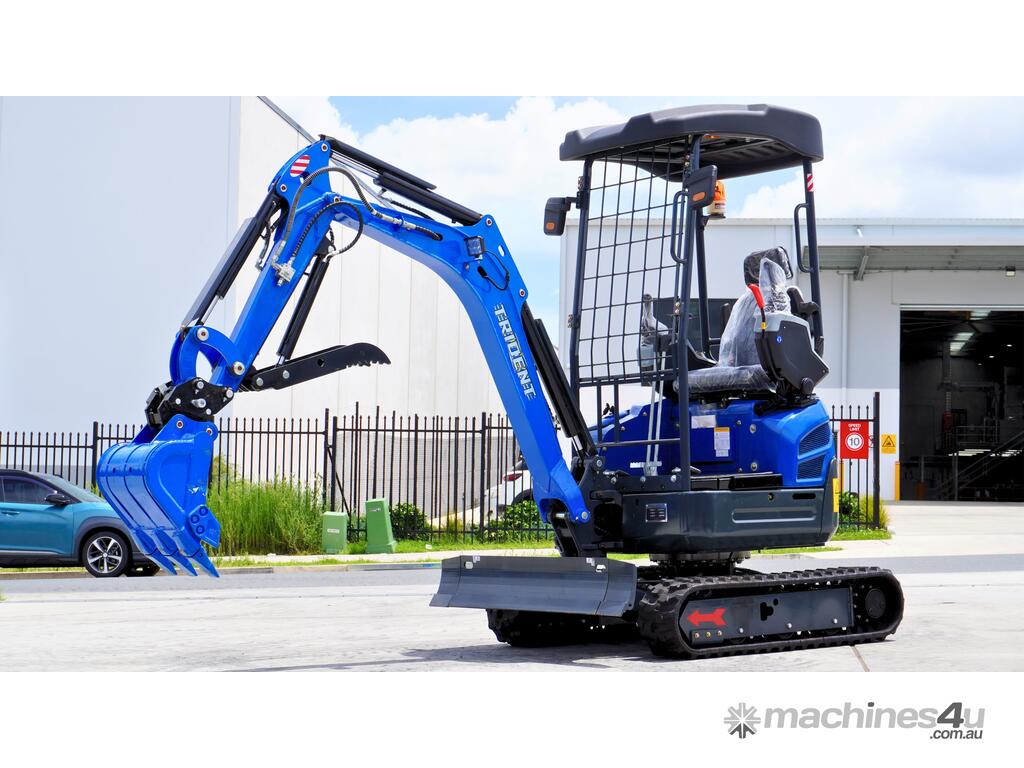

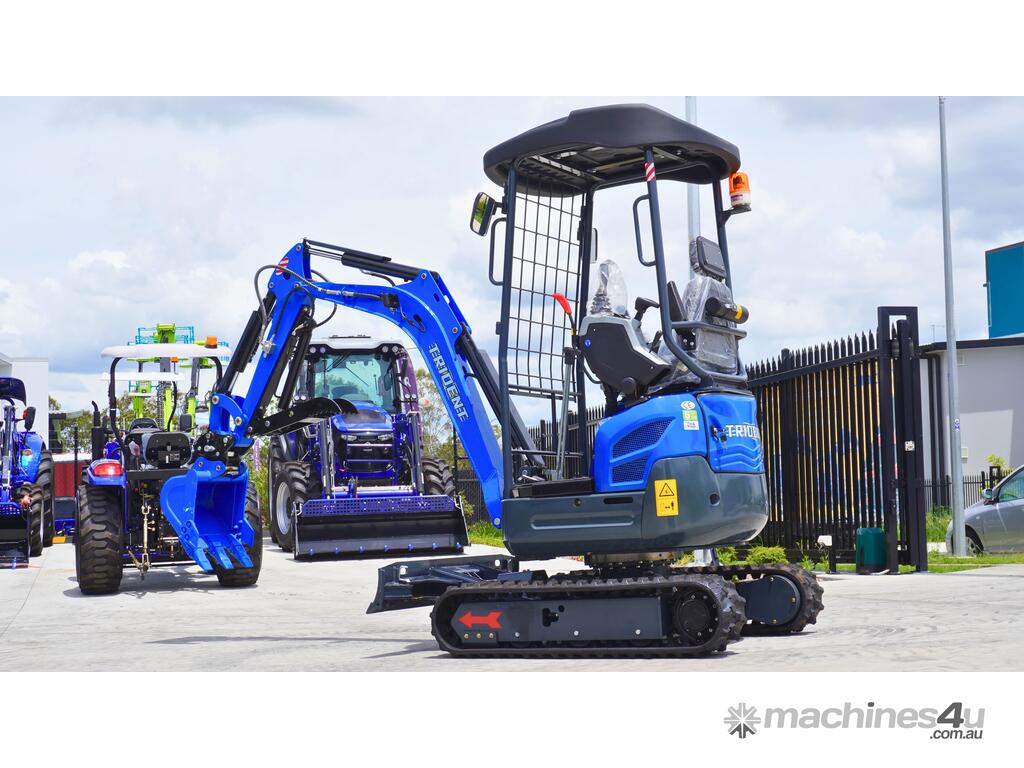

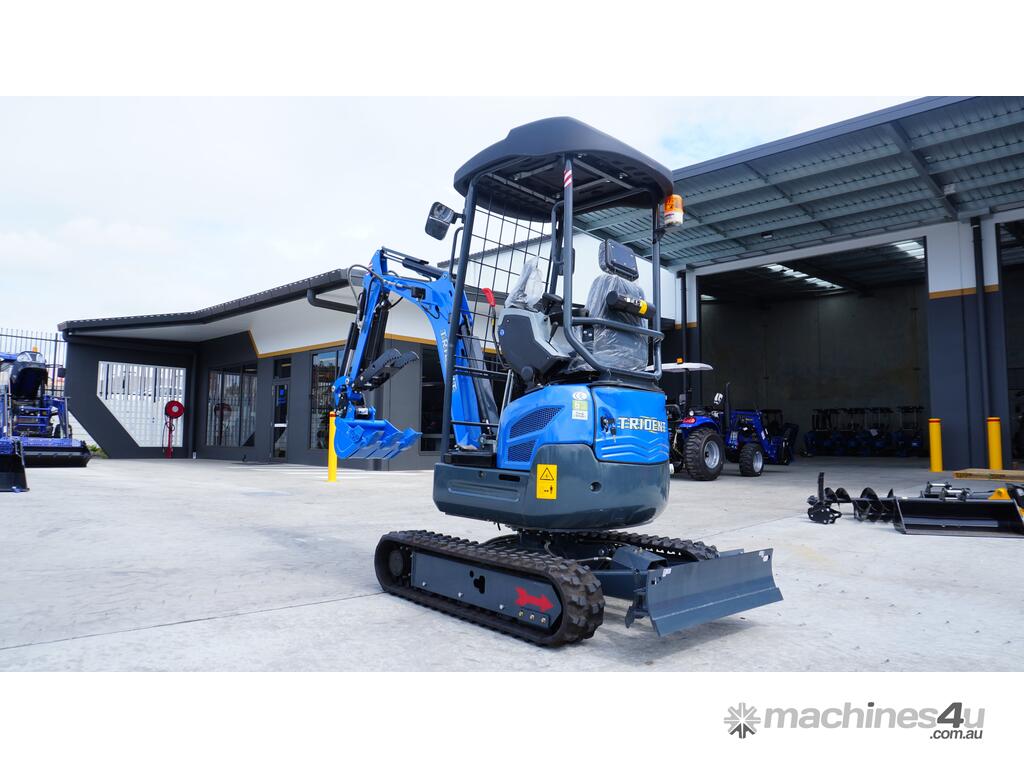

TRIDENT 2.2T Excavator Package

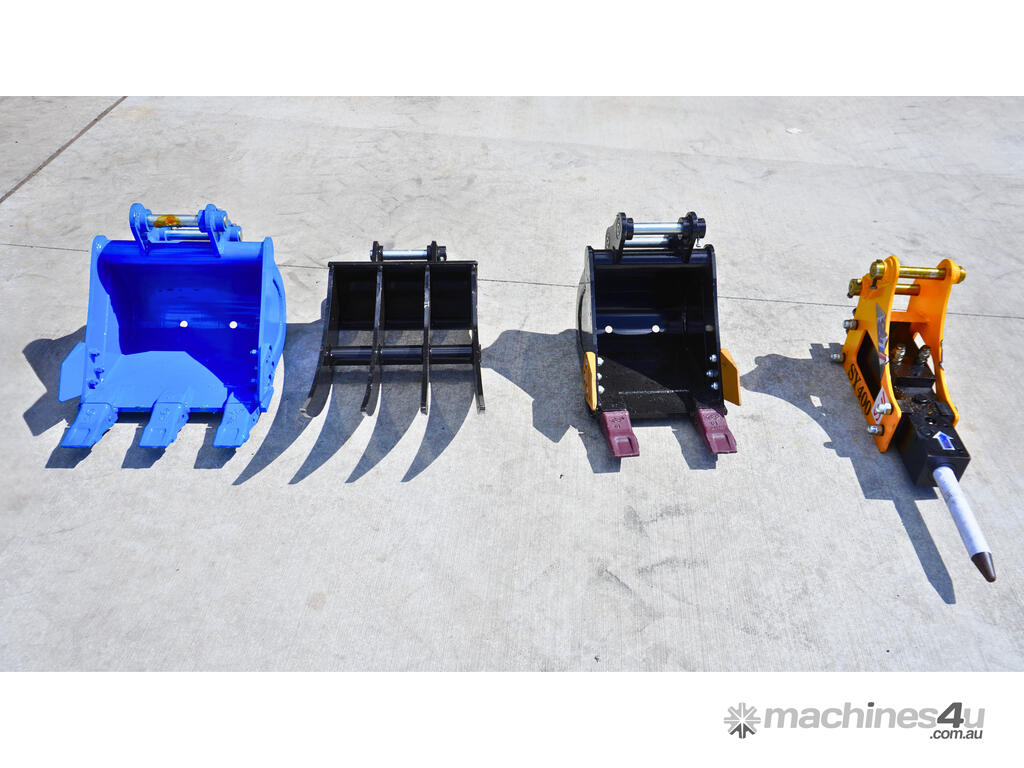

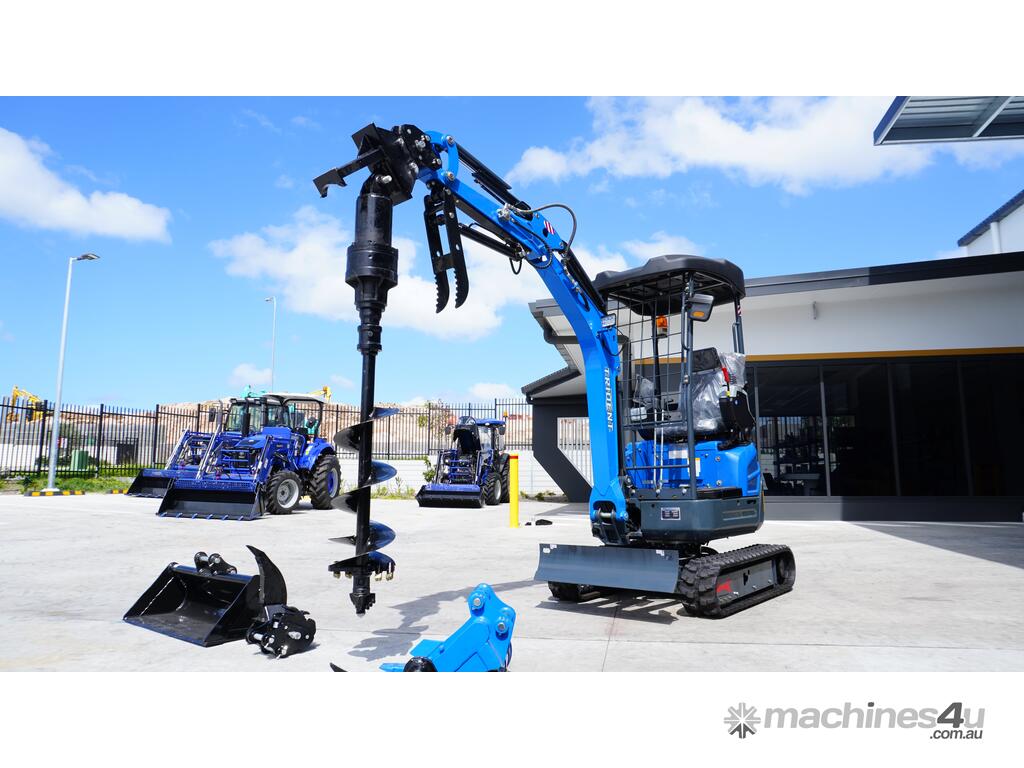

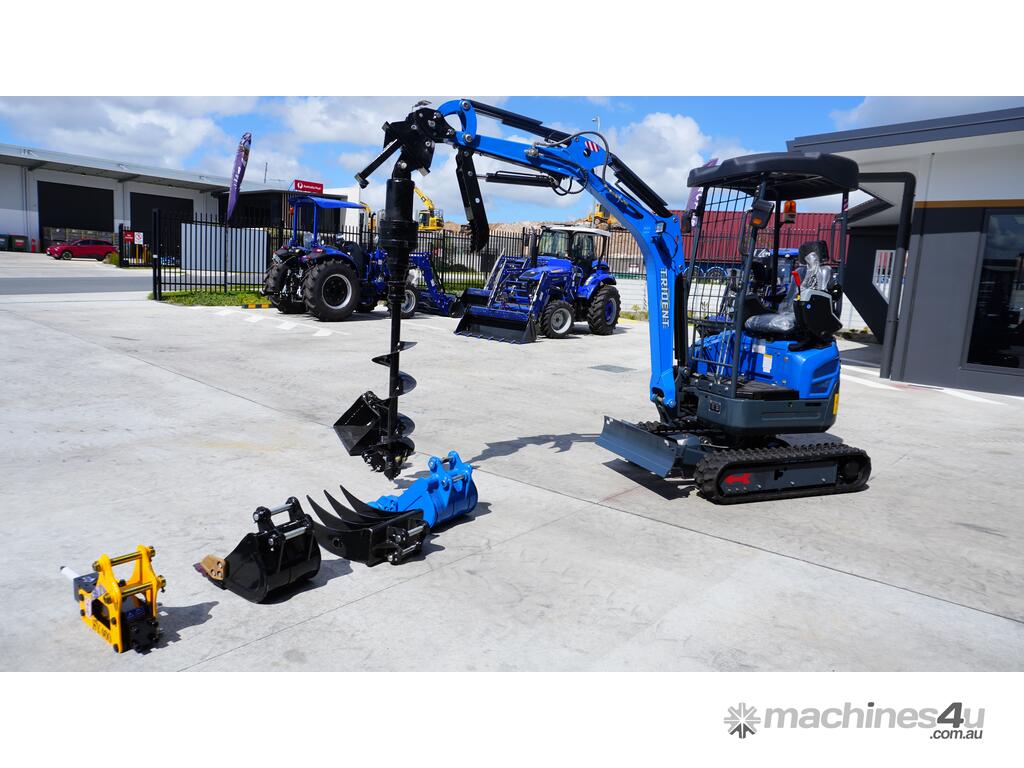

Includes:

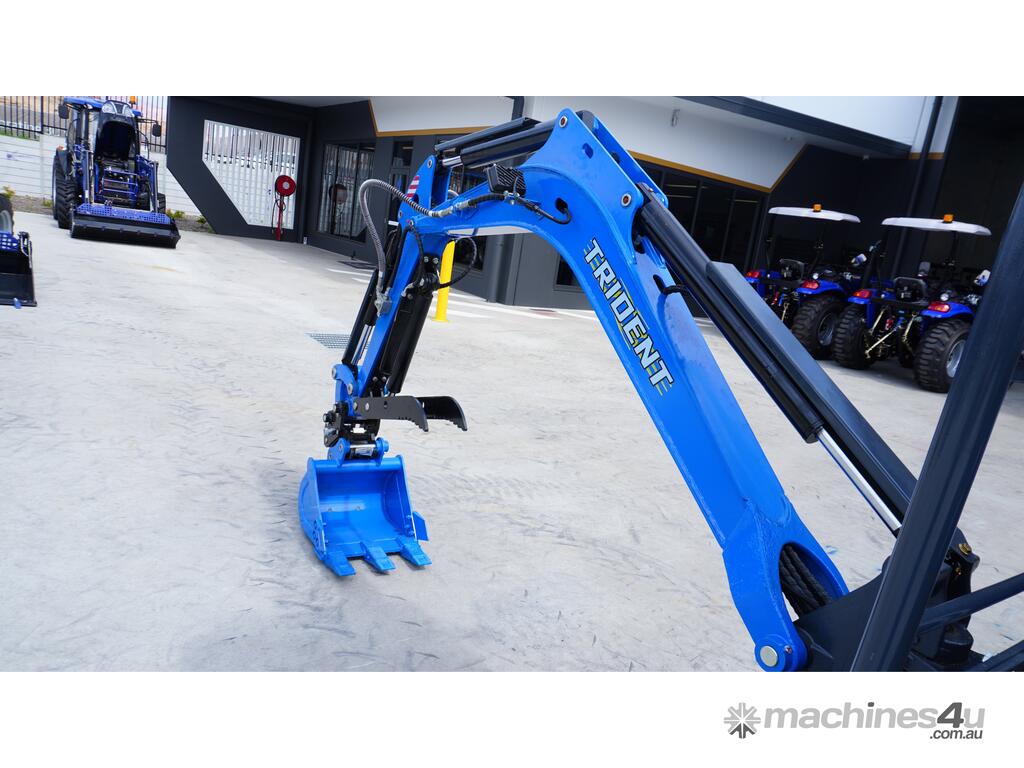

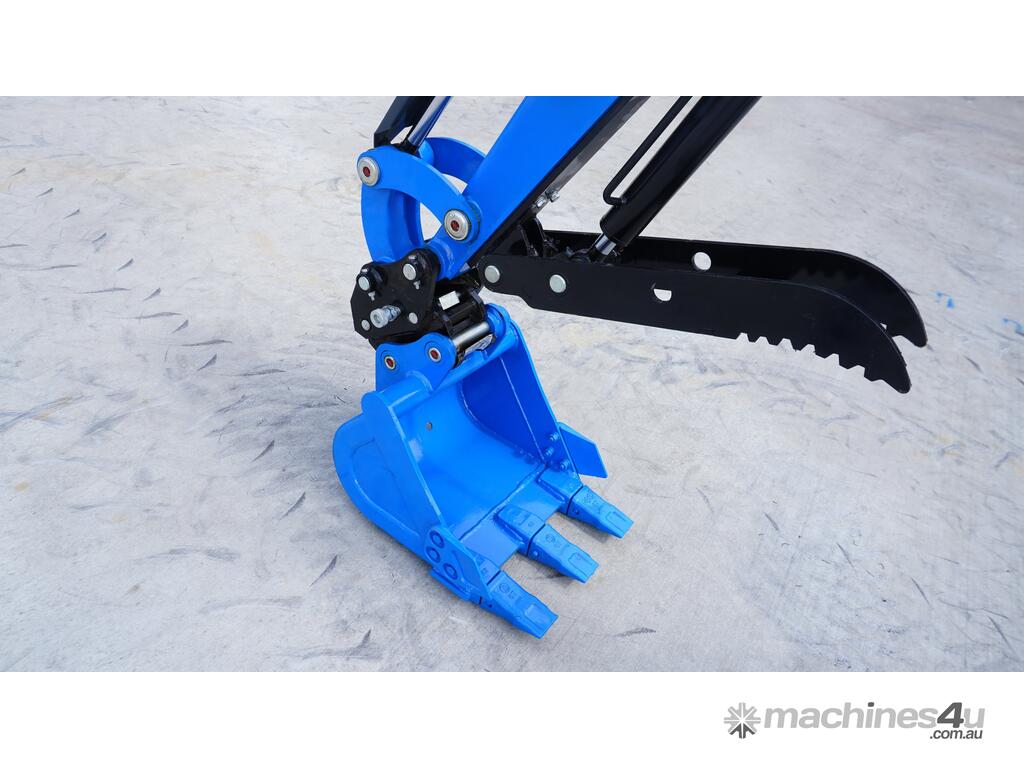

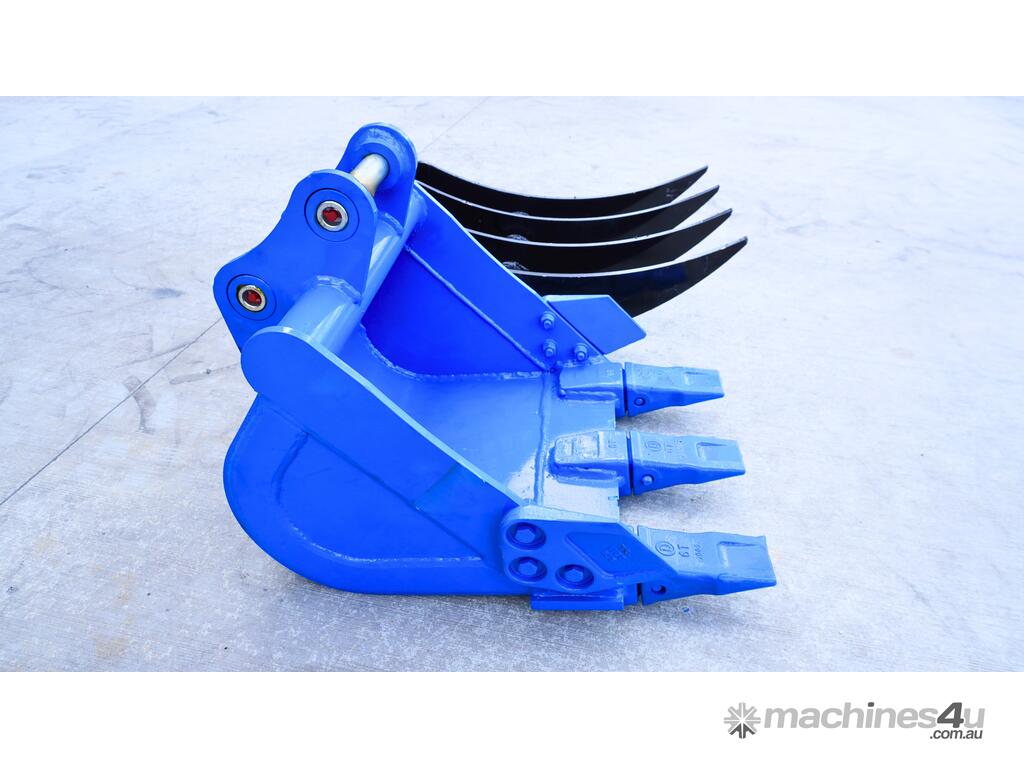

450mm bucket

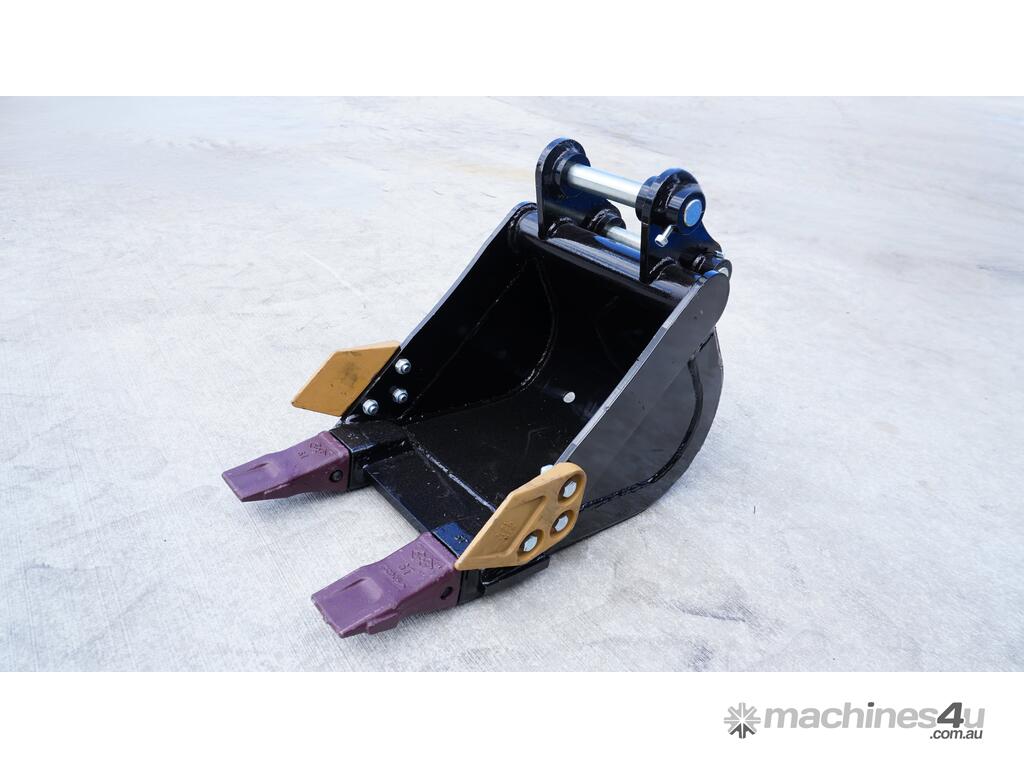

350mm trench bucket
1000mm mud bucket

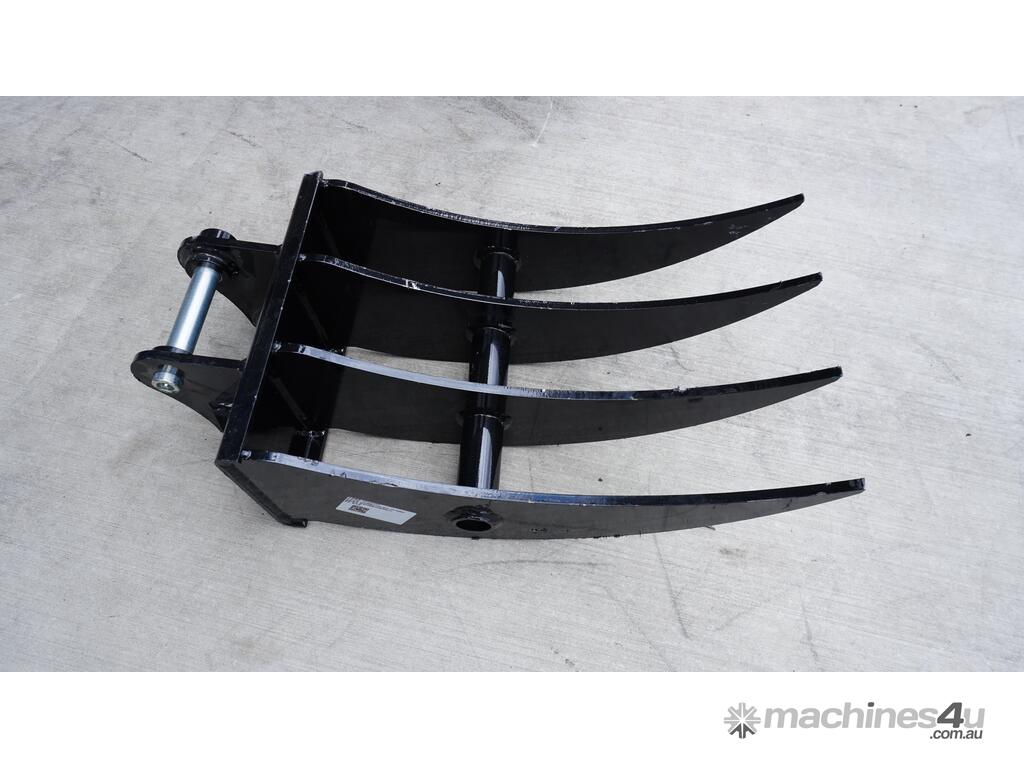

50mm ripper

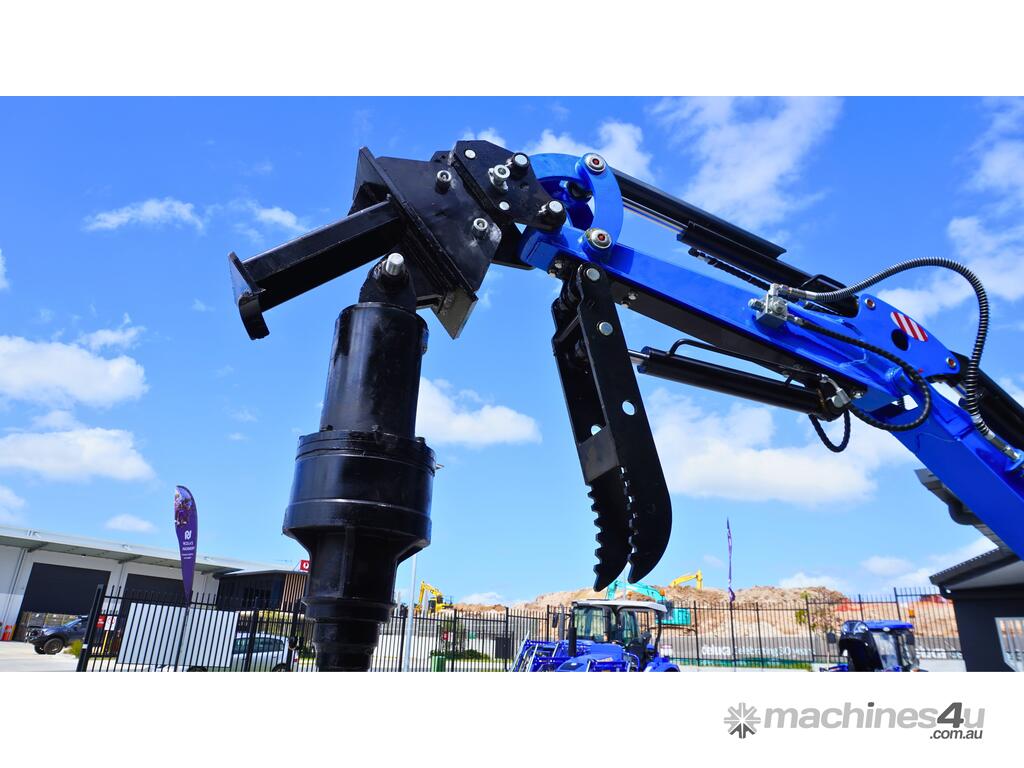

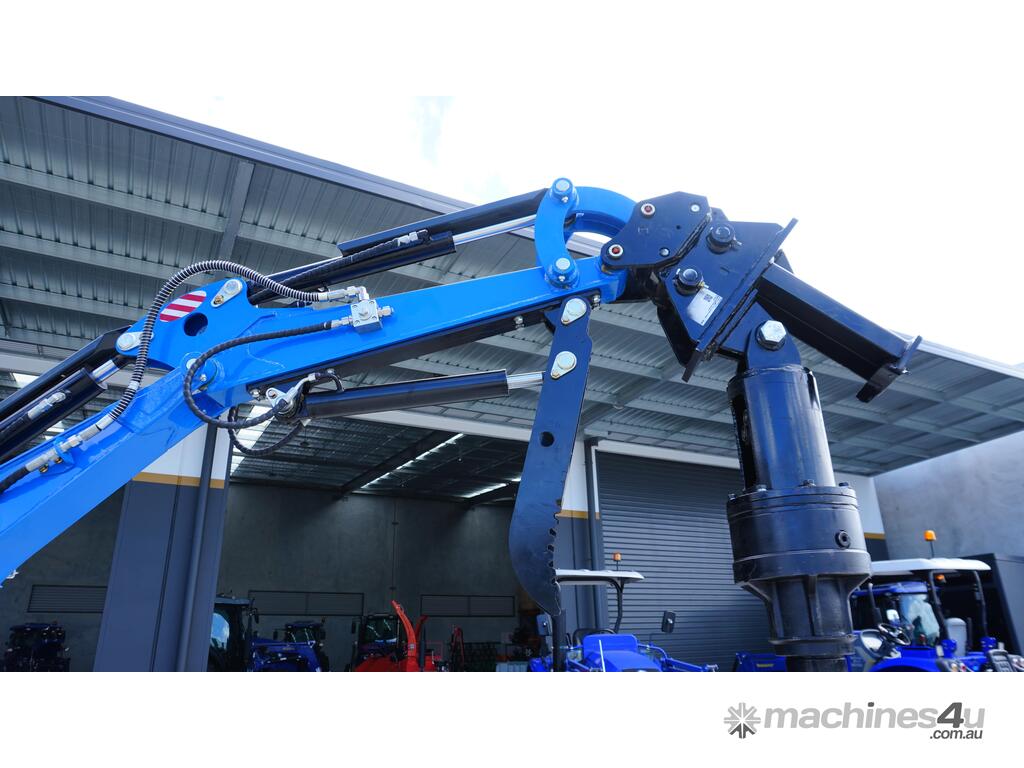

300mm auger post hole digger
Quick hitch
Price: $31,990 (inc GST)
Add-On Option:

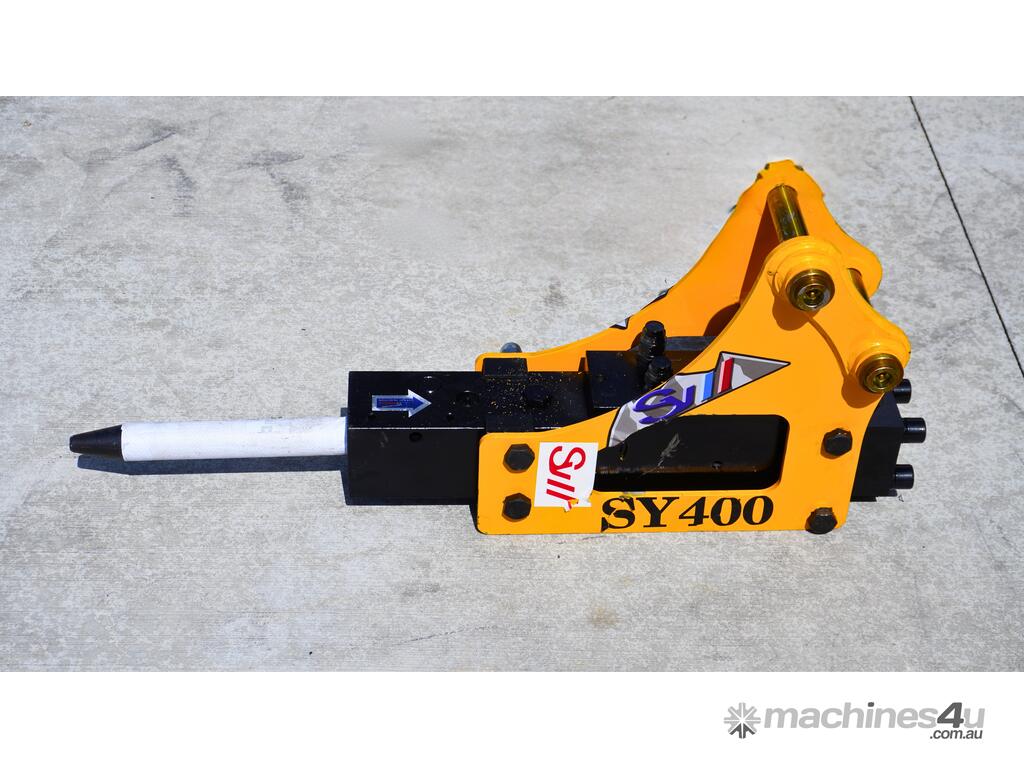

• Hydraulic Rock Breaker, for $2,200 inc. GST.
Key Features:
Zero swing

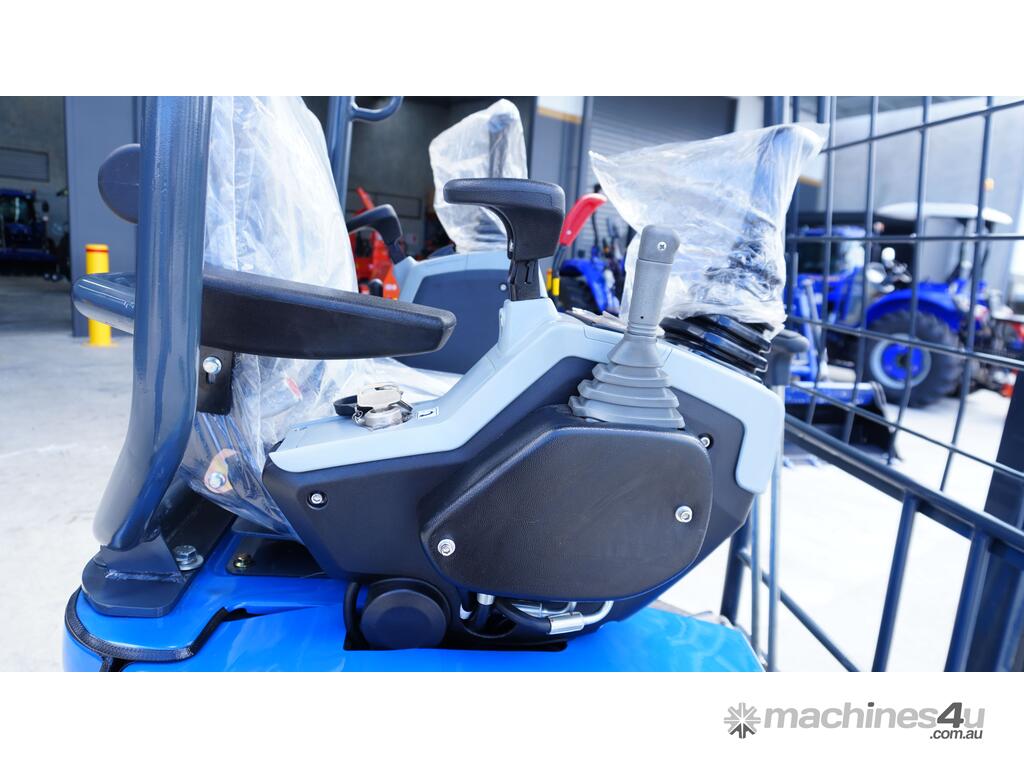

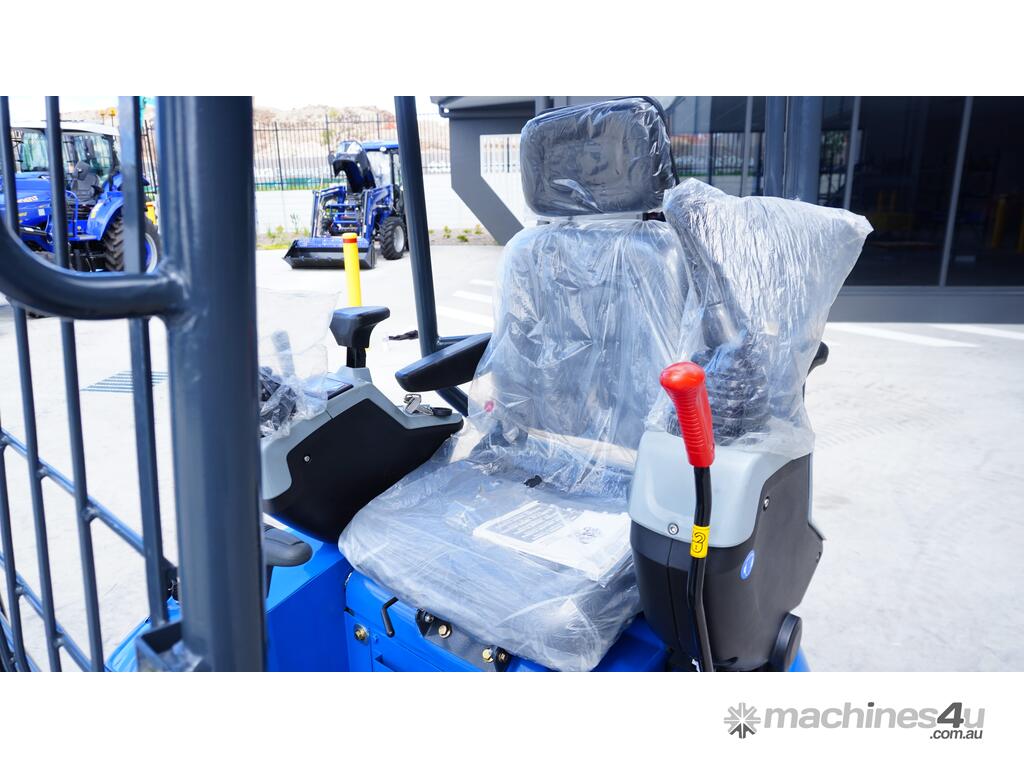

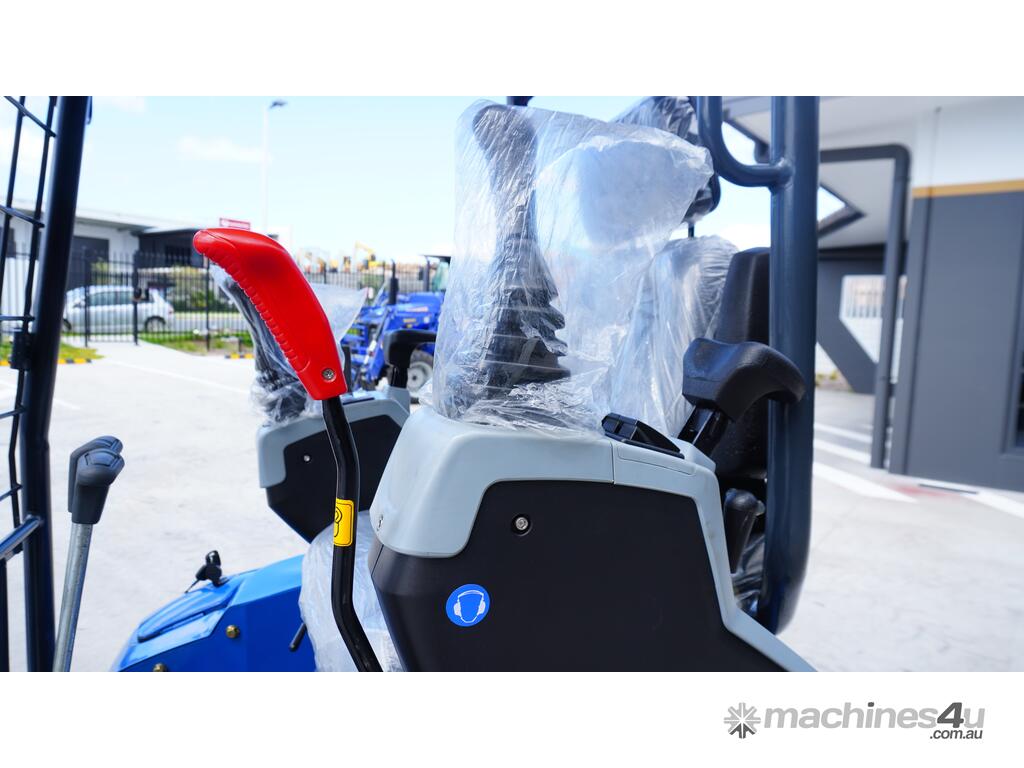

Pilot controls
Swing boom

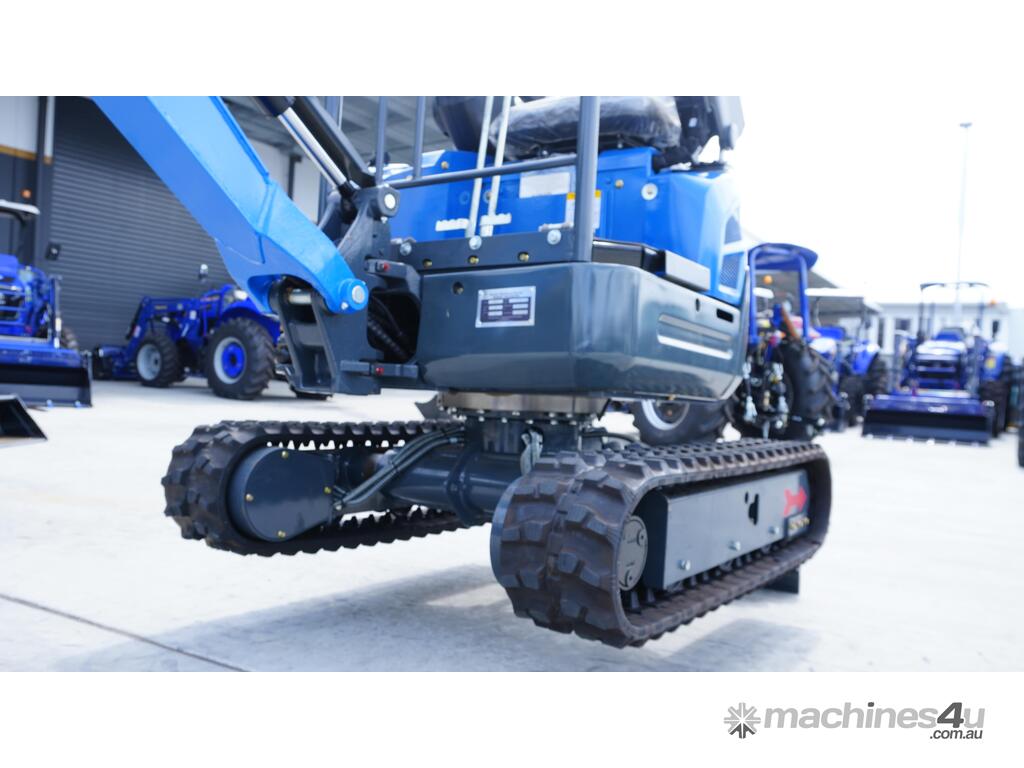

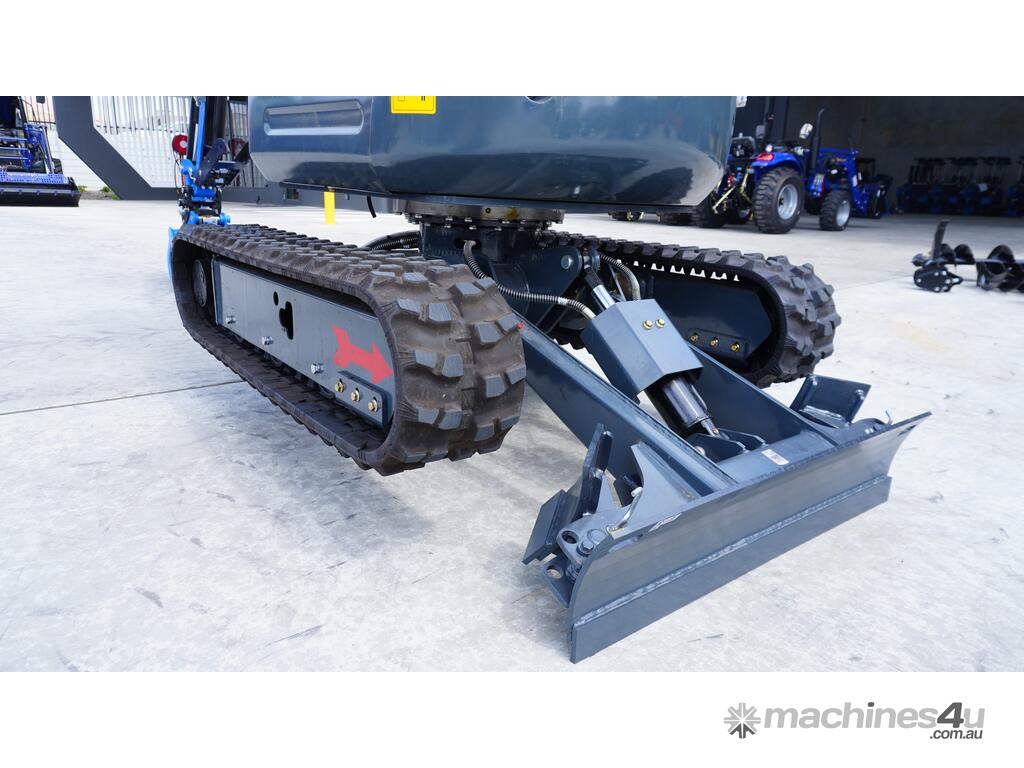

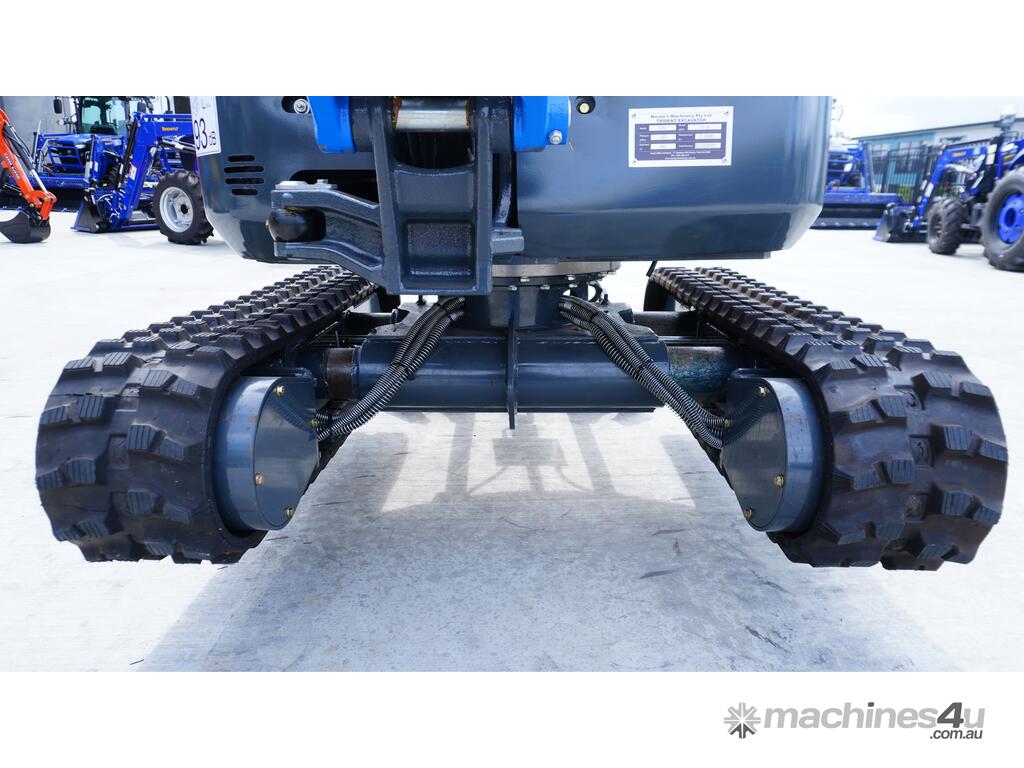

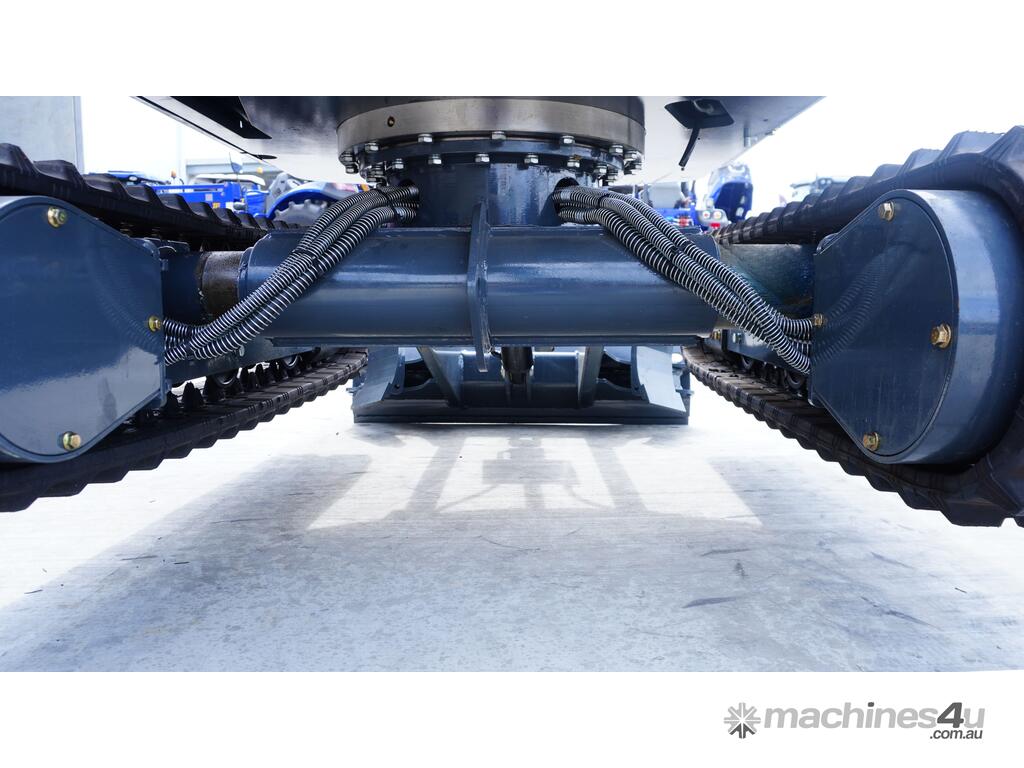

Expandable track
Kubota engine

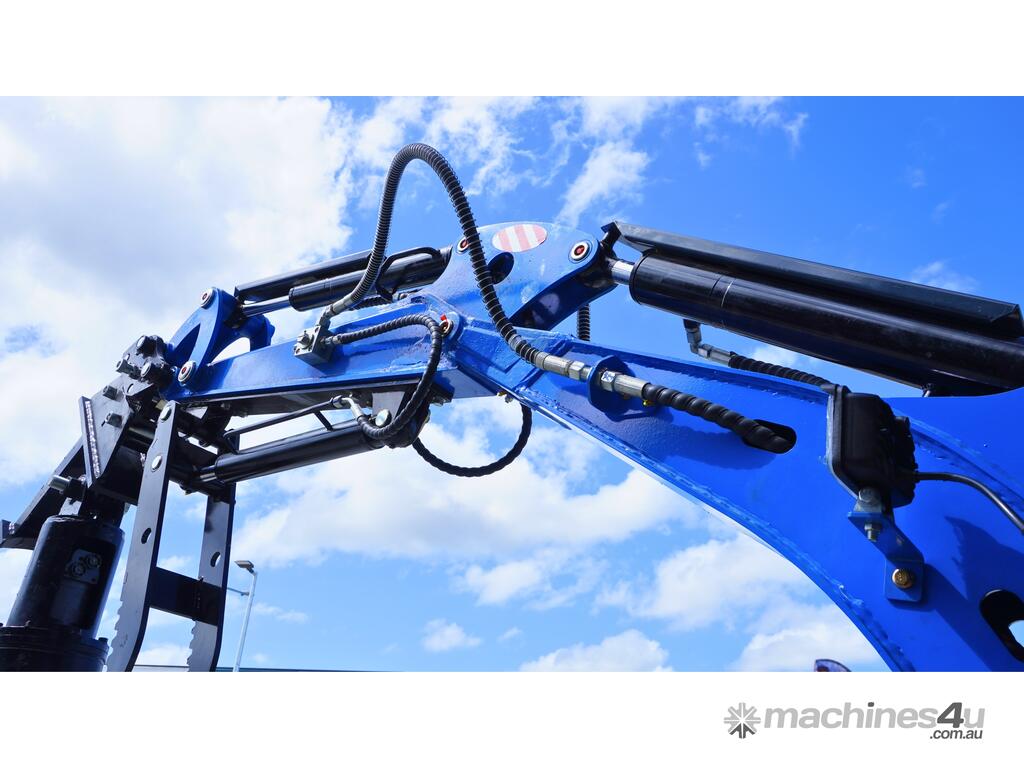

Hydraulic outputs for multiple attachments
Mechanical fuel pump (No engine ECU)
3 years parts warranty
Excavator Specifications:
Engine model: Kubota D902-EF08
Rate power: 15.5kw / 20HP / 3600 rpm
Displacement: 898cc
Number of cylinders: 3
Flow rate: 64.4L/min
Fuel tank capacity: 20L
Intake: Naturally Aspirated
Starting: Electric
Fuel type: Diesel
Cooling type: Water cooled
Cooling system: 5L
Operating Parameters:
Vehicle working weight: 2,200kg
Travel speed: 3.4 km/h
Swing speed: 10.5 rpm
Minimum swing radius: 1,580mm
Maximum digging depth: 2,270mm
Maximum dumping height: 2,550mm
Max. vertical digging depth: 1,910mm
Max. digging distance: 3,950mm

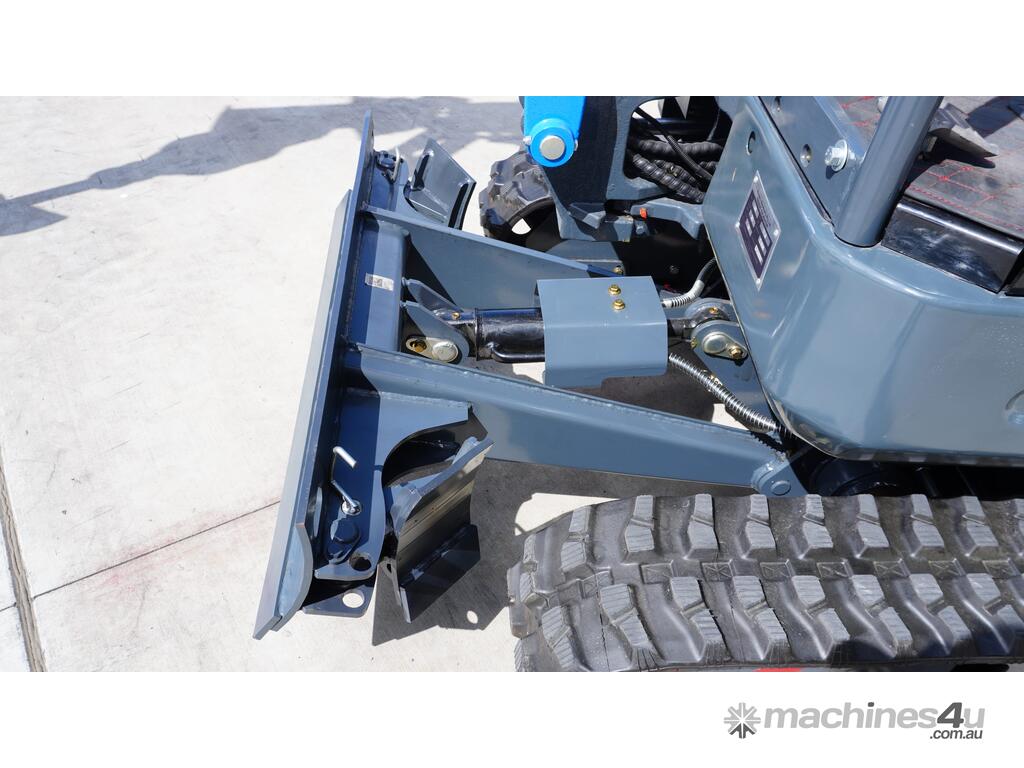

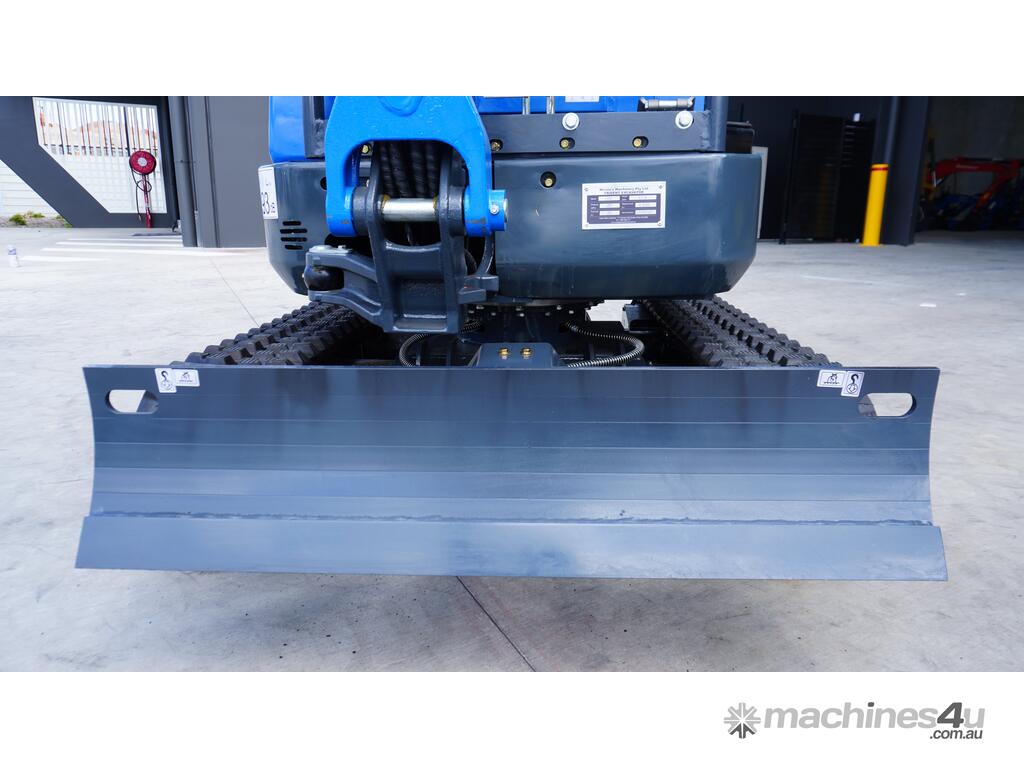

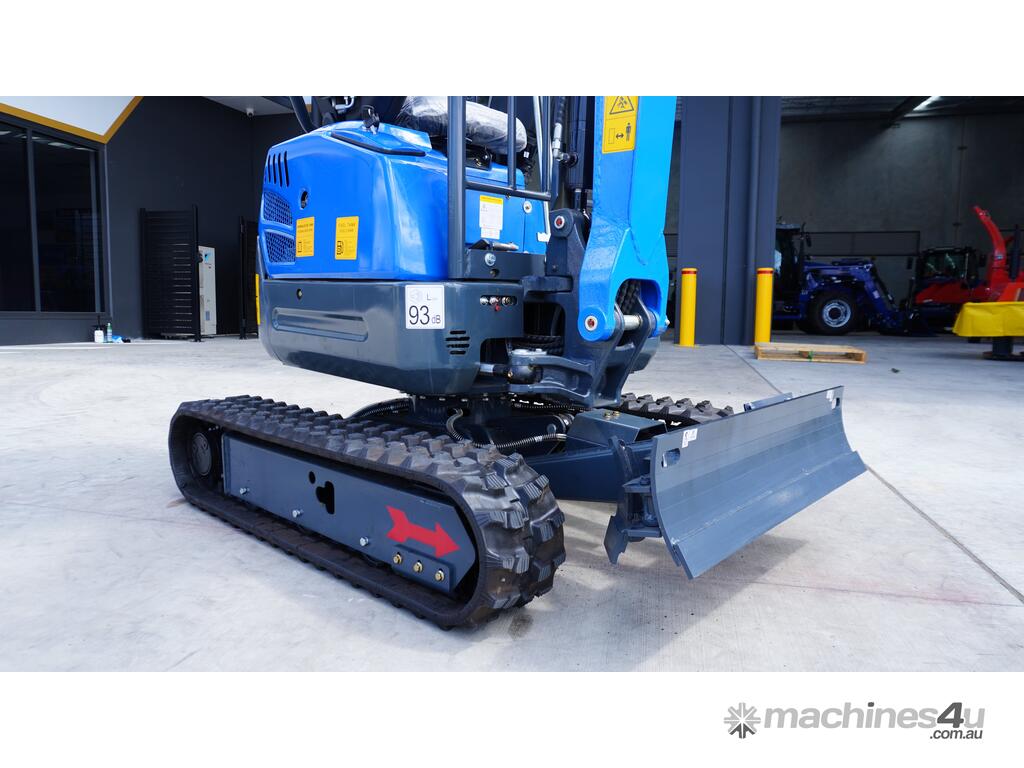

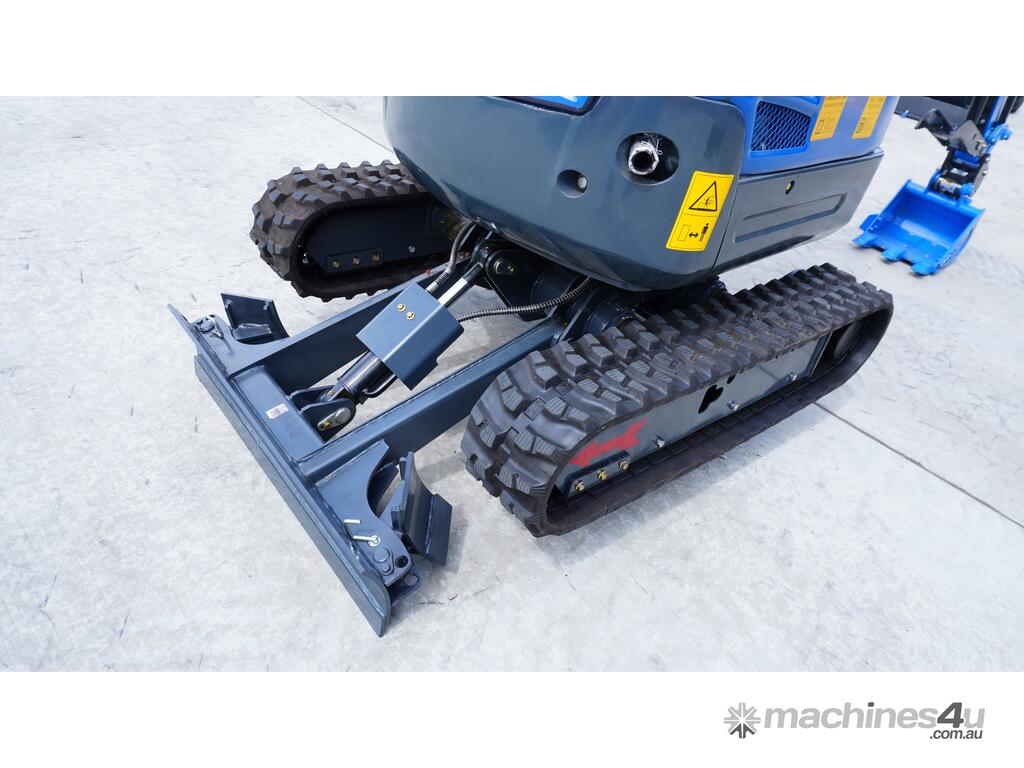

Maximum Lifting height of dozer blade: 280mm
Maximum Digging depth of dozer blade: 190mm
Excavator Dimensions:
Gross weight: 2,200kg
Overall width: 1,000mm - 1,300mm (adjustable)
Overall height: 2,450mm
Total length of track: 1,590mm
Total length with dozer: 1,720mm
Track height: 360mm
Platform ground clearance: 415mm
Platform back turning radius: 680mm
