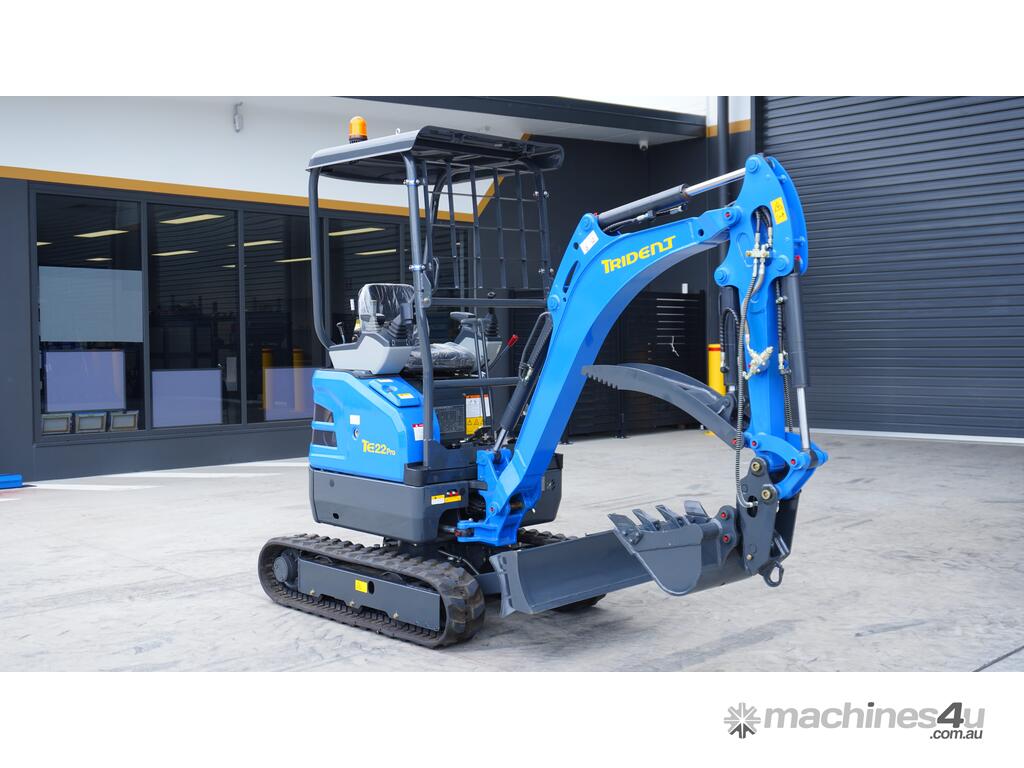

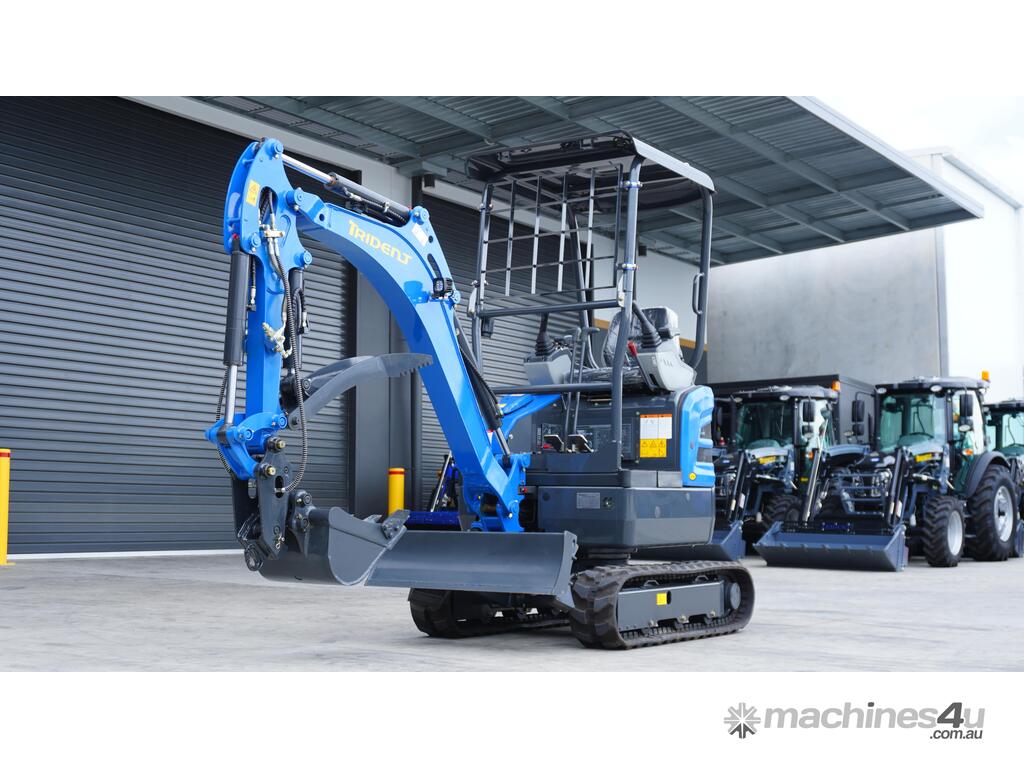

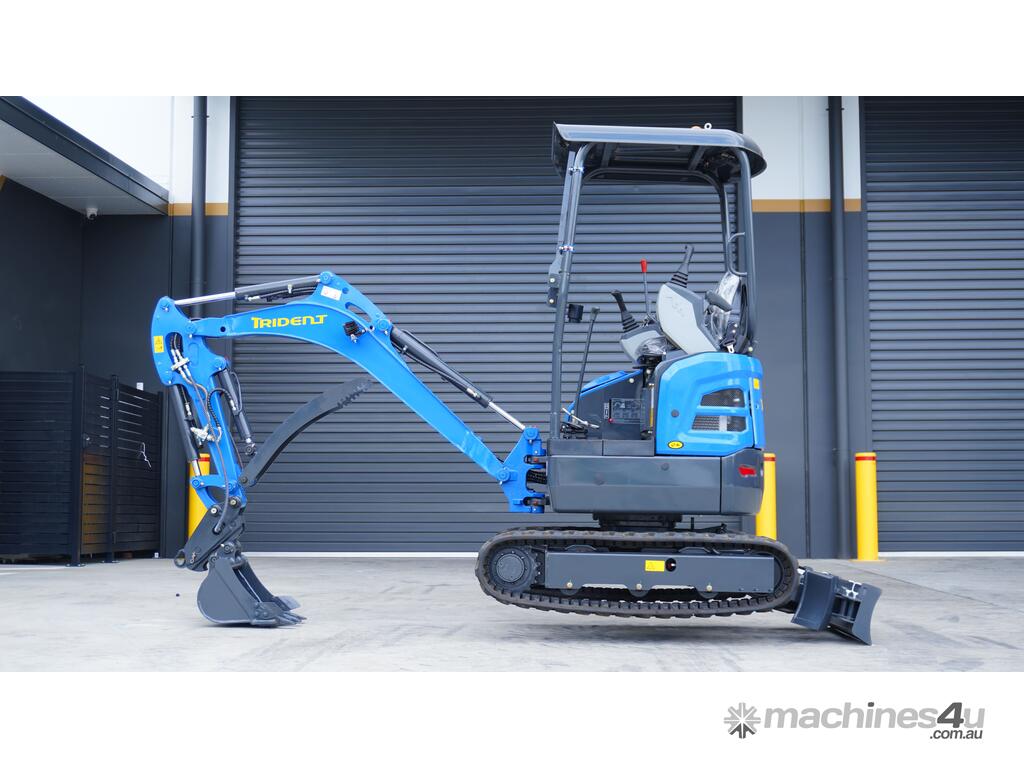

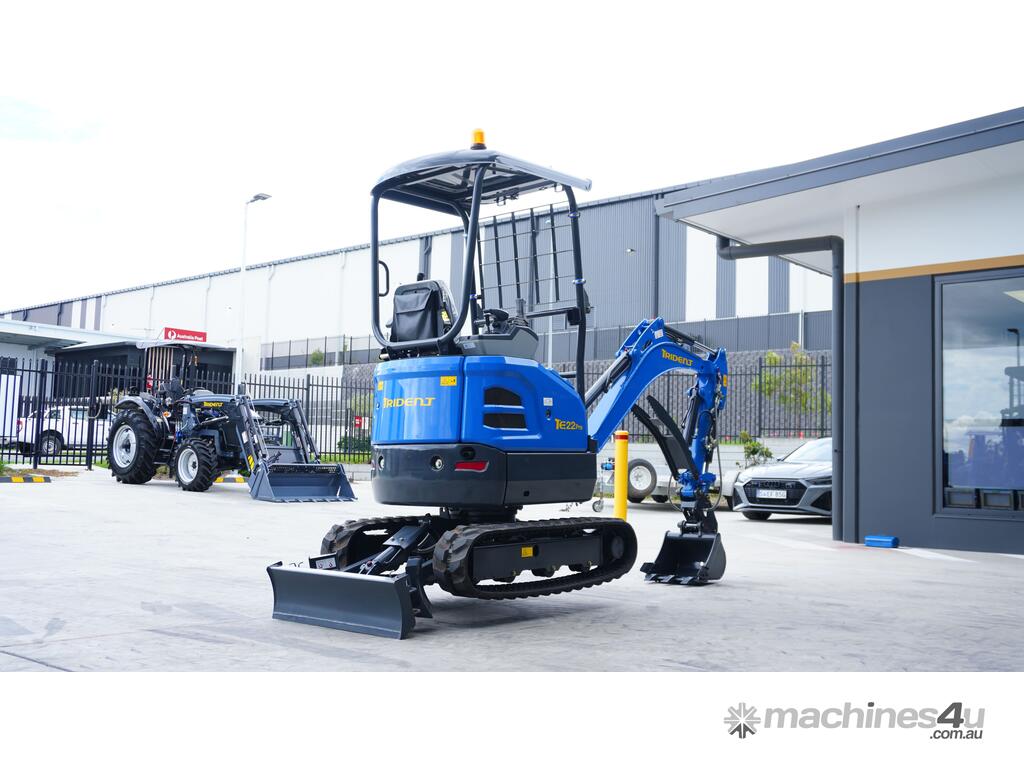

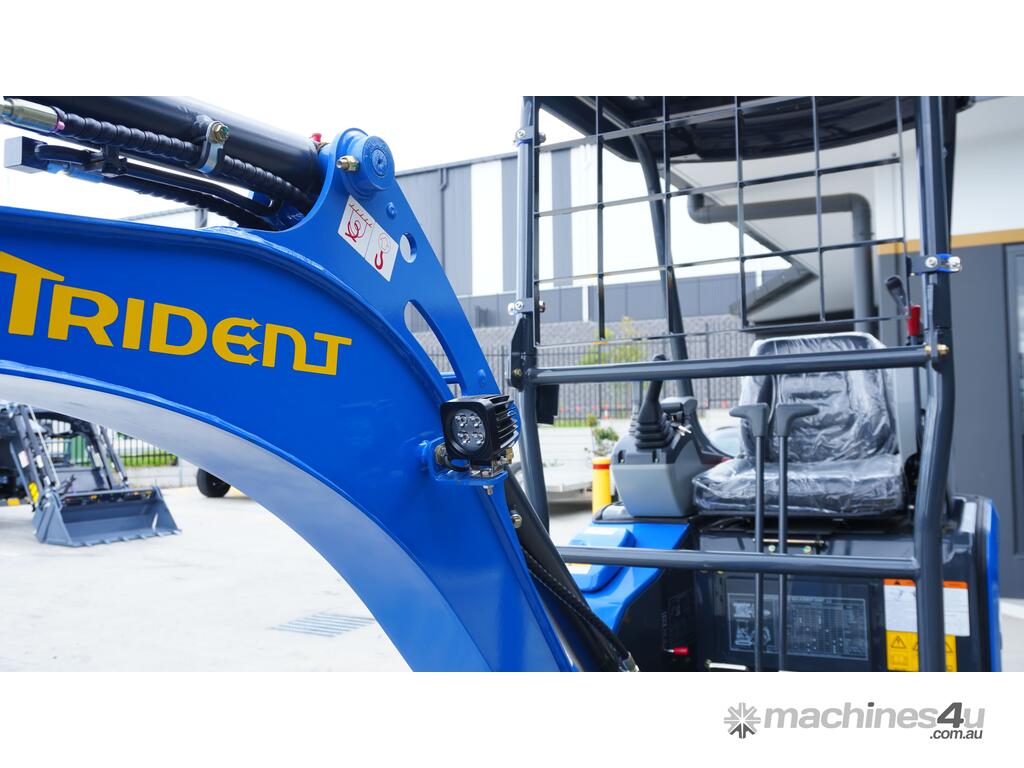

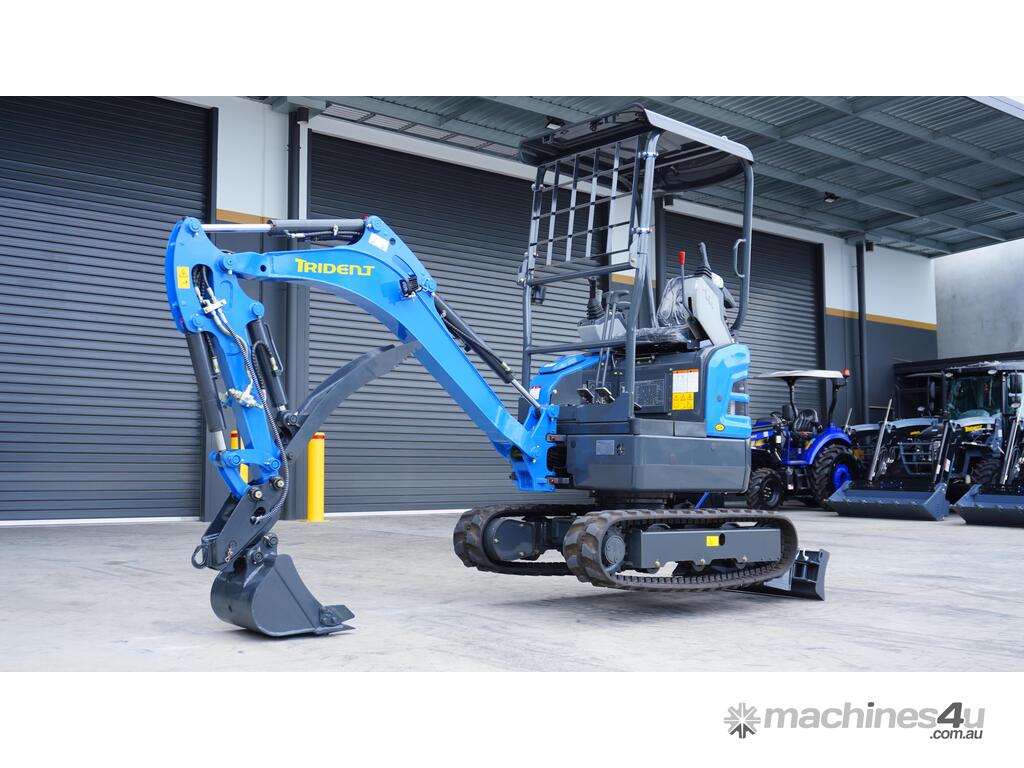

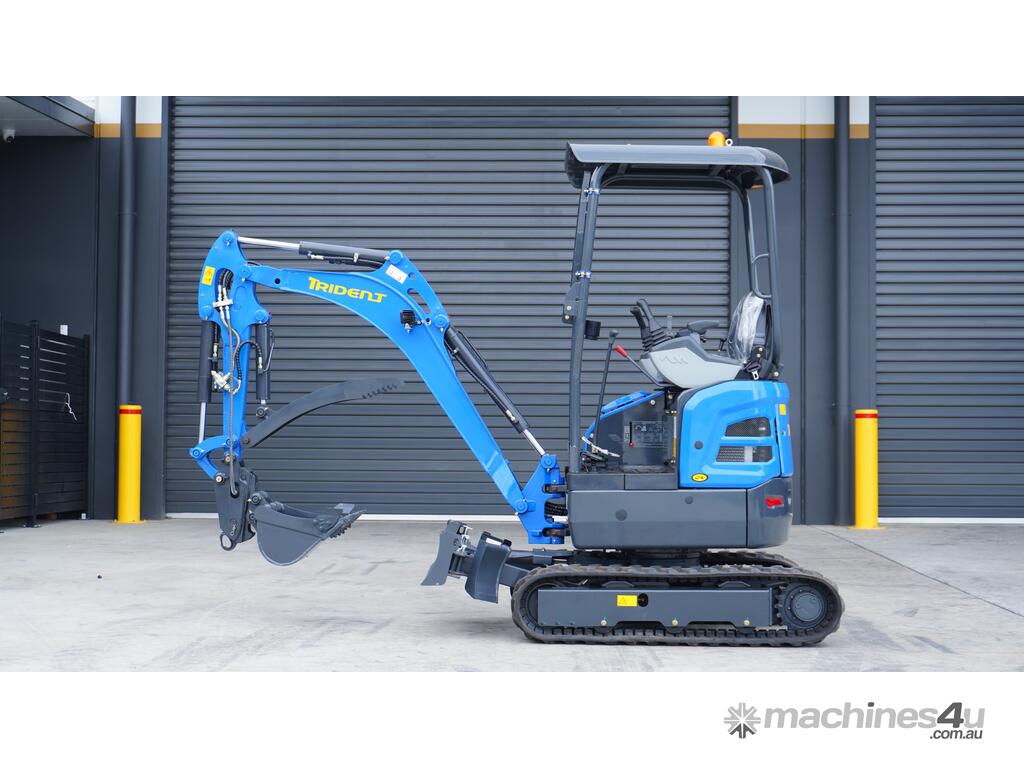

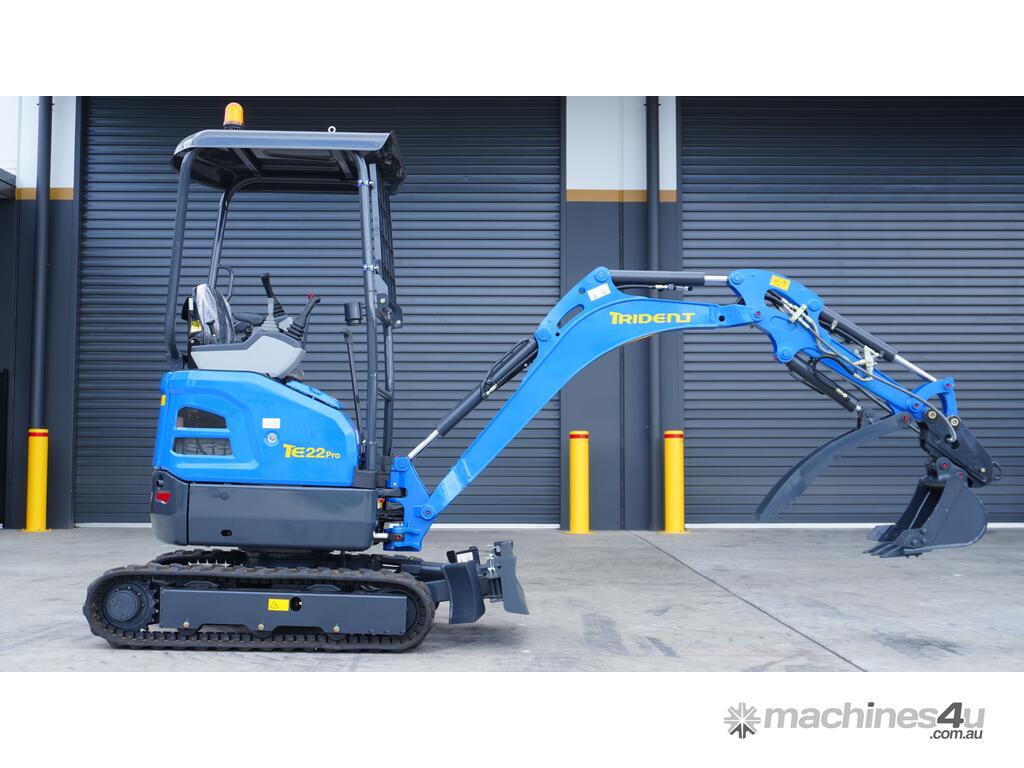

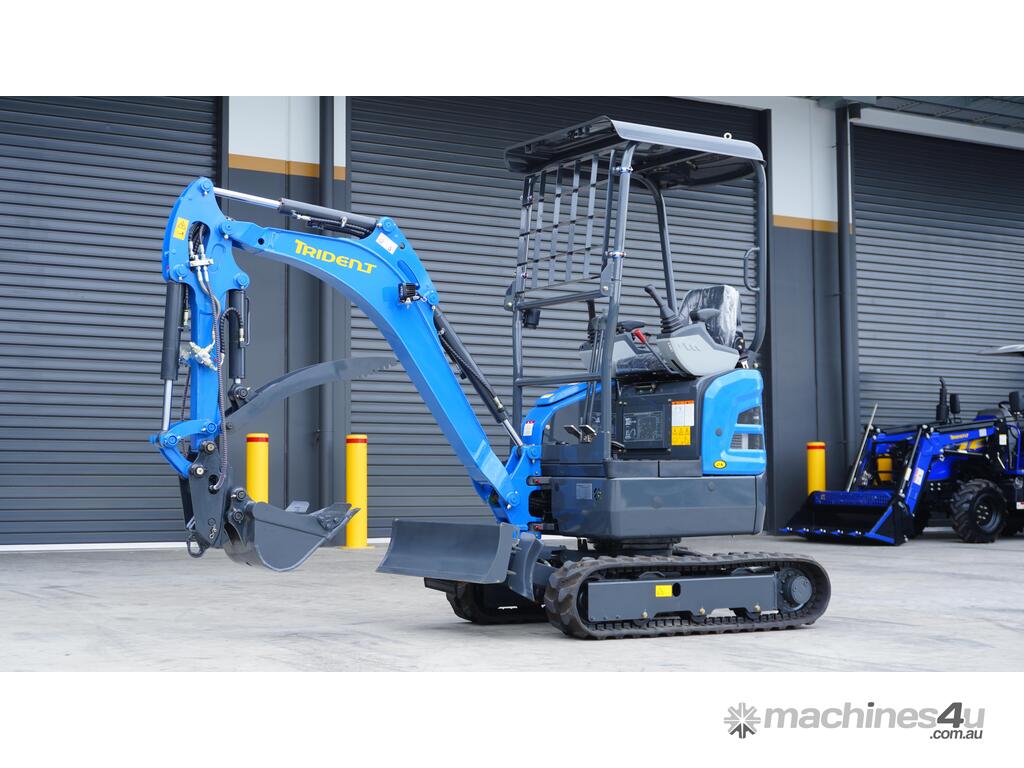

The Trident 2.2T Pro Excavator combines power, efficiency, and precision for demanding worksites. Its Kubota D902 engine, a vertical water-cooled 3-cylinder diesel, delivers smoother, more responsive performance. The upgraded hydraulic quick hitch and hydraulic thumb make attachment changes faster and operation easier. With zero swing, pilot controls, expandable tracks, and a swing boom, the 2.2T Pro offers excellent maneuverability and control, ensuring efficient performance in tight spaces.
Combo deal includes:

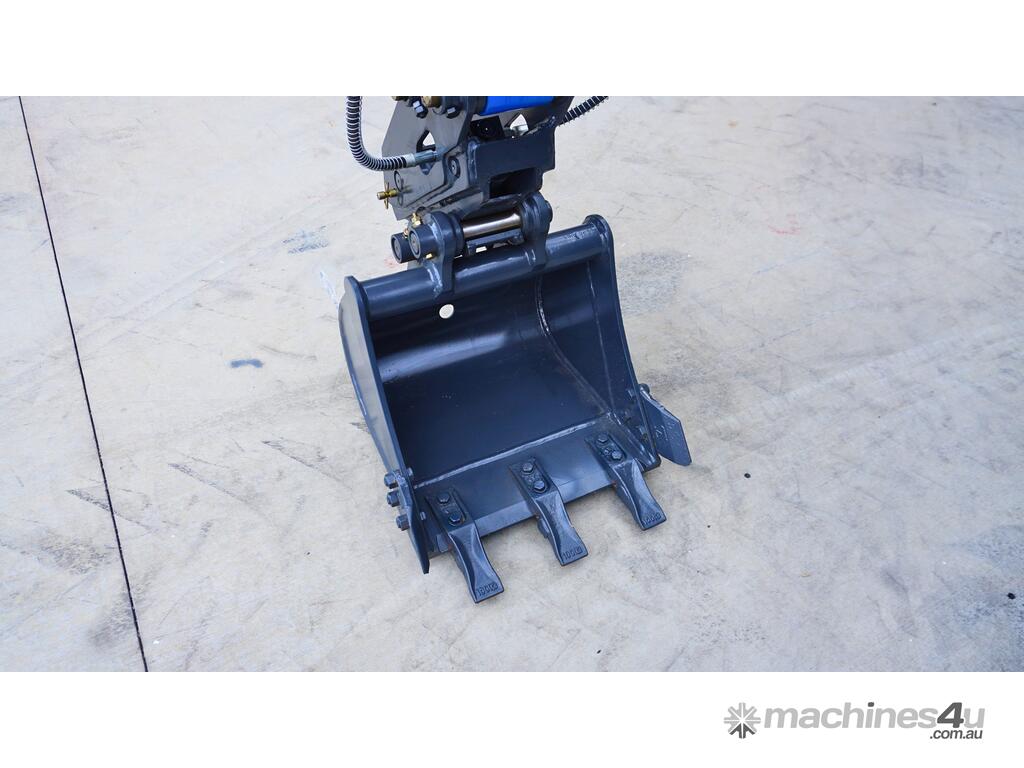

• 450mm bucket
• 200mm trench bucket
• 1,000mm mud bucket
• 400mm stick rake
• 50mm ripper
• Hydraulic quick hitch
• Post hole digger with 300mm auger

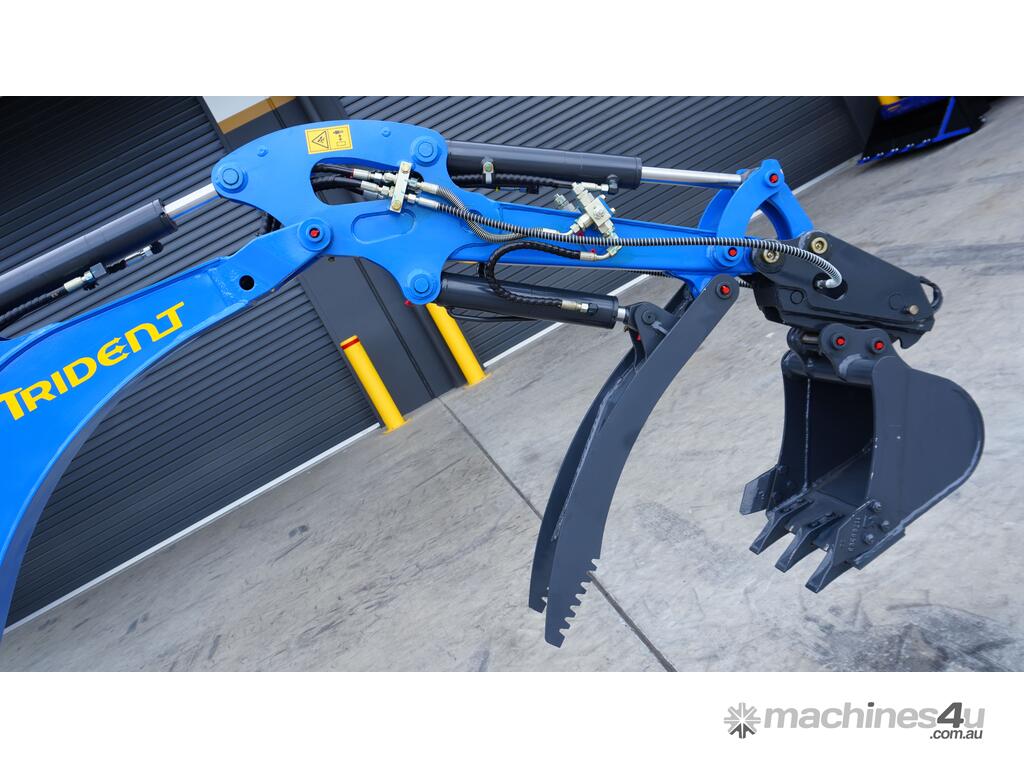

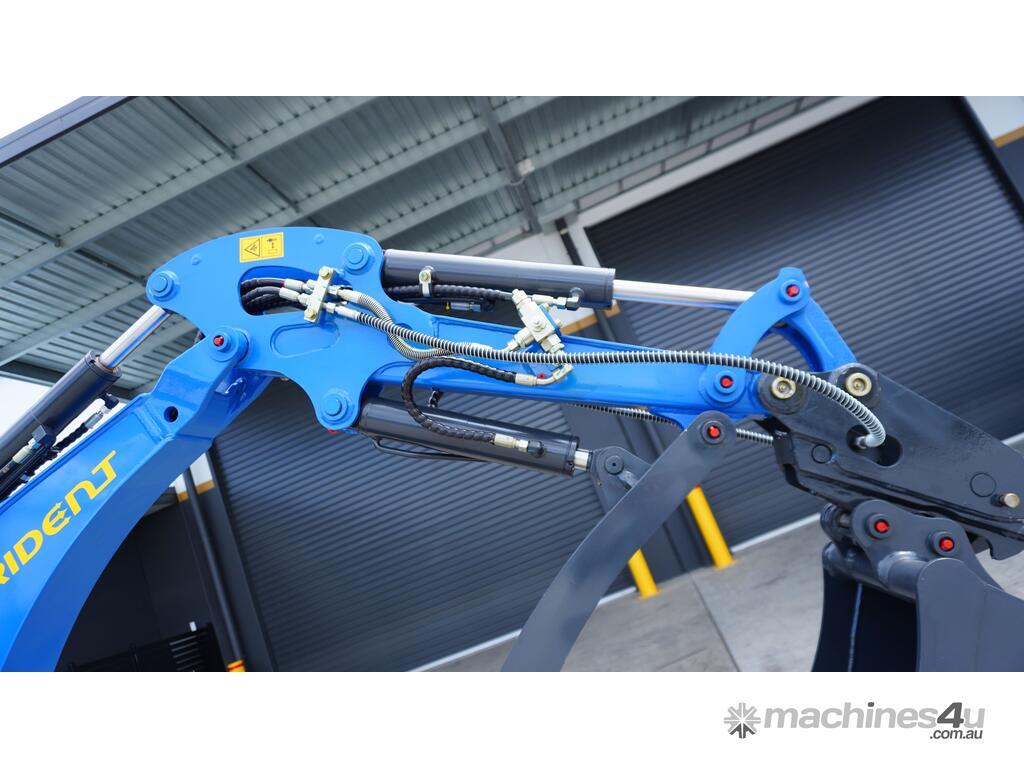

• Hydraulic thumb grab
• Hydraulic rock breaker
Key Features:
Zero swing

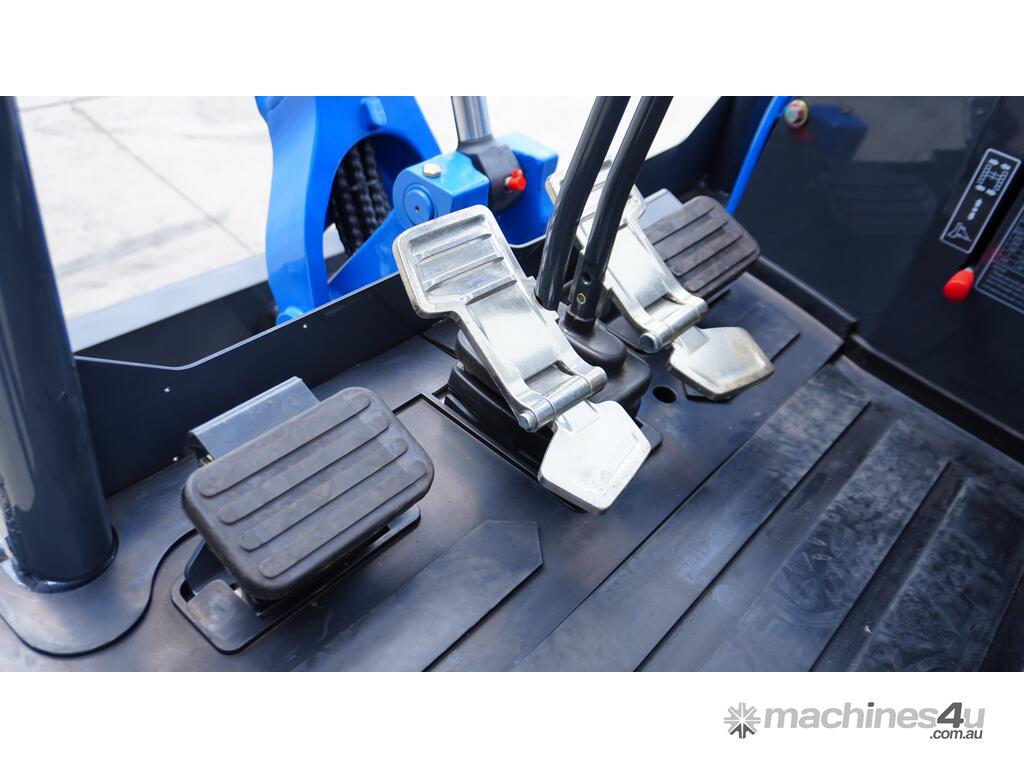

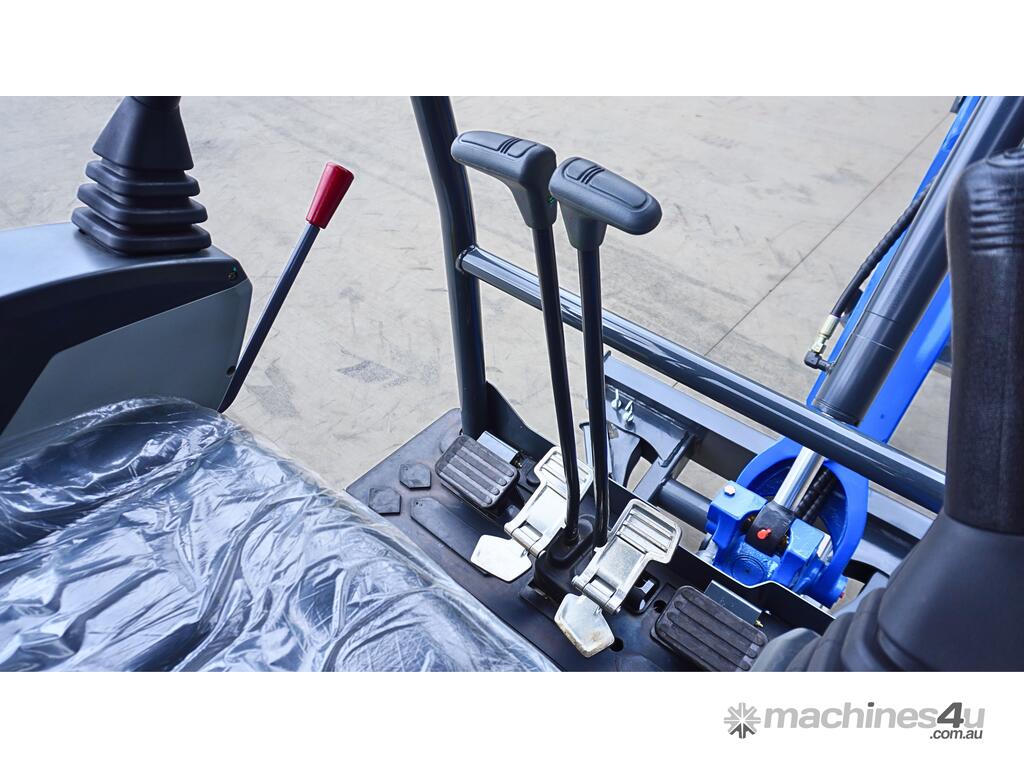

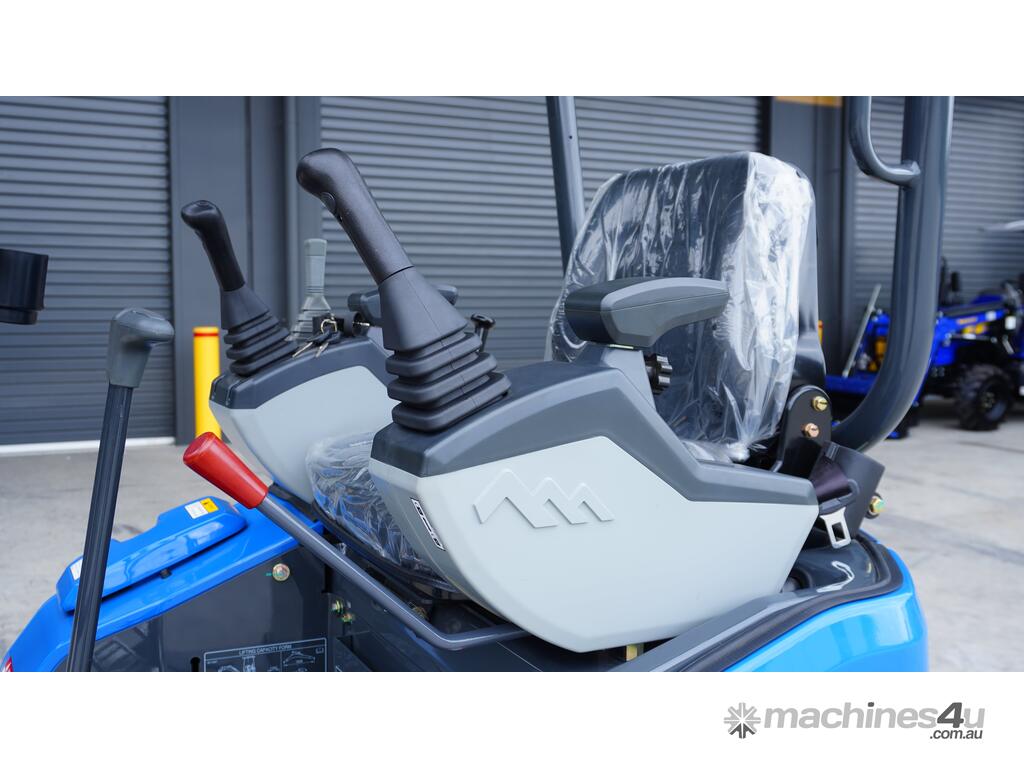

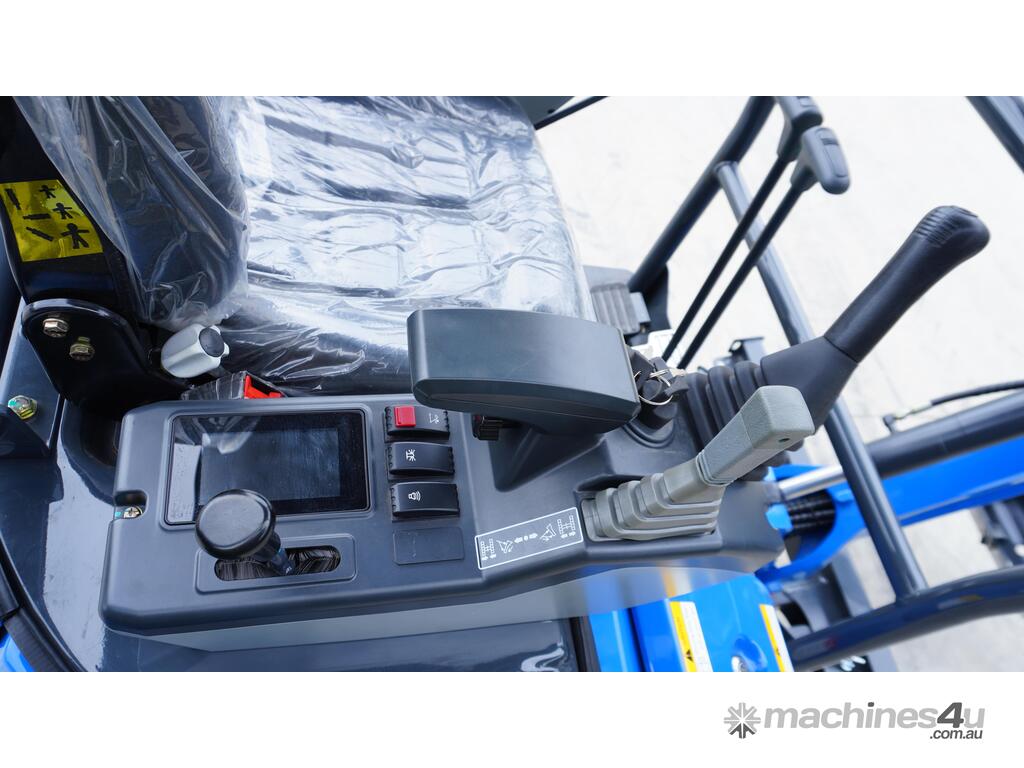

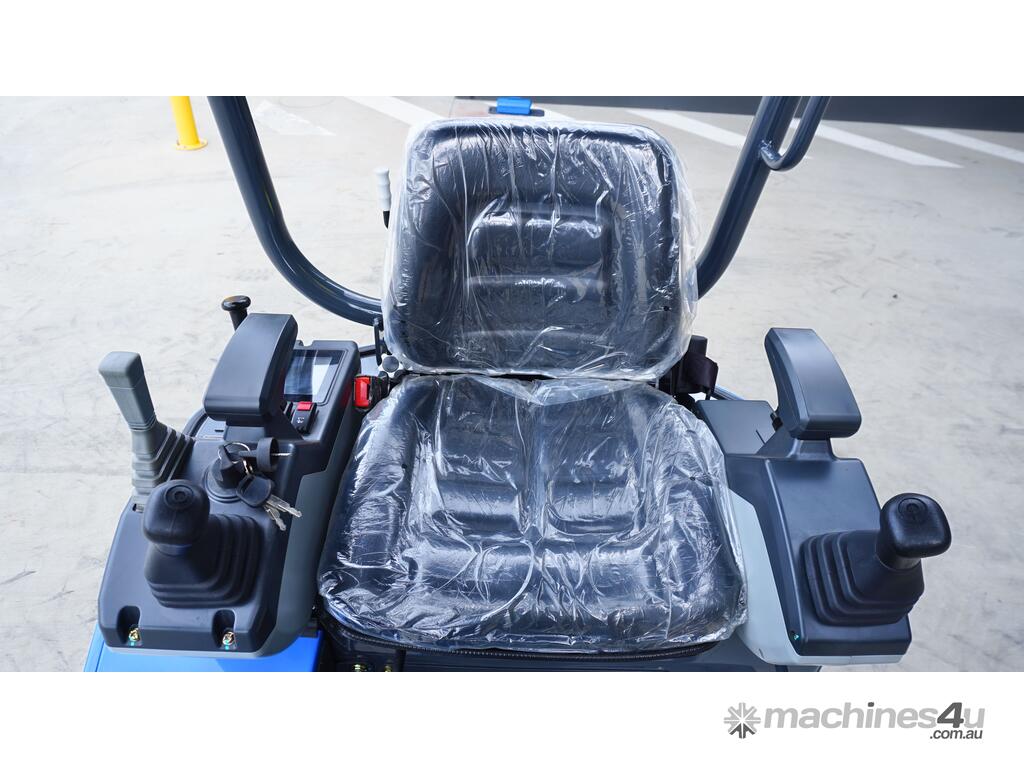

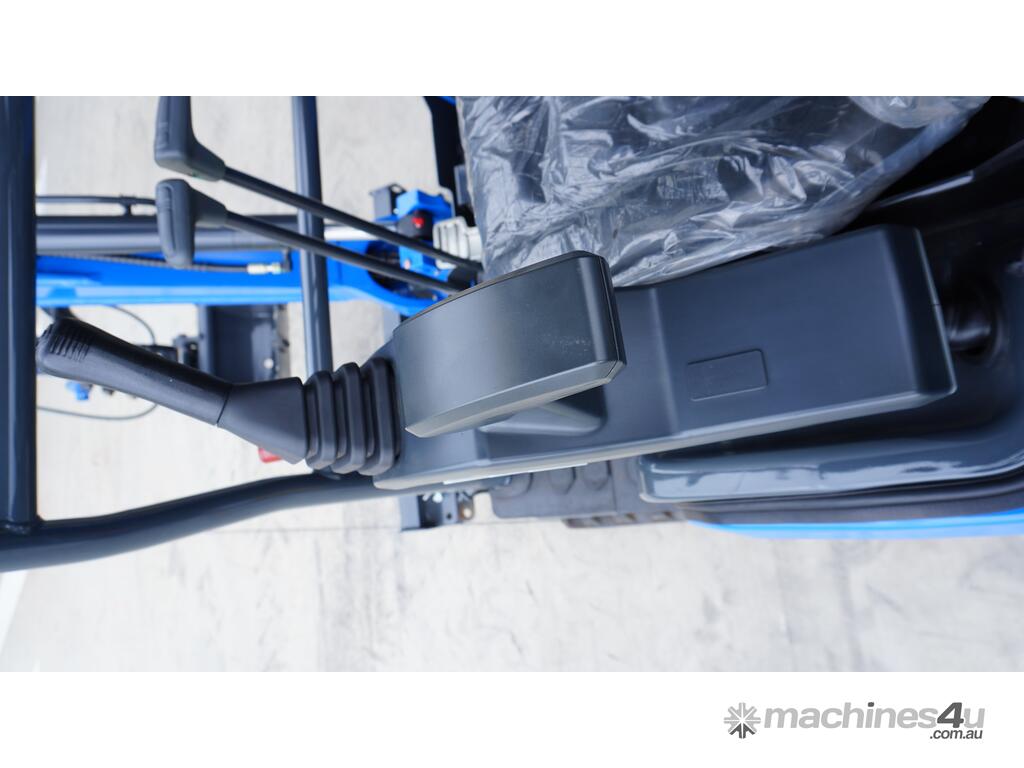

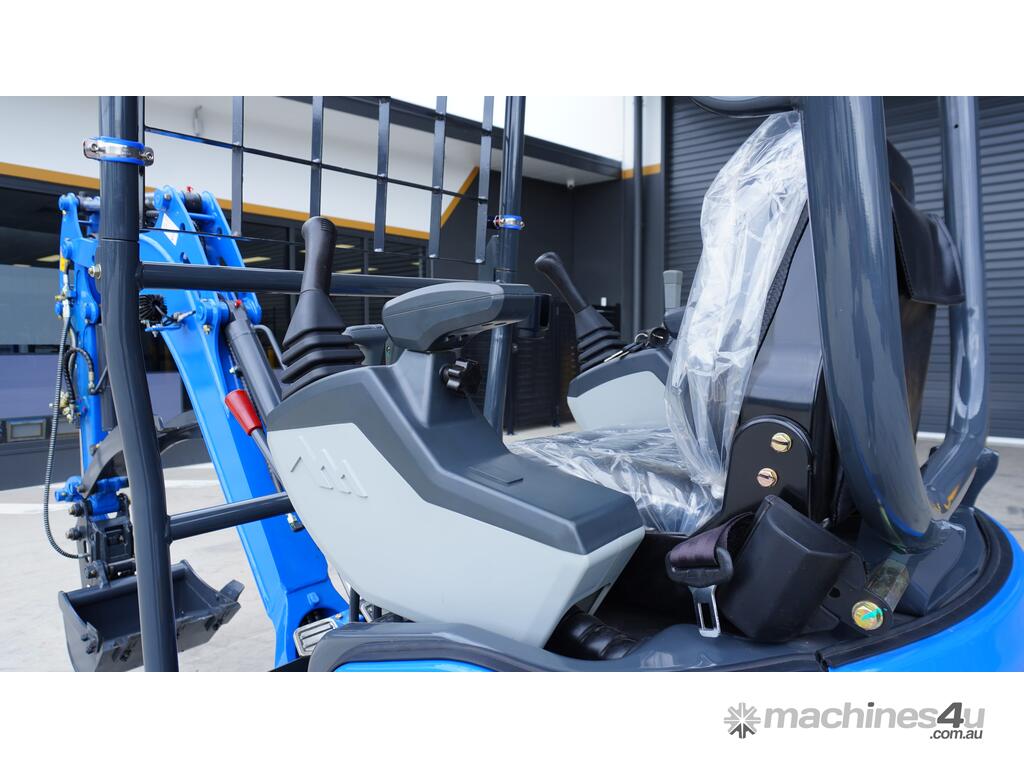

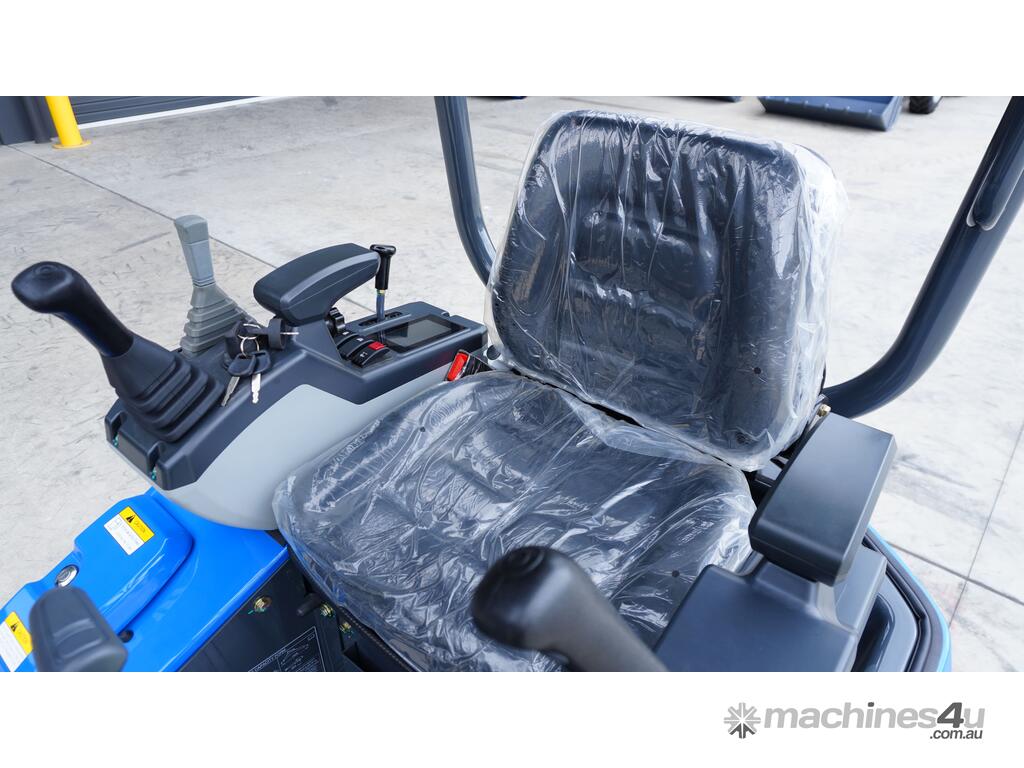

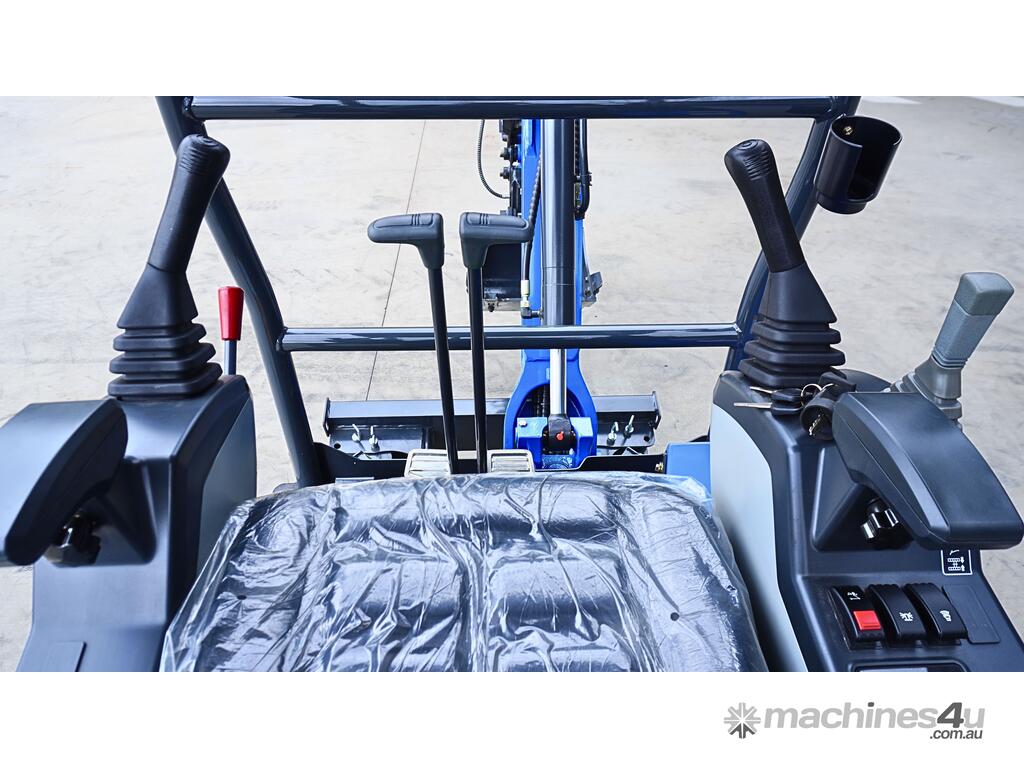

Pilot controls
Swing boom
Hydraulic quick hitch

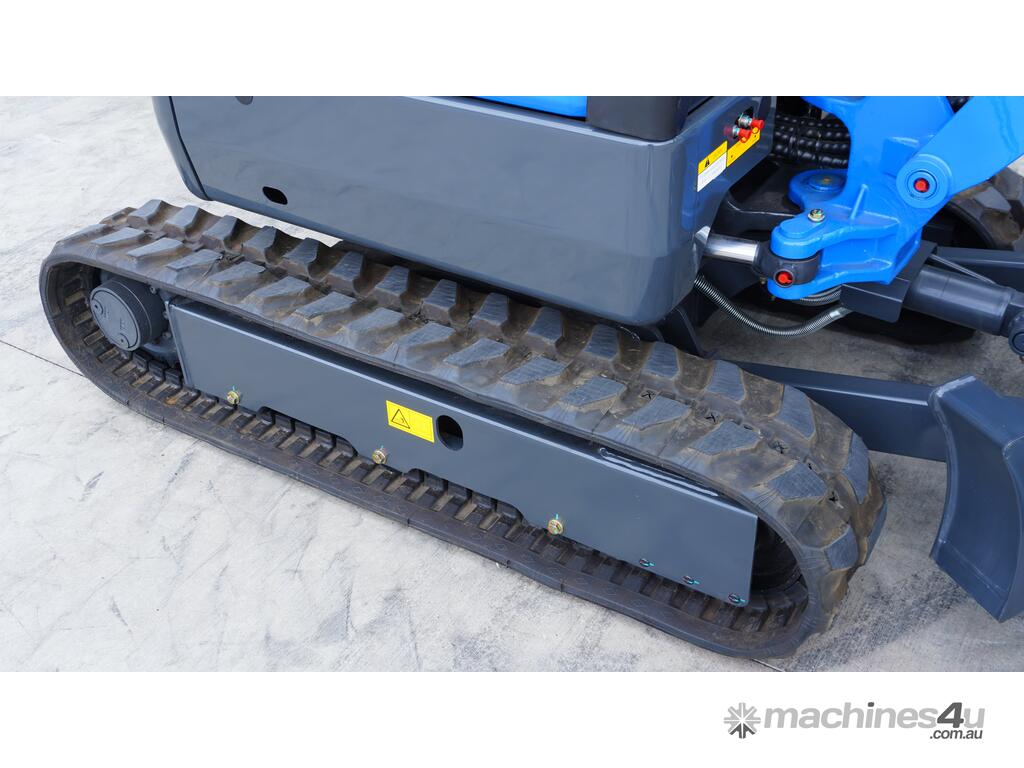

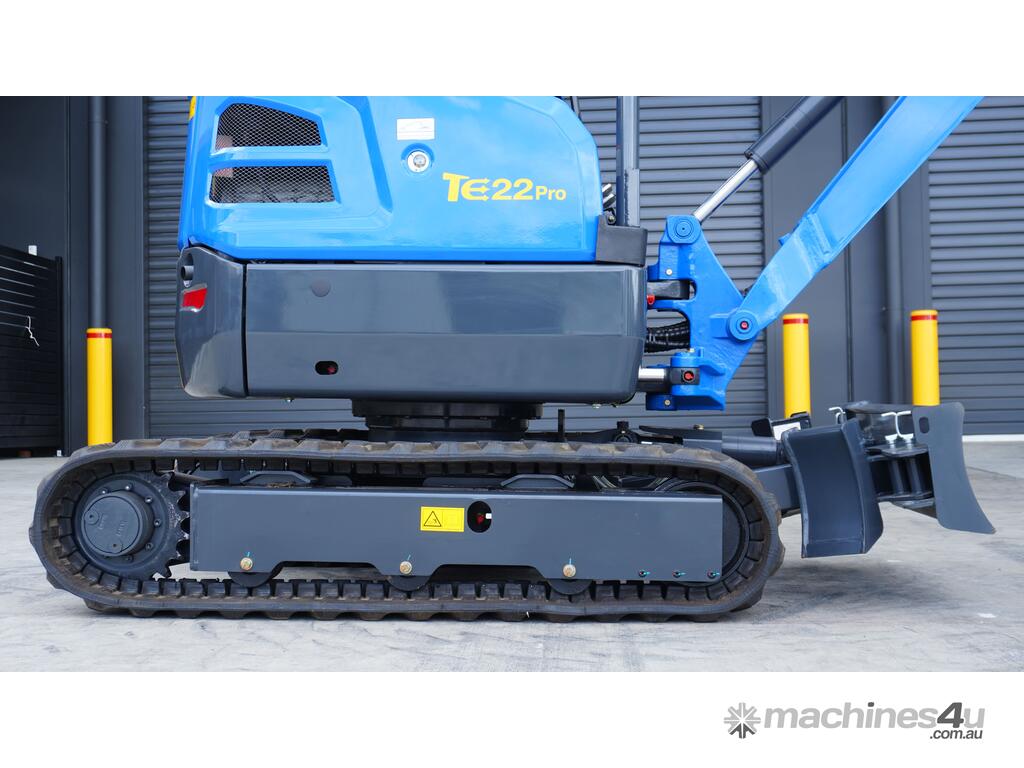

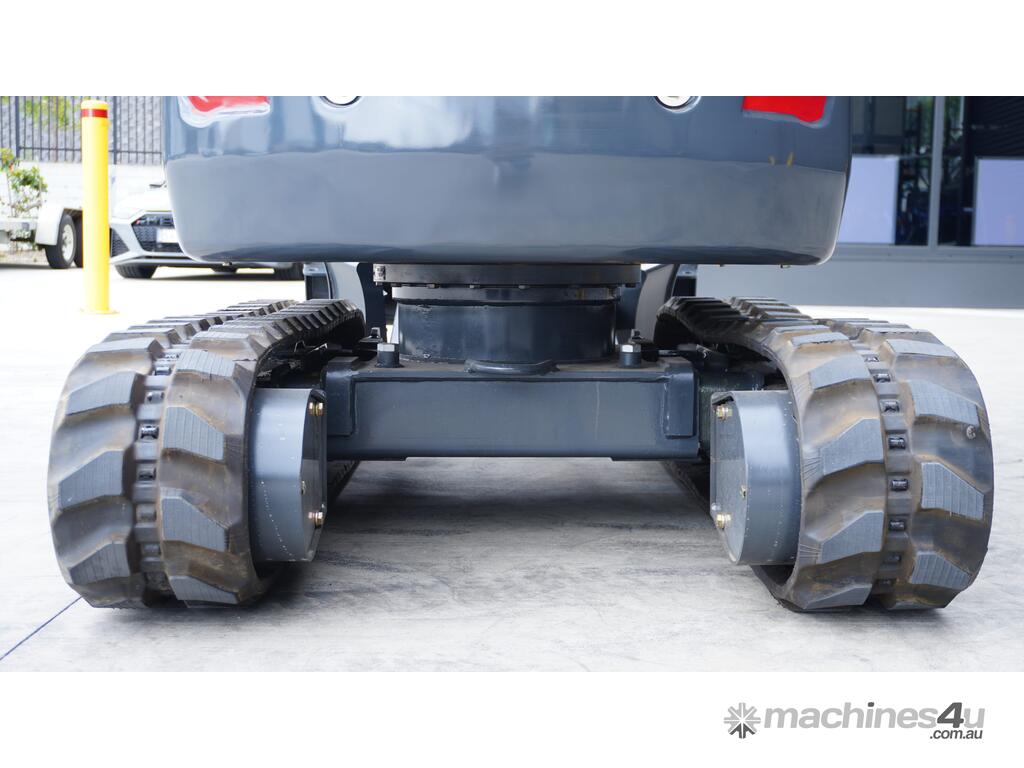

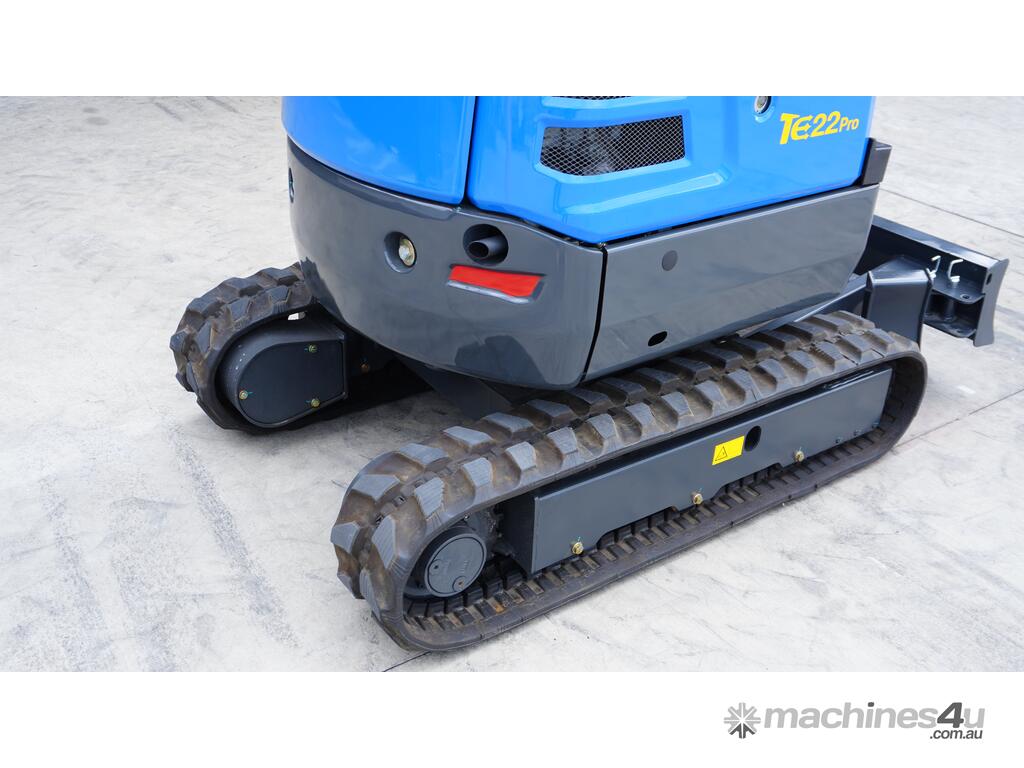

Expandable track

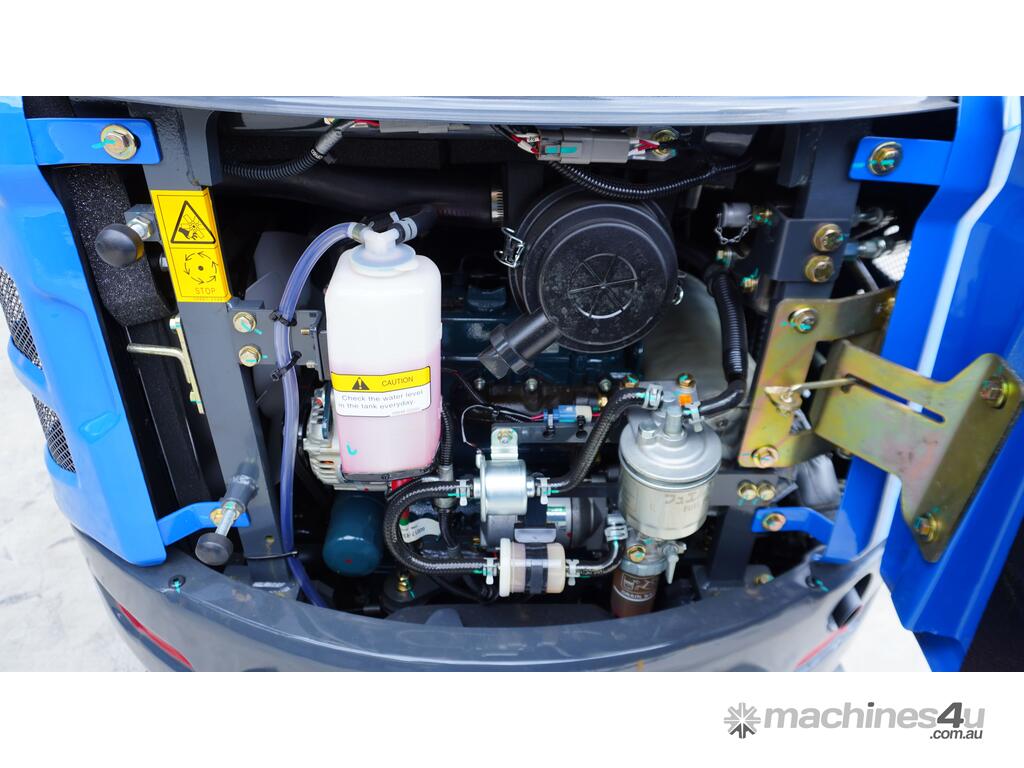

Kubota water-cooled, 3-cylinder, diesel engine
Hydraulic outputs for multiple attachments
Mechanical fuel pump (No engine ECU)
Engine & Hydraulic:

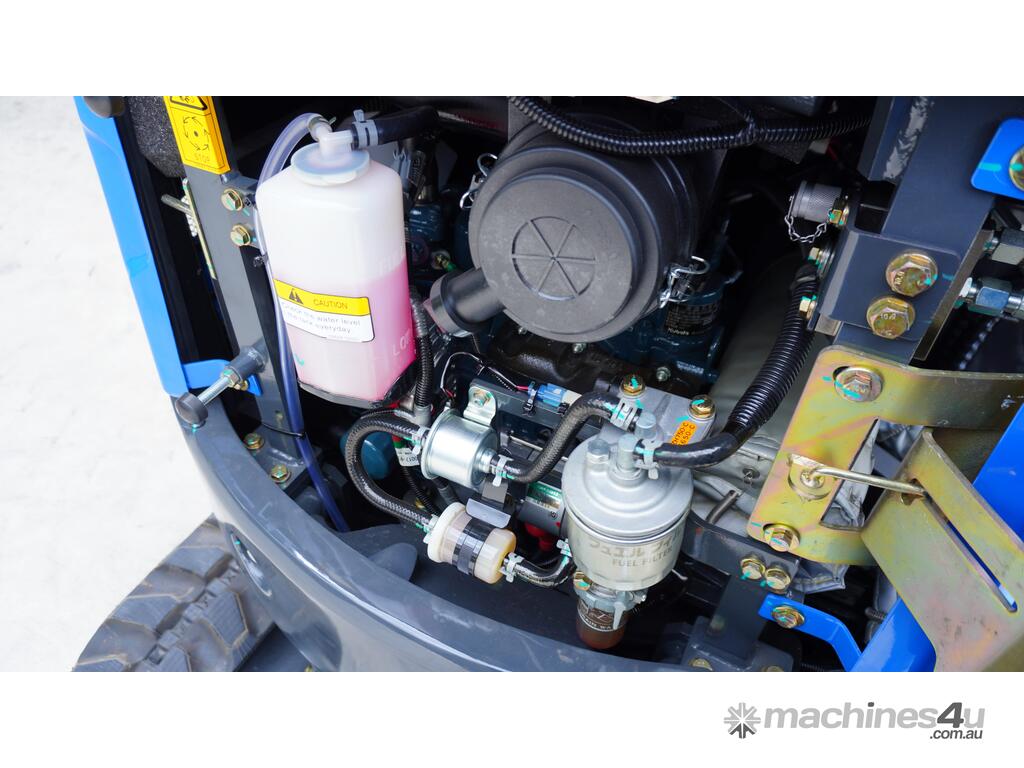

Engine model: Kubota D902
Engine type: 4-cycle diesel engine
Number of cylinders: 3
Displacement: 0.898L
Engine setted power: 11.8 kW / 2,300 rpm
Engine max. power: 15.5kw / 3,600 rpm
Max flow rate: 74.4L/min
Fuel tank capacity: 20L
Hydraulic tank:14L
Fuel type: Diesel
Cooling type: Water cooled
Pump type: Variable piston pump
Swing speed: 9.5 rpm
Max. travel speed: L2.5 and H4.5 km/h
Operating Parameters:
Operating weight: 2,200 kg
Travel speed: high 4.3 km/h, low 2.2 km/h
Swing speed: 9.5 rpm
Max. digging radius on ground: 3,910mm
Max. digging radius: 3,840mm
Max. digging depth: 2,270mm
Max. digging height: 3,570mm
Max. dumping height: 2,480mm
Max. vertical digging depth: 1,910mm
Min. turning radius: 1,440mm

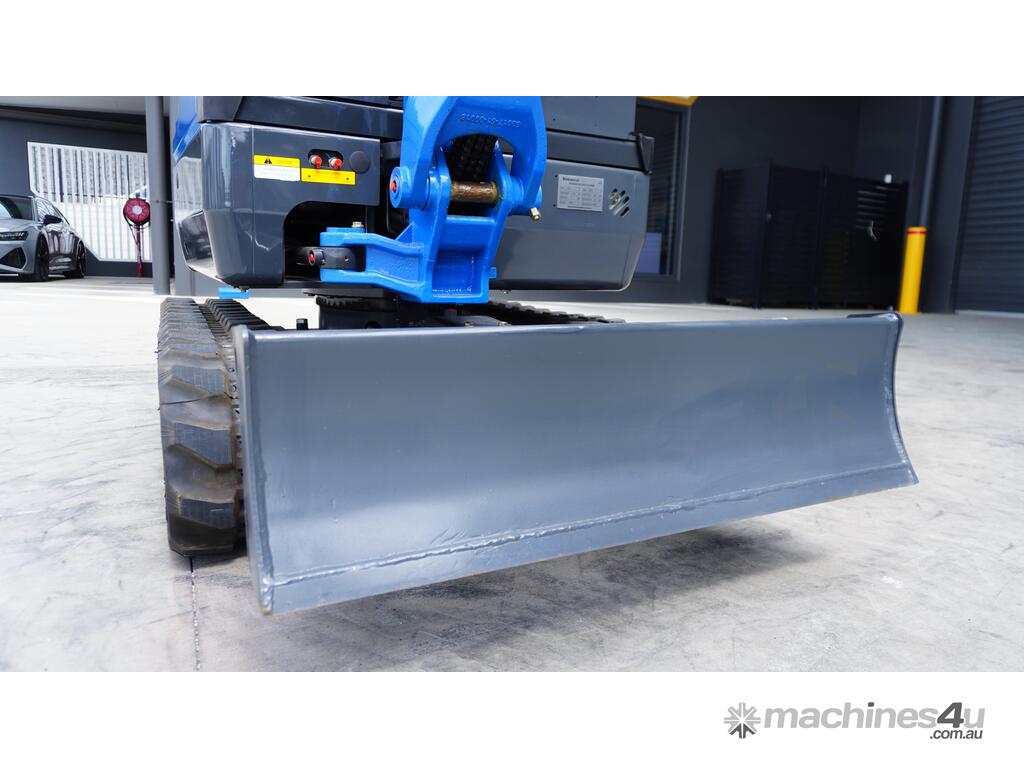

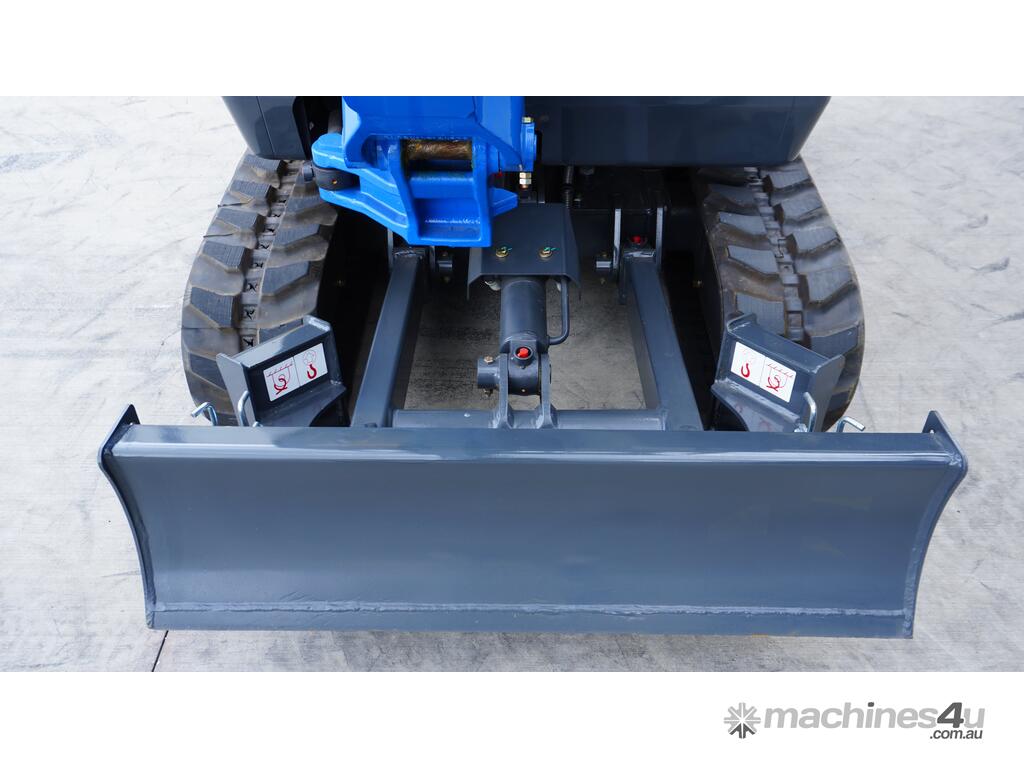

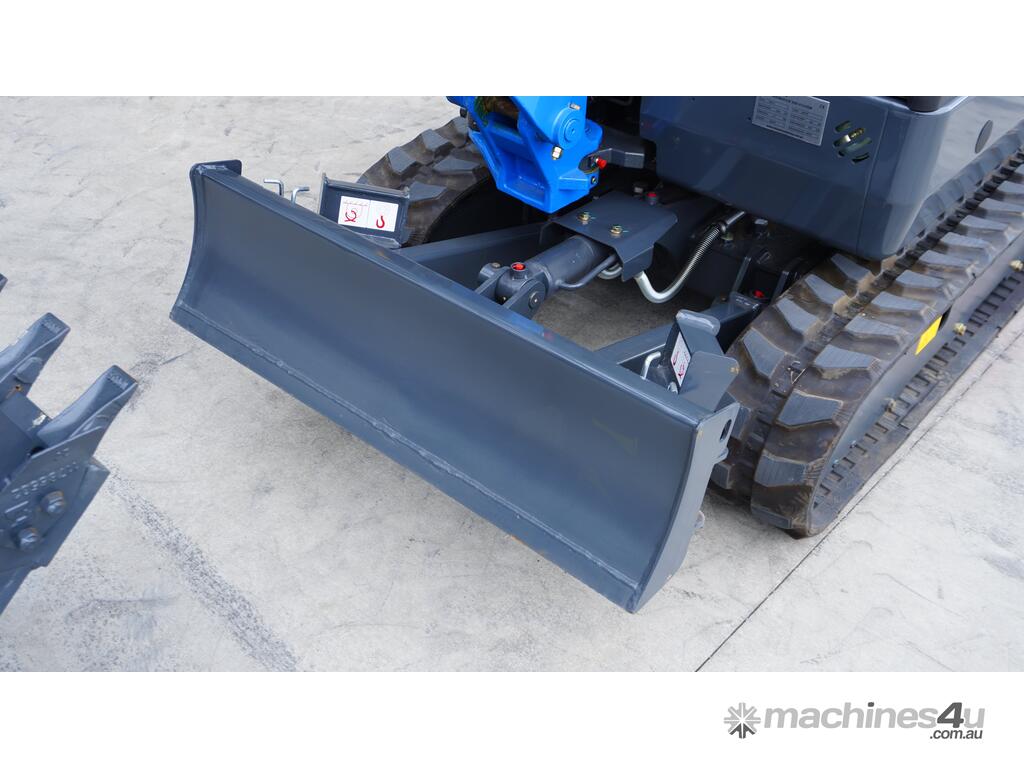

Max. lifting height dozer blade: 280mm
Max. depth dozer blade: 190mm
Dimensions:
Gross weight: 2,200 kg
Track length: 1,593mm
Track length on ground: 1,230mm
Upper chassis ground clearance: 460mm
Counterweight turning radius: 650mm
Overall width: 900mm - 1,300mm (adjustable)
Track width: 230mm
Track height: 360mm
Overall length: 3,575mm
Seat height (from ground): 1,750 mm

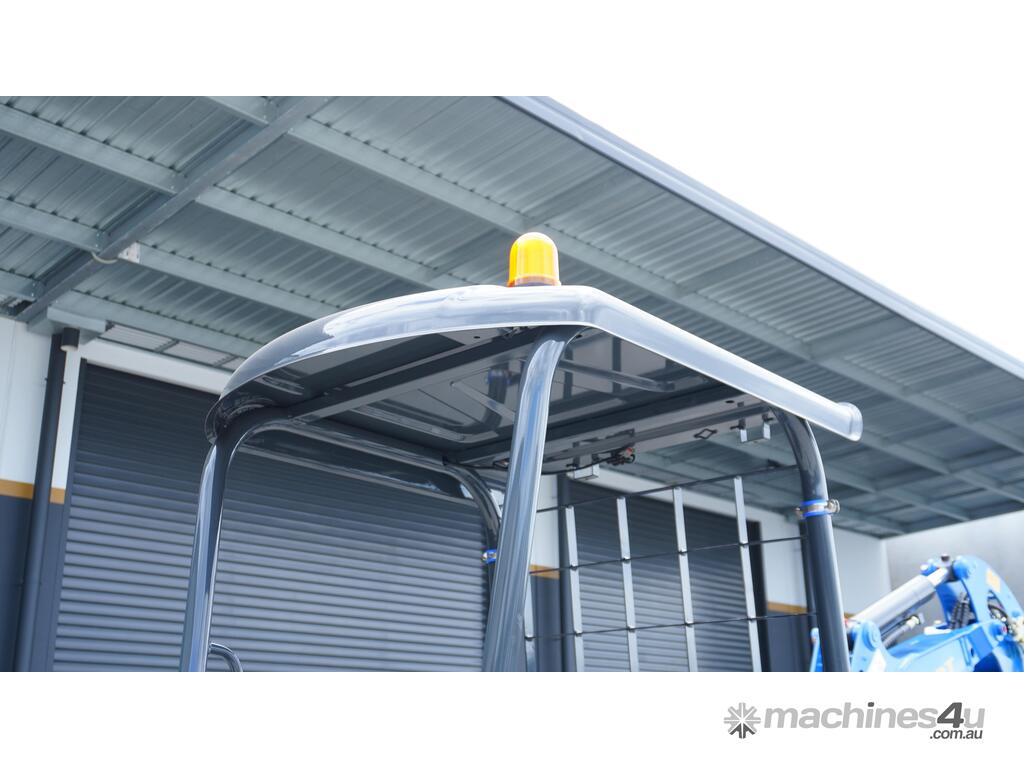

Overall height (with canopy): 2,405mm (excluding the beacon light)
Boom swing - left: 345mm
Boom swing - right: 510mm
