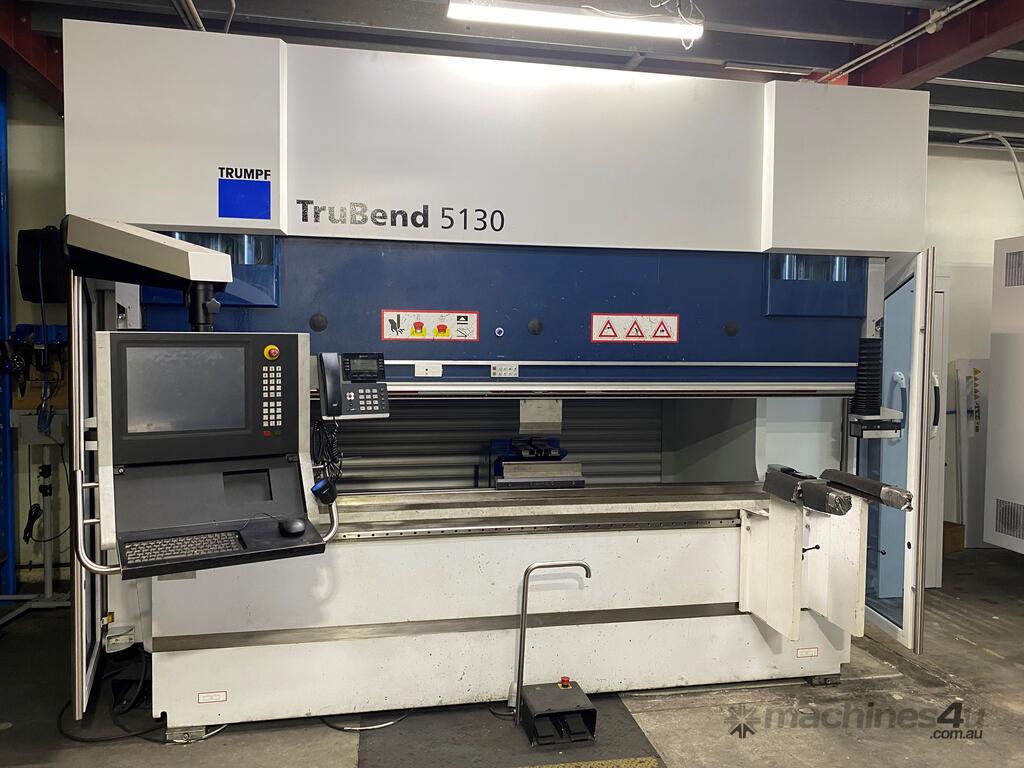

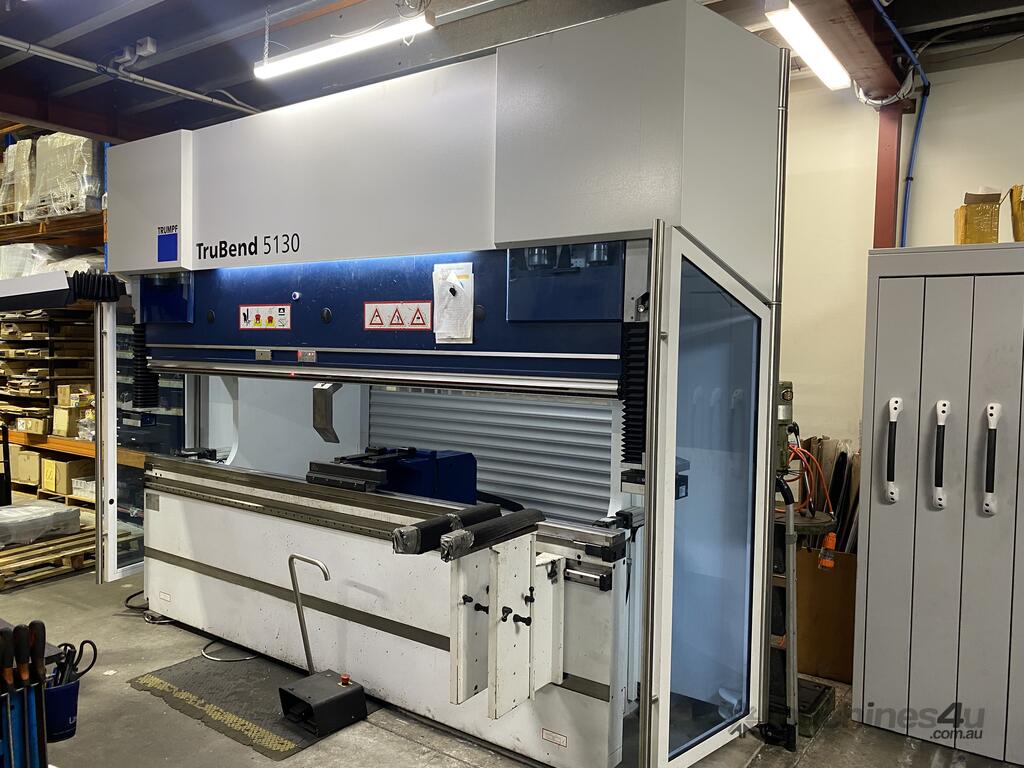

TRUMPF TruBend 5130X – 130 Tonne CNC Press Brake
INCLUDING APPROX $150K + REPLACMENT COST TOOLING
THIS TOOLIGN PACKAGE IS MASSIVE
PERFECT FOR JOBBING SHOP

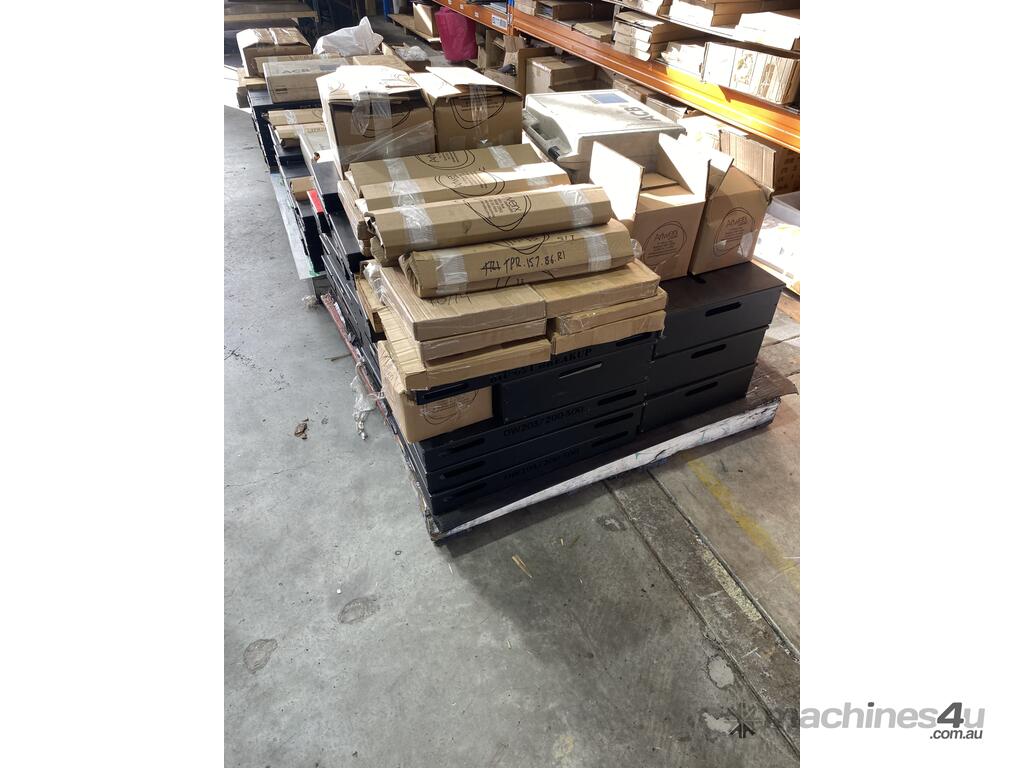

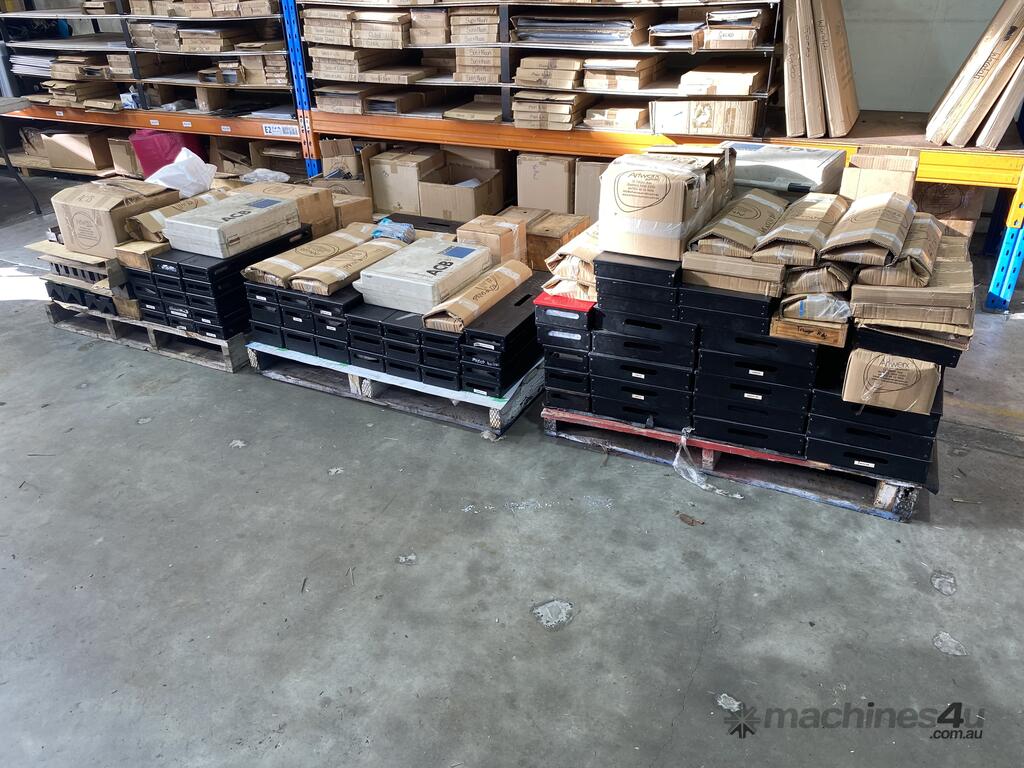

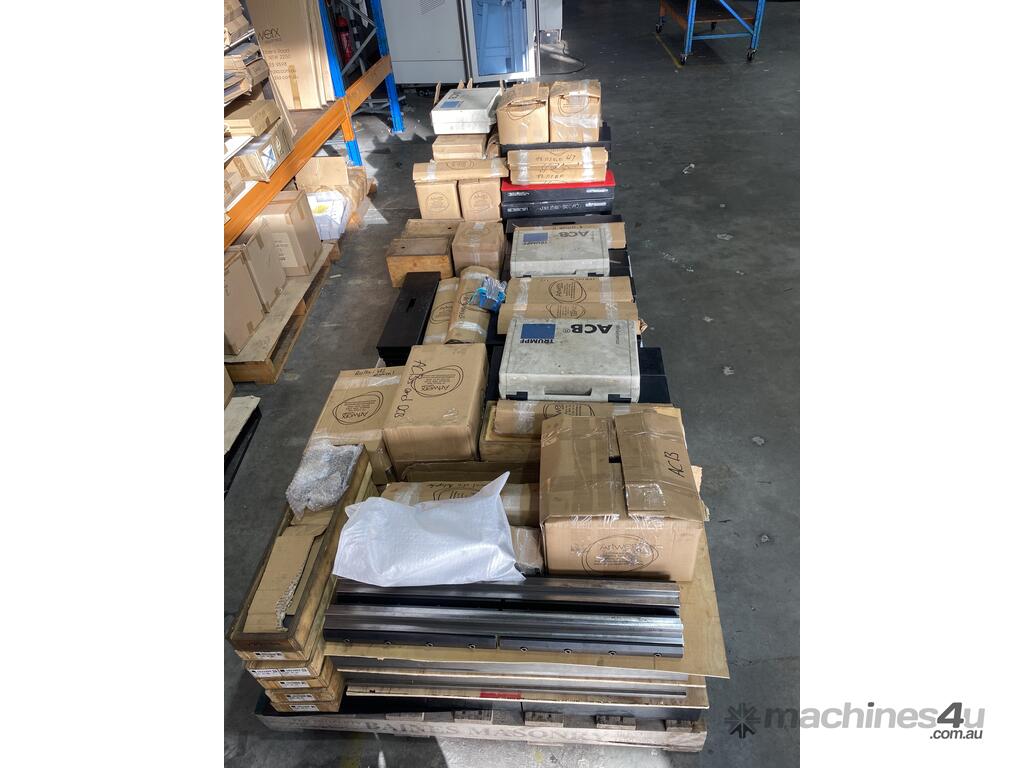

THERE IS 3 PALLETS OF TOOLS WEIGHING APPROX 3 TONNES IN TOTAL OF JUST TOOLING
Premium German CNC press brake in excellent condition.
Recently serviced and maintained by Headland.
Well-maintained TRUMPF 130T machines in this specification are tightly held and rarely available.
Highly flexible machine with it's 6 axis back gauge huge stoke & daylight opening
Available due to workshop closure.
Specifications:
• 130 Tonne Press Force
• Extended Ram Stroke – 445mm
• Throat 420mm
• Daylight 615mm
• 3230mm Bending Length

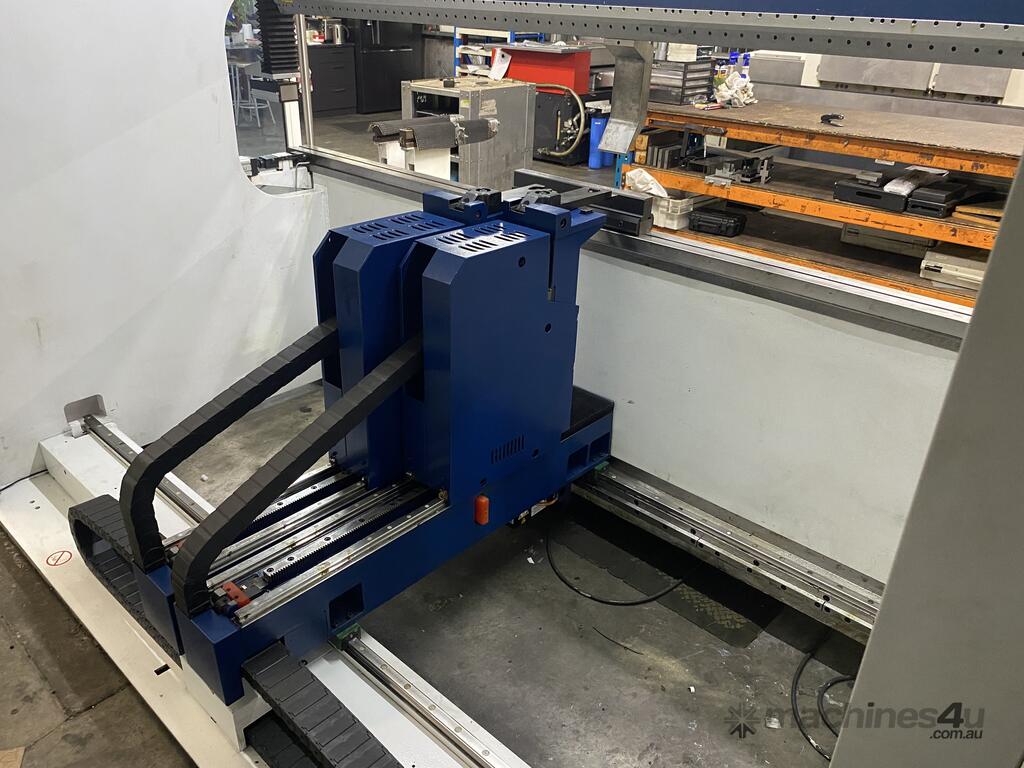

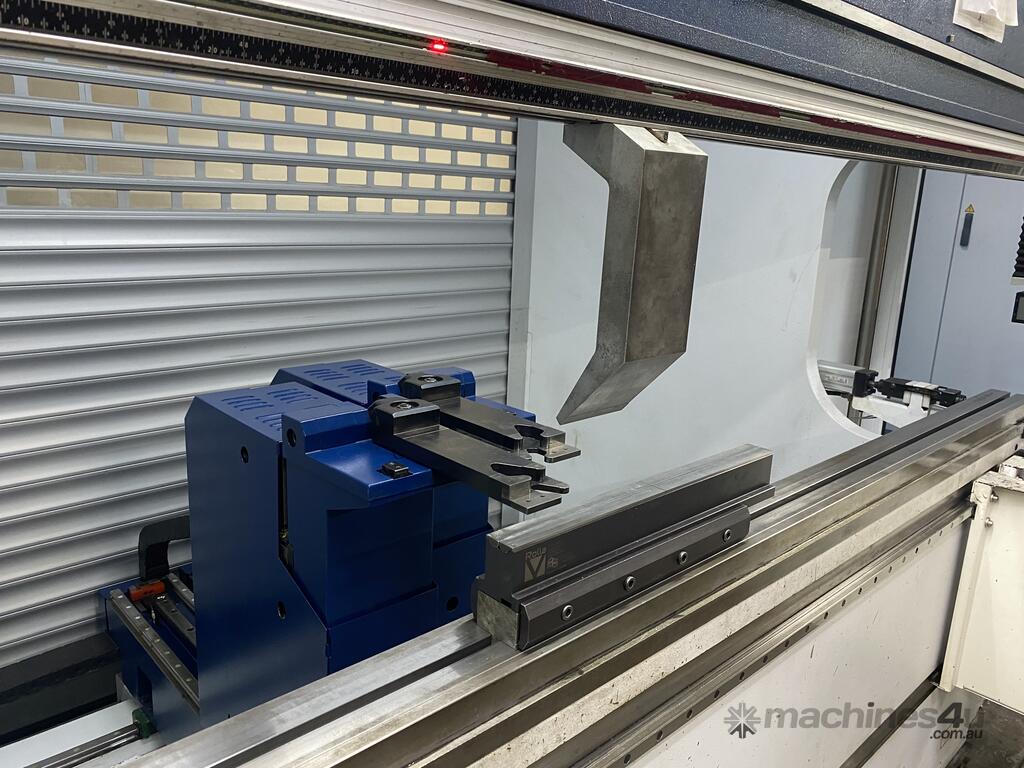

• 6-Axis Backgauge
• I-Axis (Hemming Function)
• CNC Crowning
• 3D Control – Compatible with Offline TRUMPF Software
• Networking Capability
• Mobile Control option
• Additional Foot Switch
• 415V 3-Phase
• Manufactured 01/2014
Condition:
• Fully operational
• Excellent condition
• Recently serviced
Inclusions:

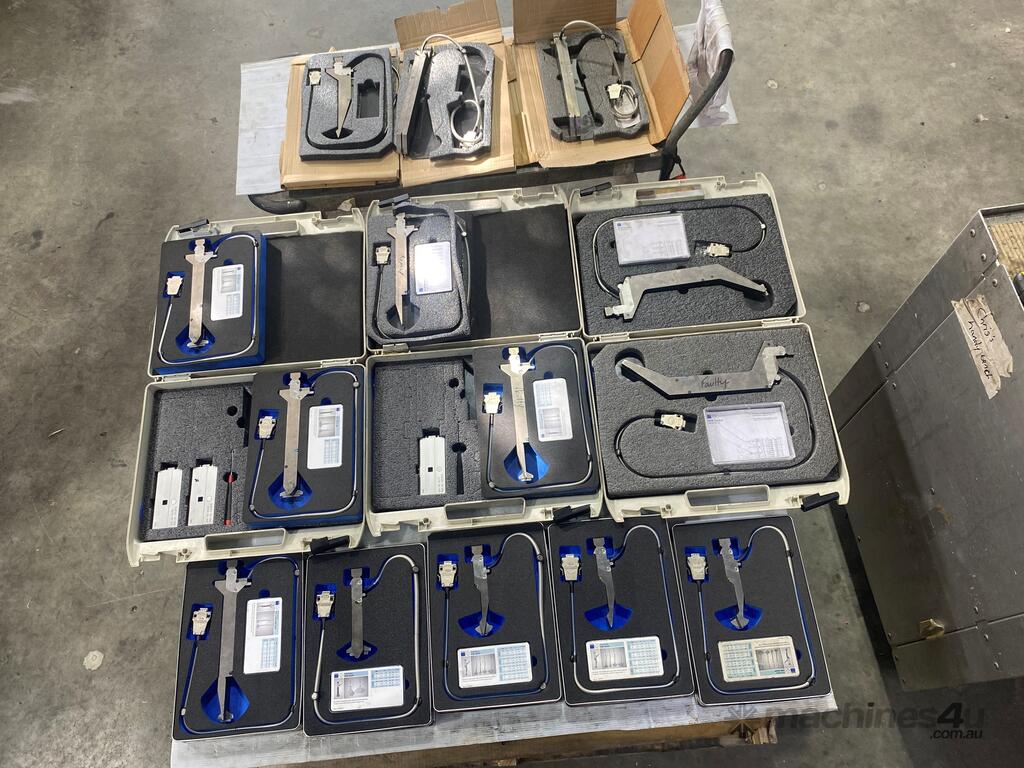

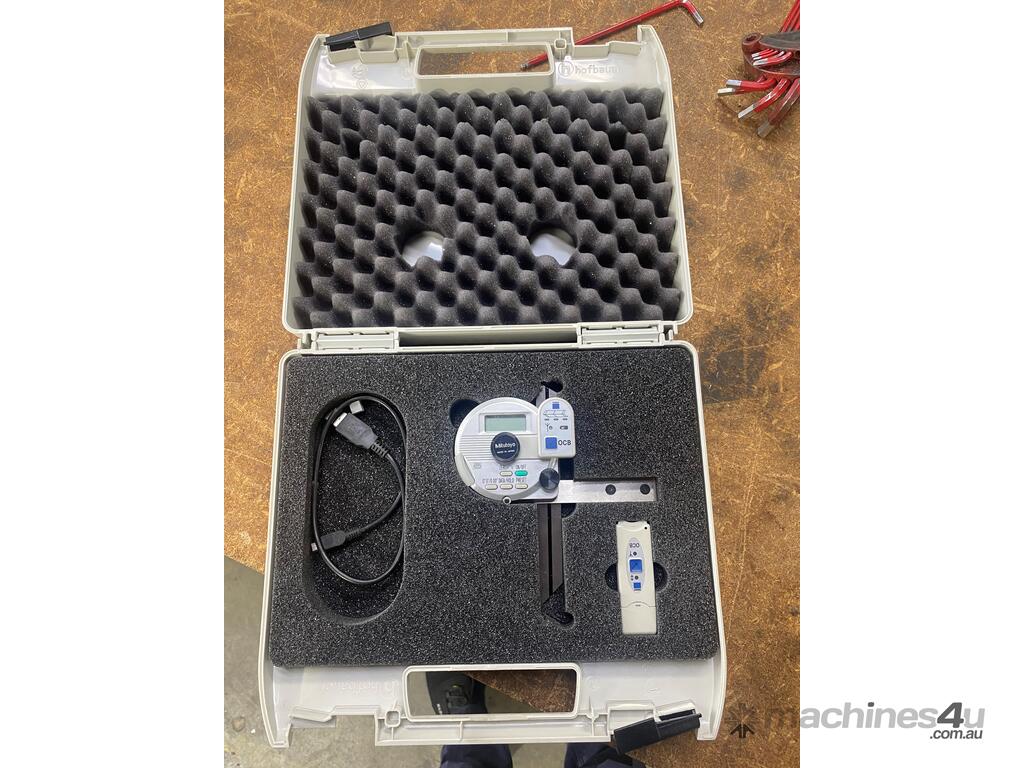

Trumpf OCB Digital protractor & receiver

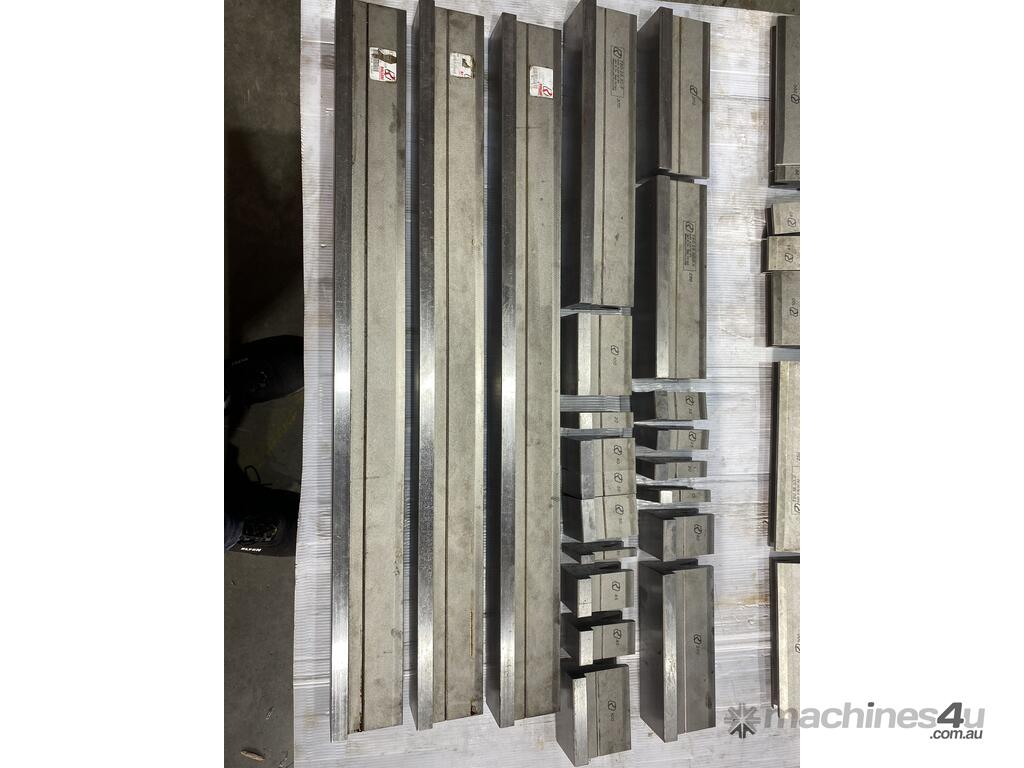

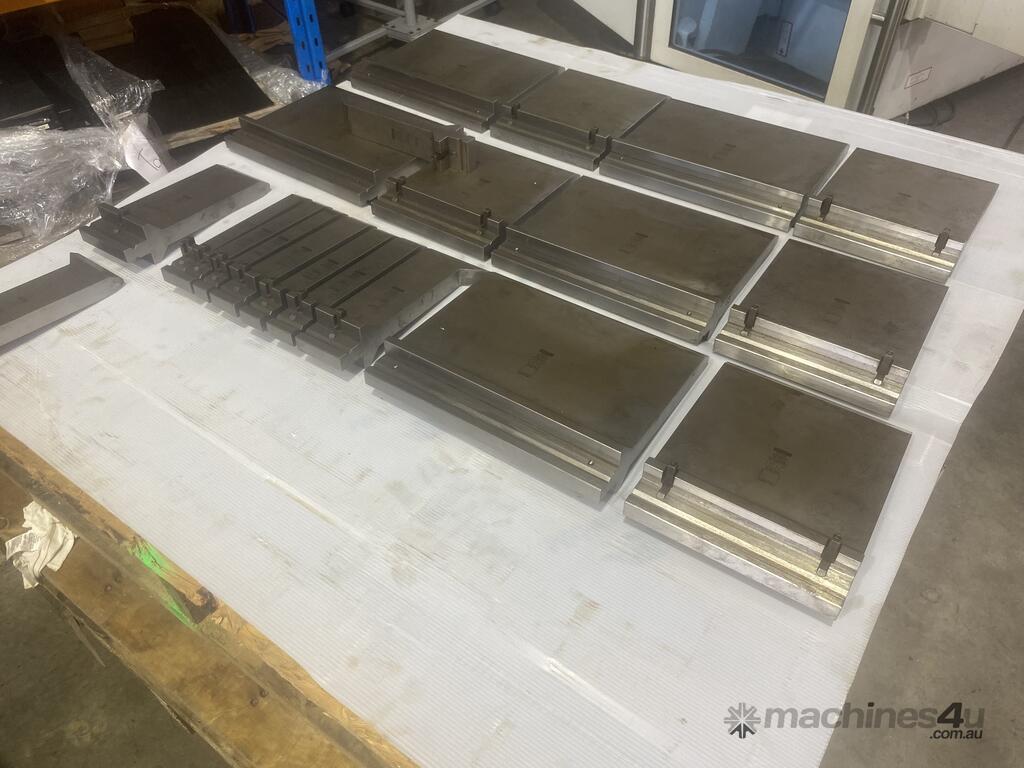

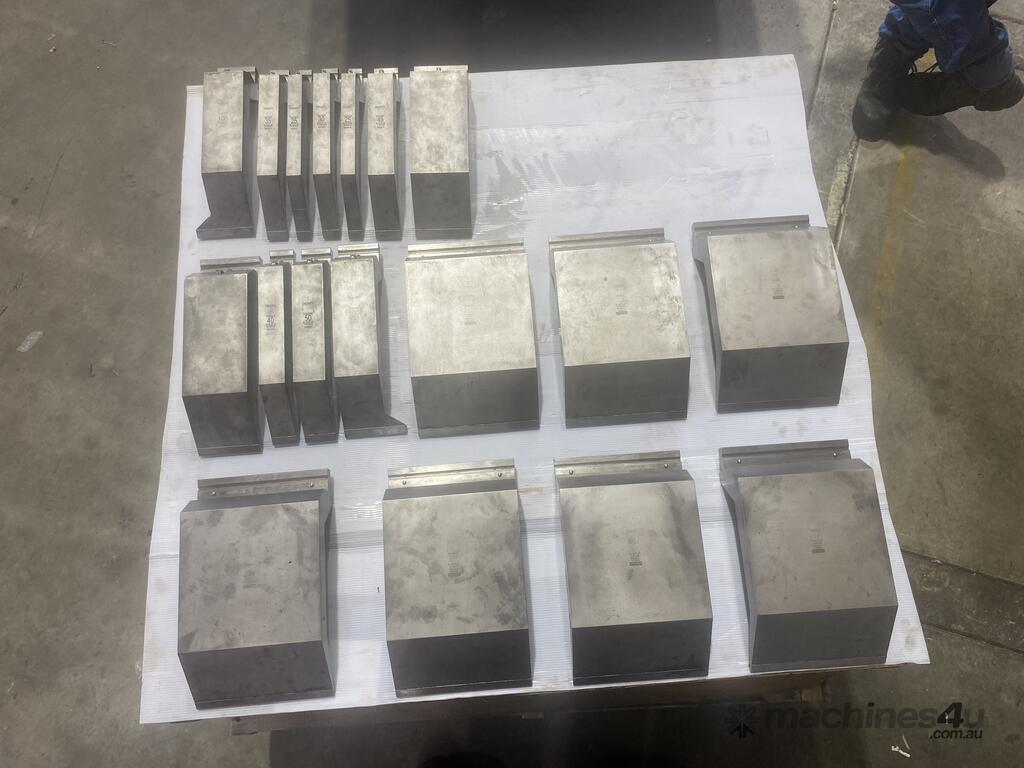

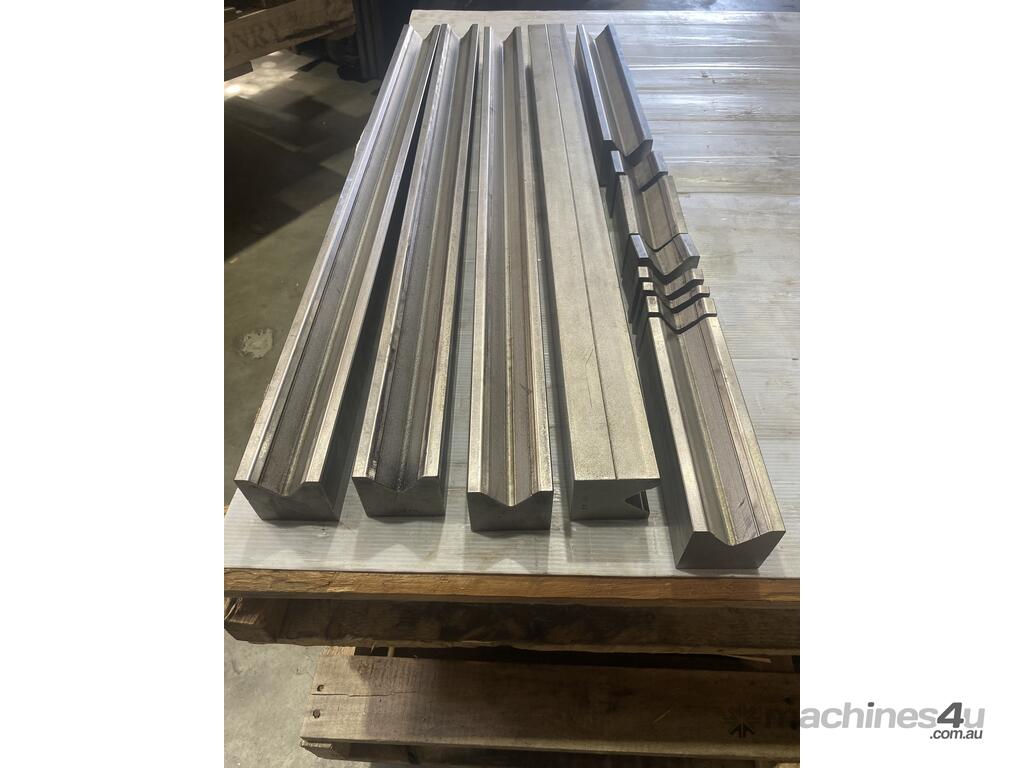

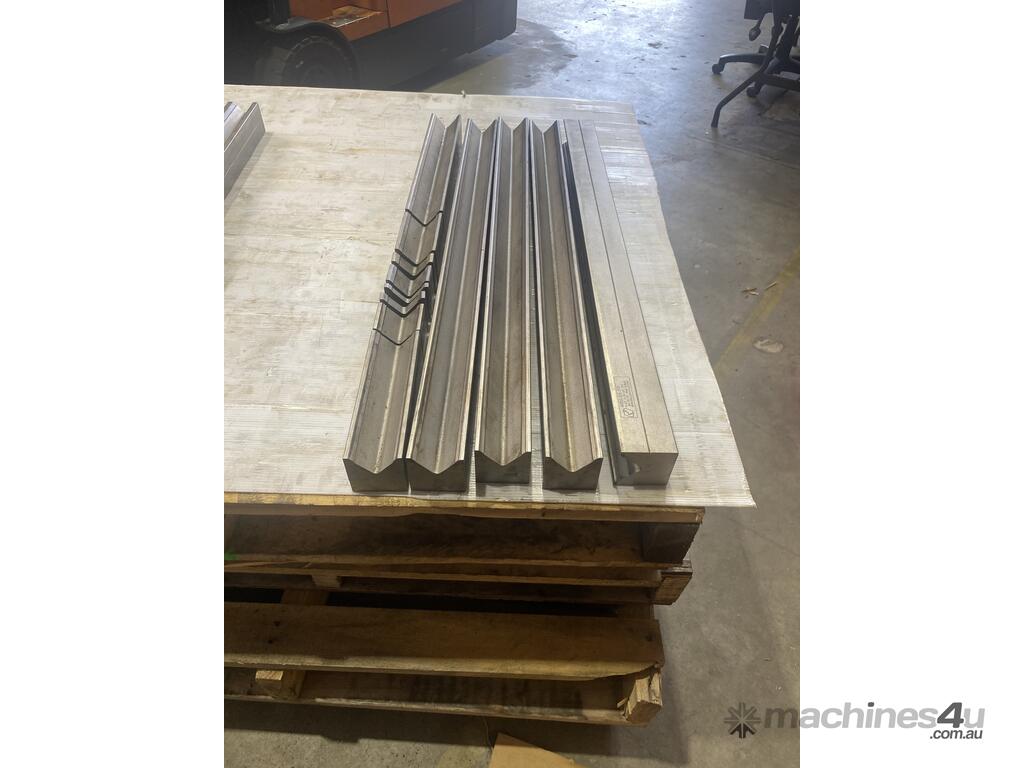

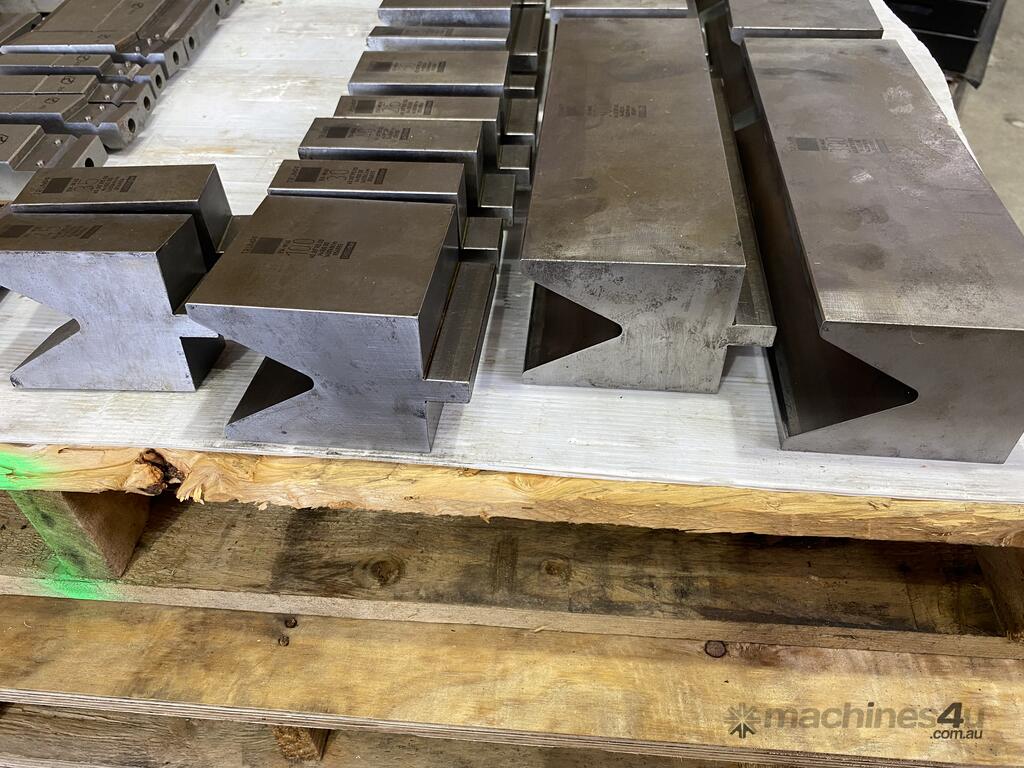

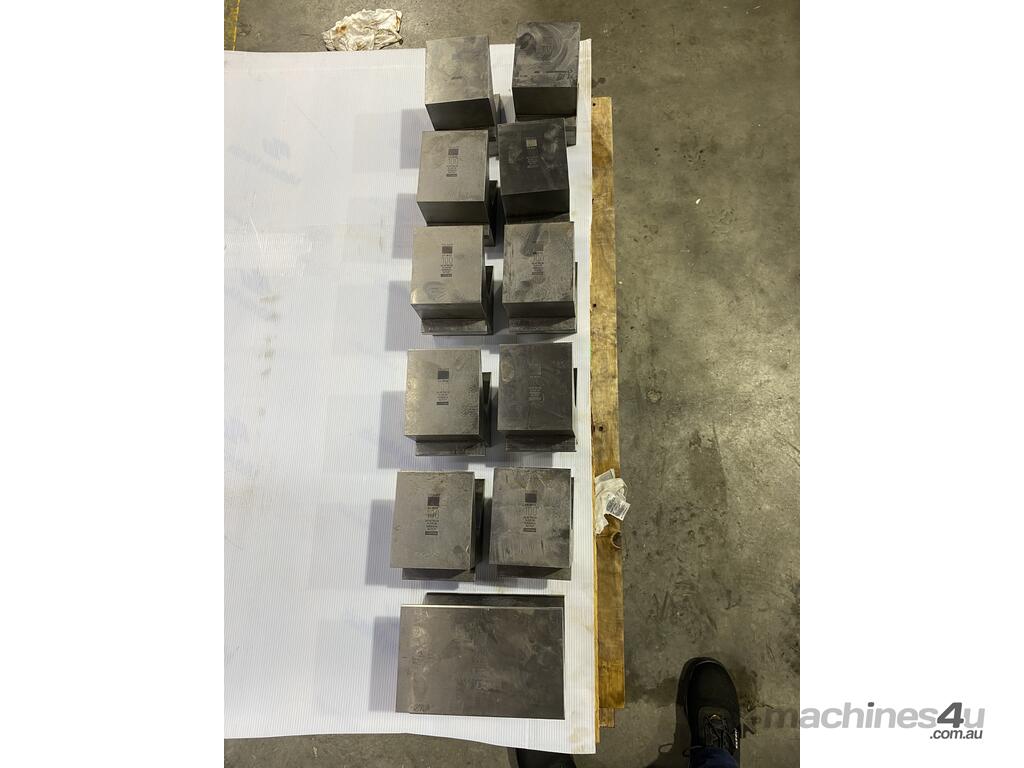

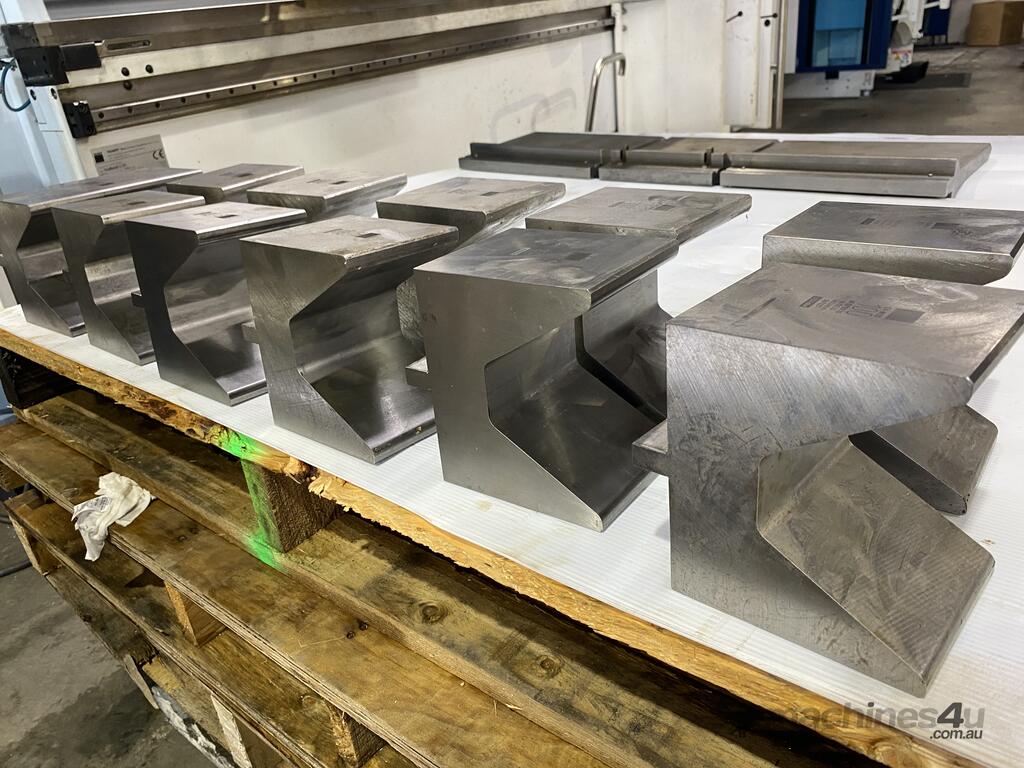

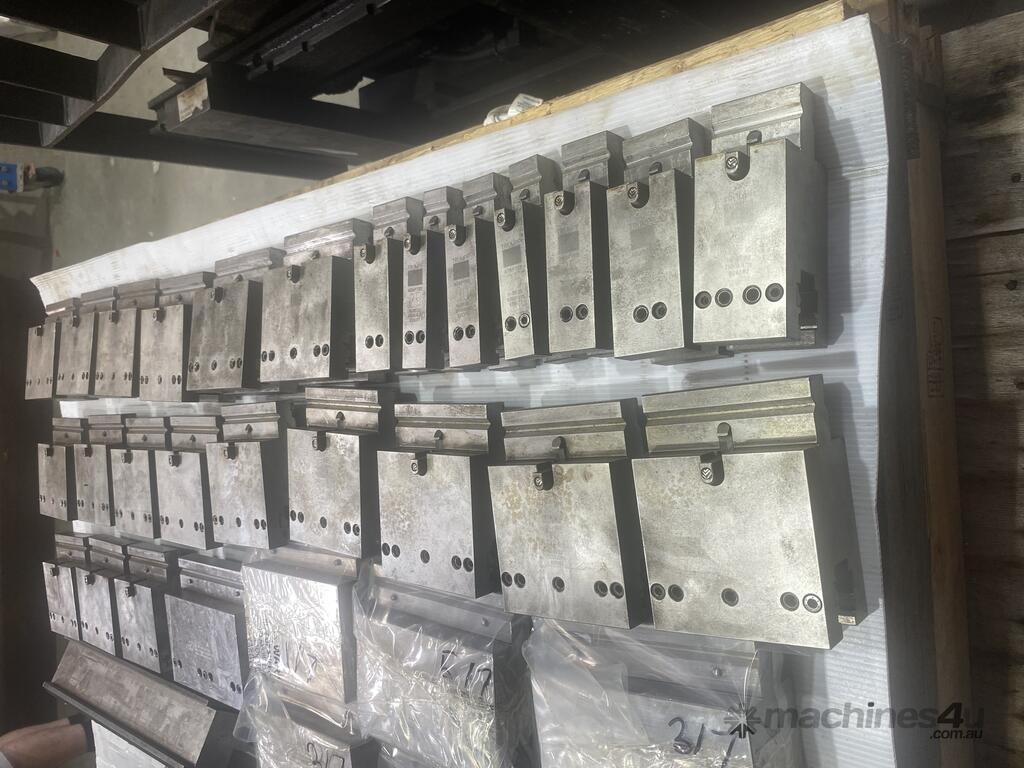

******Dies******
V6, 30 Deg, Trumpf EV001/S, 3550mm Including Sectionalised, Hemming bar mountable
V10, 30 Deg, Trumpf EV003, 4050mm Including Sectionalised, Hemming bar mountable
V12, 30 Deg, Rolleri, T, 4950mm Inc Sectionalised, (3x835mm + 2xSections Sets)
V16, 30 Deg, Rolleri, T, 4950mm Inc Sectionalised, (3x835mm + 2xSections Sets)
V20, 30 Deg, Trumpf EV006, 3050mm Including Sectionalised
V25, 30 Deg, Rolleri, T, 4950mm Inc Sectionalised, (3x835mm + 2xSections Sets)
V30, 30 Deg, Trumpf EV30, 3050mm Including Sectionalised
V40, 85 Deg, Rolleri, M, 4145mm Inc Sectionalised, (4x835mm + 1xSections Sets)
V40, 30 Deg, FM Tool/ Ferrari, 1 Length 835mm
V50, 85 Deg, Rolleri, M, 4145mm Inc Sectionalised, (4x835mm + 1xSections Sets)
V60, 60 Deg, Trumpf EV60, 3050mm Including Sectionalised
V80, 85 Deg, Unbranded, 1660mm, (5x415mm)
V100, 85 Deg, Unbranded, 1660mm, (4x415mm)
V120, 30 Deg, Trumpf EV W120/60, 1200mm, (1x200mm, 10x100mm)
Hemming Bar/ Flattening Die Attachment, Trumpf, FWZ, 3050mm

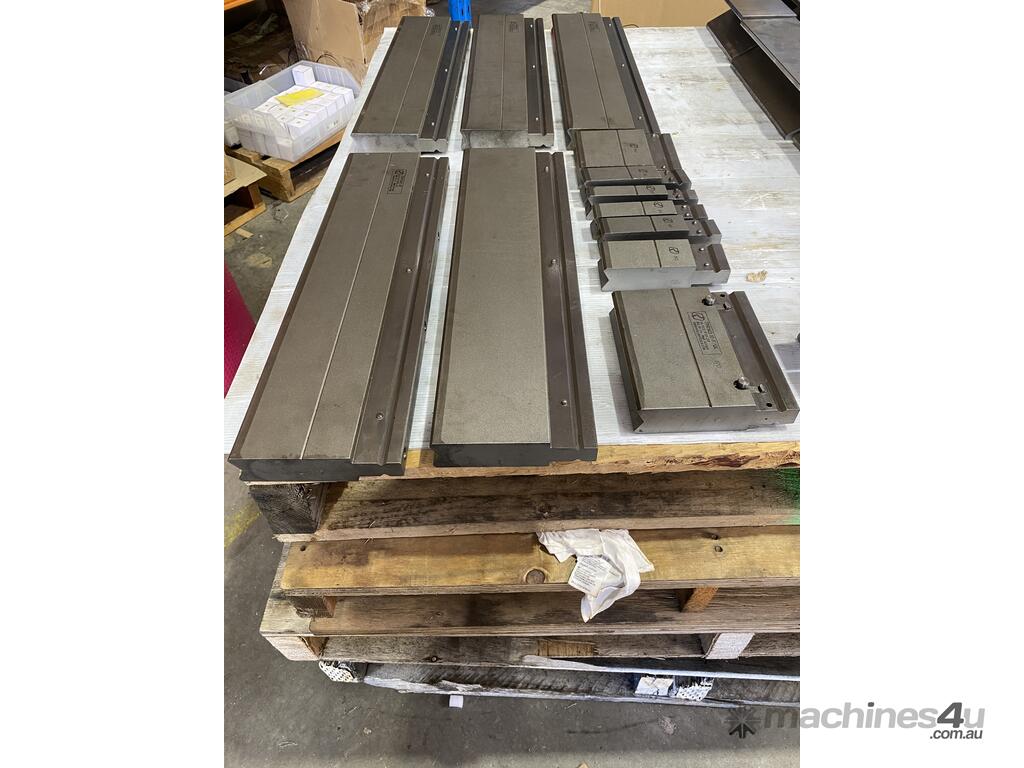

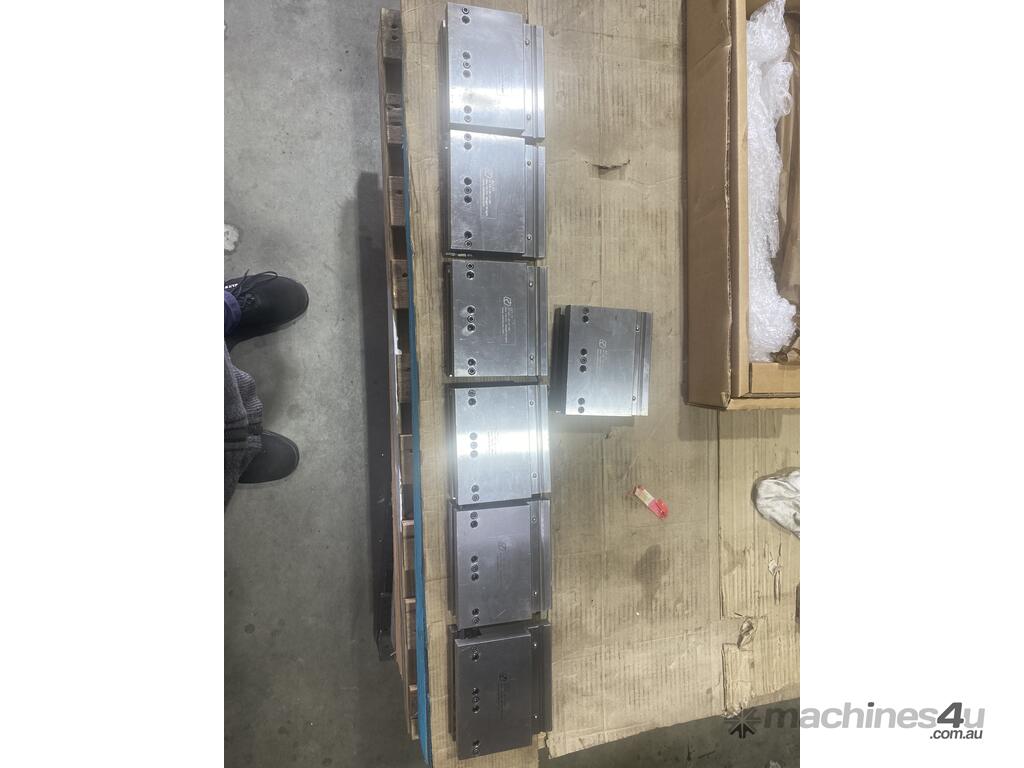

Die Adaptor, Wila to Euro, Italian MFG, 2915mm (2x835mm, 3x415mm)

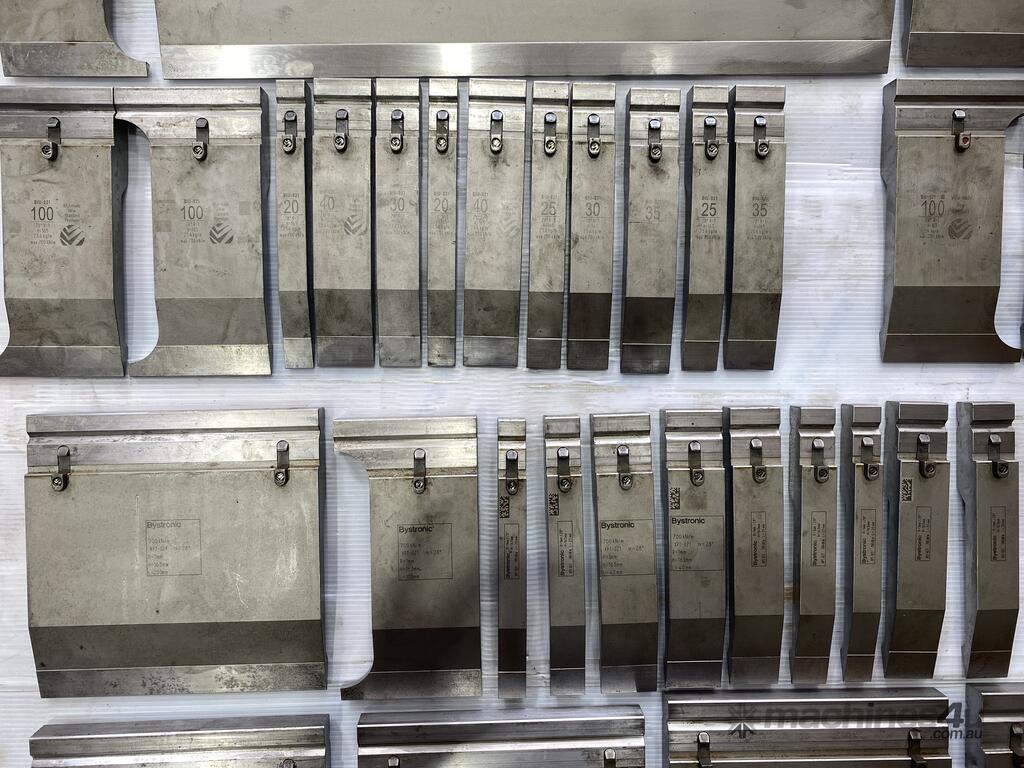

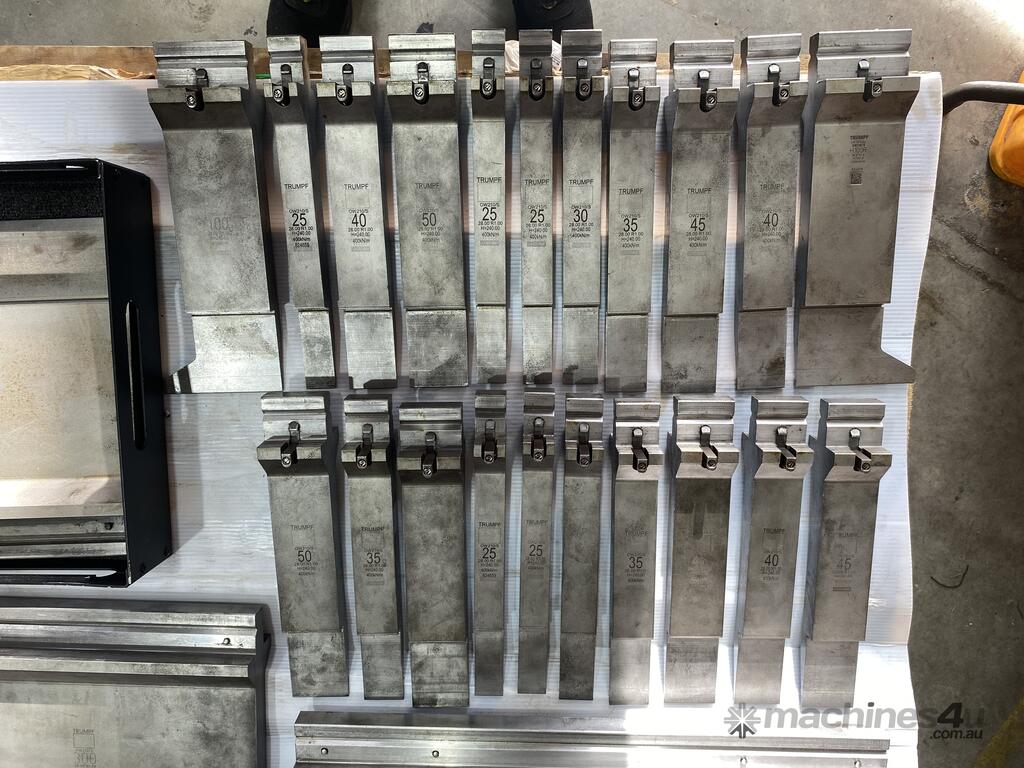

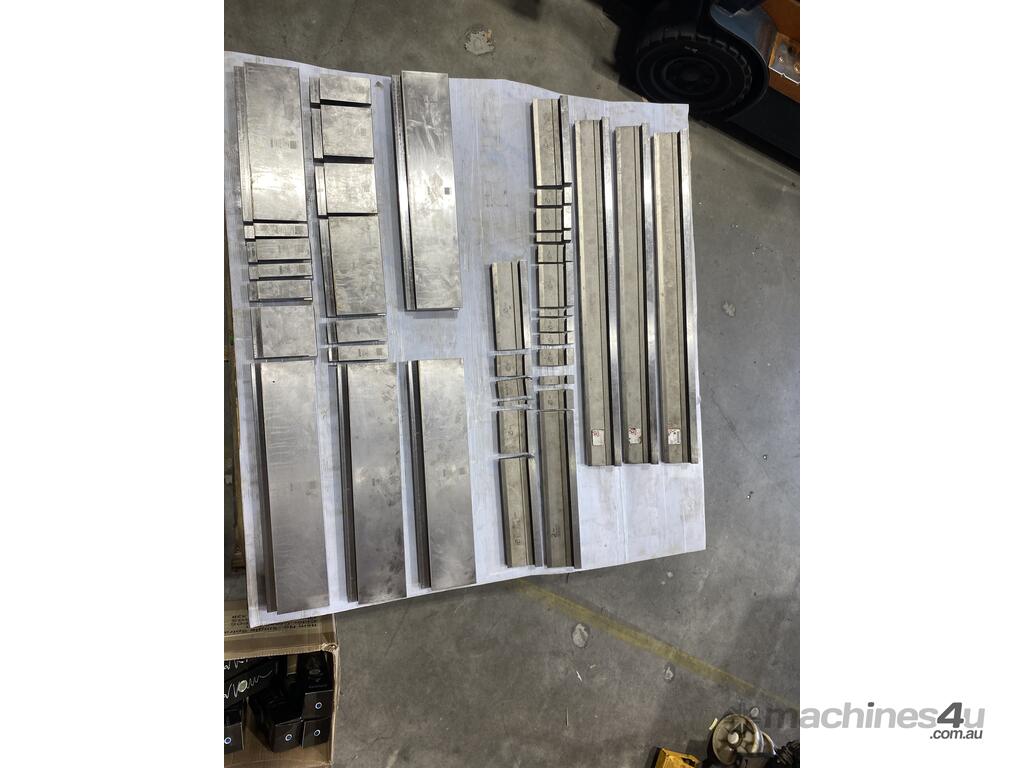

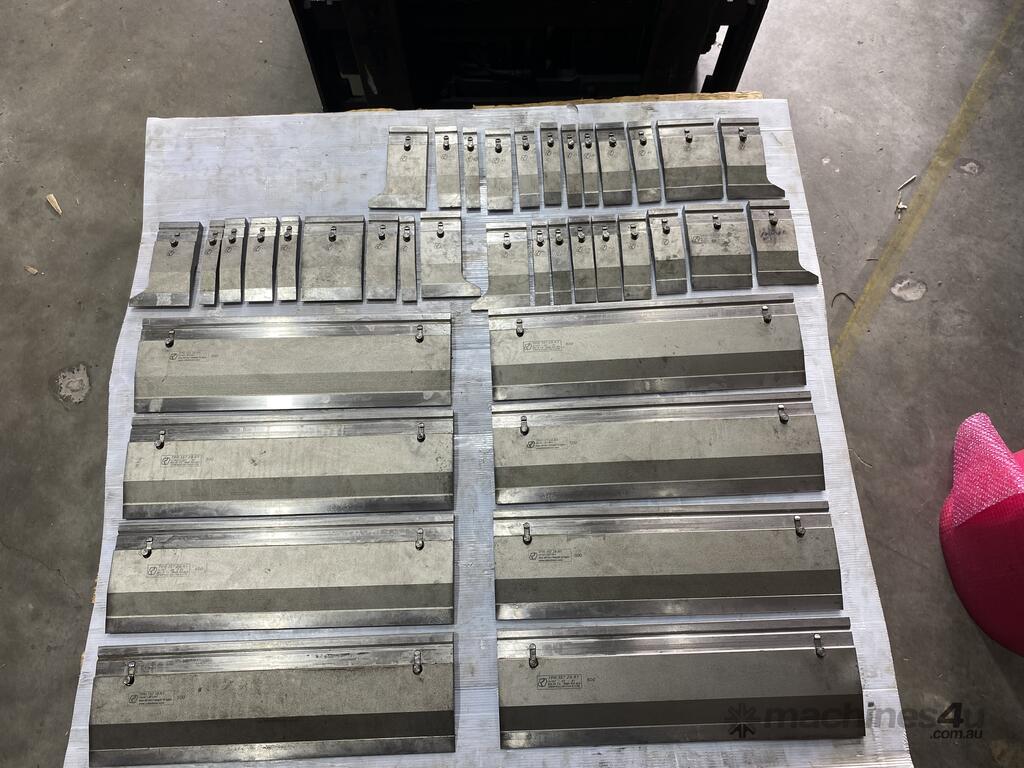

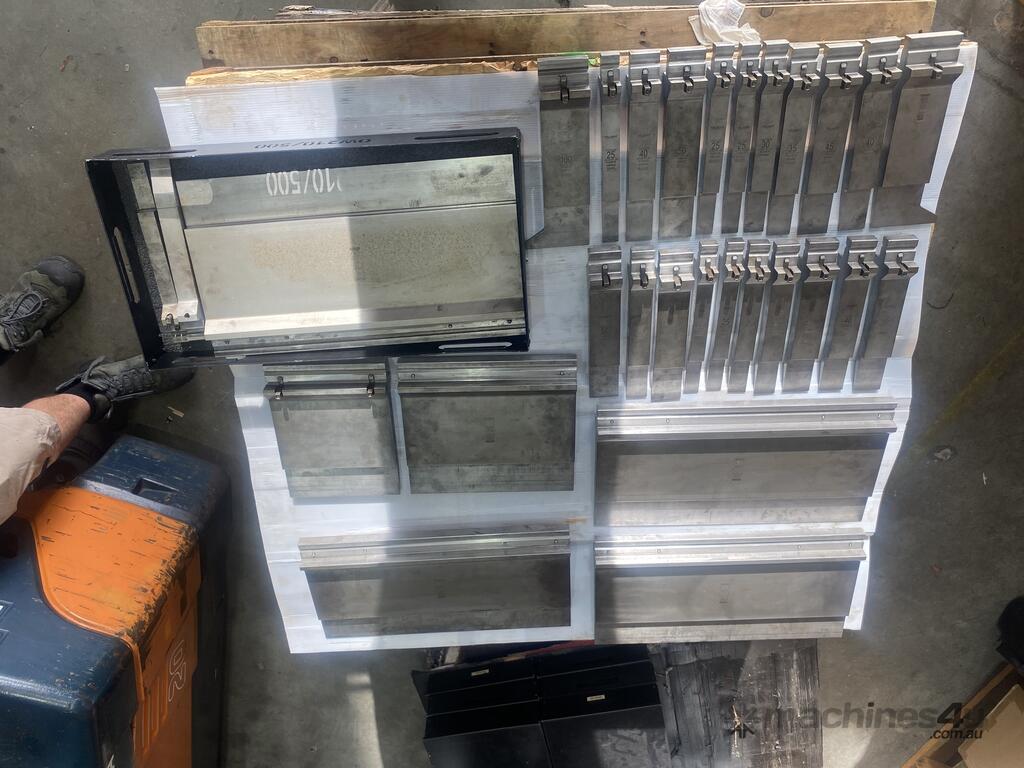

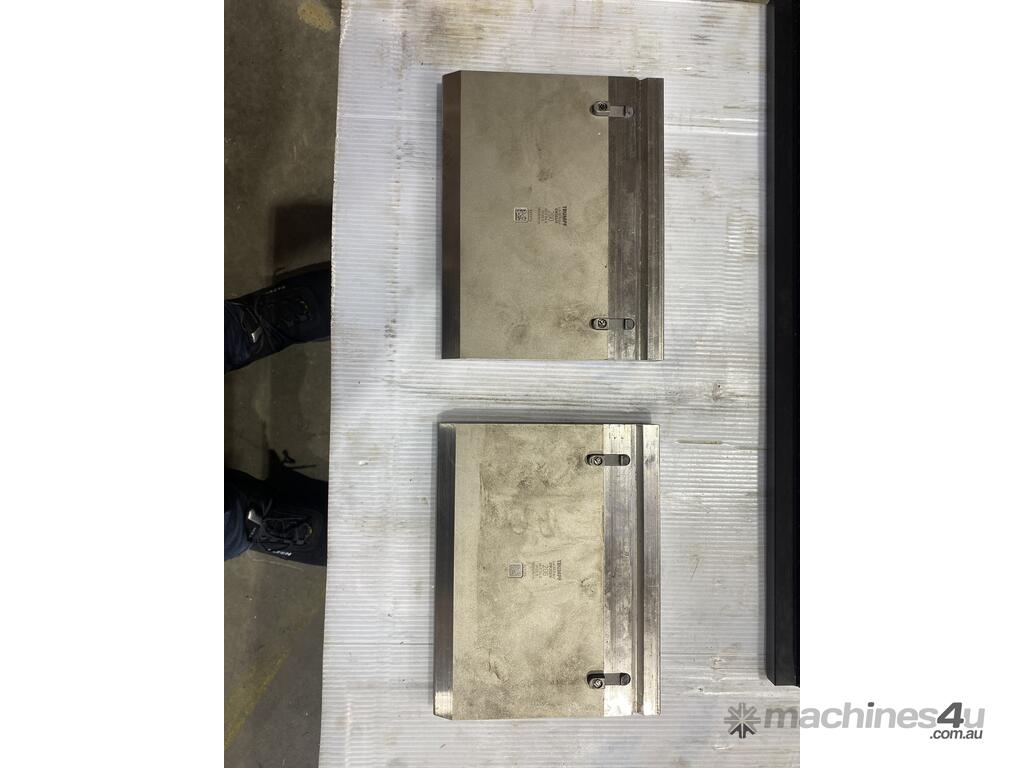

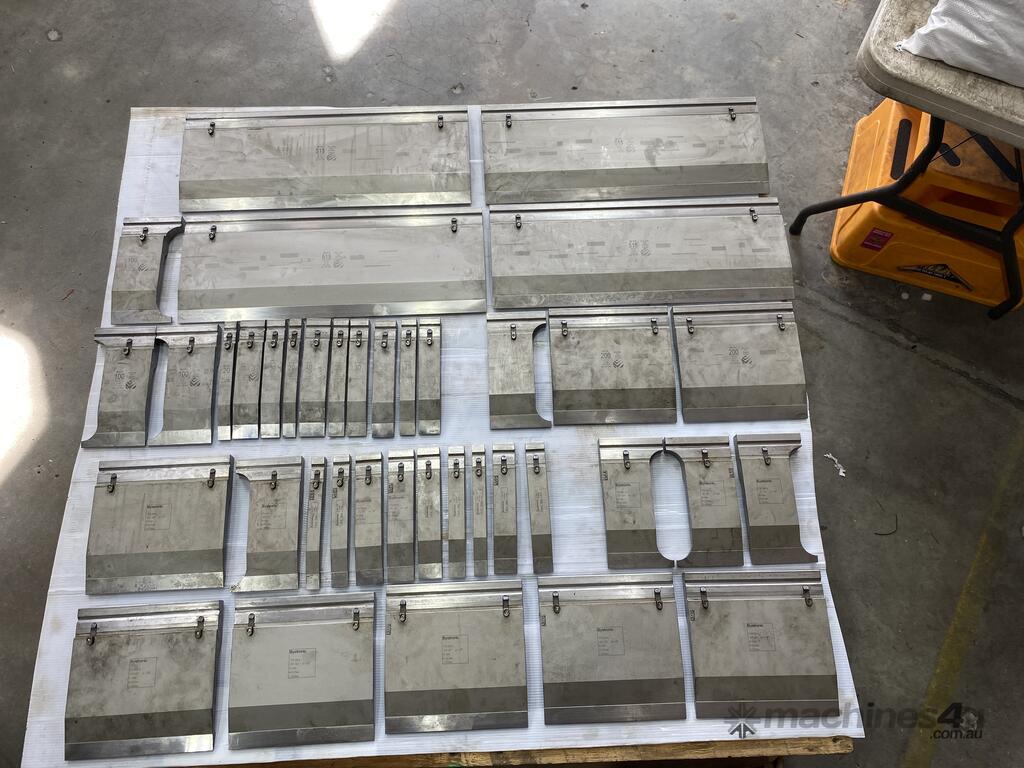

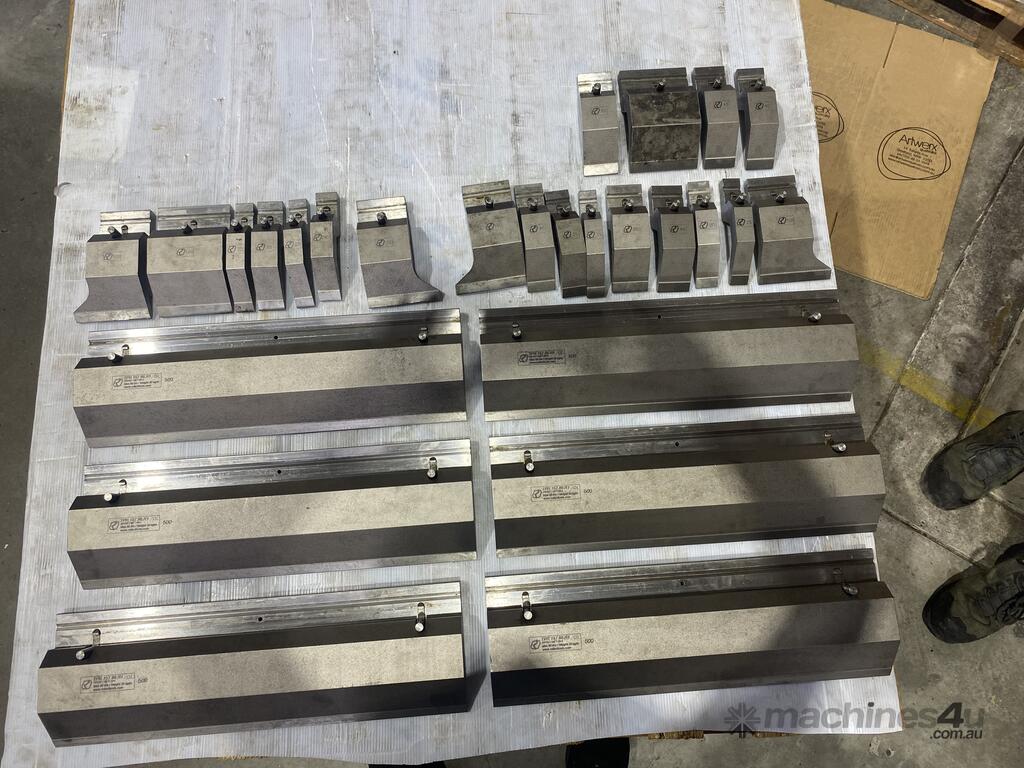

******Punches Straight******
28 Deg, 120mm High, R1.0 , Rolleri TPR.157.28.R1 (Identical to Trumpf OW202) , 5650mm Inc Sectionalised, (8x500mm + 3xSections Sets) Inc 3 Trumpf ACB Punches
28 Deg, 163mm High, R1.0 , Wila/ Bystronic BIU-021, 4110mm Inc Sectionalised, (4x515mm + 3xSections Sets)
60 Deg, 217.6mm High, R6, Trumpf OW203, 3050mm Inc Sectionalised, (5x300mm, 5x200, + 1xSection Set) Inc 2 Trumpf ACB Punches
60 Deg, 120mm High, R4, Trumpf OW203, 2 Lengths 200mm each, + 1 ACB Punch
******Punches Hemming******
28 Deg, 240mm High, R1.0 , Trumpf OW210, 2100mm Inc Sectionalised, (7x515mm (1 damaged) + Sections Set) Inc 2 Trumpf ACB Punches

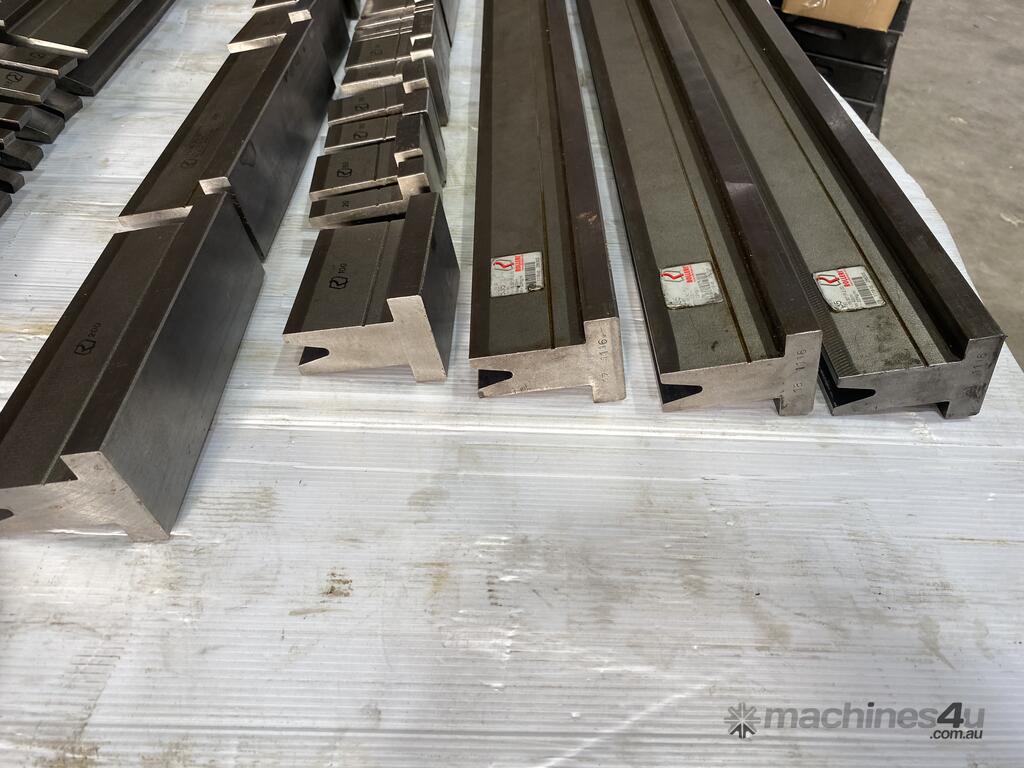

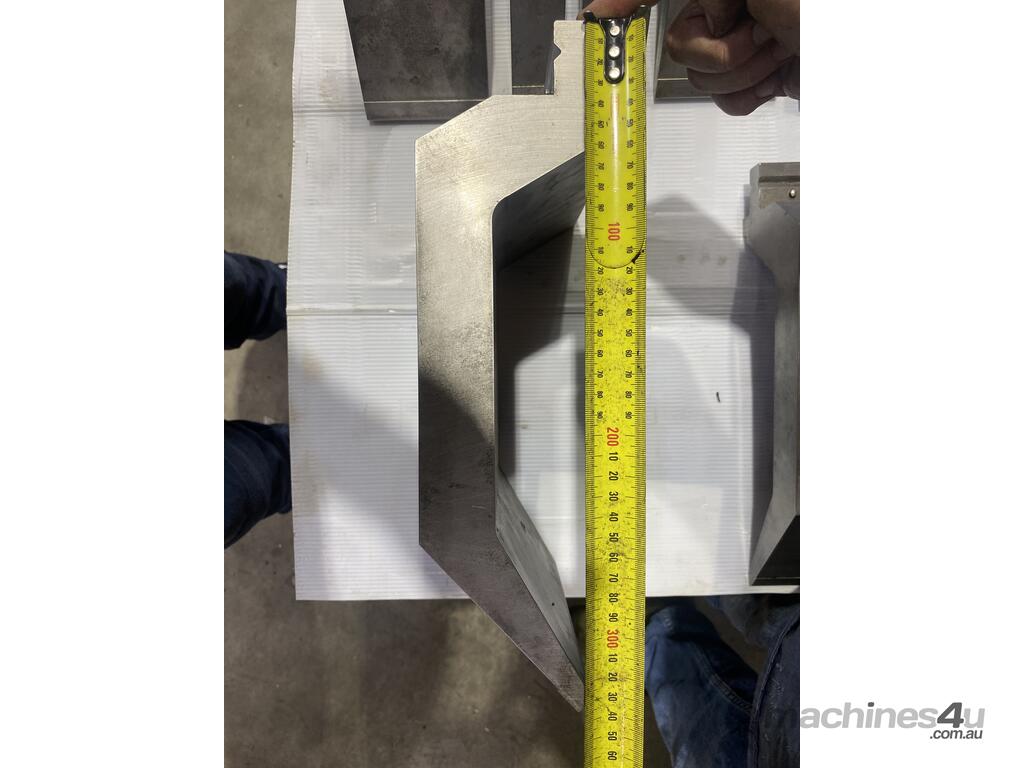

*****Punches Gooseneck******

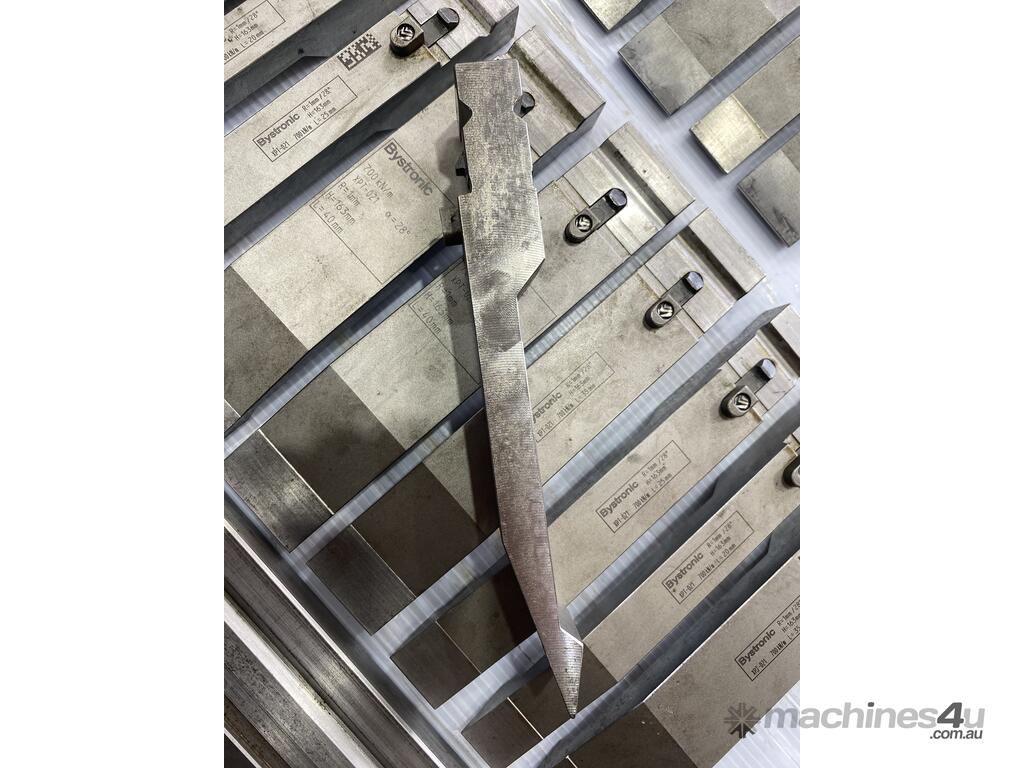

86 Deg, 300mm High, R1.0 , Trumpf OW300, 2075mm Inc Sectionalised, (2x500mm + Sections Sets)
86 Deg, 120mm High, R1.0 , Rolleri TPR.157.86.R1, 4100mm Inc Sectionalised, (6x500mm + 2xSections Sets)

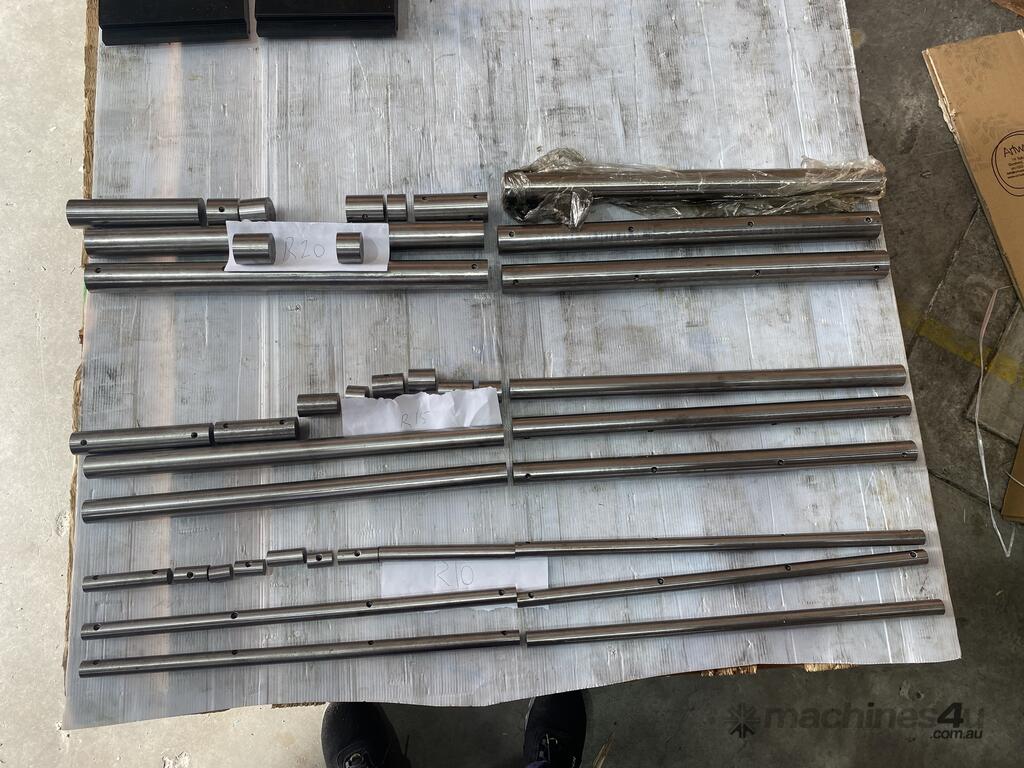

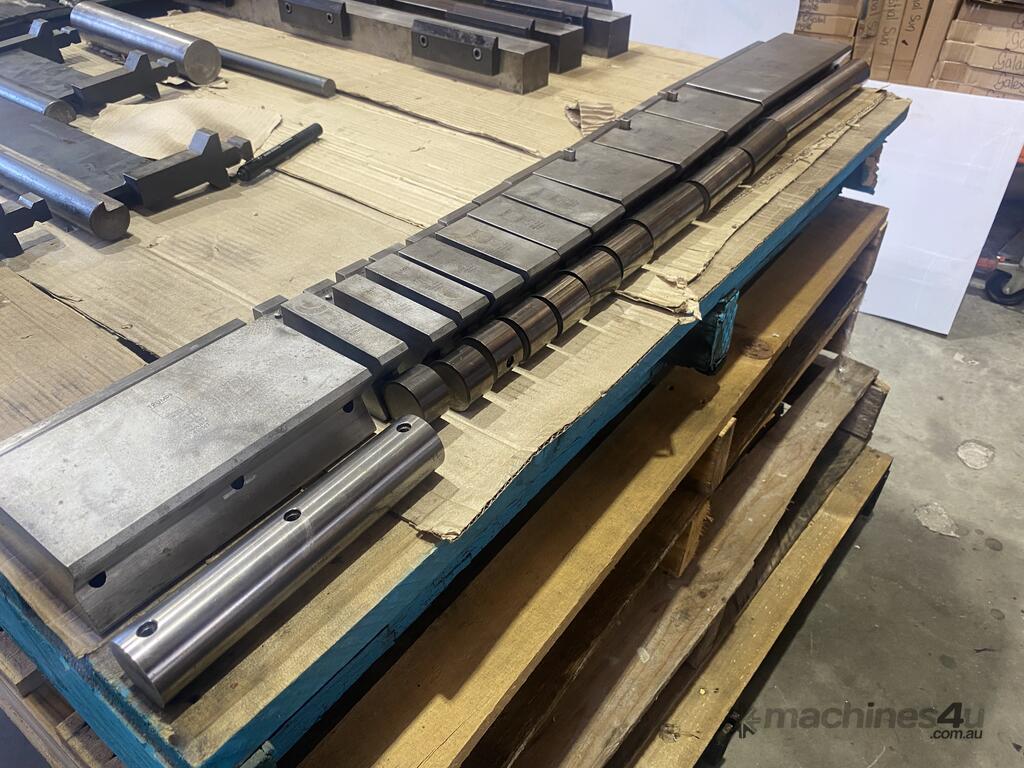

******Punches Round Bar******
98.5mm High, Rolleri TPR.15 (Identical to Trumpf OW308/K) , 3220mm Inc Sectionalised, (5x525mm + 1xSections Sets)
R10.0 to suit the above
R15.0 to suit the above
R20.0 to suit the above

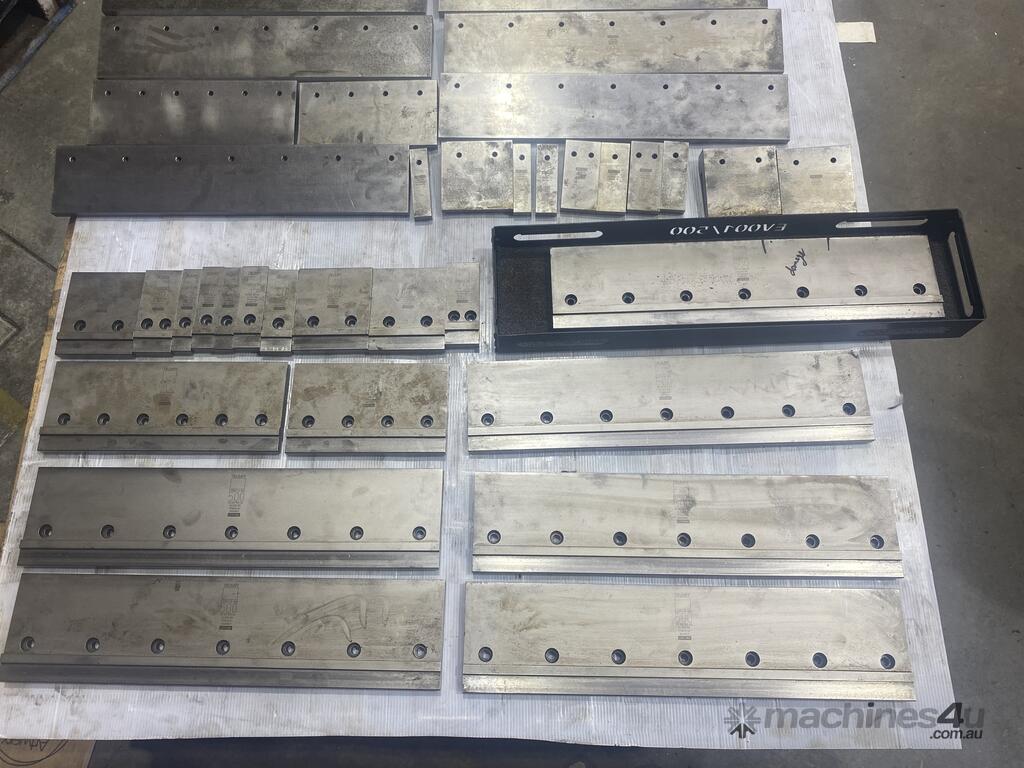

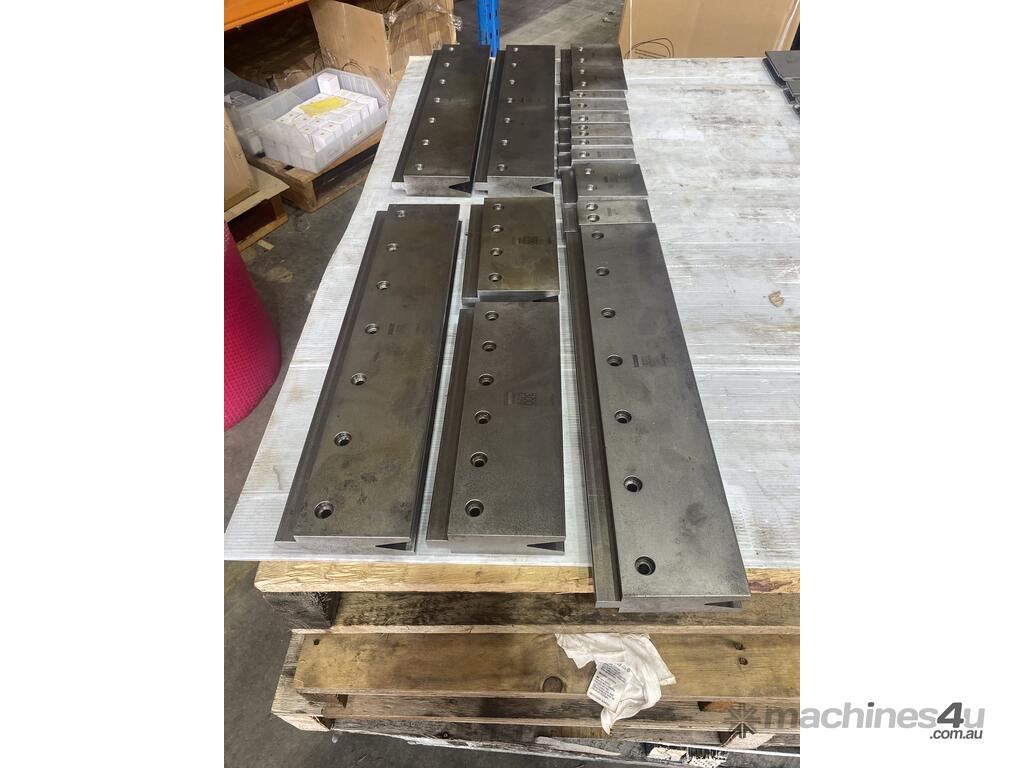

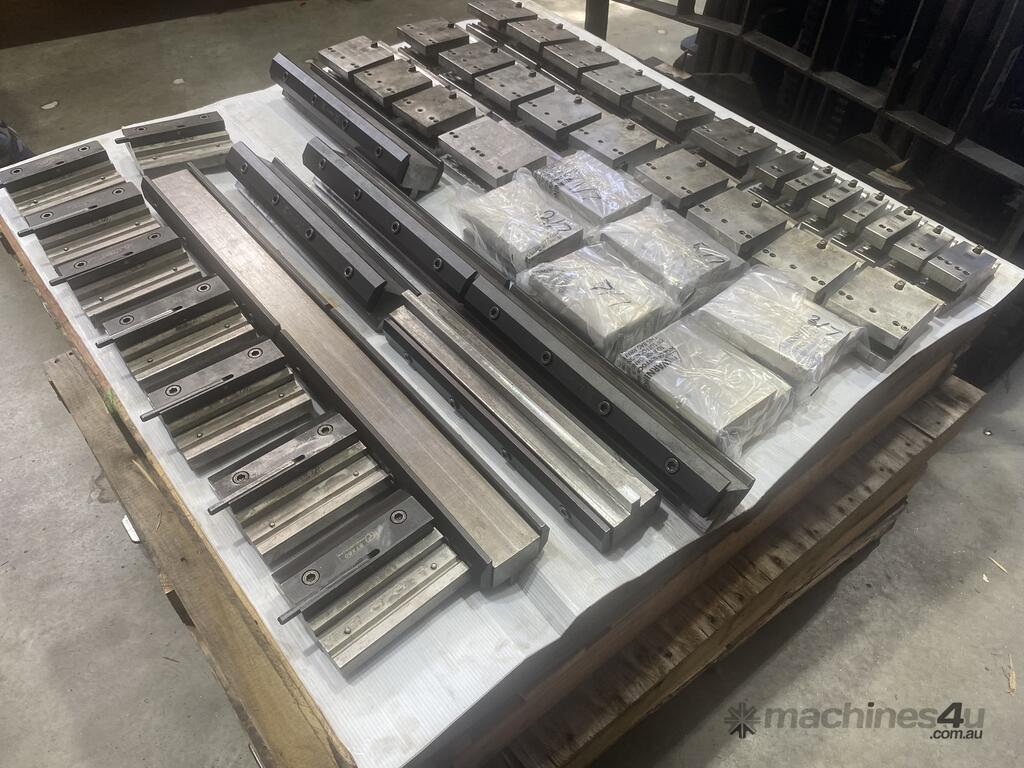

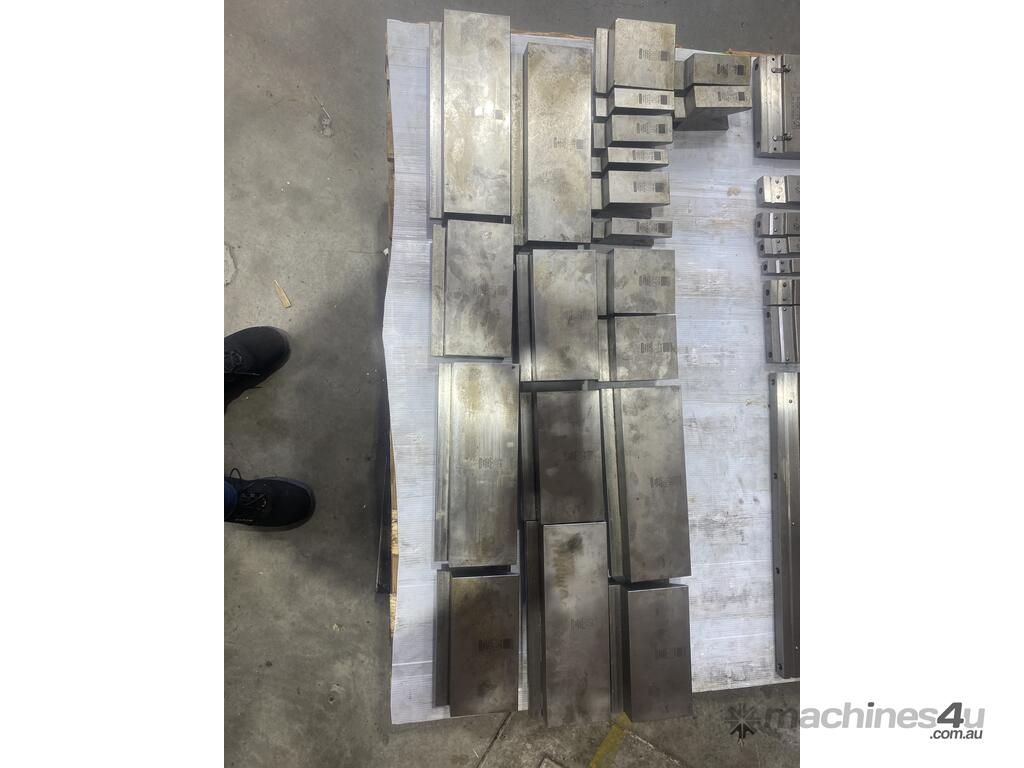

******Punch Adaptors******
Punch Adaptor, Wila to Euro, Rolleri AD11, (8 Pcs 150mm Each)
Punch Spacer, Trumpf MF/S 100mm High, 15 pcs 100mm Each
As above but Rolleri brand , 7 pcs 150mm Each
Approx replacement cost $150k
Located NSW.
Inspection welcome.
Available Mid April 2026.
