TU-3008G-20M Opti-Turn Lathe & Mill Drill Combination Package Deal 300 x 700mm Included BF-20AV Mill

OPTIMUM TU-3008G-20M Opti-Turn Lathe & Mill Drill Combination Package Deal 300 x 700mm Included BF-20AV Mill Head
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K149

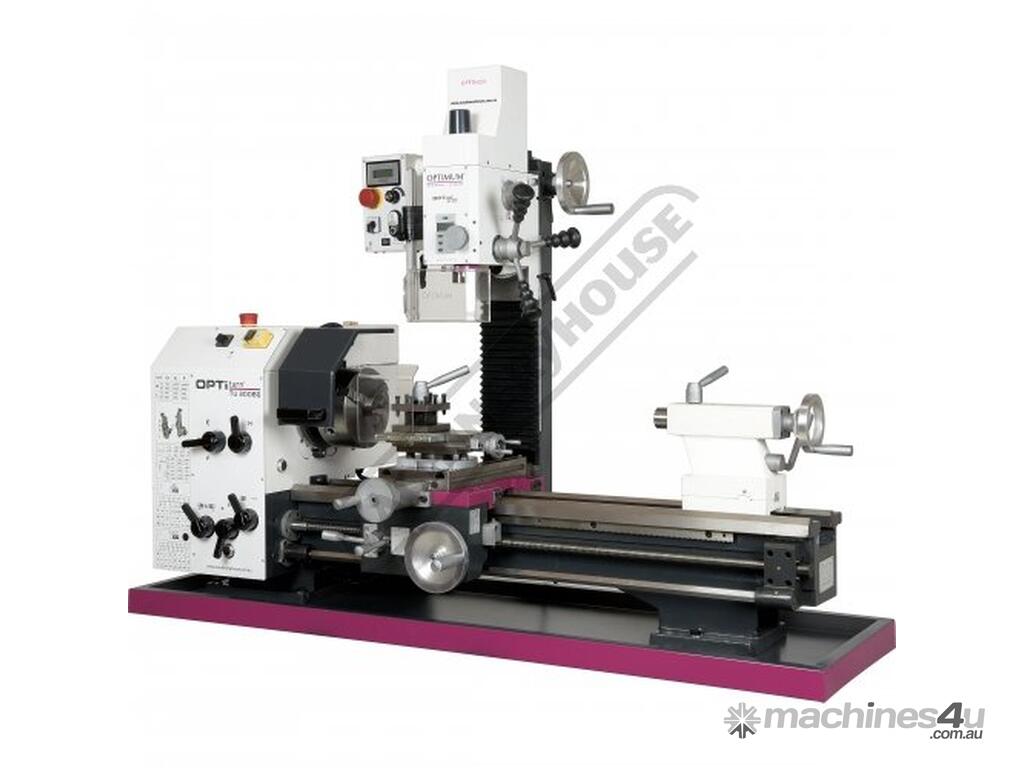

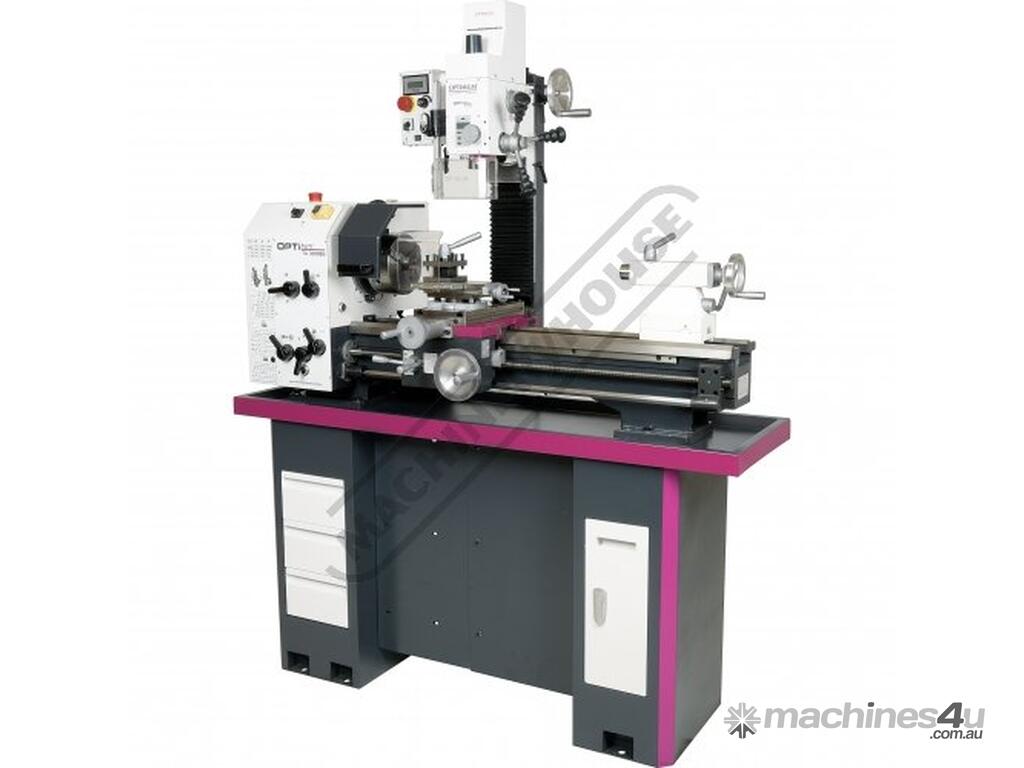

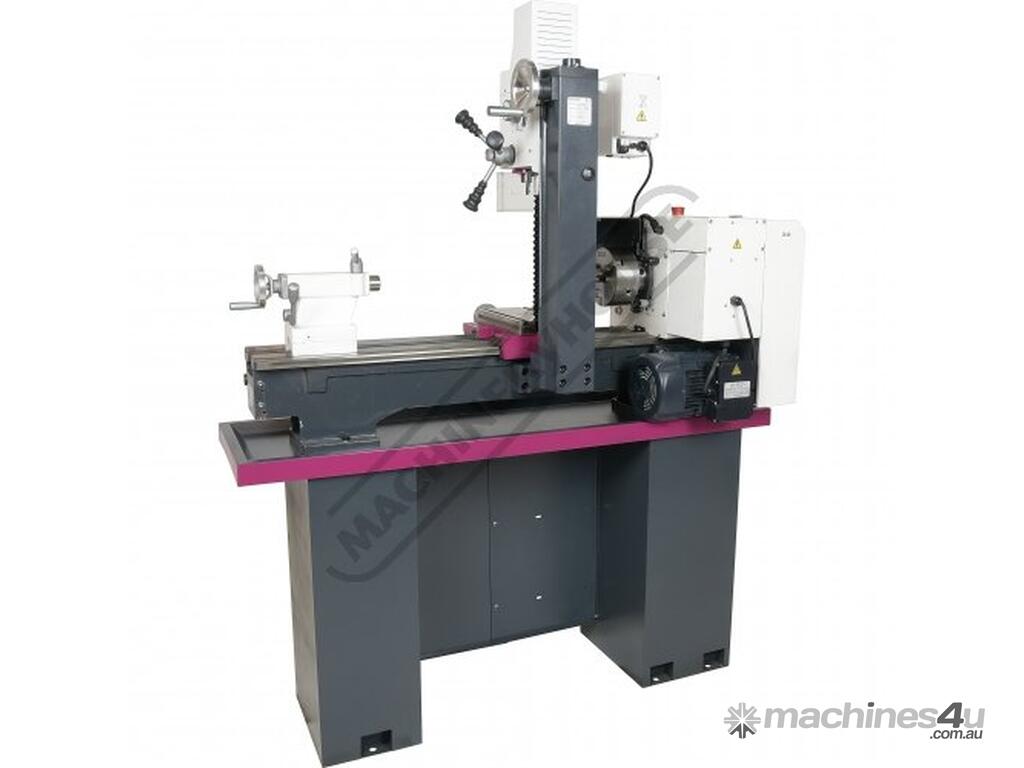

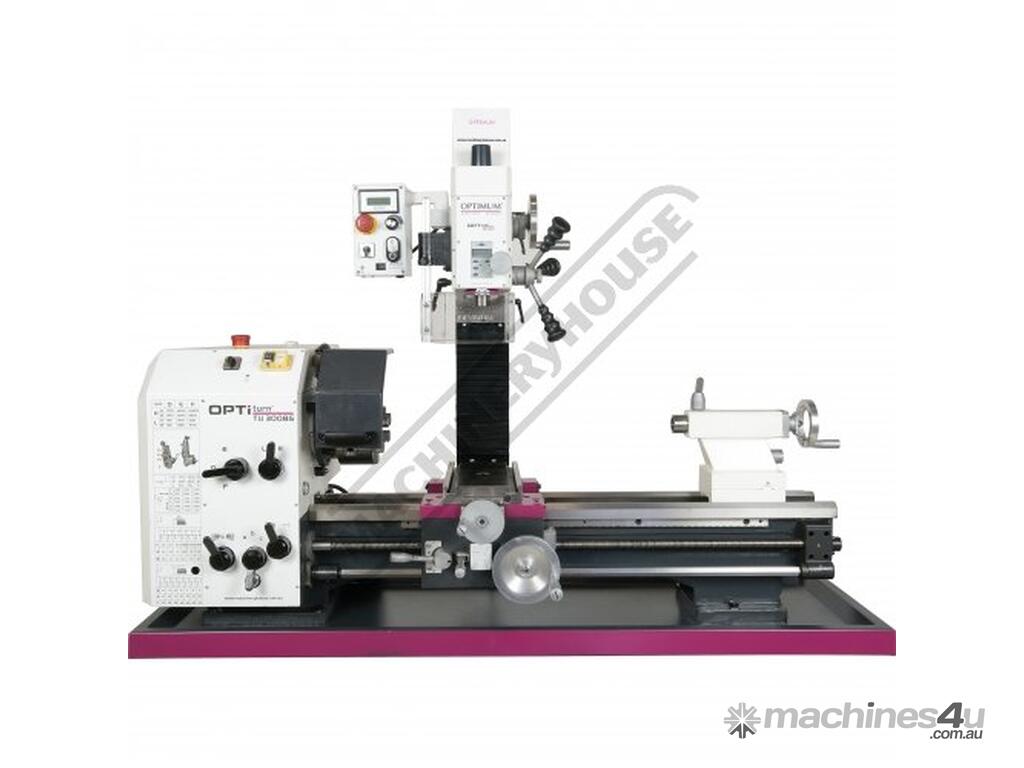

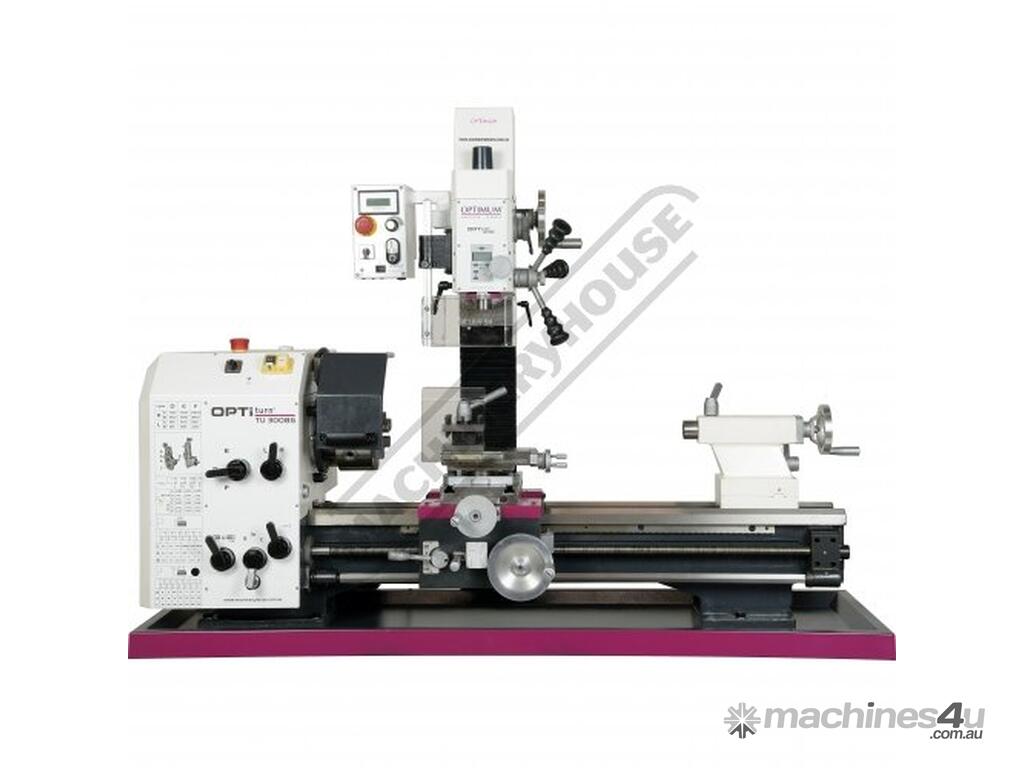

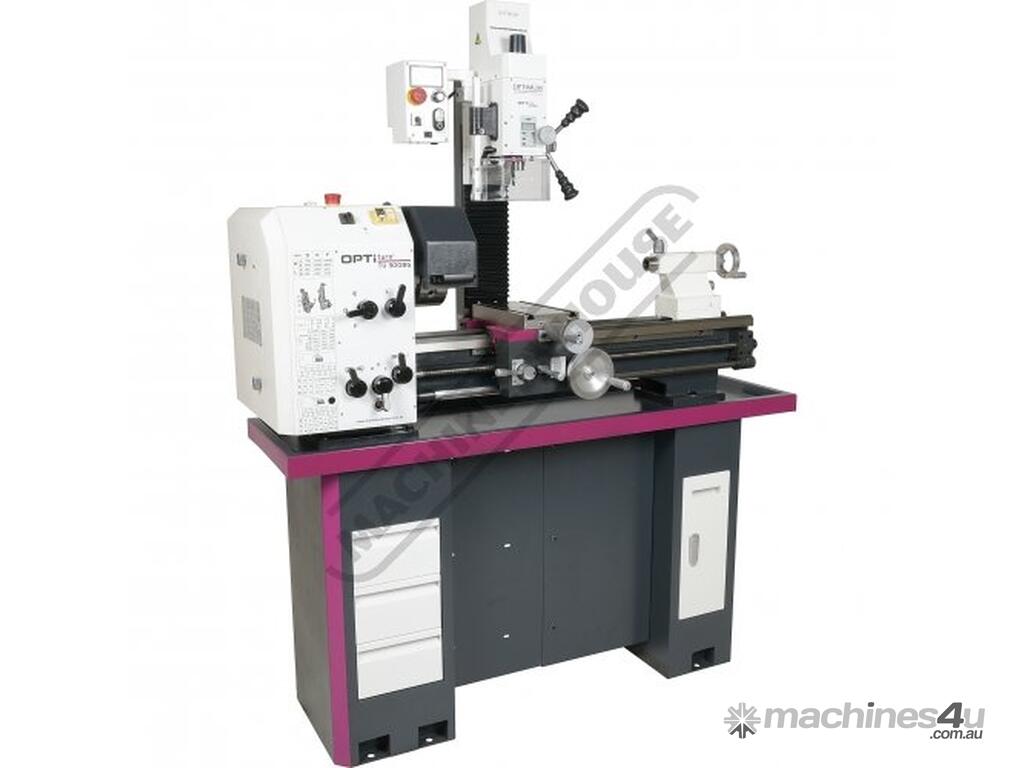

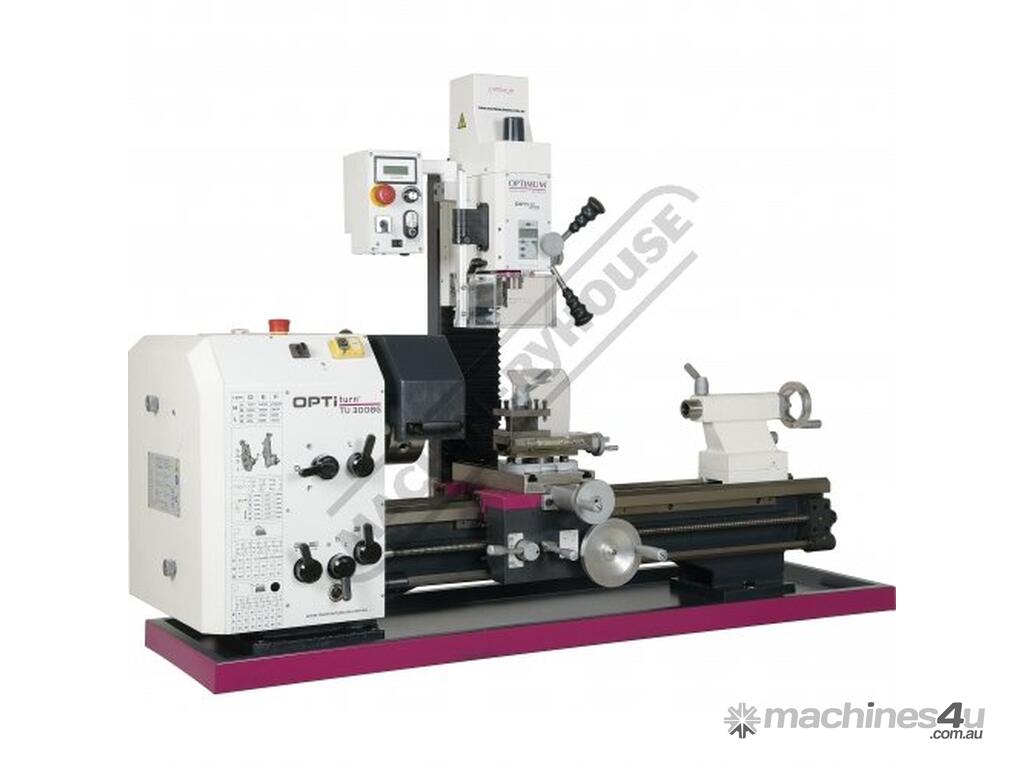

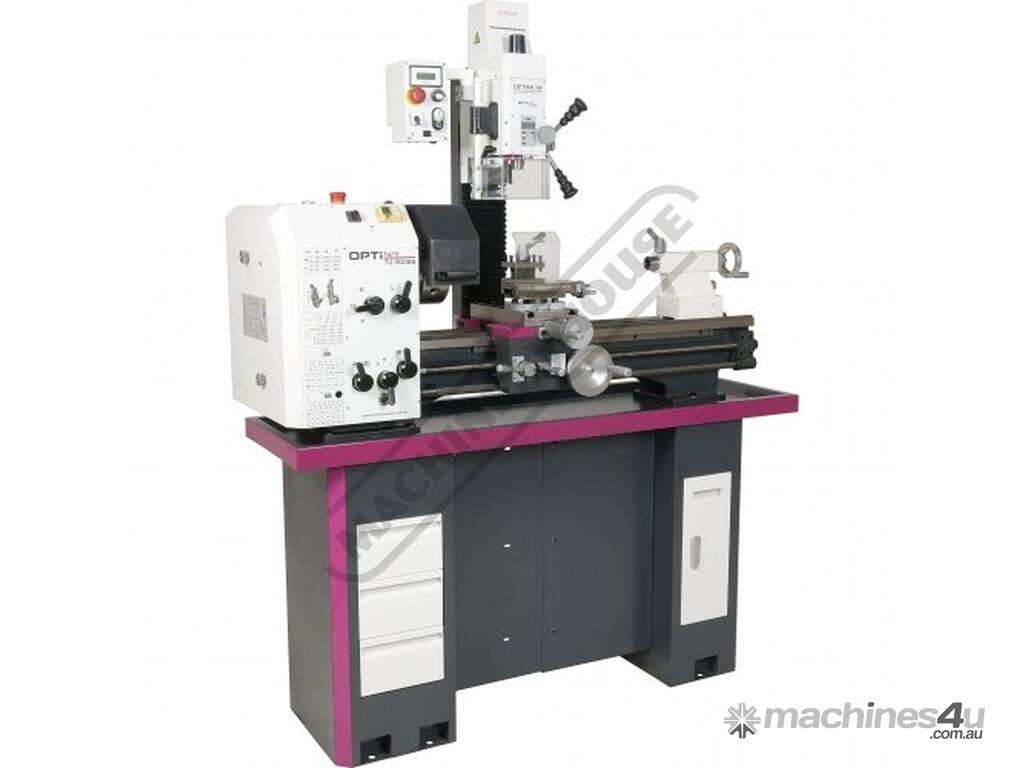

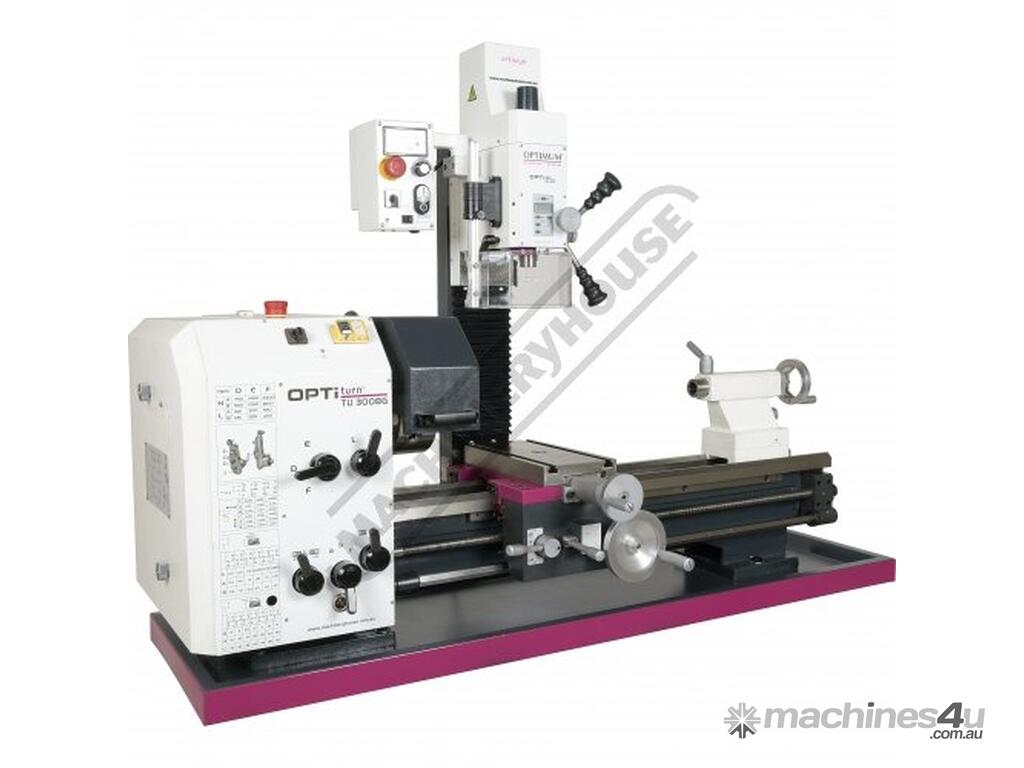

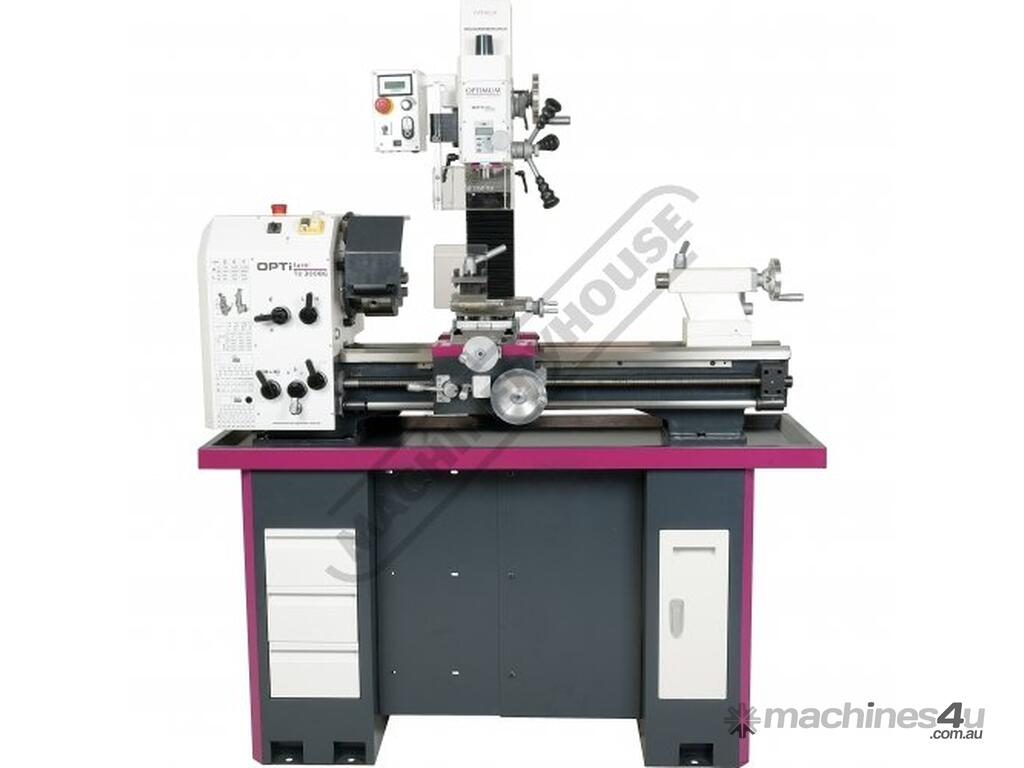

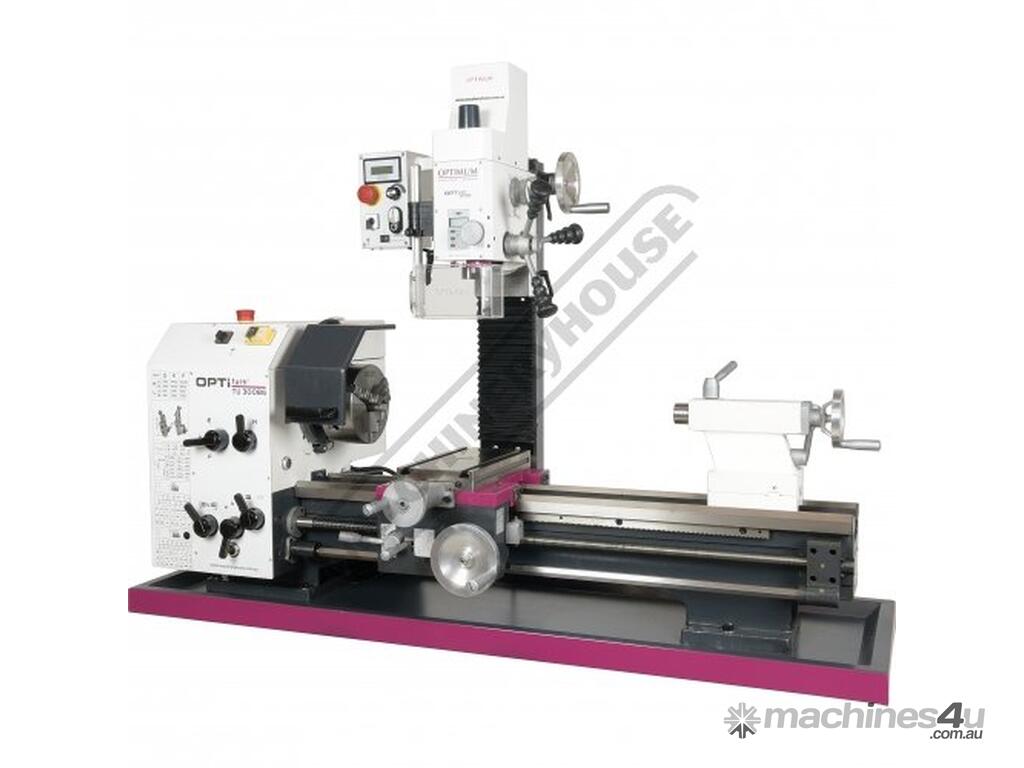

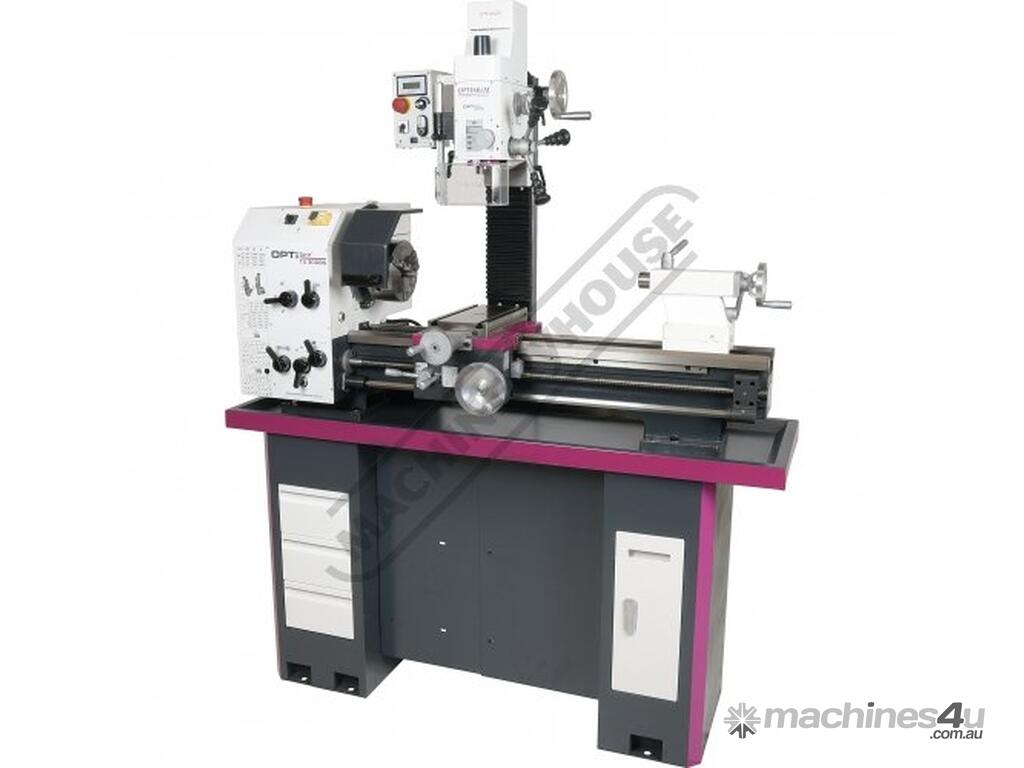

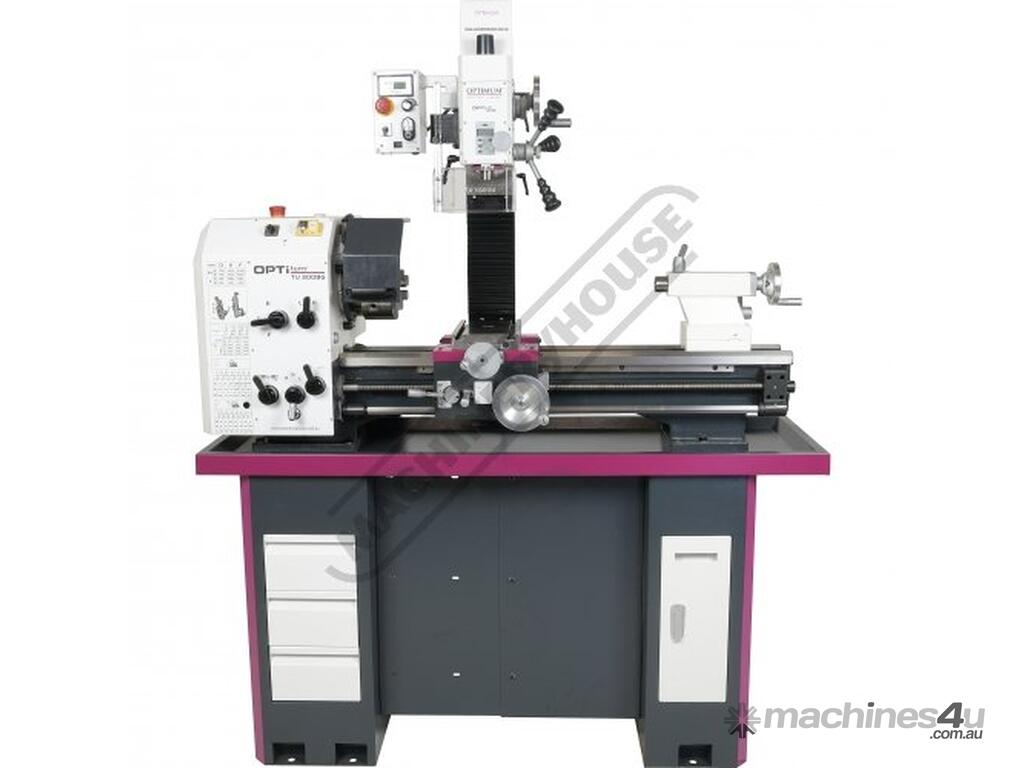

TU-3008G-20M Combination Lathe & Mill-Drill consist of TU-3008G bench lathe & BF-20AV mill head

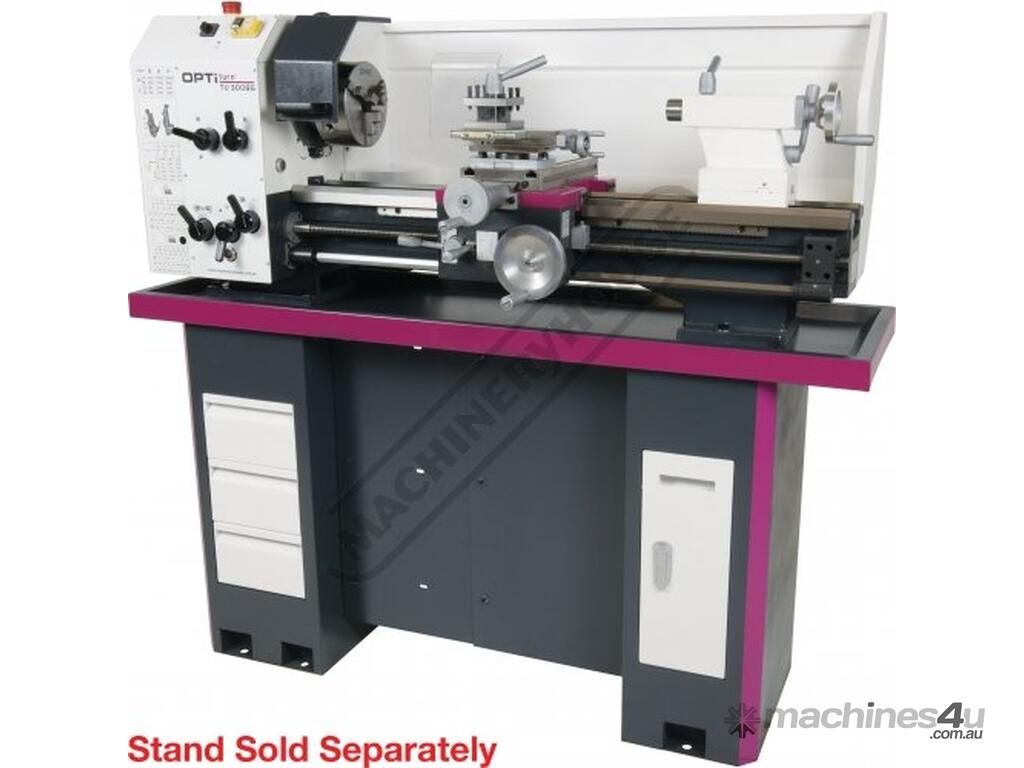

This new TU-3008G model geared head lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid 180mm cast iron bed width, induction hardened and ground slideways gives a high level of precision turning. The lathe capacity is 700mm between the centres and 300mm swing over the bed and with a generous 38mm spindle bore allowing larger stock to be placed through the headstock. The workhorse that drives this lathe has an upgraded powerful 2hp (1.5kW) motor providing smooth running.

Other very useful features included are cross and longitudinal power feeds that's not normally found of small conventional lathes, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-56 tpi or 0.2-3.5mm pitch. Also included are a 4-way indexing tool post with 16mm tool shank capacity, fine adjustment on the tailstock for taper turning and the rear splash guard. A 160mm 3-jaw chuck with reverse jaws is also supplied.

Features:

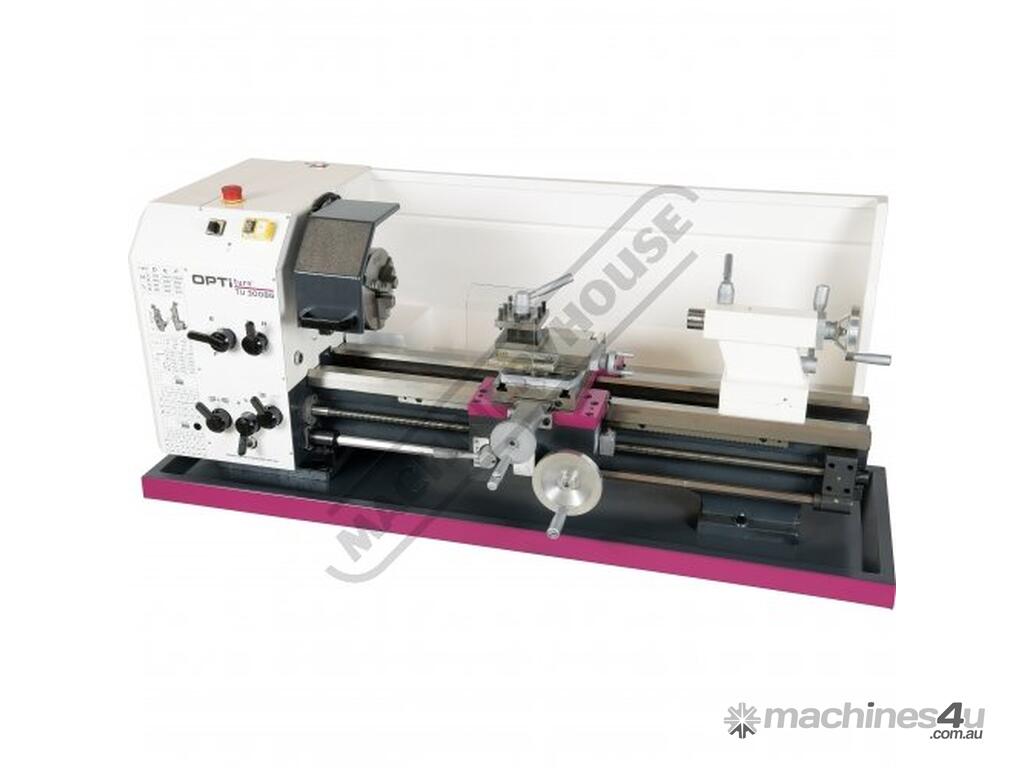

LATHE: TU-3008G
Geared headstock for quick change of 12 spindle speeds 125-2400rpm
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Automatic cross & longitudinal power feeds
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm
D1-4 camlock spindle for quick chuck changes
Forward & reverse spindle direction switch
Oils sight glass on head-stock & gearbox
Change gears for metric and imperial thread cutting
Enclosed feed and threading gearbox
Belt cover with tamper proof safety micro switch
Heavy duty rotating safety chuck guard with micro switch
Sliding tool post safety guard
Cross slide and bed length designed to adapt Optimum DRO scales

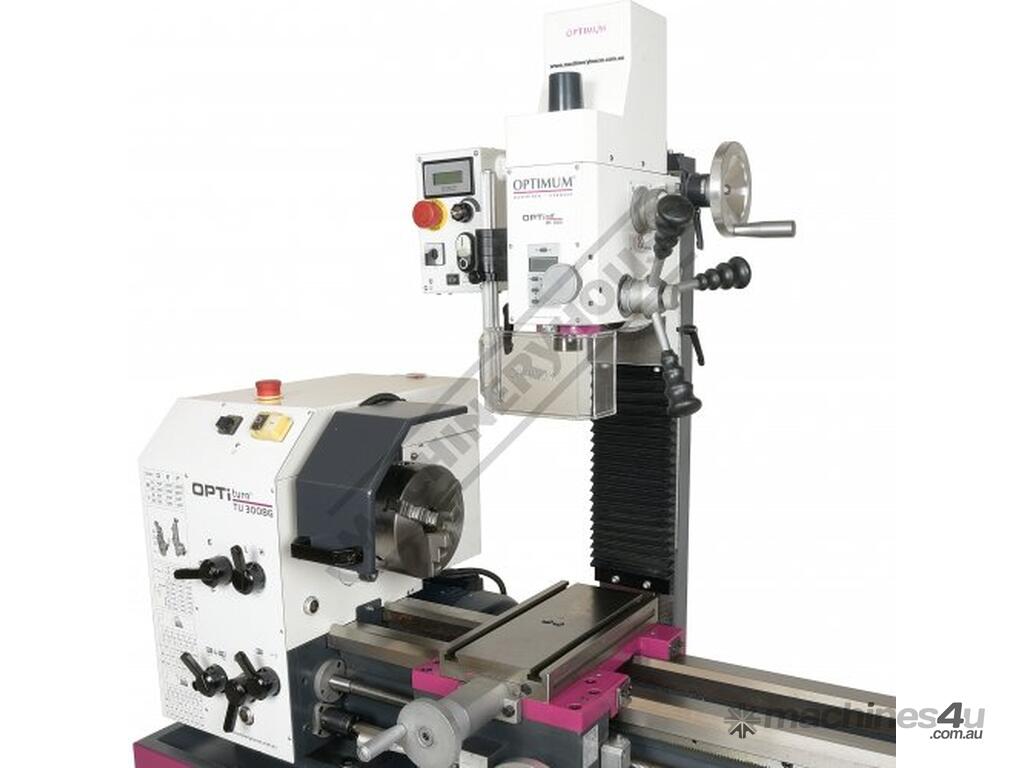

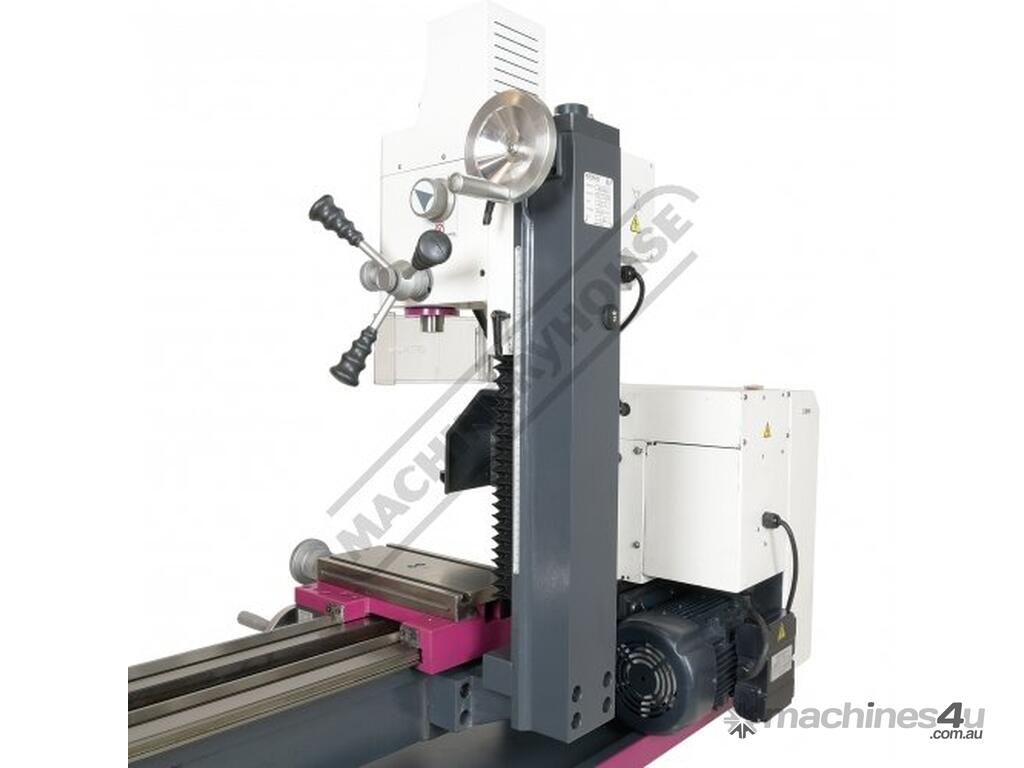

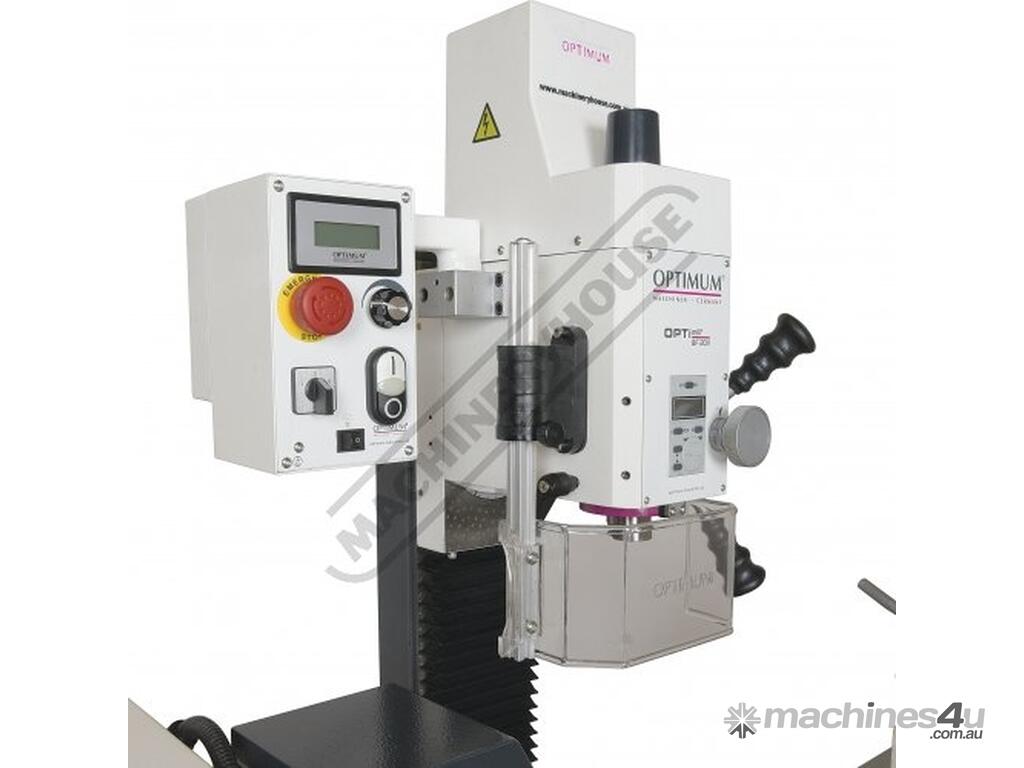

MILL: BF-20AV
Electronic infinitely variable speed
3MT spindle taper
Dovetail vertical Z-Axis
Digital readout speed display
Work light mounted underneath mill head
Digital depth display with zero reset for quill

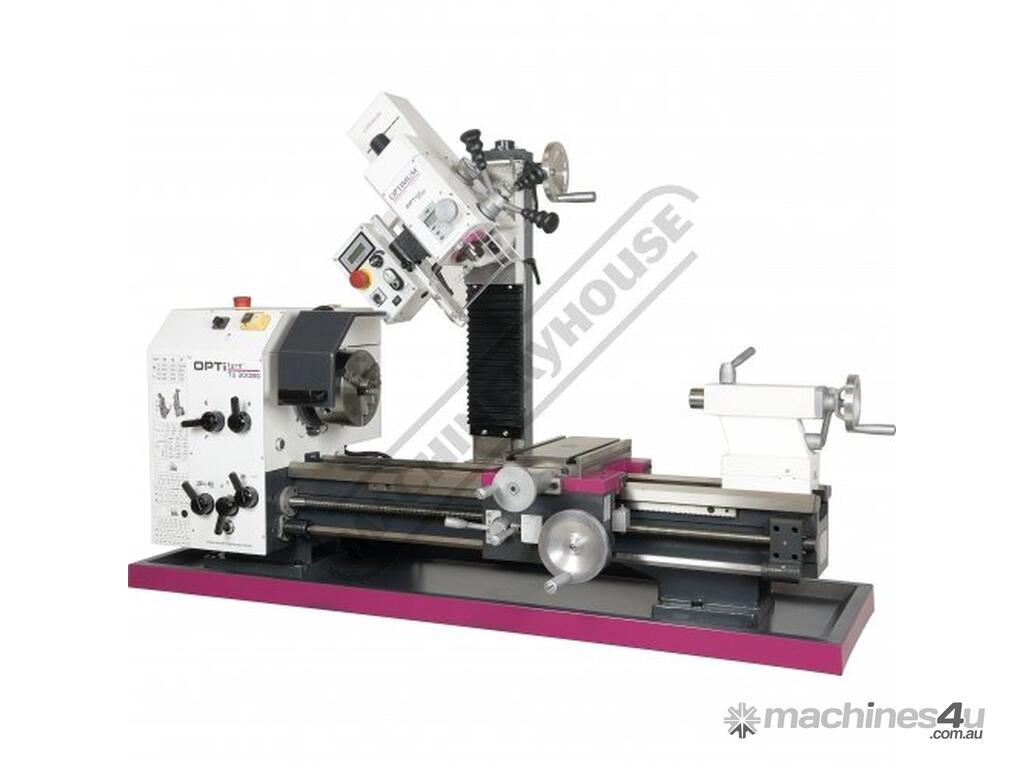

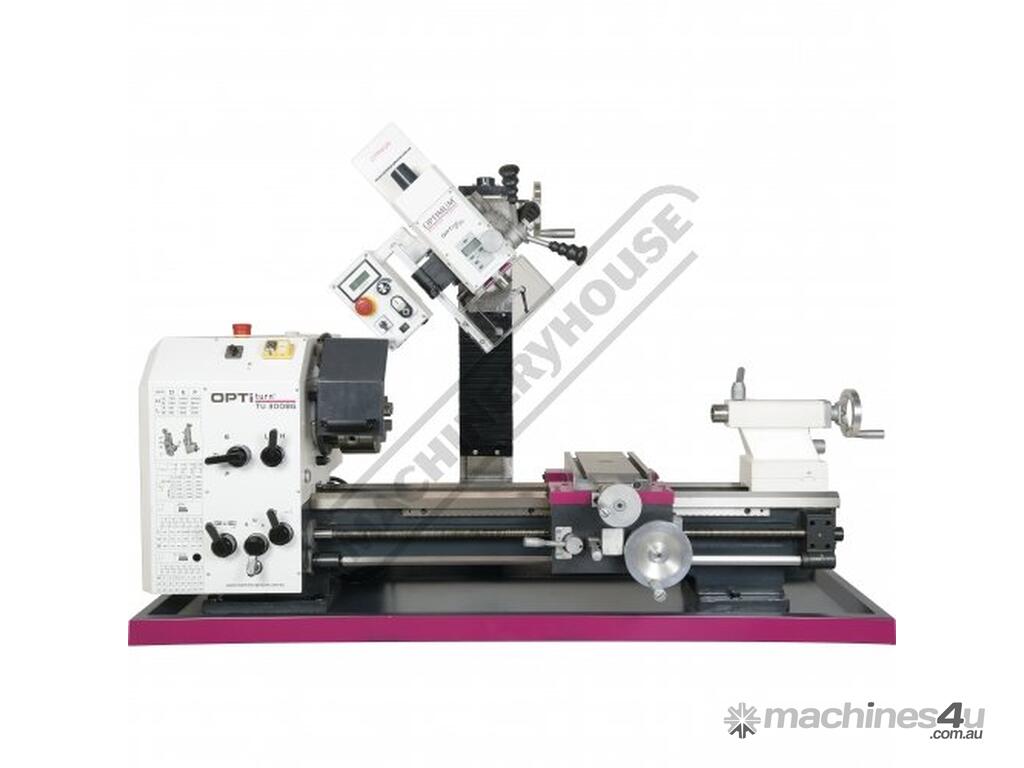

Tilting head to ± 90° from vertical
2 speed gearbox (high / low) drive
Forward and reverse spindle switch
Scale collars for all Axis are adjustable
Adjustable dovetail slideway on Z-Axis
Adjustable drill length stop
Metric dial graduations

Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment.

Includes:
- LATHE: TU-3008G
- 160mm 3 jaw chuck with reverse jaws
- Change gears for metric & Imperial thread cutting
- Chuck guard
- Toolpost guard
- 2 dead centres
- 3-jaw chuck with reversible jaws
- Swarf drip tray
- Rear splash guard
-
-
-
- MILL: BF-20AV
- 3MT x JT6 drill chuck arbor
- Safety cutter guard
- Bracket kit for optional digital readout.



Specifications:
ORDER CODE: K149
MODEL: TU-3008G-20M
KIT Includes: TU-3008G & BF-20AV
Lathe Specifications: LATHE SPECIFICATIONS
Tool Height To Suit (mm): 16
Distance Between Centres (mm): 700
Swing Over Bed (mm): 300
Swing Over Cross Slide (mm): 190
Centre Height (mm): 150
Spindle Bore (mm): 38
Spindle Nose Type: D1-4
Bed Width (mm): 180
Headstock Taper (MT): 5
Tailstock Taper (MT): 3
Cross Slide Travel (mm): 150
Compound Slide Travel (mm): 65
Leadscrew: Metric
Longitudinal Feed (Z-Axis) (mm/rev): 0.085 - 0.83
Cross Feed (X-Axis): 0.01 ~0.10
Metric Thread Range (mm): 0.2 - 3.5
Imperial Thread Range (TPI): 8 - 56"
Three Jaw Chuck Size (mm): 160
Four Jaw Chuck Size: Optional
Spindle Speeds (No. / rpm): 12 (125 - 2400)
Motor Power - Lathe (kW / hp): 1.5 / 2
Voltage / Amperage - Lathe (V / amp): 240 / 10
Mill Specifications: MILL SPECIFICATIONS
Spindle Taper (MT): 3
Column Type: Dovetail
Swivel Head (Left ~ Right) (± Deg): ±90
Vertical Travel (Z-Axis) (mm): 280
Drilling Capacity (mm): 16
End Milling Capacity (mm): 20
Face Milling Capacity (mm): 63
Spindle Speeds Vertical (No. / rpm): Variable (90-3000)
Motor Power - Mill (kW / hp): 0.85 / 1.13
Voltage / Amperage - Mill (V / amp): 240 / 10
Nett Weight (kg): 383
