TUCKWELL - OAV Rapid Edge Pro Latest Model

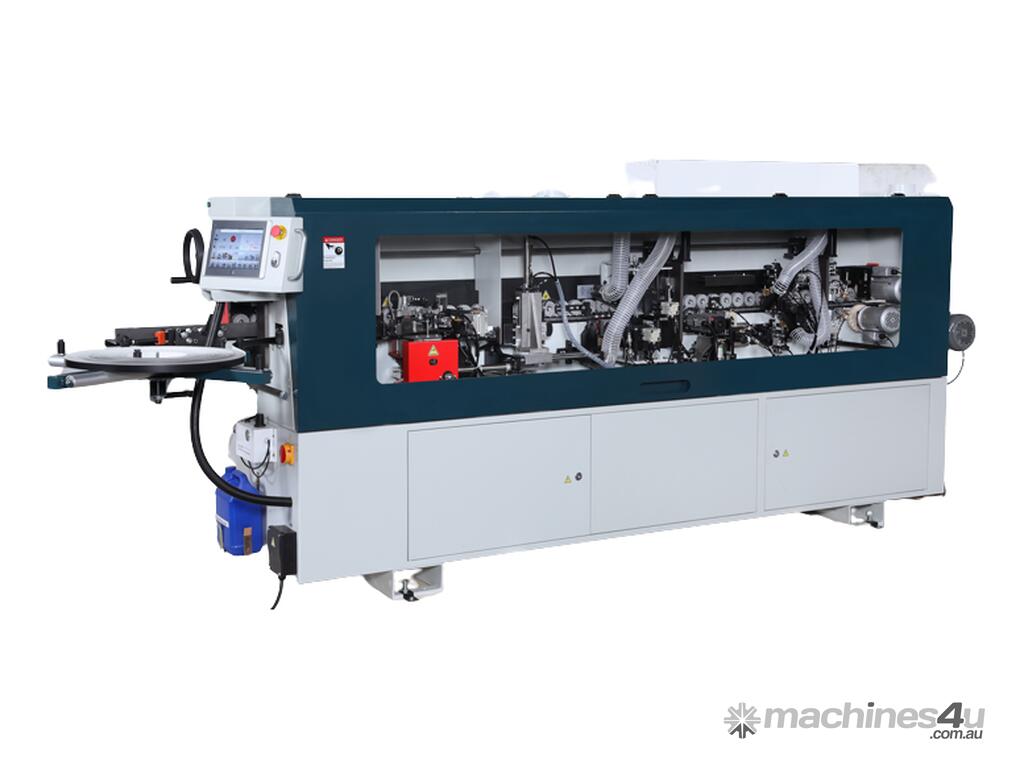

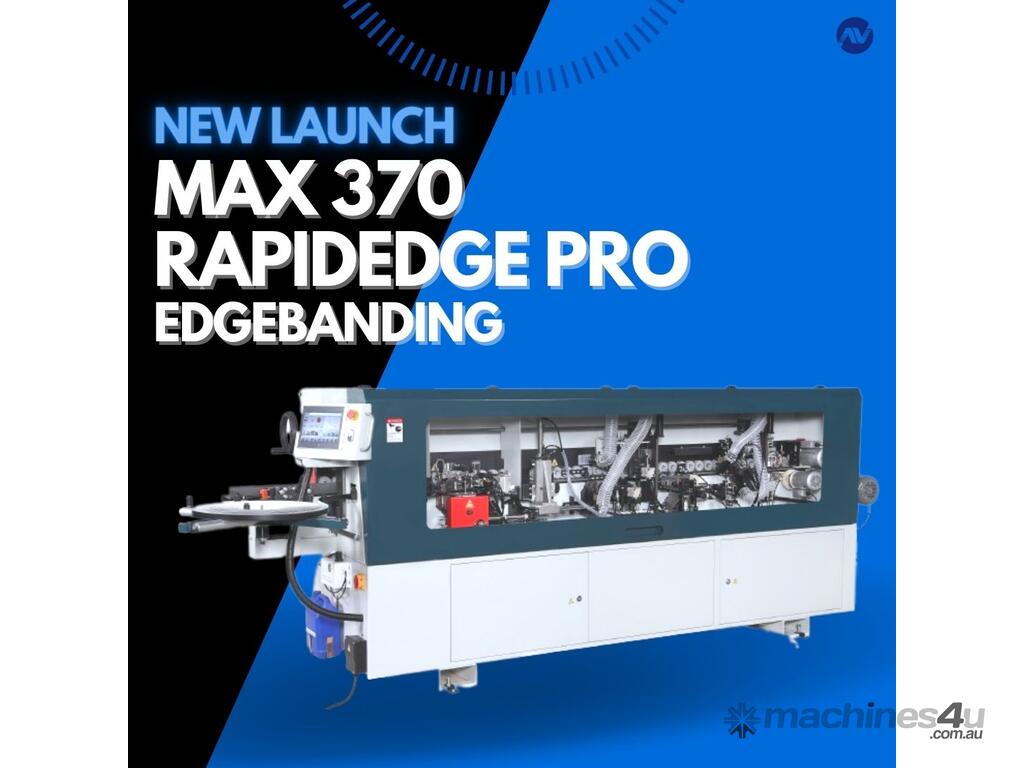

All New OAV Rapid Edge Pro Hotmelt Edgebander

The all new OAV Rapid Edge Pro has arrived!

This machine offers automatic change between 3 edges, quick change glue pot, spray units, upgraded trimming & scraping stations, buffing unit and is nesting friendly.
The Rapid Edge Pro is designed to streamline your operations and ensure superior quality in edge finishing.

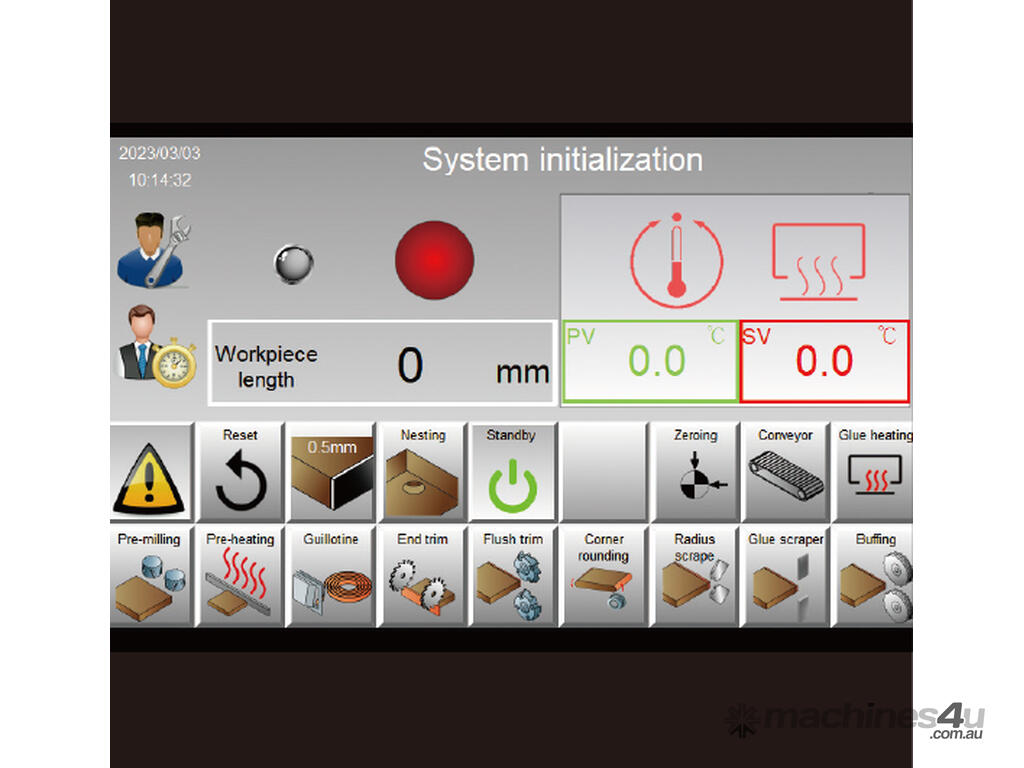

Touch Screen HMI Control System:
The intuitive touch screen interface reduces manual settings to a minimum, enabling quick and easy selection and control of the aggregate. It also provides complete monitoring of all machine functions, enhancing efficiency and ease of use.

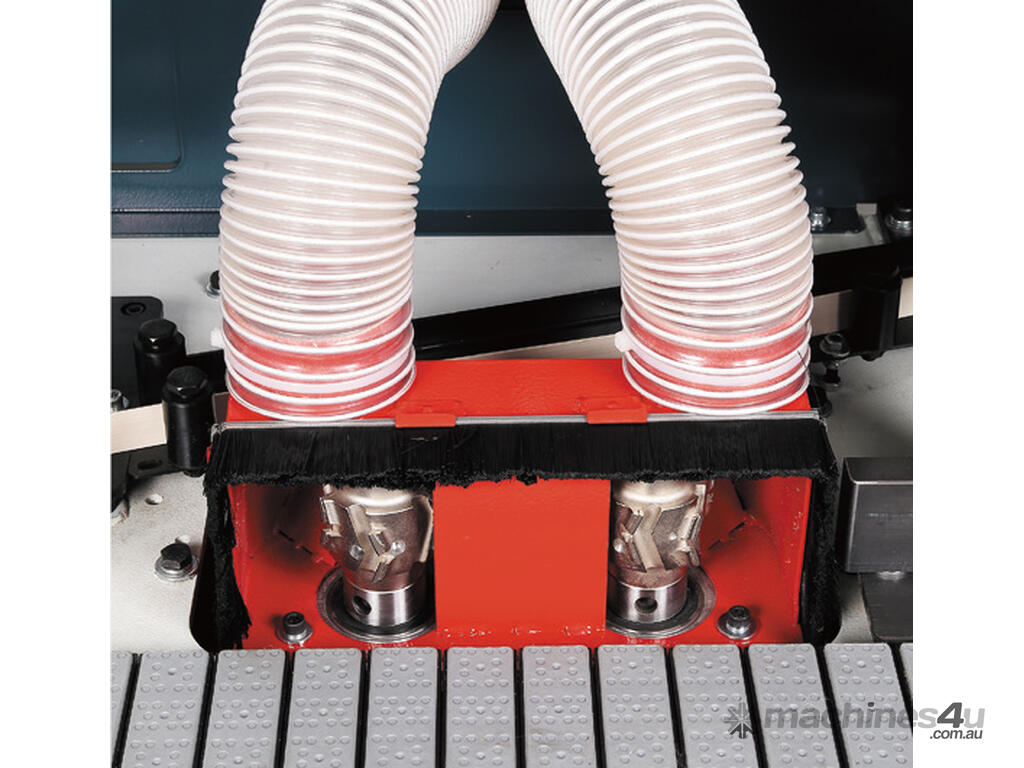

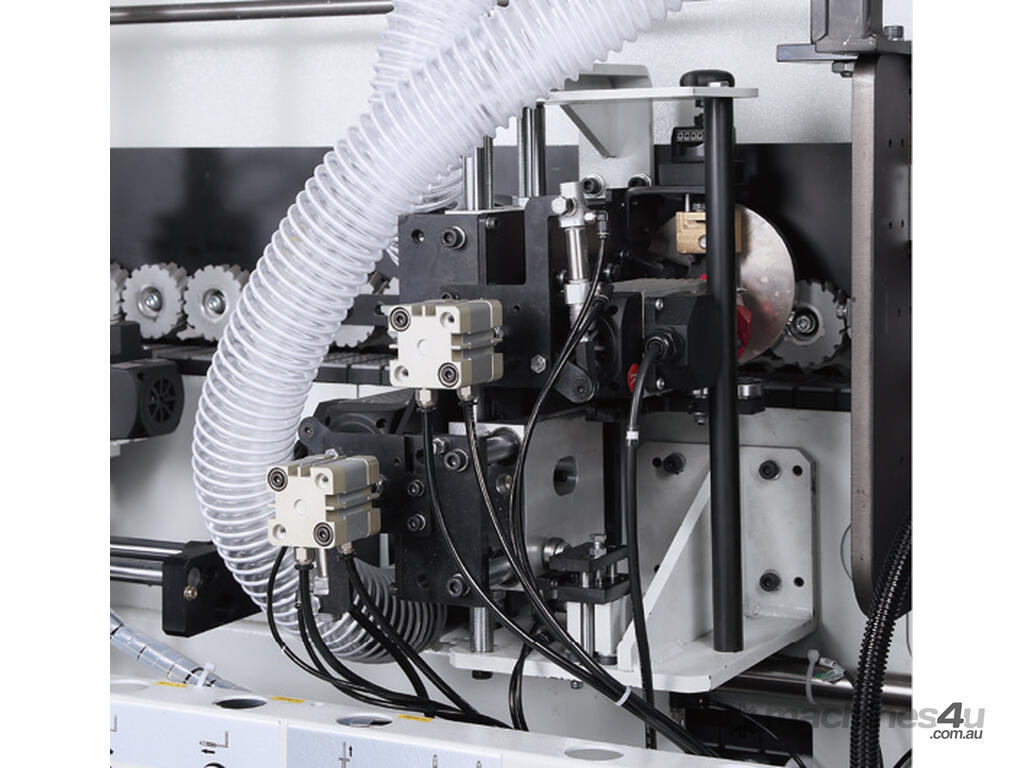

Pre-Milling Unit:
Equipped with two counter-rotating, activation-controlled, and individually adjustable units with spiral cutters, this unit ensures first-class edge processing before the workpiece is glued to the edge.

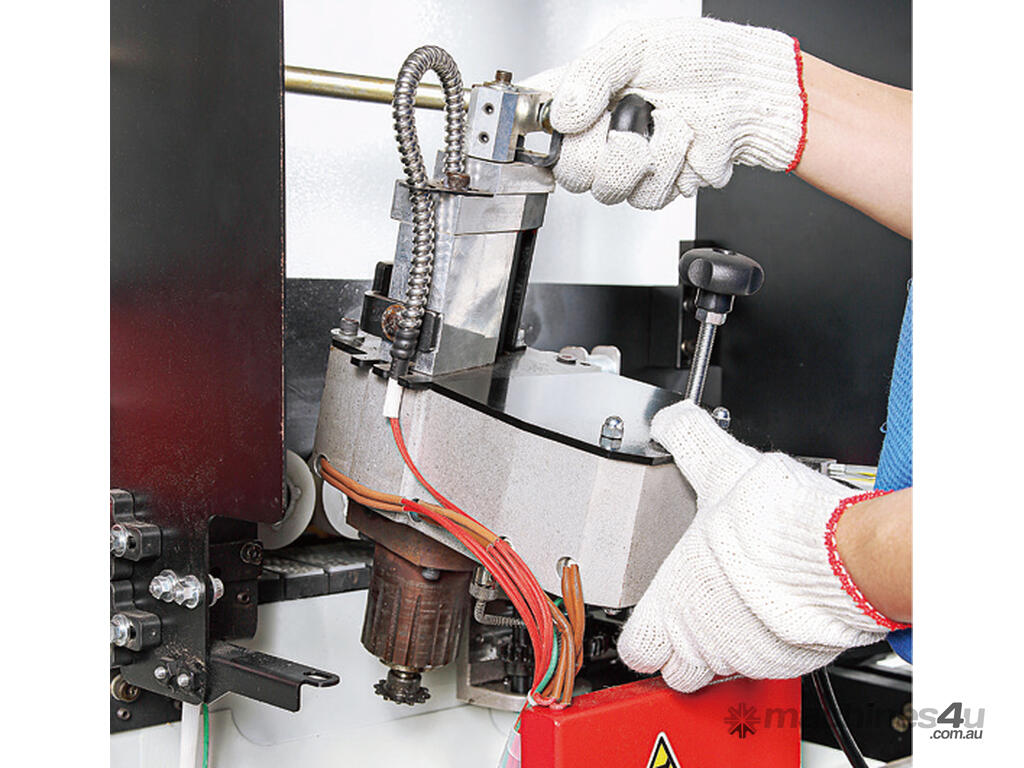

Quick Change Glue Pot:
The Teflon-coated glue pot, with a 1.2 kg capacity, features a short warm-up time for quick operational readiness. The quick-change system ensures the shortest cleaning and changeover time when switching glues.

End Cutting Unit:
This unit has two blades with a fence plate against the workpiece to cut excessive edge material on the front and rear sides, ensuring a clean finish.

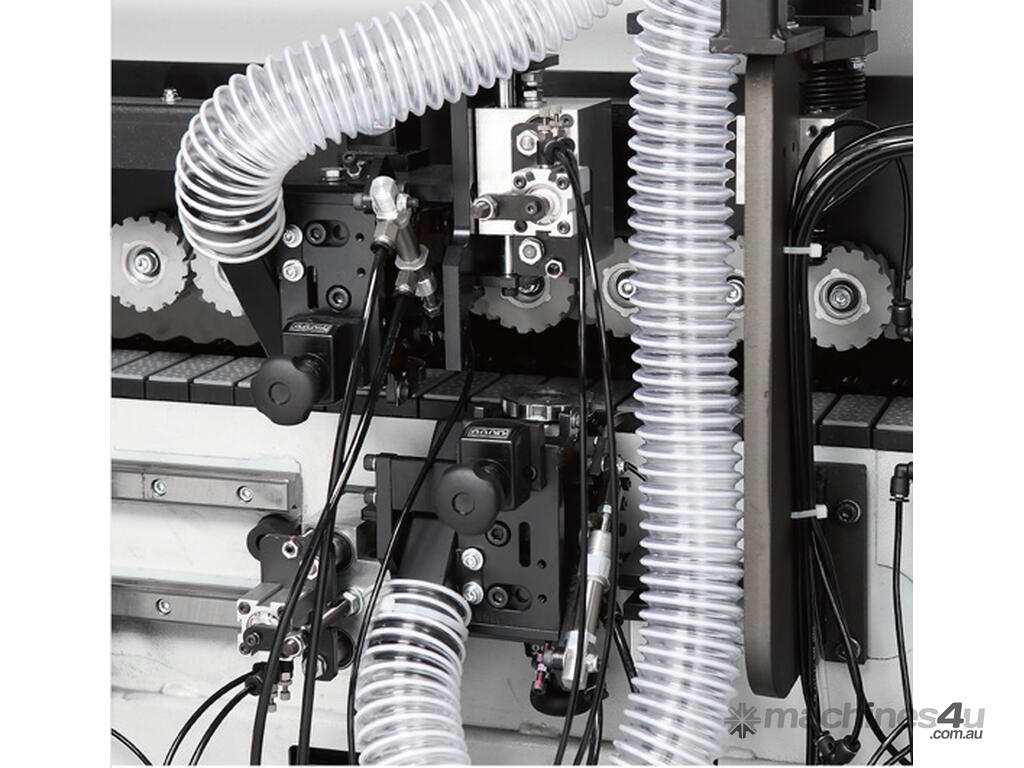

Flush Trimming:
Two counter-rotating, activation-controlled, and individually adjustable units with replaceable knives trim excess material on the top and bottom sides, providing precision and consistency.

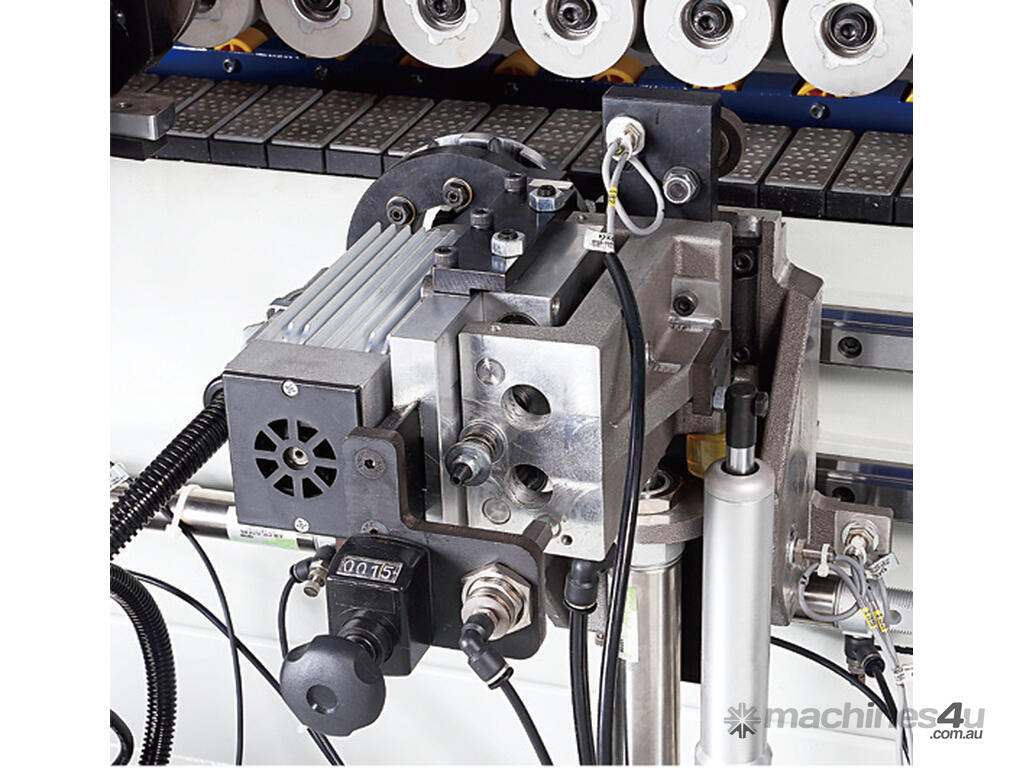

Corner Rounding Unit:
Controlled from the control panel, this unit allows for the selection of specific corners to be rounded, offering flexibility and precision.

Radius Scraper Unit:
The radius surface receives light scraping, removing any remaining material from the trimming process and ensuring a smooth finish. Manual fine adjustment is available for precision.

Flat Scraper Unit:
This unit slightly removes residual glue on the workpiece caused by squeeze-out, ensuring a clean and polished finish.

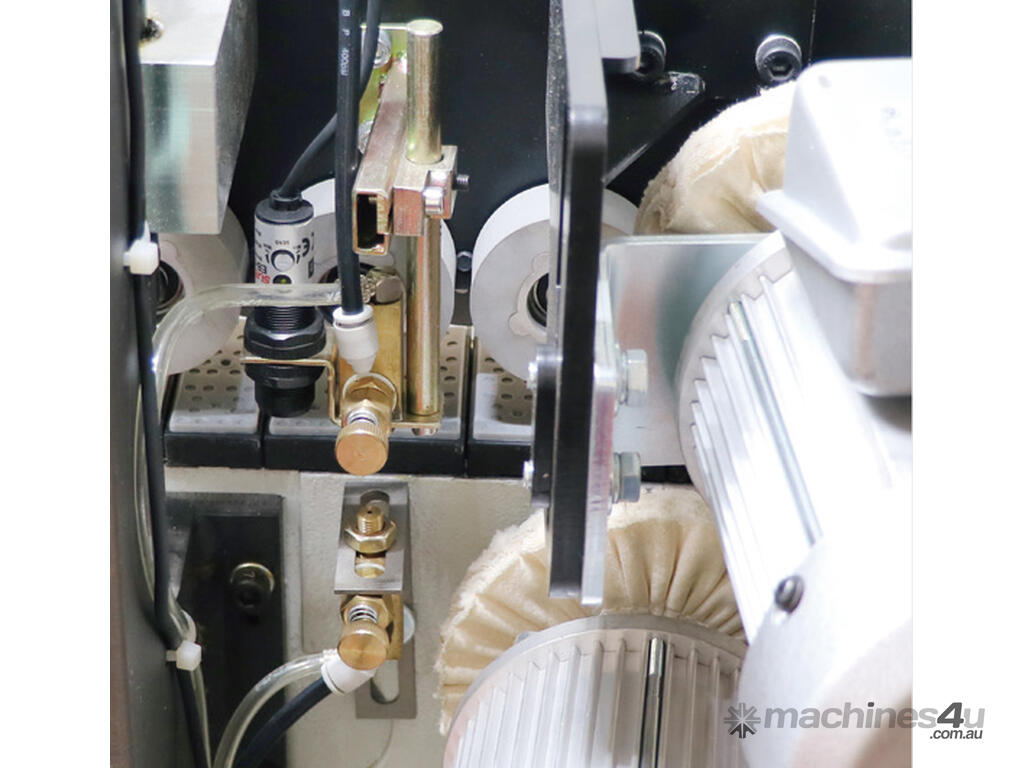

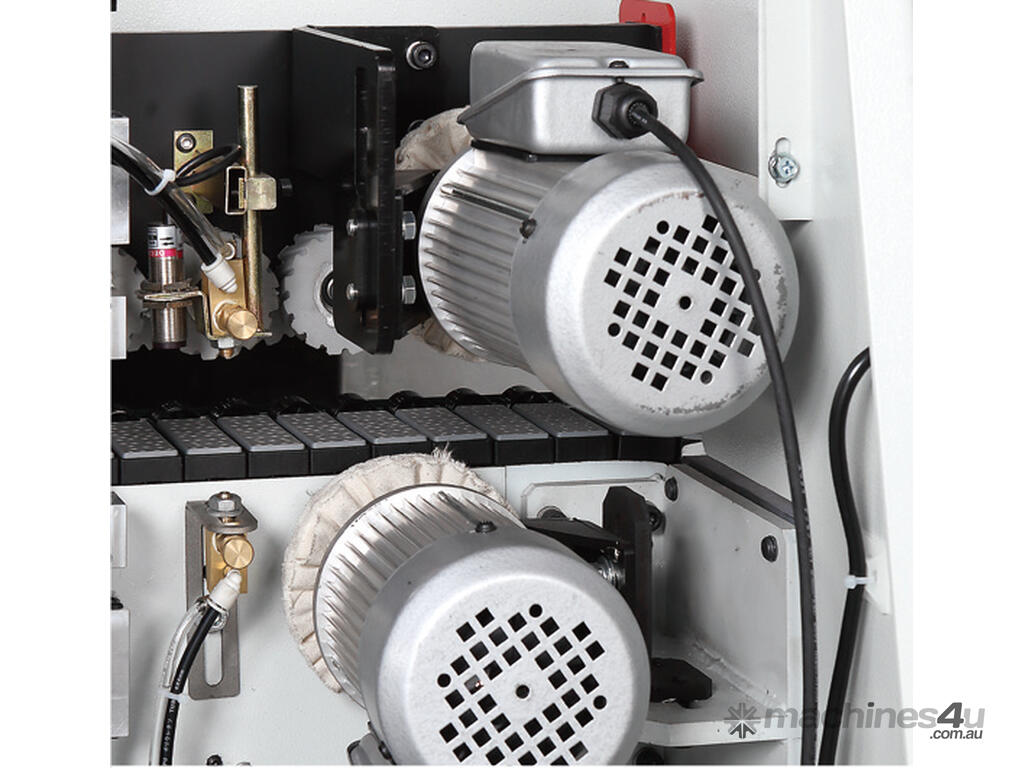

Buffing Unit:
Comprising two independent electric motors equipped with cotton brushes, this unit cleans and polishes the top and bottom parts of the edge, providing a professional finish.

Nesting Function:
Ideal for workpieces already drilled before edge processing, the nesting kits ensure precision and efficiency.

Optional Features:

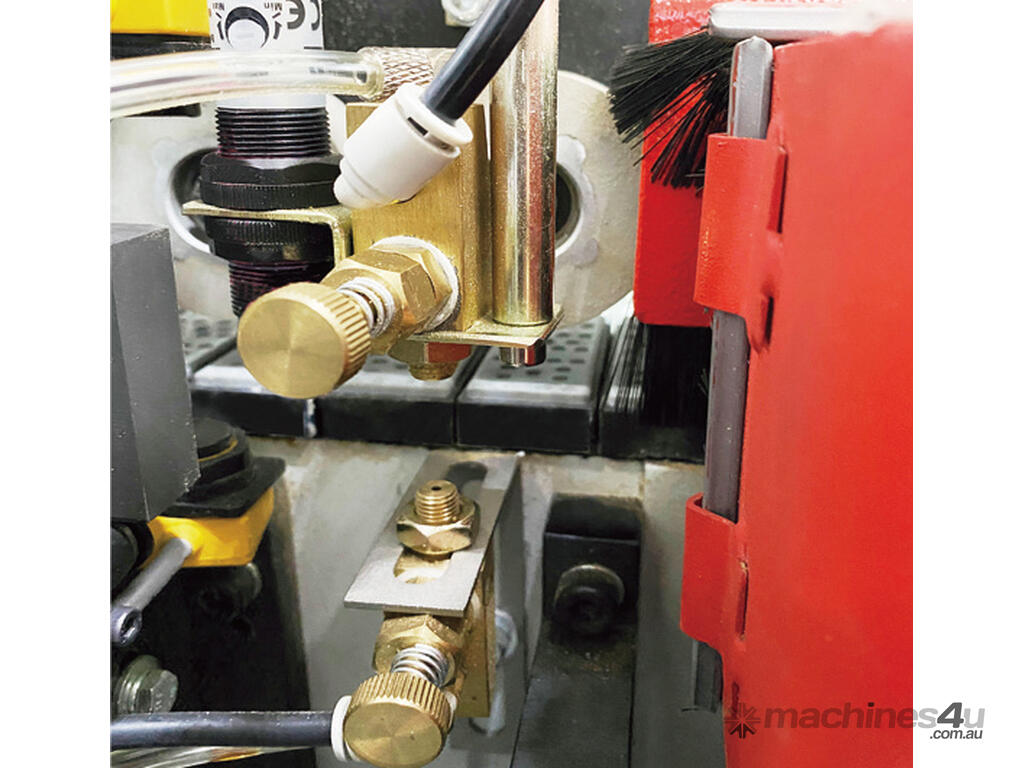

Release Agent Spray Unit:
Applies a release agent from the top and bottom to prevent leaked adhesive residual glue from sticking to the workpiece.

Cleaning Spray Unit:
Sprays a cleaning agent to loosen adhesive residue on the panel, installed in front of the buffing unit for optimal results.



At Tuckwell Machinery, our commitment to excellence is unwavering, supported by a stellar team dedicated to providing your business with premium industry knowledge and the best machinery that will elevate your operations. Each machine, meticulously chosen by Tuckwell, undergoes rigorous scrutiny.Our range of brands are selected for speed, quality build, superior output and value for money for the Flat Panel, Aluminium, and Timber Industries. Benefit from our comprehensive workshop facilities and expertly-equipped service vehicles. Our devoted staff prioritizes your needs, ensuring unparalleled pre-sale and post-sale support. With fully trained technicians and a robust inventory of spare parts, we deliver prompt, reliable service with a personalized touch that sets us apart. Based in Brisbane, Queensland, Tuckwell Machinery is your ultimate partner in productivity and performance.Go to the Tuckwell showroom on Machines4u to see the full range of machinery that is available, send us a message about the item you are interested in or give Tuckwell a call. We are happy to answer any of your questions and provide you with professional advice for your business solution.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
