Reluctantly offered for sale due to business downsizing, these Pinnacle CNC machining centres are in exceptional condition and have been meticulously maintained throughout their service life.

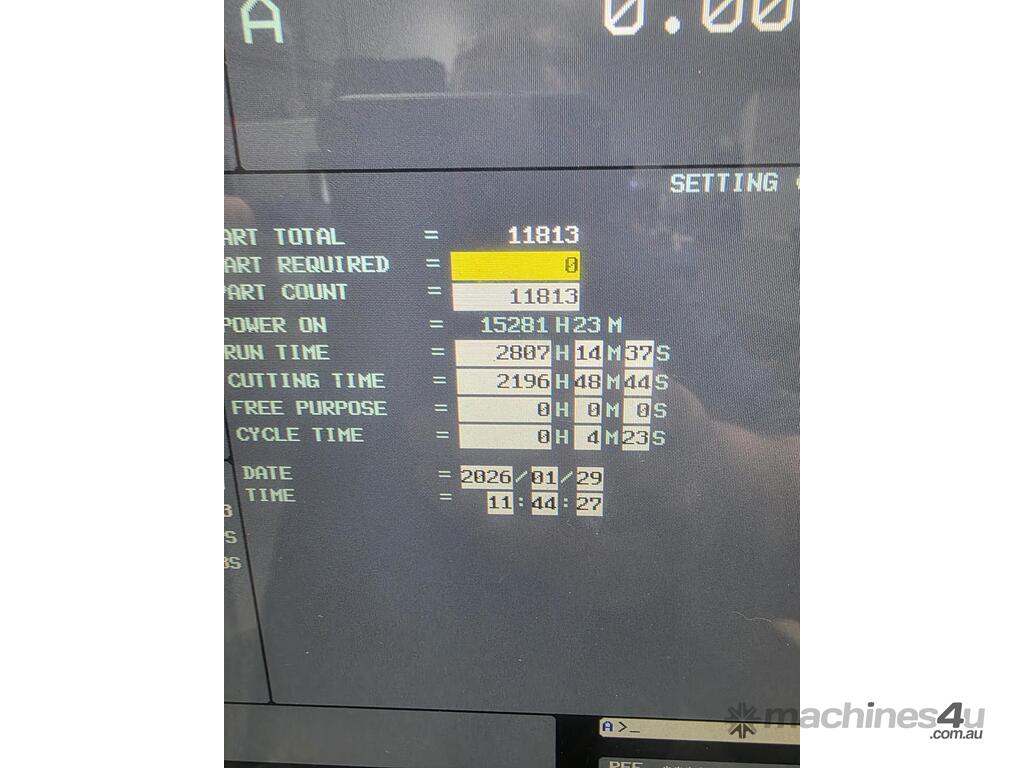

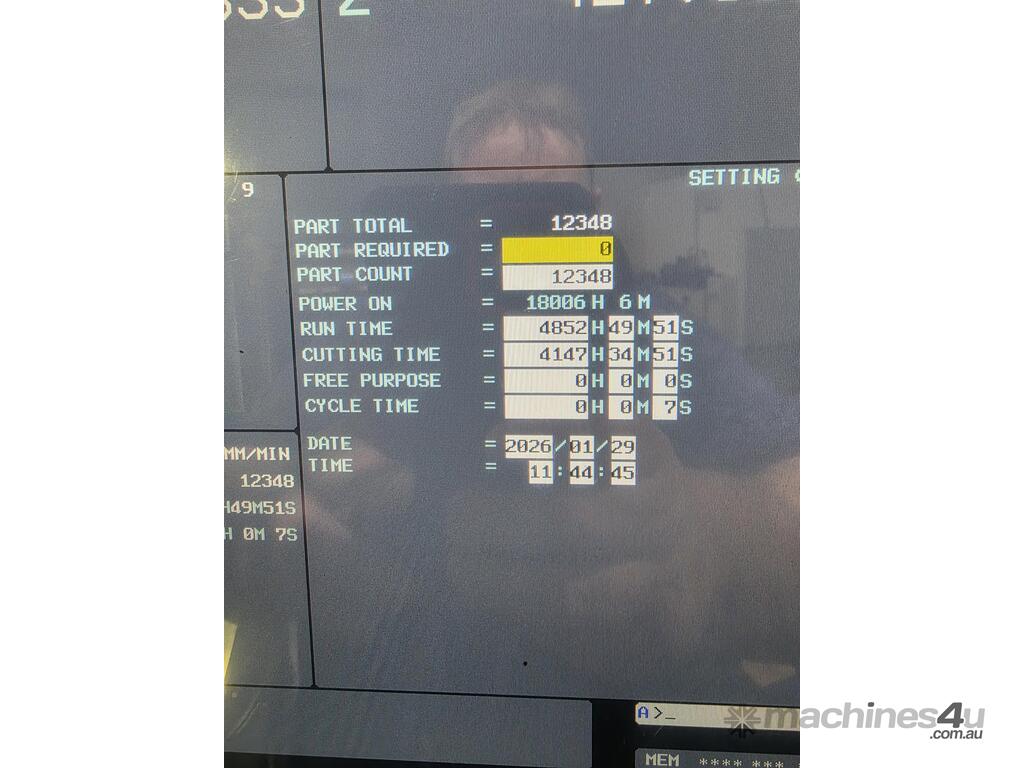

Both machines have very low spindle hours, have been regularly serviced, and are fully operational with no known issues. They have been used in a clean workshop environment and maintained to a high standard.
These machines are ready to go straight into production and would suit a precision engineering, jobbing, or manufacturing environment.
Price is firm, reflecting the excellent condition, low hours, and ongoing reliability of the machines.
Key Highlights
• 2022 build – modern machine with low years of service
• Proven Pinnacle build quality with Meehanite cast iron construction
• Linear guideways on all axes for speed and accuracy
• BBT40 spindle
• Available immediately – inspection welcome
Machine Overview

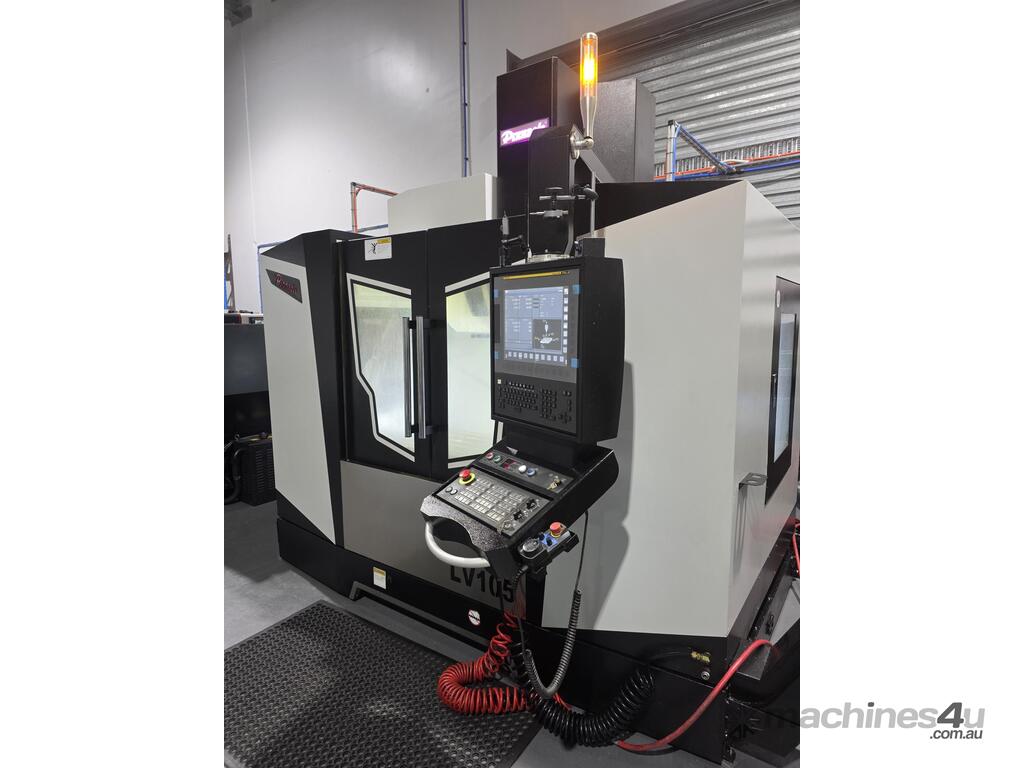

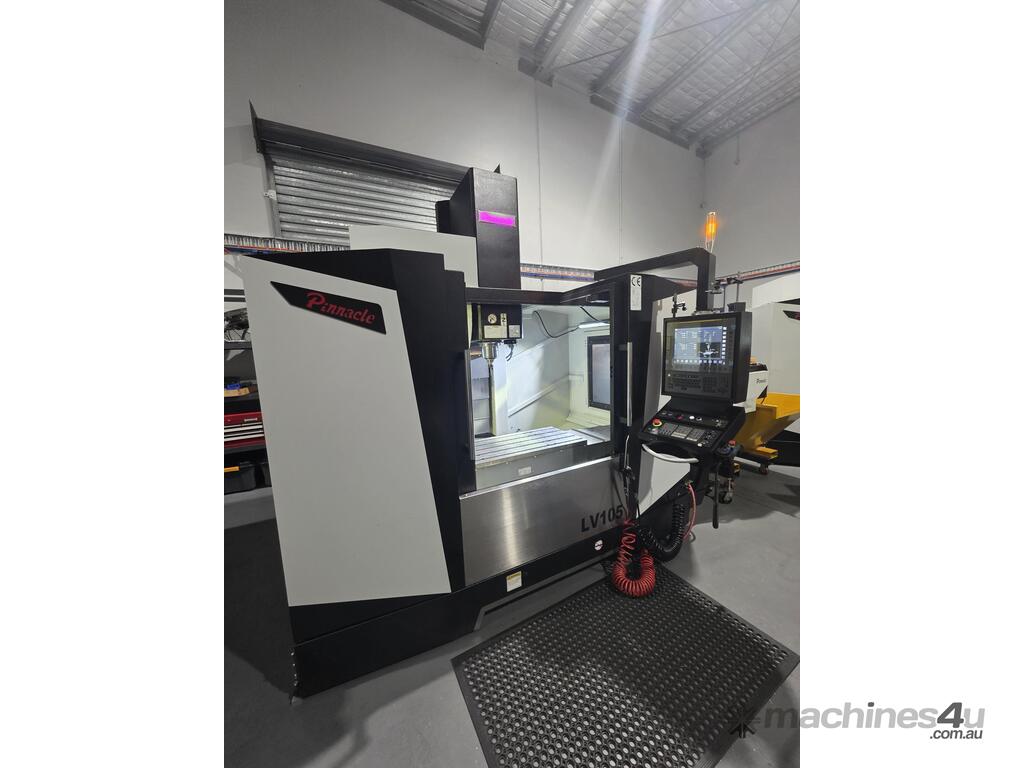

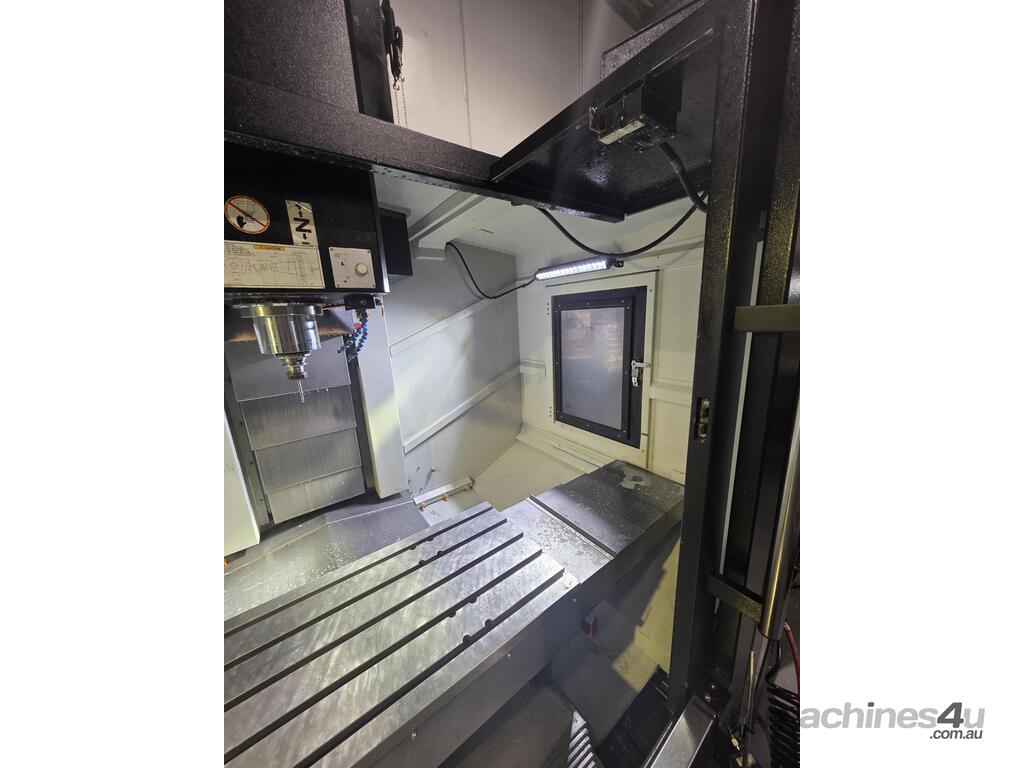

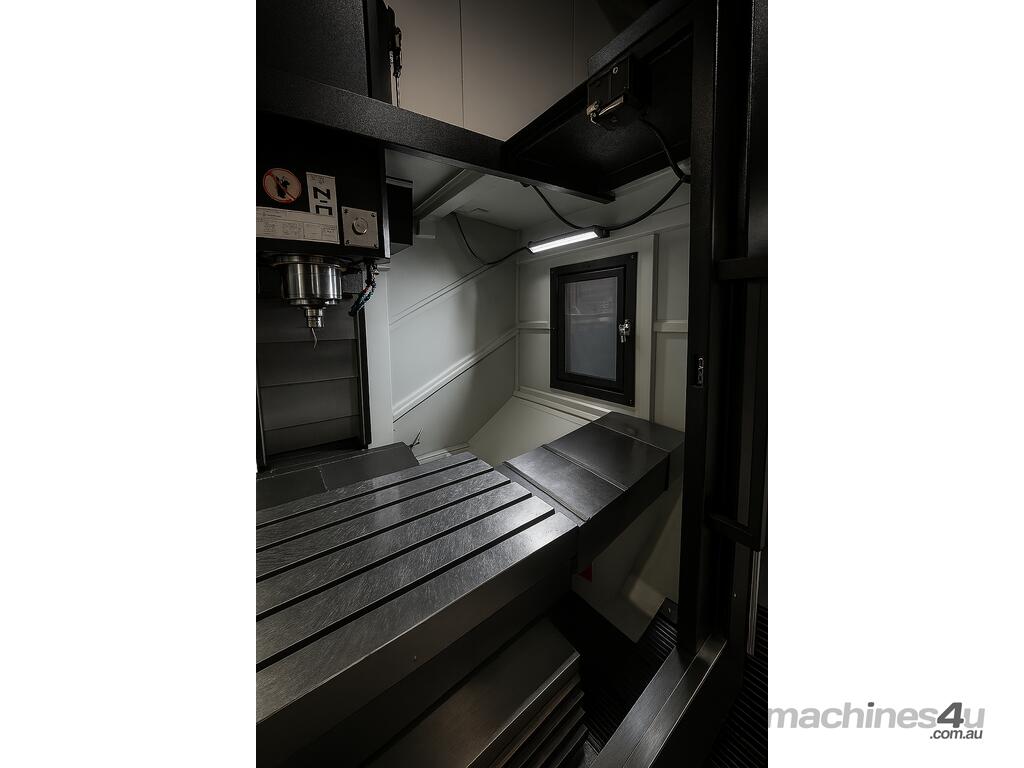

These Used 2022 Pinnacle LV105 CNC Machining Centers are a highly capable 3 axis vertical machining centers, well suited to Australian job shops, contract machining businesses, and production environments. Offering a generous work envelope, fast rapid traverse rates and excellent rigidity, the LV105 represents outstanding value for buyers seeking a modern, reliable CNC mill without new machine pricing.
Technical Specifications
Item
Specification
Year
2022
CNC Control

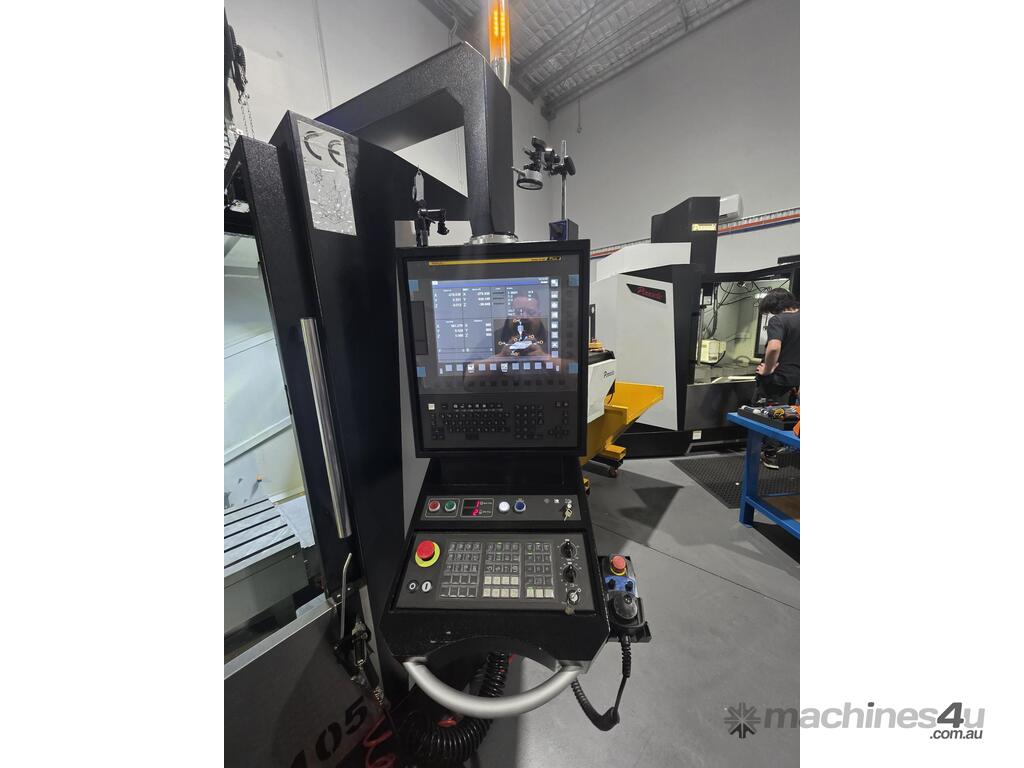

Fanuc 0i-F Plus
Axis Configuration
3?Axis
X Axis Travel
1020 mm
Y Axis Travel
560 mm
Z Axis Travel
560 mm

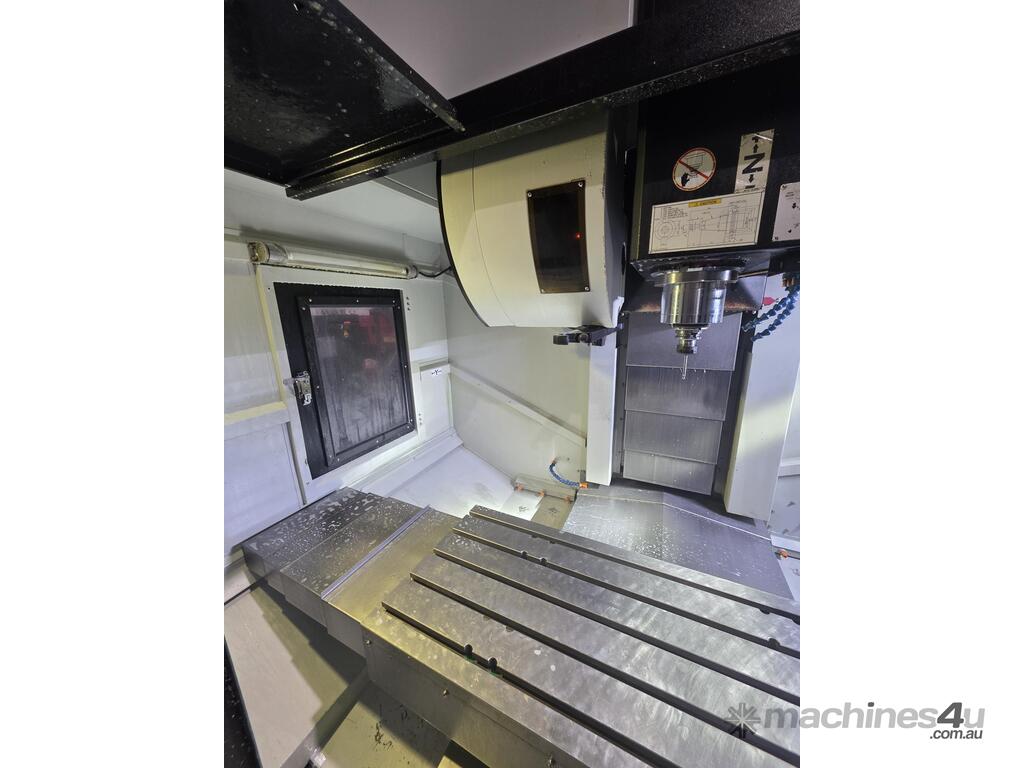

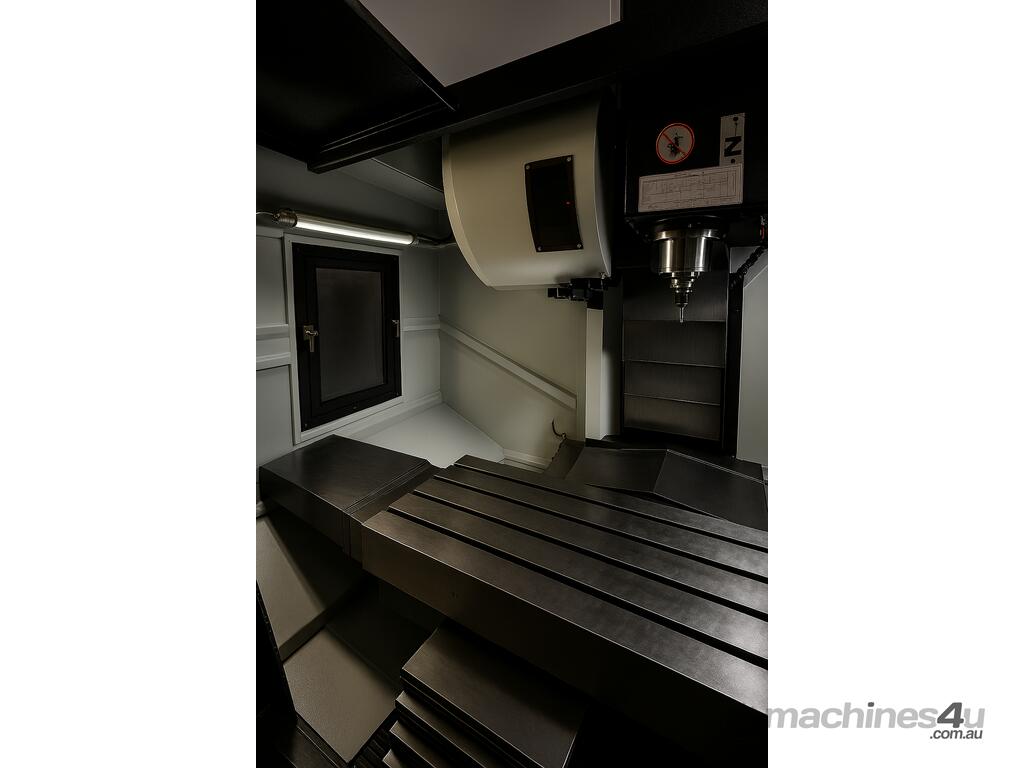

Table Size
1200 × 510 mm
Maximum Table Load
600 kg
Spindle Taper
BBT 40 / ISO40
Spindle Speed
Up to 8,000 rpm
Rapid Traverse
X/Y 36 m/min | Z 24 m/min
Tool Changer
24 Station Automatic Tool Changer
Approx. Machine Weight
5,700 kg
Features & Benefits
• Linear guideways provide fast, smooth motion with excellent repeatability
• Heavy Meehanite cast iron structure minimises vibration
• Automatic lubrication system for long service life
• Fully enclosed guarding with coolant system
• Excellent platform for single part or small to medium batch production
Typical Applications
• General jobbing and subcontract machining
• Automotive and motorsport components
• Aerospace support parts
• Tooling, fixtures and prototype work
• Light to medium production runs
Commercial Details
Inspection: Available by appointment
Location: Brisbane
Delivery: Loading assistance available. Freight can be arranged Australia wide.
Price
Machine one
As detailed above $75,000 plus gst
Machine two
As detailed above, plus tool and spindle probing and 4th axis wiring installed and ready. Installed 6 months after machine one $83,000 plus gst.
